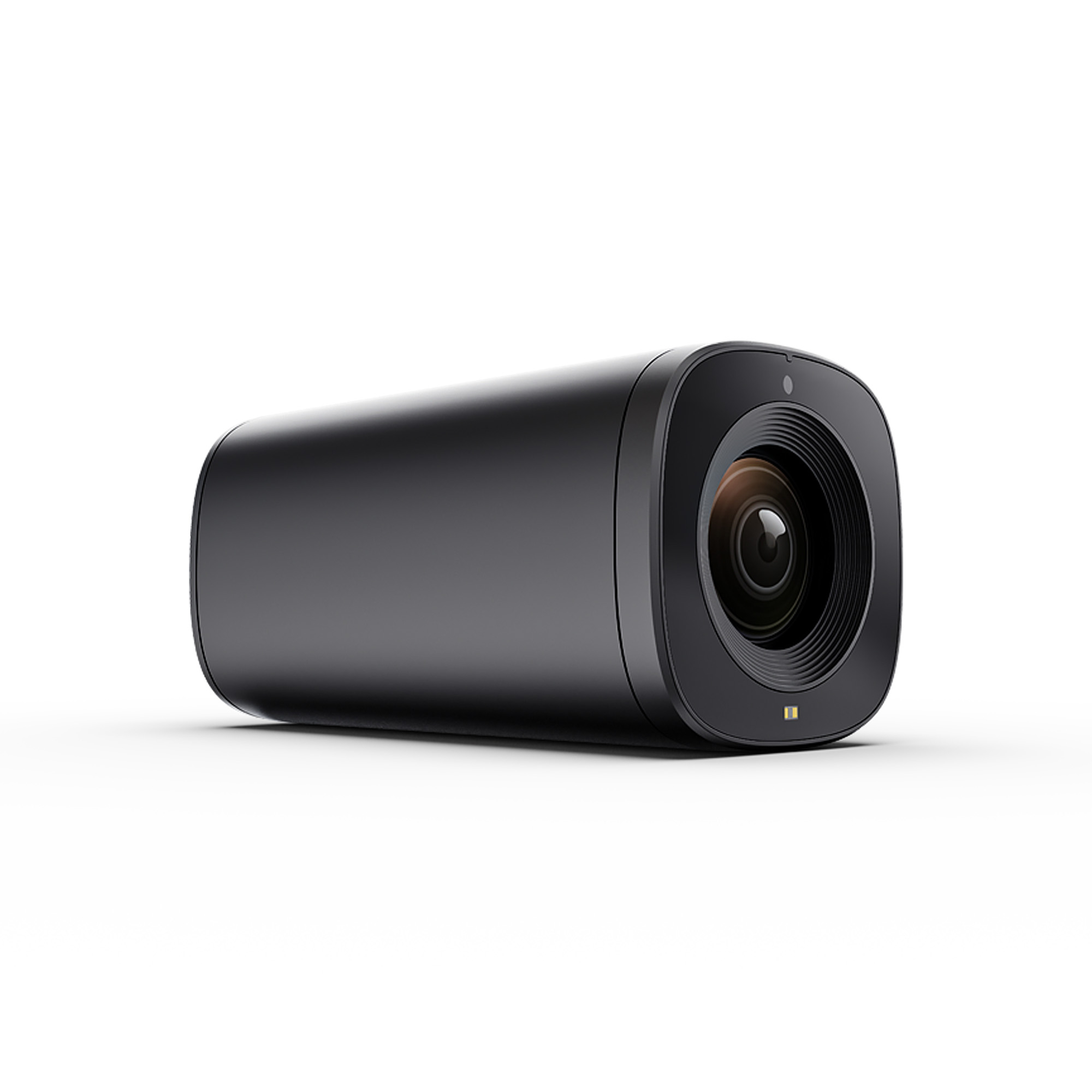

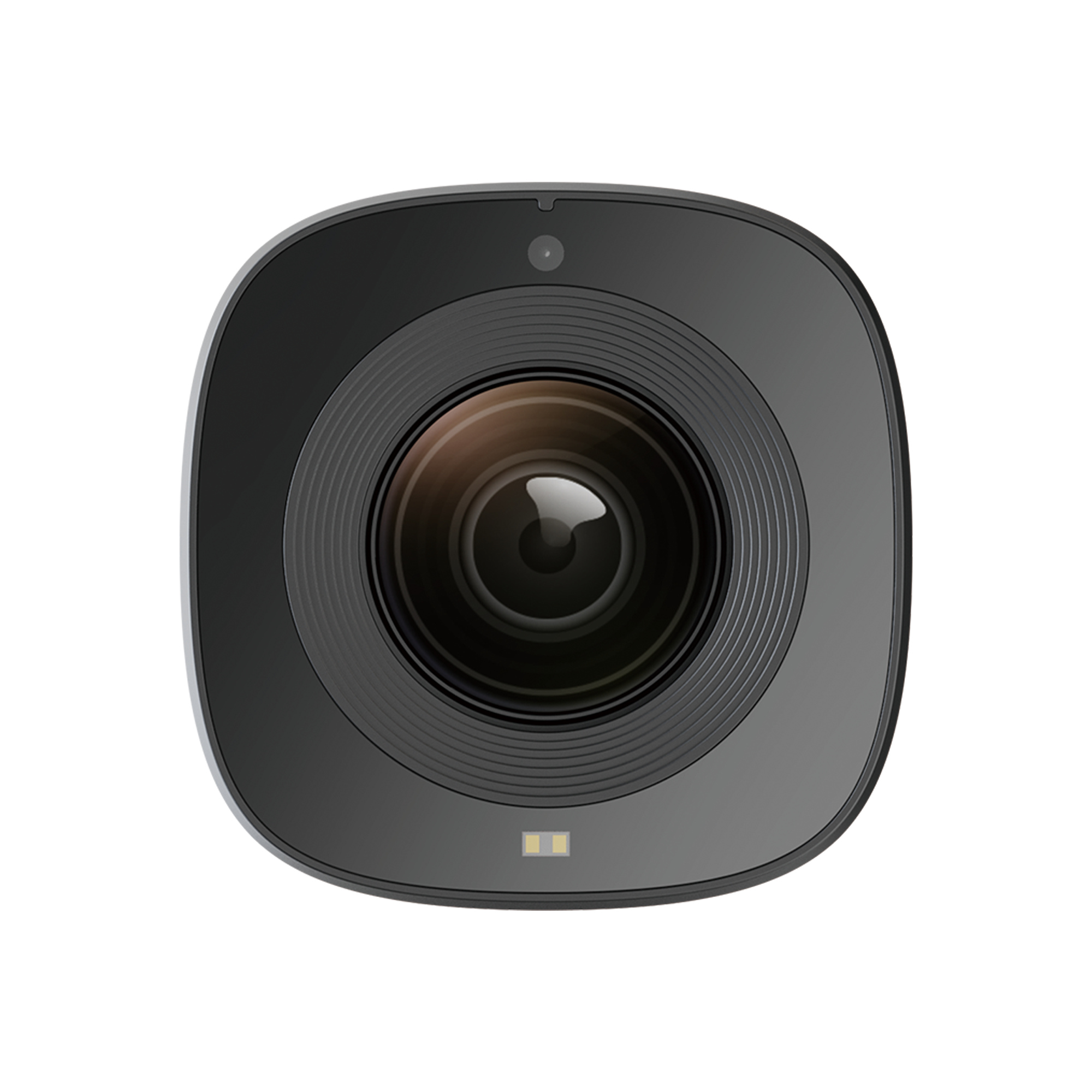

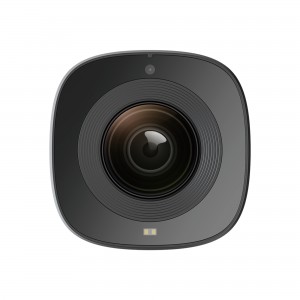

4K 10X TOF Autofocus Live Stream Camera
| SENSOR | Sensor | 1/2.8″ 8MP CMOS Sensor | |||
| Max Frame Rate | 3840H x 2160V @30fps | ||||
| LENS | Optical Zoom | 10× | |||
|
Focusing mode
|
ToF Auto Focus & Digital Focus | ||||
| Focal Length | F=4.32~40.9mm | ||||
| Aperture Value | F1.76 ~ F3.0 | ||||
| Focus Distance | Wide: 30cm, Tele: 150cm | ||||
| Field of View | 75.4°(Max) | ||||

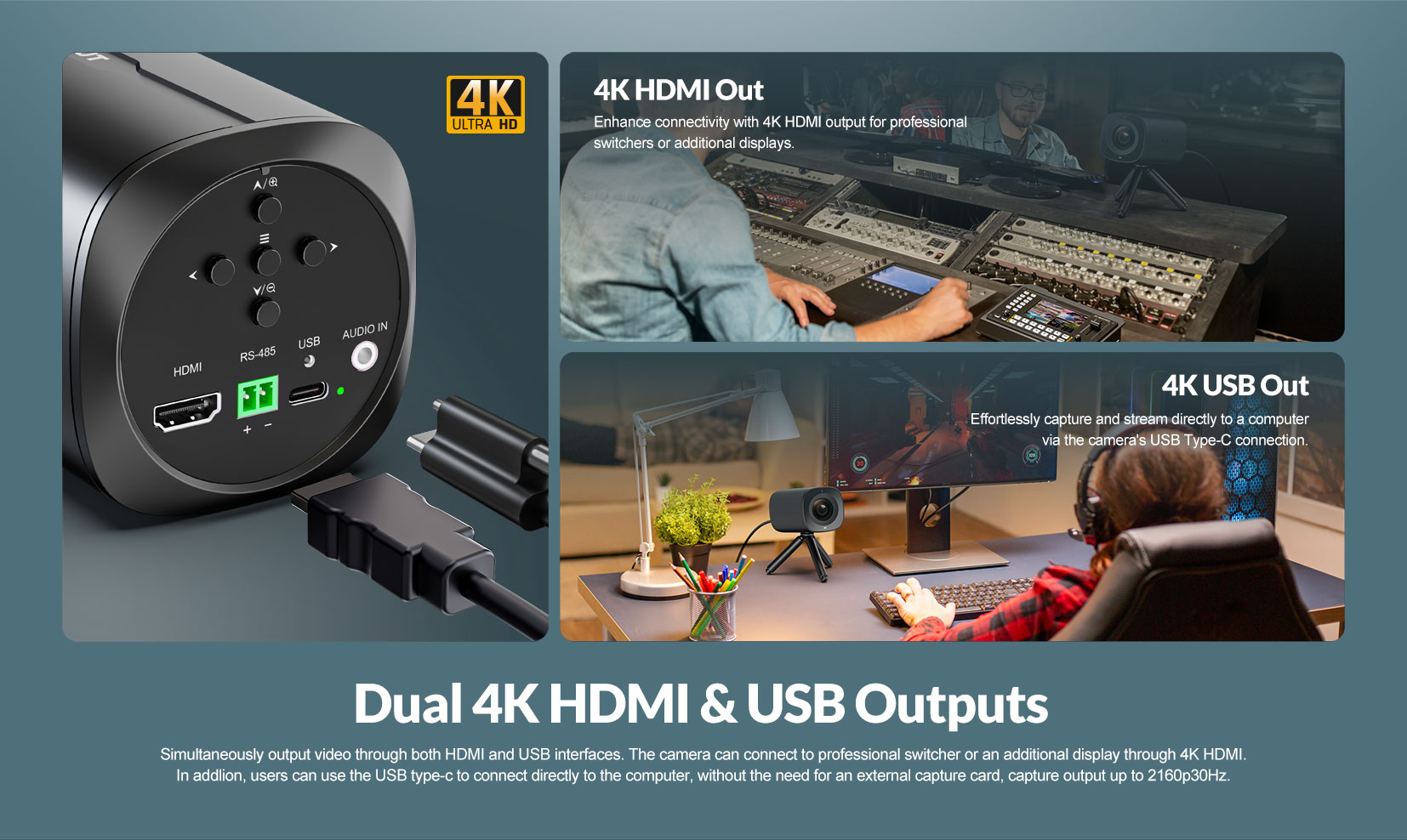

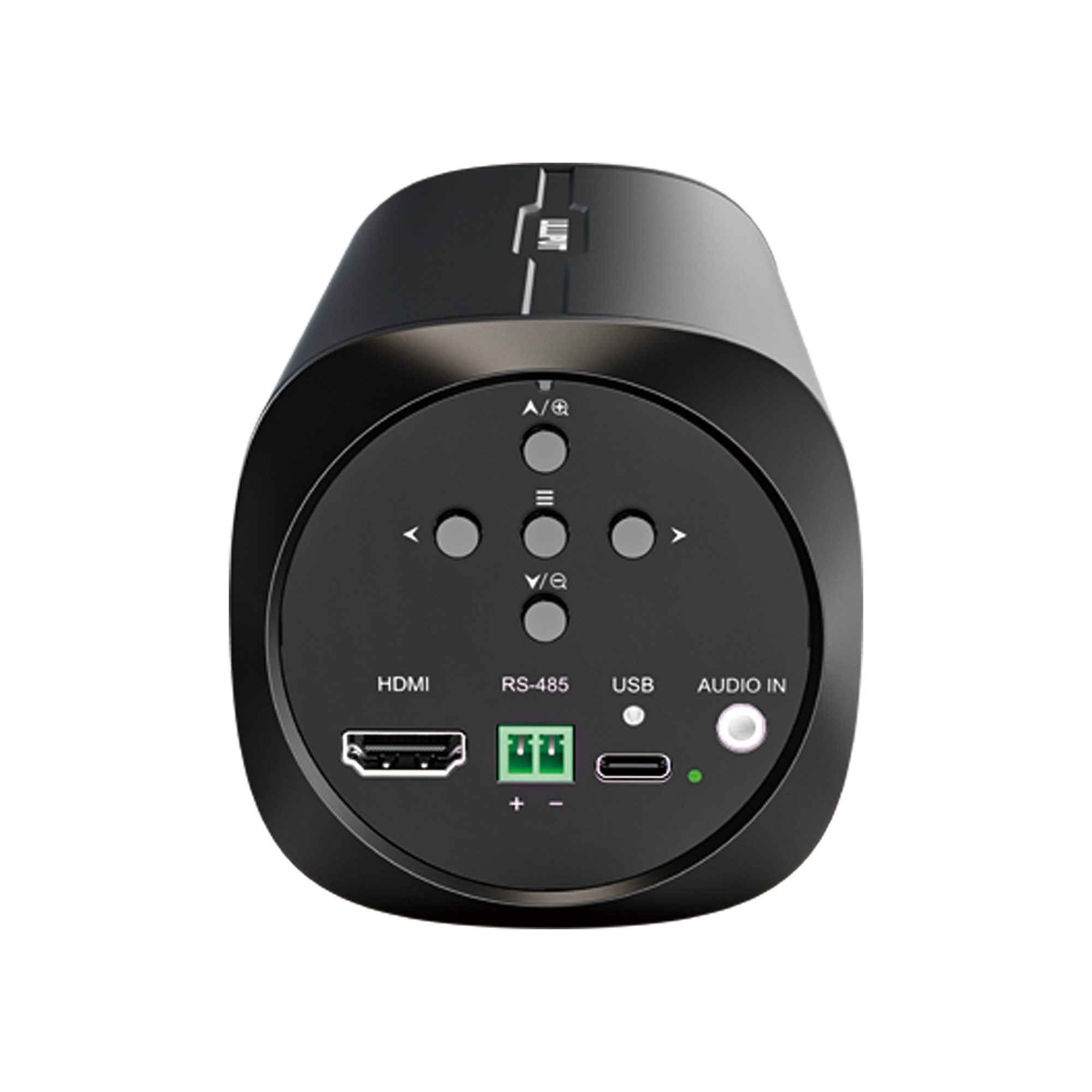

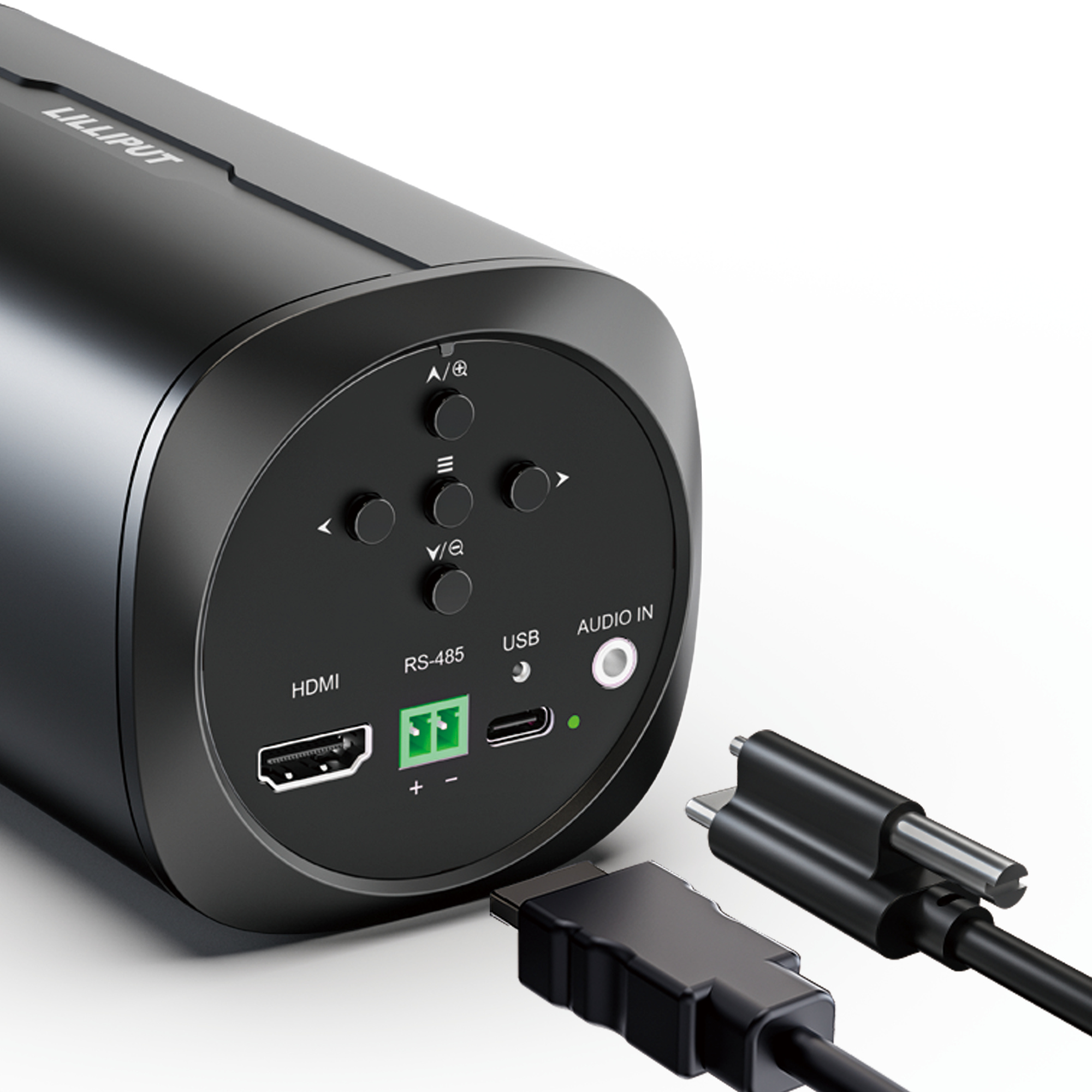

| INTERFACES | Video Output | HDMI, USB(UVC) | |||
| USB Capture Format | MJPG 30P: 3840×2160 MJPG 60P: 1920×1080/1280×960/1280×720/1024×768/800×600/720×576/640×480 YUY2 60P: 1920×1080/1280×960/1280×720/1024×768/800×600/720×576/640×480 |
||||
| HDMI Format | 2160p30, 1080p/720p 60/50/30/25 | ||||
| Audio Input | 3.5mm Audio In | ||||
| Control Port | RS485 Serial (Support protocol VISCA) | ||||
| FUNCTIONS | Exposure Mode | AE/AE Lock/ Custom | |||
| White Balance Mode | AWB/ AWB Lock/ Custom/ VAR | ||||
| Focus Mode | AF/ AF Lock/ Manual | ||||
| Preset Image Styles | Meeting/ Beauty/ Jewel/ Fashion/ Custom | ||||

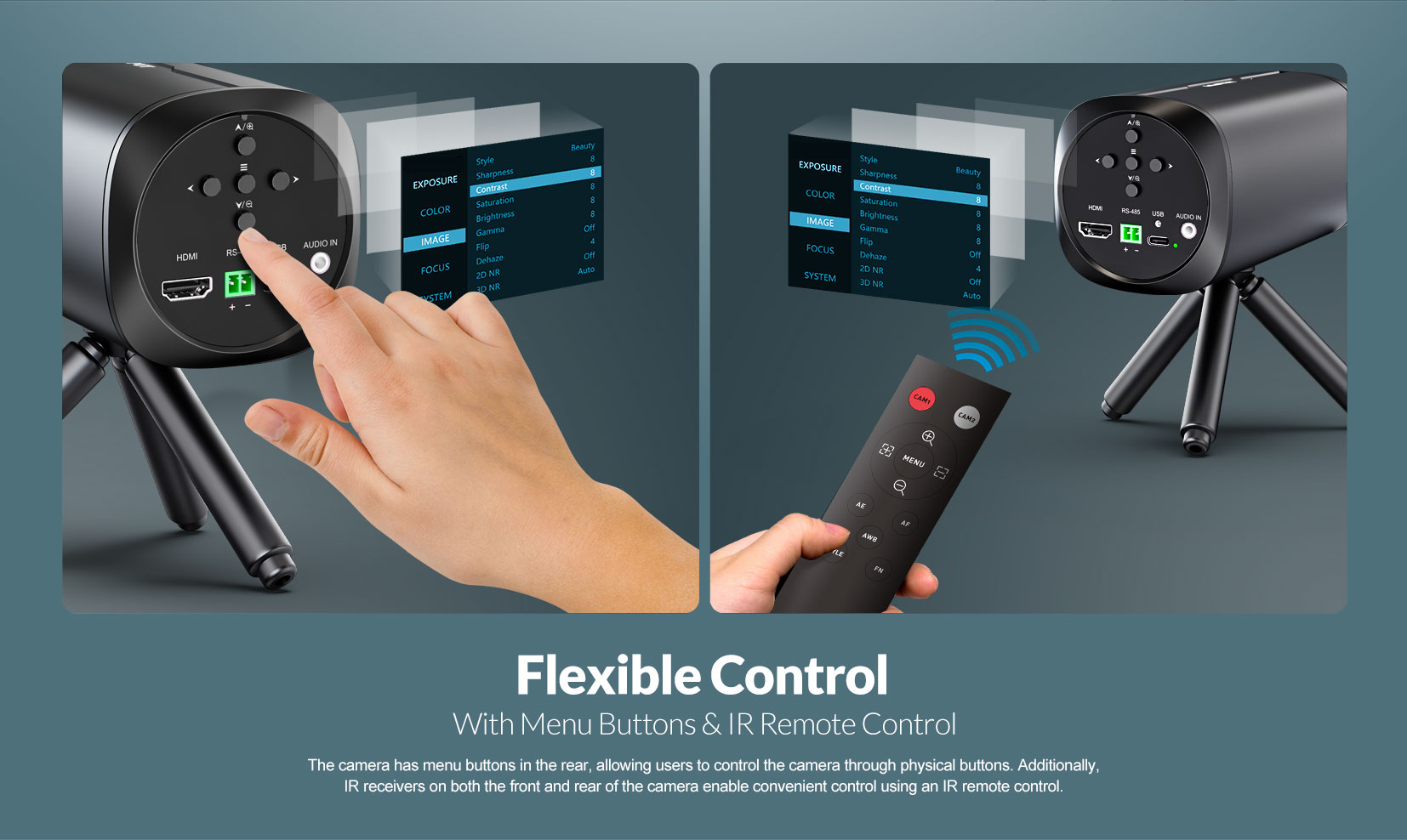

| Control Methods | IR Remote Control & Buttons | ||||
| Backlight Compensation | Support | ||||
| Anti-Flicker | 50Hz/ 60Hz | ||||
| Noise Reduction | 2D NR & 3D NR | ||||
| Video Adjustment | Sharpness, Contrast, Color Saturation, Brightness, Hue, Color Temp, Gamma | ||||
| Image Flip | H Flip, V Flip, H&V Flip | ||||
| OTHERS | Consumption | <5W | |||
| USB Power Voltage Range | 5V±5% (4.75-5.25V) | ||||
| Operation Temperature | 0-50°C | ||||
| Dimension (LWD) | 78×78×154.5mm | ||||
| Weight | Net Weight: 686.7g, Gross Weight: 1064g | ||||

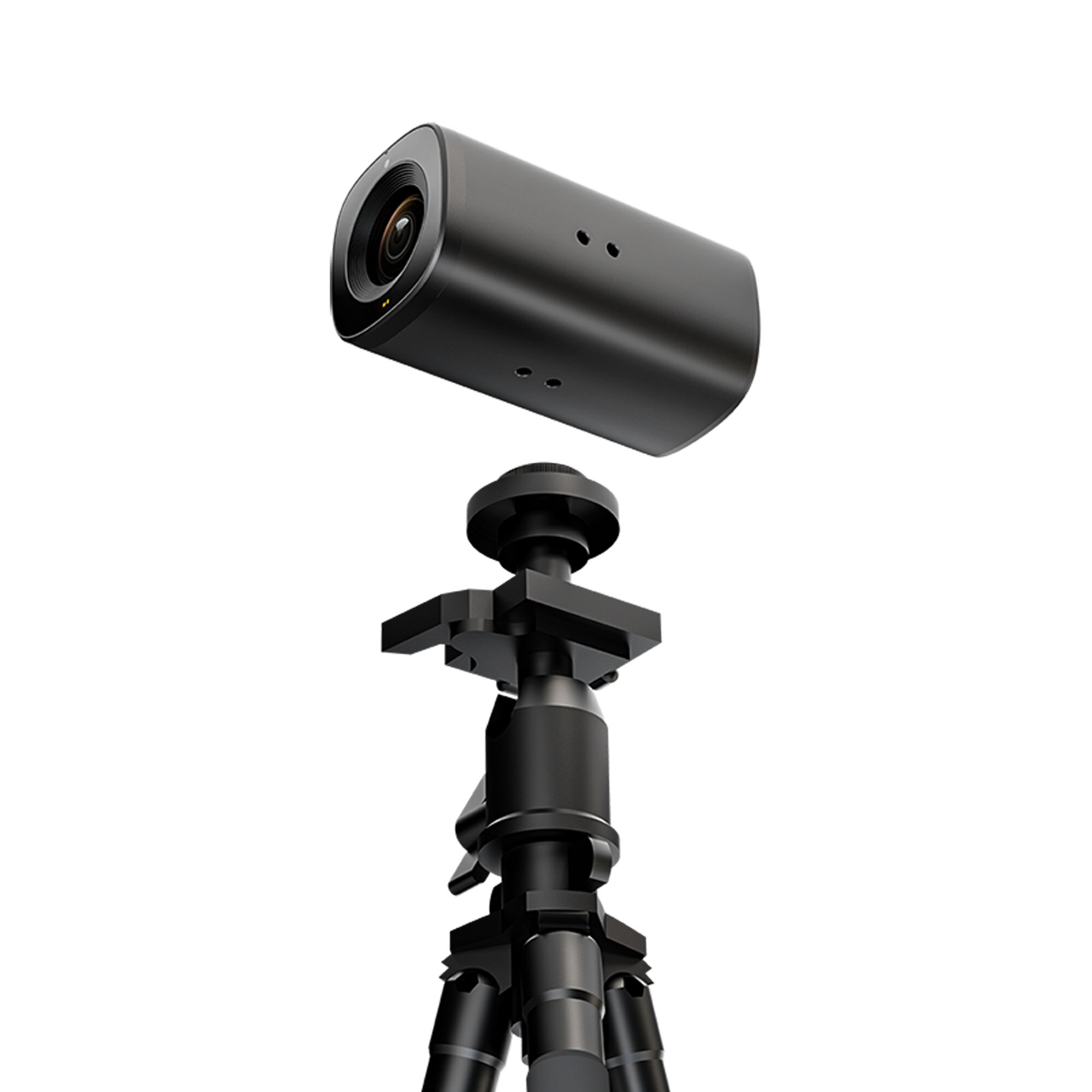

| Installation Methods | Lanscape & Portrait Orientation | ||||
| Warranty | 1 year | ||||
