619A_DSLR Camera Monitor

Short Description:

619A is a 7 inch LED backlit monitor. With 800×480 native resolution and 16:9 aspect ratio, it can support video inputs up to 1920×1080. 619A can provide professional camera crews and accurate colour representation. It can support various signal,that is HDMI, VGA, DVI, YPbPr, AV composite. Moreover, it would be applied to various environments, such as public display, outdoor advertising, industrial operation and so on.


  • Model: 619A
  • Physical Resolution: 800×480, support up to 1920×1080
  • Brightness: 450cd/㎡
  • Input: HDMI,YPbPr,DVI,VGA,AV
  • Product Detail

    Specifications

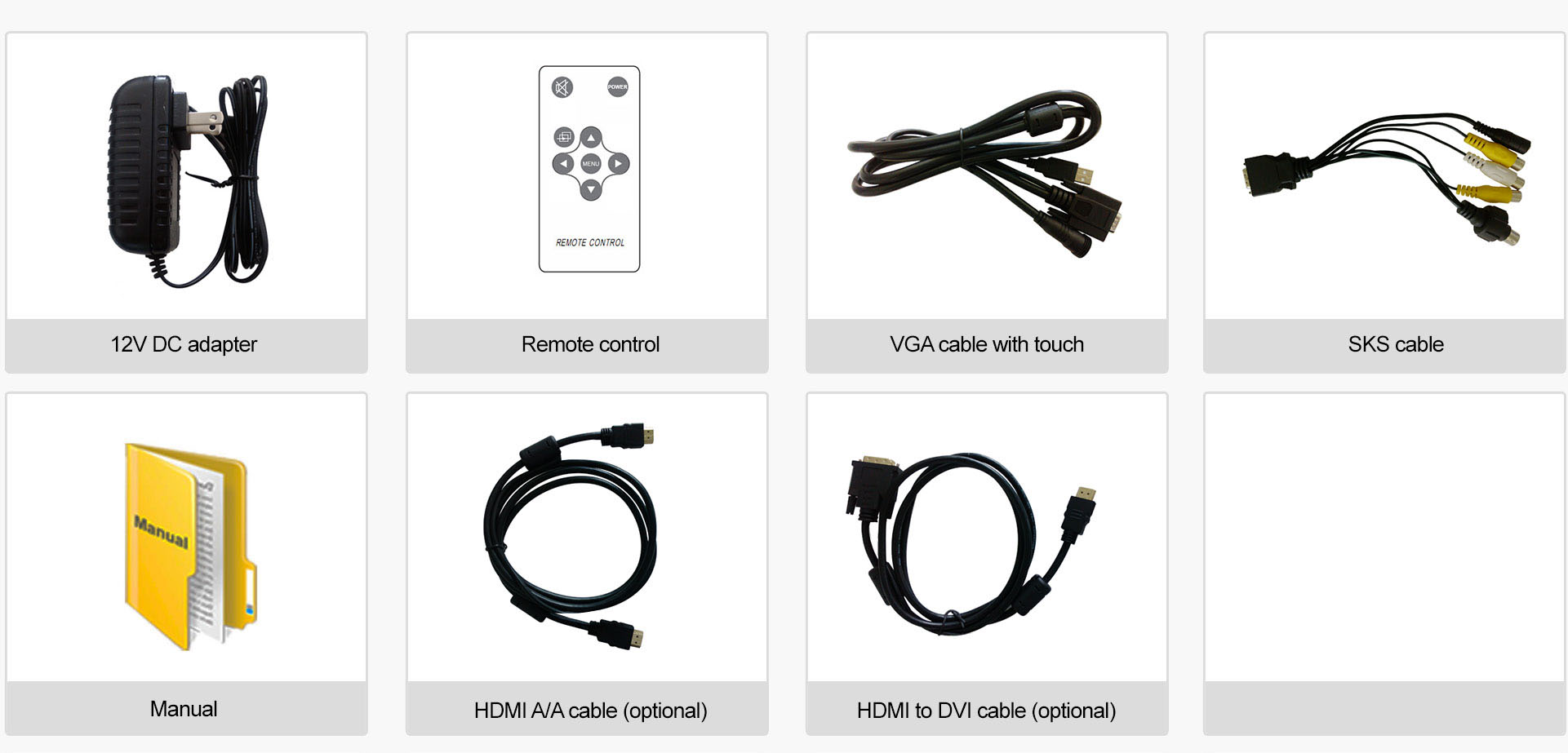

    Accessories

    The Lilliput 619A is a 7 inch 16:9 LED field monitor with HDMI, AV, VGA input. YPbPr &DVI input for optional.

    7 inch monitor with wide screen aspect ratio

    Whether you’re shooting still or video with your DSLR, sometimes you need a bigger screen than the tiny monitor built into your camera. The 7 inch screen gives directors and camera men a larger view finder, and the 16:9 aspect ratio.

    Designed for entry level of DSLR

    Lilliput are famous for manufacturing durable and high quality hardware, at a fraction of the cost of competitors. With the majority of DSLR cameras supporting HDMI output, it is likely your camera is compatible with the 619A.

    High contrast ratio

    Professional camera crews and photographers require accurate colour representation on their field monitor, and the 619A provides just that. The LED backlit, matte display has a 500:1 colour contrast ratio so colours are rich and vibrant, and the matte display prevents any unnecessary glare or reflection.

    Enhanced brightness, great outdoor performance

    The 619A is one of the Lilliput’s brightest monitor. The enhanced 450 cd/㎡ backlight produces a crystal clear picture and shows colours vividly. Importantly, the enhanced brightness prevents the video content from looking ‘washed out’ when the monitor is used under sun light.


  • Previous:
  • Next:

  • Display
    Size 7″ LED backlit
    Resolution 800×480, support up to 1920×1080
    Brightness 450cd/m²
    Aspect Ratio 16:9
    Contrast 500:1
    Viewing Angle 140°/120°(H/V)
    Input
    AV  1
    HDMI  1
    DVI  1(optional)
    YPbPr  1(optional)
    Antenna Port  2
    AV  1
    Audio
    Speaker  1(bulit-in)
    Power
    Current  650mA
    Input Voltage  DC 12V
    Power Consumption  ≤8W
    Environment
    Operating Temperature  -20℃ ~ 60℃
    Storage Temperature  -30℃ ~ 70℃
    Dimension
    Dimension(LWD)  187x128x33.4mm
    Weight  486g

    619A
