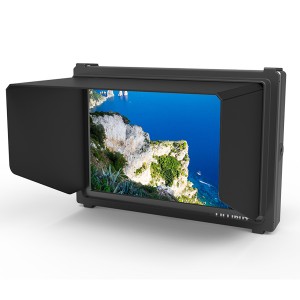

FS7 _ 7 inch 4K Camera-top monitor

Short Description:

Compact, nice and professional on-camera monitor matches with FHD/4K camcorder and DSLR camera.  The 7 inch 1920×1200 Full HD native resolution screen features with fine picture quality and good color reproduction. The SDI ports support 3G-SDI signal input and loop output, HDMI ports support up to 4094×2160 4K signal input and loop output. For the advanced camera auxiliary functions, such like peaking filter, audio lever meter and others, all are under professional equipment or software testing and calibration, parameters accurate, and comply with industrial standards. Aluminum housing design, which effectively improves monitor durability. This is so-called a better camera assist.


  • Model: FS7
  • Physical resolution: 1920×1200
  • Input: 1×3G-SDI, 1×HDMI 1.4
  • Output: 1×3G-SDI, 1×HDMI 1.4
  • Feature: Metal housing
  • Product Detail

    Specifications

    Accessories

    FS7_ (1)

    A Better Camera Assist

    FS7 matches with world-famous 4K / FHD camera brands, to assist cameraman in better photography experience

    for variety of applications, i.e. filming on site, broadcast live action, making movies and post-production, etc.

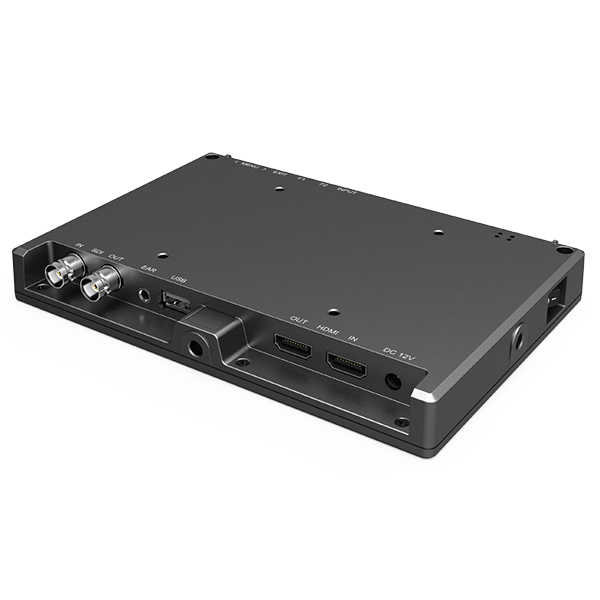

    4K HDMI / 3G-SDI Input & Loop Output

    SDI format supports 3G-SDI signal, 4K HDMI format supports 4096×2160 24p / 3840×2160 (23/24/25/29/30p).

    HDMI / SDI signal can loop output to the other monitor or device when HDMI / SDI signal input to FS7.

    FS7_ (2)

    Excellent Display

    Creatively integrated the 1920×1200 native resolution into a 10.1 inch 8 bit LCD panel, which is far beyond from retina identification.

    Features with 1000:1, 500 cd/m2 brightness & 170° WVA; With full lamination technology, see every detail in massive FHD visual quality.

    FS7_ (3)

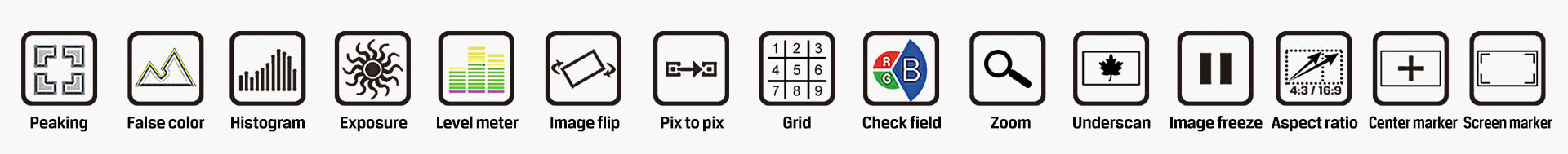

    Camera Auxiliary Functions & Easy-to-use

    A11 provides plenty of auxiliary functions for taking photos and making movies, such as peaking, false color and audio level meter.

    F1 & F2 user-definable buttons to custom auxiliary functions as shortcut, such as peaking, underscan and checkfield. Use the Dial

    to select and adjust the value among of sharpness, saturation, tint and volume, etc.

    FS7_ (4) FS7_ (5)

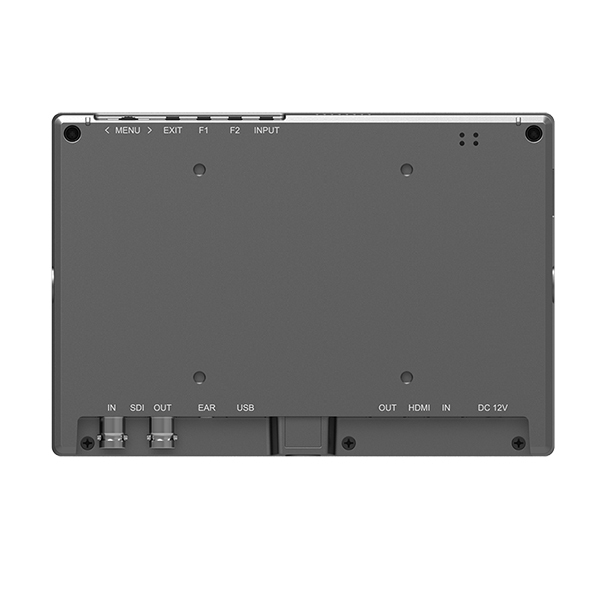

    Metal Housing Design

    Compact and firm metal body, which make great convenient for cameraman in outdoor environment.

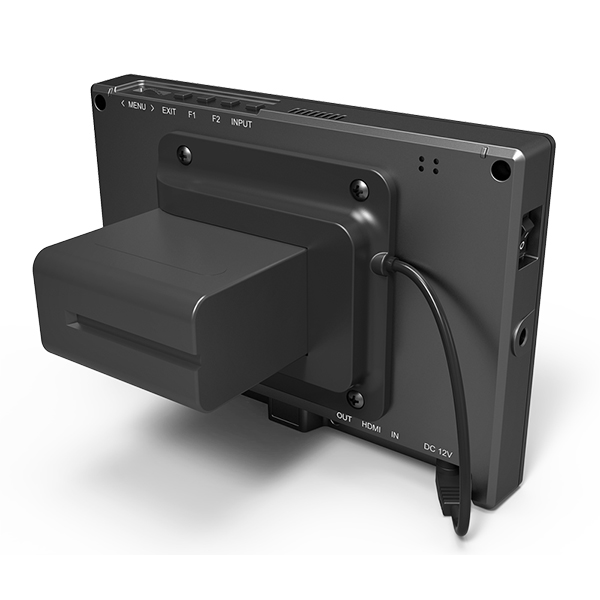

    Battery F-series Plate Bracket

    VESA 75mm mount design allows A11 to power up with a external SONY F-series battery on its back.F970 can

    work continuously for more than 4 hours. Optional V-lock mount and Anton Bauer mount are also compatible with.

    FS7_ (6)


  • Previous:
  • Next:

  • Display
    Size 7”
    Resolution 1920 x 1200
    Brightness 500cd/m²
    Aspect ratio 16:10
    Contrast 1000:1
    Viewing Angle 170°/170°(H/V)
    Video Input
    SDI 1×3G
    HDMI 1×HDMI 1.4
    Video Loop Output
    SDI 1×3G
    HDMI 1×HDMI 1.4
    Supported In / Out Formats
    SDI 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60
    HDMI 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60,2160p 24/25/30
    Audio In/Out (48kHz PCM Audio)
    SDI 12ch 48kHz 24-bit
    HDMI 2ch 24-bit
    Ear Jack 3.5mm - 2ch 48kHz 24-bit
    Built-in Speakers 1
    Power
    Operating power ≤12W
    DC In DC 7-24V
    Compatible batteries NP-F Series
    Input voltage (battery) 7.2V nominal
    Environment
    Operating Temperature 0℃~50℃
    Storage Temperature -20℃~60℃
    Other
    Dimension(LWD) 182×124×22mm
    Weight 405g

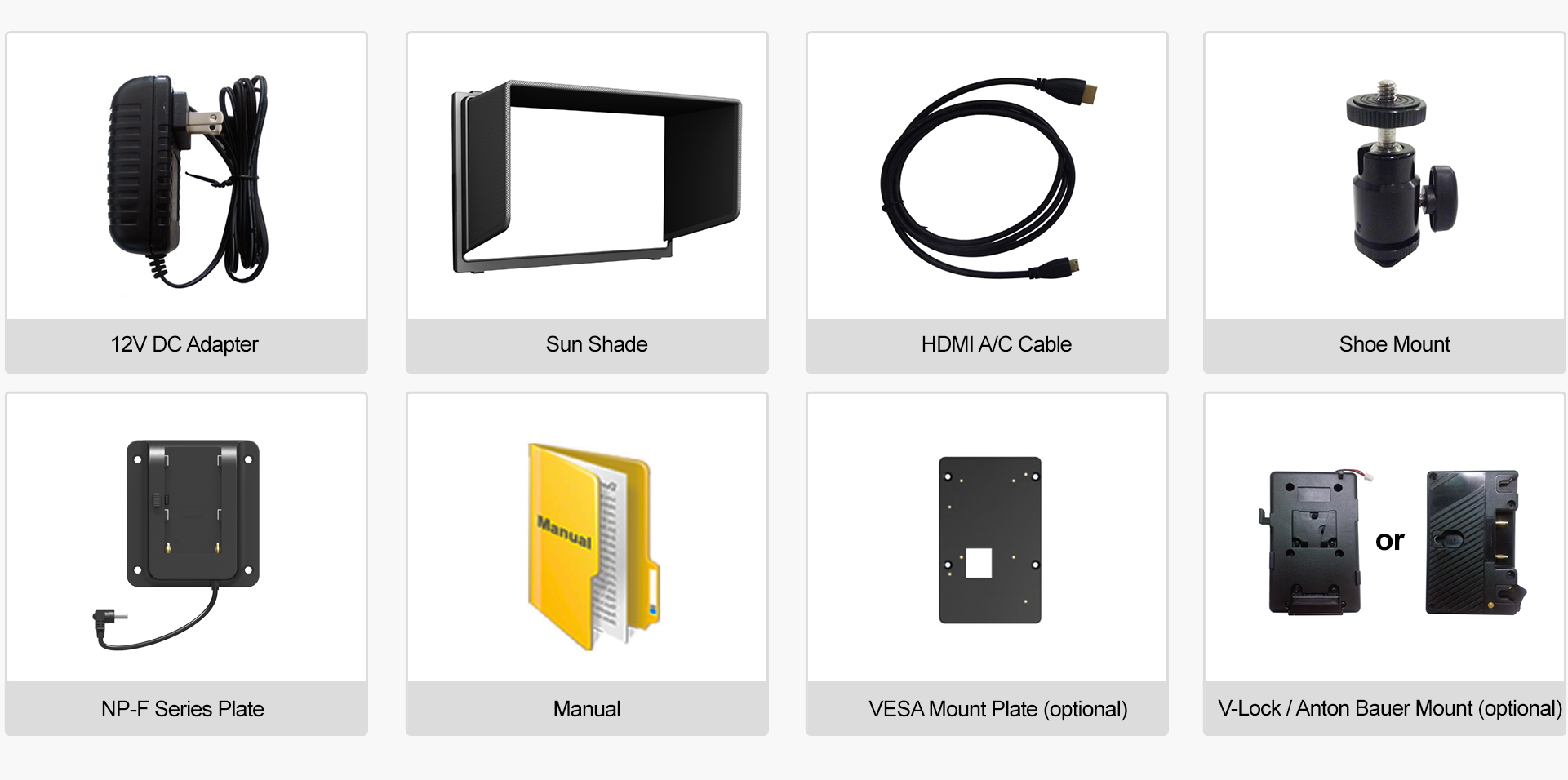

    FS7 accessories
