7 inch 1800nits ultra bright HDMI SDI on-camera monitor

Short Description:

H7S is a professional camera-top monitor specifically for photography and film maker, especially for outdoor video and film shooting. With sunlight viewable brightness 1800nits, this 7 inch LCD monitor has 1920×1200 Full HD native resolution and 1200:1 high contast providing superior picture quality, and support 4K HDMI and 3G-SDI signal inputs and loop outputs. If just 4K HDMI is needed, the model H7 with the same features but no 3G-SDI would be welcomed. Various camera auxiliary functions for both models can be used, such as Audio level meter, 3D-LUT, HDR and User marker, ect. Dual battery plate design with Sony NP-F series supports alternate power supply. Prefessional and strict equipement testing and correction effectively improves monitor durability.

  • Model: H7S
  • Display: 7 inch, 1920×1200, 1800nit
  • Input: 1×3G-SDI, 1× 4K HDMI 1.4
  • Output: 1×3G-SDI, 1× 4K HDMI 1.4
  • Feature: HDR, 3D-LUT...
  • Product Detail




    On-Camera high brightness Monitor with Full HD Resolution, Sunlight Viewable LCD Application for taking photos & creating movies


    1800 nit Ultra-Bright & Ultimate Color Visibility

    Featuring an amazing 1800 nit Ultra Bright LCD screen, with the sun readability therefore the gear suitable for any

    innovative outdoor framing. Mounted on top of the camera, to make it the “Brightest Scenery”.  A precision camera

    monitor designed for the film and video shooting on any type of camera. Providing the superior picture quality.

    H7图_044K HDMI & 3G-SDI

    4K HDMI supports up to 4096×2160 24p and 3840×2160 30/25/24p;

    SDI supports 3G-SDI signal. HDMI / 3G-SDI signal can loop output to

    the other monitor or device when HDMI/3G-SDI signal input to monitor.



    When HDR is activated, the display reproduces a greater dynamic range of luminosity,

    allowing lighter and darker details to be displayed more clearly. Effectively enhancing

    the overall picture quality. Support ST2084 300 / ST2084 1000 / ST2084 10000 / HLG.


    3D LUT

    3D-LUT is a table for quickly looking up and output specific color data. By loading different

    3D-LUT tables, it can quickly recombine color tone to form different color styles. Rec. 709

    color space with built-in 3D-LUT, featuring 8 default logs and 6 user logs.


    Camera Auxiliary Functions

    Povides plenty of auxiliary functions for taking photos and making movies,

    such as HDR, 3D-LUT, peaking, false color, marker and audio level meter.


    H7 DM

    Alternate Batteries

    The ultra brightness display must be accompanied by higher power consumption.

    And a single power source always brings annoyance of interrupted operation.

    Dual battery plate design let the creative time has the possibility of infinite extension.



    F1 & F2(available to the model without SDI) user-definable buttons to custom auxiliary

    functions as shortcut, such as peaking, underscan and check field. Use direction keys

    to select and adjust the value among of sharpness, saturation, tint and volume, etc.

    Hot Shoe Mounting

    With 1/4 inch screw ports on the four sides of monitor, it can be fitted with a mini hot shoe

     which allows the shooting and viewing angles to be adjusted and rotated more flexibly.


    1800 nit Ultra-Bright & Ultimate Color Visibility Featuring an amazing 1800 nit Ultra Bright LCD screen with the sun readability therefore the gear suitable for any innovative outdoor framing. Mounted on top of the camera ,to make it the “Brightest Scenery”. A precision cameramonitor designed for the film and video shooting on any type of camera.Providing the superior picture quality.

  • Previous:
  • Next:

  • Display
    Size 7”
    Resolution 1920 x 1200
    Brightness 1800cd/m²(+/- 10% @ center)
    Aspect ratio 16:10
    Contrast 1200:1
    Viewing Angle 160°/160°(H/V)
    Video Input
    SDI 1×3G
    HDMI 1×HDMI 1.4
    Video Loop Output
    SDI 1×3G
    HDMI 1×HDMI 1.4
    Supported In / Out Formats
    SDI 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60
    HDMI 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60,2160p 24/25/30
    Audio In/Out (48kHz PCM Audio)
    SDI 12ch 48kHz 24-bit
    HDMI 2ch 24-bit
    Ear Jack 3.5mm - 2ch 48kHz 24-bit
    Built-in Speakers 1
    Operating power ≤15W
    DC In DC 7-24V
    Compatible batteries NP-F Series
    Input voltage (battery) 7.2V nominal
    Operating Temperature 0℃~50℃
    Storage Temperature -10℃~60℃
    Dimension(LWD) 225×155×23mm
    Weight 535g

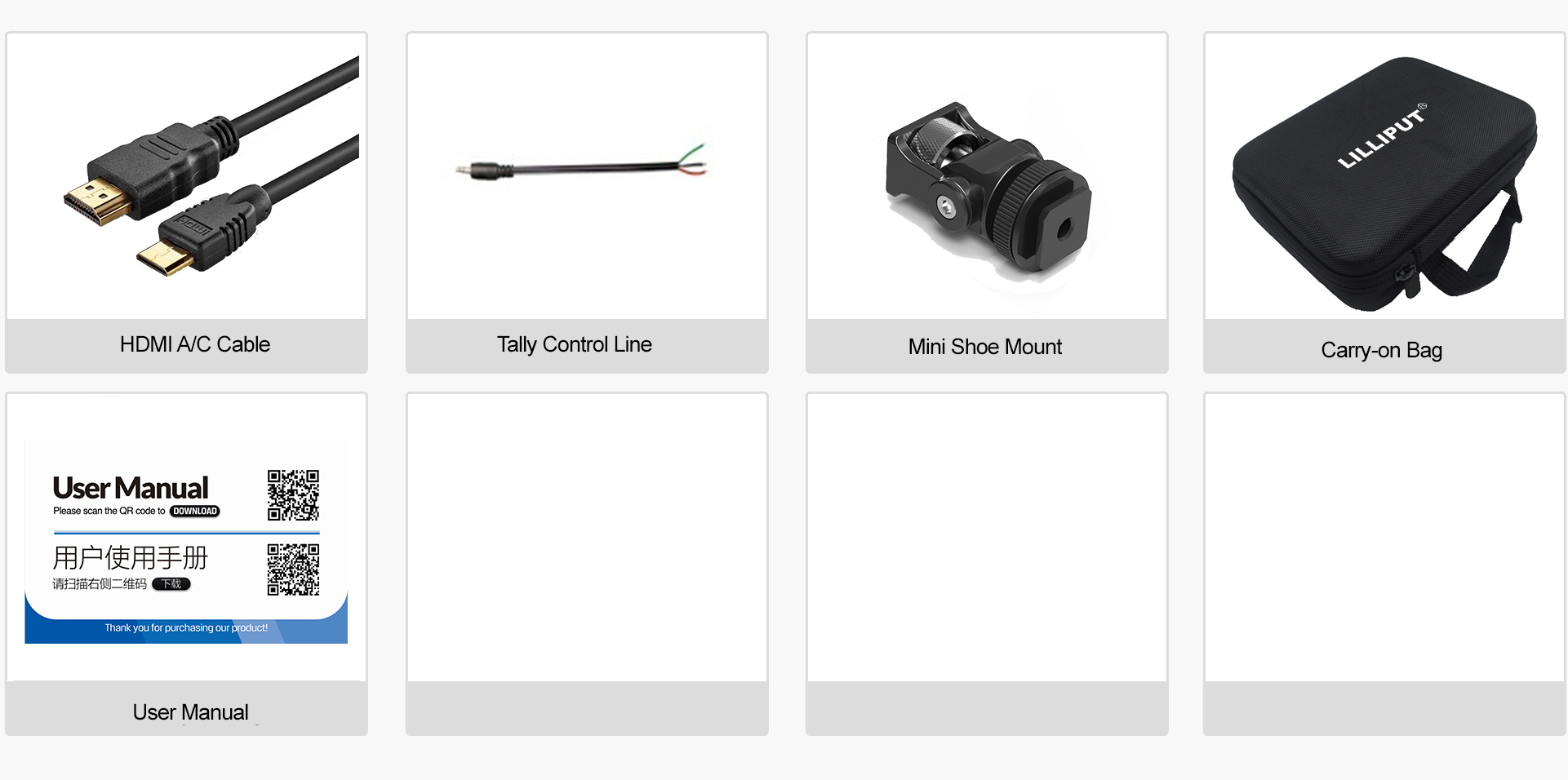

    H7 accessories
