10.4″ Night Vision All-Weather Monitor

Short Description:

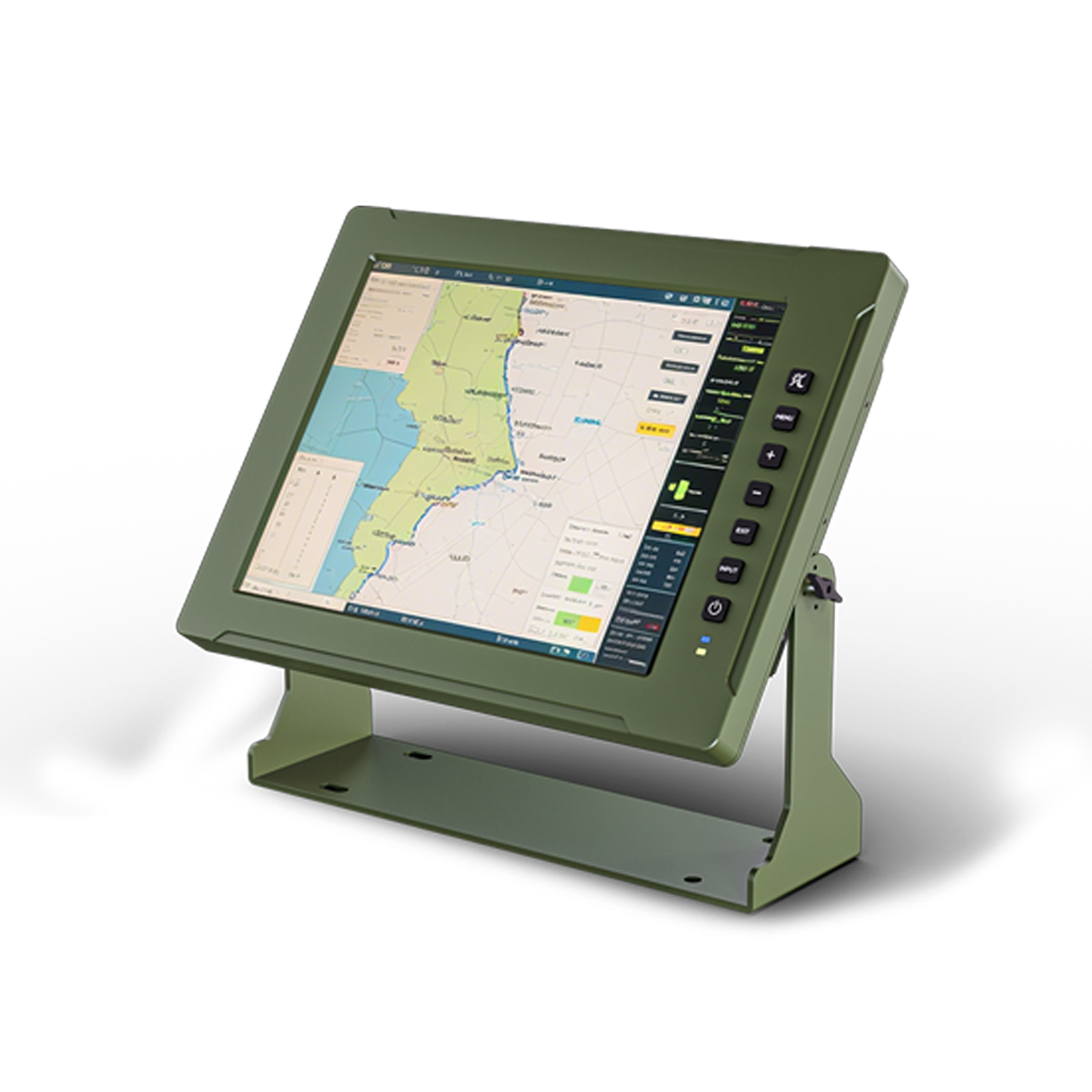

This 10.4” LCD monitor is built for extreme environments, featuring a wide -30℃ to 70℃ operating range. It supports dual-mode imaging for both night vision (0.03 nits) and daylight use (up to 1000 nits), ensuring excellent visibility around the clock. With IP65-rated protection, a sturdy metal casing, 50,000-hour panel life, and support for HDMI/VGA inputs, it’s ideal for industrial, or outdoor applications.

Model No.: NV104

Display: 10.4" / 1024×768

Input: HDMI, VGA, USB

Brightness: 0.03 nit~1000 nits

Audio In/Out: Speaker, HDMI

Feature: Supports 0.03nits low brightness; 1000nits high brightness; -30°C-70°C; Touch Screen; IP65/NEMA 4X; Metal Housing

Send email to us Download as PDF User guide

Product Detail

Specifications

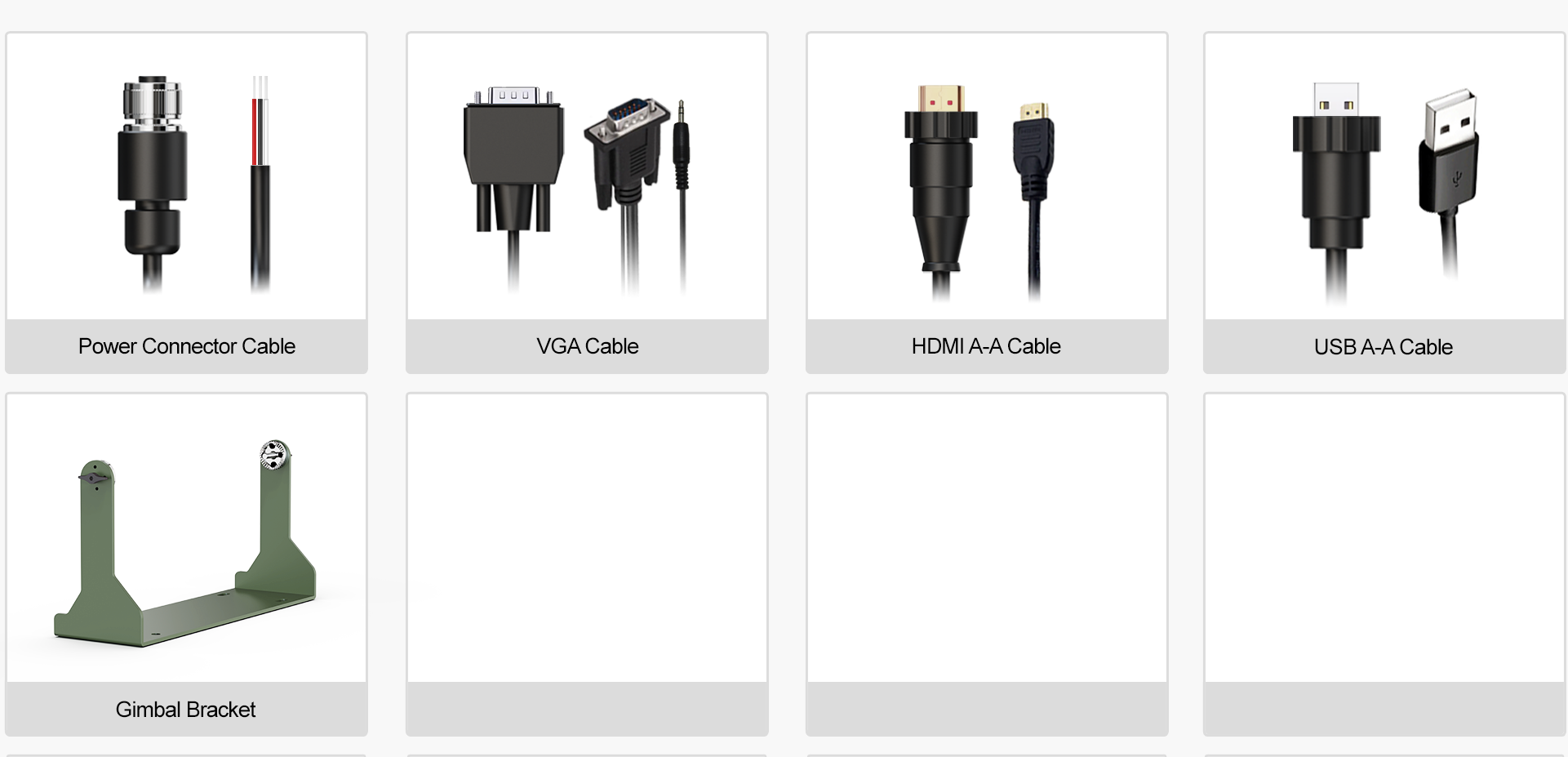

Accessories

Product Tags

Previous: 4K 10X TOF Autofocus Live Stream Camera

Next: TK2700-27 Inch 1000 Nits Touch Screen Monitor

MODEL NO.		NV104
DISPLAY
	Panel	10.4” LCD

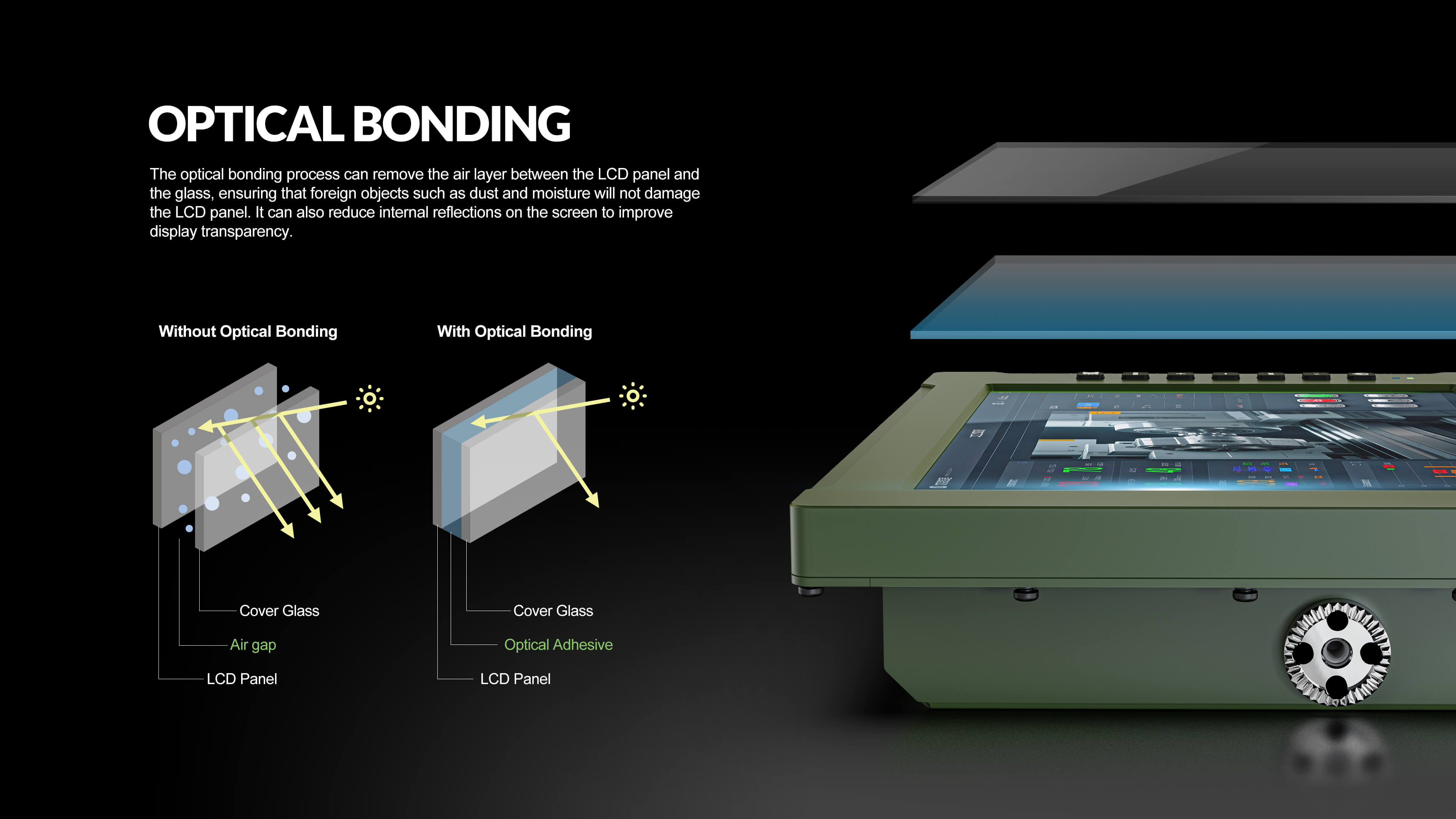

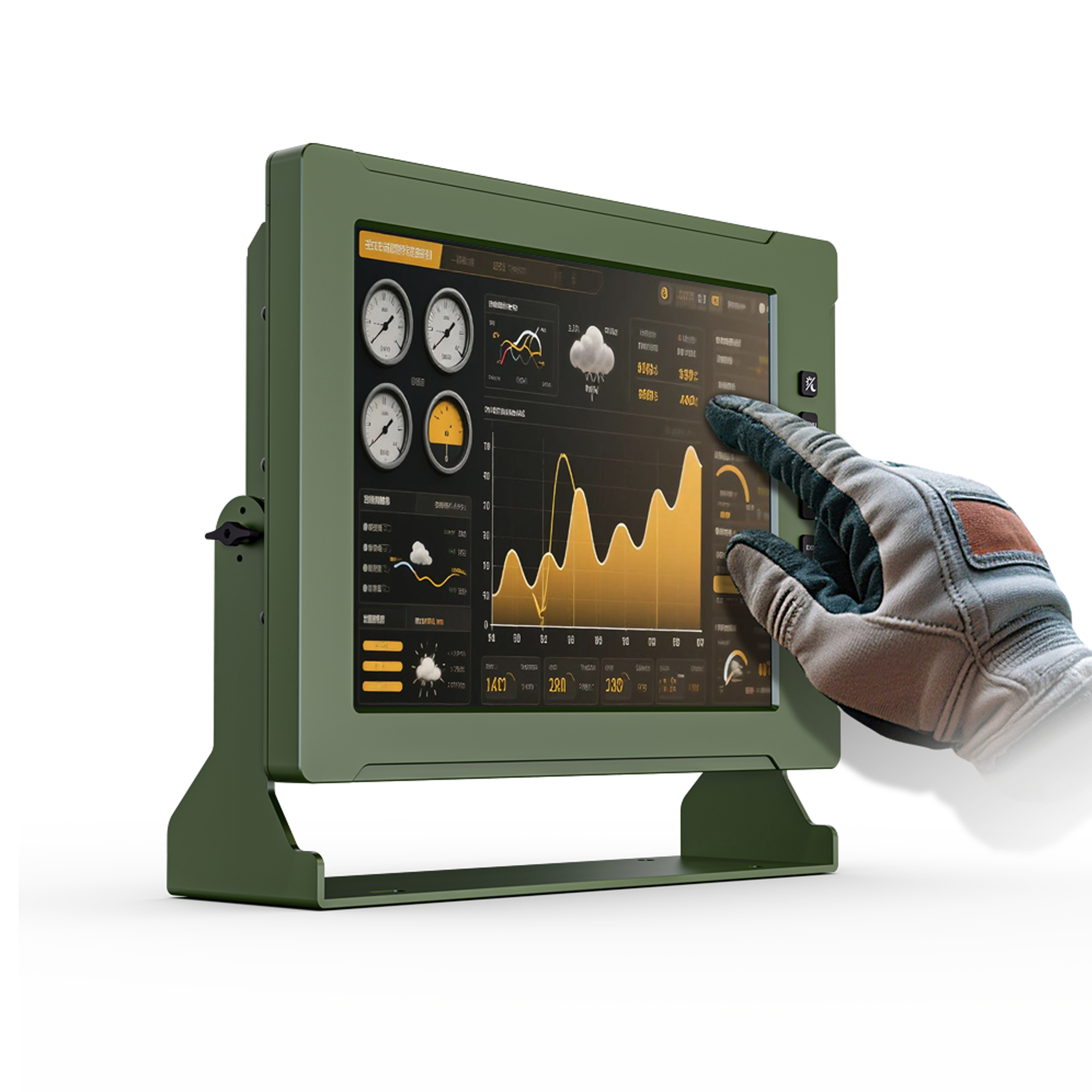

	Touch Screen	5-wire resistive touch+AG Capacitive touch+AG+AF(Optional) EMI Glass (Customizable)
	Physical Resolution	1024×768
	Brightness	Day Mode:1000nit NVIS Mode:Dimmable under 0.03nit
	Aspect Ratio	4:3
	Contrast	1000:1
	Viewing Angle	170°/ 170°(H/V)
	LED Panel Life Time	50000 Hours

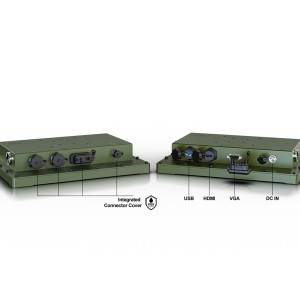

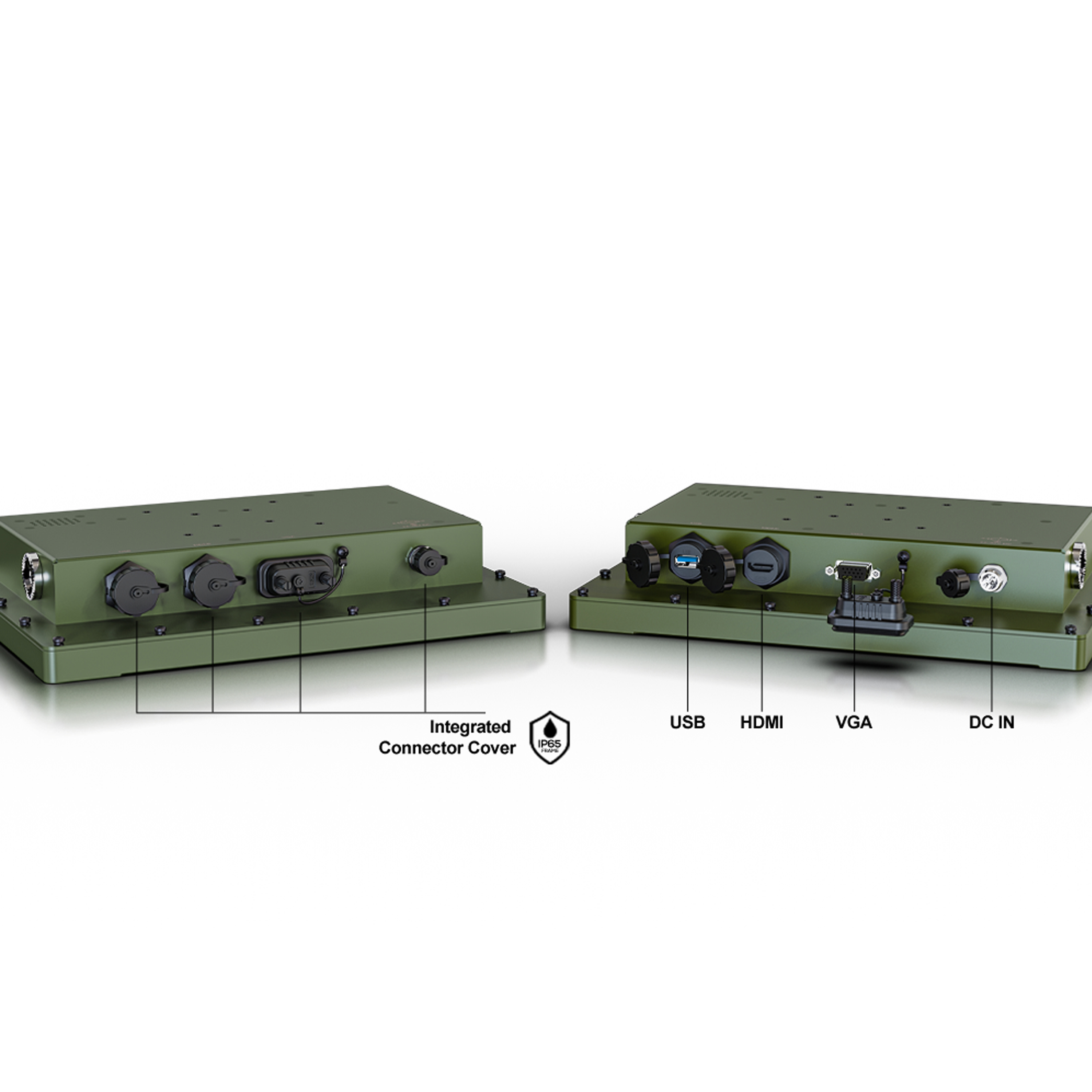

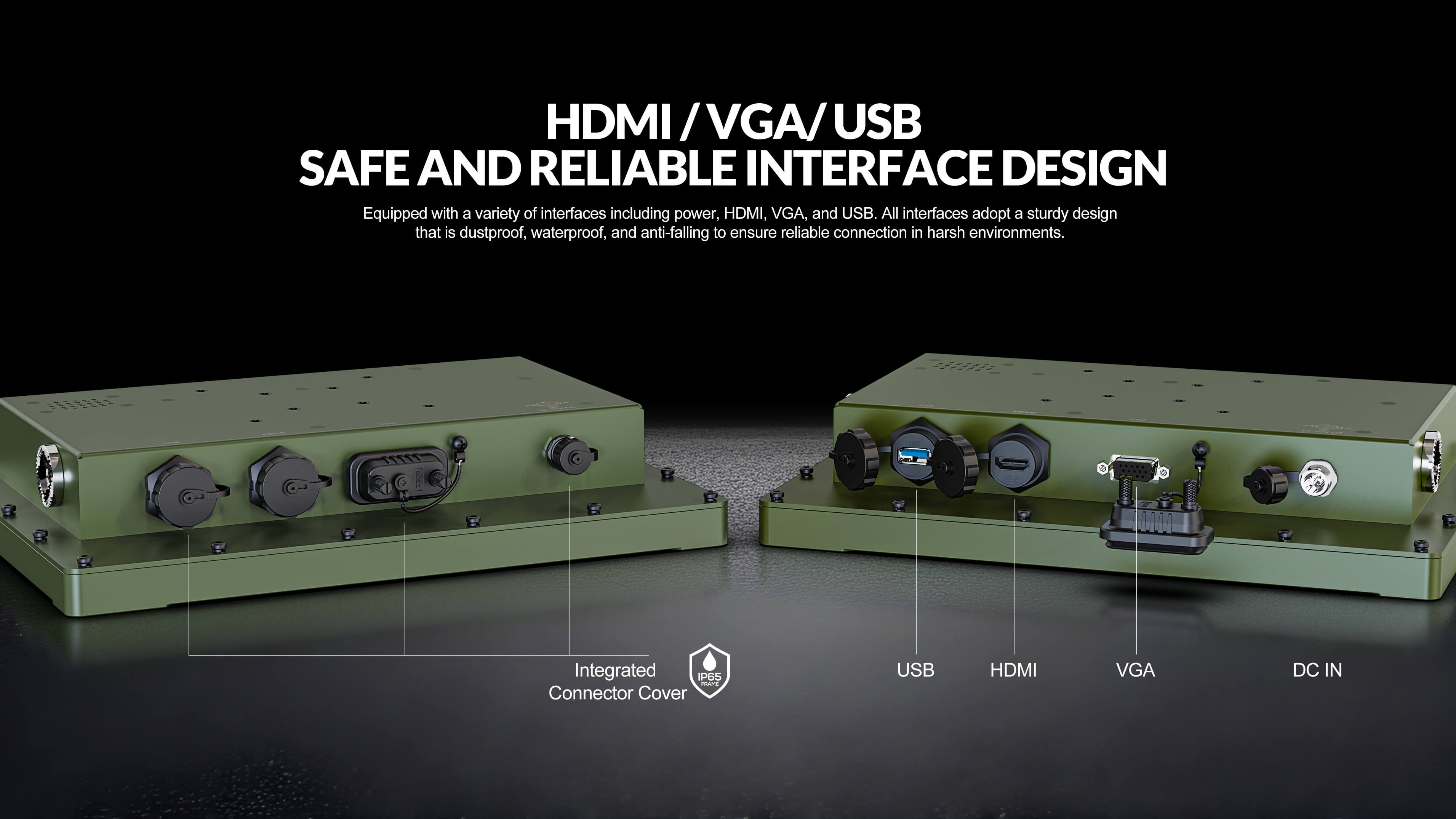

INPUT	HDMI	1
	VGA	1
	USB	1×USB-C (For touch and upgrade))
SUPPORTED FORMATS	HDMI	2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60…
	VGA	1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
AUDIO IN/OUT	Speaker	1
	HDMI	2ch 24-bit
POWER	Input Voltage	DC 12-36V
	Power Consumption	≤13W (15V, Normal mode) ≤ 69W (15V, Heating mode)
ENVIRONMENT	Protection Rating	IP65, NEMA 4X
	Operating Temperature	-30°C~70°C
	Storage Temperature	-30°C~80°C

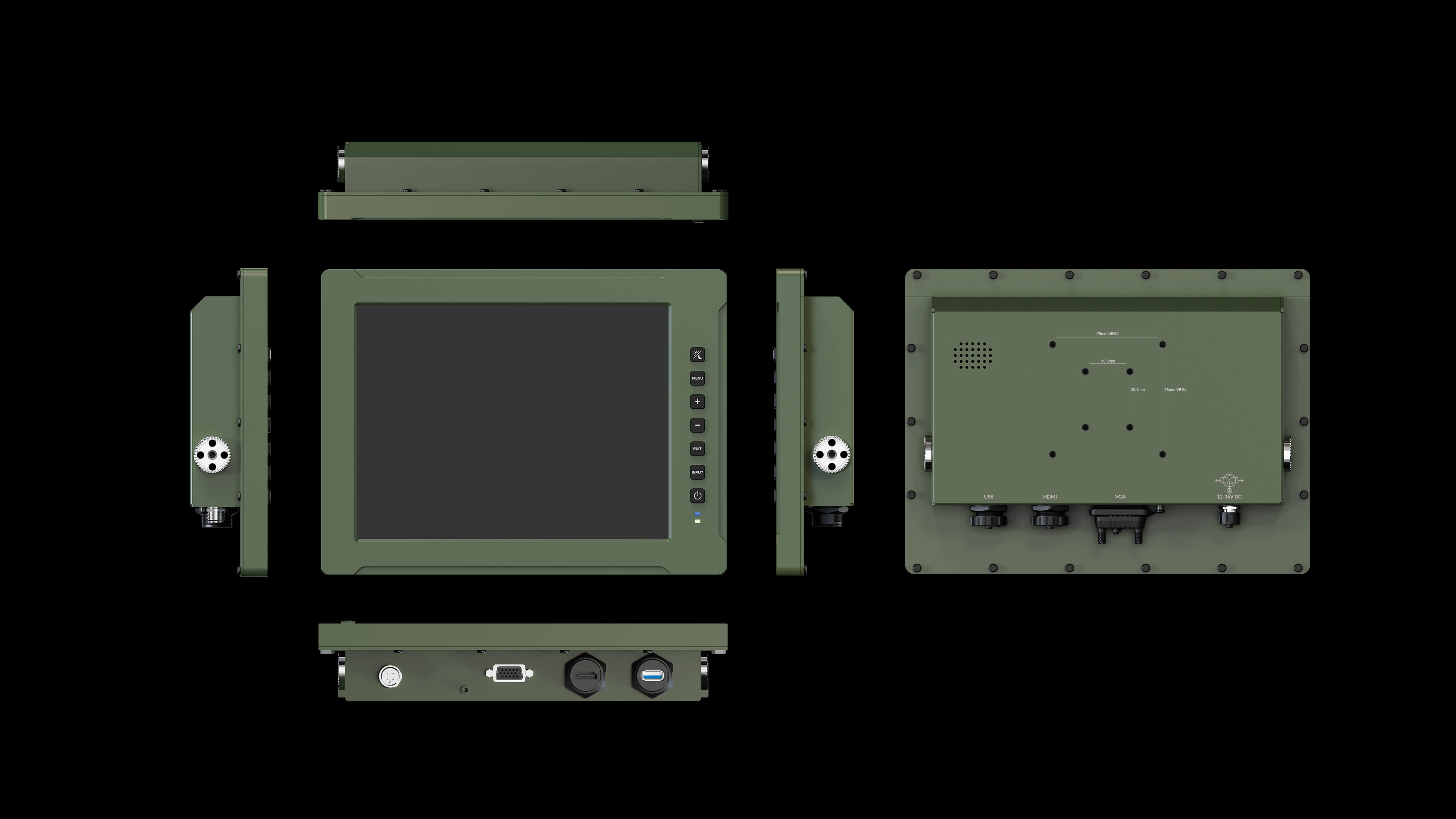

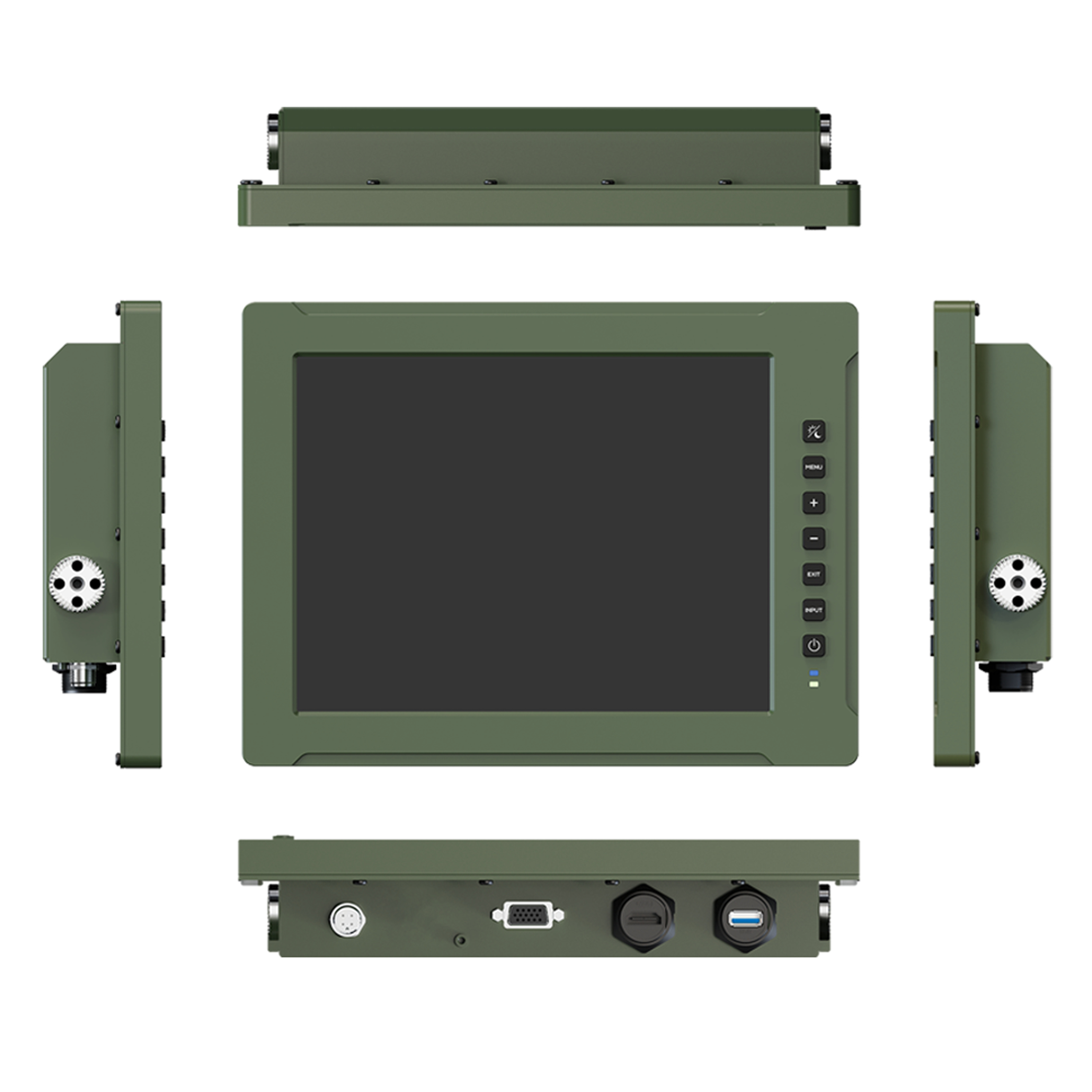

DIMENSION	Dimension(LWD)	276mm×208mm×52.5mm

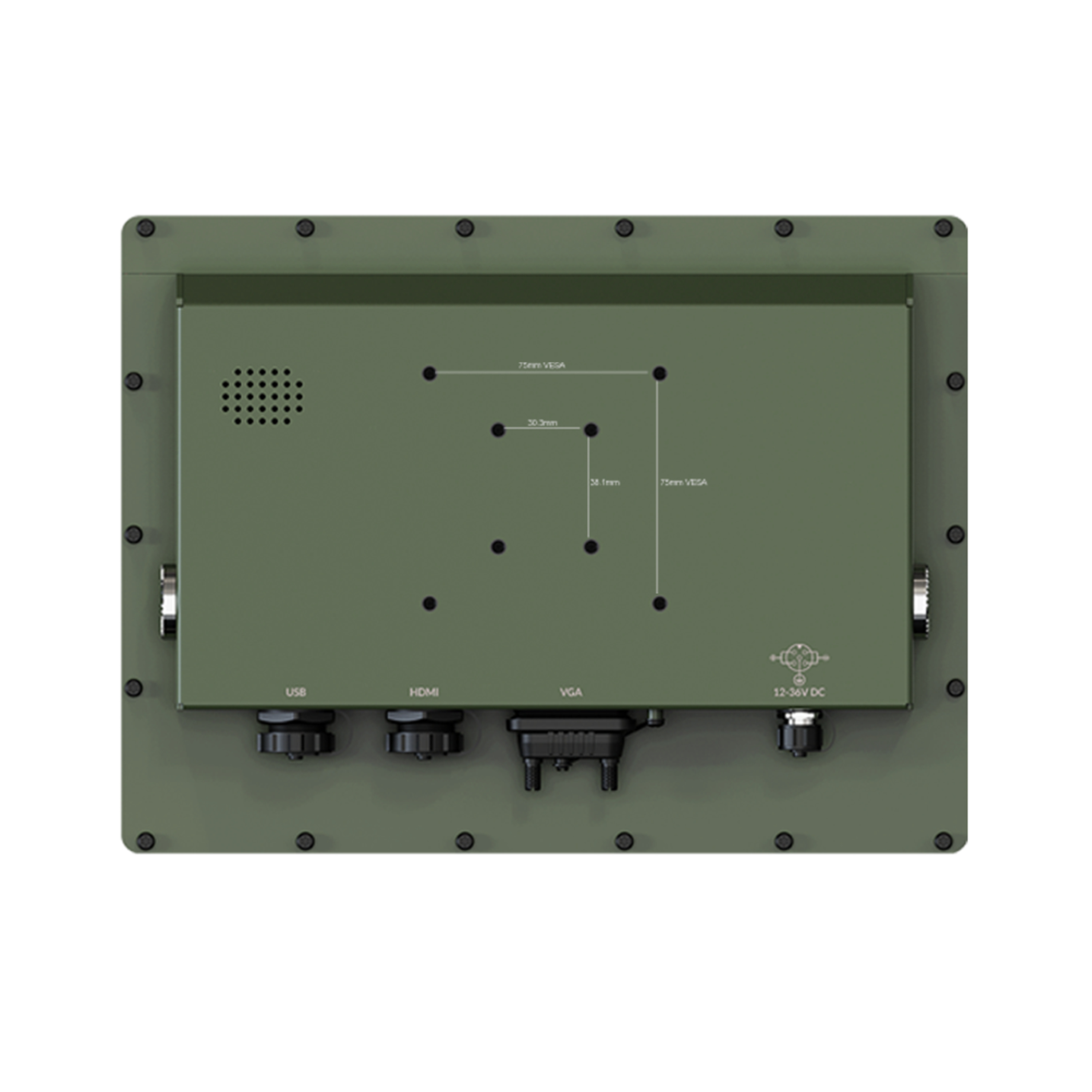

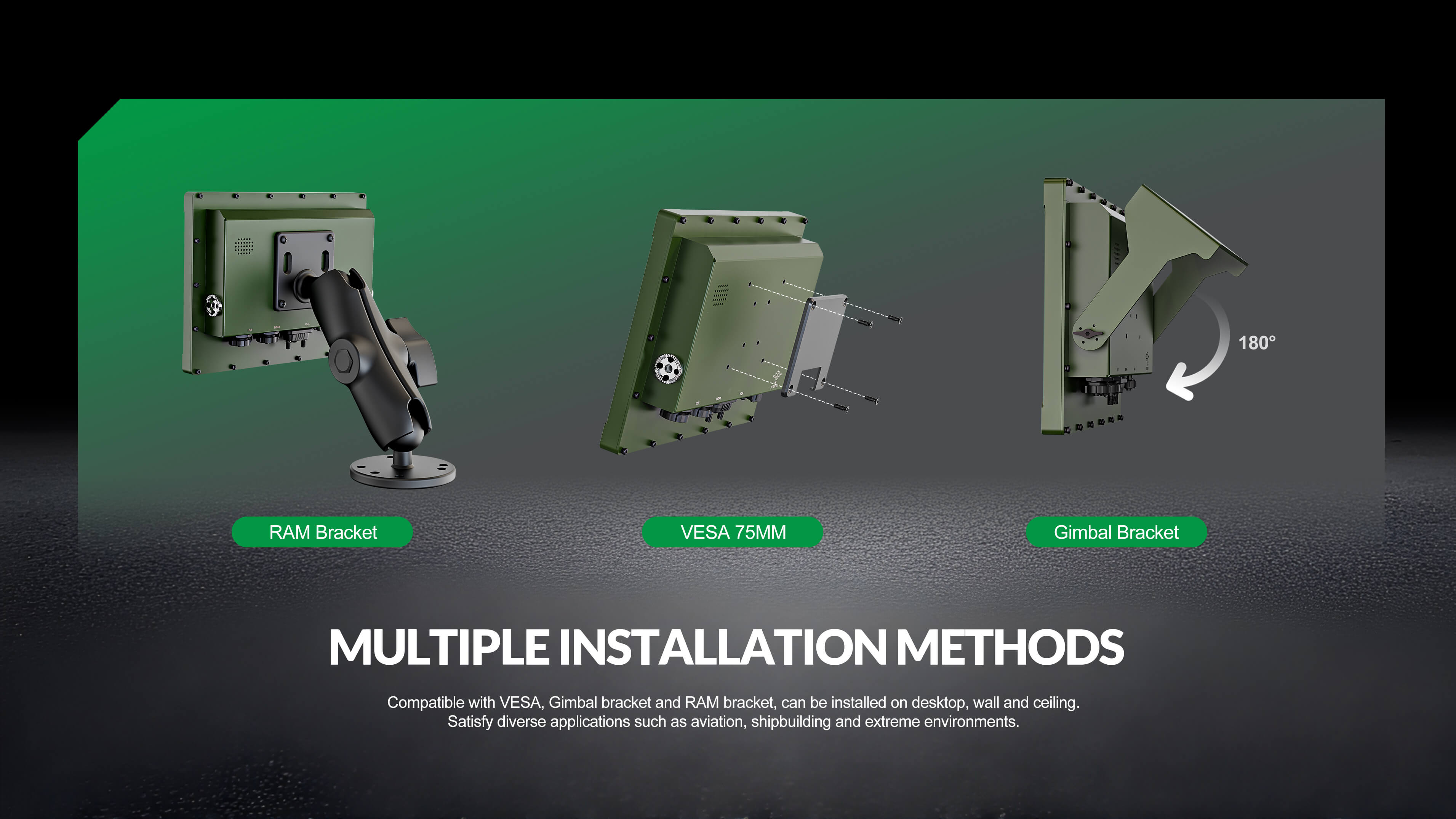

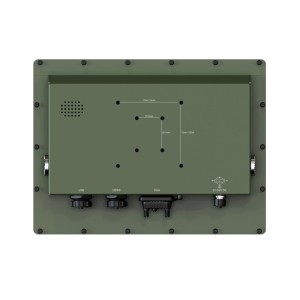

	VESA Mount	75mm
	RAM mounting holes	30.3mm×38.1mm
	Weight	2kg (With Gimbal Bracket)
