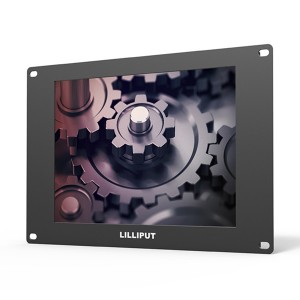

TK1040-NP/C/T _ 10.4 inch industrial open frame touch monitor

Short Description:

10.4 inch LED display with 5-wire touch function, designed with open frame for industrial application.It is coming with HDMI, DVI, VGA, YPbPr,AV1, AV2 & S-video input signals to meet different needs of various professional display applications. Metal housing design which can be applied in different professional fields. For instance, Human-machine interface, entertainment, retail, supermarket, mall, advertising player, CCTV monitoring, numerical control machine and intelligent industral control system, etc. Whole device with metal housing design, which make a good protection from damage and good-looking apprearance, aslo extend the lifetime of monitor.The monitor can support rear mount with integrated brackets and VESA 75/100 mm standard, etc. A metal housing design with slim and firm features making efficient integration into embedded or other professional display applications.


  • Model: TK1040-NP/C/T
  • Touch panel: 5-wire resistive
  • Display: 10.4 inch, 800×600, 250nit
  • Interfaces: HDMI, DVI, VGA, composite
  • Feature: Metal Housing, support open Frame installation
  • Product Detail

    Specifications

    Accessories

    TK1040图_01

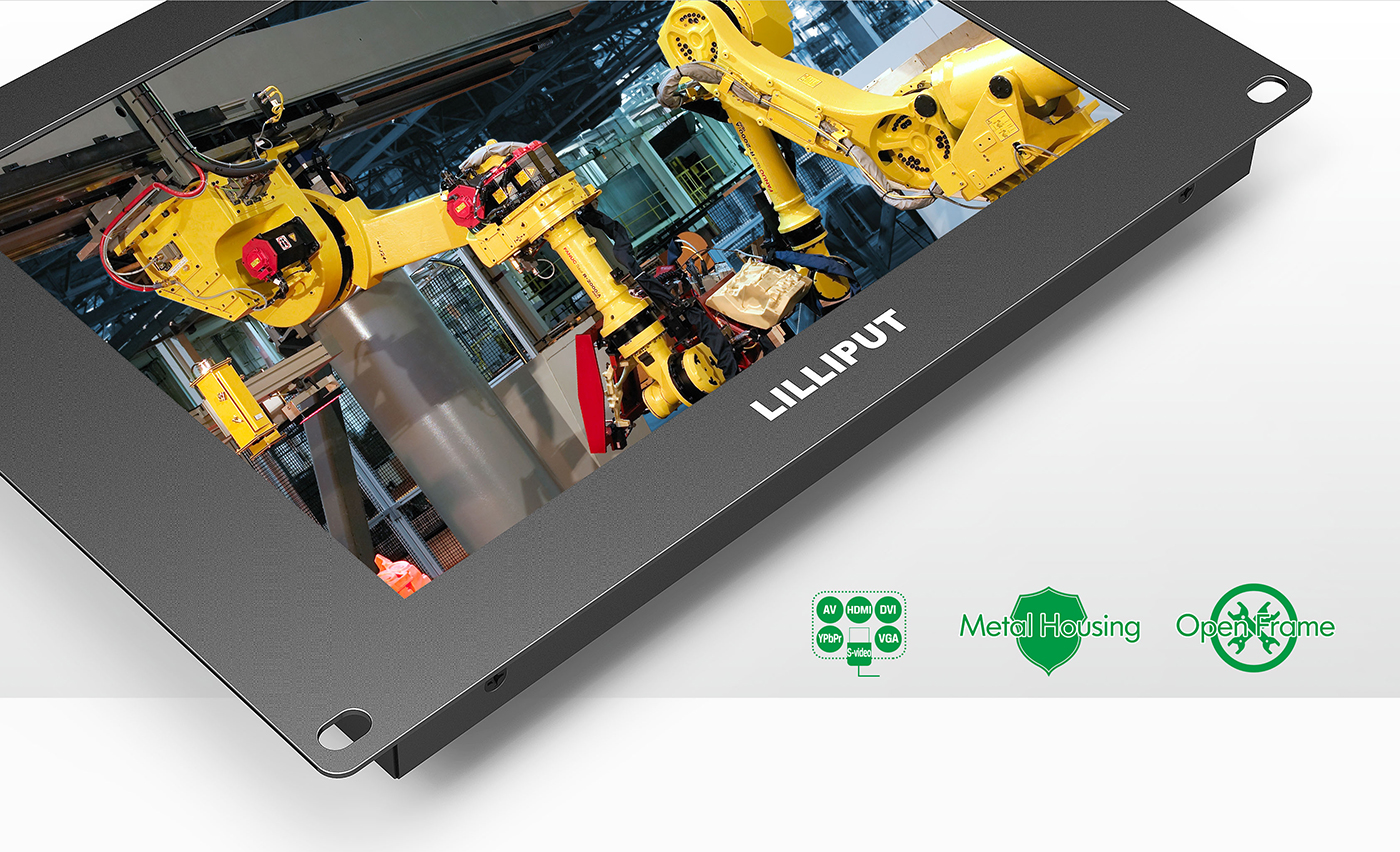

    Excellent Display &  Rich Interfaces

    10.4 inch LED display with 5-wire resistive touch , also features with 4:3 aspect ratio, 800×600 resolution ,

    130°/110° viewing angles, 400:1 contrast and 250cd/m2 brightness, providing satisfied viewing experience.

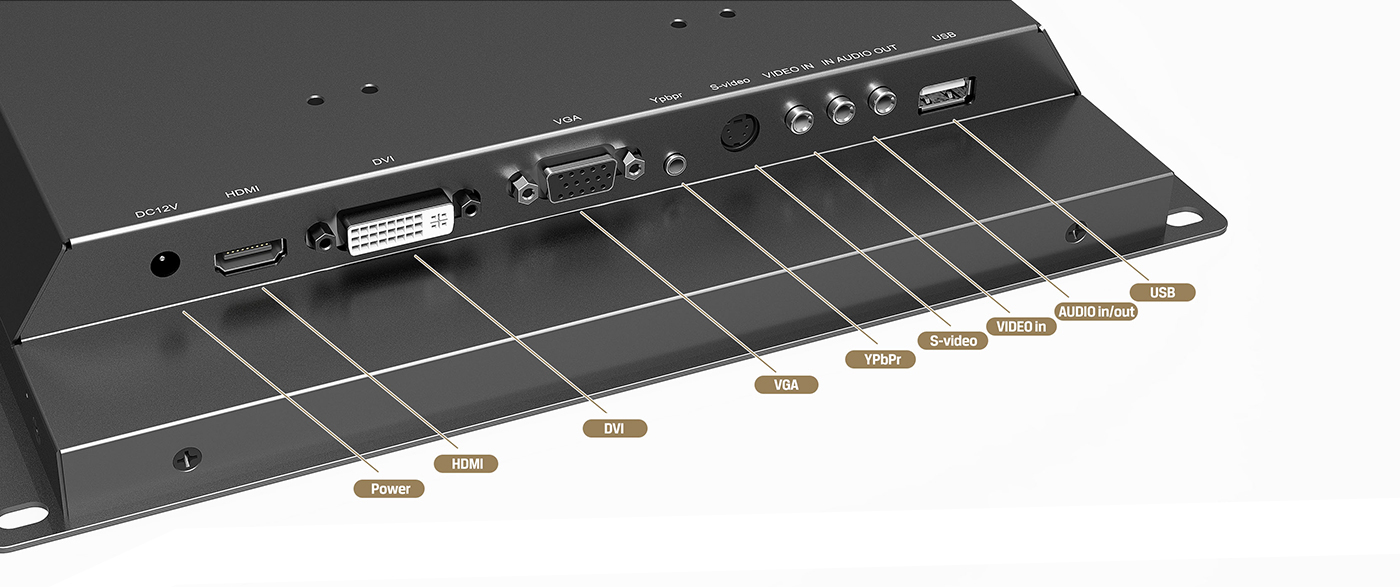

    Coming with HDMI, DVI, VGA, YPbPr, AV1, AV2 & S-video input signals to meet different needs of various

    professional display applications.

    TK1040图_02

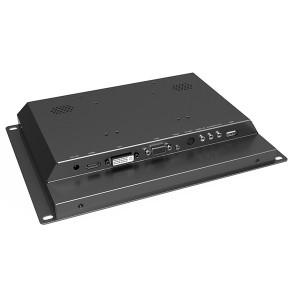

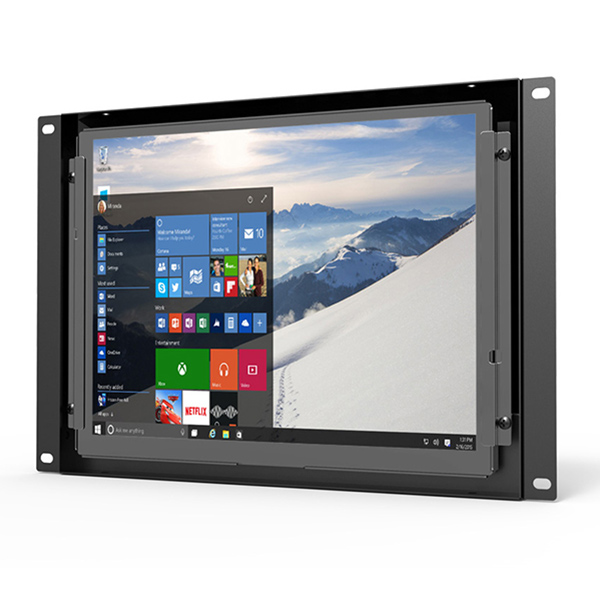

    Metal Housing & Open Frame

    Whole device with metal housing design, which make a good protection from damage, and good-looking appearance, also extend the lifetime of

    monitor. Having a variety of mounting usage in plenty of fields, such as rear (open frame), wall, 75mm & 100mm VESA, desktop and roof mounts.

    TK1040图_04

    Application Industries

    Metal housing design which can be applied in different professional fields. For instance, Human-machine interface, entertainment, retail,

    supermarket, mall, advertising player, CCTV monitoring, numerical control machine and intelligent industrial control system, etc.

    TK1040图_06_01

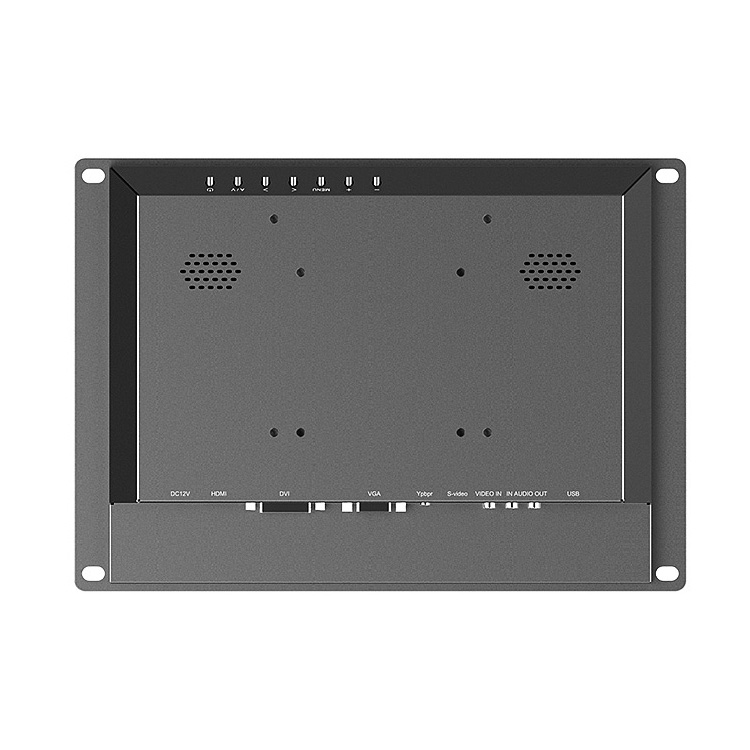

    Structure

    Supports rear mount (open frame) with integrated brackets, and VESA 75 / 100mm standard, etc. A metal housing

    design with slim and firm features making efficient integration into embedded or other professional display applications.

    TK1040图_06_02


  • Previous:
  • Next:

  • Display
    Touch panel 5-wire resistive
    Size 10.4”
    Resolution 800 x 600
    Brightness 250cd/m²
    Aspect ratio 4:3
    Contrast 400:1
    Viewing Angle 130°/110°(H/V)
    Video Input
    HDMI 1
    DVI 1
    VGA 1
    YPbPr 1
    Composite 2
    Supported In Formats
    HDMI 720p 50/60, 1080i 50/60, 1080p 50/60
    Audio Out
    Ear Jack 3.5mm - 2ch 48kHz 24-bit
    Built-in Speakers 2
    Power
    Operating power ≤8W
    DC In DC 12V
    Environment
    Operating Temperature -20℃~60℃
    Storage Temperature -30℃~70℃
    Other
    Dimension(LWD) 286.8×202.8×38.8mm
    Weight 1700g

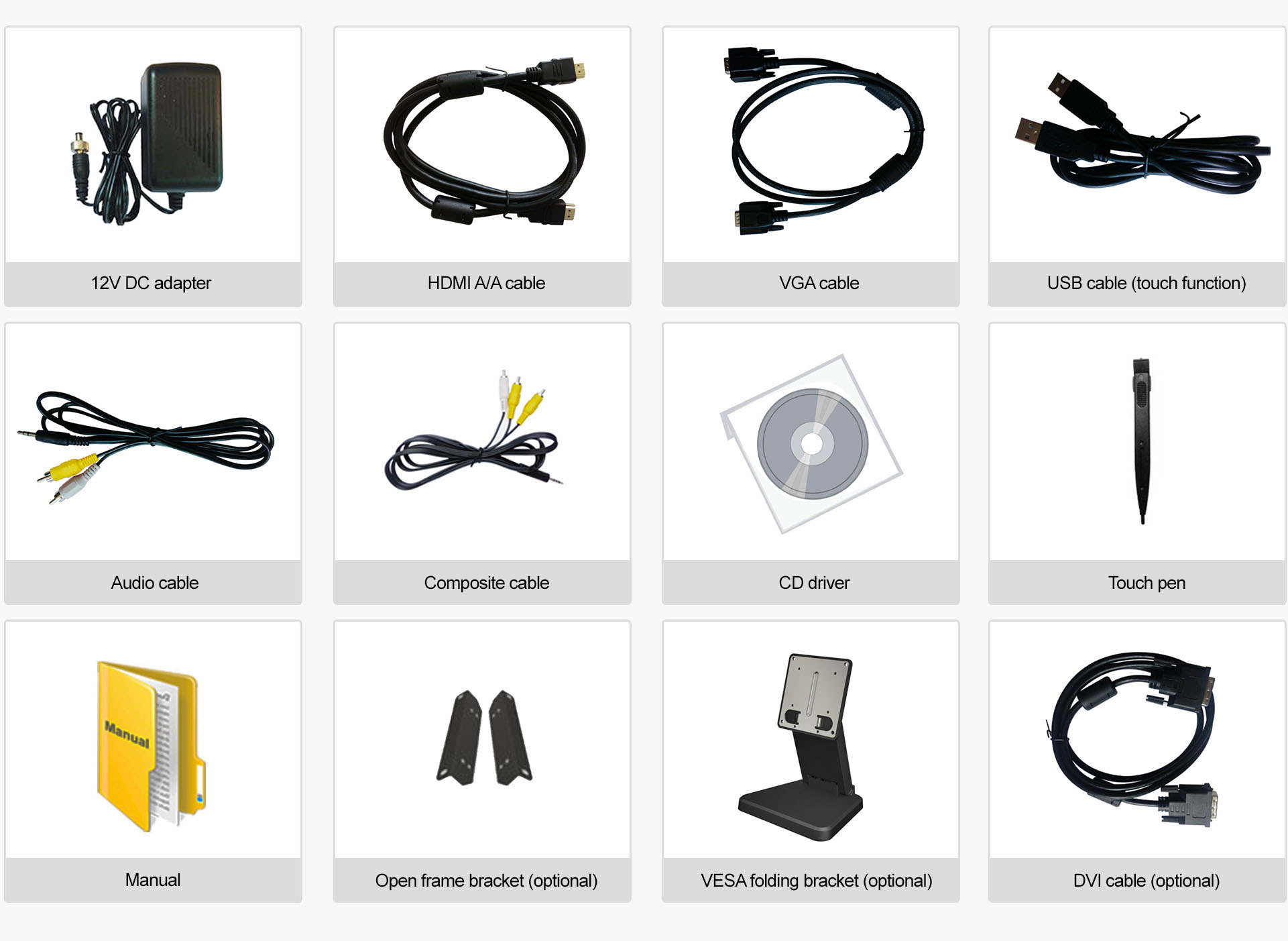

    TK1040 accessories
