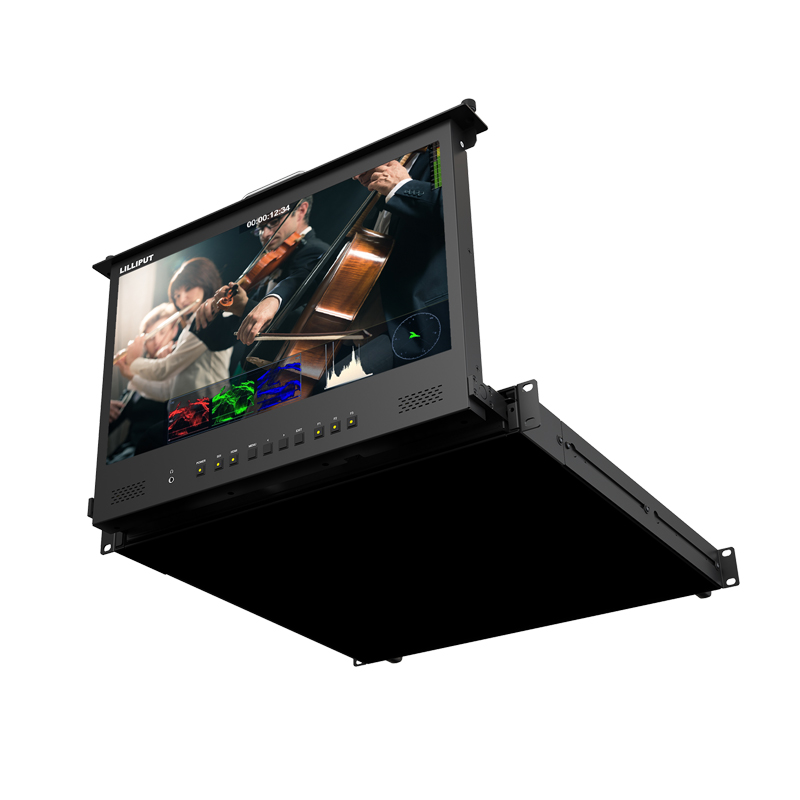

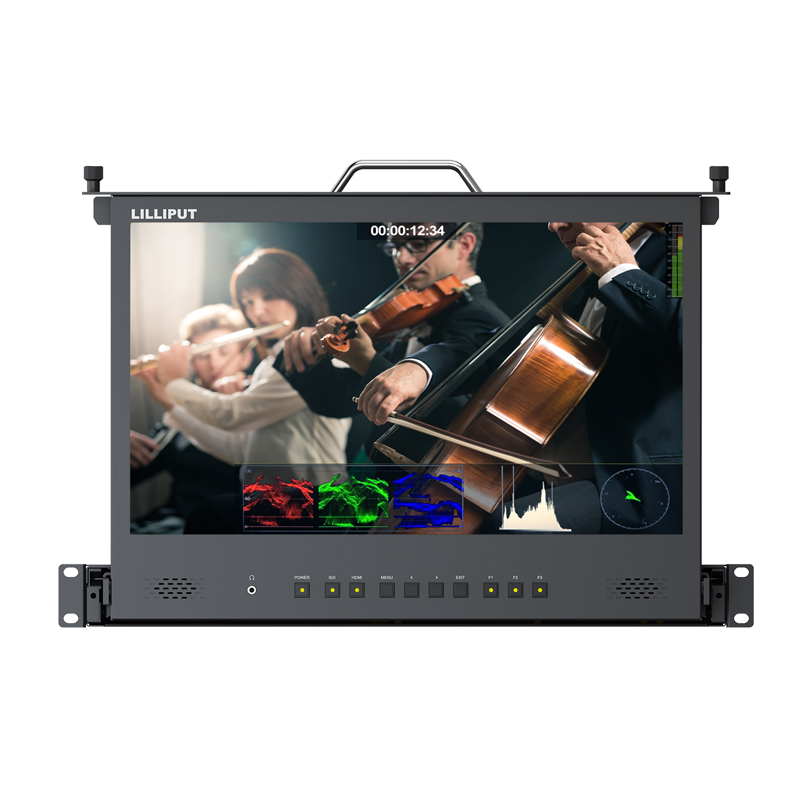

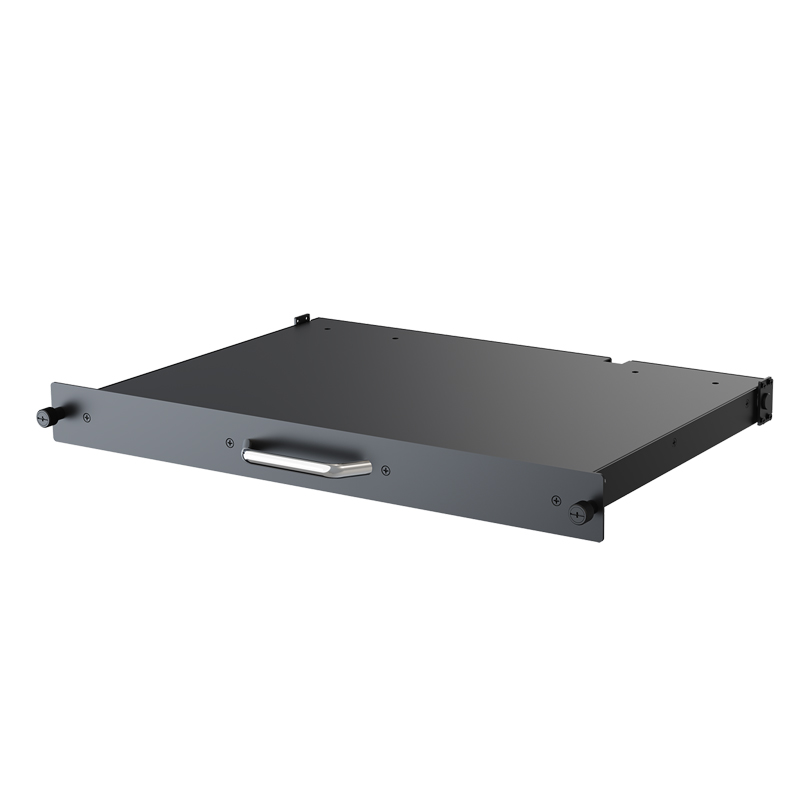

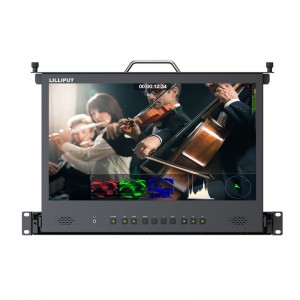

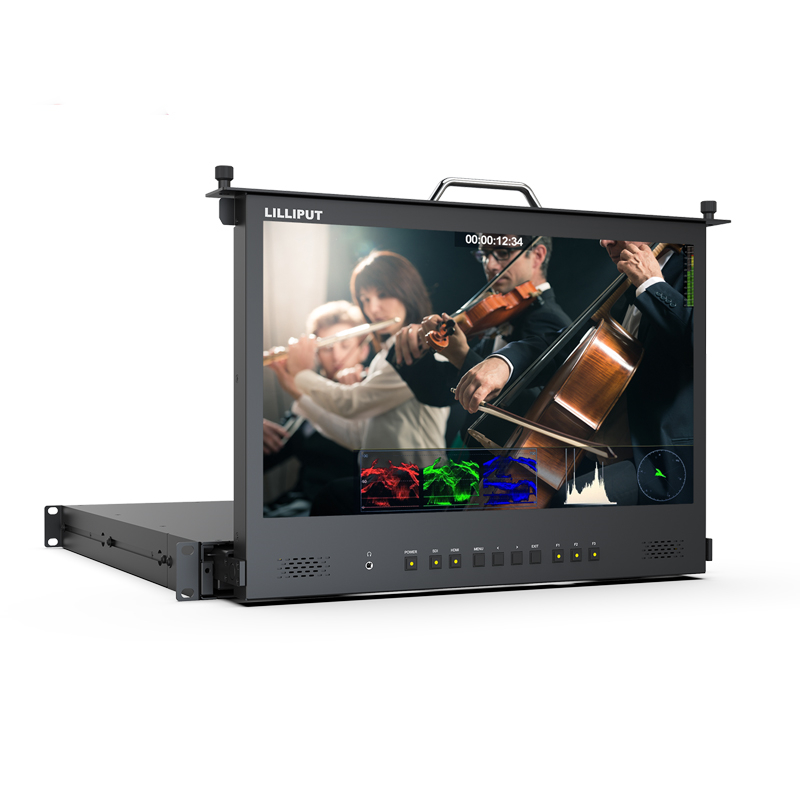

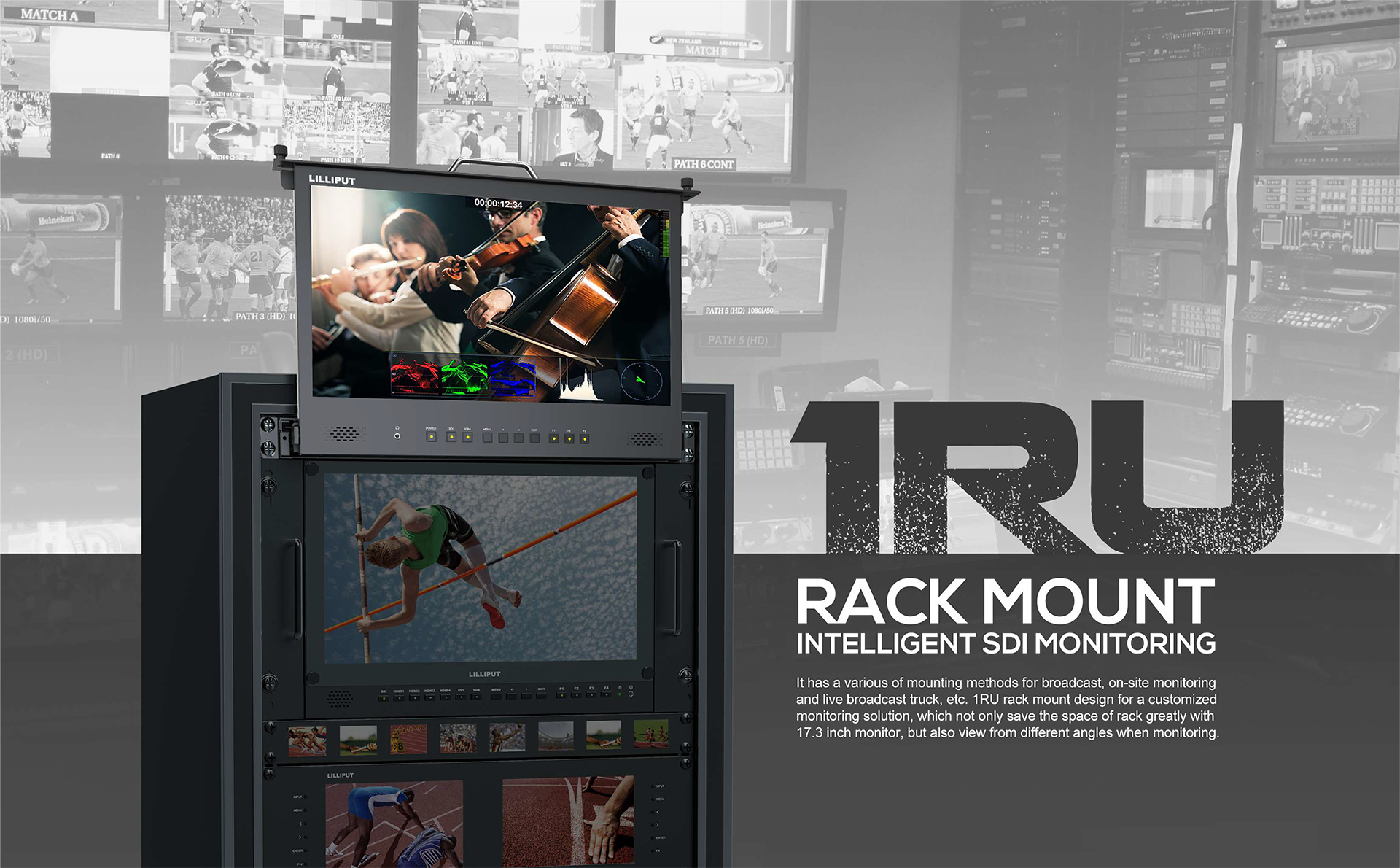

17.3 inch 3G-SDI 1RU Pull-out rackmount monitor

Short Description:

As a 1RU pull-out rackmount monitor, features 17.3″ 1920×1080 FullHD IPS screen with fine picture quality and good color reduction. It’s interfaces support 3G-SDI and HDMI2.0 signals inputs and loop outputs;For the advanced camera auxiliary functions, such like waveform, vector scope and others, all are under professional equipment testing and correction, parameters accurate, and comply with industry standards.

  • Model: RM-1731S
  • Physical resolution: 1920x1080
  • Interface: SDI, HDMI, LAN

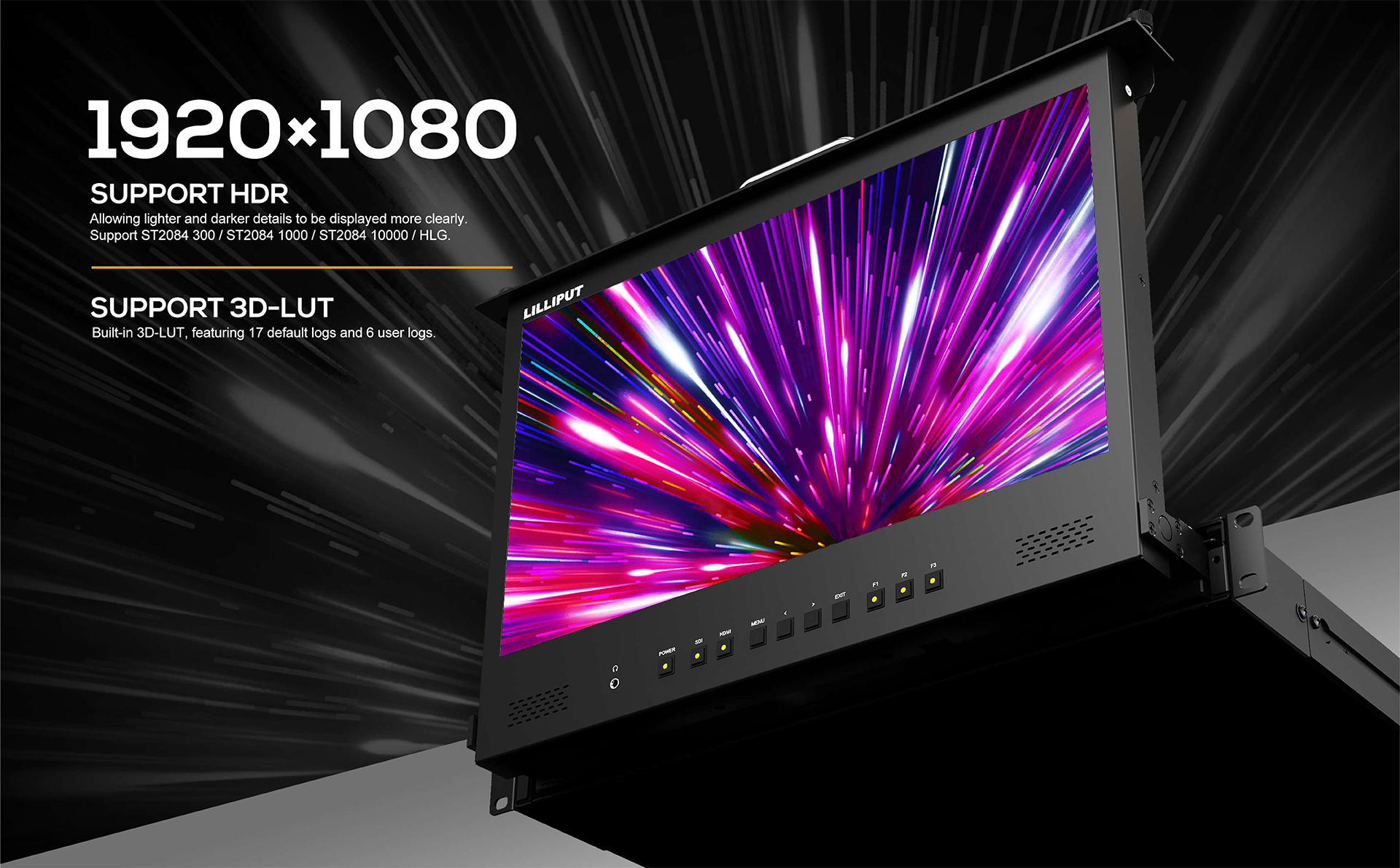

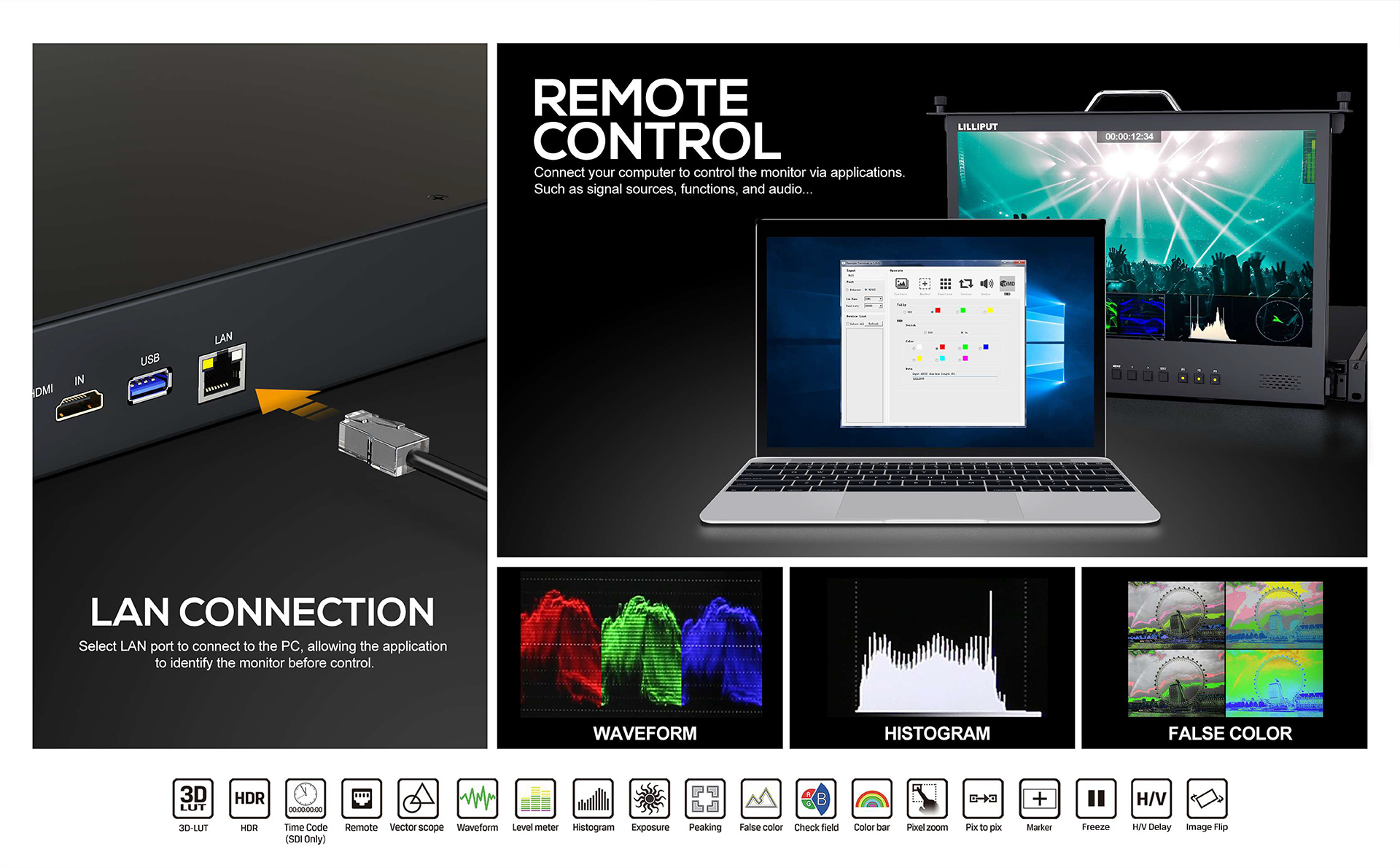

  • Feature: 1920x1080, HDMI2.0/SDI, Remote Control, HDR/3D-LUT
  • Product Detail



    Rack mount monitor
    Rackmount monitors
    Rackmount monitors
    1RU Rackmount monitors
    1RU Rack mount monitors
    Rackmount monitors
    Rack mount monitors

  • Previous:
  • Next:

  • Display
    Size 17.3”
    Resolution 1920×1080
    Brightness 300cd/m²
    Aspect ratio 16:9
    Contrast 800:1
    Viewing Angle 170°/170°(H/V)

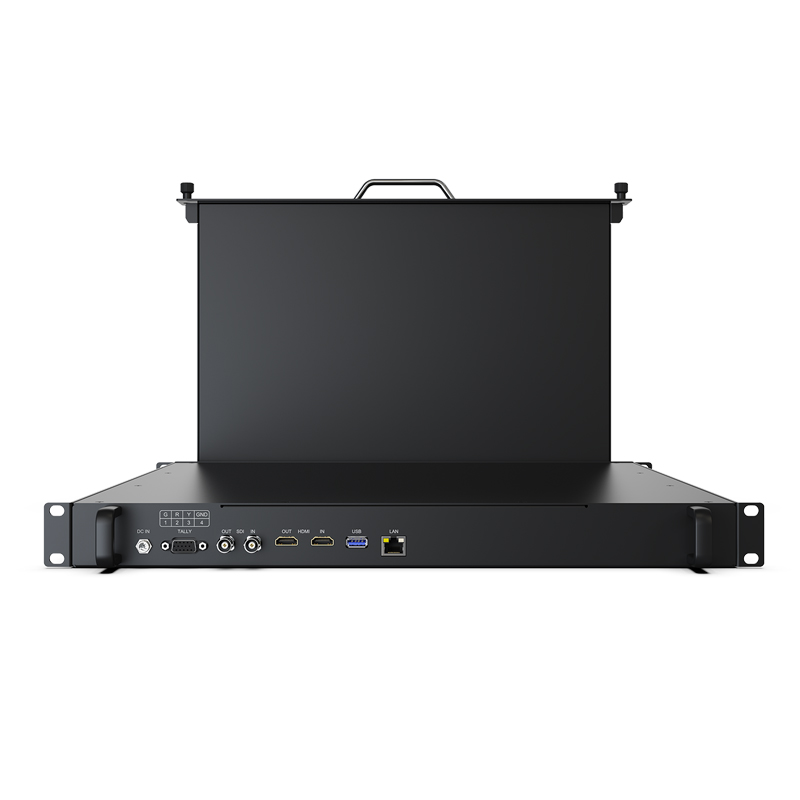

    Video Input
    SDI 1×3G
    HDMI 1×HDMI 2.0
    LAN 1
    Video Loop Output
    SDI 1×3G
    HDMI 1×HDMI 2.0
    Supported In / Out Formats
    SDI 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60…
    HDMI 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60,2160P 24/25/30/50/60
    Audio In/Out
    SDI 12ch 48kHz 24-bit
    HDMI 8ch 24-bit
    Ear Jack 3.5mm – 2ch  48kHz 24-bit
    Built-in Speakers 2
    Operating power ≤14W(12V)
    DC In DC 10-24V
    Operating Temperature 0℃~50℃
    Storage Temperature -20℃~60℃
    Dimension(LWD) 482.5×44×507.5mm
    Weight 8.9kg
