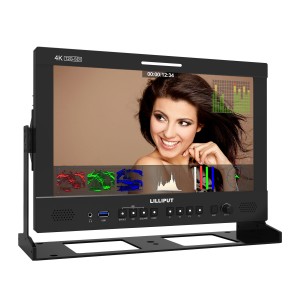

13.3 inch 12G-SDI broadcast studio monitor

Short Description:

Lilliput Q13 is a professional studio monitor, packed with features and facilities for the professional photographer, videographer, or cinematographer. Compatible with a multitude of inputs – and featuring the option of a 12G SDI and 12G-SFP Fiber Optic input connection for broadcast quality monitoring, It also features Audio Vectoring using a Lissajous graph shape allowing you to visualize the depth and balance of a stereo recording. You also can connect your computer to control the monitor via applications.




  • Model:: Q13
  • Display:: 13.3 inch, 3840 X 2160, 300nits
  • Input:: 12G-SDI, 12G-SFP,HDMI 2.0
  • Output:: 12G-SDI,HDMI 2.0
  • Remote Control:: RS422 ,GPI , LAN
  • Feature:: Quad View,3D-LUT, HDR,Gammas,Remote Control ,Audio vector...
  • Product Detail

    Specifications

    Accessories

    13.3 inch studio monitor
    13.3 inch 12g-sdi broadcast monitor
    12G-SDI broadcast monitor
    production studio monitor
    Quad View monitor
    13.3 inch SDI PRODUCTION MONITOR
    Lilliput
    Lilliput SDI MONITOR

  • Previous:
  • Next:

  • DISPLAY Panel 13.3″
    Physical Resolution 3840*2160
    Aspect Ratio 16:9
    Brightness 300 cd/m²
    Contrast 1000:1
    Viewing Angle 178°/178°(H/V)
    HDR ST2084 300/1000/10000/HLG
    Supported Log Formats SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User…
    Look up Table(LUT)support 3D LUT (.cube format)
    Technology Calibration to Rec.709 with optional calibration unit
    VIDEO INPUT SDI 2×12G, 2×3G (Supported 4K-SDI Formats Single/Dual/Quad Link)
    SFP 1×12G SFP+(Fiber module for optional)
    HDMI 1×HDMI 2.0
    VIDEO LOOP OUTPUT SDI 2×12G, 2×3G (Supported 4K-SDI Formats Single/Dual/Quad Link)
    HDMI 1×HDMI 2.0
    SUPPORTED FORMATS SDI 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
    SFP 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
    HDMI 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60…
    AUDIO IN/OUT (48kHz PCM AUDIO) SDI 16ch 48kHz 24-bit
    HDMI 8ch 24-bit
    Ear Jack 3.5mm
    Built-in Speakers 2
    REMOTE CONTROL RS422 In/out
    GPI 1
    LAN 1
    POWER Input Voltage DC 12-24V
    Power Consumption ≤31.5W (15V)
    Compatible Batteries V-Lock or Anton Bauer Mount
    Input Voltage(battery) 14.8V nominal
    ENVIRONMENT Operating Temperature 0℃~50℃
    Storage Temperature -20℃~60℃
    OTHER Dimension(LWD) 340mm × 232.8mm × 46mm
    Weight 2.4kg

    Lilliput 13.3 inch
