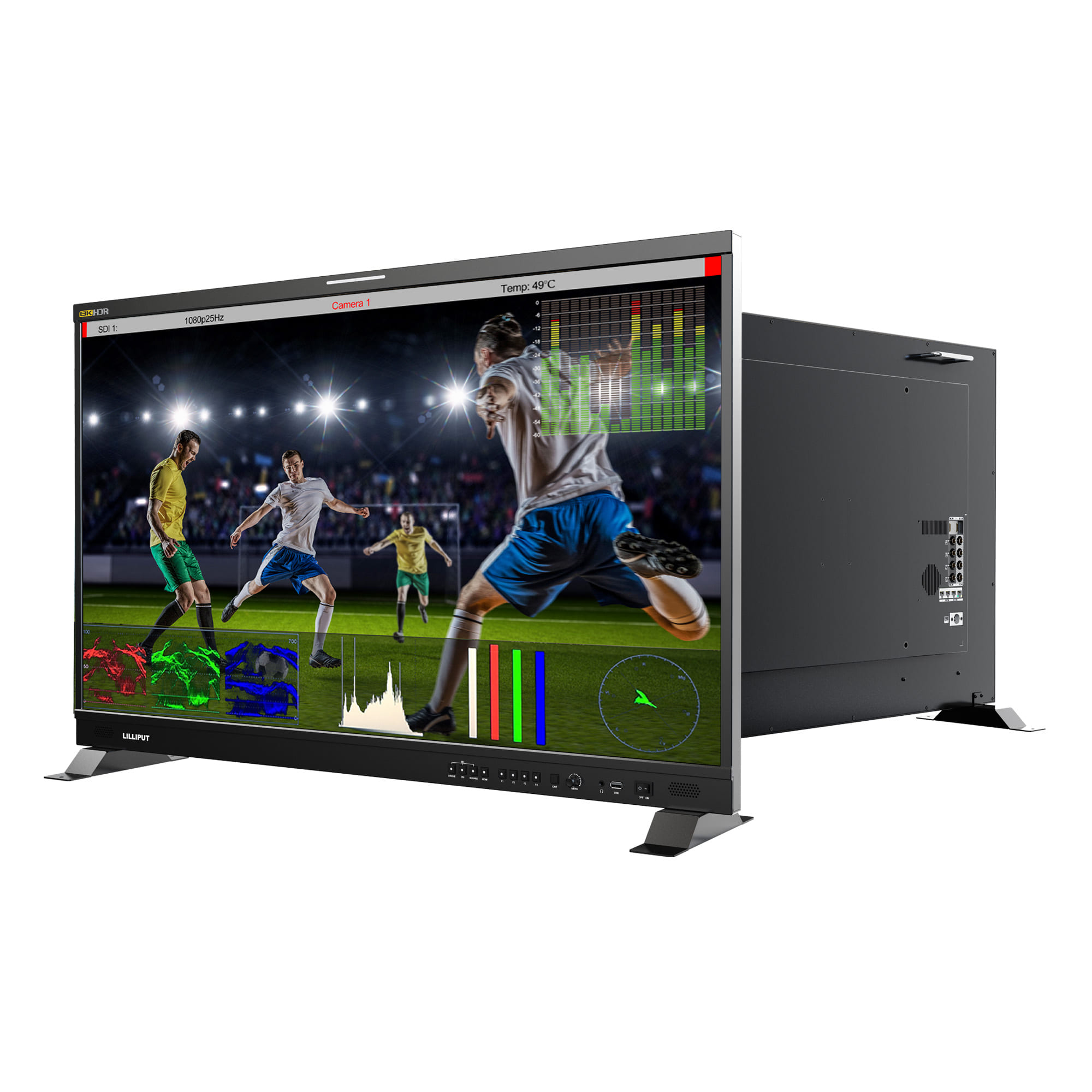

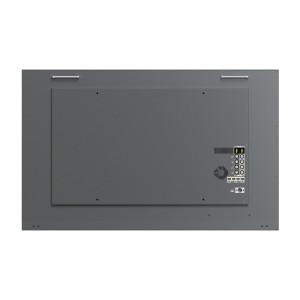

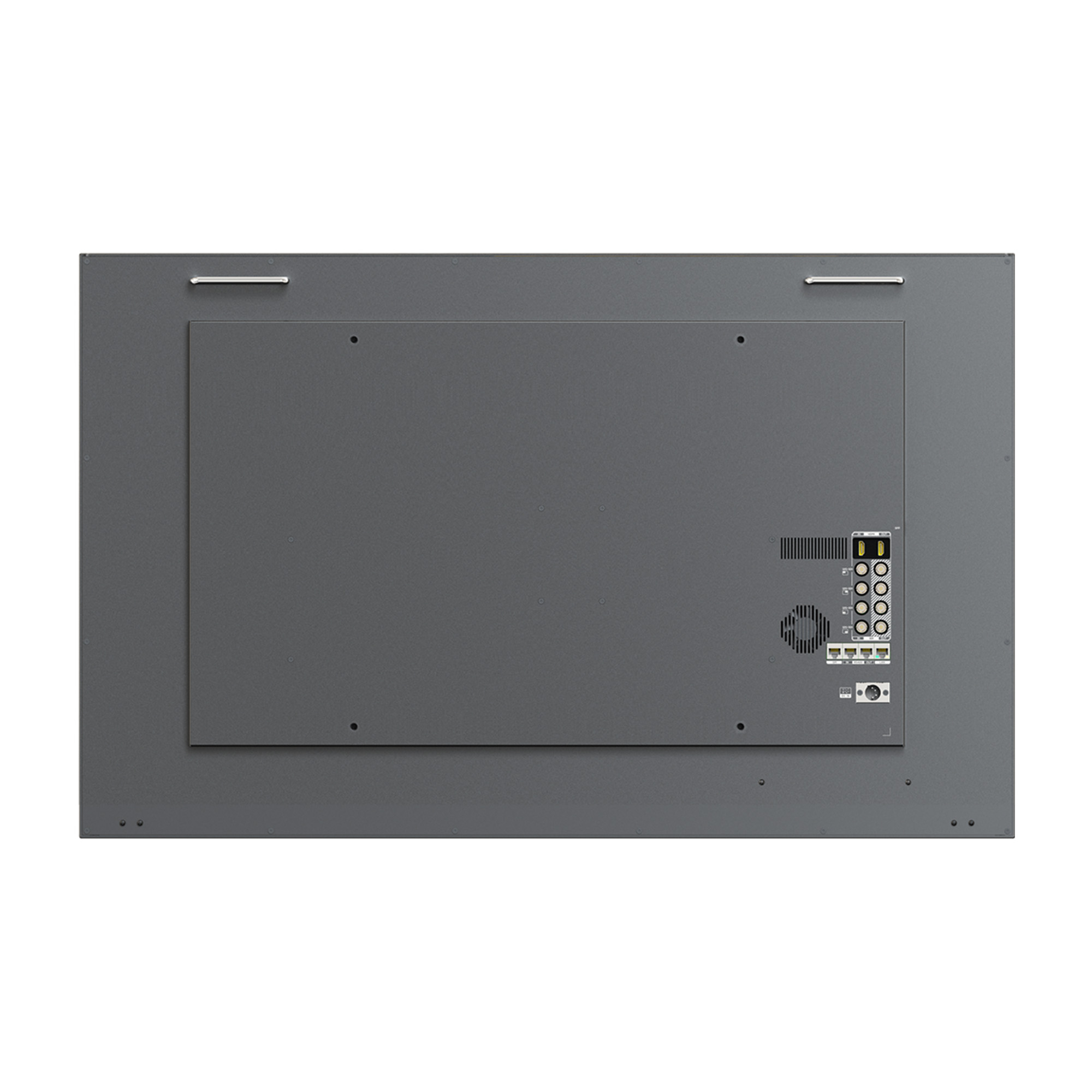

43 inch 8K 12G-SDI 3840×2160 studio production monitor

Short Description:

LILLIPUT Q43-8K is a professional studio production monitor, packed with features and facilities for the professional photographer, videographer, or cinematographer. Compatible with a multitude of inputs – and featuring the option of a 12G SDI and 12G-SFP Fiber Optic input connection for broadcast quality monitoring, It also features Audio Vectoring using a Lissajous graph shape allowing you to visualize the depth and balance of a stereo recording. You also can connect your computer to control the monitor via applications.

Model: Q43-8K

Display: 43 inch, 3840 X 2160, 400nits

Input: 12G-SDI, 12G-SFP, HDMI 2.0

Output: 12G-SDI, HDMI 2.0

Remote Control: RS422, GPI , LAN

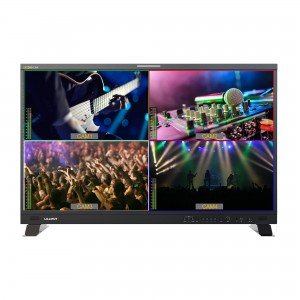

Feature: Quad View, 3D-LUT, HDR, Gammas, Remote Control, Audio vector...

Send email to us Download as PDF User guide

Product Detail

Specifications

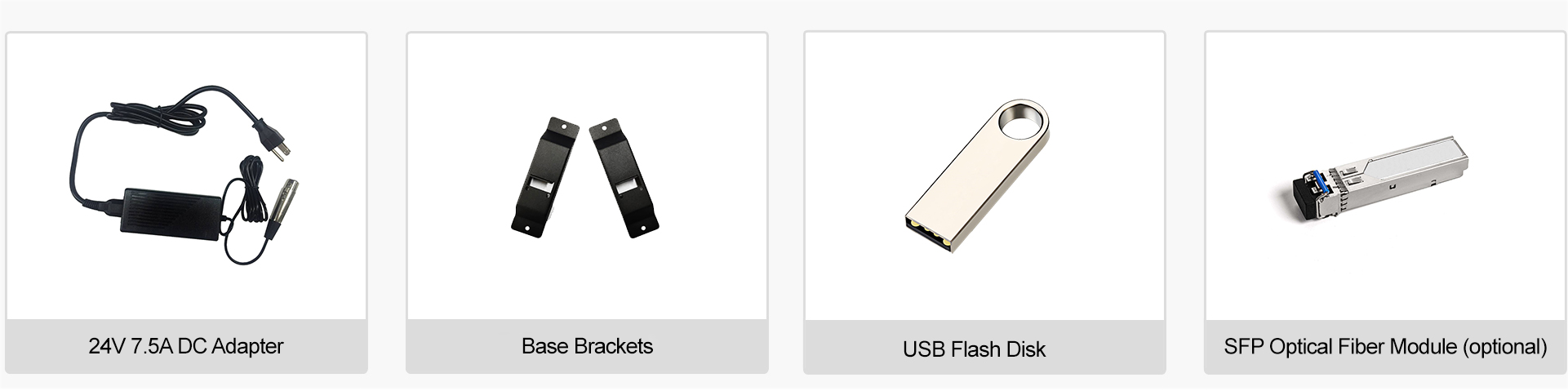

Accessories

Product Tags

31.5 inch 8K 12G-SDI studio production monitor1

31.5 inch 8K 12G-SDI studio production monitor2

31.5 inch 8K 12G-SDI studio production monitor3

31.5 inch 8K 12G-SDI studio production monitor4

31.5 inch 8K 12G-SDI studio production monitor5

31.5 inch 8K 12G-SDI studio production monitor6

31.5 inch 8K 12G-SDI studio production monitor7

Previous: UQ31 35.1 inch 1000 nits high brightness production monitor with 8K 12G-SDI HDMI2.1

Next:

DISPLAY	Panel	43″
	Physical Resolution	3840*2160
	Aspect Ratio	16:9
	Brightness	400 cd/m²
	Contrast	1200：1
	Viewing Angle	178°/178°（H/V)
	HDR	ST2084 300/1000/10000/HLG
	Supported Log Formats	SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User…
	Look up Table(LUT)support	3D LUT (.cube format)

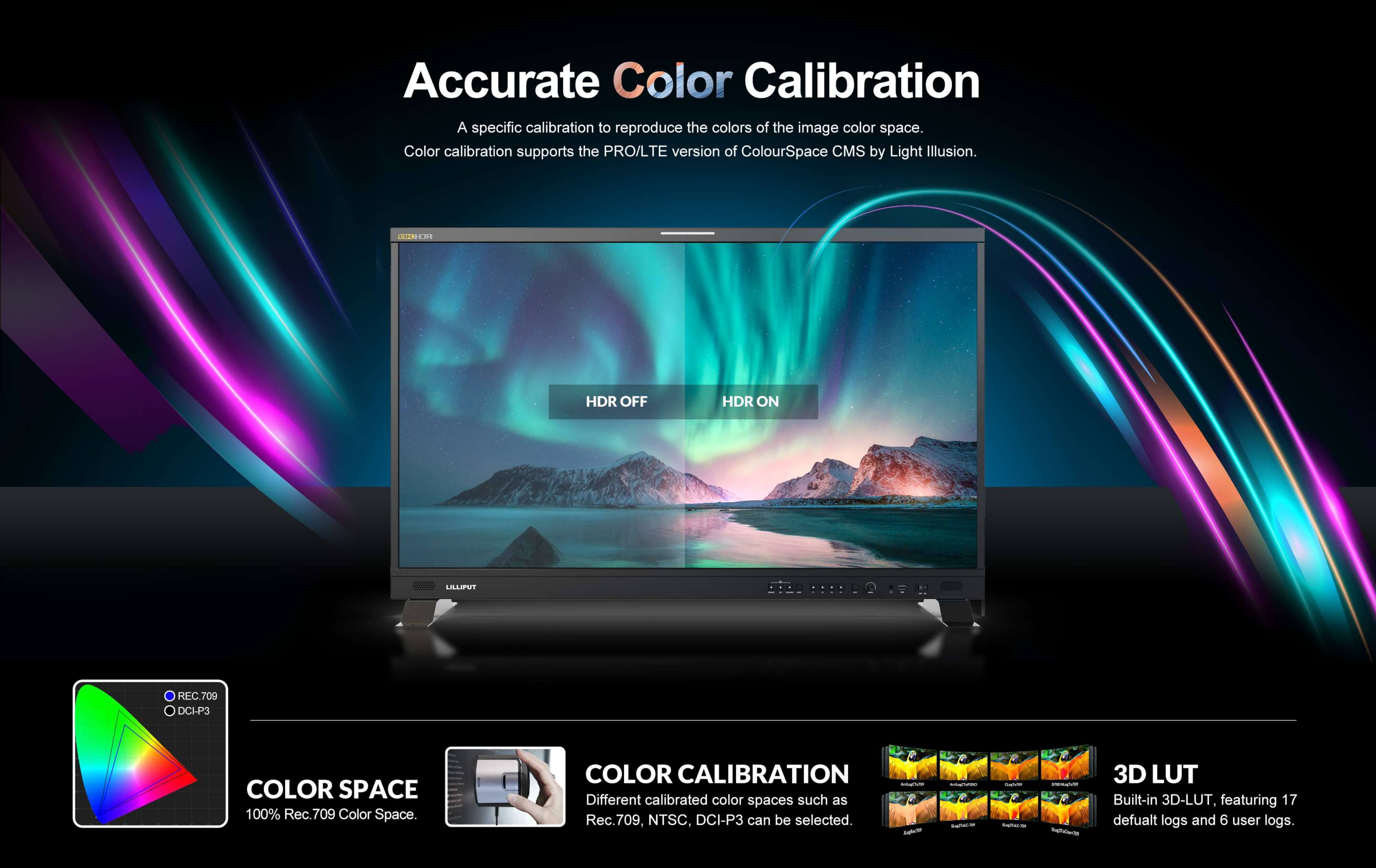

	Technology	Calibration to Rec.709 with optional calibration unit

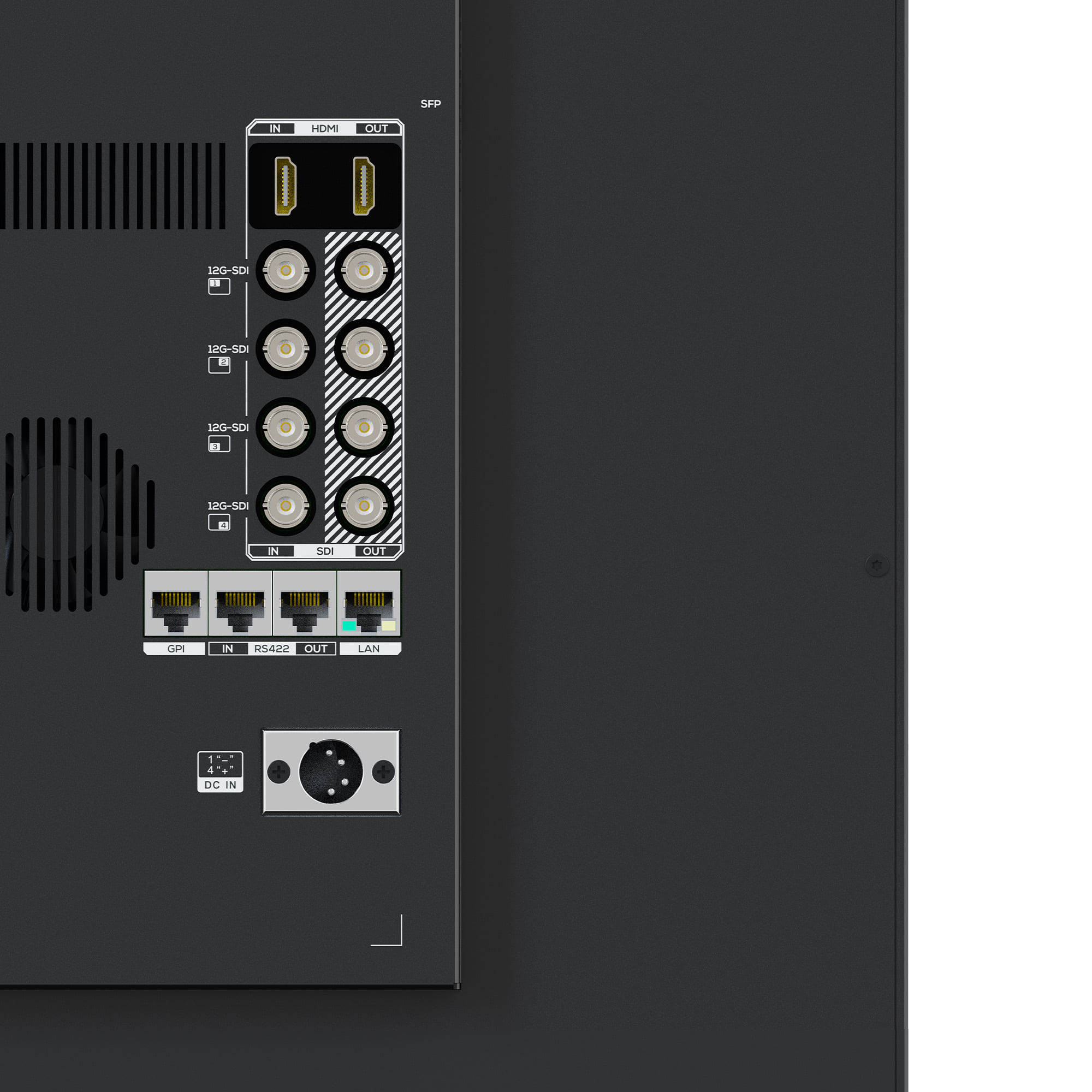

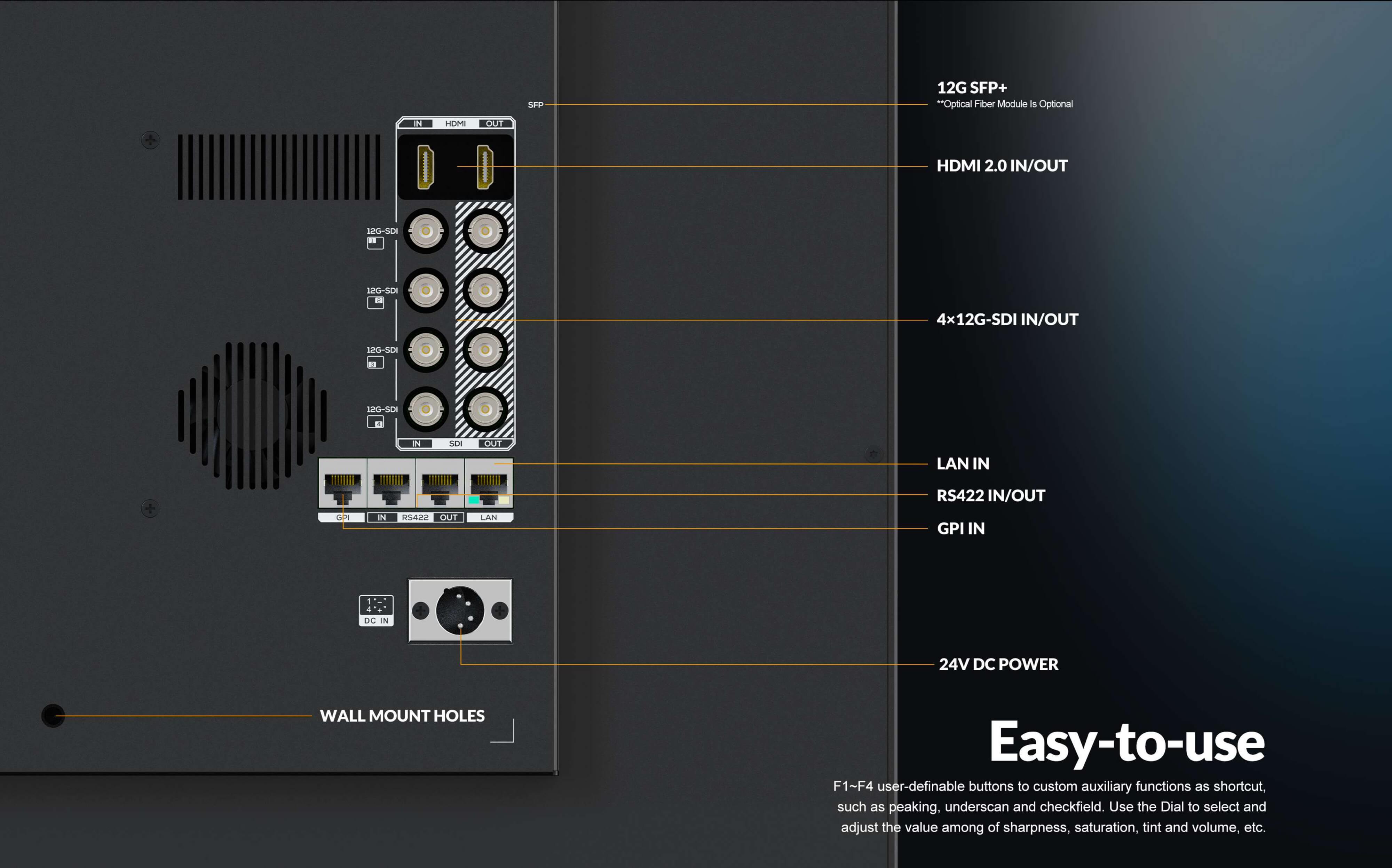

VIDEO INPUT	SDI	4×12G (Supported 8K-SDI Formats Quad Link)
	SFP	1×12G SFP+(Fiber module for optional)
	HDMI	1×HDMI 2.0
VIDEO LOOP OUTPUT	SDI	4×12G (Supported 8K-SDI Formats Quad Link)
VIDEO LOOP OUTPUT	HDMI	1×HDMI 2.0
SUPPORTED FORMATS	SDI	4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
	SFP	2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
	HDMI	2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60…
AUDIO IN/OUT (48kHz PCM AUDIO)	SDI	16ch 48kHz 24-bit
	HDMI	8ch 24-bit
	Ear Jack	3.5mm
	Built-in Speakers	2
REMOTE CONTROL	RS422	In/out
	GPI	1
	LAN	1
POWER	Input Voltage	DC 24V
POWER	Power Consumption	≤77W (24V)
ENVIRONMENT	Operating Temperature	0℃~50℃
ENVIRONMENT	Storage Temperature	-20℃~60℃
OTHER	Dimension(LWD)	968.5mm × 604.9mm × 48.5mm
OTHER	Weight	14.5kg
