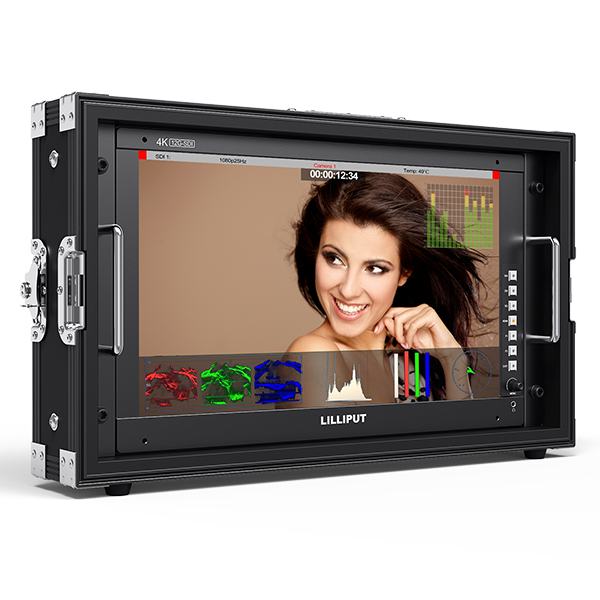

Q17 _ 17.3 inch 12G-SDI production monitor

Short Description:

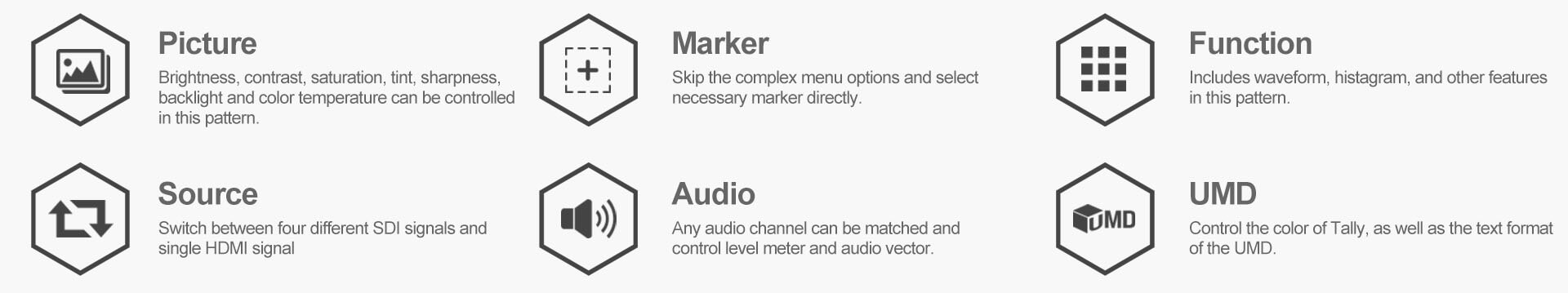

Q17 is 17.3 inch with 1920×1080 resolusiton monitor.It is with 12G-SDI*2 , 3G-SDI*2, HDMI 2.0*1 and SFP *1 interface. Q17 is PRO 12G-SDI broadcast production monitor for pro camcorder & DSLR application for taking photos & making movies. 12G-SDI, 12G SFP+, 4K HDMI and other signal transmission methods are integrated into this display, to avoid being lost in the choice question for video signals. Equipped with 12G-SDI, 3G-SDI and HDMI 2.0 input/output interfaces, it can support up to 4096×2160(60p, 50p, 30p, 25p, 24p)& 3840×2160 (60p, 50p, 30p, 25p, 24p)signal. 12G SFP+interface, which allows to transmit 12G-SDI signal via SFP optical module, is suitable for most broadcast field. The color calibration of Q17 model are including color spaces(SMPTE_C, Rec709 and EBU) and  color temperature(3200K, 5500K, 6500K, 7500K,9300K) and gammas (value from 1.8 to2.8). It can support remote control application. To connect your computer to control the monitor via applications. The interfaces of RS422 in and RS422 out can realize synchronization control of multiple monitors like picture, source, marker, audio, function, UMD. It can support Audio Vector,  HDR and 3DLUT function.


  • Model: Q17
  • Display: 17.3 inch, 1920×1080, 300nits
  • Input: 2×12G-SDI, 2×3G-SDI, 12G SFP, HDMI 2.0
  • Output: 2×12G-SDI, 2×3G-SDI, HDMI 2.0

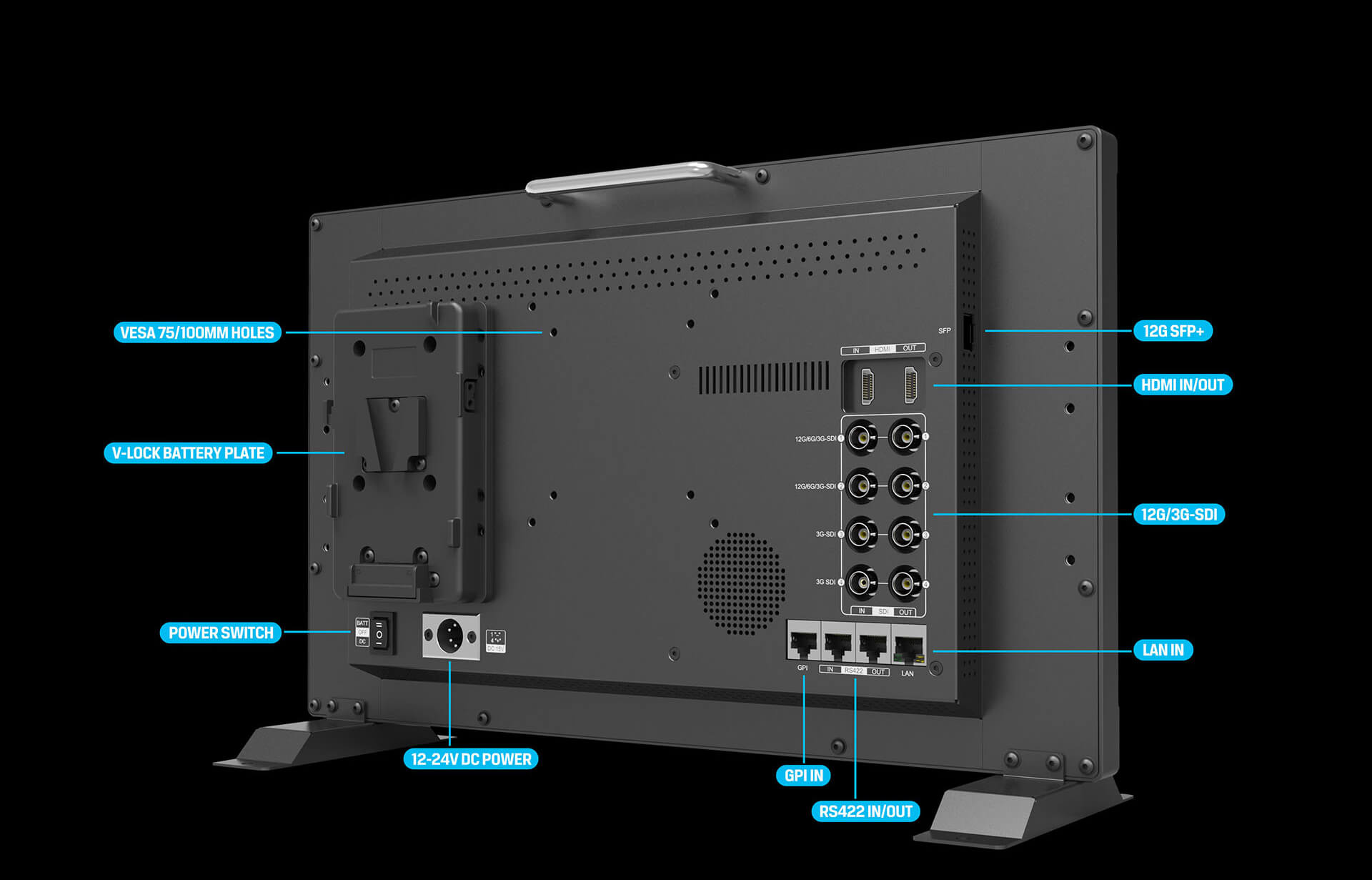

  • Control interfaces: LAN in, GPI in, RS422 In & out
  • Feature: 3D-LUT, HDR, Remote terminal...
  • Product Detail

    Specifications

    Accessories

    Q17 (1) Q17 (2)

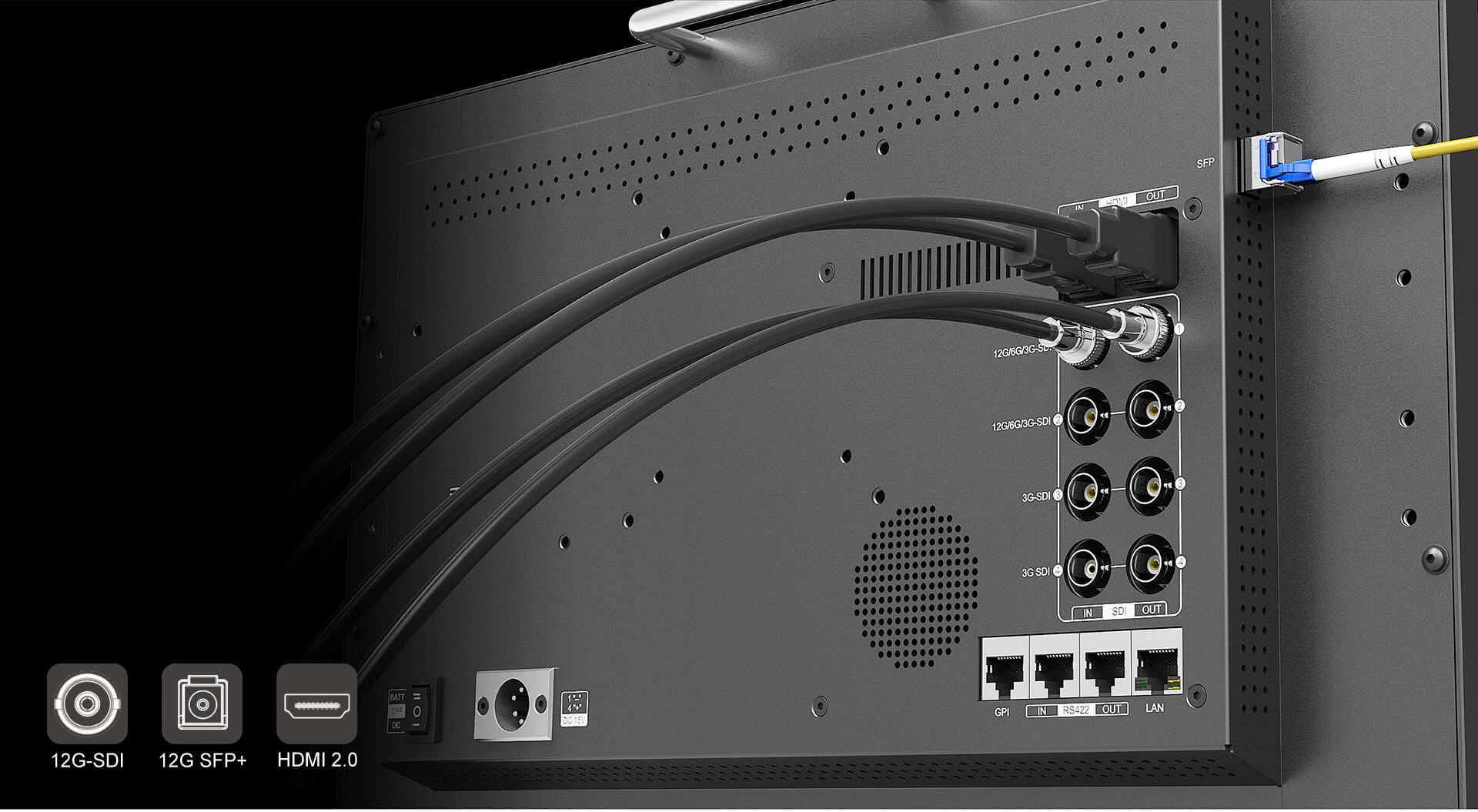

    12G-SDI / 4K HDMI signal

    12G-SDI, 4K HDMI, 12G SFP+ and other signal transmission methods are integrated into this display,to avoid being

    lost in the choice question for video ignals.Equipped with 12G-SDI, 3G-SDI and HDMI 2.0 input/output interfaces,

    it can support up to 4096×2160 (60p, 50p, 30p, 25p,24p) & 3840×2160 (60p, 50p, 30p, 25p, 24p) signal. 12G SFP+

    interface, which allows to transmit 12-SDI signal via SFP optical module, is suitable for most broadcast field.

    未标题-2

    Q17 (4)

    Color Spaces

    It is different from the old single color space “Native” mode used to match the colors of its screen, there are also three modes

    to choose, including “SMPTE_C”, “Rec709” and “EBU”. Aim to restore the original color in different color spaces picture.

    Color Temperature

    According to the different senses of the pictures, filmmaker have their own preferences for different color temperatures.The default

    is 3200K / 5500K / 6500K / 7500K / 9300K five color temperature conditions, can also be customized according to user needs.

    Gammas

    Gamma redistributes tonal level closer to how our eyes perceive them. Since Gamma value is adjusted from

    1.8 to 2.8,more bits would be left to describe the dark tones where the camera is relatively less sensitive.





    Q17 (5)

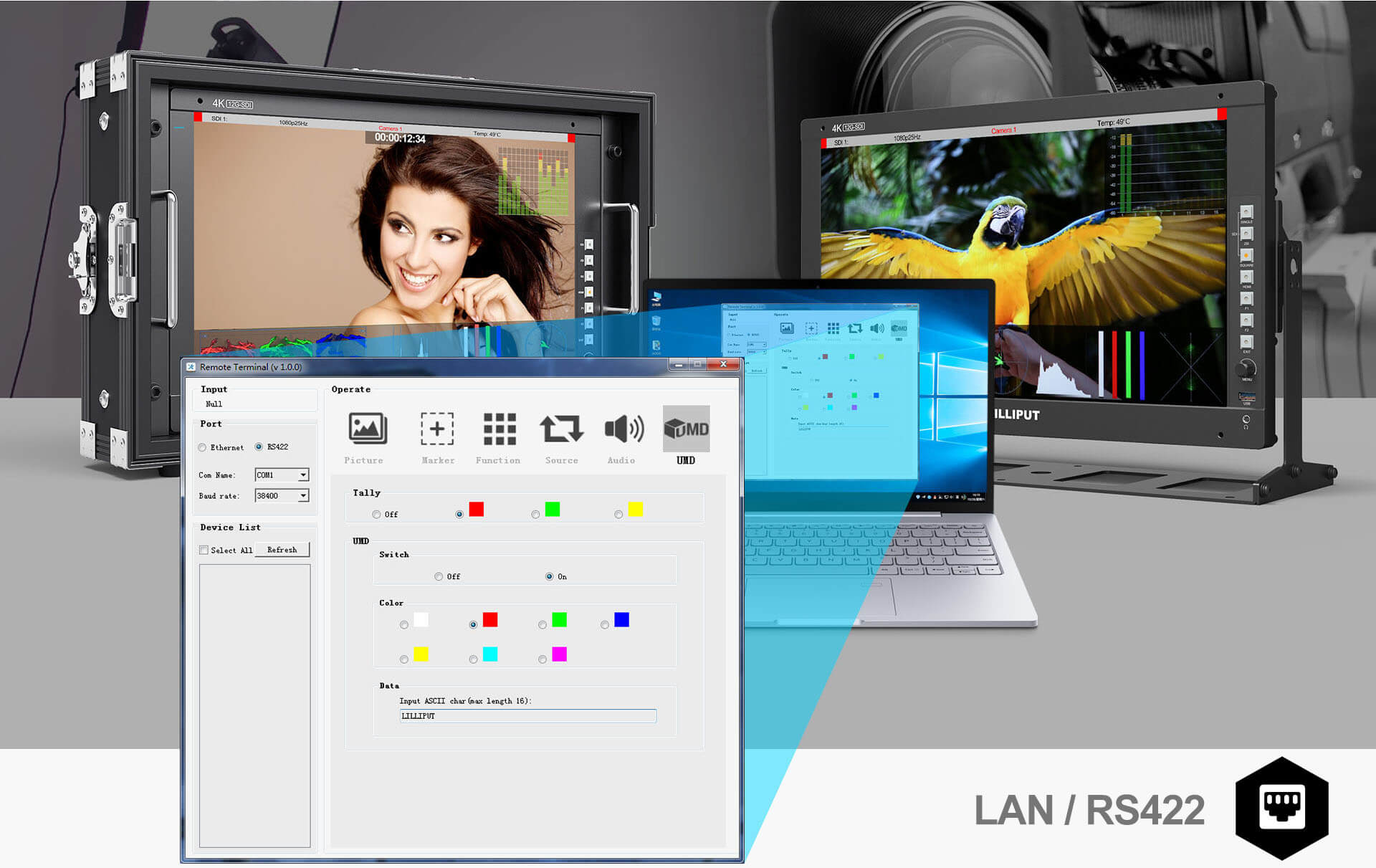

                                                                                          Select an appropriate port from LAN or RS422 to connect to the user’s operating

     interface, allowing the application to identify the monitor before control.

    Remote Control Application

    Connect your computer to control the monitor via applications. The interfaces of

    RS422 In and RS422 Out can realize synchronization control of multiple monitors.

    Q17 (14)     Q17 (6)

    Audio Vector Figures

    The Lissajous shape is generated by graphing the left signal on one axis against the right signal on the other axis.

    It used to test the phase of mono audio signal and phase relationships depends on its wavelength. Complex

    audiofrequency content will make the shape look like a complete mess so it is usually used in post production.





    Q17(7)Q17 (8)Q17 (9)

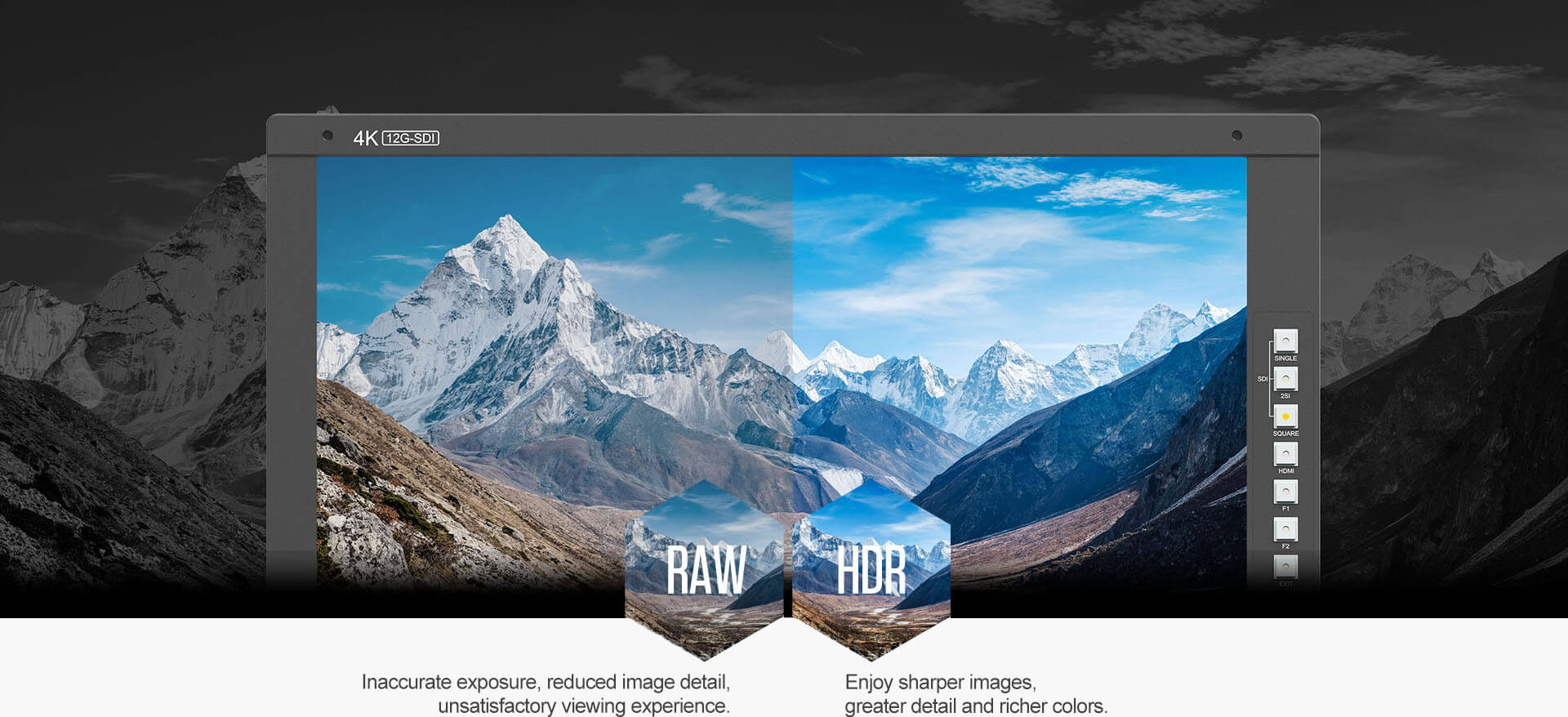

    HDR

    When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be

    displayed more clearly. Effectively enhancing the overall picture quality. Support ST2084 300 / ST2084 1000 / ST2084 10000 / HLG.

    Q17 (10)3D-LUT is a table for quickly looking up and output specific color data. By loading different 3D-LUT tables,

    it can quickly recombine color tone to form different color styles. Rec. 709 color space with built-in 3D-LUT,

    featuring 8 default logs and 6 user logs.Supports loading the .cube file via USB flash disk.

    Q17 (11) Q17 (12)Q17 (16)


  • Previous:
  • Next:

  • Display
    Size 17.3”
    Resolution 1920 x 1080
    Brightness 300cd/m²
    Aspect ratio 16:9
    Viewing Angle 178°/178°(H/V)
    Anamorphic de-squeeze 2x, 1.5x, 1.33x
    HDR ST2084 300/1000/10000/HLG
    Supported Log formats Sony SLog / SLog2 / SLog3…
    Look up table (LUT) support 3D LUT (.cube format)
    Technology Calibration to Rec.709 with optional calibration unit
    Video Input
    SDI 2×12G, 2×3G (Supported 4K-SDI Formats Single/Dual/Quad Link)
    HDMI 1×HDMI 2.0
    Video Loop Output (Uncompressed true 10-bit or 8-bit 422)
    SDI 2×12G, 2×3G (Supported 4K-SDI Formats Single/Dual/Quad Link)
    HDMI 1×HDMI 2.0
    Supported In / Out Formats
    SDI 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60
    HDMI 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60
    Audio In/Out (48kHz PCM Audio)
    SDI 12ch 48kHz 24-bit
    HDMI 2ch 24-bit
    Ear Jack 3.5mm - 2ch 48kHz 24-bit
    Built-in Speakers 2
    Remote Control
    RS422 In / out
    GPI 1
    LAN 1
    Power
    Operating power ≤32W
    DC In DC 12-24V
    Compatible batteries V-Lock or Anton Bauer Mount
    Input voltage (battery) 14.4V nominal
    Environment
    Operating Temperature 0℃~50℃
    Storage Temperature -20℃~60℃
    Other
    Dimension(LWD) 434×263×54mm
    Weight 3.2kg

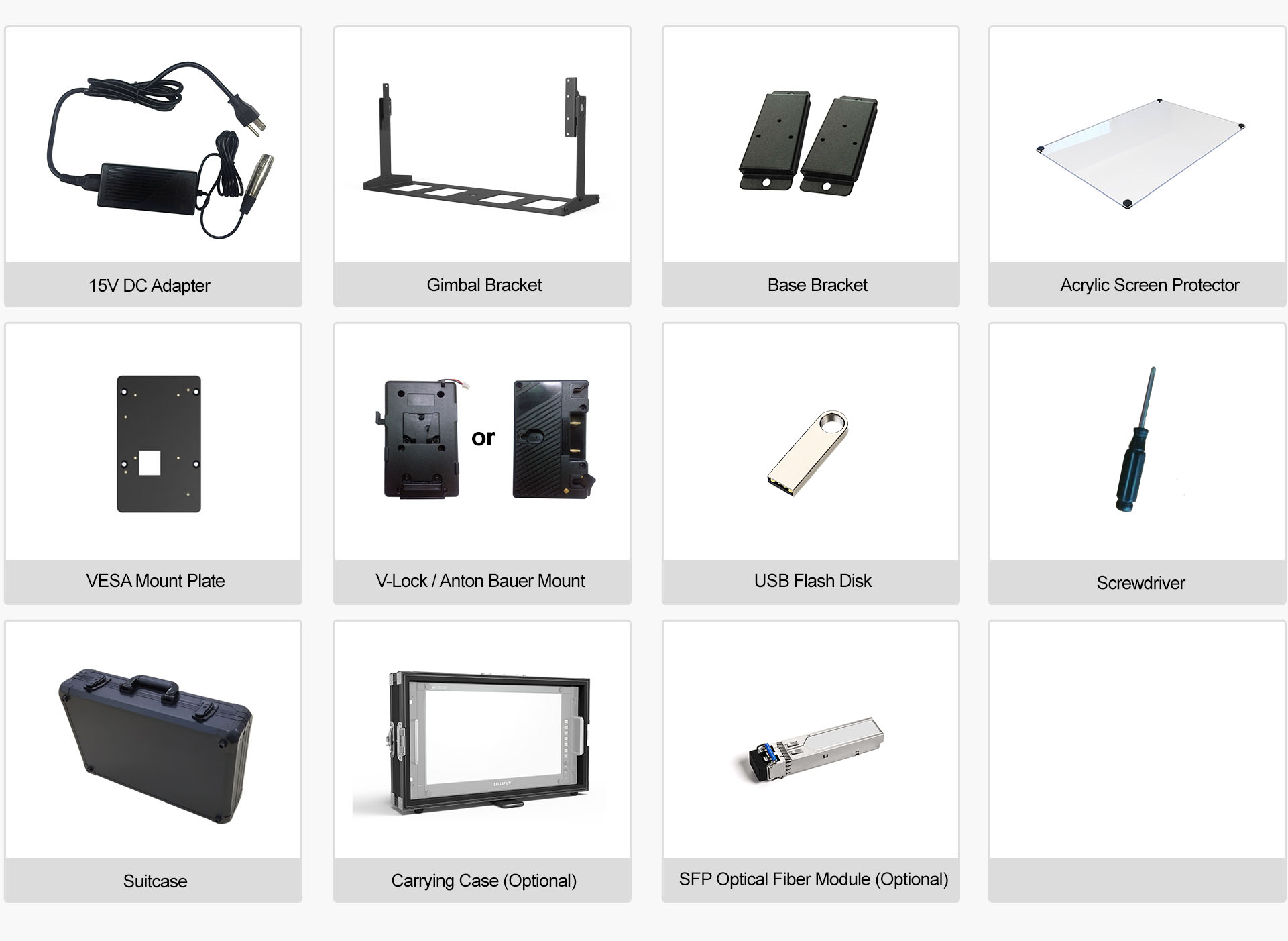

    Q17配件1
