665/WH_7″ Wireless HDMI Monitor

Short Description:

The 665/P/WH is a 7″ wireless HDMI Monitor with WHDI, HDMI, YPbPr, component video, peaking functions, focus assistance and sun hood. Optimised for for DSLR & Full HD Camcorder.


  • Model: 665/WH
  • Physical Resolution: 1024×600, support up to 1920×1080
  • Input: WHDI,YPbPr,HDMI,Video,Audio
  • Output: HDMI, Video
  • Product Detail

    Specifications

    Accessories

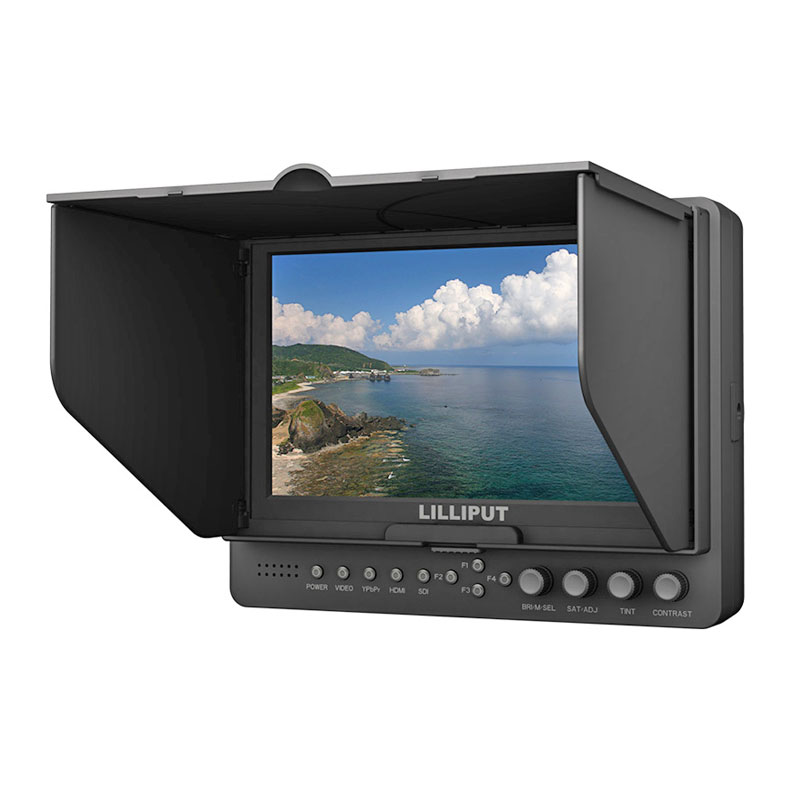

    The 665/P/WH is a 7″ wireless HDMI Monitor with WHDI, HDMI, YPbPr, component video, peaking functions, focus assistance and sun hood. Optimised for for DSLR & Full HD Camcorder.

    Note: 665/P/WH     (with advanced functions, wireless HDMI input)
              665/O/P/WH (with advanced functions, wireless HDMI input & HDMI output)
              665/WH         (Wireless HDMI input)
              665/O/WH     (Wireless HDMI input & HDMI output)

    x1



    Peaking Filter:

    This feature is most effective when the subject is properly exposed and contains enough contrast to be processed.

    x2

    FALSE COLORS FILTER:

    The False Color filter is used to aid in the setting of camera exposure, which enables proper exposure to be achieved without the use of costly, complicated external test equipment.

    • OVEREXPOSED: Overexposed objects will display as RED;
    • PROPERLY EXPOSED: Properly exposed objects will display elements of GREEN and PINK;
    • UNDEREXPOSED: Underexposed objects show as DEEP-BLUE to DARK-BLUE.

    x3

    x4

     BRIGHTNESS HISTOGRAM:

    The Brightness Histogram is a quantitative tool to check the picture brightness. This feature shows the distribution of brightness in an image as a graph of brightness along the horizontal axis (Left: Dark; Right: Bright) and a stack of the number of pixels at each level of brightness along the vertical axis.

    x5




  • Previous:
  • Next:

  • Display
    Size 7″ LED backlit
    Resolution 1024×600, surport up to 1920 x 1080
    Brightness 250cd/m²
    Aspect Ratio 16:9
    Contrast 800:1
    Viewing Angle 160°/150°(H/V)

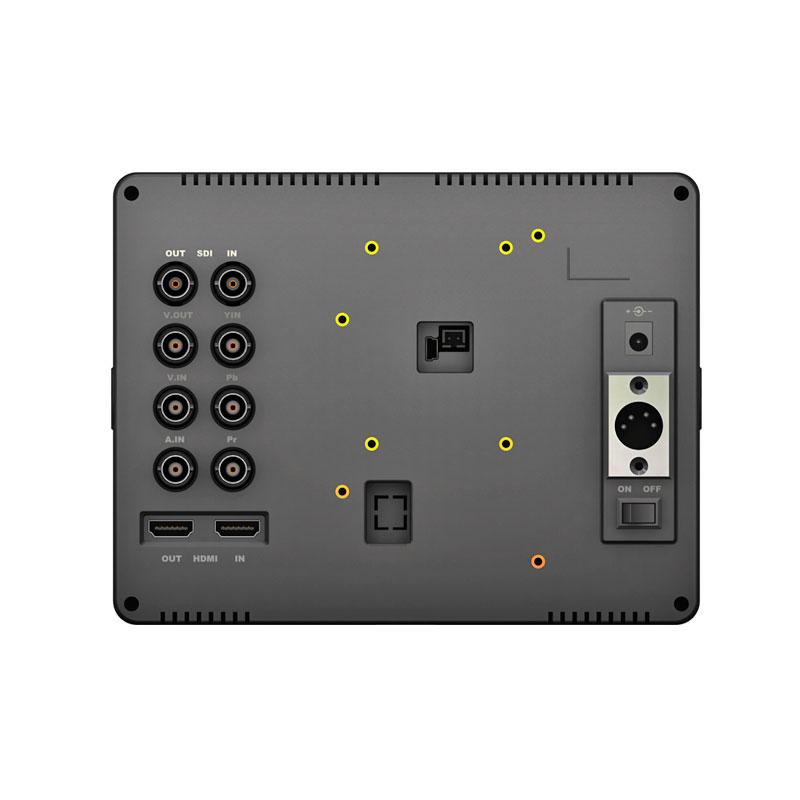

    Input
    WHDI  1
    HDMI  1
    YPbPr  3(BNC)
    VIDEO  1
    AUDIO  1
    Output
    HDMI  1
    VIDEO  1
    Power
    Current  800mA
    Input Voltage  DC 7-24V (XLR)
    Battery Plate  V-mount /Anton Bauer Mount /F970 / QM91D / DU21 / LP-E6
    Power Consumption  ≤10W
    Environment
    Operating Temperature  -20℃ ~ 60℃
    Storage Temperature  -30℃ ~ 70℃
    Dimension
    Dimension(LWD)  194.5x150x38.5/158.5mm (with cover)
    Weight  560g/720g(with cover)
    VIDEO FORMAT
    WHDI(wireless HDMI)  1080p 60/50/30/25/24Hz
    1080i 60/50Hz, 720p 60/50Hz
    576p 50Hz, 576i 50Hz
    480p 60Hz, 486i 60Hz
     HDMI  1080p 60/59.94/50/30/29.97/25/24/23.98/23.976Hz
    1080i 60/59.94/50Hz, 1035i 60/59.94Hz
    720p 60/59.94/50/30/29.97/25Hz
    576i 50Hz,  486i 60/59.94Hz, 480p 59.94Hz

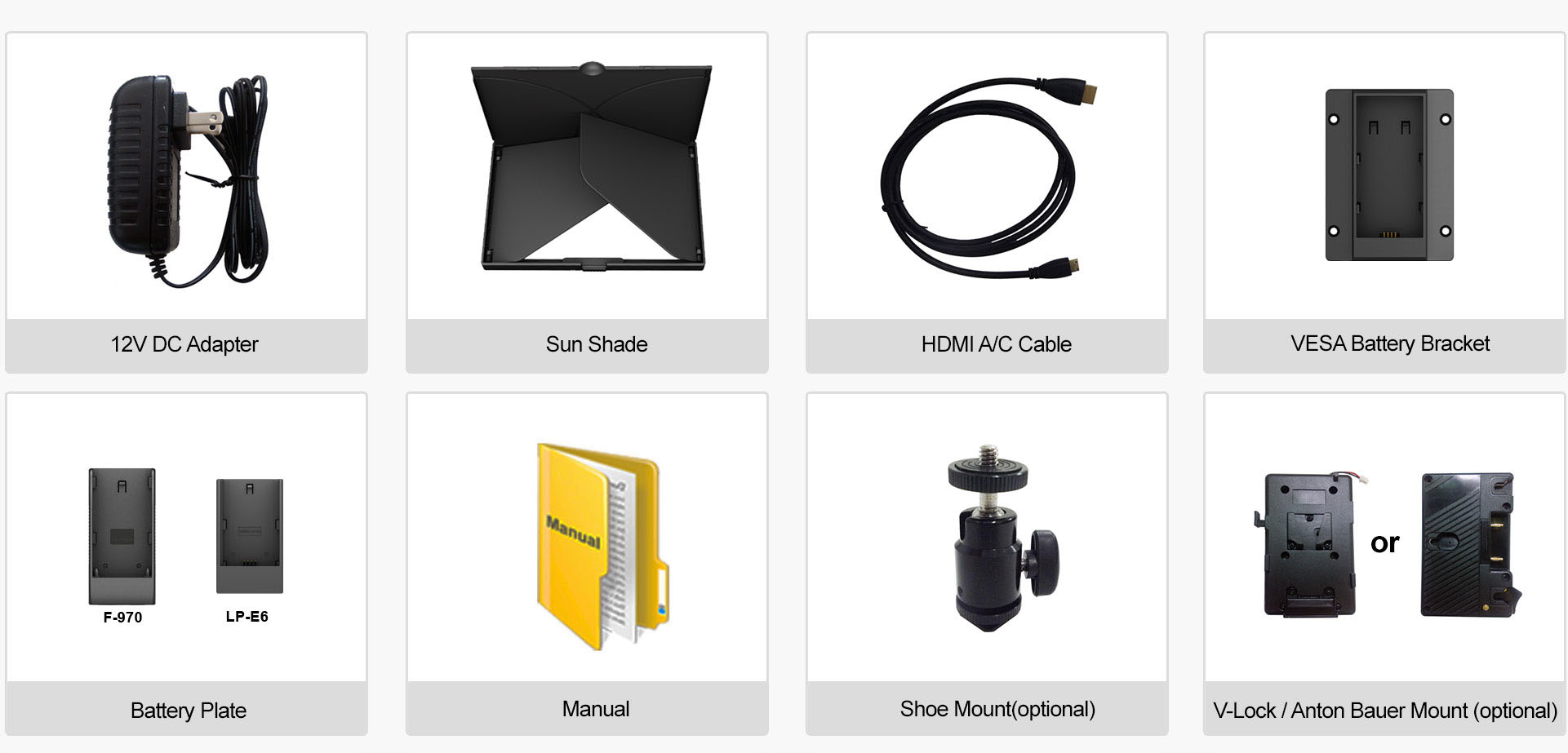

    665-accessories
