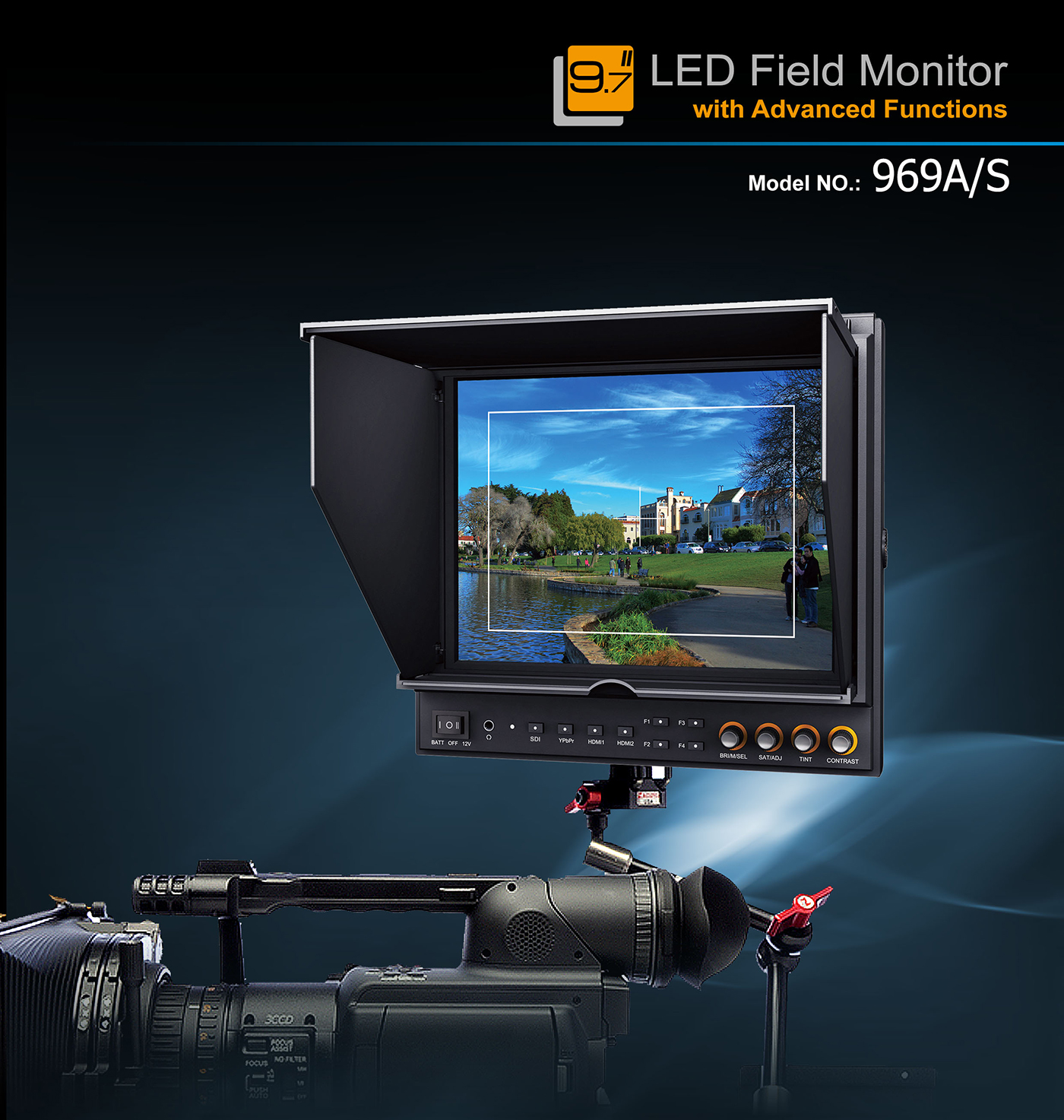

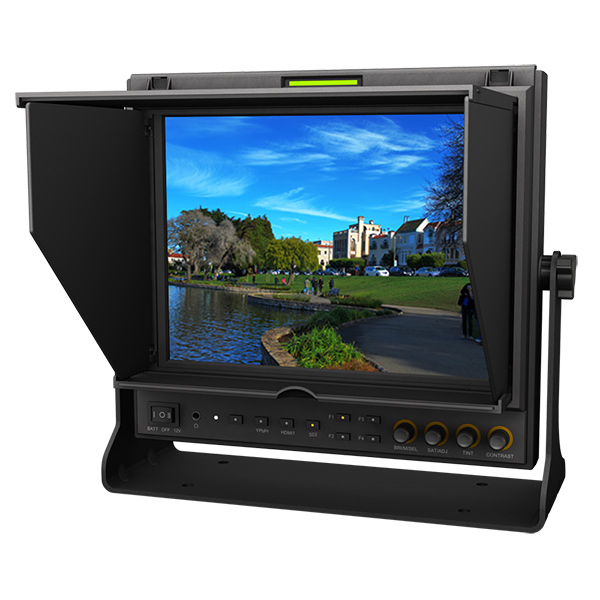

9.7 inch Camera-top SDI monitor
A Better Camera & camcorder Assist
969A/S matches with world-famous FHD camera & camcorder brands, to assist cameraman in
better photography experience for variety of applications, i.e. filming on site, broadcast live action,
making movies and post-production, etc. It features 9.7″ 4:3 LCD panel with 1024×768 resolution,
600:1 contrast, 178° wide viewing angles, 400cd/m² brightness, which offers outstanding viewing
experience.
Camera Auxiliary Functions & Easy-to-use
663/S2 provides plenty of auxiliary functions for taking photos and making movies, such as peaking, false color and audio level meter.
F1 – F4 user-definable buttons to custom auxiliary functions as shortcut, such as peaking, underscan and checkfield. Use the Dial to
select and adjust the value among of sharpness, saturation, tint and volume, etc. EXIT Single press to activate mute function under
non menu mode; Single press to exit under menu mode.
| Display | |
| Size | 9.7” |
| Resolution | 1024 x 768 |
| Brightness | 400cd/m² |
| Aspect ratio | 4:3 |
| Contrast | 600:1 |
| Viewing Angle | 178°/178°(H/V) |

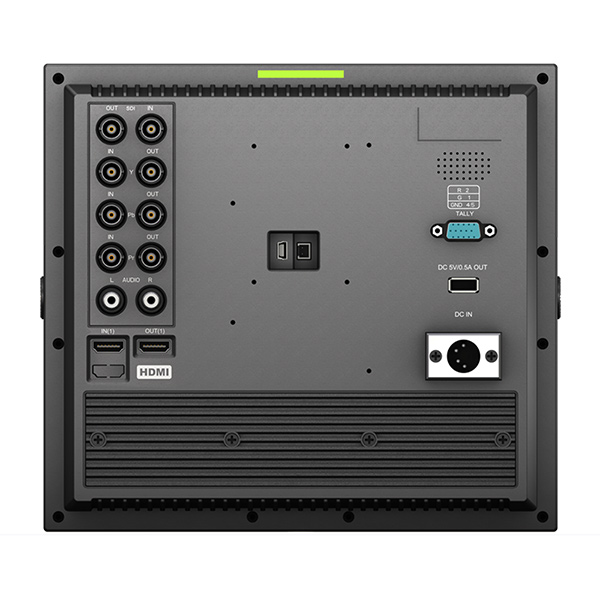

| Video Input | |
| SDI | 1×3G |
| HDMI | 2×HDMI 1.4 |
| YPbPr | 1 |
| Video Loop Output (SDI / HDMI cross conversion) | |
| SDI | 1×3G |
| HDMI | 1×HDMI 1.4 |
| YPbPr | 1 |
| Supported In / Out Formats | |
| SDI | 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60 |
| HDMI | 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60 |
| Audio In/Out (48kHz PCM Audio) | |
| SDI | 12ch 48kHz 24-bit |
| HDMI | 2ch 24-bit |
| Ear Jack | 3.5mm - 2ch 48kHz 24-bit |
| Built-in Speakers | 1 |
| Power | |
| Operating power | ≤18W |
| DC In | DC 7-24V |

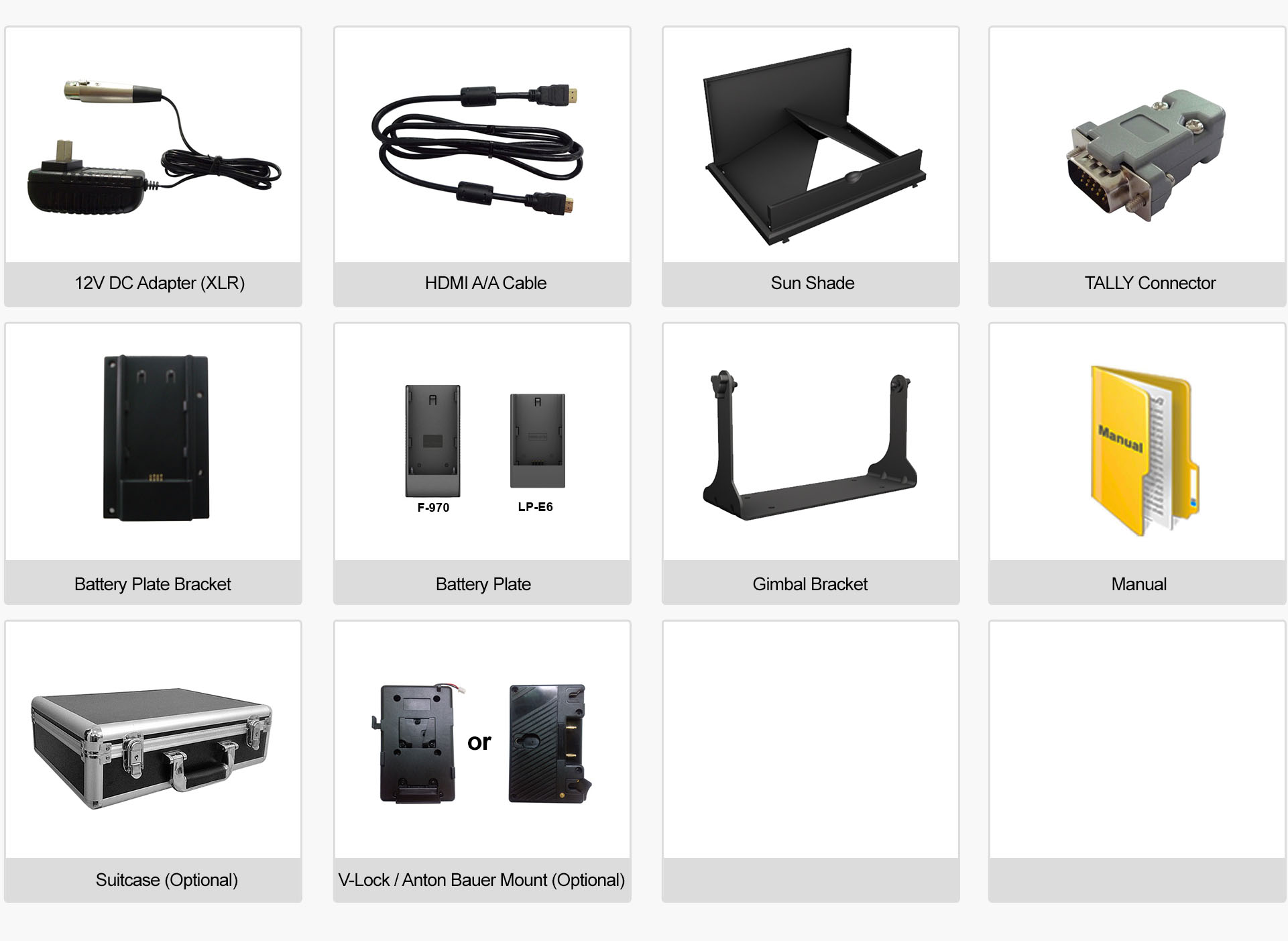

| Compatible batteries | NP-F Series and LP-E6 |
| Input voltage (battery) | 7.2V nominal |
| Environment | |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |
| Other | |

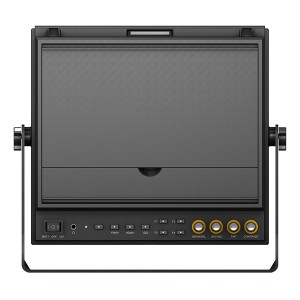

| Dimension(LWD) | 246×224×31/167.5mm (with cover) |
| Weight | 1068g/1388g (with cover) |
