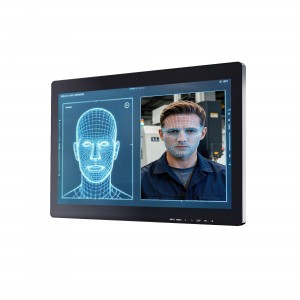

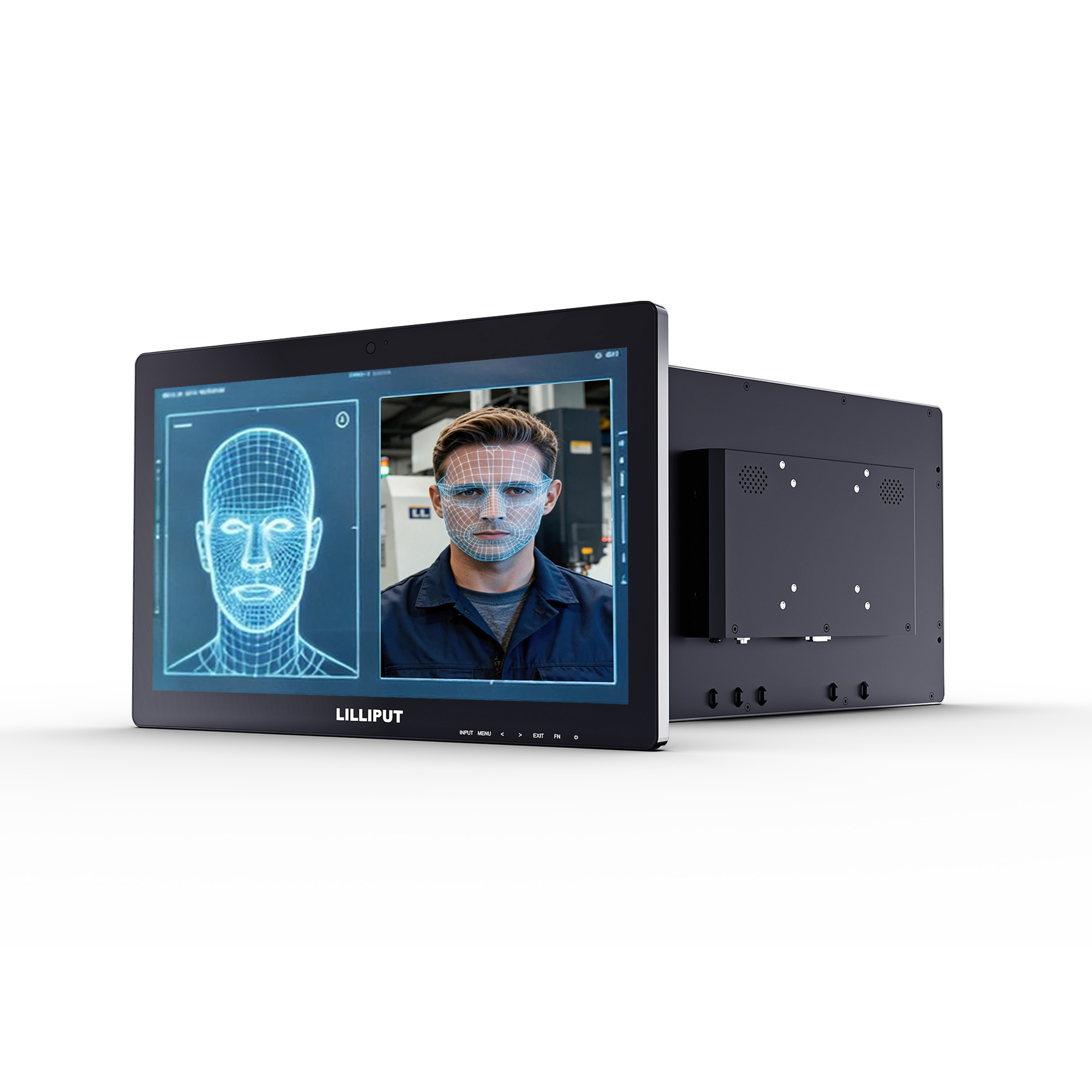

AD15 15.6 Inch Smart Industrial Monitor for Industry 4.0

Short Description:

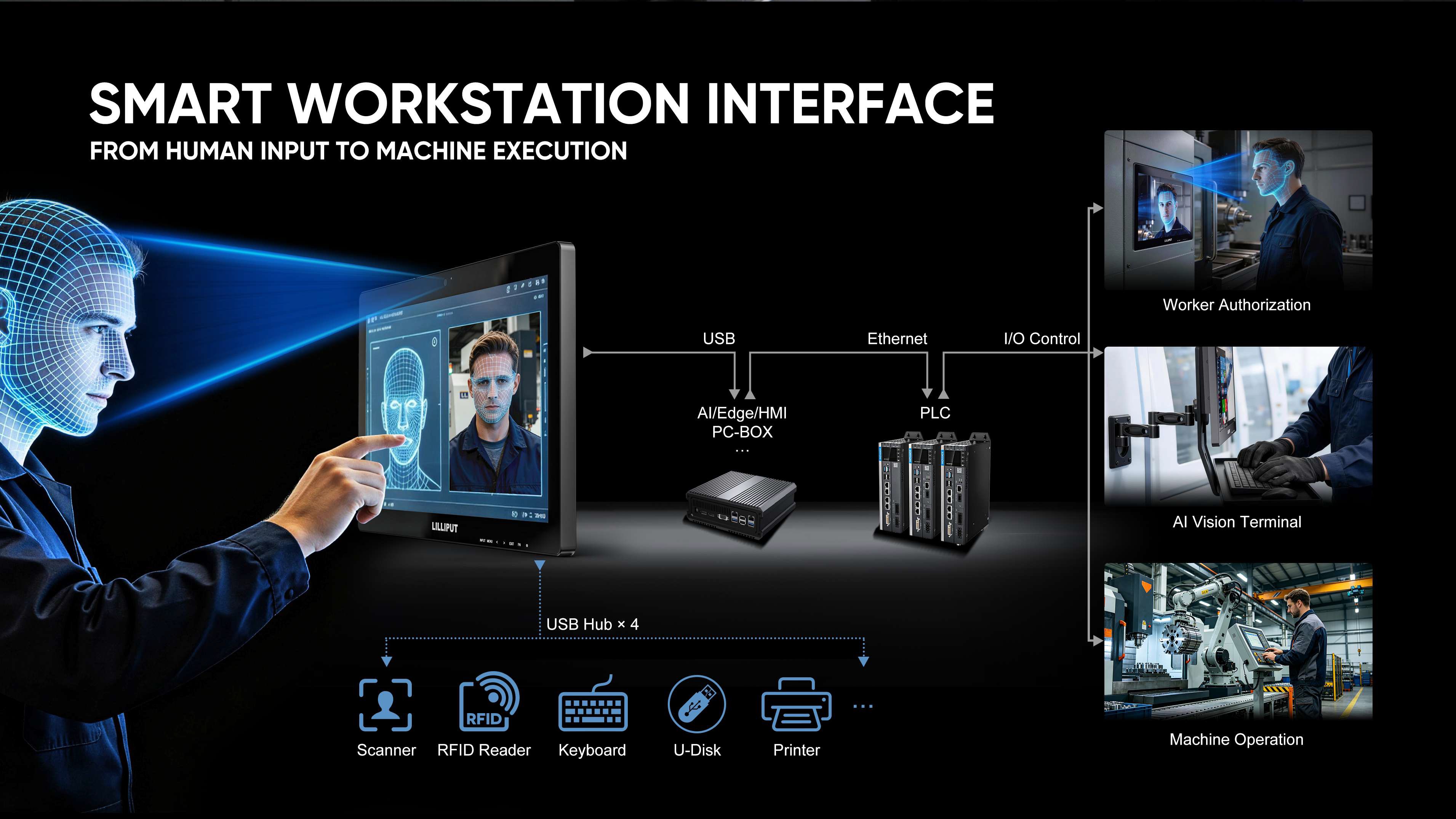

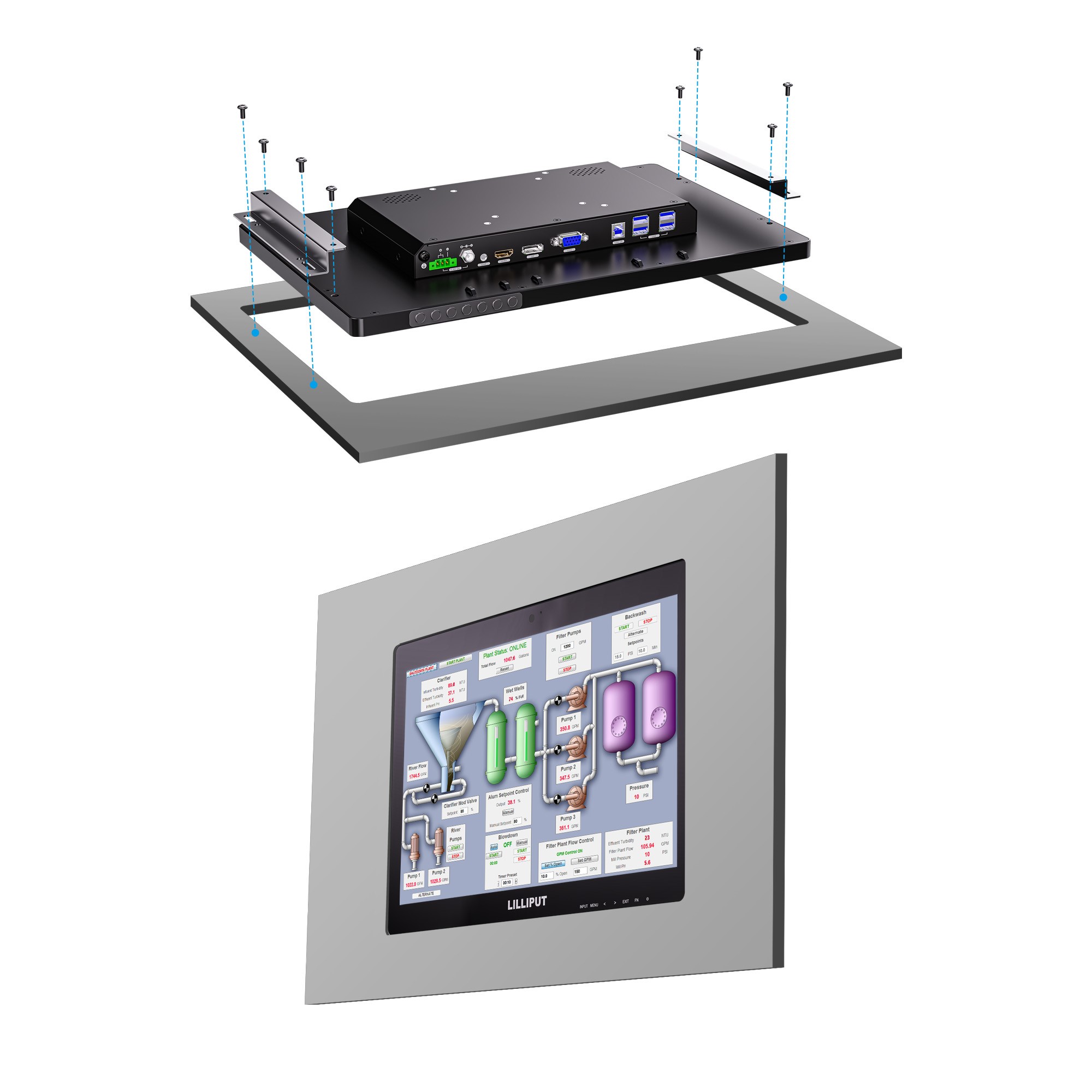

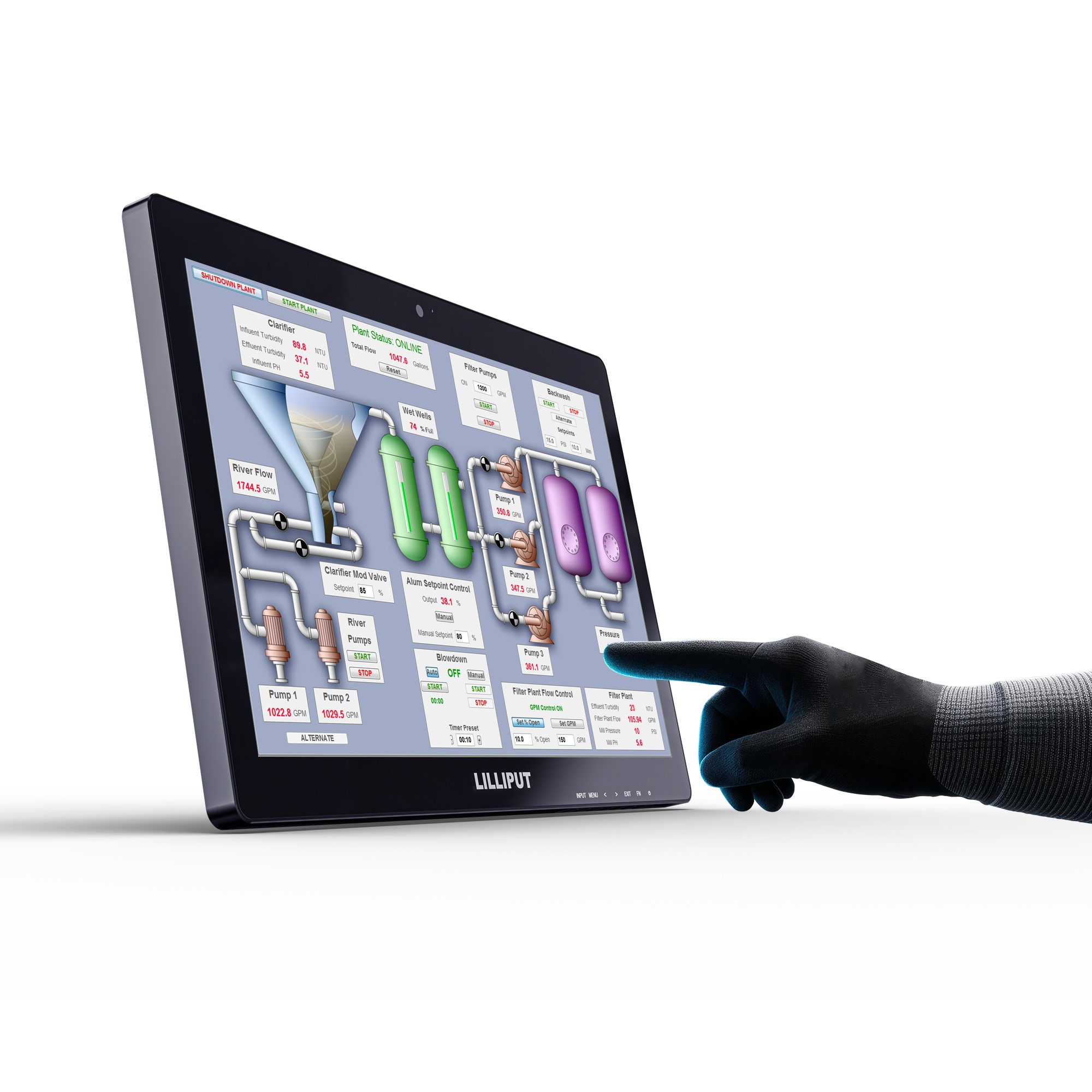

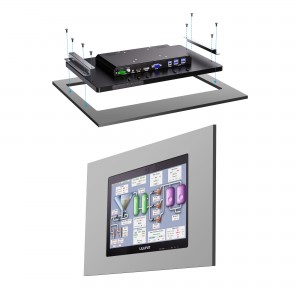

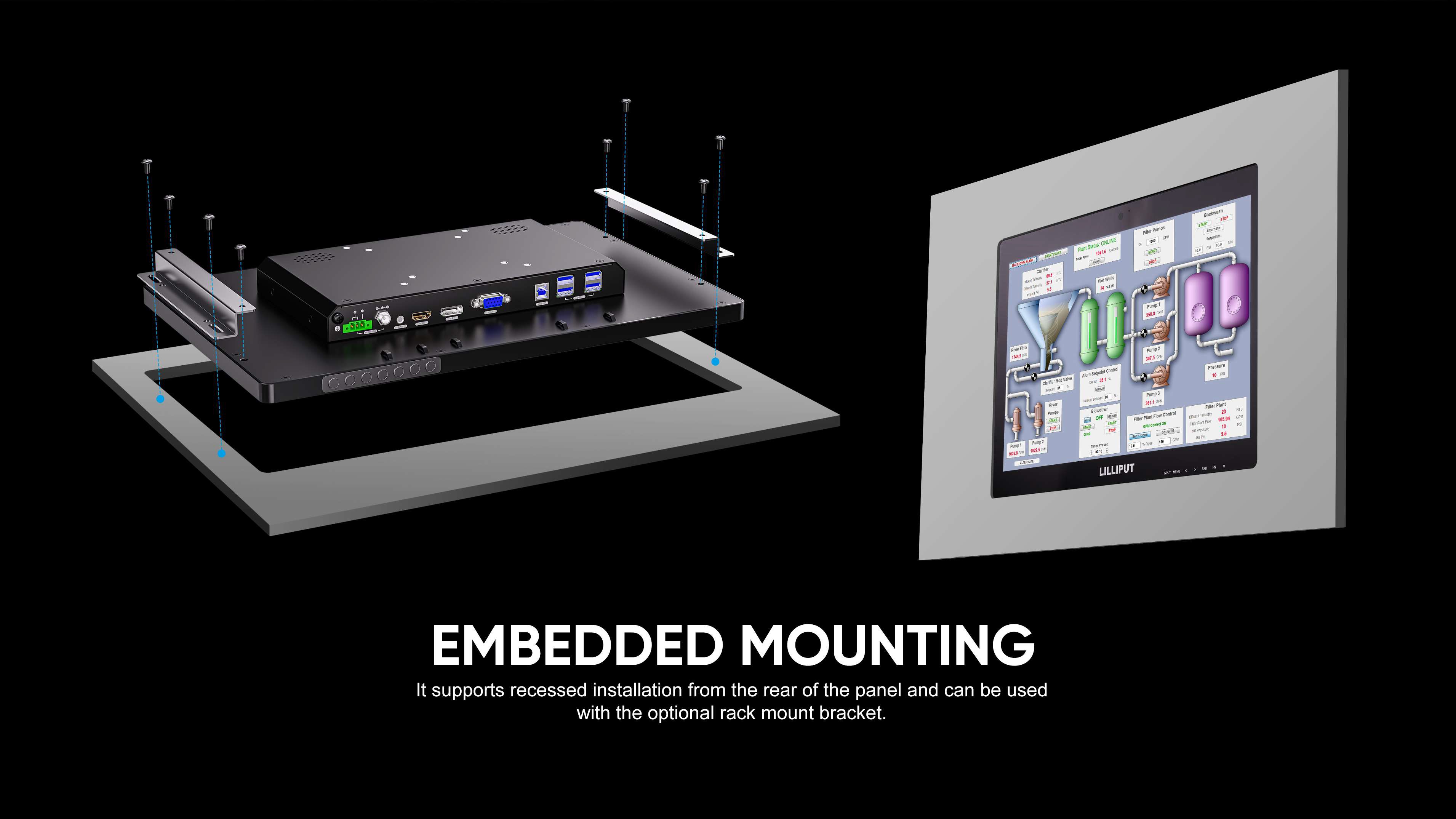

This 15.6-inch metal monitor comes with a 10-point capacitive touch screen and 1000nits high brightness screen panel. A built-in 8MP front camera that can be activated through Edge PC-BOX, easily meeting the needs of specific scenarios requiring visual recognition. The interfaces support a wide range of customisation options in addition to the existing types such as HDMI, VGA, DP, USB-A hub×4. It supports glove touch, has an IP65/NEMA 4 front panel, 7H hardness, and IK07 impact resistance. Horizontal and vertical installation are both supported for flexible use.

Model No.: AD15

Display: 15.6" / 1920×1080 / 1000 nits

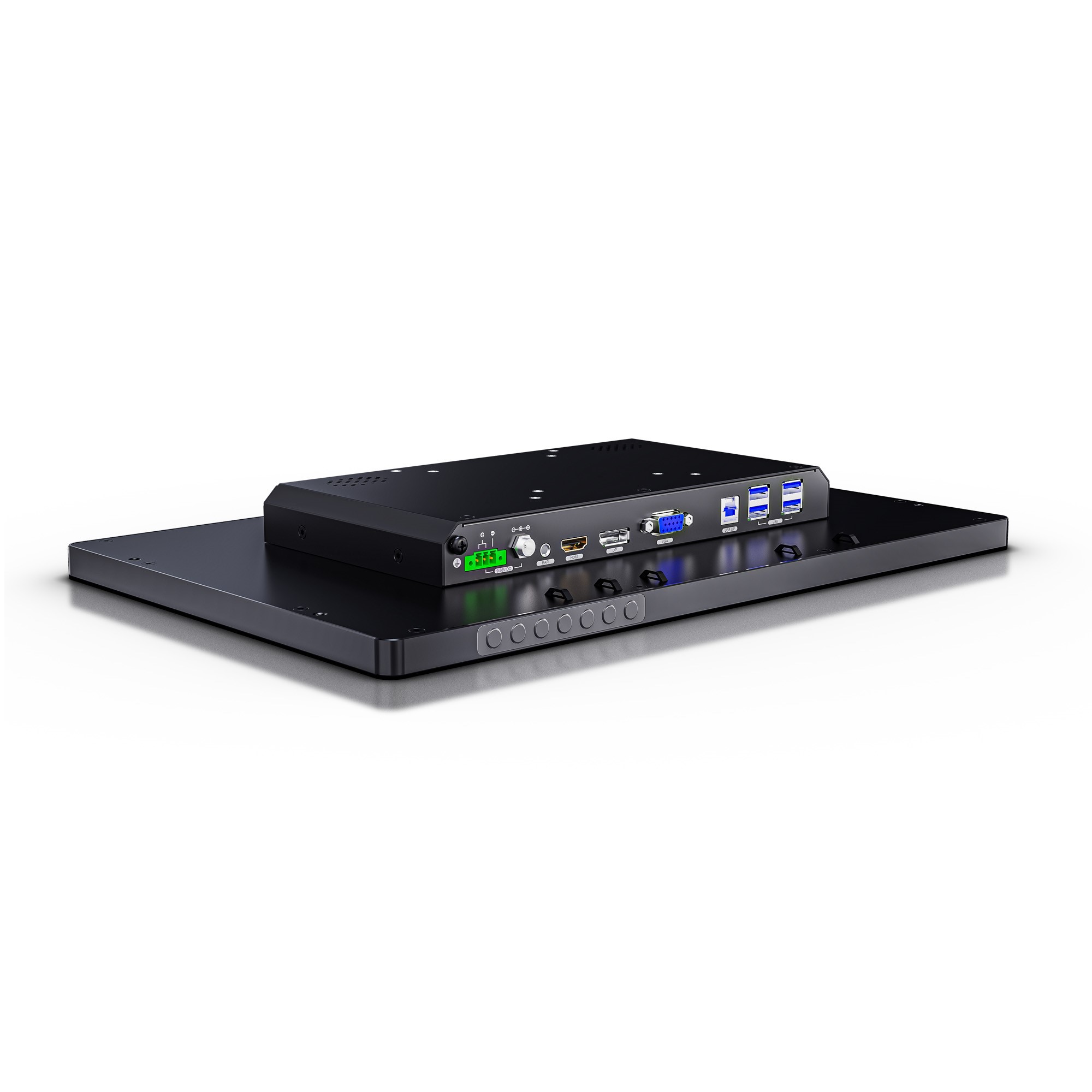

Input: HDMI, VGA, DP, USB-A Hub×4

Audio In/Out: Speaker, HDMI, Ear Jack

Feature: 1000nits Brightness, 10-points PCAP, IP65 Front Panel, AG, AF, UV-resistant, 7H, IK07, Metal Housing

Send email to us Download as PDF User guide

Product Detail

Specifications

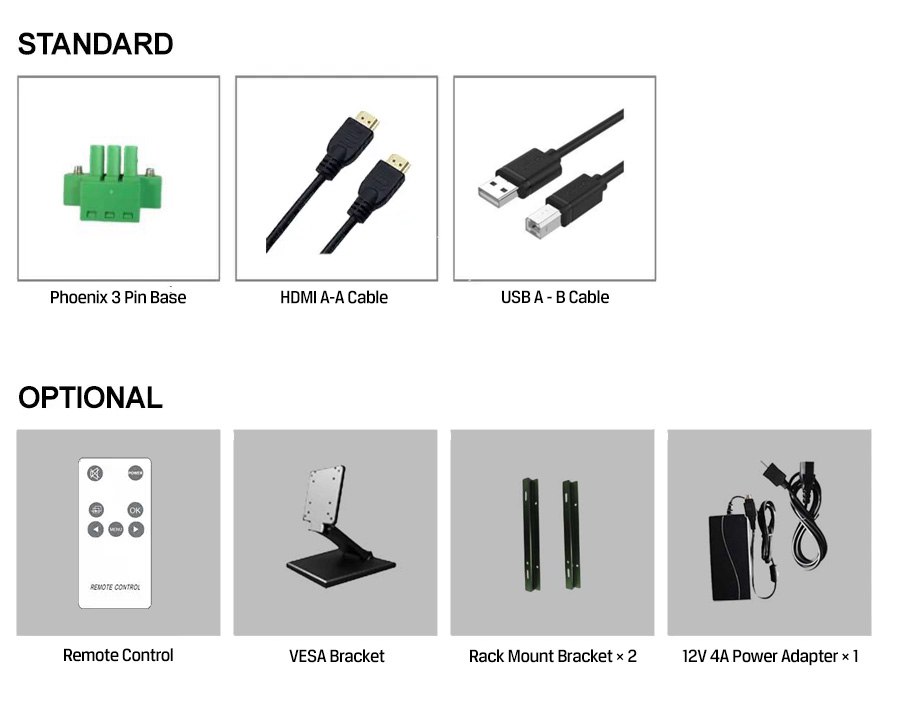

Accessories

Product Tags

Previous: TK719 7 Inch 1000 Nits Touch Screen Industrial Monitor

Next:

MODEL NO.		AD15
DISPLAY	Touch Screen	10-point PCAP
	Panel	15.6” LCD
	Physical Resolution	1920×1080
	Aspect Ratio	16:9
	Brightness	1000 nits
	Contrast	1000:1
	Viewing Angle	170° / 170° (H/V)
	LED Panel Life Time	50000h
	Coating	UV-resistant, AG, AF

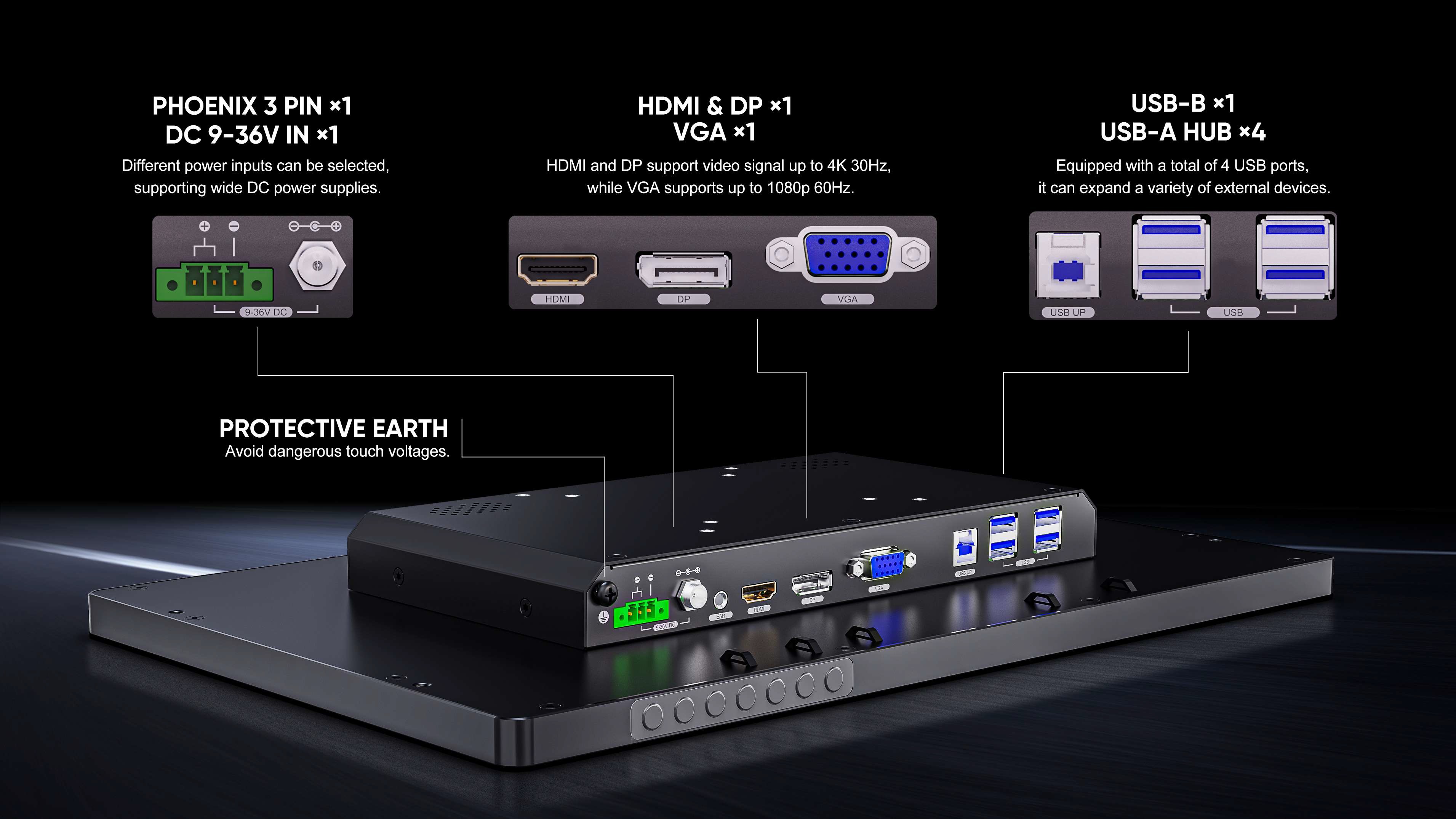

INPUT	HDMI	1
	VGA	1
	DP	1
	USB	4×USB-A hub (Current 1.5A/3A), 1×USB-B
SUPPORTED FORMATS	HDMI	2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60…
	VGA	1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
	DP	2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60…
CAMERA	Front Camera	8 MP
AUDIO IN/OUT	MIC	For calls, video recording and audio recording
	Speaker	2
	Ear Jack	3.5mm
POWER	Input Voltage	DC 9-36V
	Power Consumption	≤33W (12V)
ENVIRONMENT	IP Rating	IP65 Front Panel, Front NEMA 4
	Vibration	1.5Grms, 5~500Hz, 1 hr/axis (IEC6068-2-64)
	Shock	10G, half-sine wave, last 11 ms(IEC6068-2-27)
	Operating Temperature	-20°C~60°C
	Storage Temperature	-30°C~70°C
DIMENSION	Dimension(LWD)	383mm × 245mm × 40.4mm
	Weight	2.9kg
