BM120-4KS_12.5 inch carry on 4K broadcast director monitor with suitcase

Short Description:

BM120-4KS is a 12.5″ 4K resolution monitor with 3840 x 2160 native resolution. It features two HDMI 2.0 inputs that support 4K HDMI 60Hz, and it also has two HDMI 1.4b as well as a 3G-SDI, VGA, and DVI input. The monitor features a single 3G-SDI output.. It supports SDR, HDR 10,3D-LUT, peaking, false, histogram,etc.

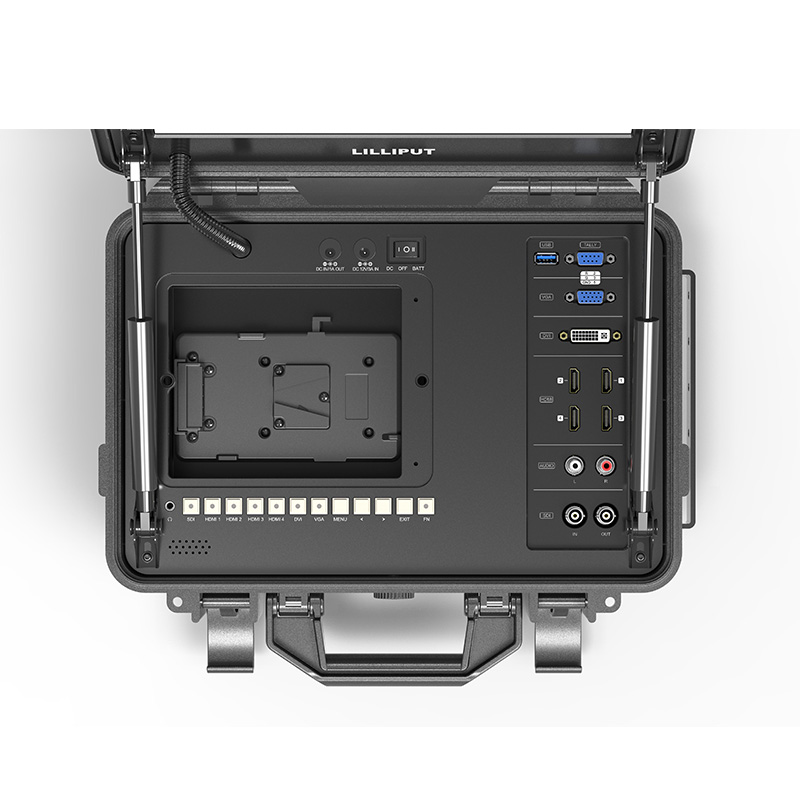

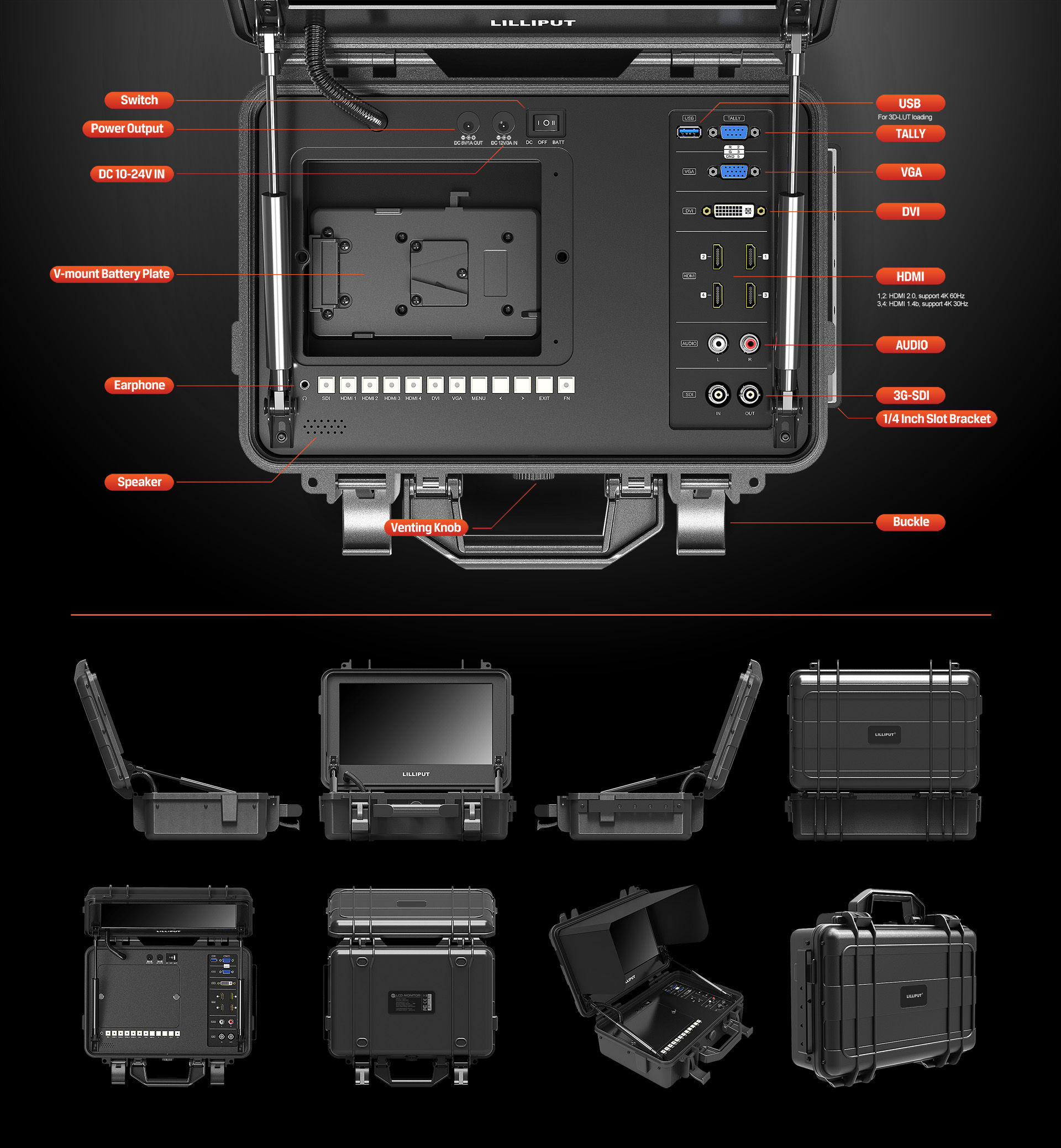

It is built into a hard protective carry on flight case which is just about 4KG. The LCD monitor is mounted on the lid, while the inputs, outputs, power connectors, and control buttons, V mount battery plates reside in the bottom, allowing you to connect your monitor without having to access the back of the monitor. An external rail with 1.4″-20 threaded holes along the side of the case is ideal for mounting wireless devices that can be powered by the 8 VDC output from monitor, It is designed for the professional video and film industry and is ideally suited for directors and camera operators operating 4K capable equipment or can be used by camera crews to shoot outdoors in the field.


  • Model:: BM120-4KS
  • Physical resolution:: 3840x2160
  • SDI interface:: Support 3G-SDI input and loop output
  • HDMI 2.0 interface:: Support 4K HDMI signal
  • Feature:: 3D-LUT, HDR...
  • Product Detail

    Specification

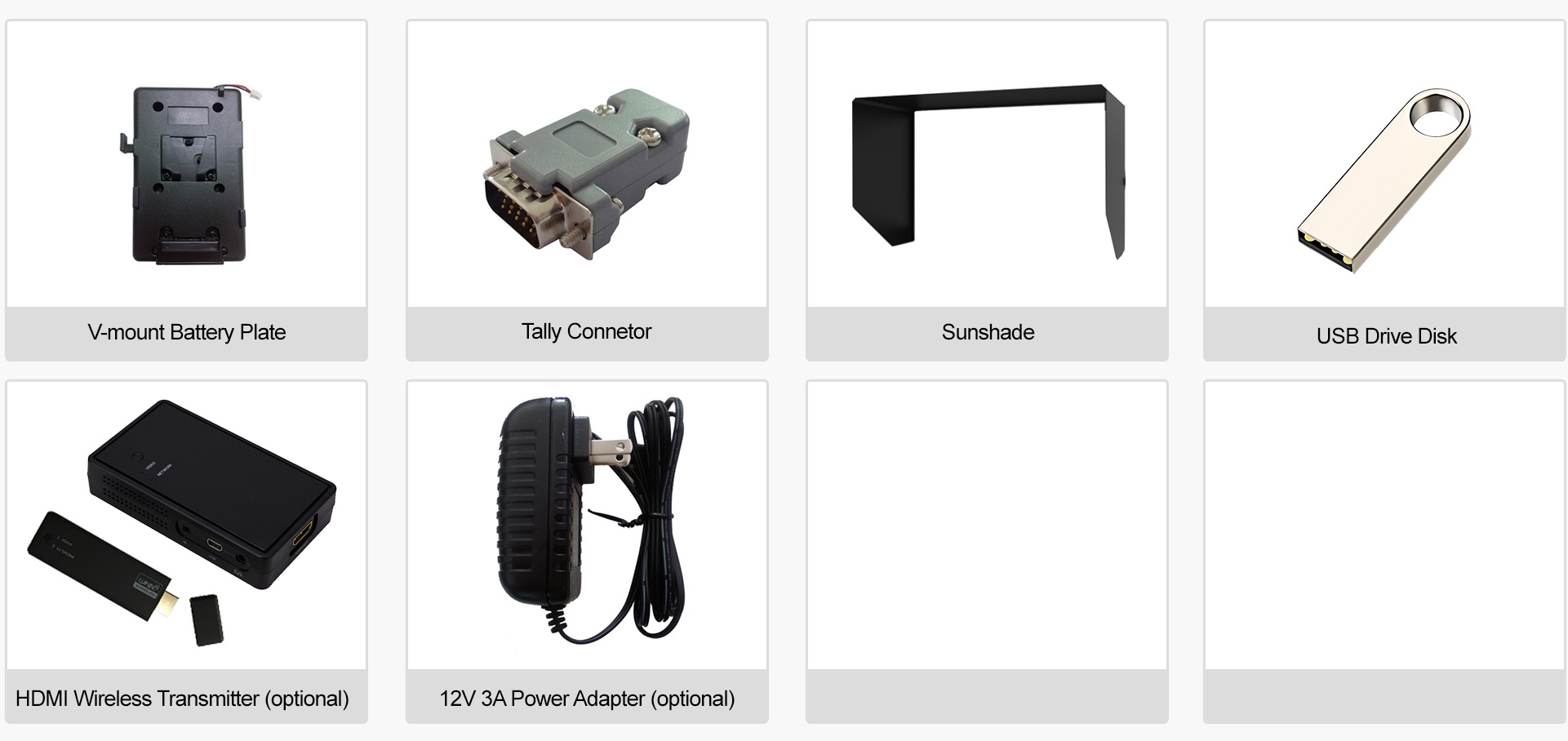

    Accessories

    1

    Portable Suitcase Monitor with 4K Resolution, 97% NTSC color space. Application for taking photos & making movies.

    2

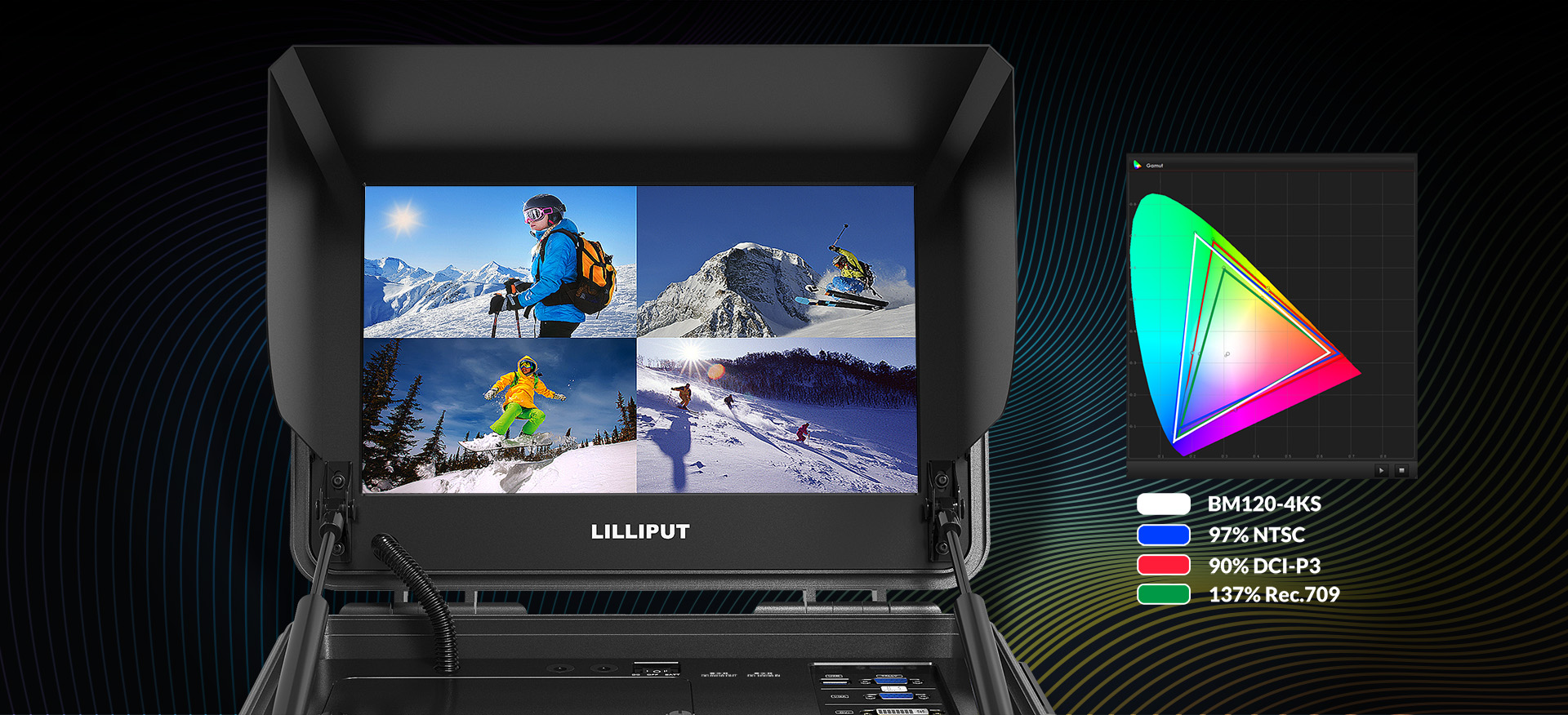

    Excellent Color Space

    Creatively integrated the 3840×2160 native resolution into a 12.5 inch 8 bit LCD panel, which is far beyond from retina identification. Cover 97% NTSC color space, accurately reflect the original colors of an A+ level screen.

    Quad Views Display

    It supports quad views splitted from different input signals simultaneously, such as 3G-SDI, HDMI and VGA. Also supports Picture-in-Picture function.

    3

    4K HDMI & 3G-SDI

    4K HDMI supports up to 4096×2160 60p and 3840×2160 60p; SDI supports 3G-SDI signal.

    3G-SDI signal can loop output to the other monitor or device when 3G-SDI signal input to monitor.

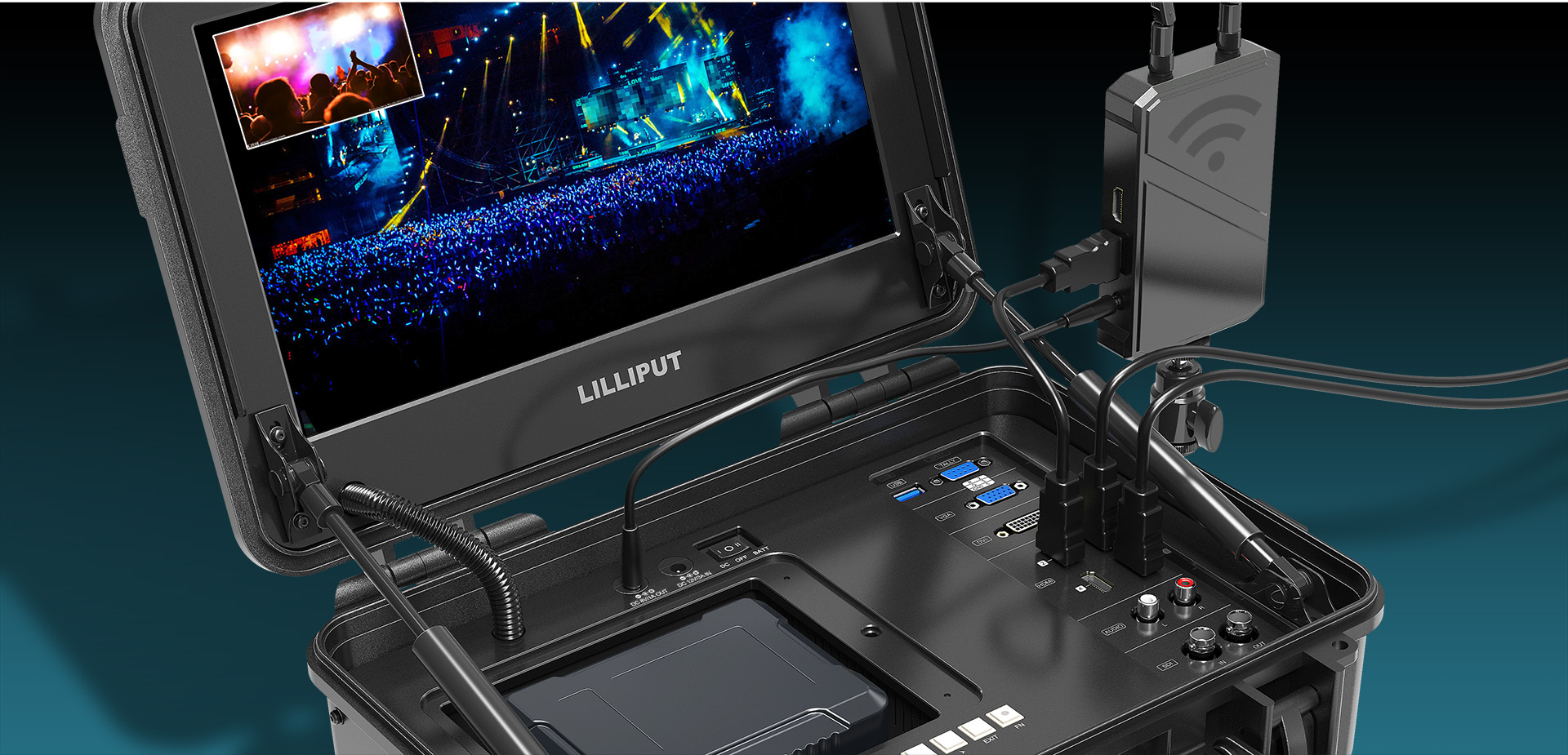

    Support External Wireless Transmitter

    Supports SDI / HDMI wireless transmitter which can transmit 1080p SDI / 4K HDMI signals in real time. When in use, the module can be mounted on the side brackets (compatible with 1/4 inch slots) of the case.

    4

    HDR

    When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearly. Effectively enhancing the overall picture quality. Support HDR 10.

    5

    3D LUT

    Wider color gamut range to make precise color reproduction of Rec.709 color space with built-in 3D-LUT, featuring 3 user logs.

    (Supports loading the .cube file via USB flash disk.)

    6

    Camera Auxiliary Functions

    Povides plenty of auxiliary functions for taking photos and making movies, such as peaking, false color and audio level meter.

    7

    Outdoor Power Supply

    The V-mount battery plate is embedded in the suitcase and can be powered by a 14.8V lithium V-mount battery. Provides extra power when shooting outdoors in the field.

    V-mount Battery

    Compatible with mini V-mount battery brands on the market. A 135Wh battery will keep the monitor working for 7 - 8 hours.The length and width of the battery should not exceed 120mm×91mm.

    8

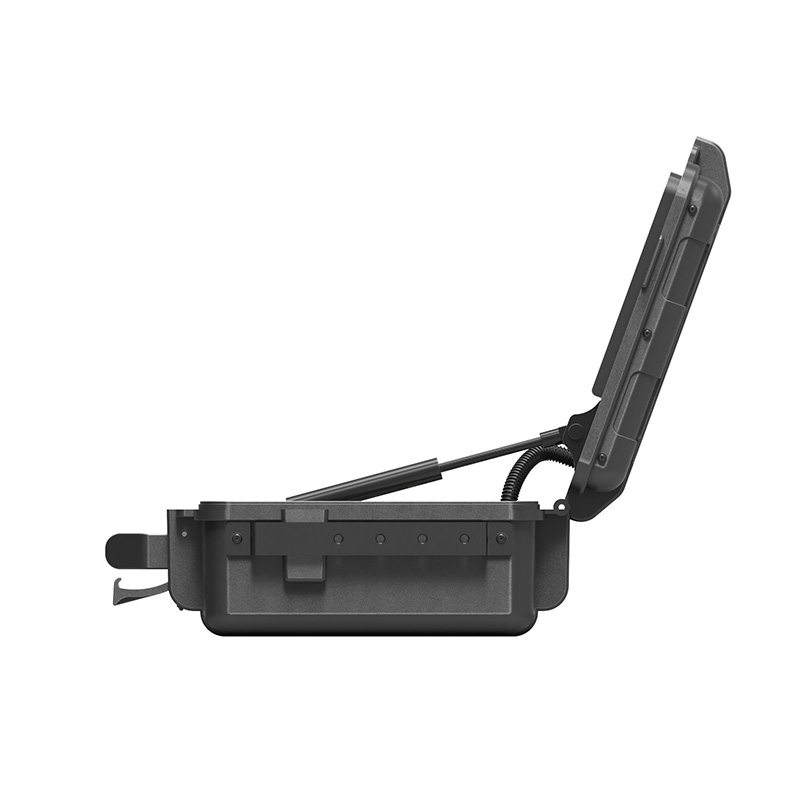

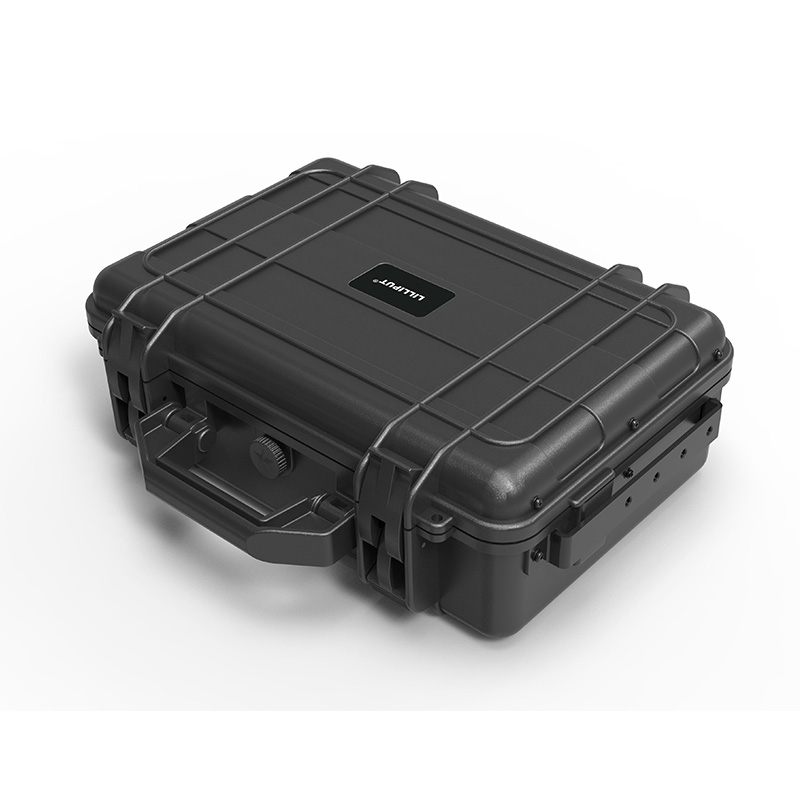

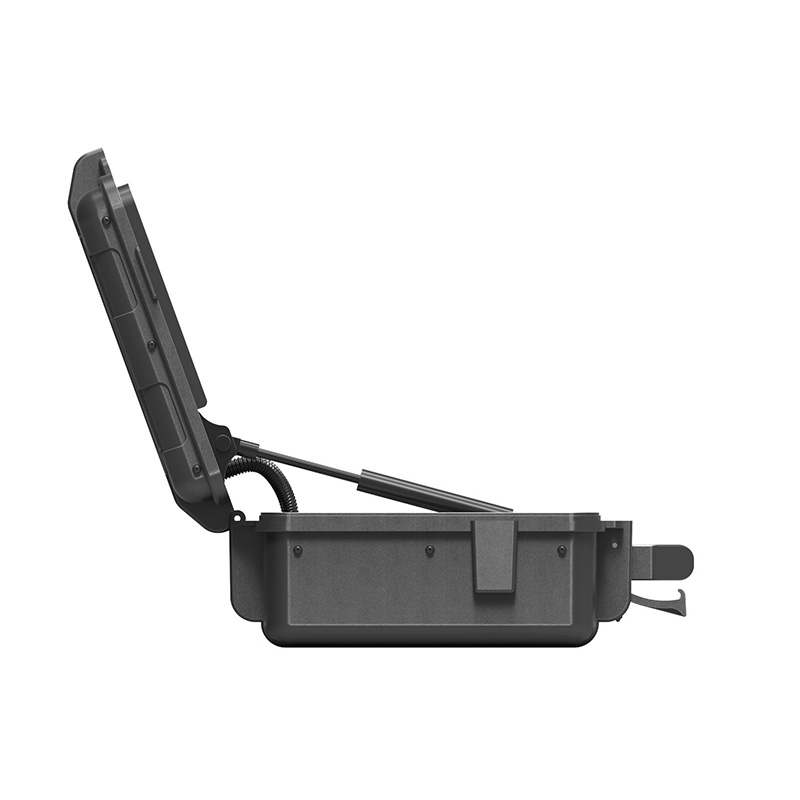

    Portable Flight Case

    Military-industrial Level! Integrated PPS high-strength material, featuring with dustproof, waterproof, high-temperature resistance, impact resistance and corrosion resistance. The lightweight design makes outdoor photography easy and convenient. It is sized to meet boarding requirements that can be taken into cabin.

    9

  • Previous:
  • Next:

  • DISPLAY
    Panel 12.5” LCD
    Physical Resolution 3840×2160
    Aspect Ratio 16:9
    Brightness 400cd/m2
    Contrast 1500:1
    Viewing Angle  170°/ 170°(H/V)
    INPUT
    3G-SDI 3G-SDI (support up to 1080p 60Hz)
    HDMI HDMI 2.0 ×2 (support up to 4K 60Hz)
    HDMI 1.4b ×2 (support up to 4K 30Hz)
    DVI 1
    VGA 1
    Audio 2 (L/R)
    Tally 1
    USB 1
    OUTPUT
    3G-SDI 3G-SDI (support up to 1080p 60Hz)
    AUDIO
    Speaker 1
    Ear Jack 1
    POWER
    Input Voltage DC 10-24V
    Power Consumption ≤23W
    Battery Plate V-mount battery plate
    Power Output  DC 8V
    ENVIRONMENT
    Operating Temperature   0℃~50℃
    Storage Temperature 10℃~60℃
    DIMENSION
     Dimension(LWD)  -356.8mm × 309.8mm × 122.1mm
     Weight  4.35kg (include accessories)
