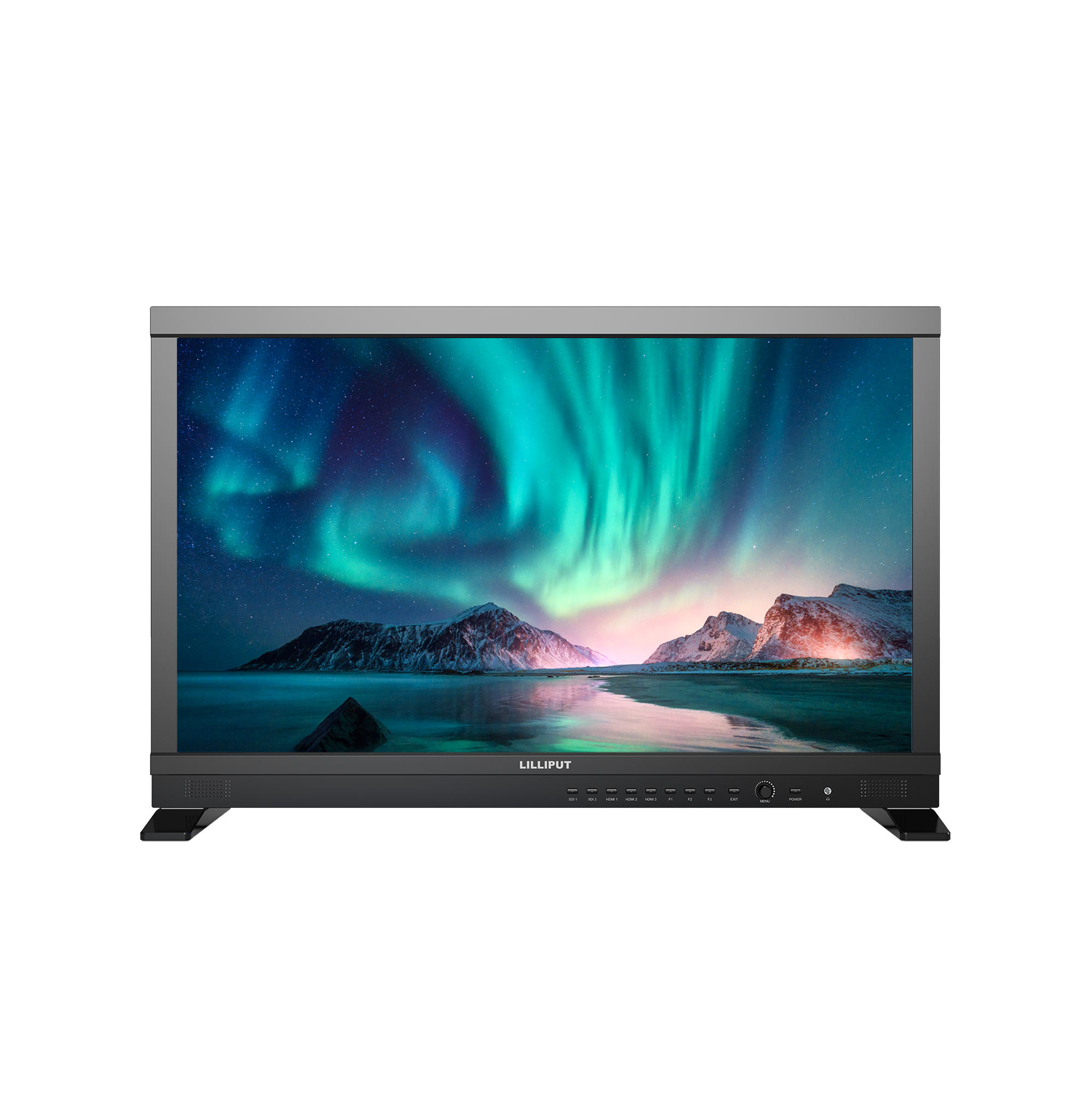

27 inch 1000 Nits High Brightness Live Stream Multiview Monitor

Short Description:

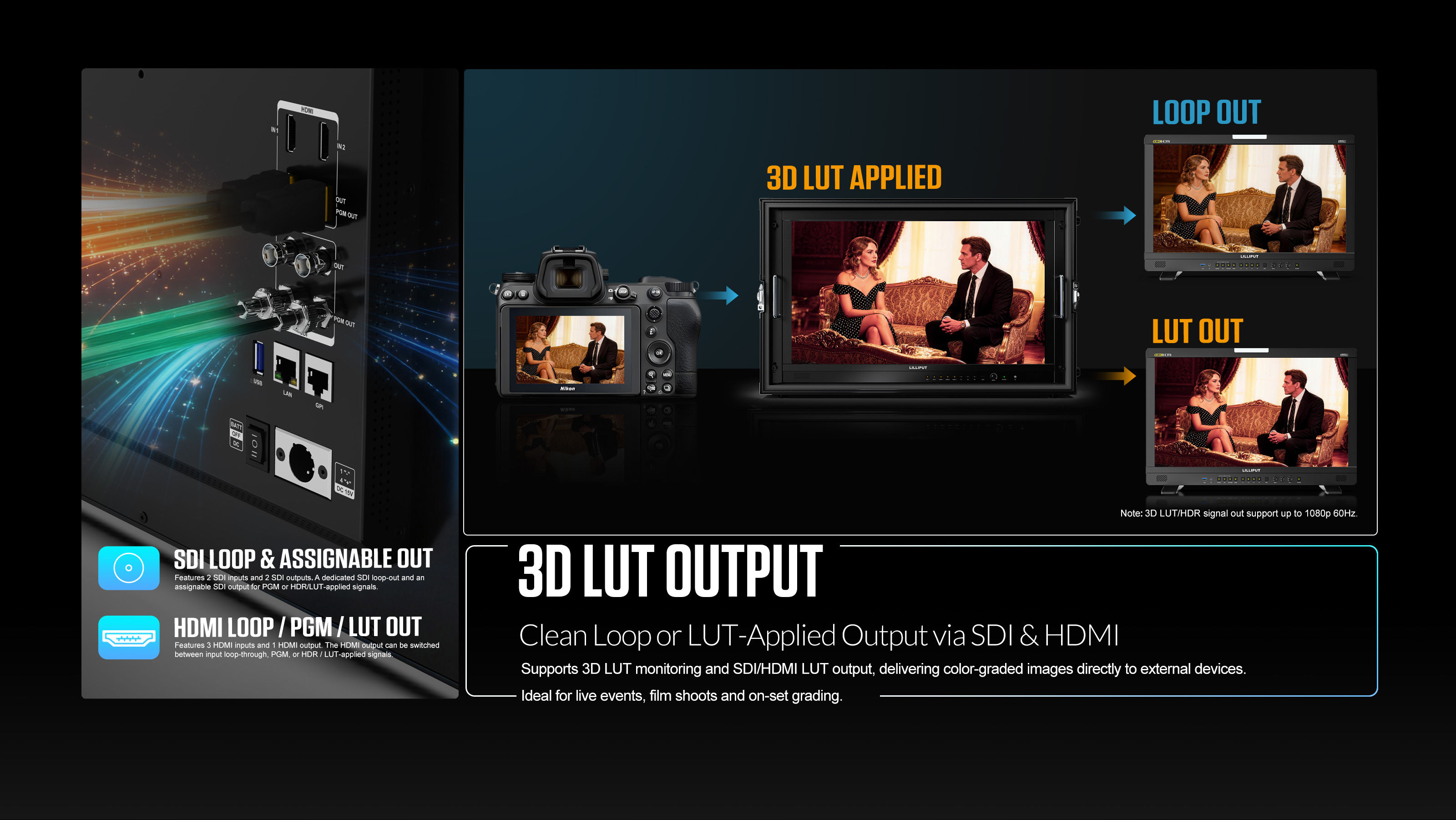

This 27 inch Full HD high-brightness monitor (1000 cd/m²) is designed for broadcast and live production environments. It features dual 3G-SDI and triple HDMI 2.0 inputs, supports signal cross-conversion,and enables seamless integration into PGM workflows. The monitor supports 3D LUT processing and synchronous output for real-time color monitoring.

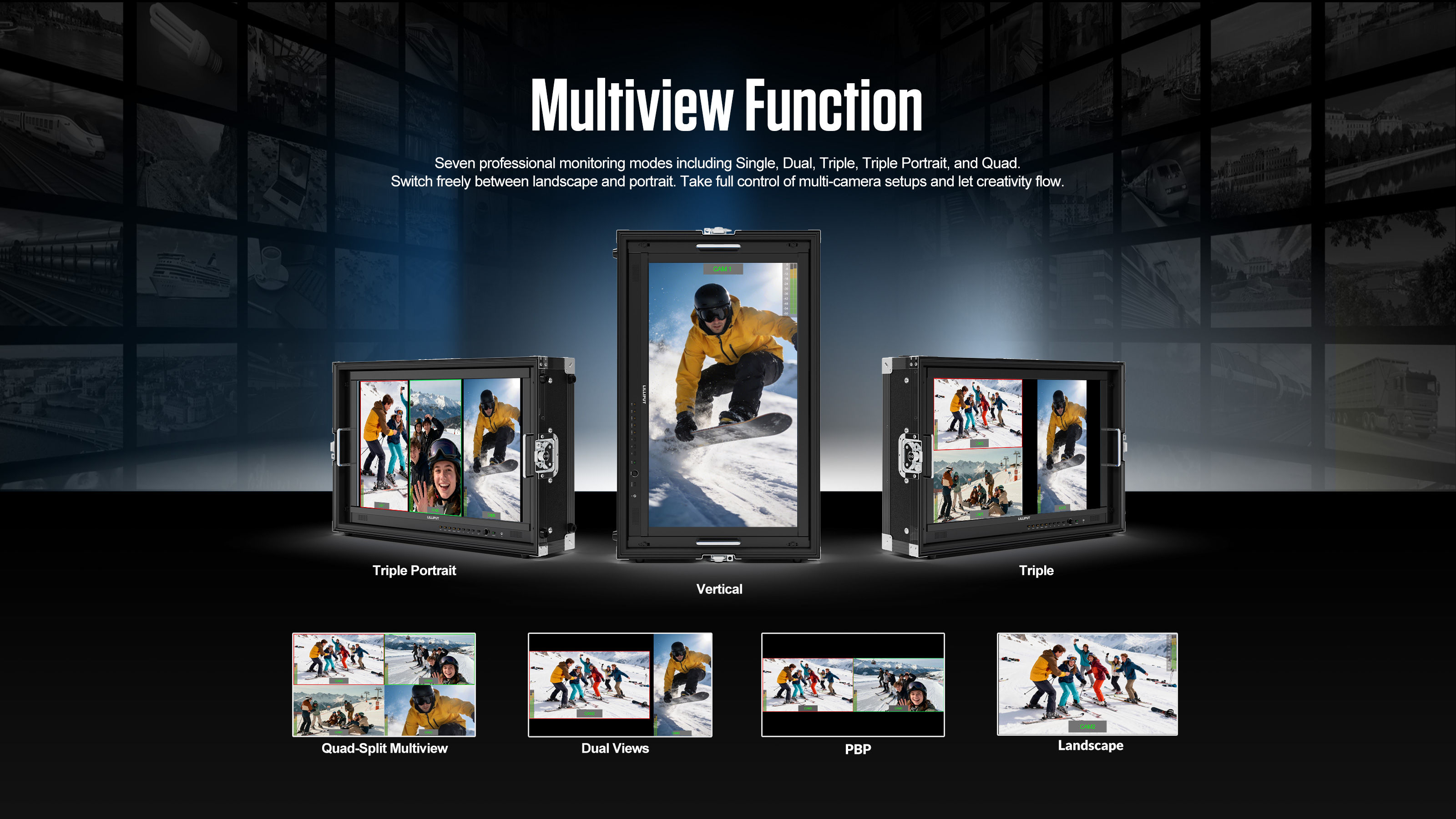

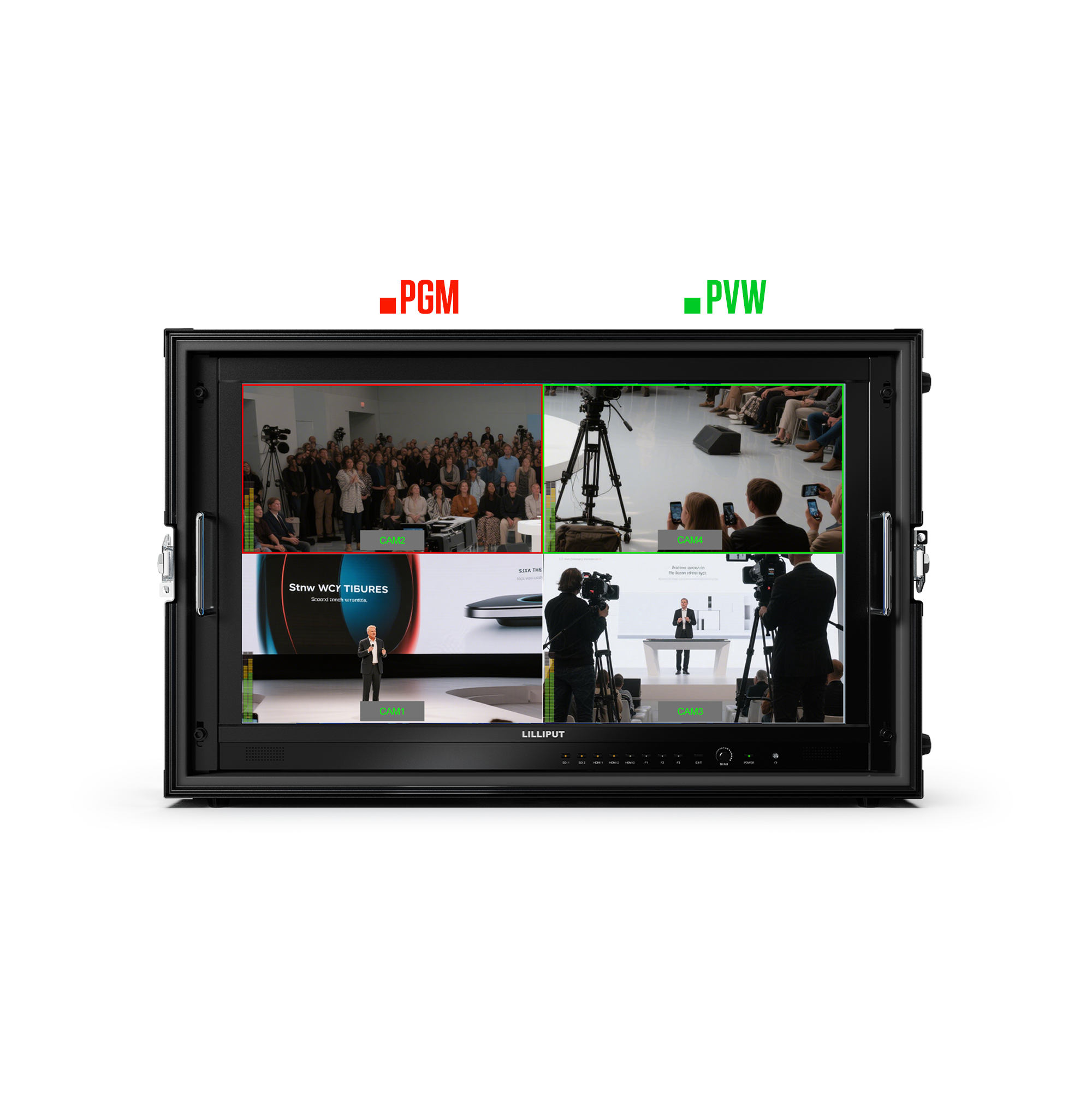

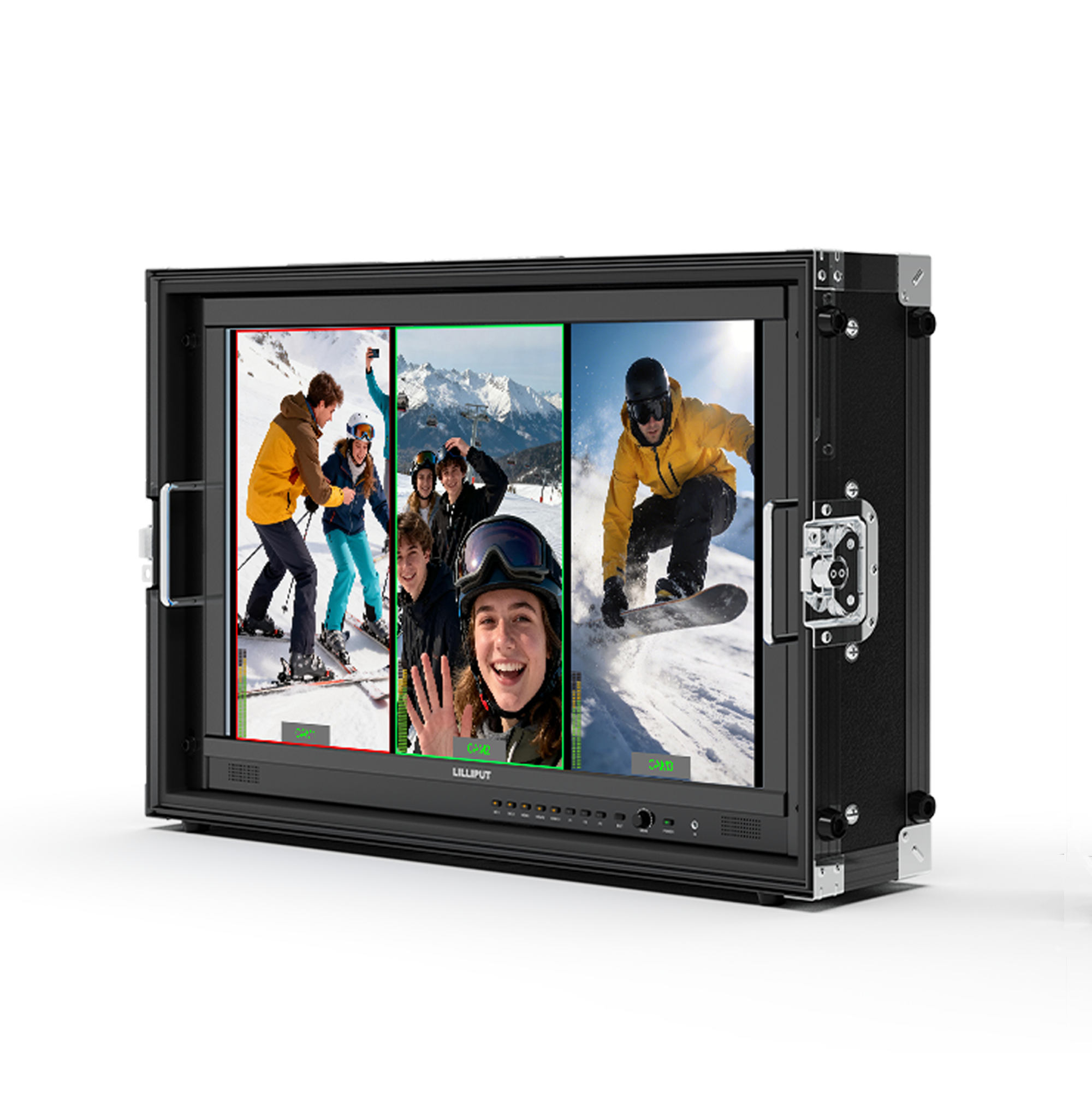

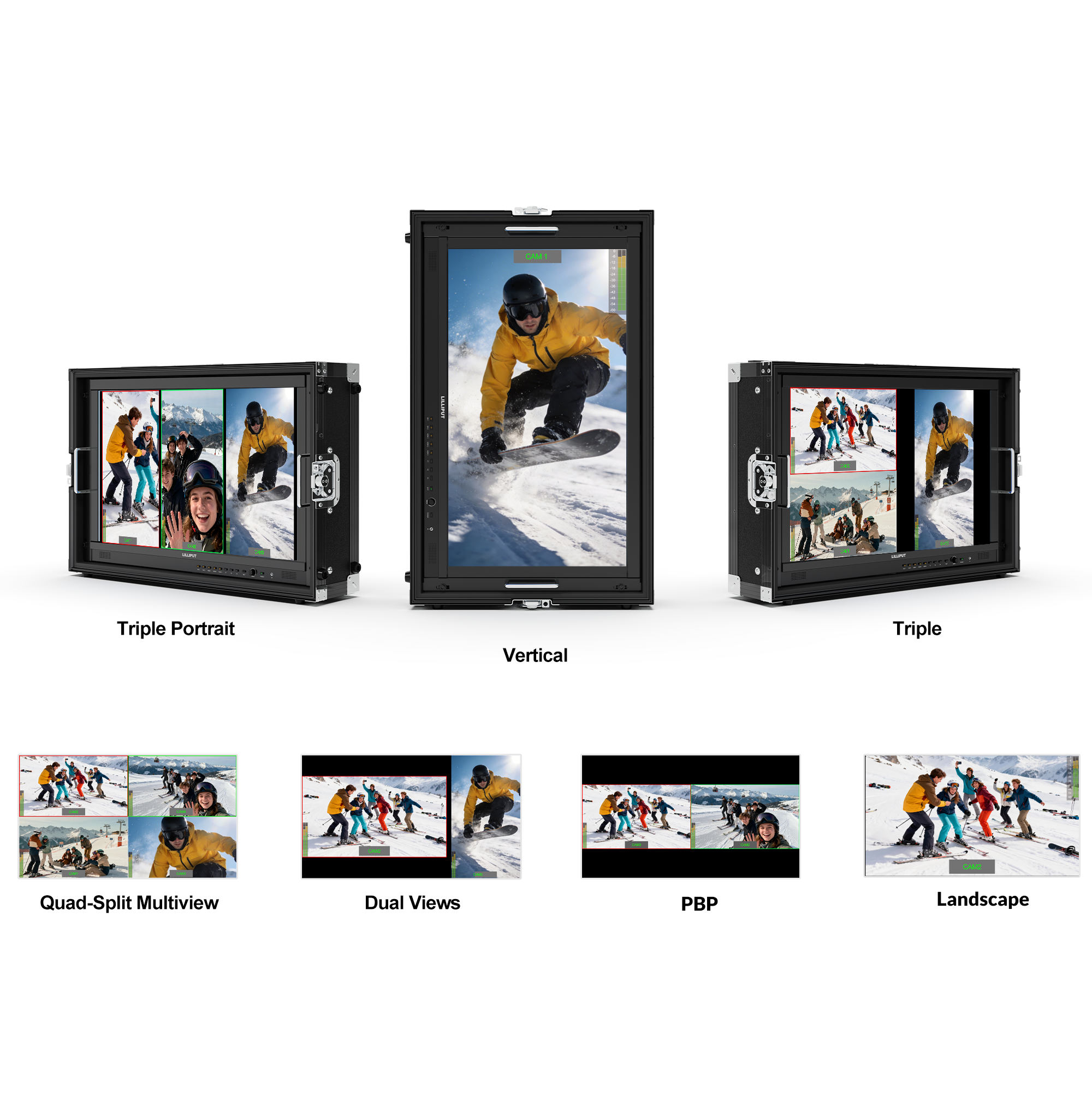

For multi-camera production, it supports up to 4-channel video input with 7 customizable layouts, including horizontal and vertical display modes. A range of professional tools is integrated, including waveform, focus assist, false color, audio monitoring, and remote control, to support efficient on-site operation.

  • Model: PVM270S
  • Display: 27 inch, 1920 X 1080, 1000 nits
  • Input: 3G-SDI, HDMI 2.0
  • Output: 3G-SDI, HDMI 2.0
  • Feature: 3D LUT Output, PGM Output, HDR, Gammas, Waveform, Remote Control...
  • Product Detail

    Specifications

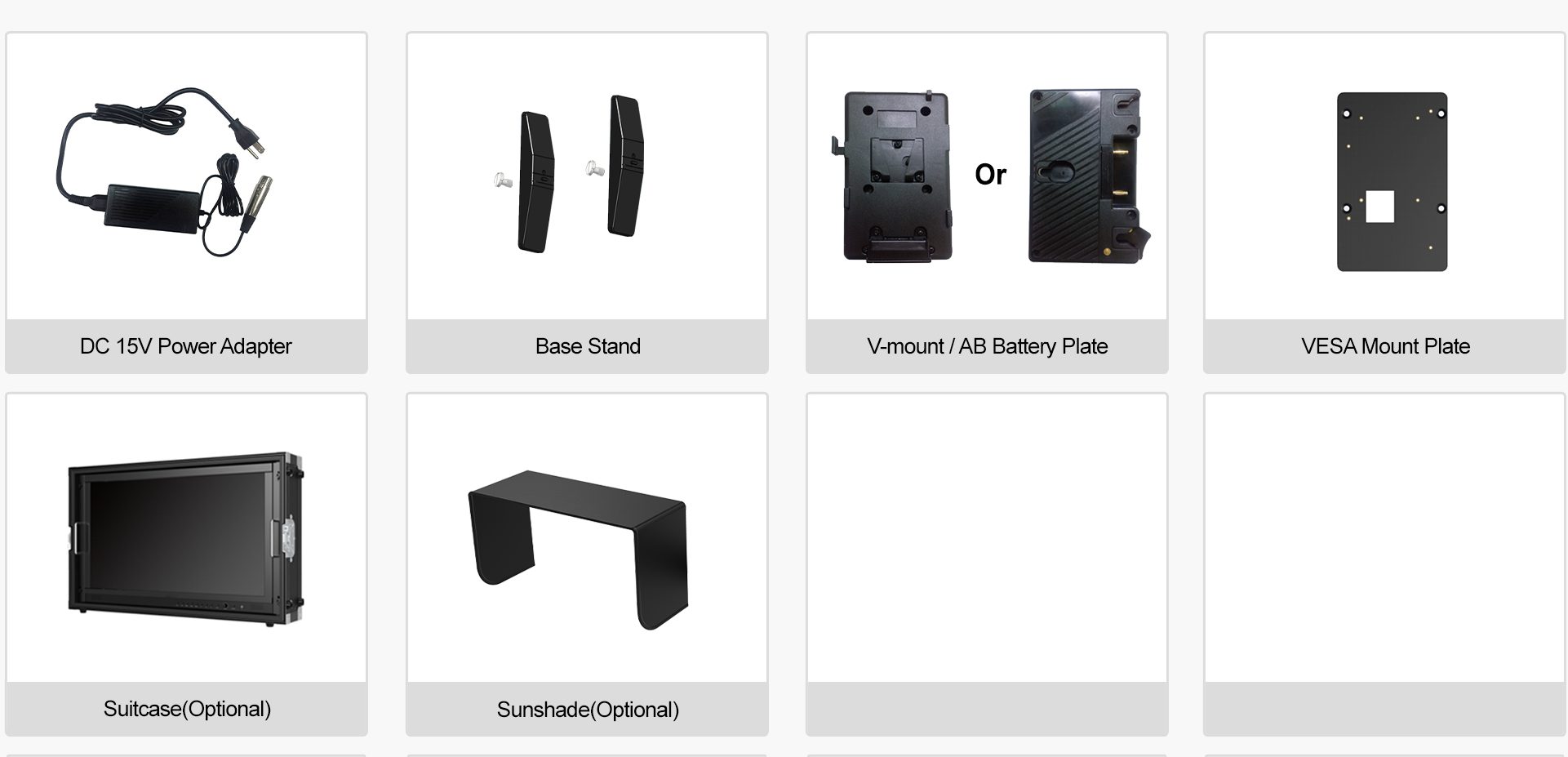

    Accessories

    PVM270S DM10
    PVM270S DM03

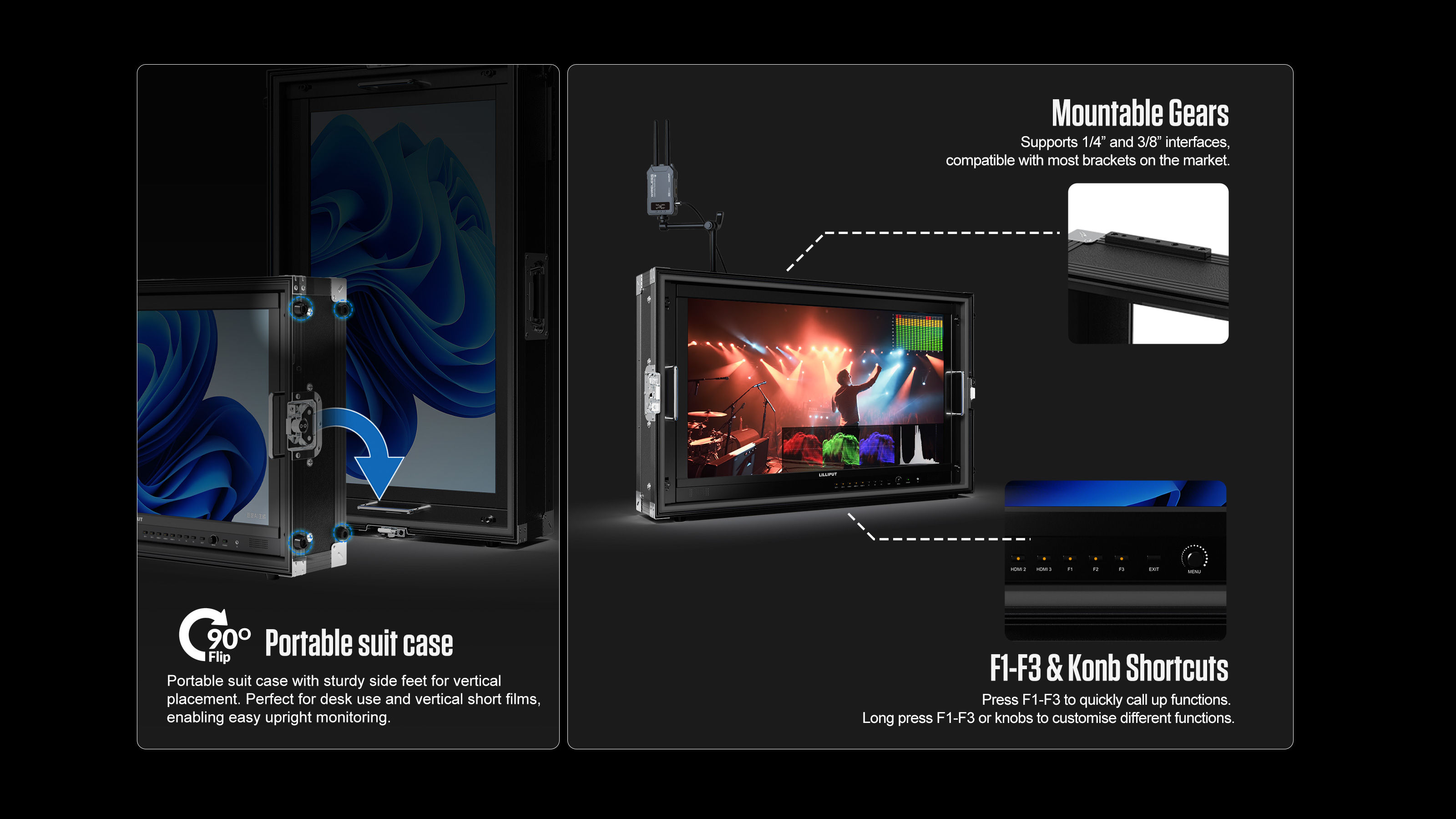

    PVM270S DM05

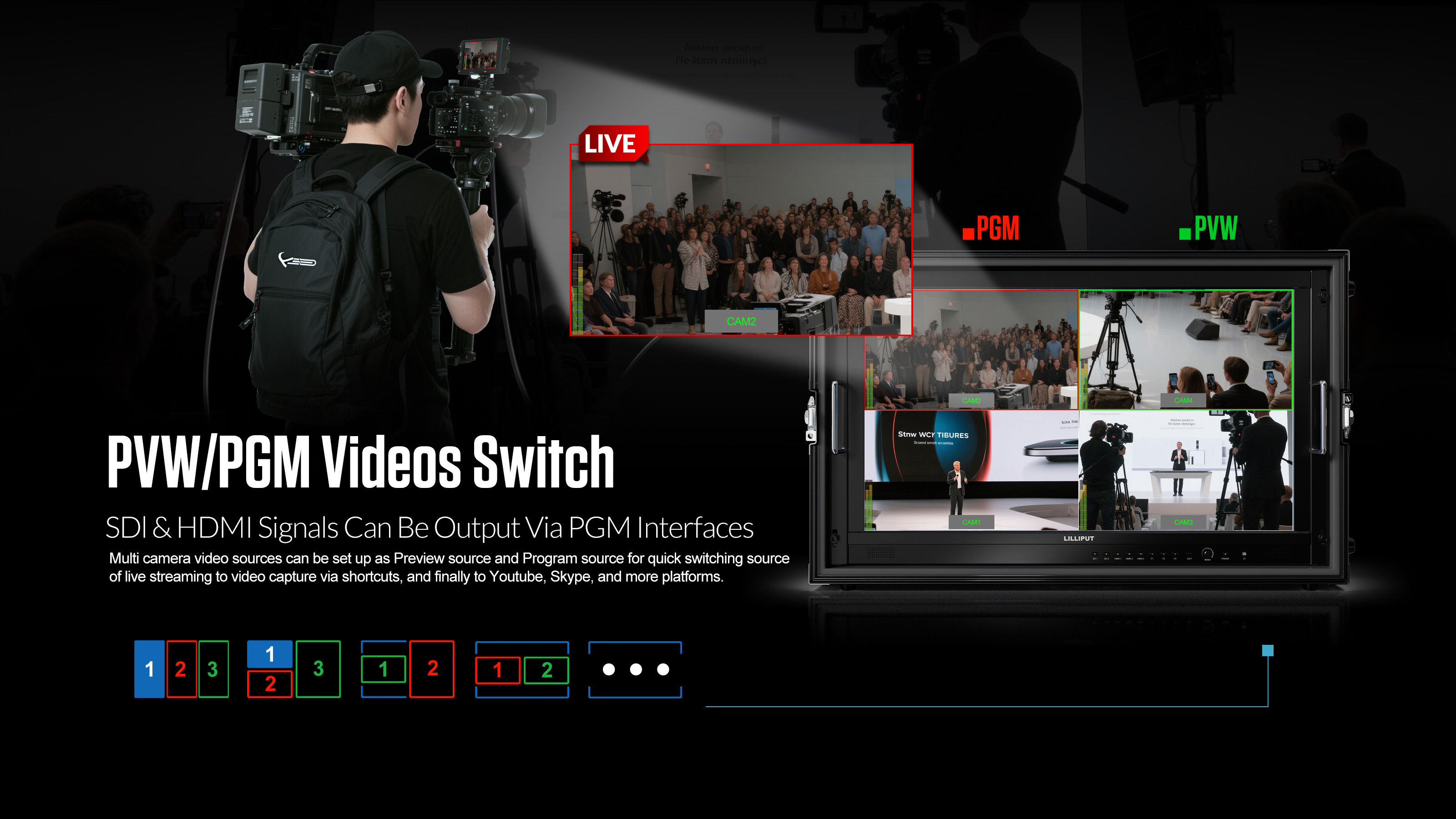

    PVM270S DM04
    PVM270S DM02
    PVM270S DM01
    PVM270S DM06
    PVM270S DM07
    PVM270S DM08
    PVM270S DM11

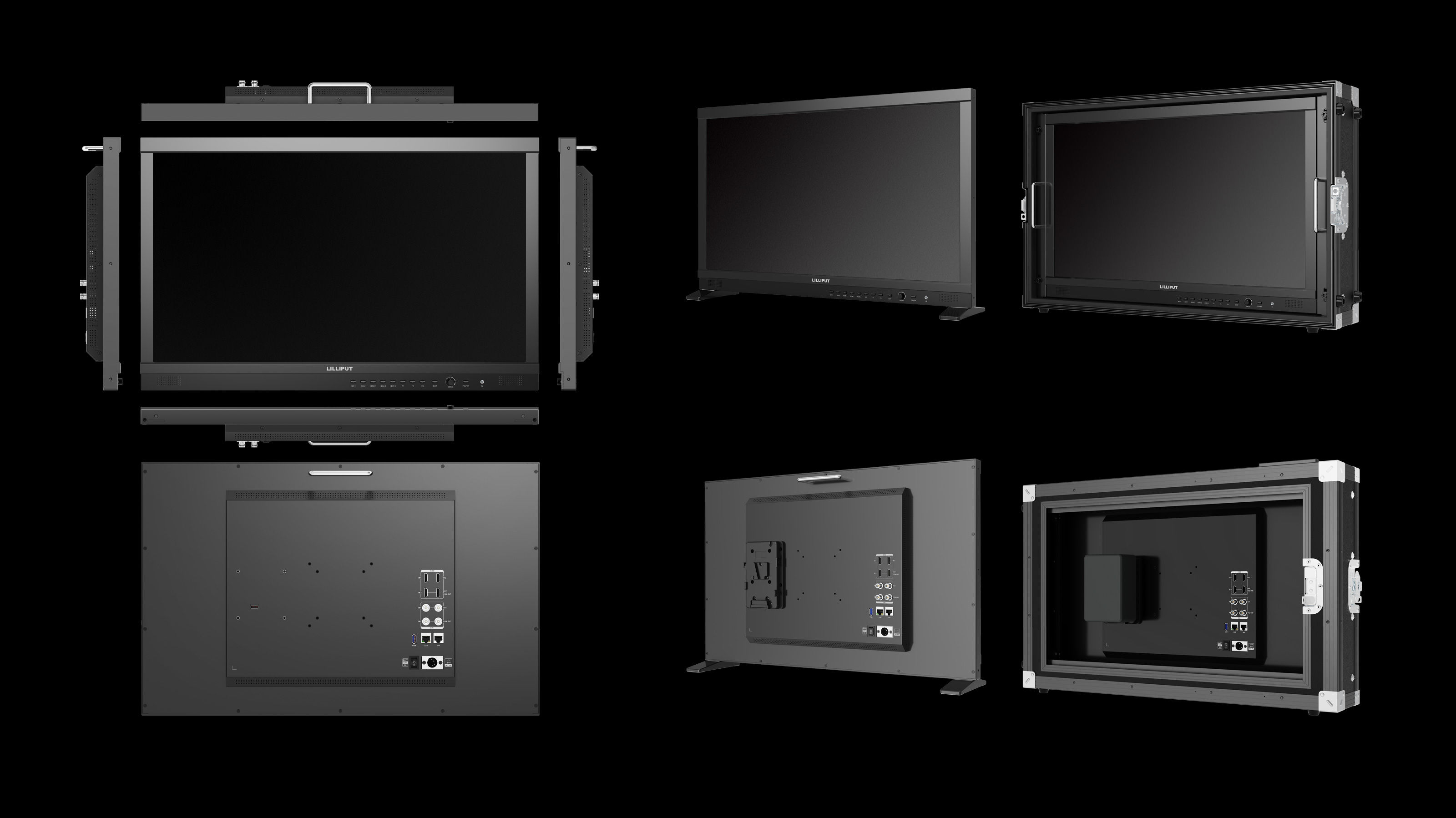

    PVM270S DM09

  • Previous:
  • Next:

  • DISPLAY Panel 27″
    Physical Resolution 1920*1080
    Aspect Ratio 16:9
    Brightness 1000 cd/m²
    Contrast 1000:1
    Viewing Angle 178°/178°(H/V)
    HDR ST2084 300/1000/10000/HLG
    Supported Log Formats SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User…
    Look up Table(LUT)support 3D LUT (.cube format)

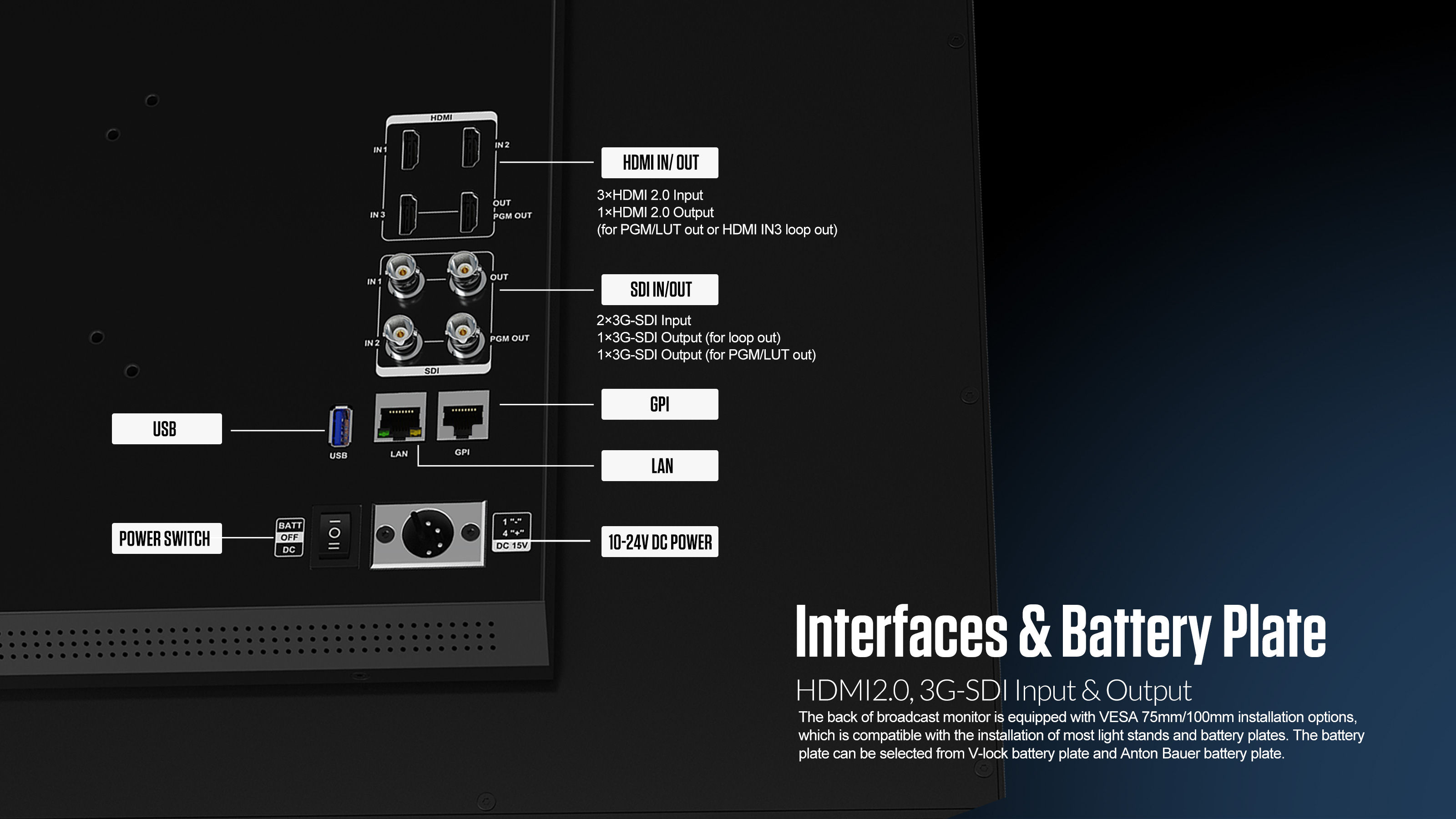

    VIDEO INPUT SDI 2×3G-SDI
    HDMI 3×HDMI 2.0
    VIDEO OUTPUT SDI
    1×3G-SDI (for loop out)
    1×3G-SDI (for PGM/LUT out)
    HDMI
    1×HDMI 2.0 (for loop/PGM/LUT out)
    SUPPORTED FORMATS SDI 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
    HDMI 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60…
    PGM/LUT Out
    1080p 24/25/30/50/60
    AUDIO IN/OUT (48kHz PCM AUDIO) SDI 2ch 48kHz 24-bit
    HDMI 8ch 24-bit
    Ear Jack 3.5mm
    Built-in Speakers 2
    POWER Input Voltage DC 10-24V
    Power Consumption ≤58W (10V)
    Compatible Batteries V-Lock or Anton Bauer Mount
    Input Voltage(battery) 14.8V nominal
    ENVIRONMENT Operating Temperature 0℃~50℃
    Storage Temperature -20℃~60℃
    OTHER Dimension(LWD)
    644mm × 409.1mm × 55.3mm
    Weight
    8.8kg
