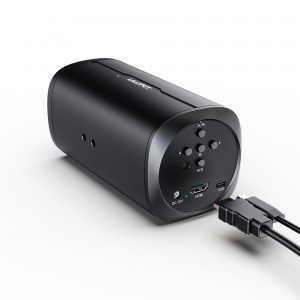

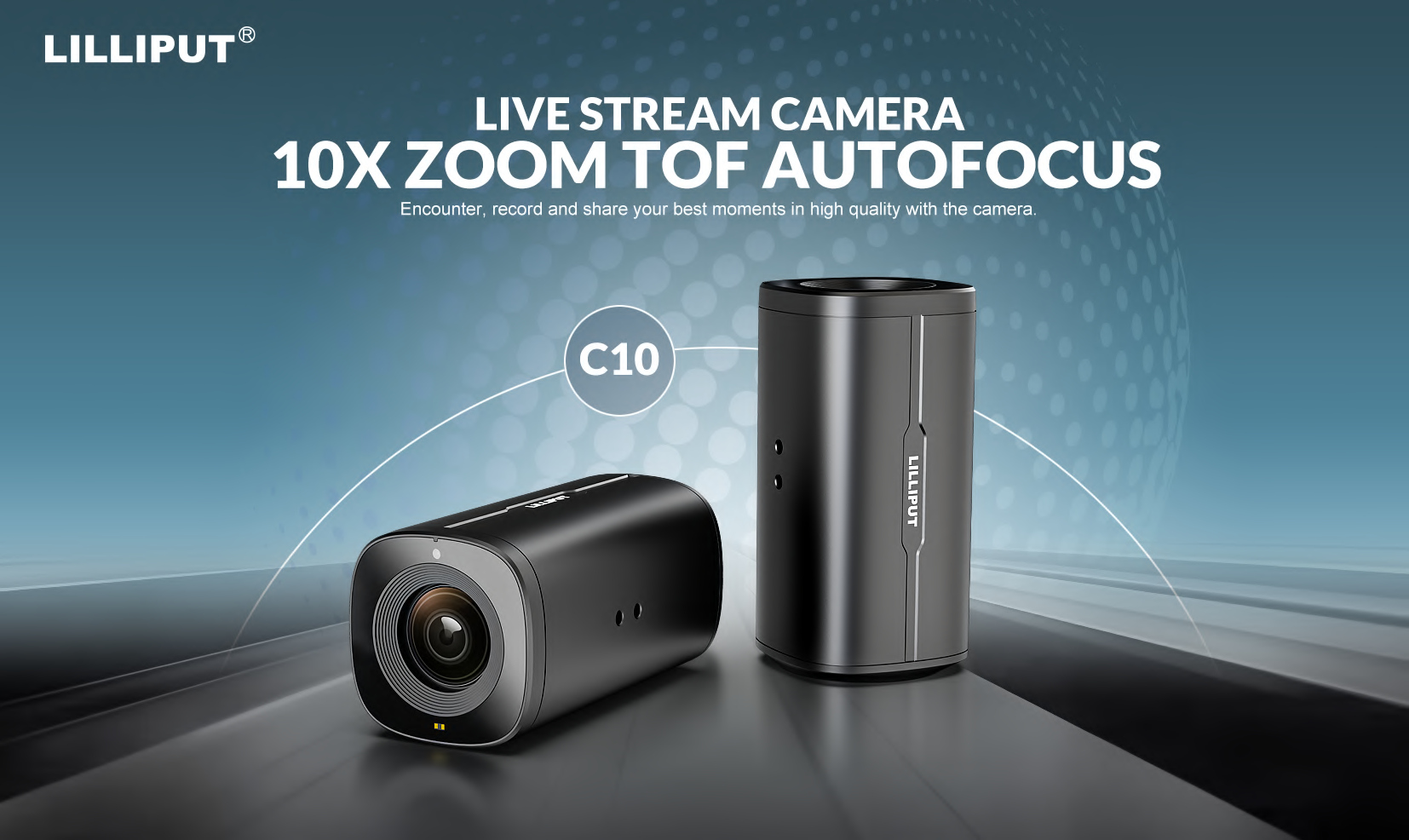

LILLIPUT 10X TOF Autofocus Live Stream Camera
| SENSOR | Sensor | 5M CMOS Sensor | |||
| Optical Format | 1/2.8″ | ||||
| Max Frame Rate | 1920H × 1080V @60fps | ||||

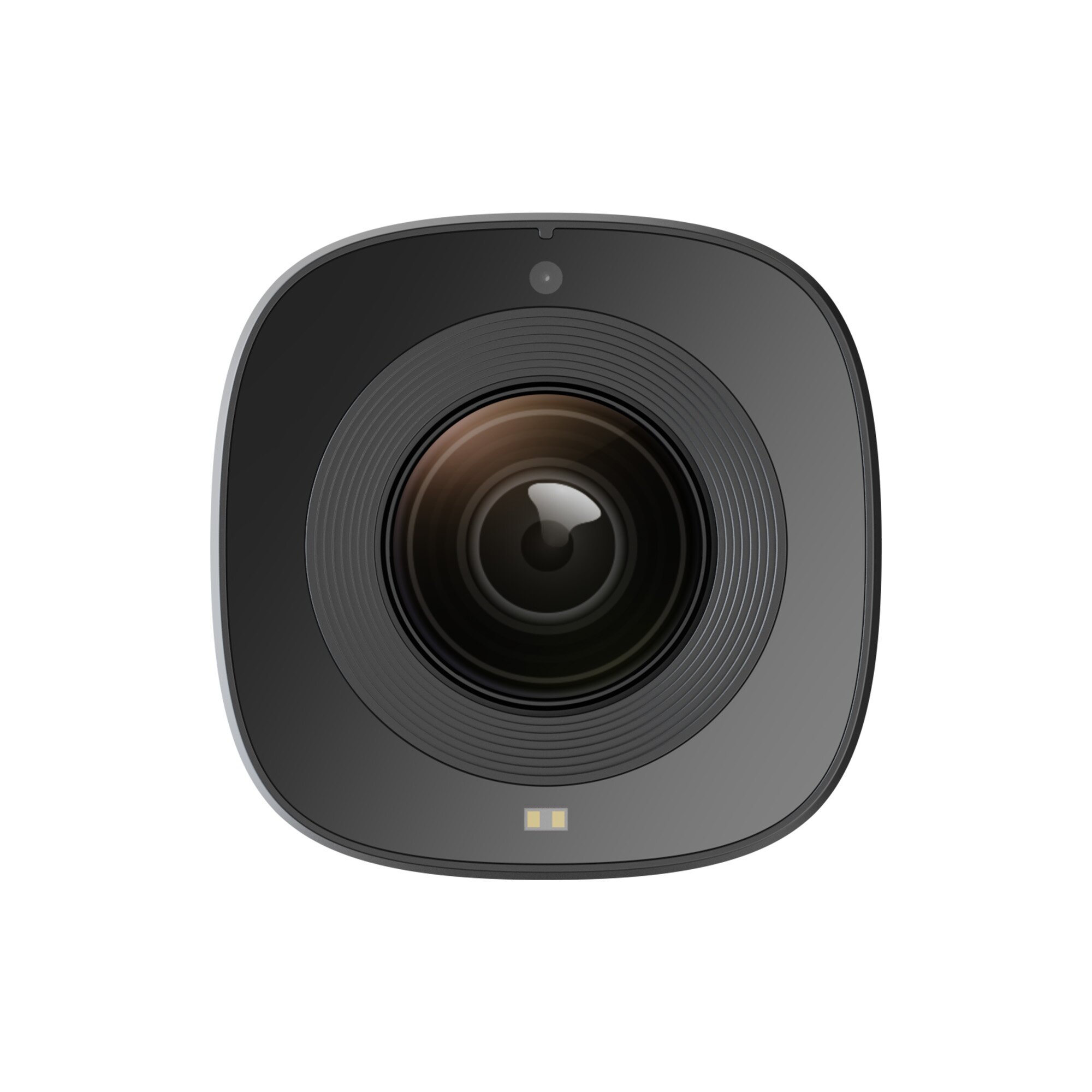

| LENS | Optical Zoom | 10× | |||
| Focal Length | F=4.32~40.9mm | ||||
| Aperture Value | F1.76 ~ F3.0 | ||||
| Focus Distance | Wide: 30cm, Tele: 150cm | ||||
| Field of View | 75.4°(Max) | ||||

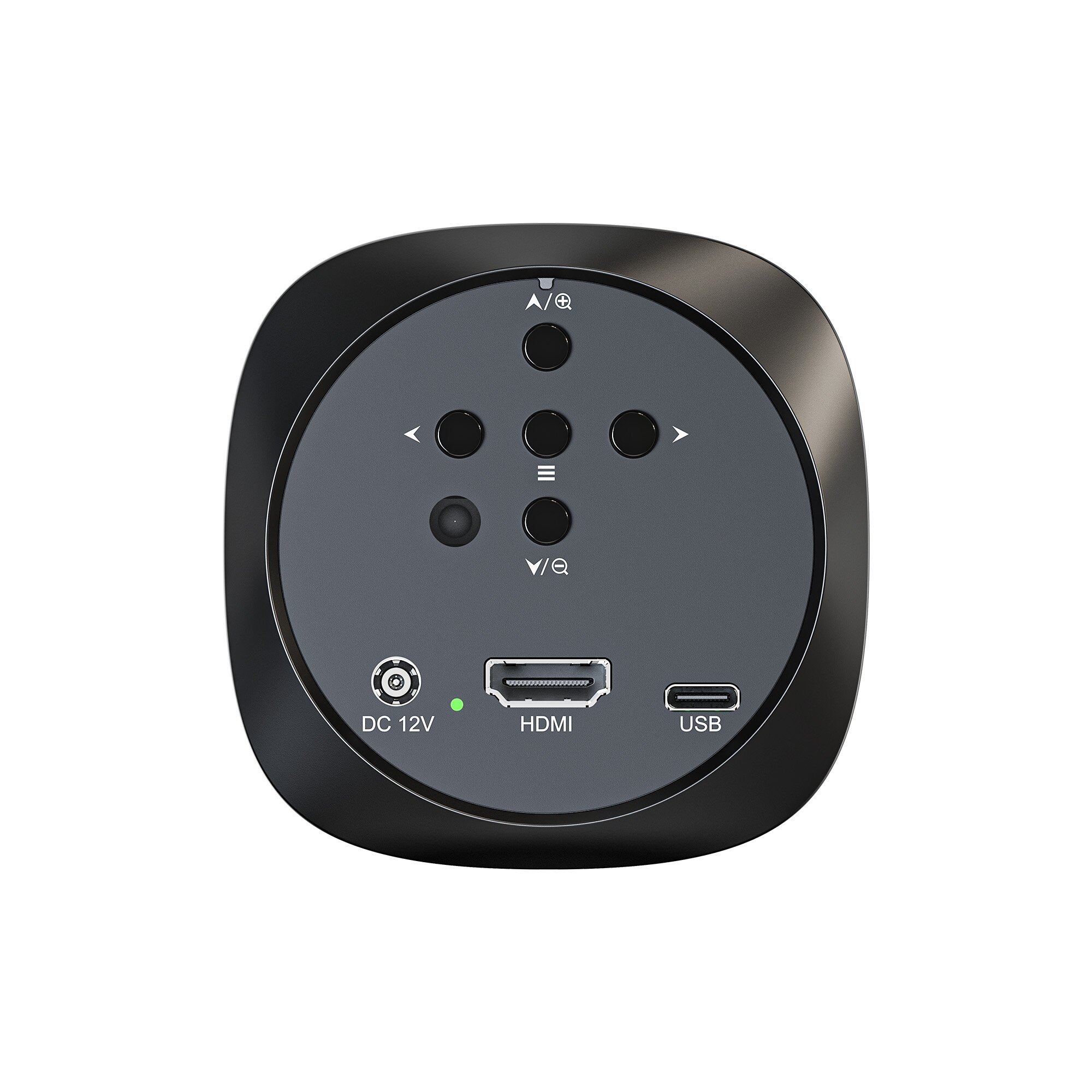

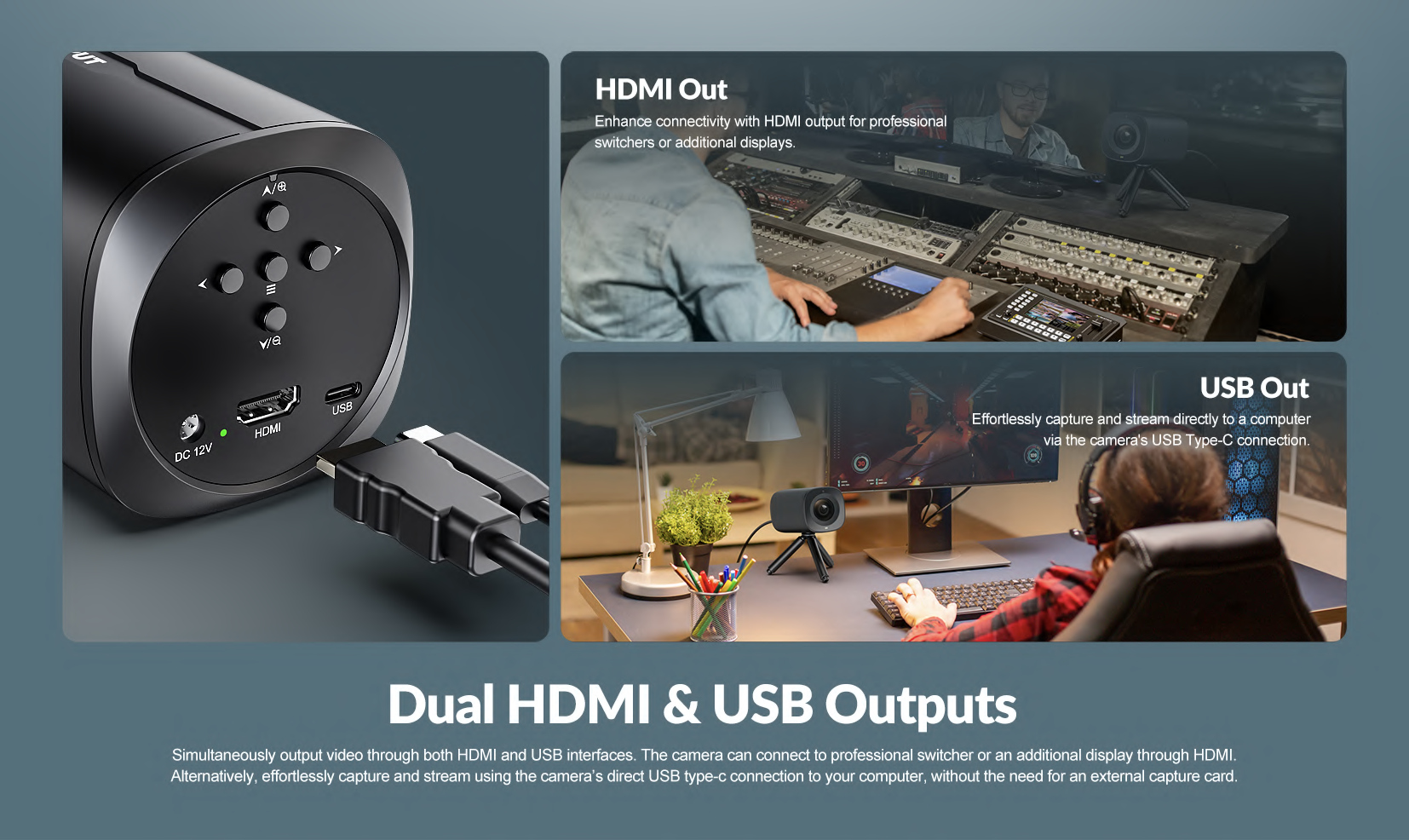

| INTERFACES | Video Output | HDMI, USB | |||
| USB Capture Format | MJPG 60P: 1920×1080/1280×960/1280×720/1024×768/800×600/640×480/320×240 | ||||
| HDMI Format | 1080p/720p 25/30/50/60 | ||||
| FUNCTIONS | Exposure Mode | AE/AE Lock/ Custom | |||
| White Balance Mode | AWB/ AWB Lock/ Custom/ VAR | ||||
| Focus Mode | AF/ AF Lock/ Manual | ||||
| Preset Image Styles | Meeting/ Beauty/ Jewel/ Fashion/ Custom | ||||

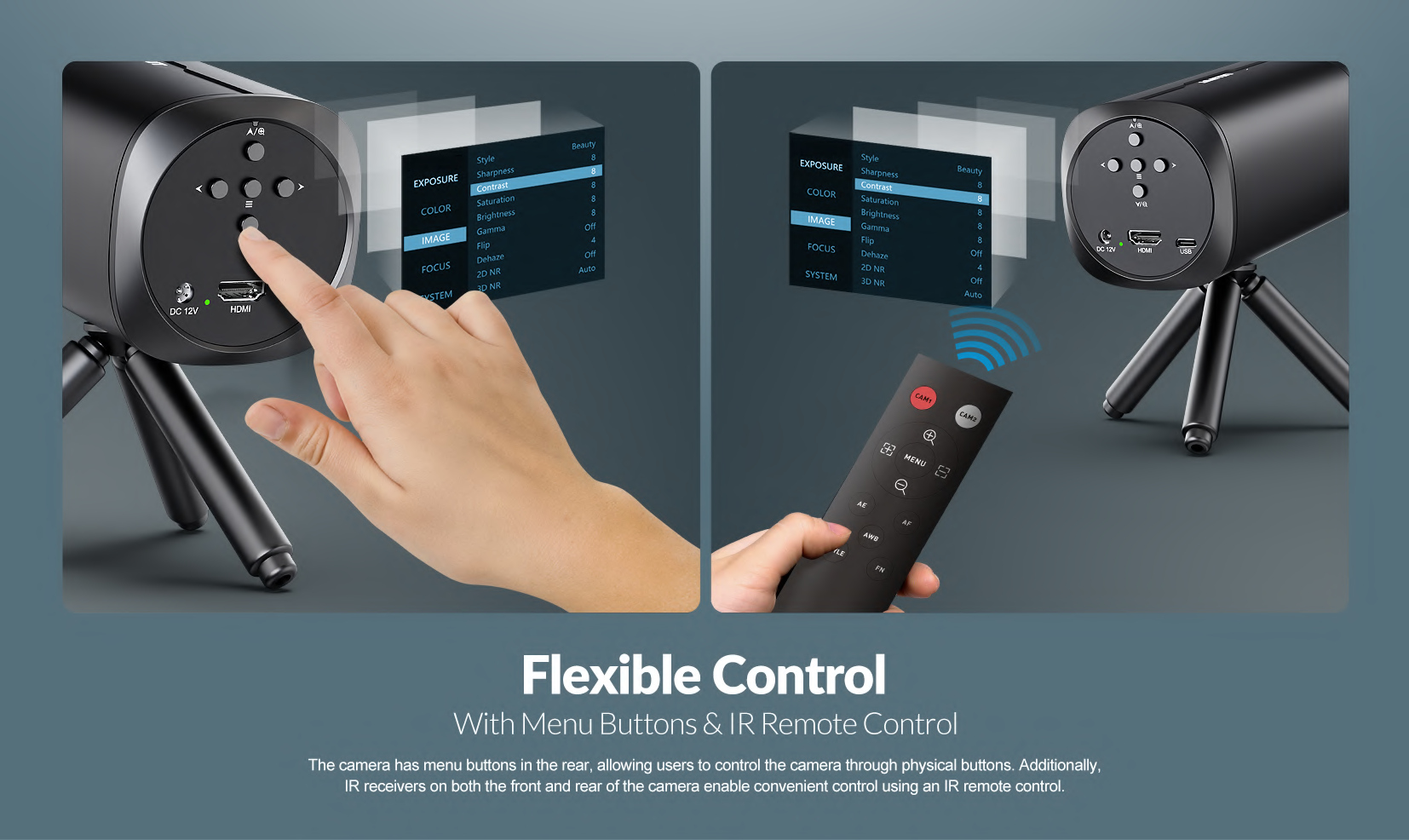

| Control Methods | IR Remote Control & Buttons | ||||
| Backlight Compensation | Support | ||||
| Anti-Flicker | 50Hz/ 60Hz | ||||
| Noise Reduction | 2D NR & 3D NR | ||||
| Video Adjustment | Sharpness, Contrast, Color Saturation, Brightness, Hue, Color Temp, Gamma | ||||
| Image Flip | H Flip, V Flip, H&V Flip | ||||
| OTHERS | Consumption | 4W | |||
| DC Power Voltage Range | 12V±5% (6-15V) | ||||
| USB Power Voltage Range | 5V±5% (4.75-5.25V) | ||||
| Operation Temperature | 0-50°C | ||||

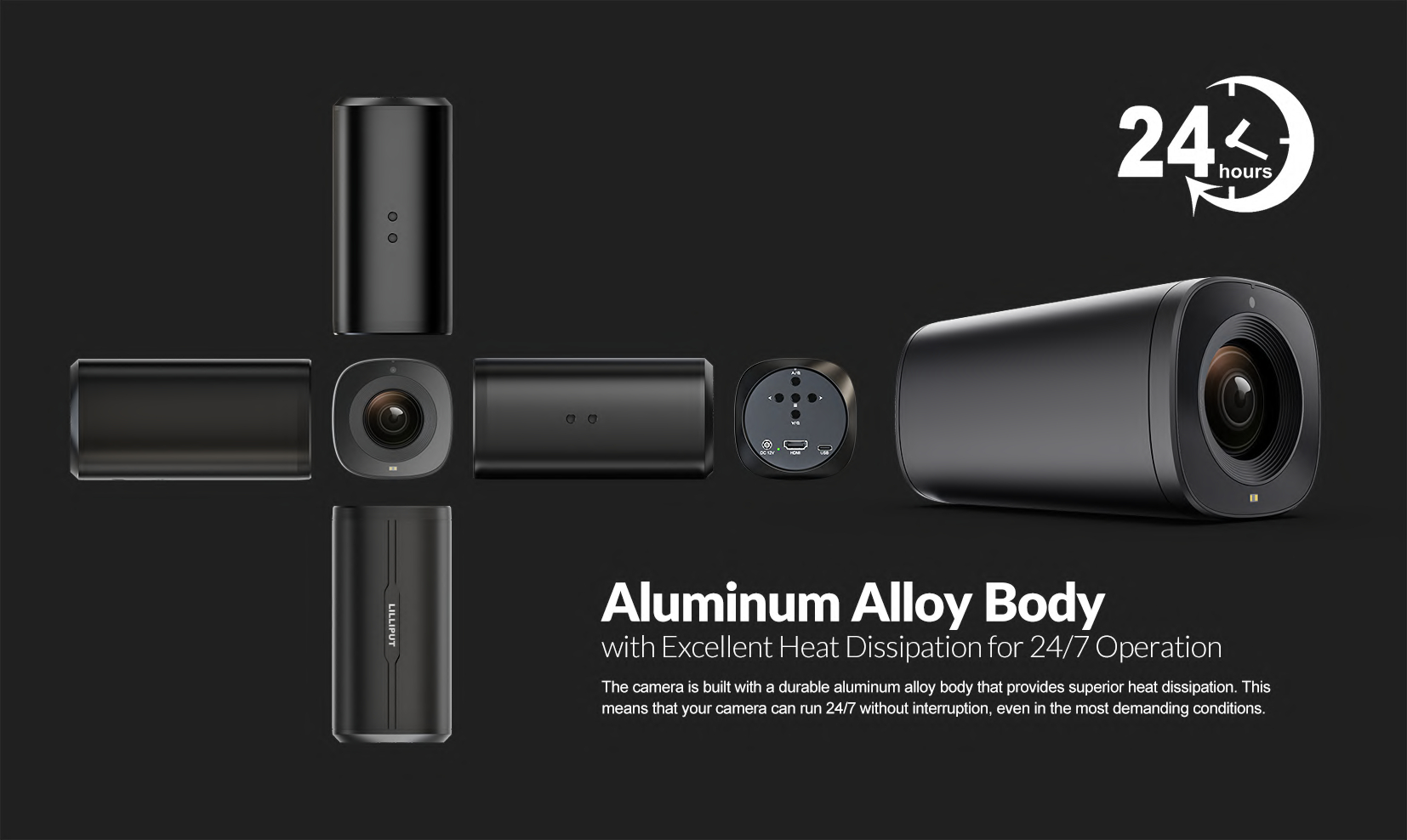

| Dimension (LWD) | 78×78×154.5mm | ||||
| Weight | Net Weight: 686.7g, Gross Weight: 1054g | ||||

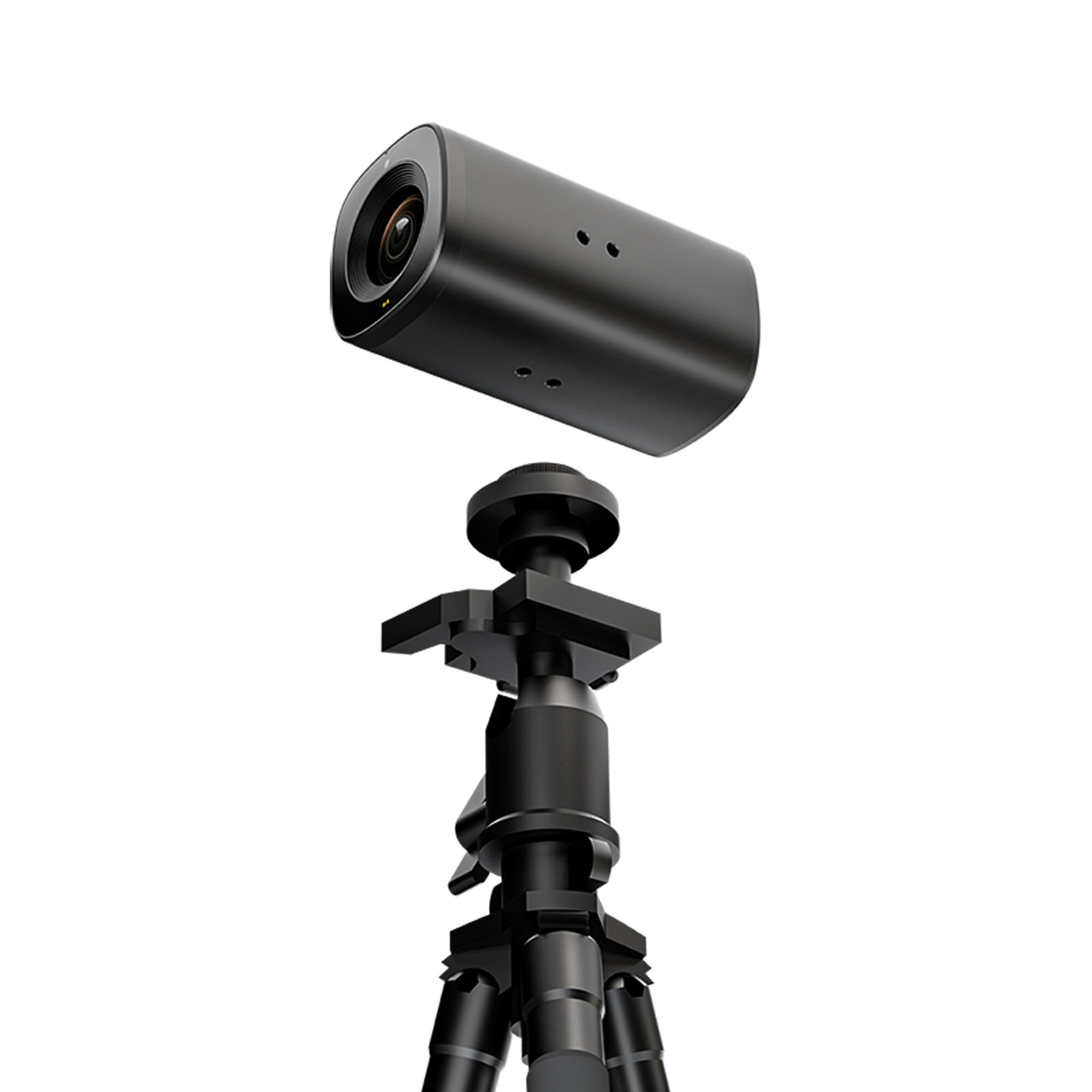

| Installation Methods | Lanscape & Portrait Orientation | ||||
