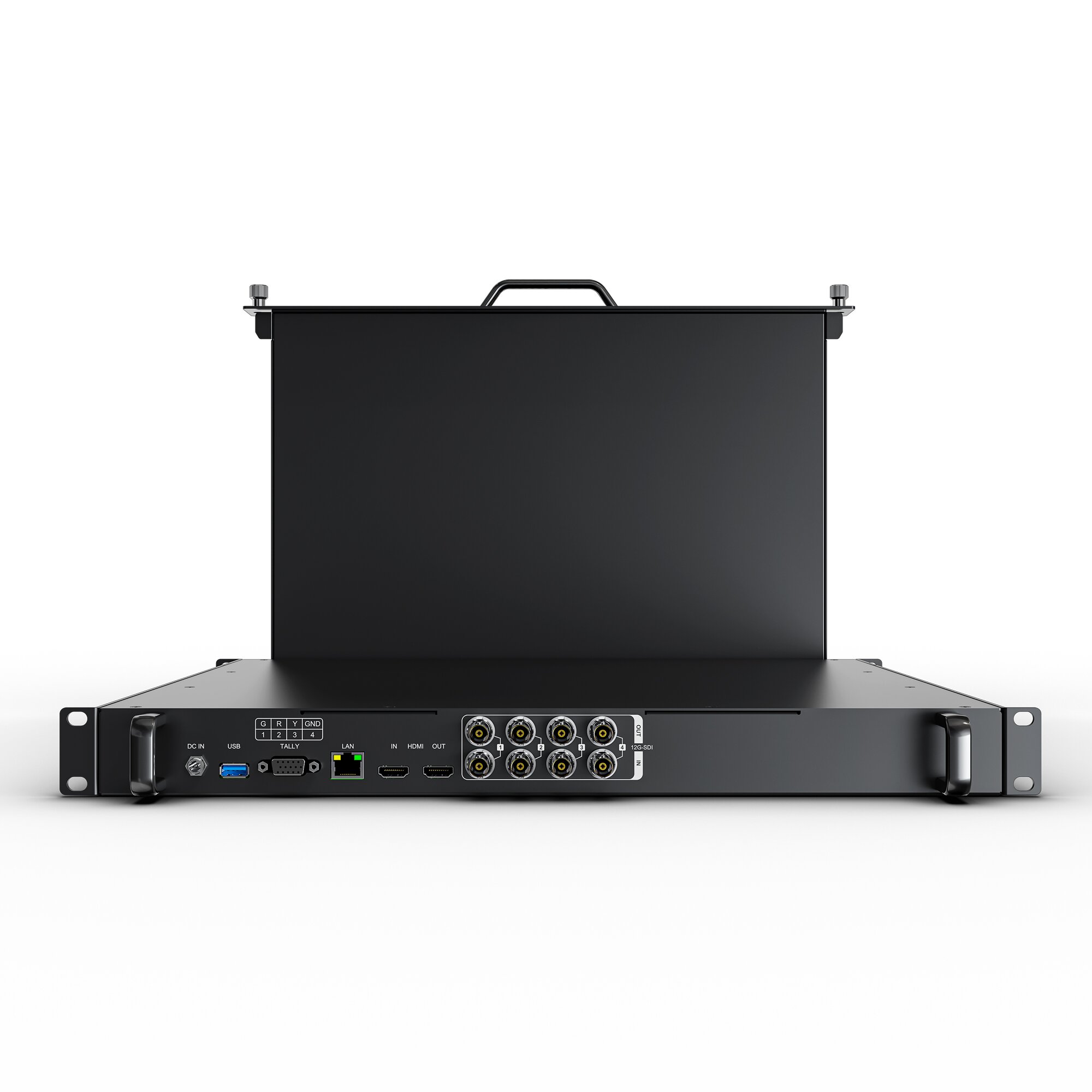

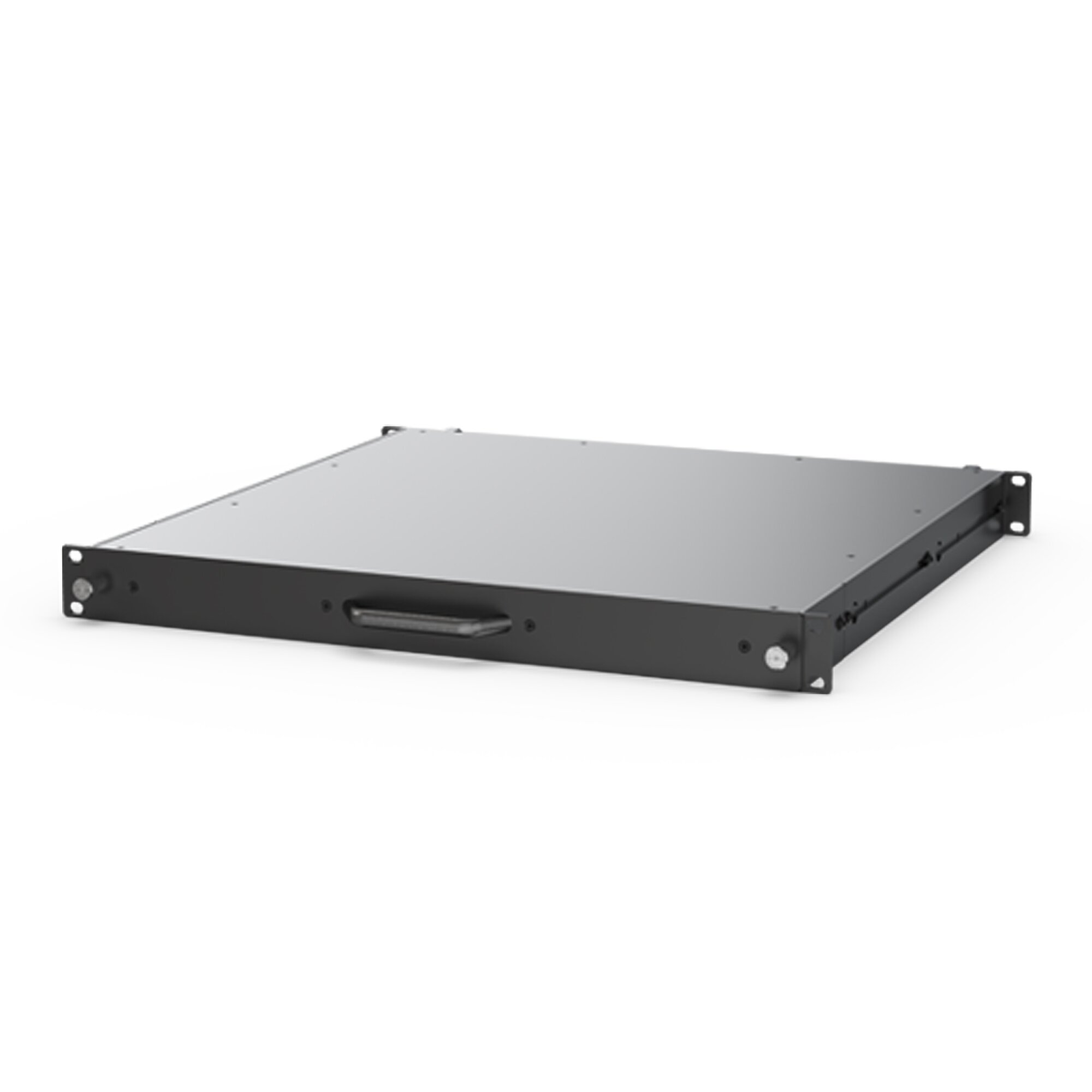

LILLIPUT 17.3 Inch 4×12G-SDI 1RU Pull-out Rackmount Monitor

Short Description:

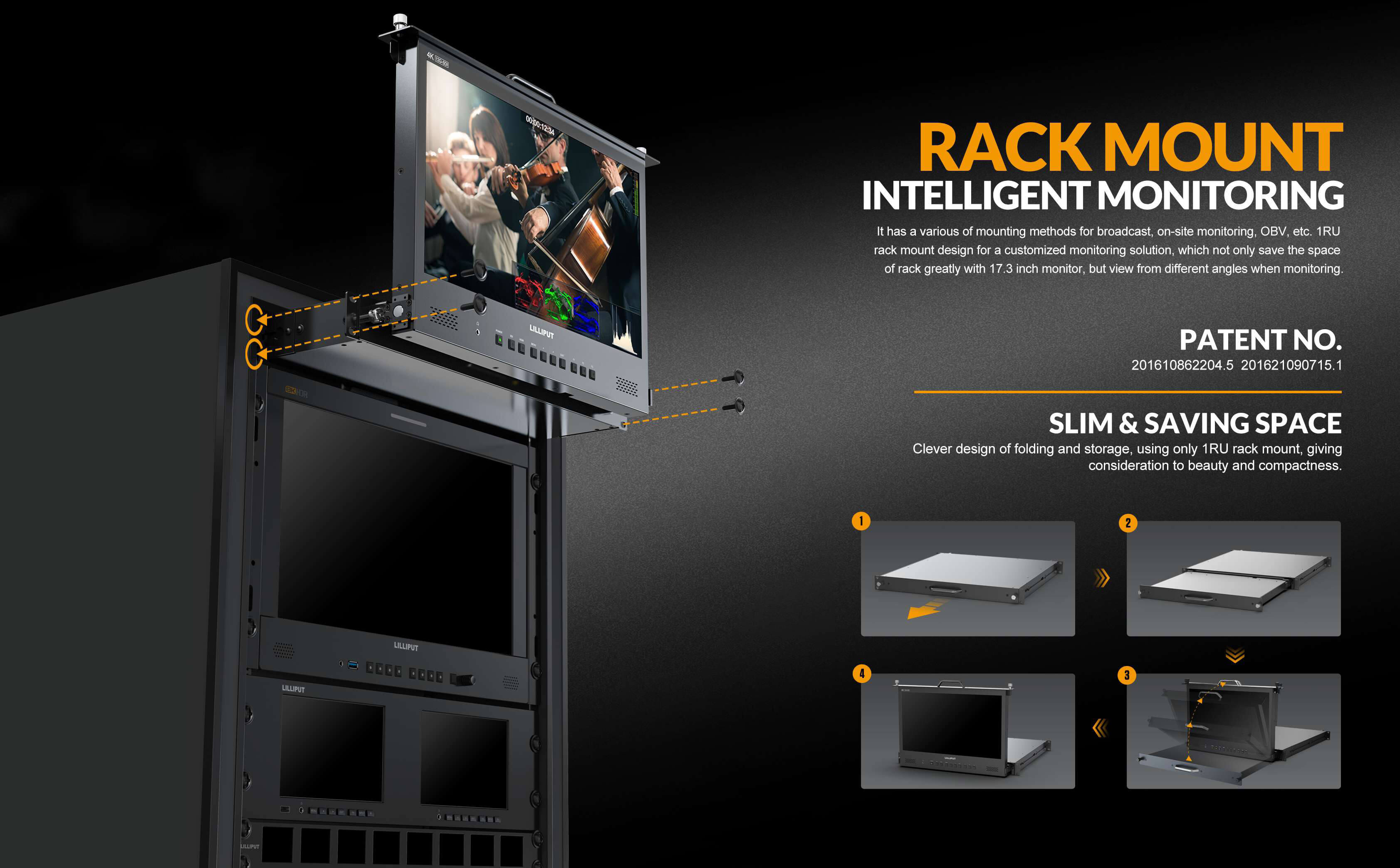

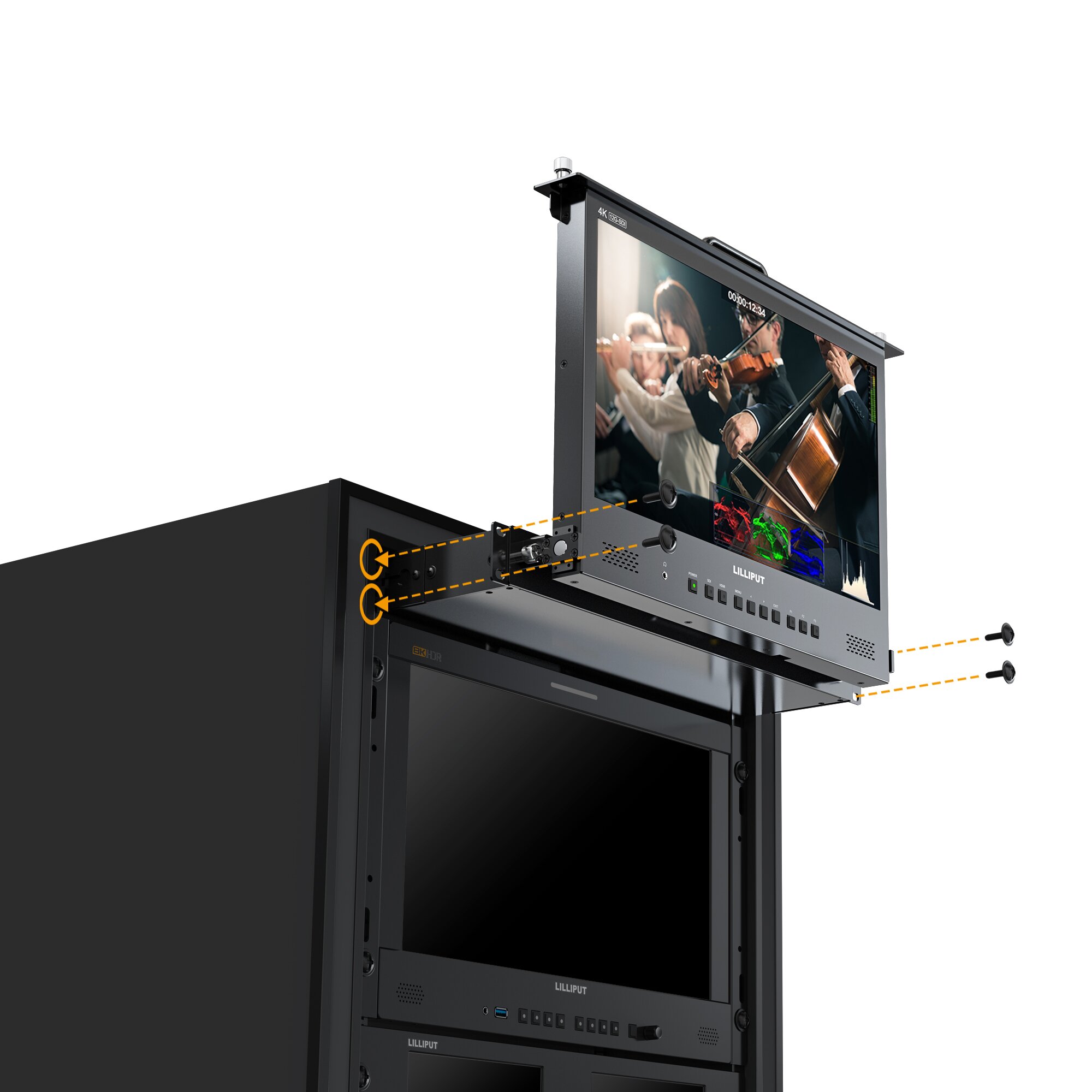

As a 1RU pull-out rackmount monitor, features 17.3″ 1920×1080 FullHD IPS screen with fine picture quality and good color reduction. It’s interfaces support 12G-SDI / HDMI2.0 signals inputs and loop outputs;For the advanced camera auxiliary functions, such like waveform, audio vector scope and others, all are under professional equipment testing and correction, parameters accurate, and comply with industry standards.


  • Model: RM1731S-12G
  • Physical resolution: 1920x1080

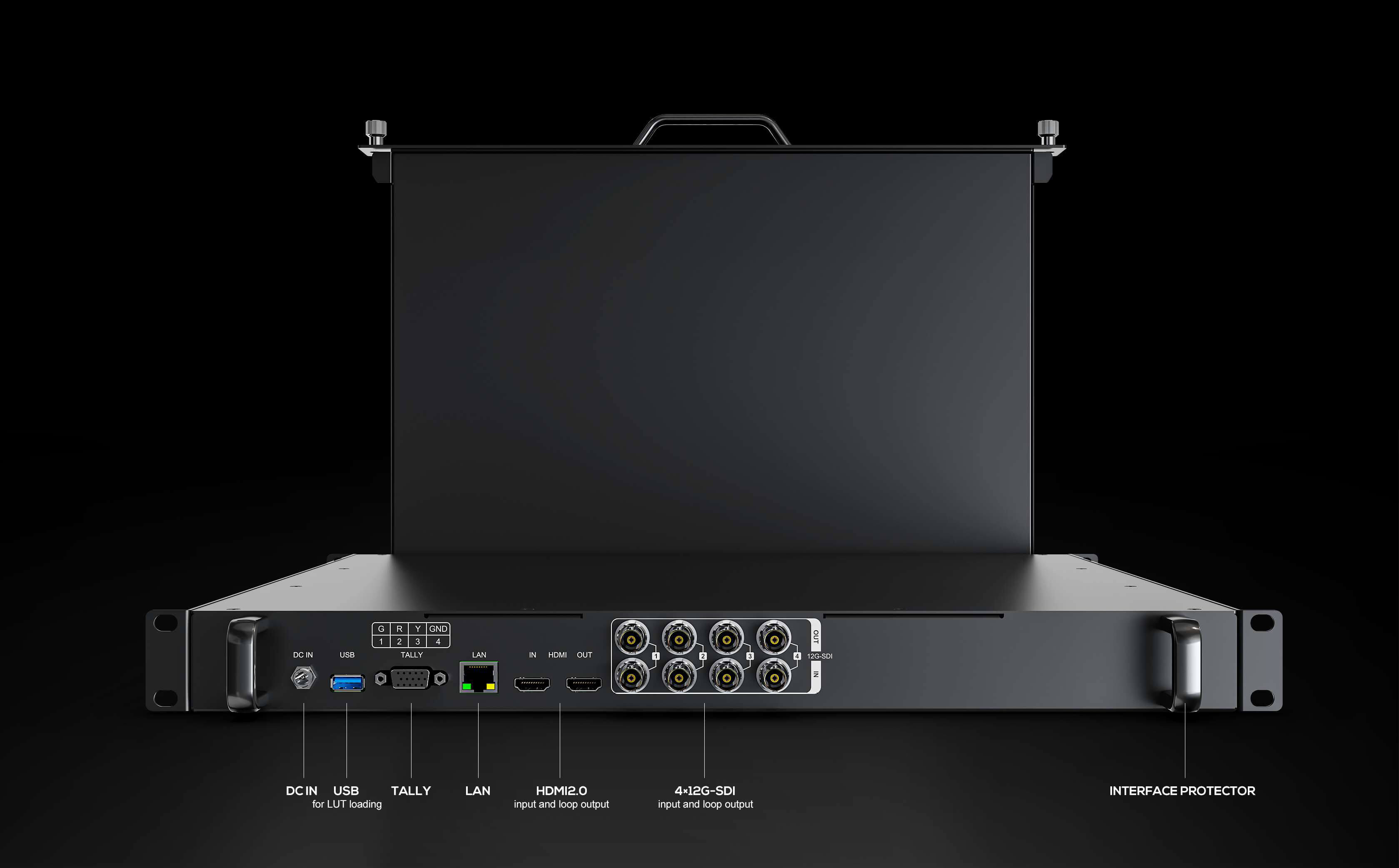

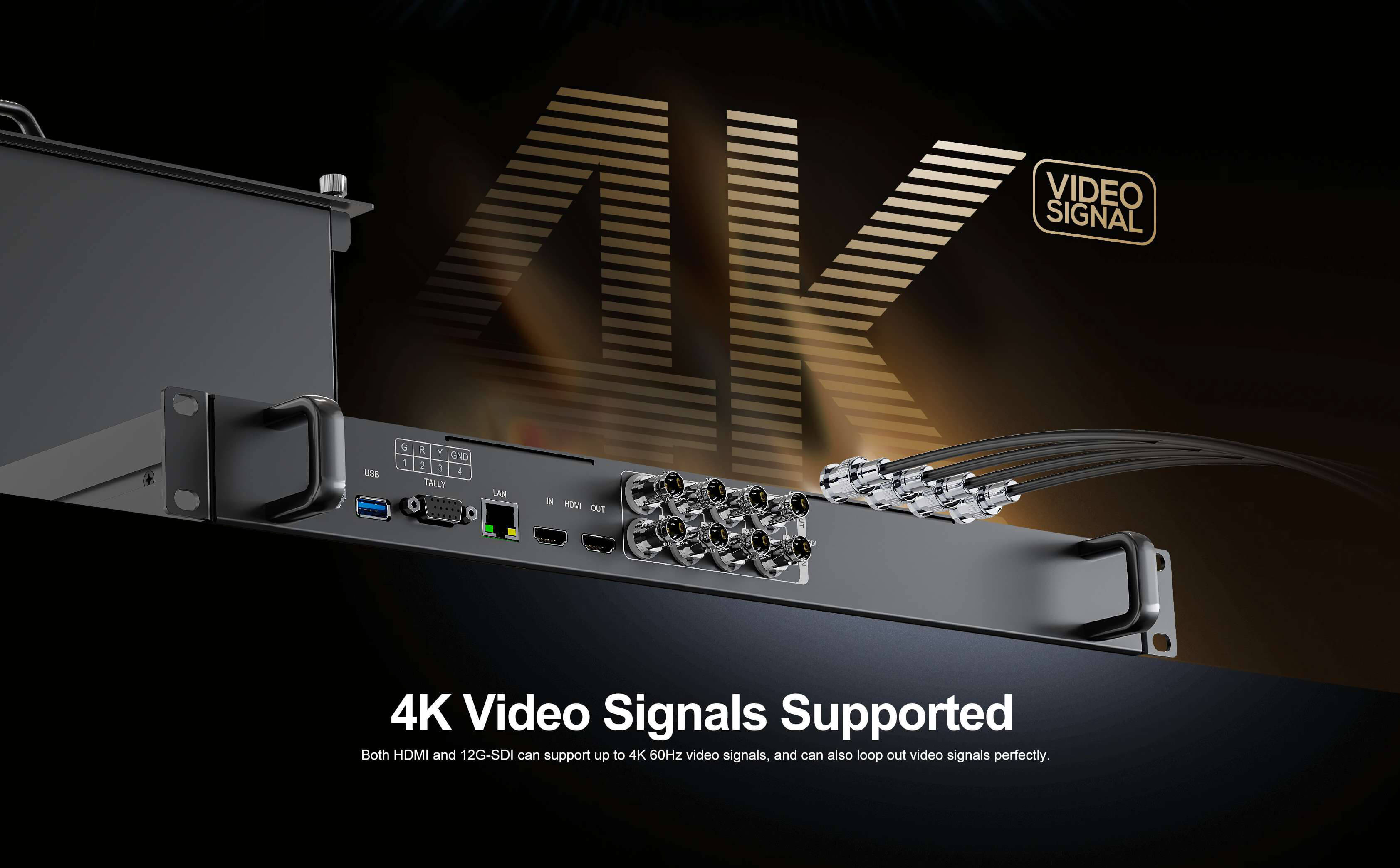

  • Interface: 12G-SDI, HDMI2.0, LAN

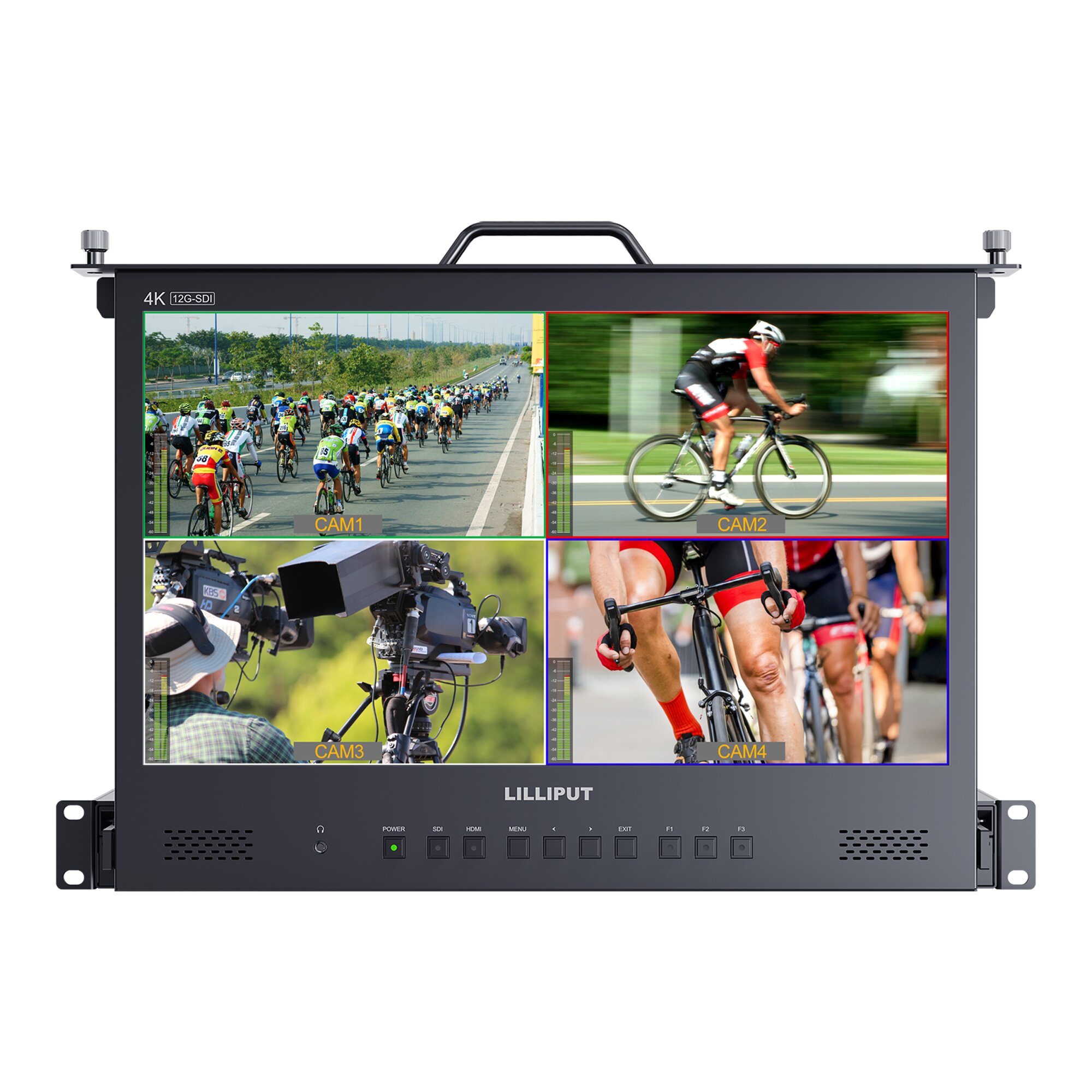

  • Feature: 4×12G-SDI Quad-Split Multiview, Remote Control, HDR/3D-LUT
  • Product Detail

    Specifications

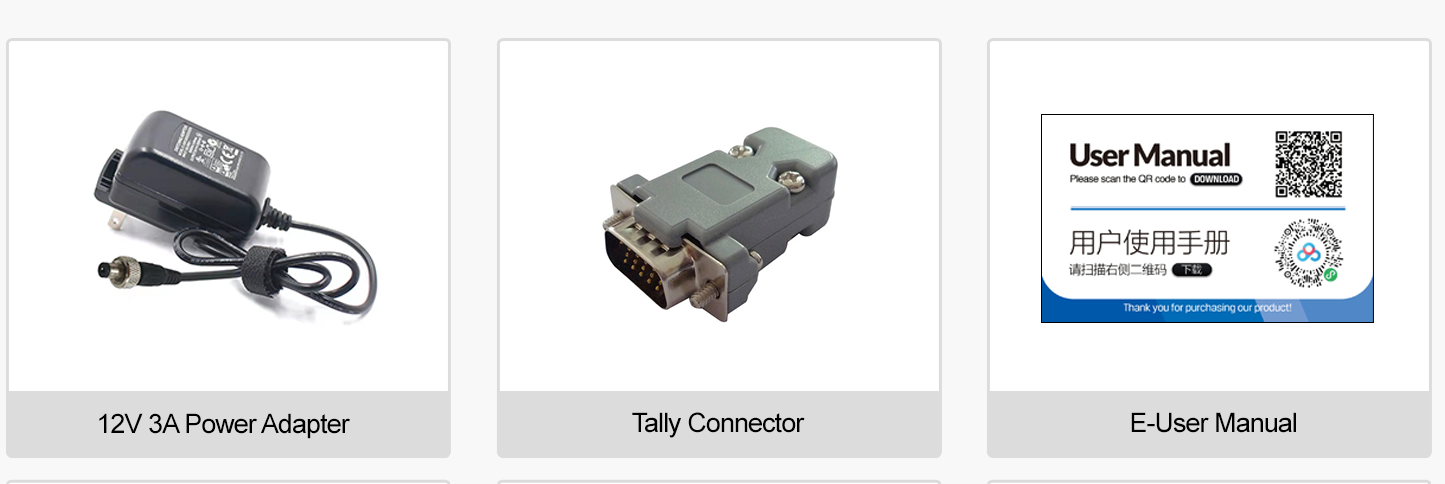

    Accessories

    1
    2
    3
    4
    5
    6

  • Previous:
  • Next:

  • Display
    Size 17.3” 8bits
    Resolution 1920×1080
    Brightness 300cd/m²
    Aspect ratio 16:9
    Contrast 1200:1
    Viewing Angle 170°/170°(H/V)
    Video Input
    HDMI 1×HDMI 2.0
    12G-SDI 4
    Video Loop Output
    HDMI 1×HDMI 2.0
    12G-SDI 4
    Supported In / Out Formats
    HDMI 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60,2160P 24/25/30/50/60
    12G-SDI 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60,2160P 24/25/30/50/60
    Audio In/Out
    HDMI 8ch 24-bit
    SDI 16ch 48kHz 24-bit
    Ear Jack 3.5mm – 2ch  48kHz 24-bit
    Built-in Speakers 2
    Power
    Operating power ≤19W(12V)
    DC In DC 12-24V
    Environment
    Operating Temperature 0℃~50℃
    Storage Temperature -20℃~60℃
    Other
    Dimension(LWD) 482.5×44×507.5mm
    Weight 10.1kg
