FA1016/C/T _ 10.1 inch full HD capacitive touch montior

Short Description:

FA1016/C/T with a wide operating temperature, it come with ultra slim industrial monitor which supports 10.1″ 1920×1200 320nits multi-point (10- points) projective capacitive touch screen IPS screen. And suitable for a wide range of outdoor industrial and commercial applications in the market, such as POI/POS, Kiosk, HMI and all kinds of heavy-duty industrial field equipment systems. There are different install way for the touch screen monitor, Whether as a desktop device for control centers, as a built-in unit for control consoles or as PC-based visualization and control solutions requiring a spatially divided setup of the operator panel and the industrial PC or server, and the optimal solution – as a stand-alone solution or also with several control stations in extensive visualization and control solutions.


  • Model: FA1016/C/T
  • Touch panel: 10 point capacitive
  • Display: 10.1 inch, 1920×1200, 320nit
  • Interfaces: 4K-HDMI 1.4, VGA
  • Feature: G+G technology, Integrated dustproof front panel
  • Product Detail

    Specifications

    Accessories

    fa1016_01

    Excellent Display and operation experience

    It features 10.1” 16:10 LCD panel with 1920×1200 full HD resolution, 1000:1 high contrast, 175° wide viewing angles, which

    fulls lamination technology so as to convey every detail in massive visual quality.Adopt the unique Glass+Glass technology

    to smooth the appearance of its body and hold the widest view in order to achieve the best effect.

    fa1016_03

     Wide Voltage Power & Low Power Consumption

    Built-in high level components to support 7 to 24V power supply voltage, allows to be used in more places.

    Working safely with ultra-low current in any situation, as well as the power consumption is  greatly cut down.

    fa1016_05

    Easy-to-use

    F1&F2 user-definable buttons to custom auxiliary functions as shortcut, for example, scan, aspect, check field,

    zoom, freeze, etc. Use the dial to select and adjust the value among of sharpness, saturation, tint and volume.

           INPUT button. Single press to power on, or switch signals; Long press to power off.

    fa1016_06

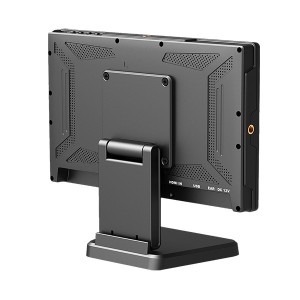

    Folding Bracket (Optional)

    Equiped with 75mm VESA folding bracket, it can not only be retracted

    freely, but save space on the desktop, wall and roof mounts, etc.

    Patent No. 201230078863.2   201230078873.6   201230078817.2


  • Previous:
  • Next:

  • Display
    Touch panel 10 points capacitive
    Size 10.1”
    Resolution 1920 x 1200
    Brightness 320cd/m²
    Aspect ratio 16:10
    Contrast 1000:1
    Viewing Angle 175°/175°(H/V)
    Video Input
    HDMI 1×HDMI 1.4
    VGA 1
    Supported In Formats
    HDMI 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30
    Audio In/Out
    HDMI 2ch 24-bit
    Ear Jack 3.5mm - 2ch 48kHz 24-bit
    Built-in Speakers 1
    Power
    Operating power ≤10W
    DC In DC 7-24V
    Environment
    Operating Temperature 0℃~50℃
    Storage Temperature -20℃~60℃
    Other
    Dimension(LWD) 252×157×25mm
    Weight 535g

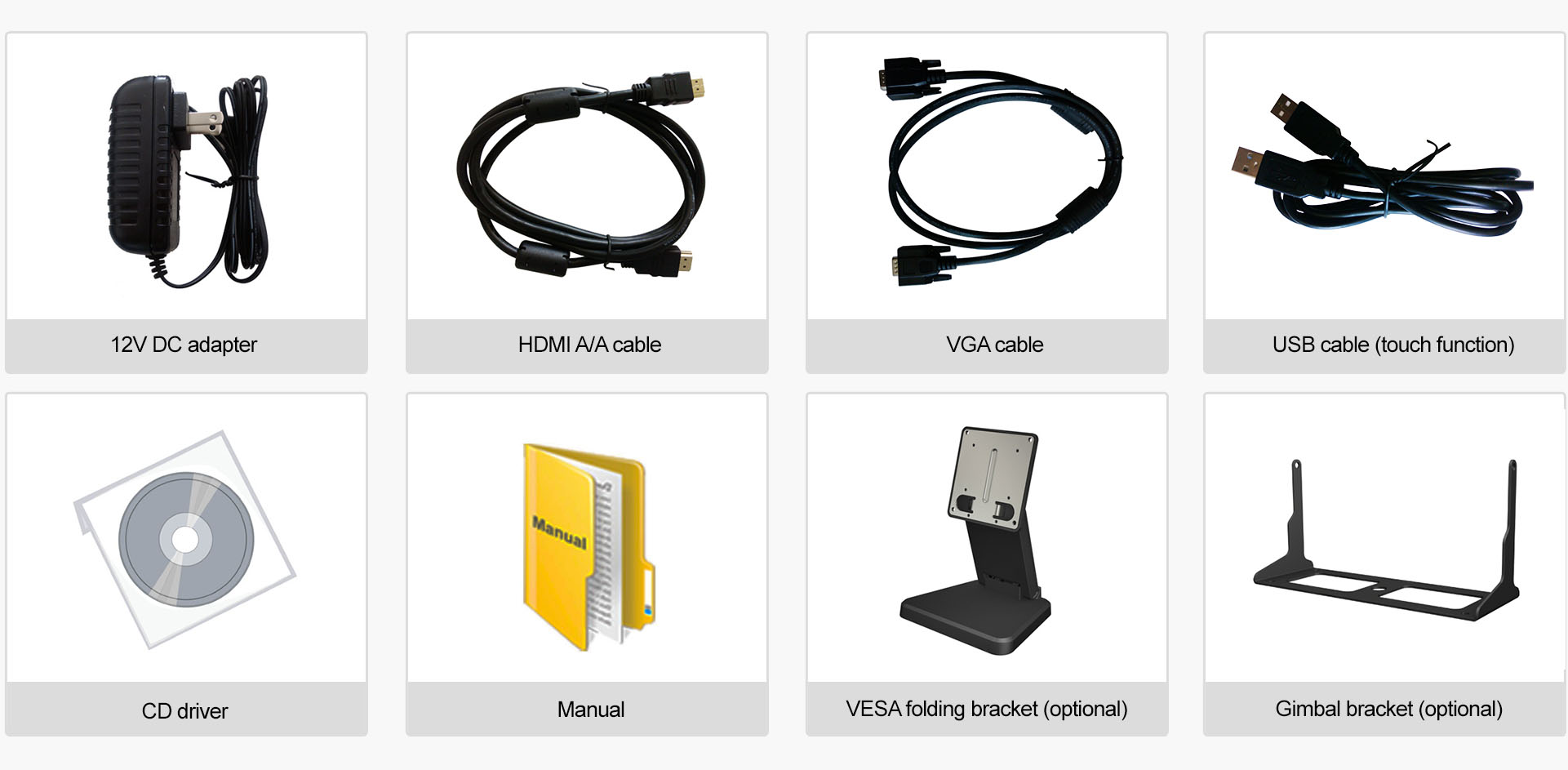

    1016t accessories
