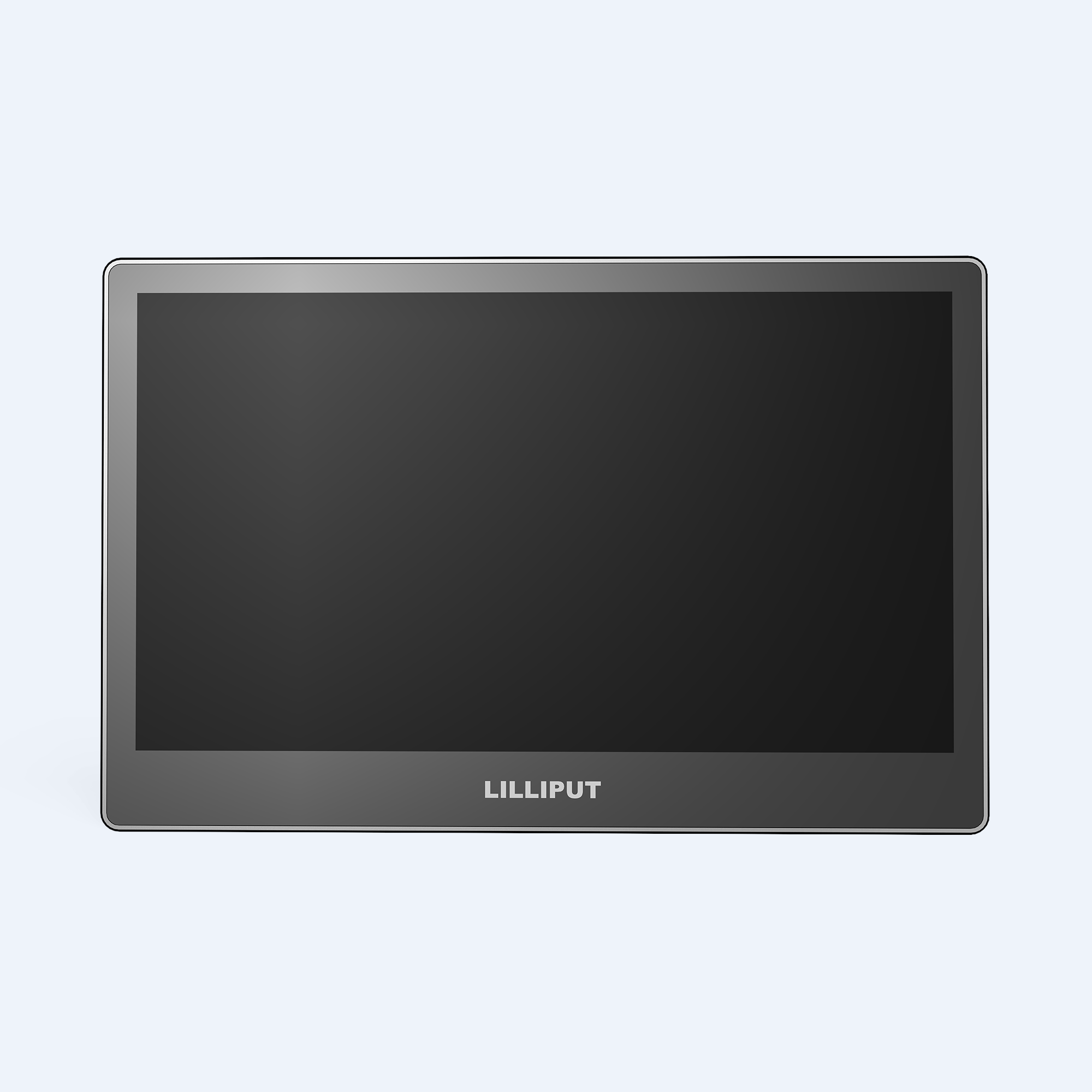

LILLIPUT 13.3 inch Industrial-Grade Touch Monitor

Short Description:

FA1330 with a full lamination screen, it comes with 13.3″ 1920×1080 resolution and capacitive touch function. And suitable for a wide range of outdoor industrial and commercial applications in the market, such as POI/POS, Kiosk, HMI and all kinds of heavy-duty industrial field equipment systems. There are different install way for the touch screen monitor, Whether as a desktop device for control centers, as a built-in unit for control consoles or as PC-based visualization and control solutions requiring a spatially divided setup of the operator panel and the industrial PC or server, and the optimal solution – as a stand-alone solution or also with several control stations in extensive visualization and control solutions.

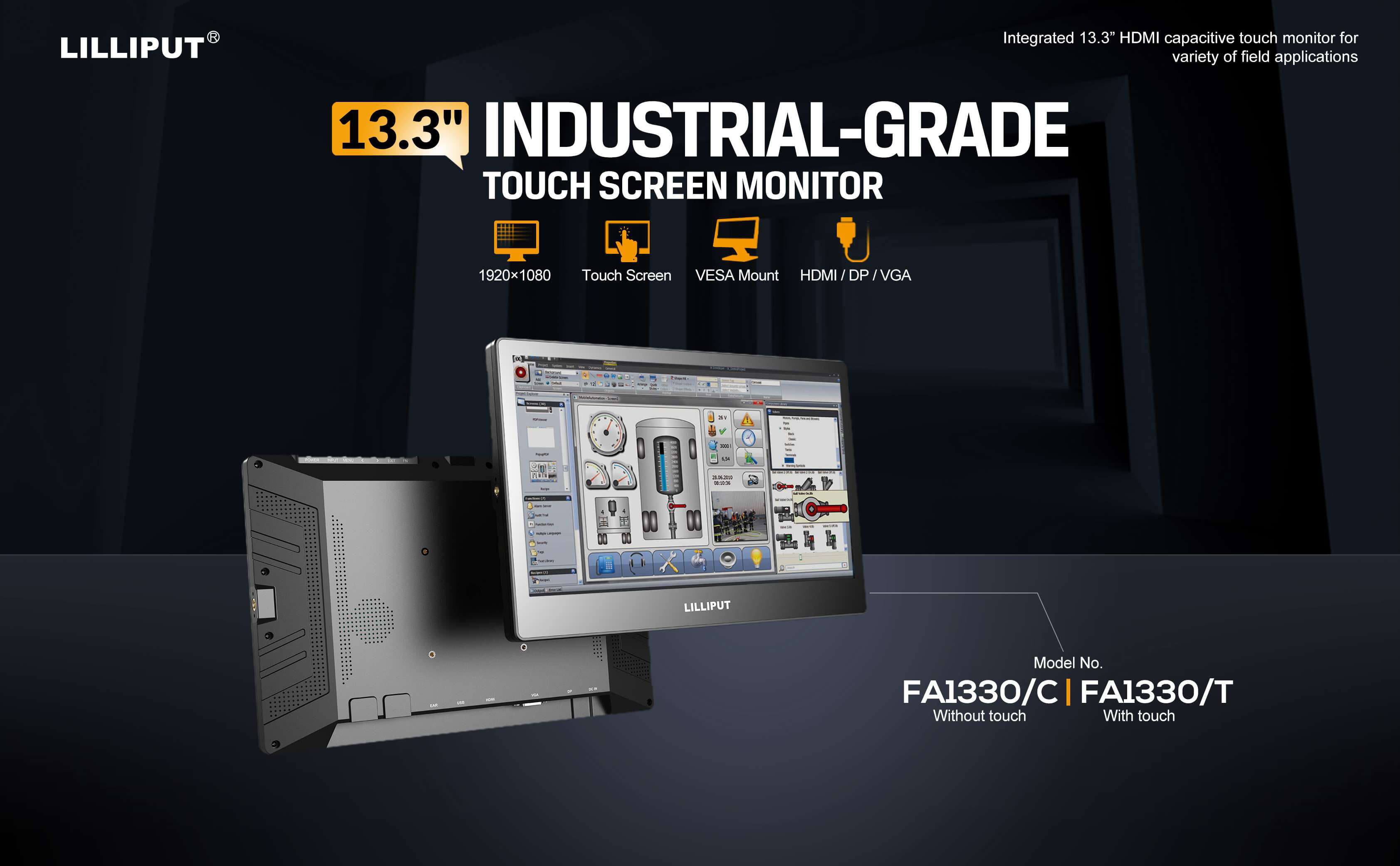

  • Model: FA1330/C & FA1330/T

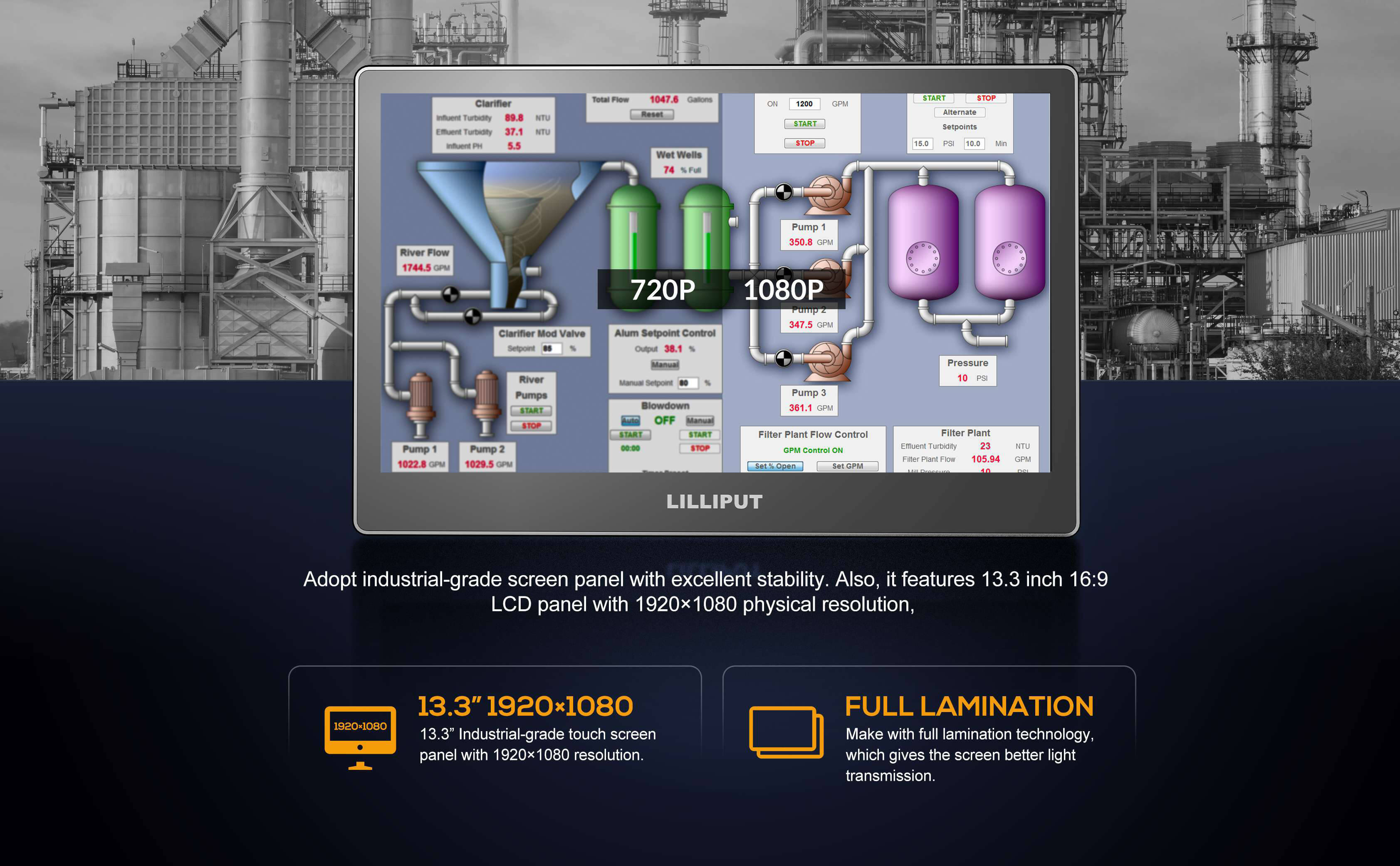

  • Display: 13.3 inch, 1920×1080

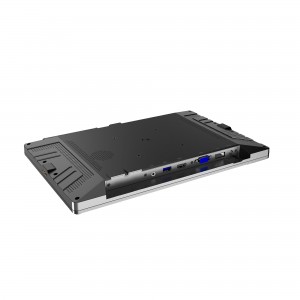

  • Input: HDMI, VGA, DP, USB

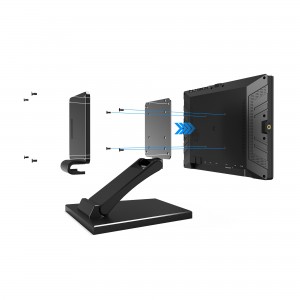

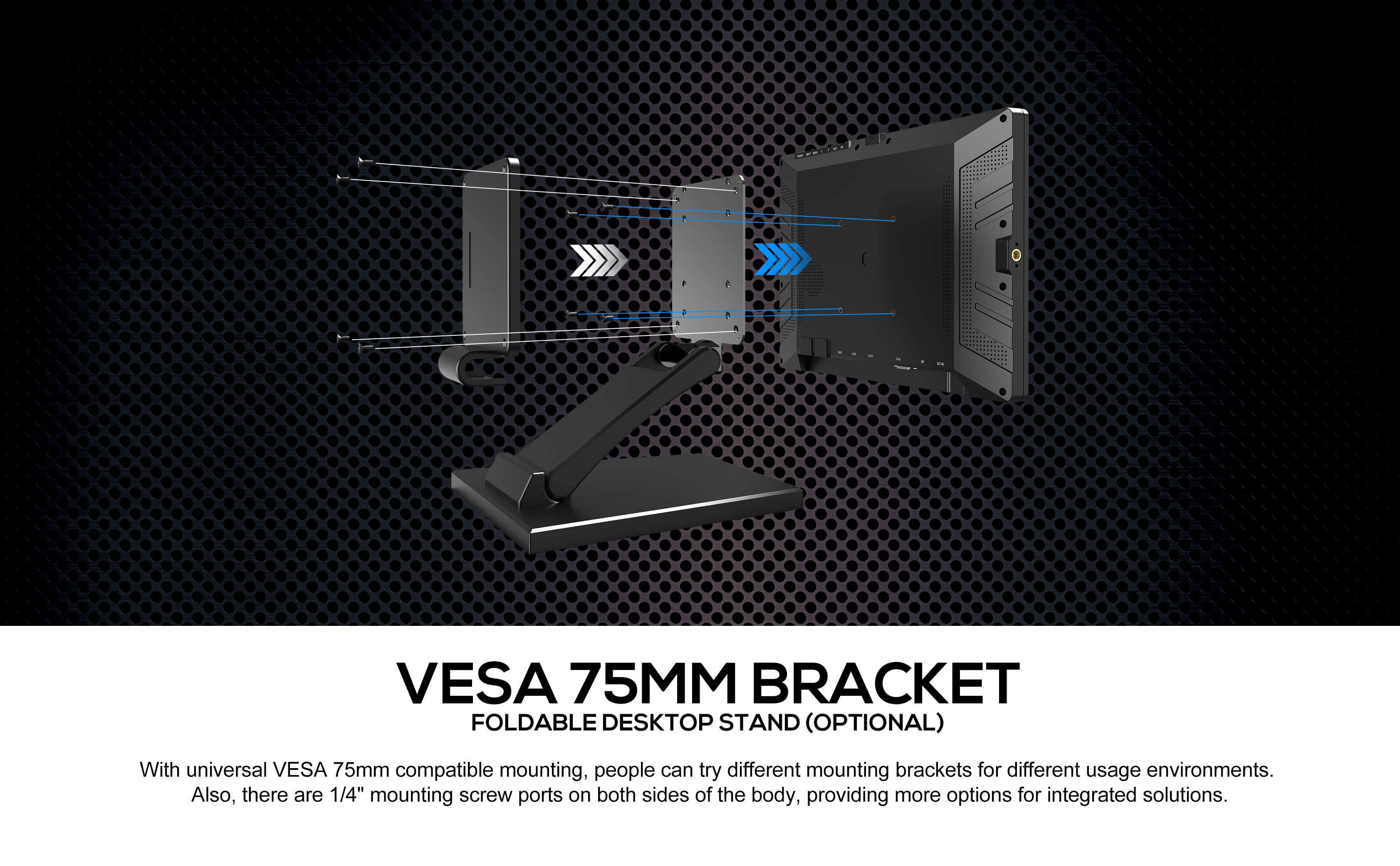

  • Optional: Touch Function, VESA Bracket

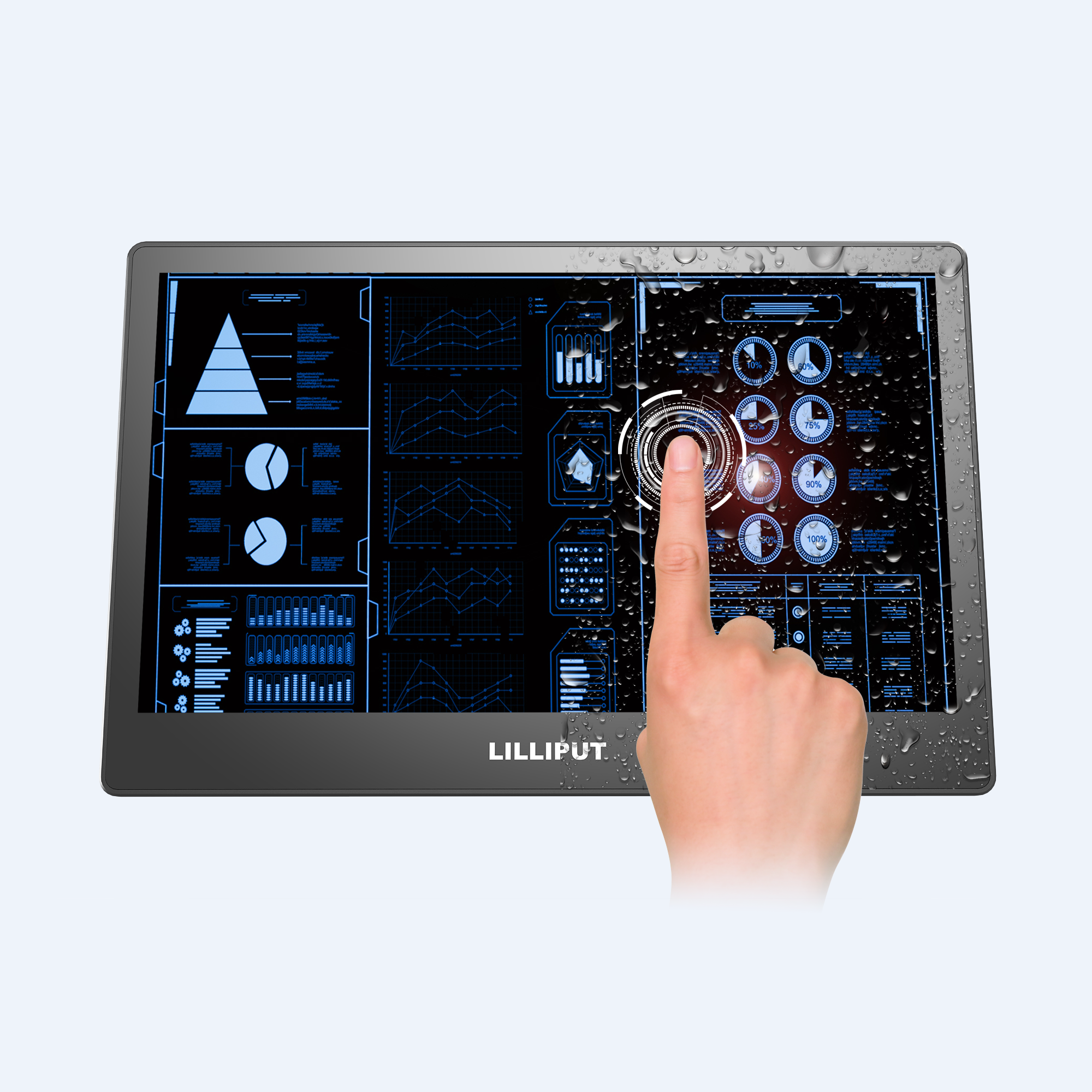

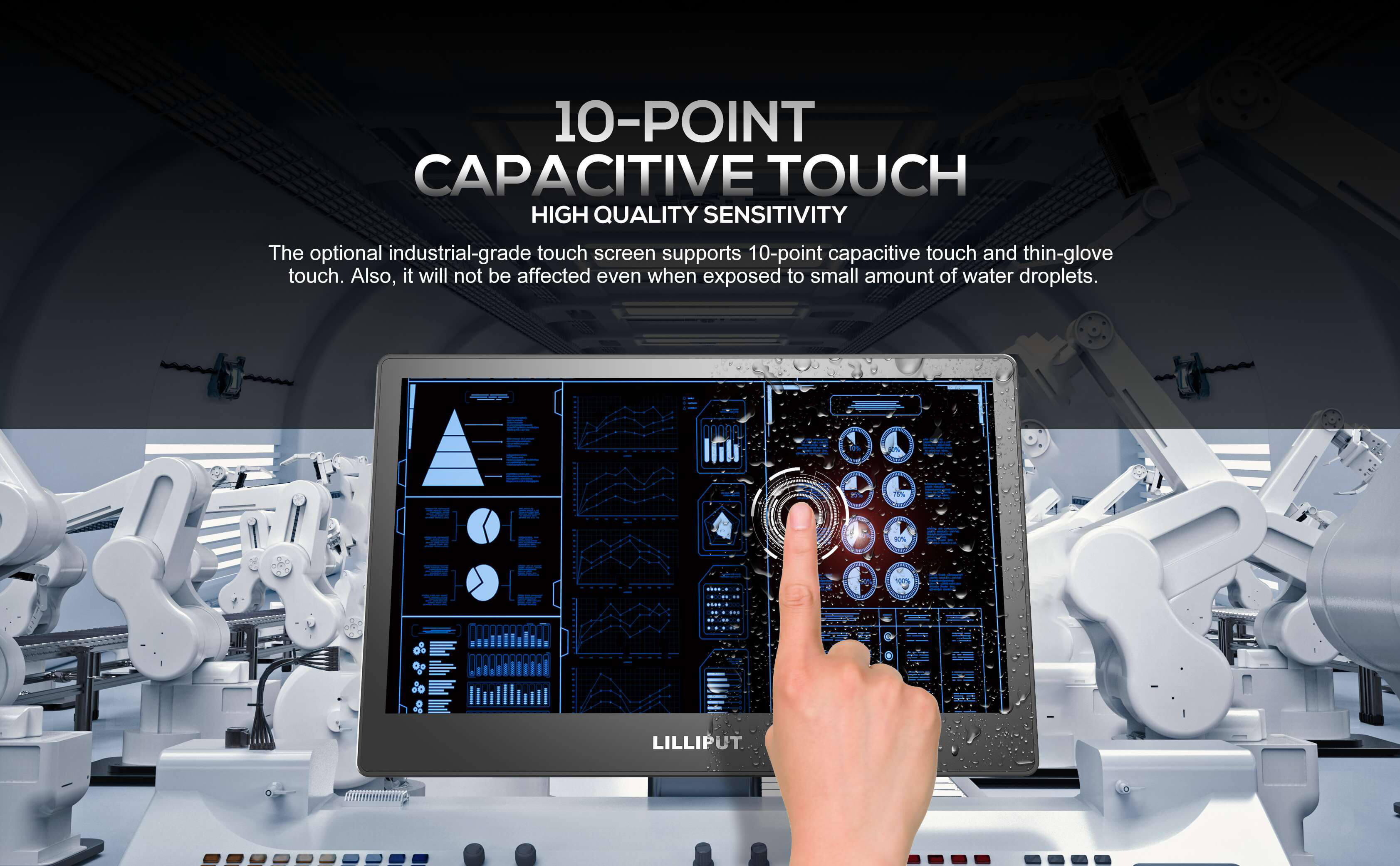

  • Feature: Capacitive Touch Screen, Full Lamination
  • Product Detail

    Specifications

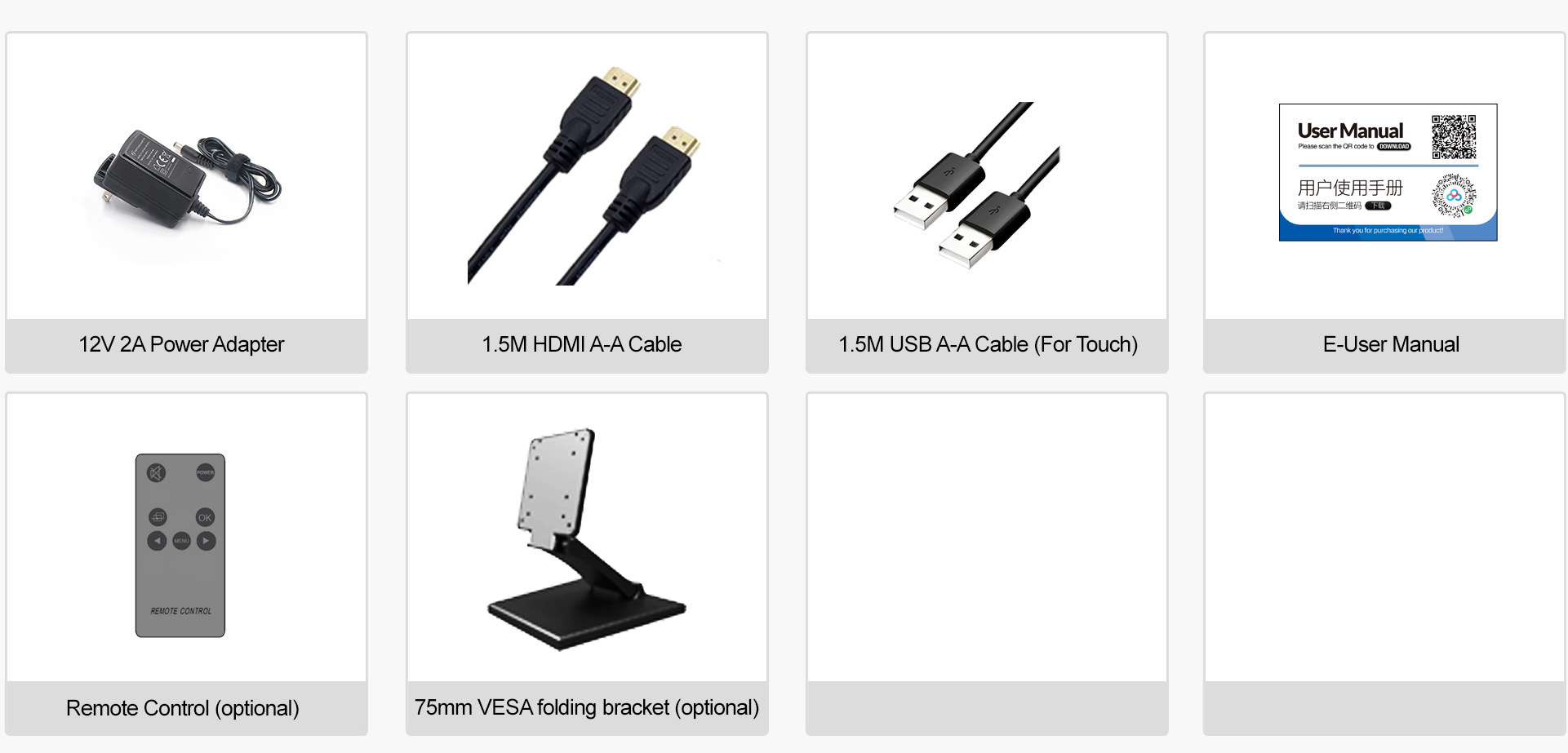

    Accessories

    1
    2
    3
    4
    5
    6

  • Previous:
  • Next:

  • DISPLAY      Touch Screen Capacitive touch
    Panel 13.3” LCD
    Physical Resolution 1920×1080
    Aspect Ratio 16:9
    Brightness 300 nits
    Contrast 800:1
    Viewing Angle 170°/ 170°(H/V)

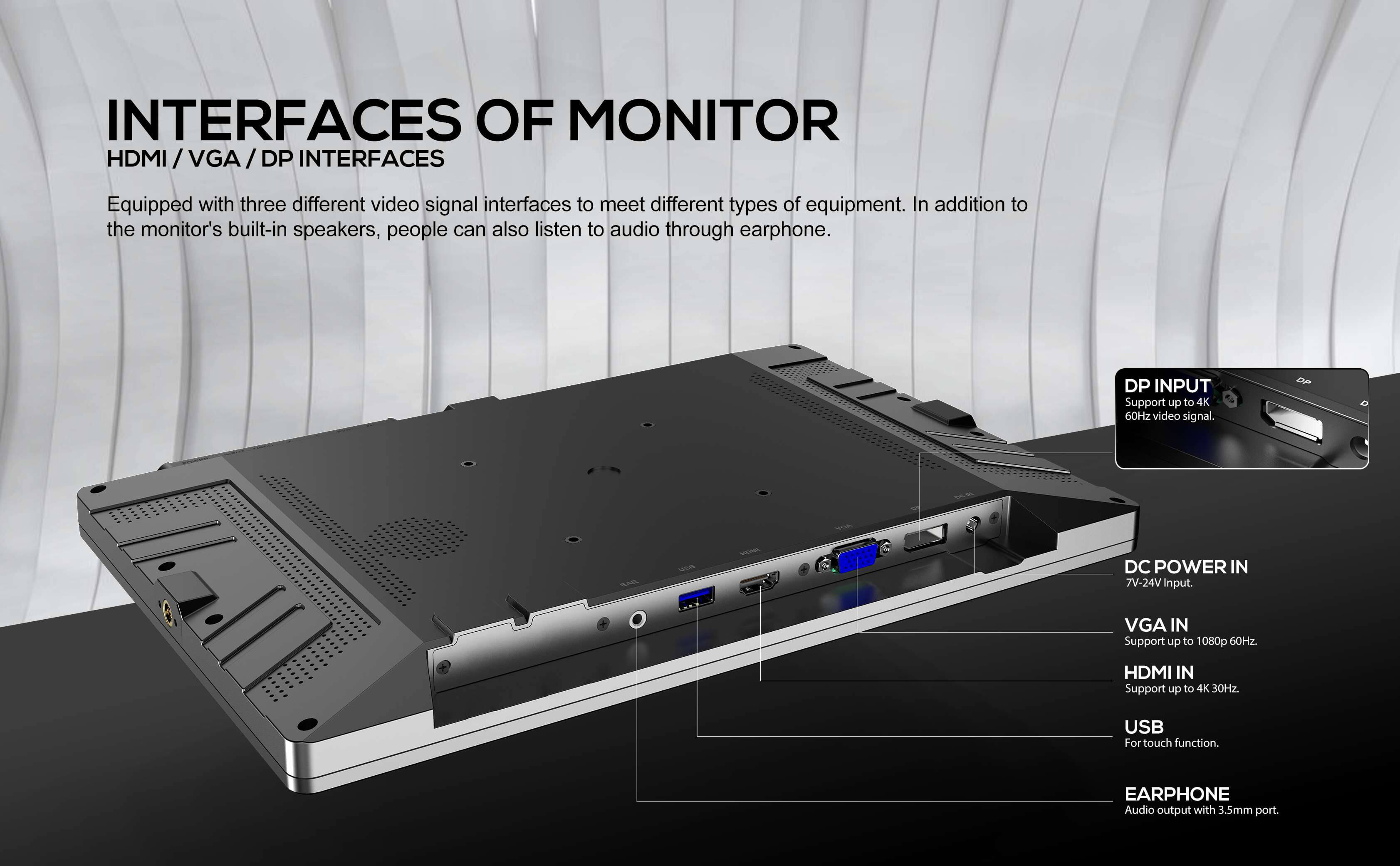

    SIGNAL INPUT HDMI 1
    VGA 1
    DP 1
    USB 1 (For Touch)
    SUPPORT FORMATS VGA 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
    HDMI 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60…
    DP 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60…
    AUDIO IN/OUT Ear Jack 3.5mm – 2ch 48kHz 24-bit
    Built-in Speakers 2
    POWER Input Voltage DC 7-24V
    Power Consumption ≤12W (12V)
    ENVIRONMENT Operating Temperature 0°C~50°C
    Storage Temperature -20°C~60°C
    OTHER Dimension(LWD) 320mm × 208mm × 26.5mm
    Weight 1.15kg
