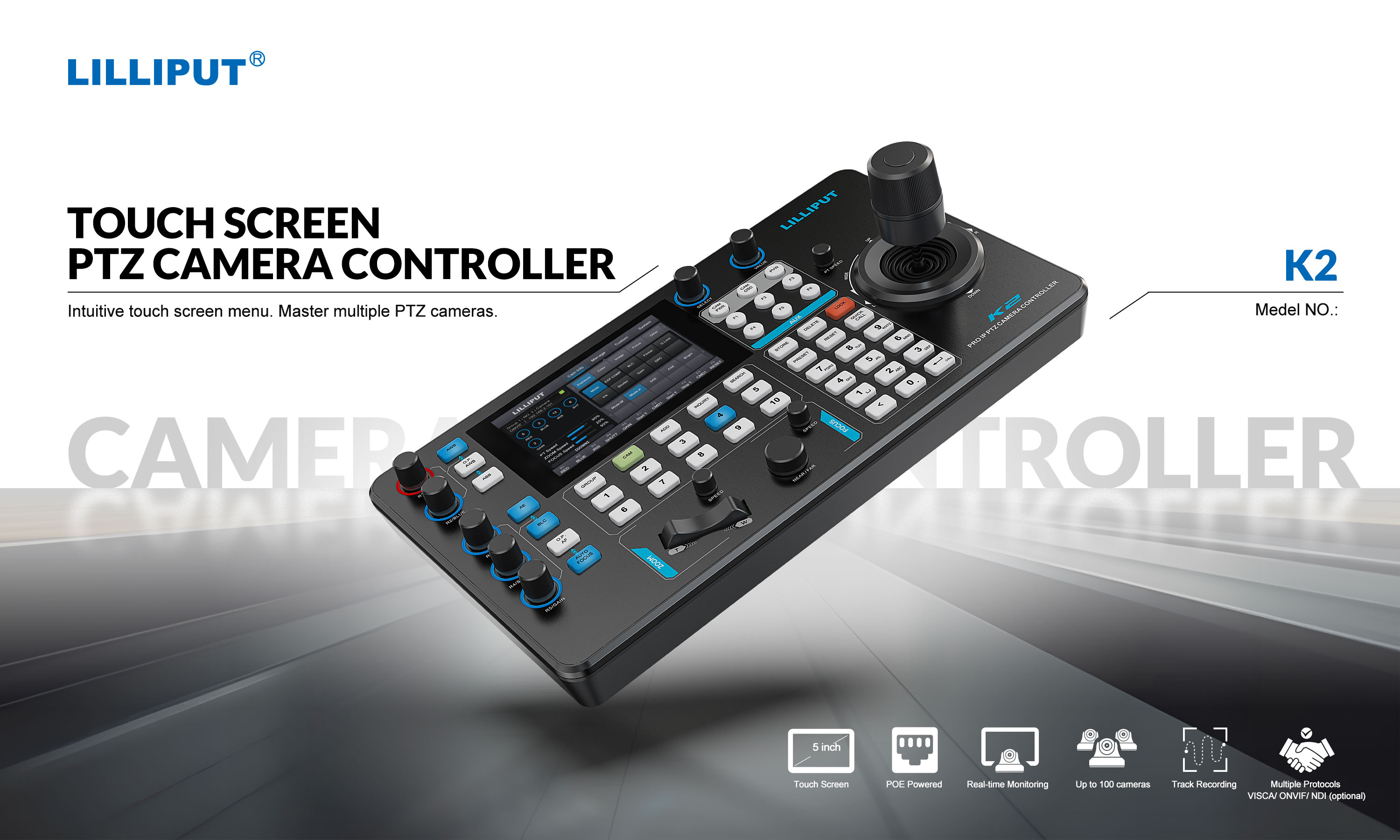

Touch Screen PTZ Camera Joystick Controller

Short Description:



Model No.: K2



Main Feature

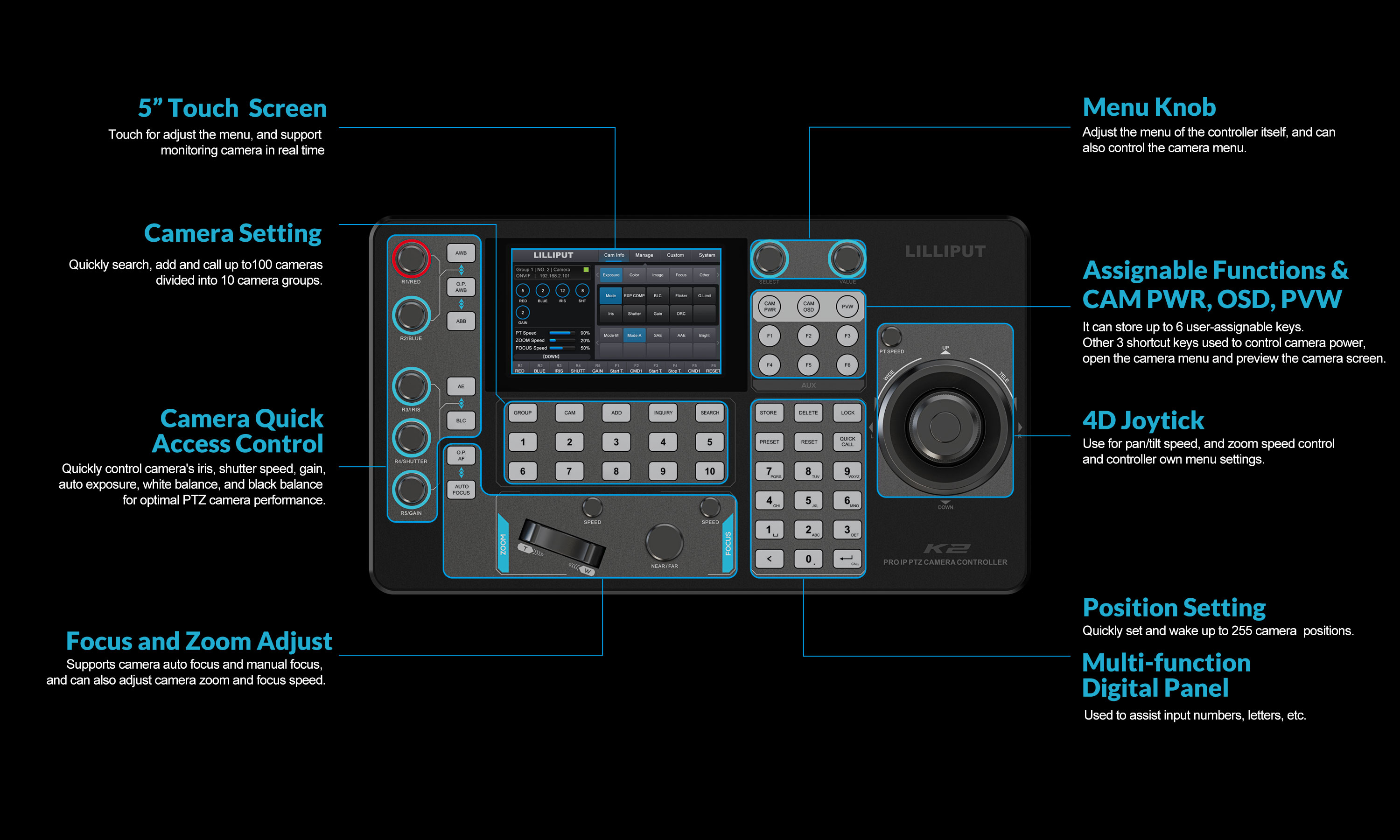

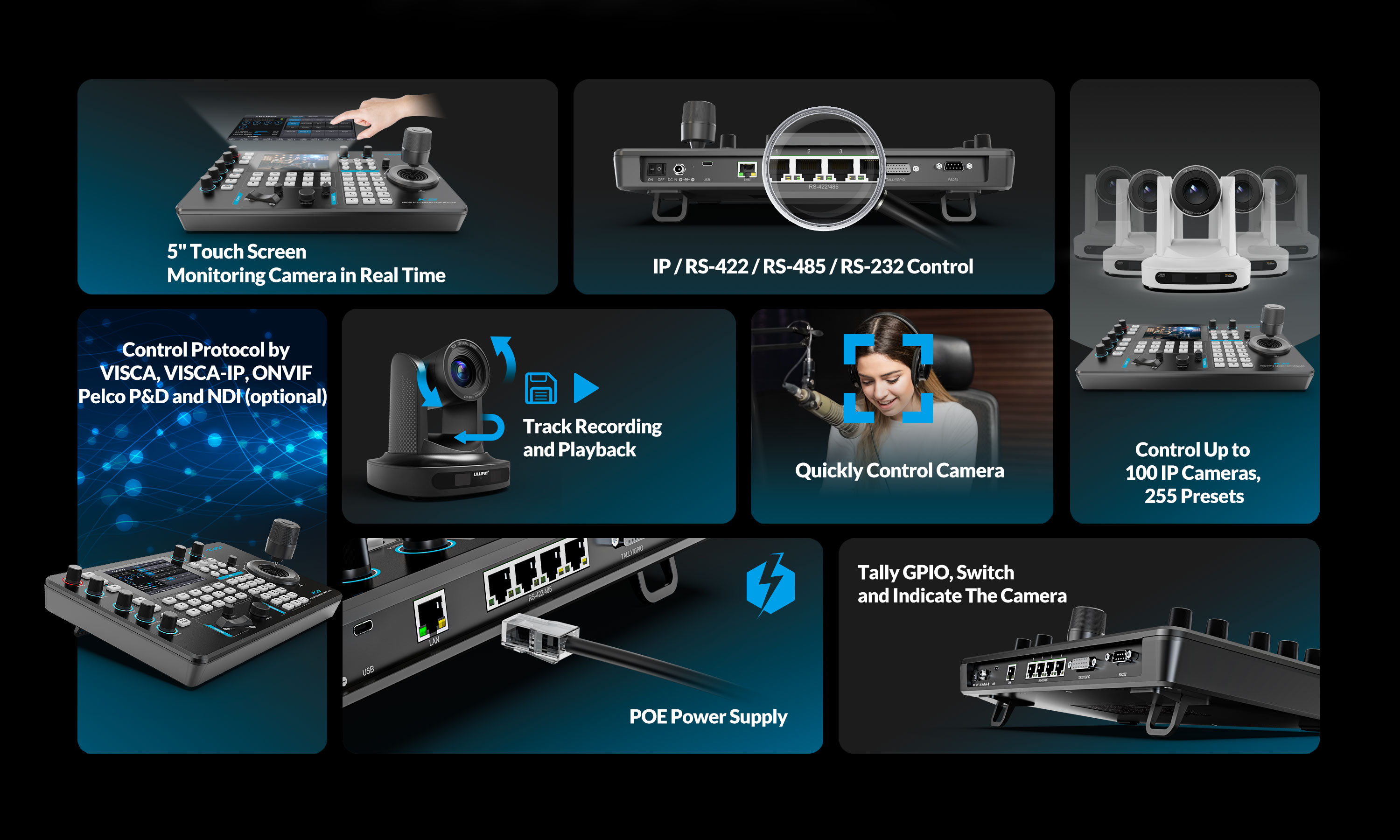

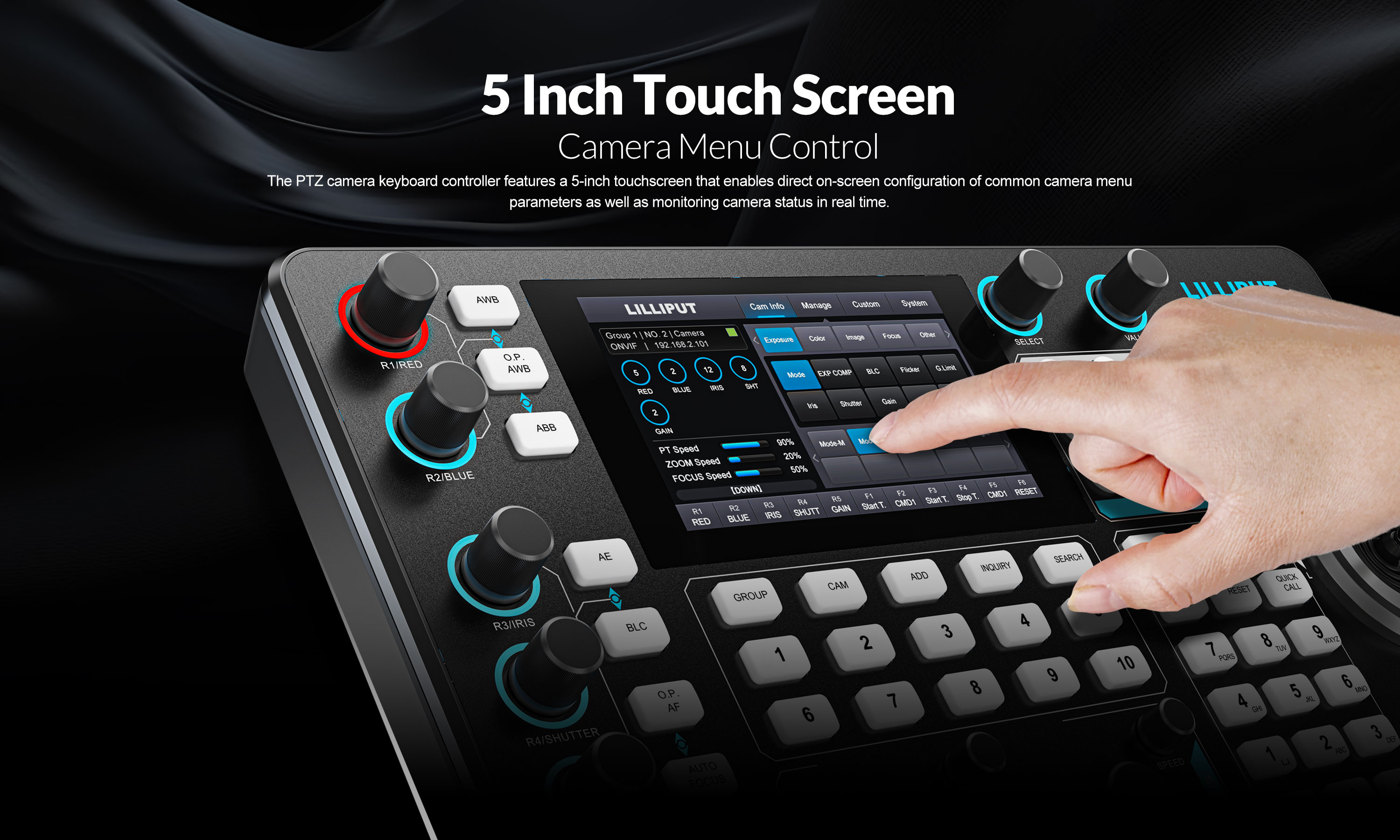

* With 5-inch touch screen and 4D joystick. Easy to operate

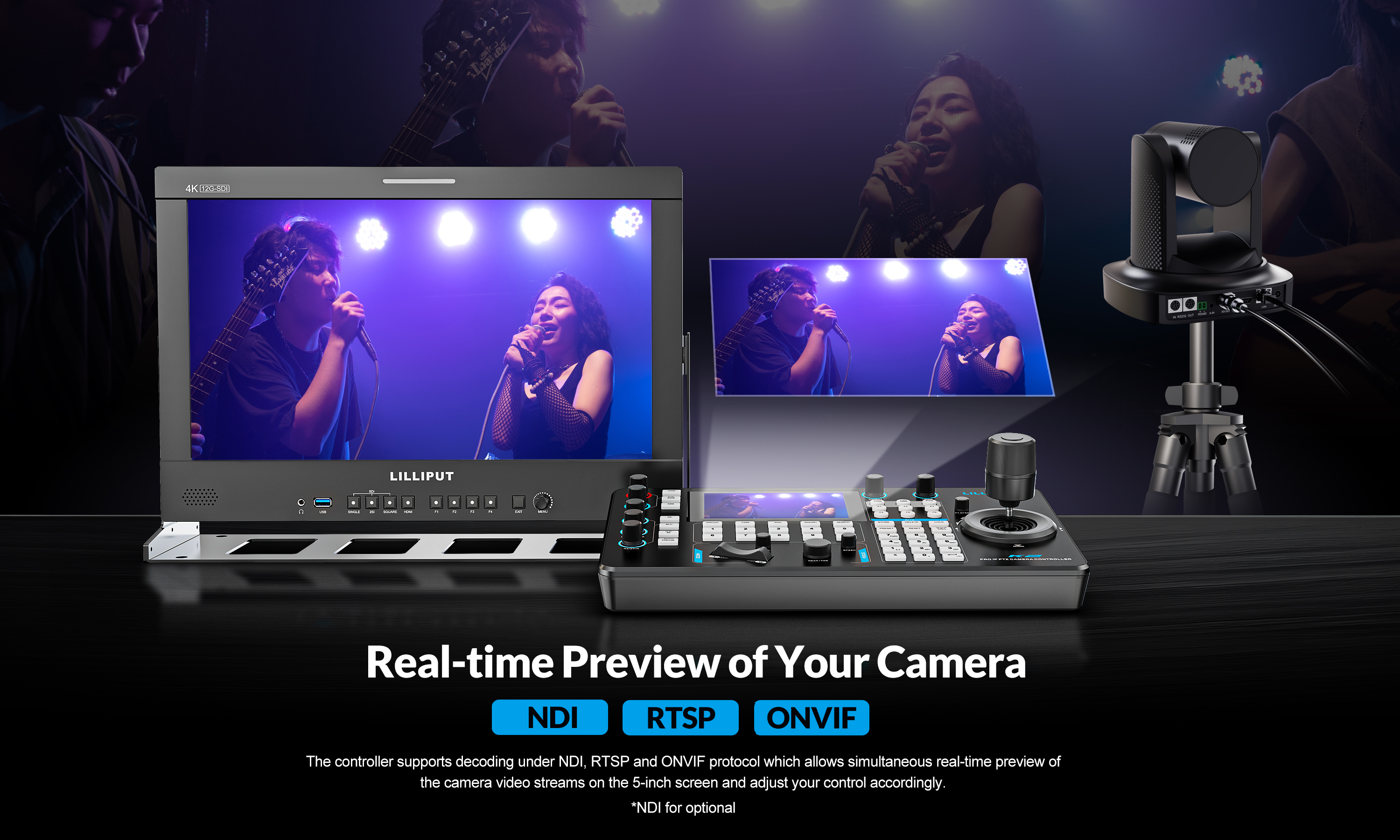

* Support real-time preview camera in 5″ screen

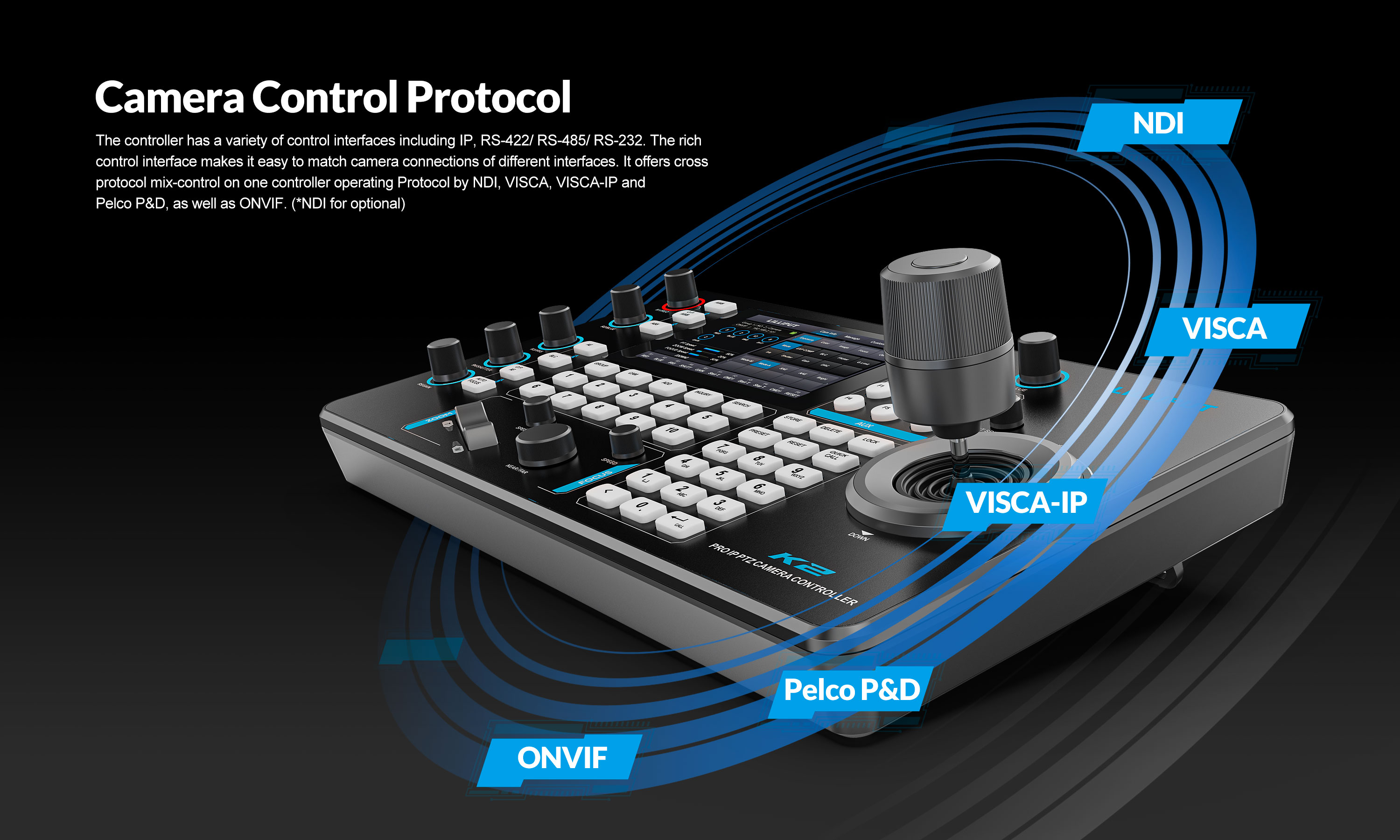

* Support Visca, Visca Over IP, Pelco P&D and Onvif protocols

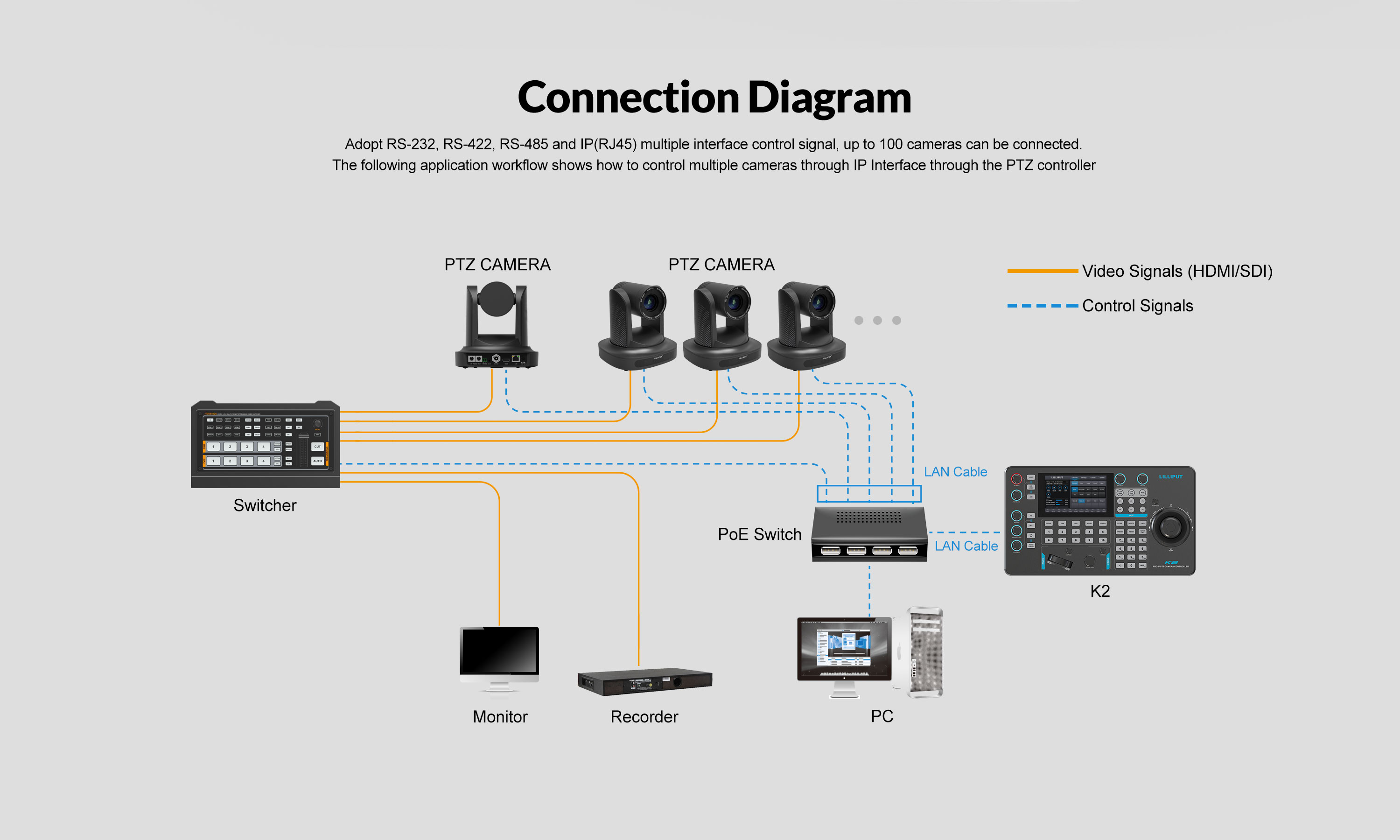

* Control via IP, RS-422, RS-485 and RS-232 interface
* Automatically assign IP addresses for quick setup
* Manage up to 100 IP cameras on a single network
* 6 user-assignable buttons for quick access to functions
* Quickly control exposure, iris, focus, pan, tilt and other functions

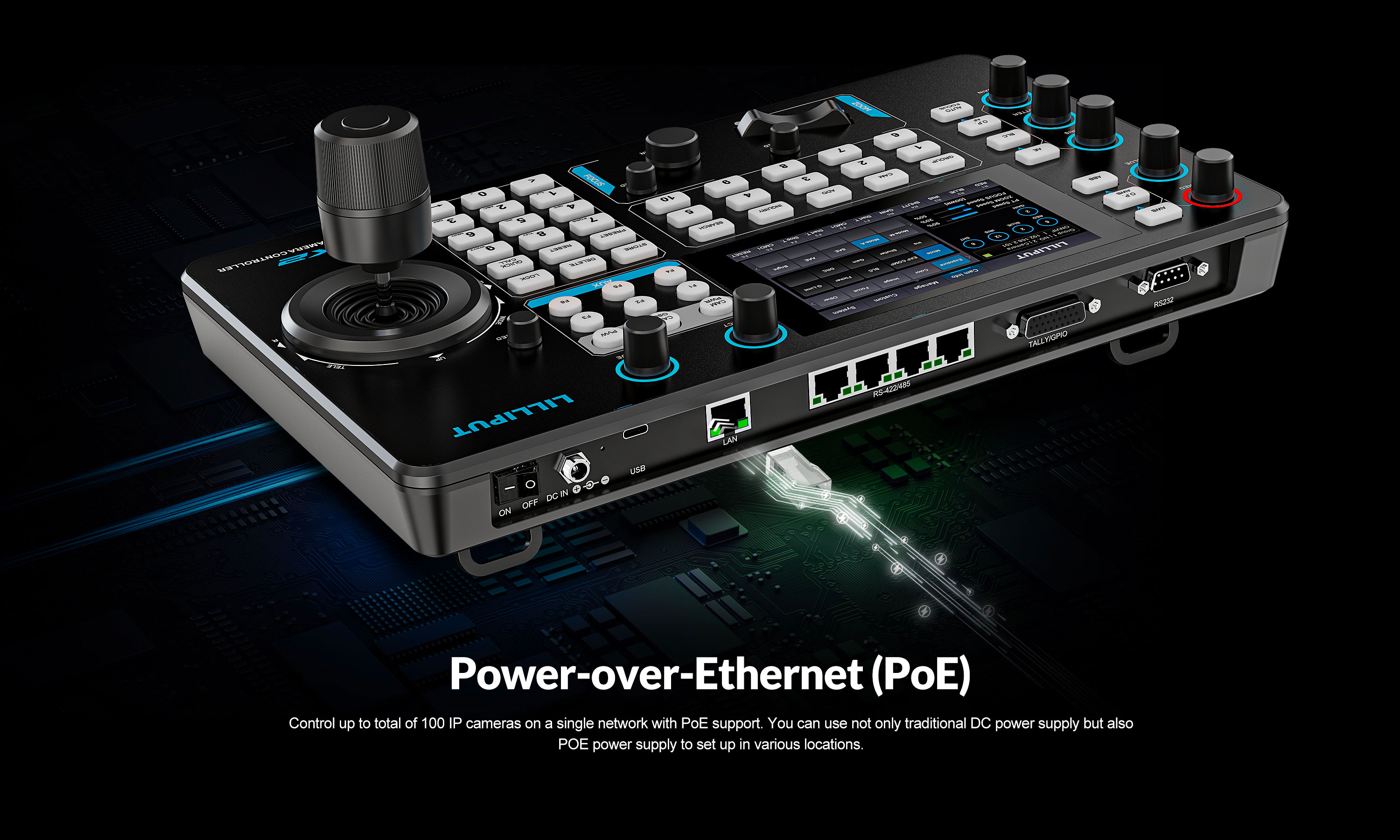

* Support PoE and 12V DC power supply
* Optional NDI version


Product Detail

Specifications

Accessories

K2 DM (1) K2 DM (2) K2 DM (3) K2 DM (4) K2 DM (5) K2 DM (6) K2 DM (7) K2 DM (8) K2 DM (9) K2 DM (10) K2 DM (11) K2 DM (12) K2 DM (13) K2 DM (14)


  • Previous:
  • Next:

  • MODEL NO. K2

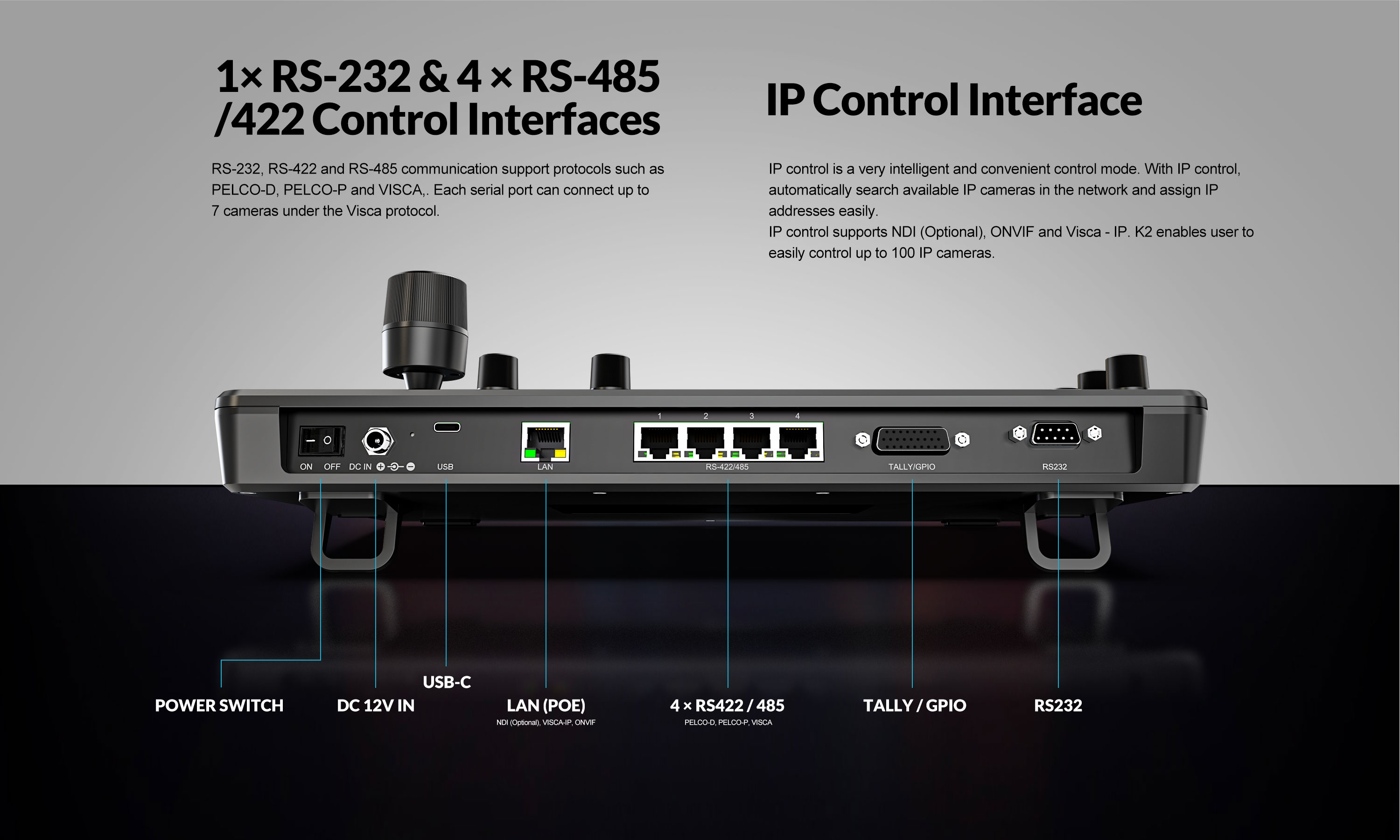

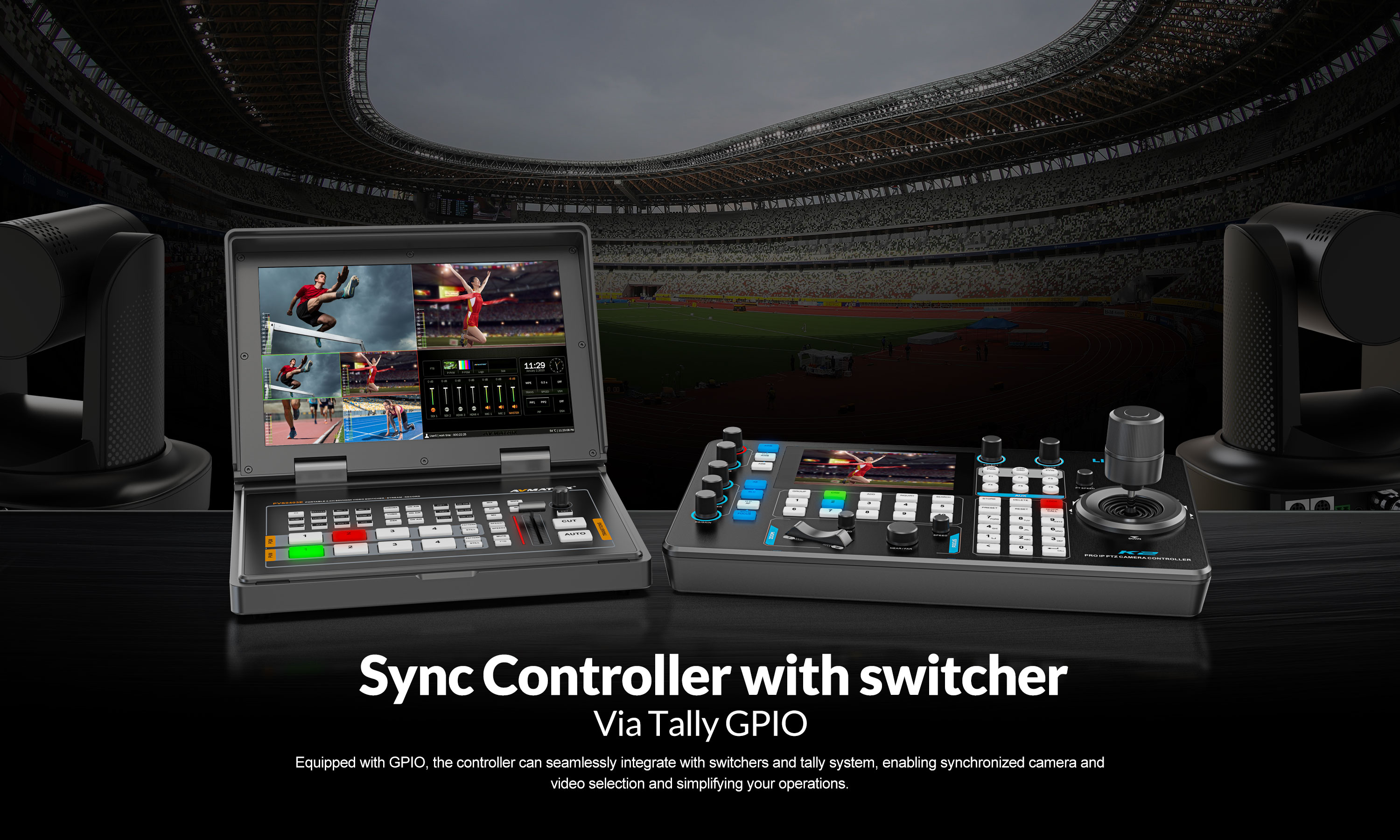

    CONNECTIONS Interfaces IP(RJ45)×1, RS-232×1, RS-485/RS-422×4, TALLY×1, USB-C (For upgrade)
    Control Protocol ONVIF, VISCA- IP, NDI (Optional)
    Serial Protocol PELCO-D, PELCO-P, VISCA
    Serial Baud Rate 2400, 4800, 9600, 19200, 38400, 115200 bps
    LAN port standard 100M×1 (PoE/PoE+: IEEE802.3 af/at)
    USER Display 5 Inch Touch Screen
    INTERFACES Knob Quickly control iris, shutter speed, gain, auto exposure, white balance, etc.
    Joystick Pan/Tilt/Zoom
    Camera Group 10 (Each group connect up to 10 cameras)
    Camera Address Up to 100
    Camera Preset Up to 255
    POWER Power PoE+ / DC 7~24V
    Power Consumption PoE+: < 8W, DC: < 8W
    ENVIRONMENT Working Temperature -20°C~60°C
    Storage Temperature -20°C~70°C

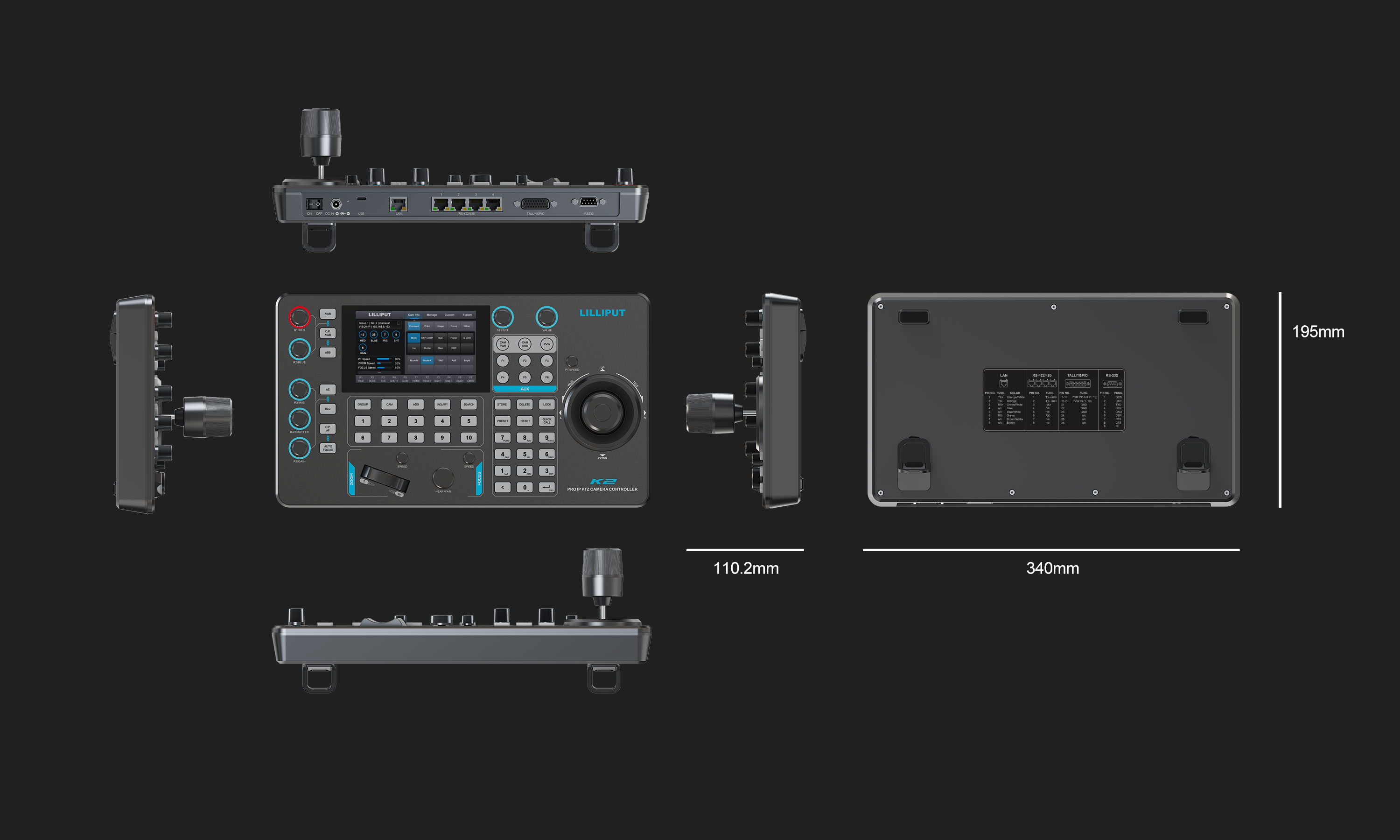

    DIMENSION Dimension(LWD) 340×195×49.5mm340×195×110.2mm (With joystick)
    Weight Net: 1730g, Gross:2360g
