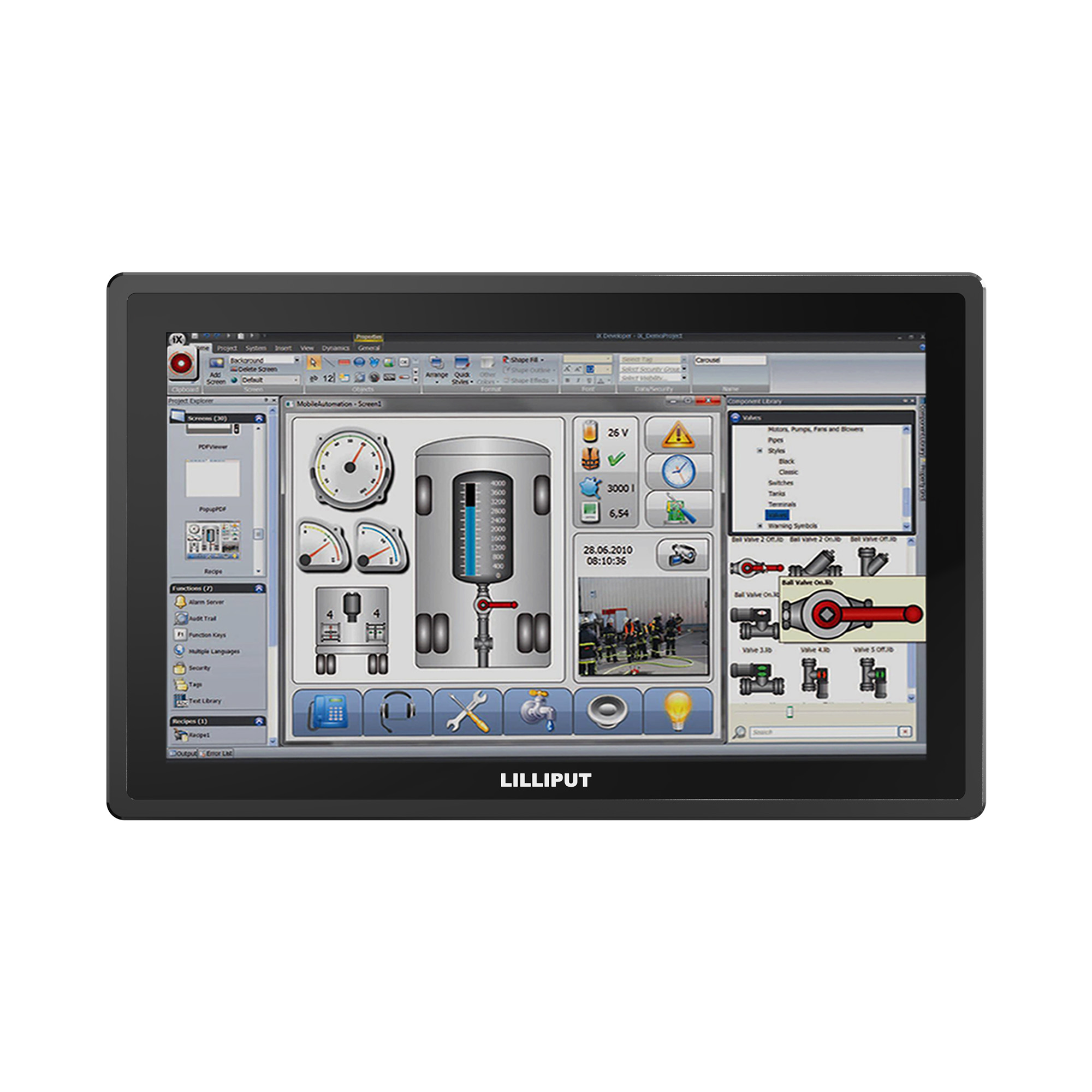

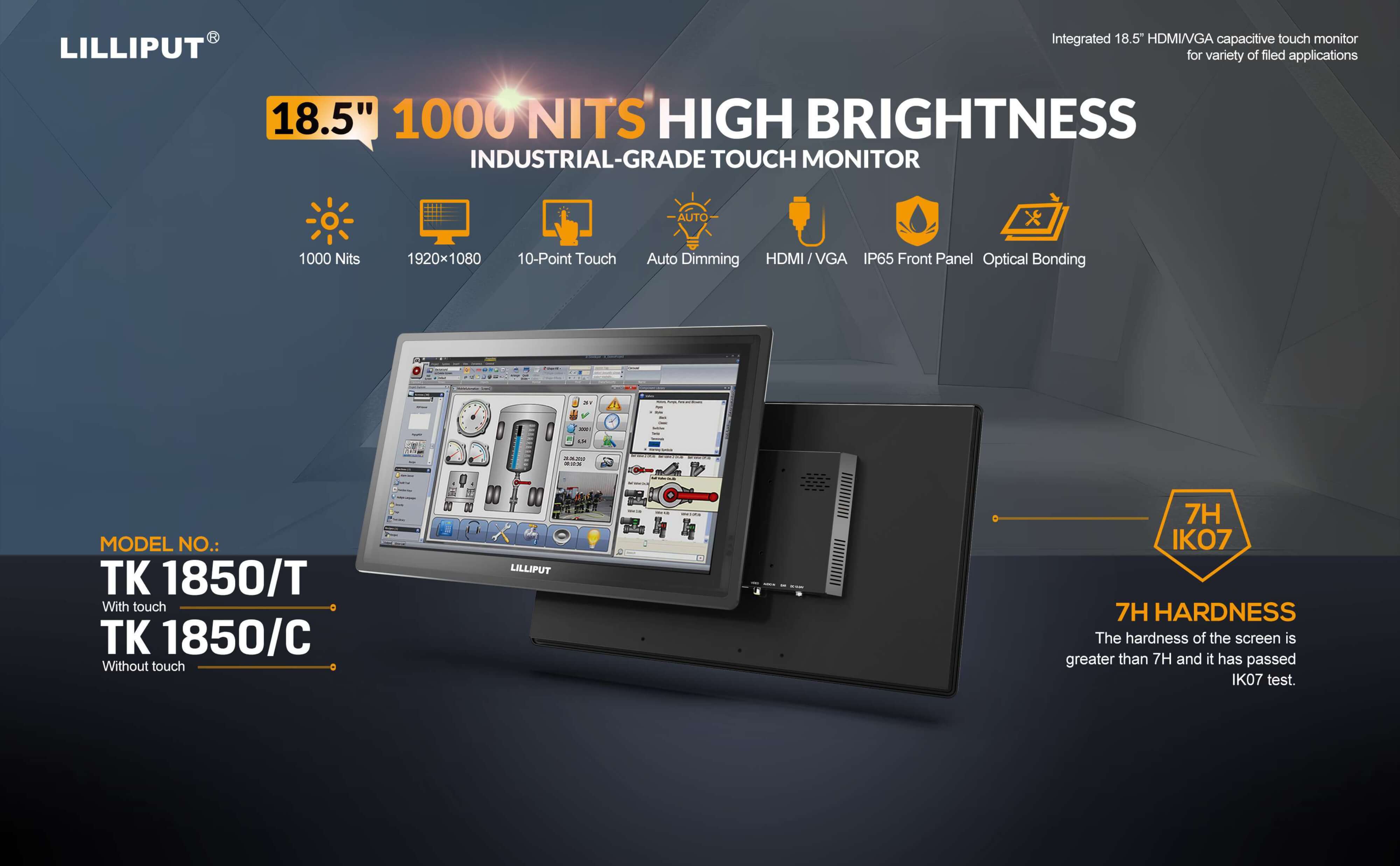

18.5 Inch 1000 Nits Metal housing Touch Screen Monitor
Touch monitor features with 1000 nits high brightness
for outdoor sunlight readable.
ANTI-GLARE
SCREEN WITH ANTI-GLARE COATING
The optical bonding process can remove the air layer between the LCD panel and the glass, ensuring that foreign objects such as dust and moisture will not damage the LCD panel. Anti-glare screen can reduce reflective glare in the environment.

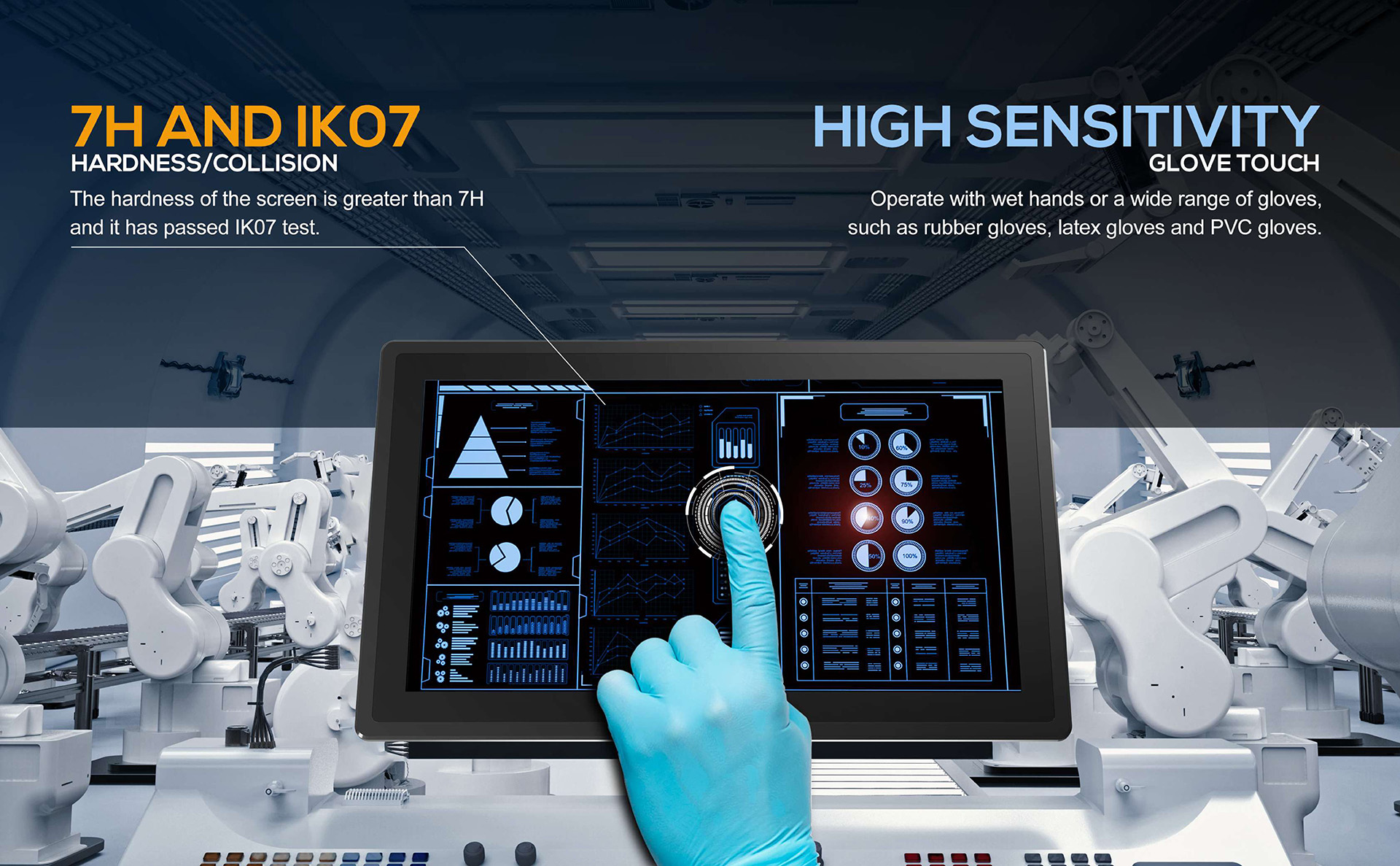

7H AND IKO7
HARDNESS/COLLISION
The hardness of the screen is greater than 7Hand it has passed lk07 test.
HIGH SENSITIVITY
GLOVETOUCH
Operate with wet hands or a wide range of gloves,such as rubber gloves, latex gloves and PVC gloves.

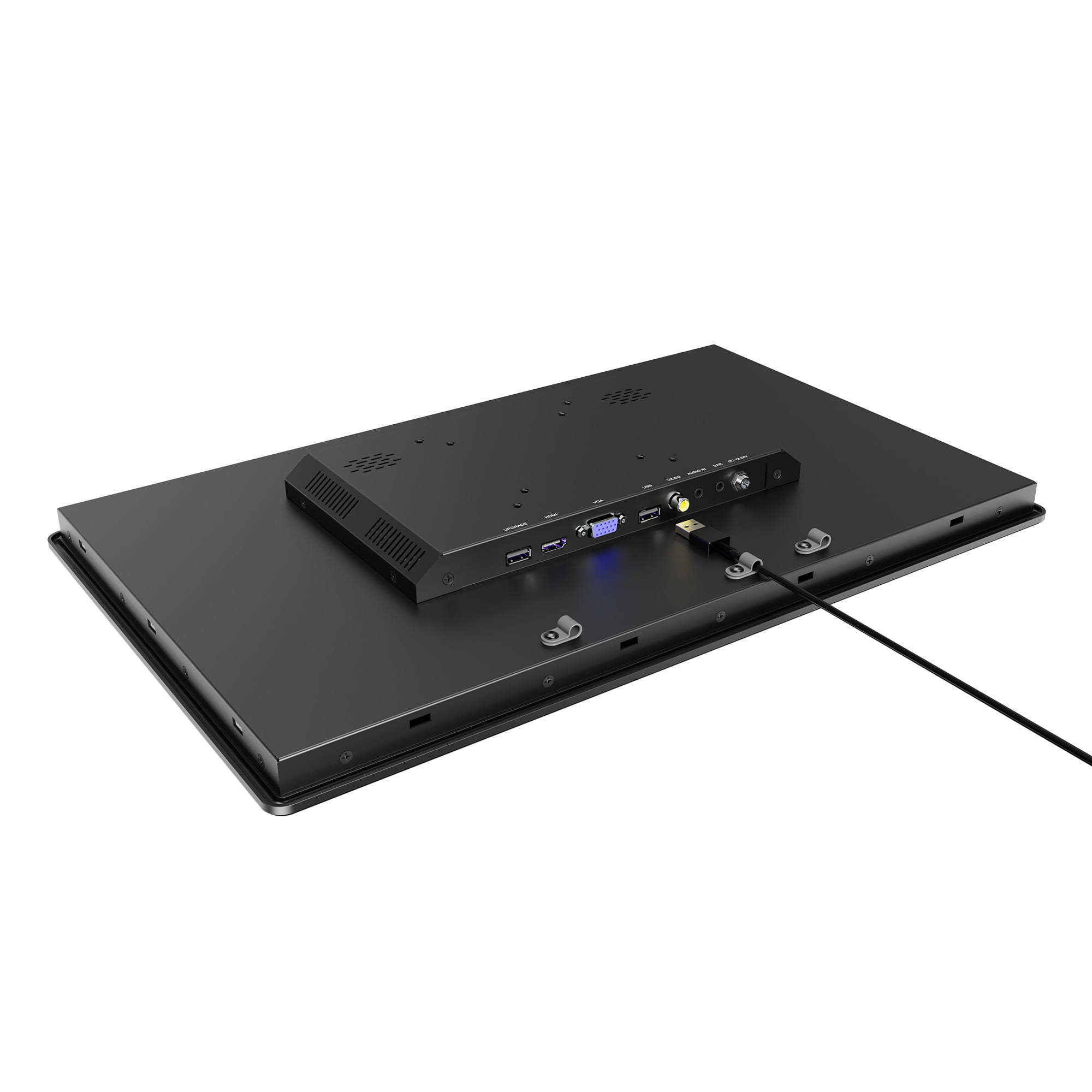

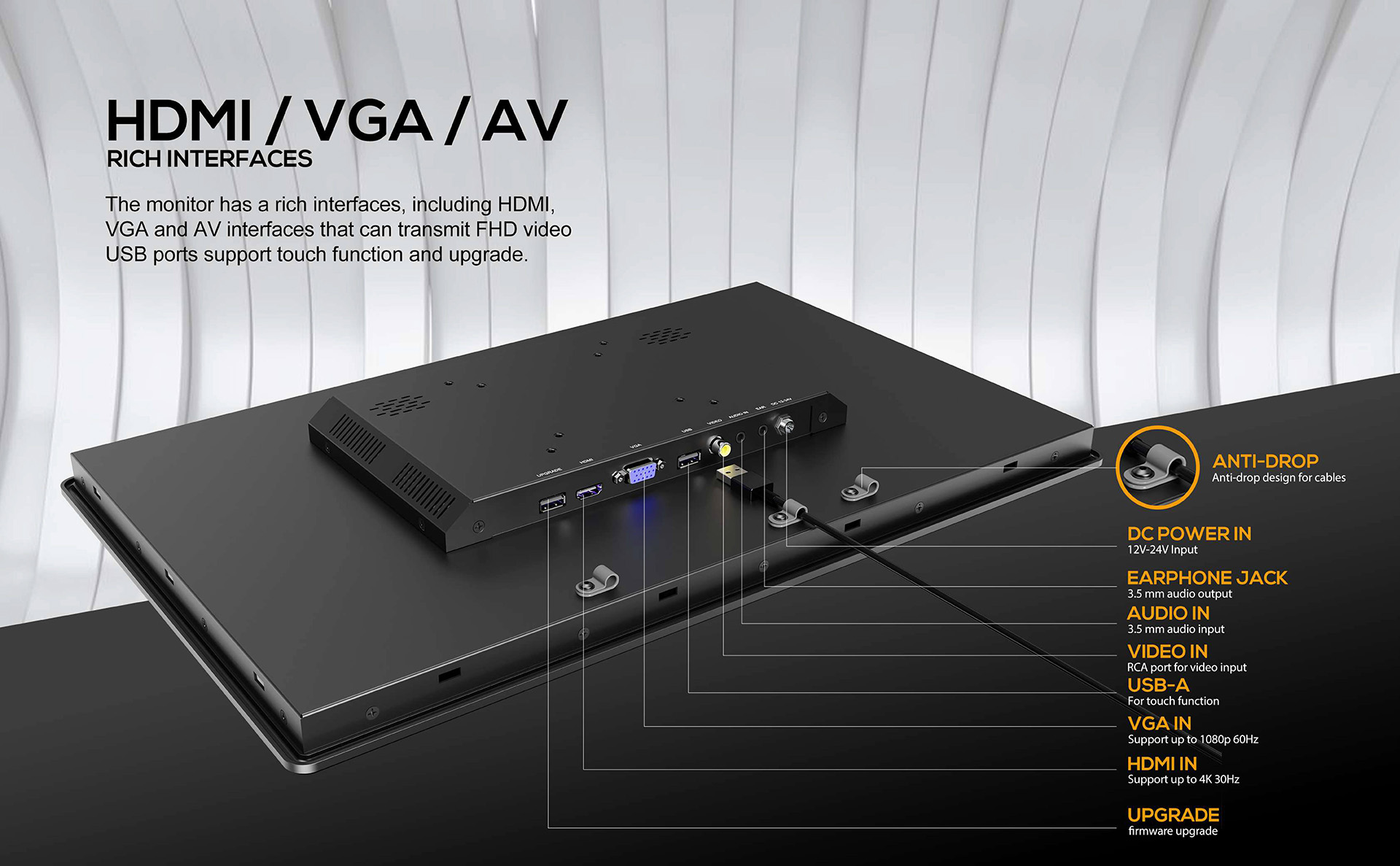

HDMI/VGA/AV
RICH INTERFACES
The monitor has a rich interfaces, including HDMl.
VGA and AVinterfaces that can transmit FHD video
USB ports support touch function and upgrade.

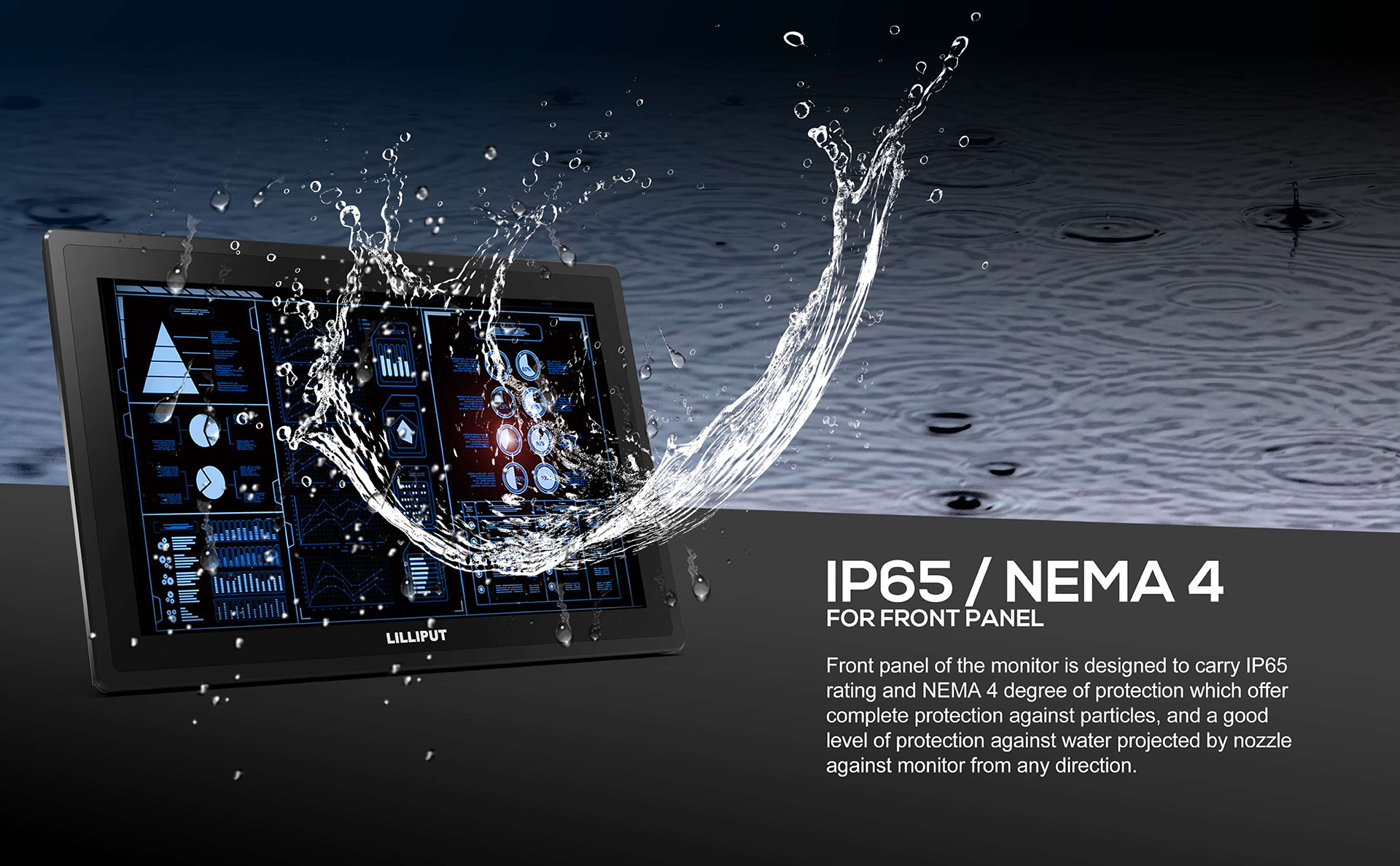

IP65 / NEMA 4
FOR FORONT PANEL
Front panel of the monitor is designed to carry IP65 rating and NEMA 4 degree of protection which offer complete protection against particles, and a good level of protection against water projected by nozzle against monitor from any direction.
| MODEL NO. | TK1850/C | TK1850/T | |
| DISPLAY | Touch Screen | Non-touch | 10-point PCAP |
| Panel | 18.5” LCD | ||
| Physical Resolution | 1920×1080 | ||
| Brightness | 1000 nits | ||
| Aspect Ratio | 16:9 | ||
| Contrast | 1000:1 | ||
| Viewing Angle | 170° / 170° (H/V) | ||
| Coating | Anti-glare, anti-fingerpint | ||
| Hardness/ Collosion | Hardness ≥7H (ASTM D3363), Collision ≥IK07 (IEC6262 / EN62262) | ||
| INPUT | HDMI | 1 | |
| VGA | 1 | ||
| Video & Audio | 1 | ||
| USB | 1×USB-A (For touch and upgrade) | ||
| SUPPORTED FORMATS |
HDMI | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60… | |
| VGA | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60… | ||
| Video & Audio | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60… | ||
| AUDIO IN/OUT | Speaker | 2 | |
| HDMI | 2ch | ||
| Ear Jack | 3.5mm – 2ch 48kHz 24-bit | ||
| POWER | Input Voltage | DC 12-24V | |
| Power Consumption | ≤32W (15V) | ||
| ENVIRONMENT | IP Rating | Front panel IP65 (IEC60529), Front NEMA 4 | |
| Vibration | 1.5Grms, 5~500Hz, 1 hr/axis (IEC6068-2-64) | ||
| Shock | 10G, half-sine wave, last 11 ms (IEC6068-2-27) | ||
| Operating Temperature | -10°C~60°C | ||
| Storage Temperature | -20°C~60°C | ||

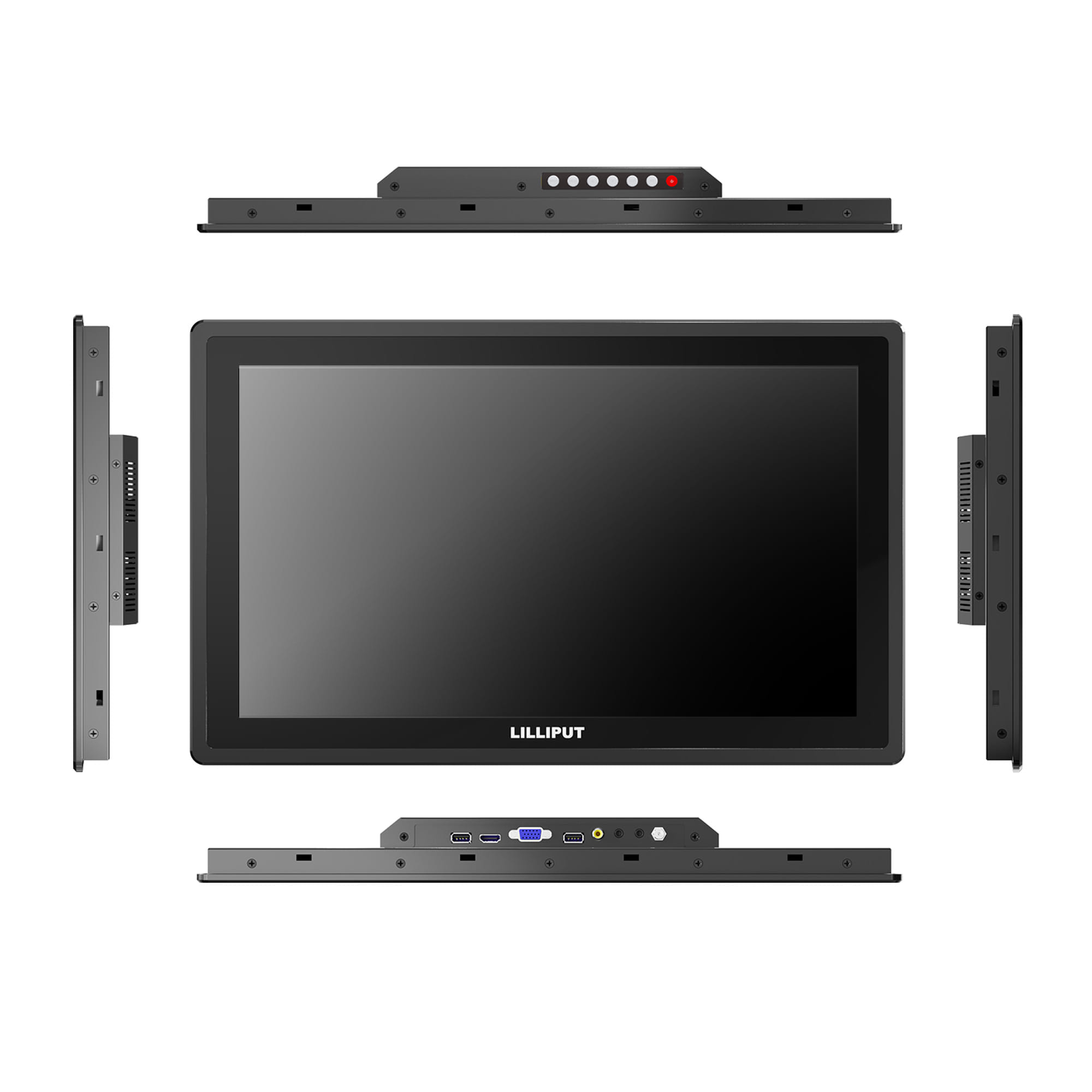

| DIMENSION | Dimension(LWD) | 475mm × 296mm × 45.7mm | |
| Weight | 4.6kg | ||
