PVM150S _ 15.6 inch SDI security monitor

Short Description:

PVM150S is our newest 15 inch sunlight readable 1000 nit High brightness security / Public view monitor with wide viewing angle. 3G-SDI and HDMI input can meet varity of usage scenario.
Security Camera Assist
As a monitor in security camera system to help with general store oversight by allowing managers and employees to keep an eye on multiple areas at once.HDR functions reproduces a greater dynamic range of luminosity,
Metal enclosure can protect the screen and interfaces from damage cause by dropping or vibrating as well as the service life is increased.


  • Model: PVM150S
  • Display: 15.6 inch, 1920×1080, 1000nits
  • Input: 4K HDMI, 3G-SDI, VGA, Composite
  • Output: 3G-SDI
  • Feature: Various installation methods
  • Product Detail

    Specifications

    Accessories

    PVM150S-(1)

    4K HDMI / 3G-SDI / VGA / Composite

    HDMI 1.4b supports 4K 30Hz signal input, SDI supports 3G/HD/SD-SDI signal inputs.

    Universal VGA and AV composite ports can also meet different usage environments.

    PVM150S-(2)

    FHD Resolution & 1000nit High Brightness

    Creatively integrated the 1920×1080 native resolution into a 15.6 inch LCD panel, which is far

    beyond from HD resolution. Features with 1000:1, 1000 cd/m2 high brightness & 178° WVA.

    As well as seeing every detail in massive FHD visual quality, it is sunlight readable in the open air.

     PVM150S-(3)

    HDR

    HDR10_300 / 1000 / 10000 & HLG are for optional. When HDR is activated,

    the display reproduces a greater dynamic range of luminosity, allowing lighter and darker

    details to be displayed more clearly. Effectively enhancing the overall picture quality.

    PVM150S-(4)

    Security Camera Assist

    As a monitor in security camera system to help with general store oversight by

    allowing managers and employees to keep an eye on multiple areas at once.

    PVM150S-(5)

    PVM150S-(6)

    Metal Housing

    Metal enclosure can protect the screen and interfaces from damage

    cause by droppingor vibrating as well as the service life is increased.

    PVM150S-(7)

    Wall-mount & Desktop

    It can be installed and fixed on the wall through the VESA 75mm screw holes at its back.

    Help with standing on the desktop by installing the base bracket on the bottom of monitor.

    PVM150S-(8)

    6U Rackmount & Carry-on

    A 6U rack for a customized monitoring solution also supported for viewing from the different angles and images displays.

    The portable aluminum case can completely store and protect the monitor so that it can be taken away at any time.


  • Previous:
  • Next:

  • Display
    Size 15.6”
    Resolution 1920×1080
    Brightness 1000cd/m²
    Aspect ratio 16:9
    Contrast 1000:1
    Viewing Angle 178°/178°(H/V)
    HDR ST2084 300/1000/10000/HLG
    Video Input
    SDI 1×3G
    HDMI 1×HDMI 1.4
    VGA 1
    Composite 1
    Video Loop Output
    SDI 1×3G
    Supported In / Out Formats
    SDI 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60
    HDMI 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30
    Audio In/Out
    SDI 12ch 48kHz 24-bit
    HDMI 2ch 24-bit
    Ear Jack 3.5mm
    Built-in Speakers 2
    Power
    Operating power ≤24W
    DC In DC 12-24V
    Compatible batteries V-Lock or Anton Bauer Mount(optional)
    Input voltage (battery) 14.4V nominal
    Environment
    Operating Temperature -20℃~60℃
    Storage Temperature -30℃~70℃
    Other
    Dimension(LWD) 389 × 260 × 37.6mm
    Weight 2.87kg

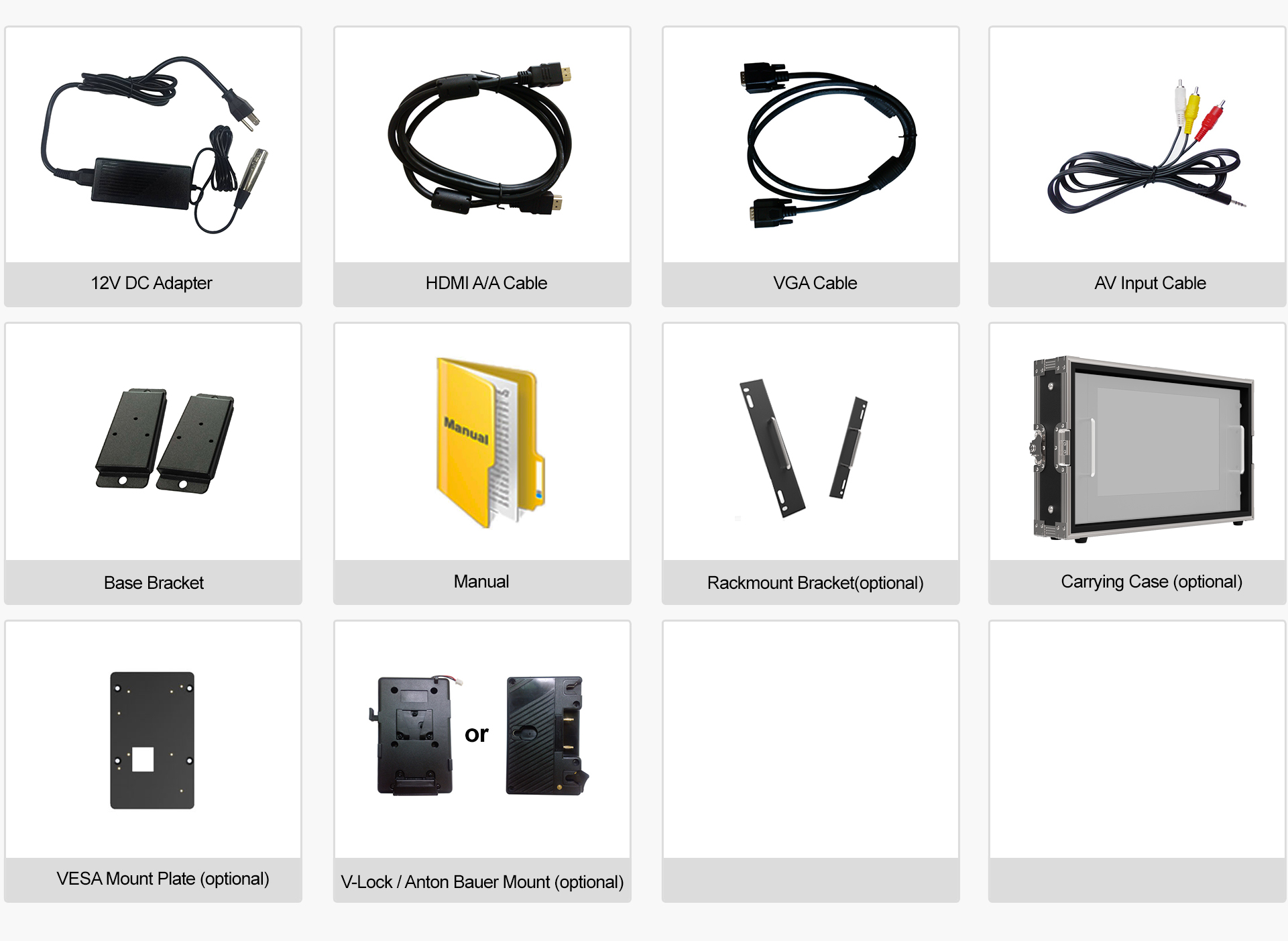

    PVM150S 配件
