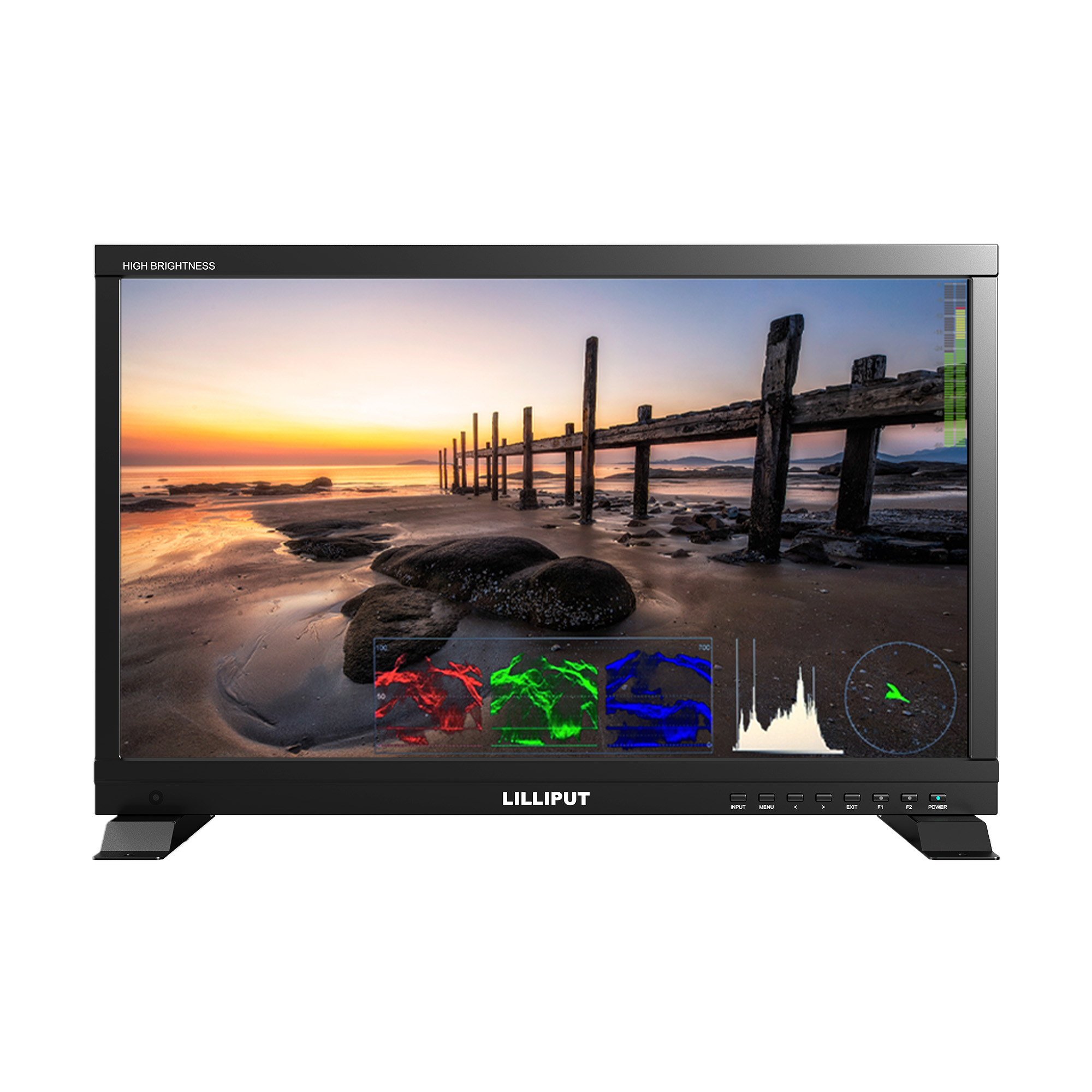

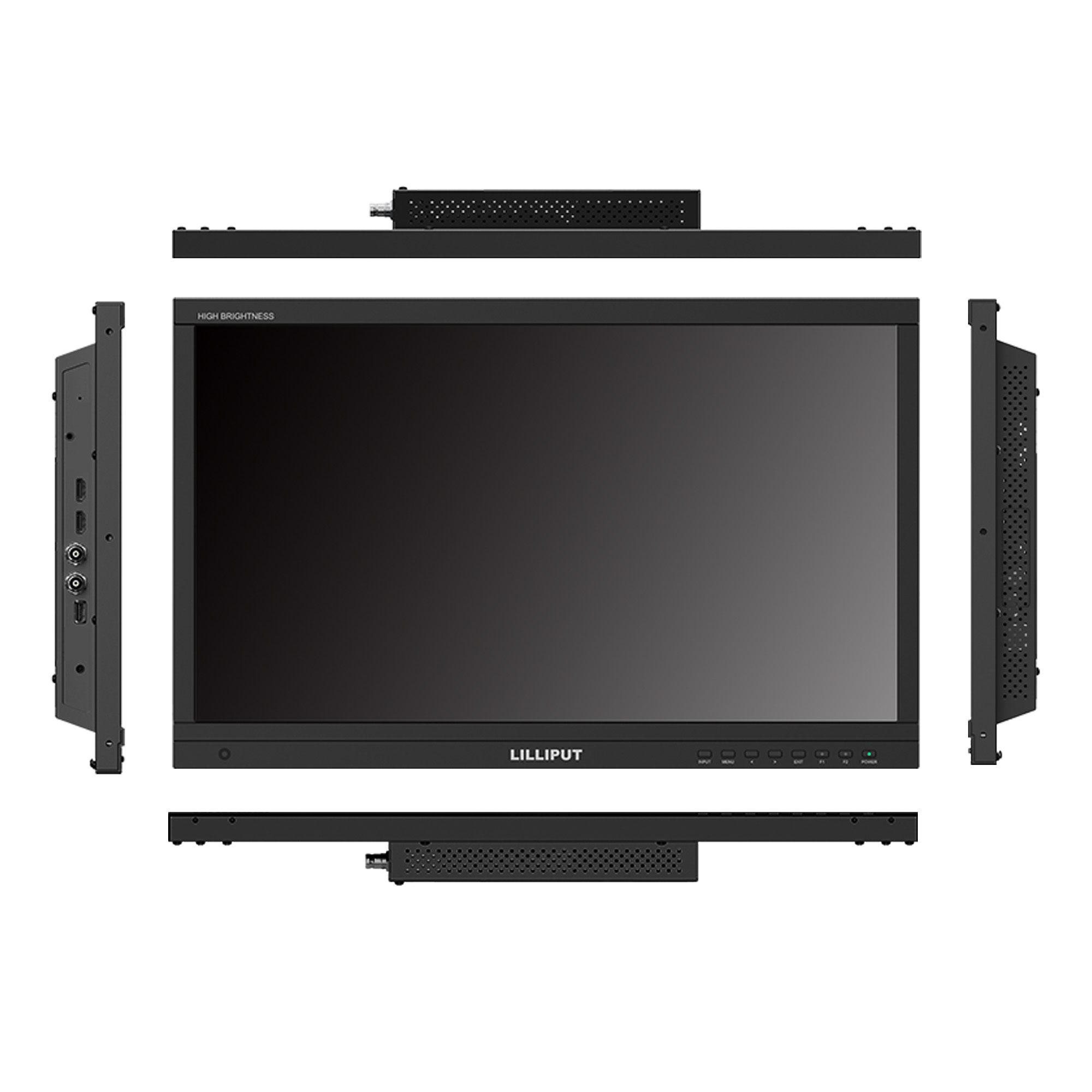

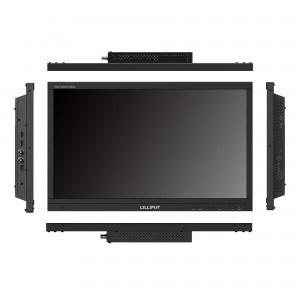

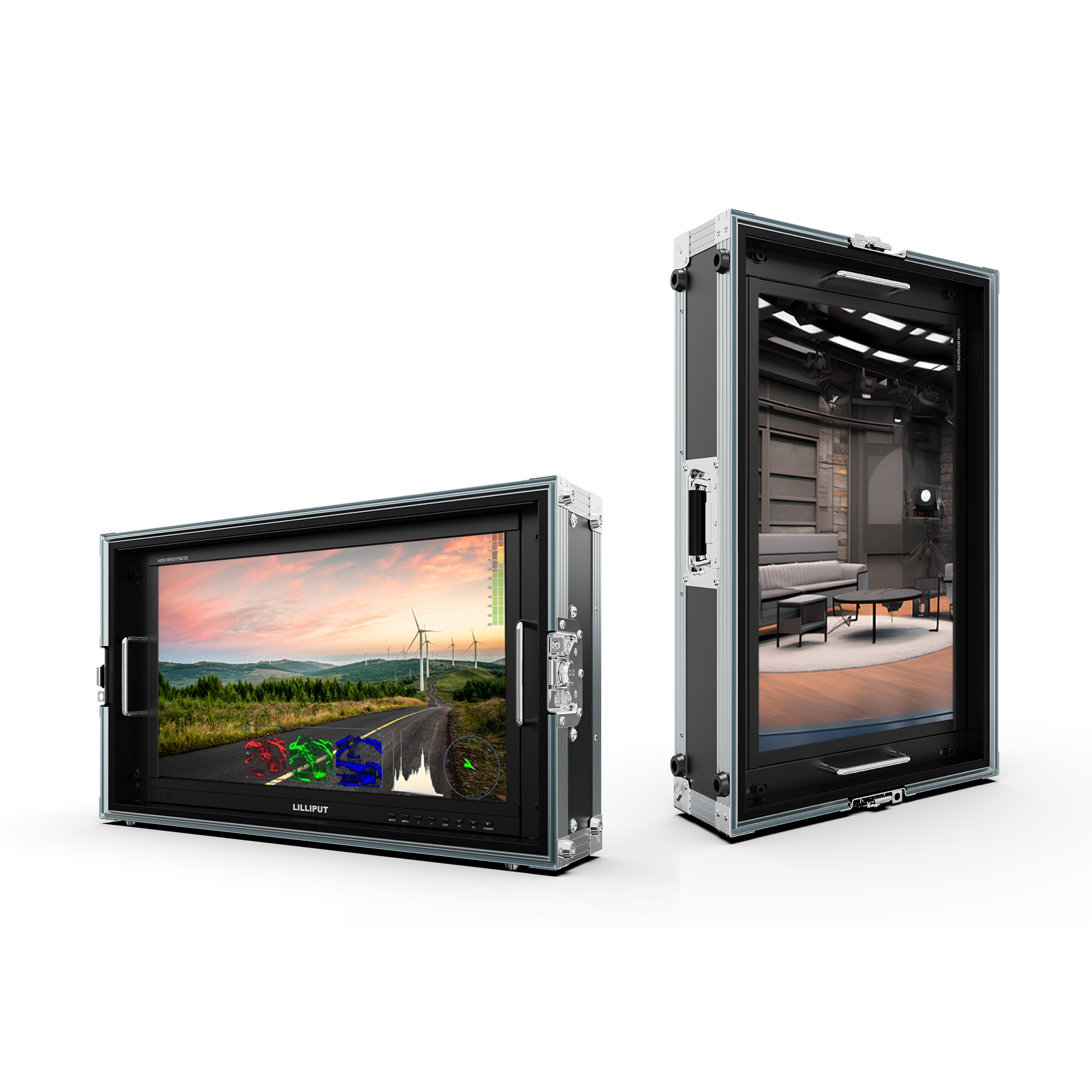

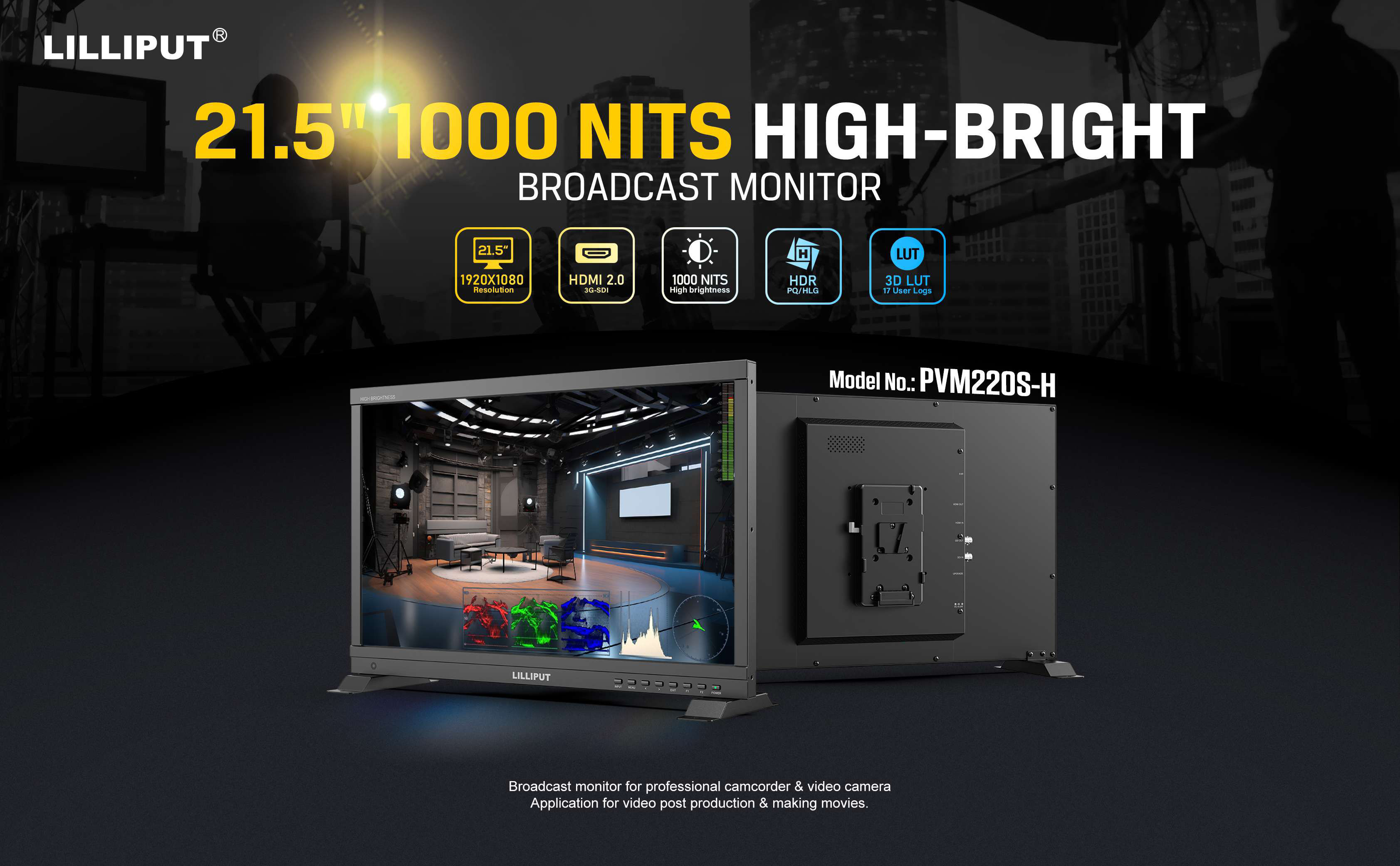

21.5 inch 1000 Nits High Brightness Broadcast Monitor

Short Description:

LILLIPUT PVM220S-H is a professional high brightness broadcast monitor, packed with features and facilities for the professional photographer, videographer, or cinematographer. Compatible with a multitude of inputs – and featuring the option of a 3G SDI and HDMI 2.0 input connection for broadcast quality monitoring. As a major cost-effective product, it also features accurate waveform and vector functions, which can provide strong support for grasping the color of picture.




  • Model:: PVM220S-H
  • Display:: 21.5 inch, 1920 X 1080, 1000 nits
  • Input:: 3G-SDI, HDMI 2.0
  • Output:: 3G-SDI, HDMI 2.0
  • Feature:: 3D-LUT, HDR, Gammas, Waveform, Vector...
  • Product Detail

    Specifications

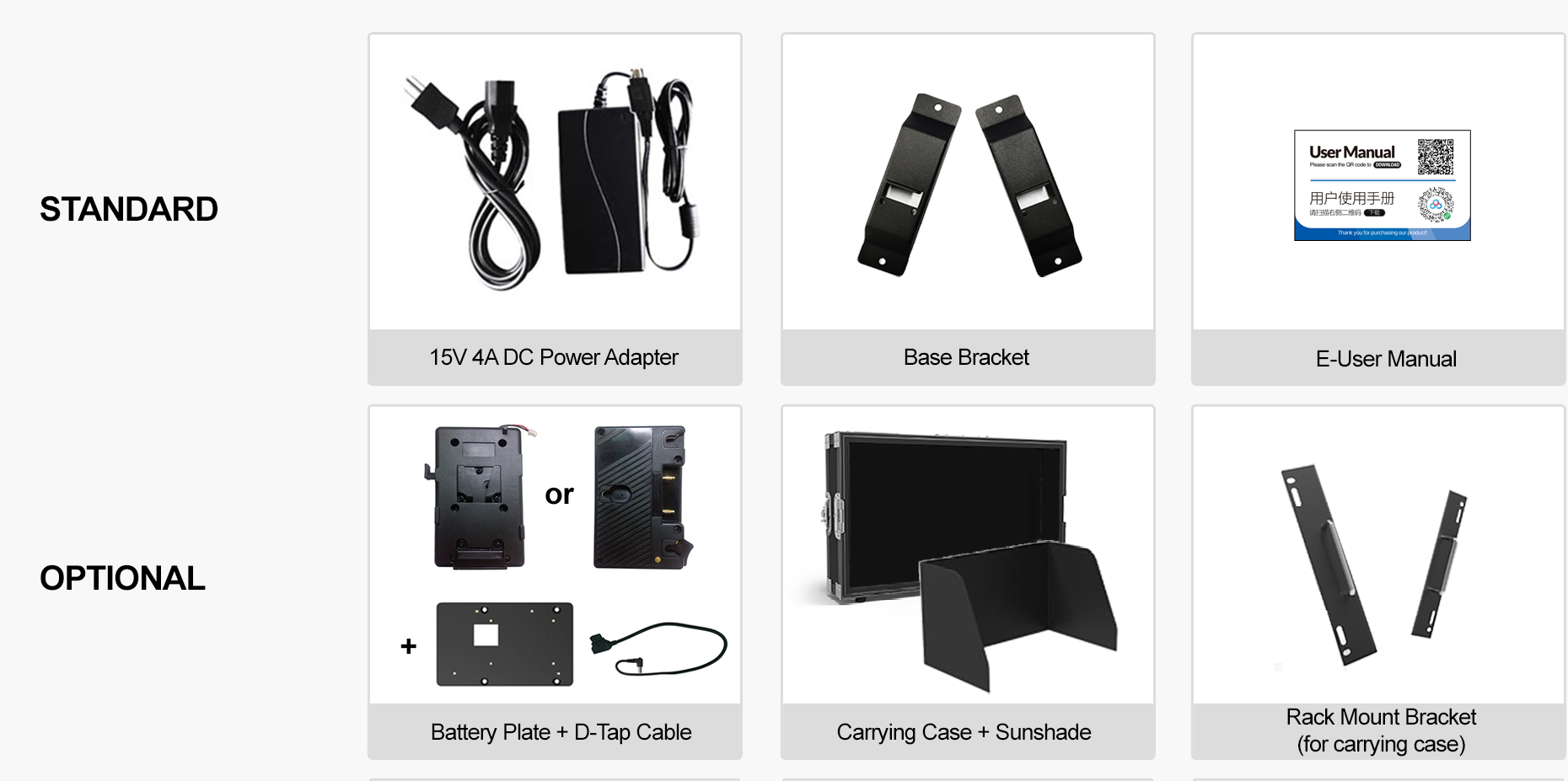

    Accessories

    H1
    H2
    H4
    H3
    H5

  • Previous:
  • Next:

  • DISPLAY Panel 21.5″
    Physical Resolution 1920*1080
    Aspect Ratio 16:9
    Brightness 1000 cd/m²
    Contrast 1000:1
    Viewing Angle 178°/178°(H/V)

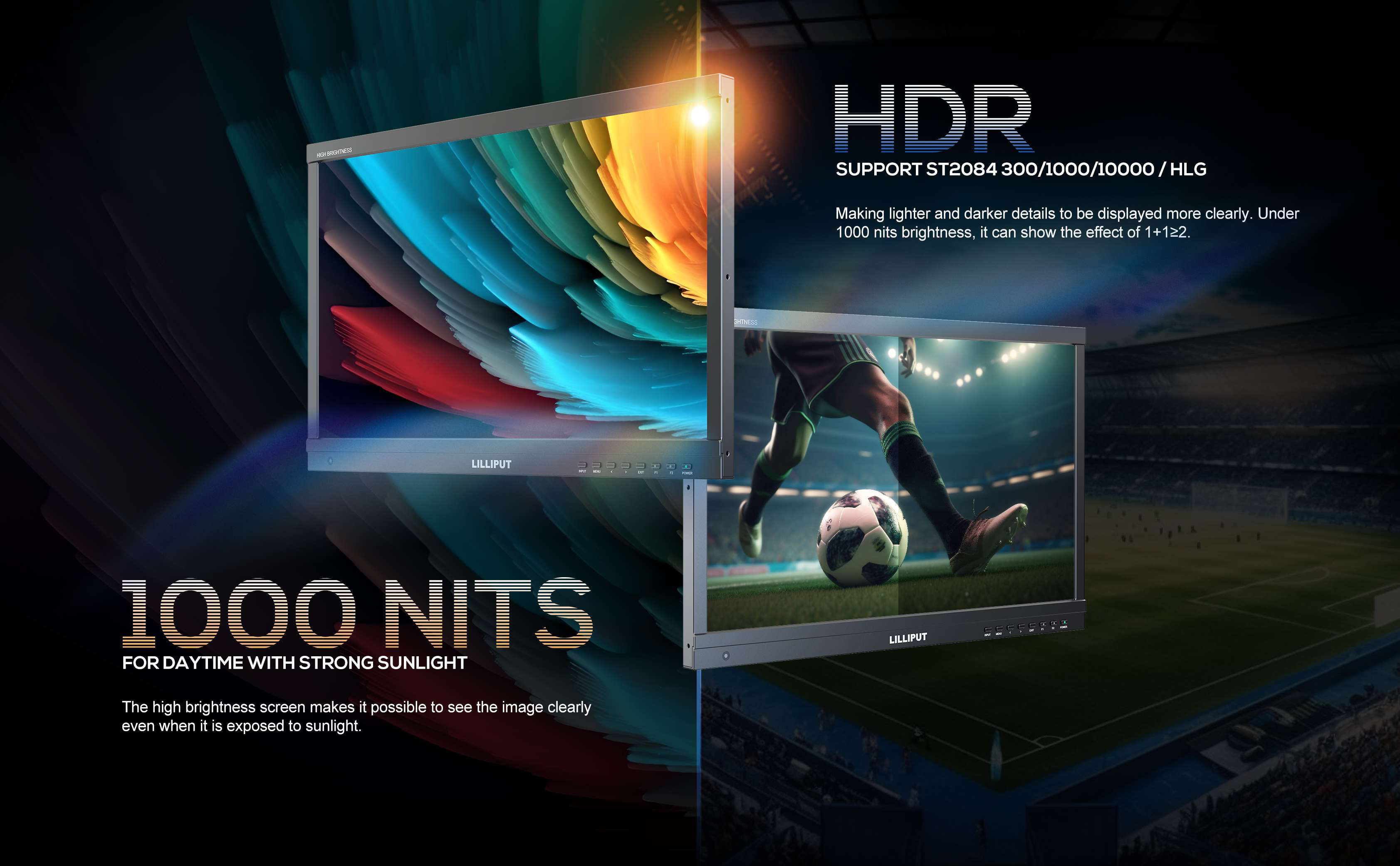

    HDR ST2084 300/1000/10000/HLG
    Supported Log Formats SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User…
    Look up Table(LUT)support 3D LUT (.cube format)
    Technology Calibration to Rec.709 with optional calibration unit

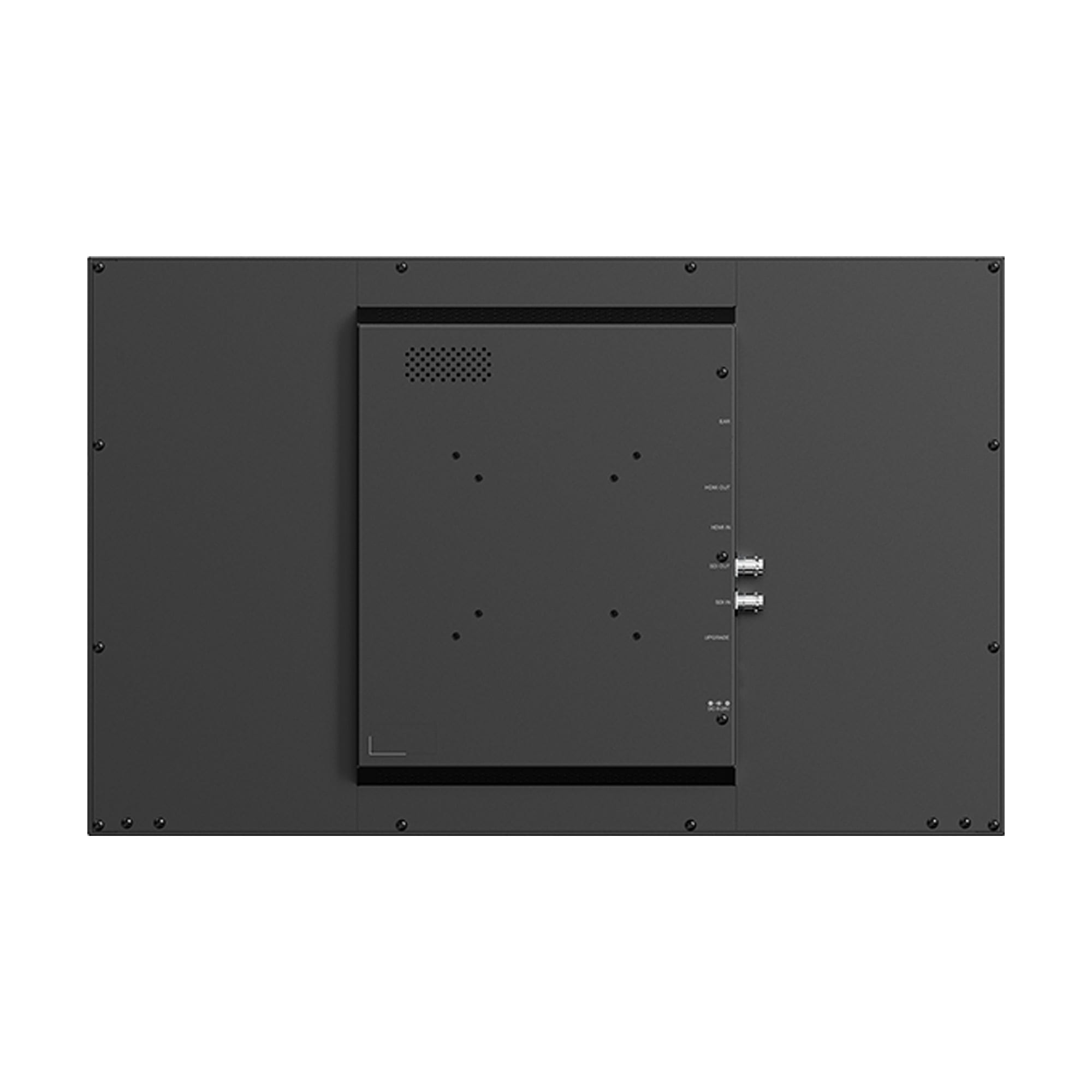

    VIDEO INPUT SDI 1×3G
    HDMI 1×HDMI 2.0
    VIDEO LOOP OUTPUT SDI 1×3G
    HDMI 1×HDMI 2.0
    SUPPORTED FORMATS SDI 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
    HDMI 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60…
    AUDIO IN/OUT (48kHz PCM AUDIO) SDI 2ch 48kHz 24-bit
    HDMI 8ch 24-bit
    Ear Jack 3.5mm
    Built-in Speakers 1
    POWER Input Voltage DC 9-24V
    Power Consumption ≤53W (15V)

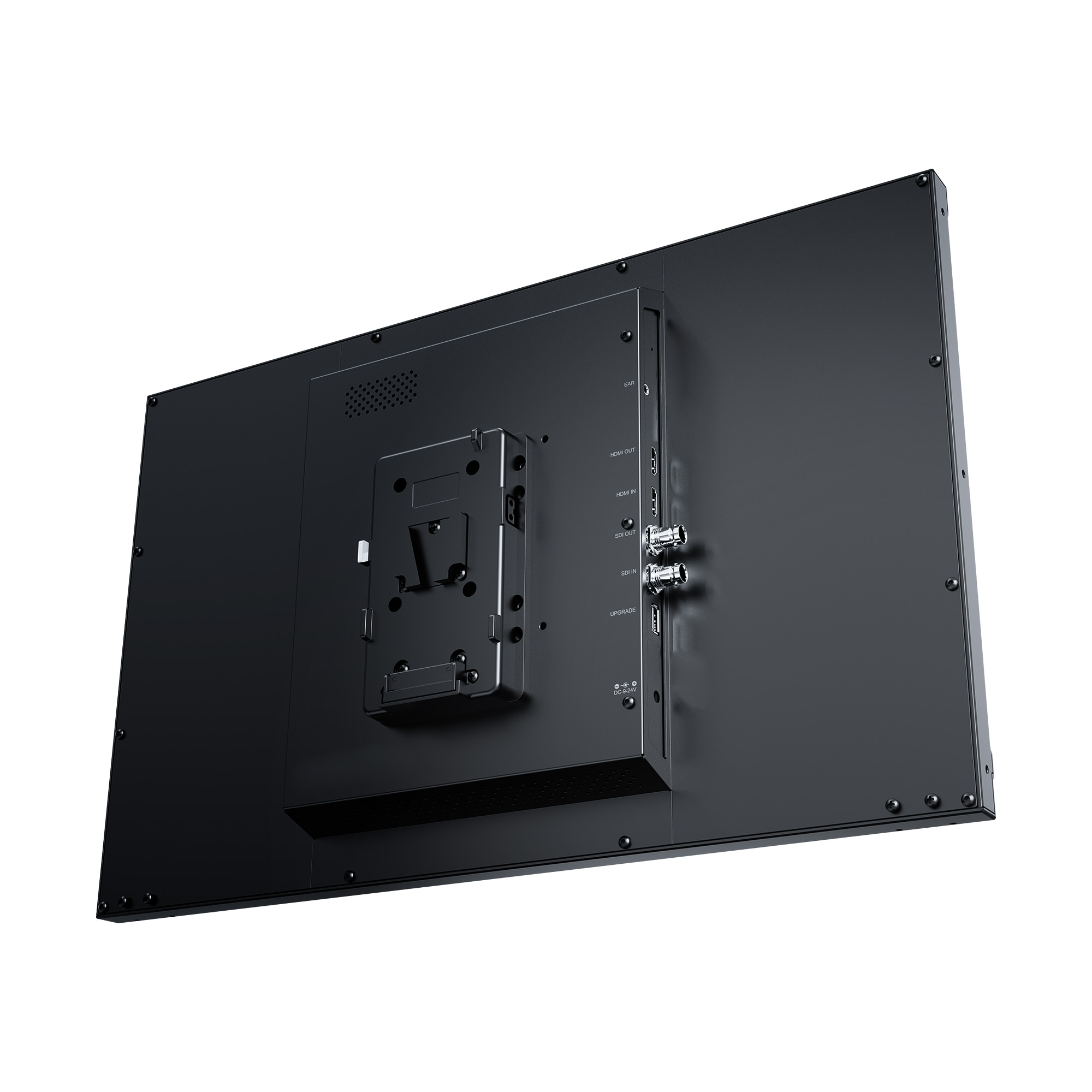

    Compatible Batteries V-Lock or Anton Bauer Mount
    Input Voltage(battery) 14.8V nominal
    ENVIRONMENT Operating Temperature 0℃~50℃
    Storage Temperature -20℃~60℃
    OTHER Dimension(LWD) 508mm × 321mm × 47mm
    Weight 4.7kg
