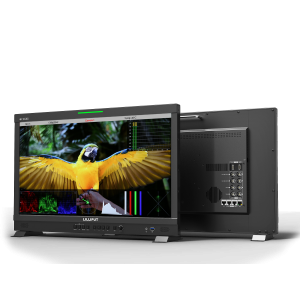

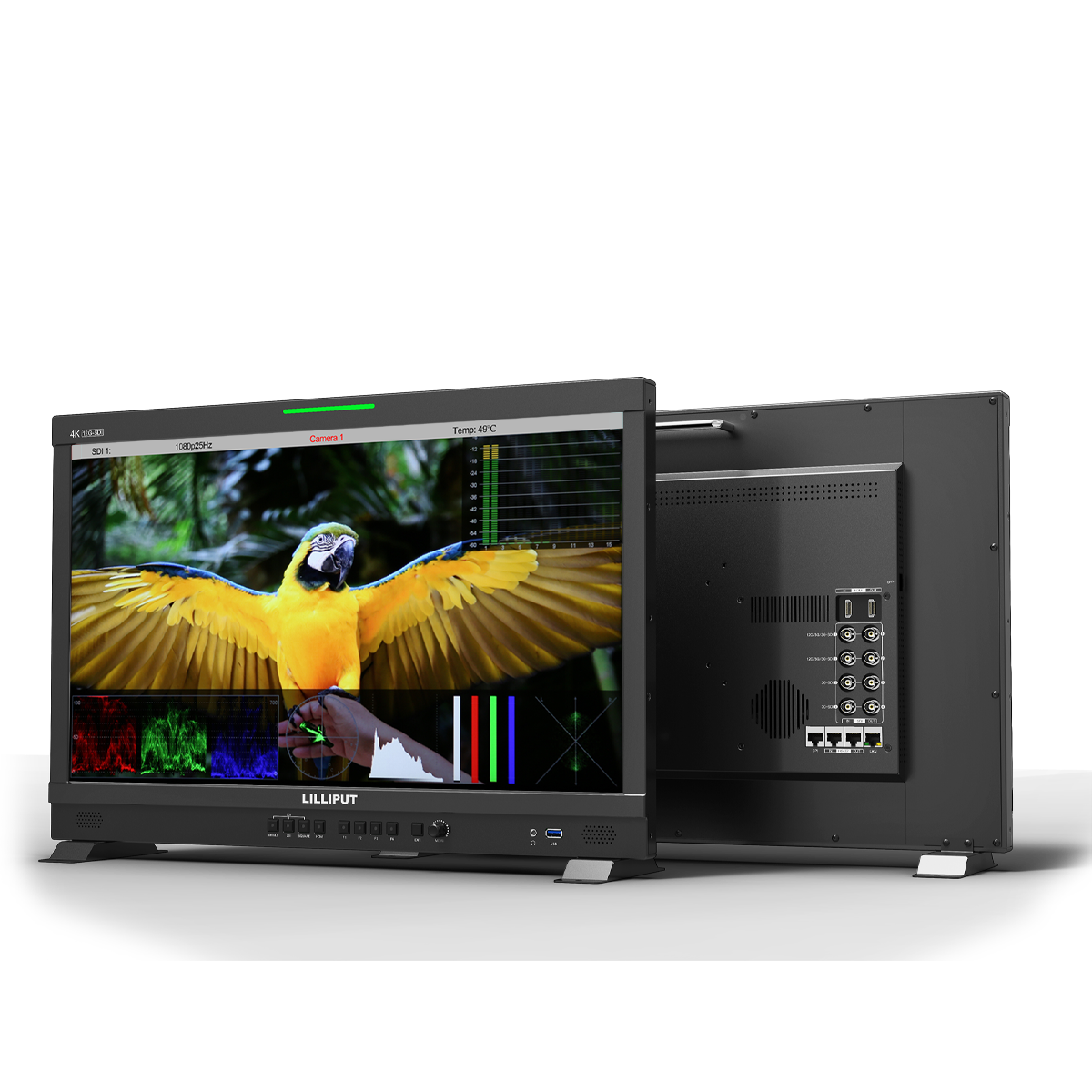

23.6 inch 12G-SDI professional production monitor

Short Description:

Lilliput Q24 is a professional production monitor, packed with features and facilities for the professional photographer, videographer, or cinematographer. Compatible with a multitude of inputs – and featuring the option of a 12G SDI and 12G-SFP Fiber Optic input connection for broadcast quality monitoring, It also features Audio Vectoring using a Lissajous graph shape allowing you to visualize the depth and balance of a stereo recording. You also can connect your computer to control the monitor via applications.


  • Model: Q24
  • Display:: 23.6 inch, 3840 X 2160, 300nits

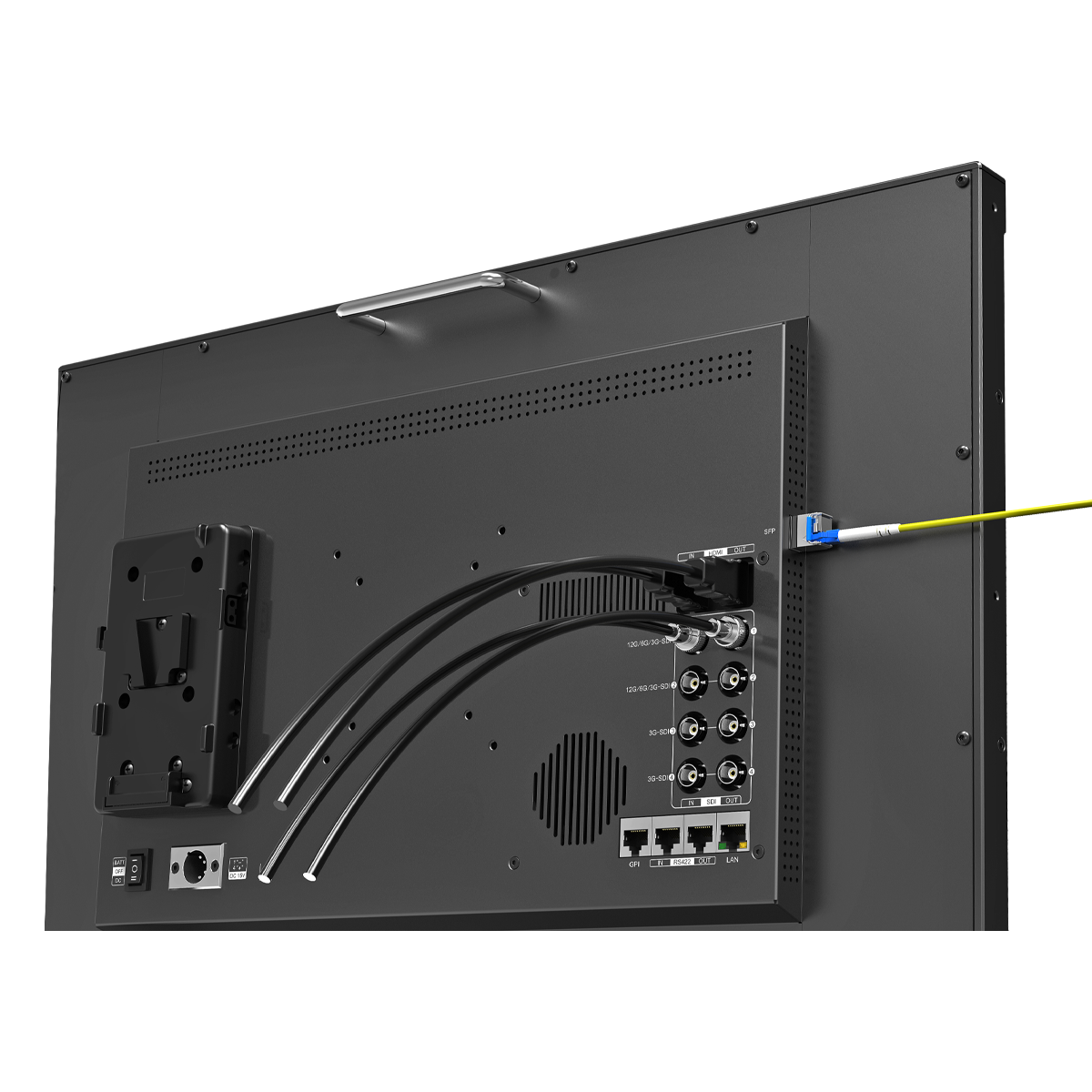

  • Input: : 12G-SDI, 12-SFP,HDMI 2.0
  • Output:: 12G-SDI,HDMI 2.0
  • Remote Control:: RS422 ,GPI , LAN
  • Feature:: Quad View, 3D-LUT, HDR,Gammas,Remote Control ,Audio vector ,Camera Auxiliary Functions.
  • Product Detail

    Specifications

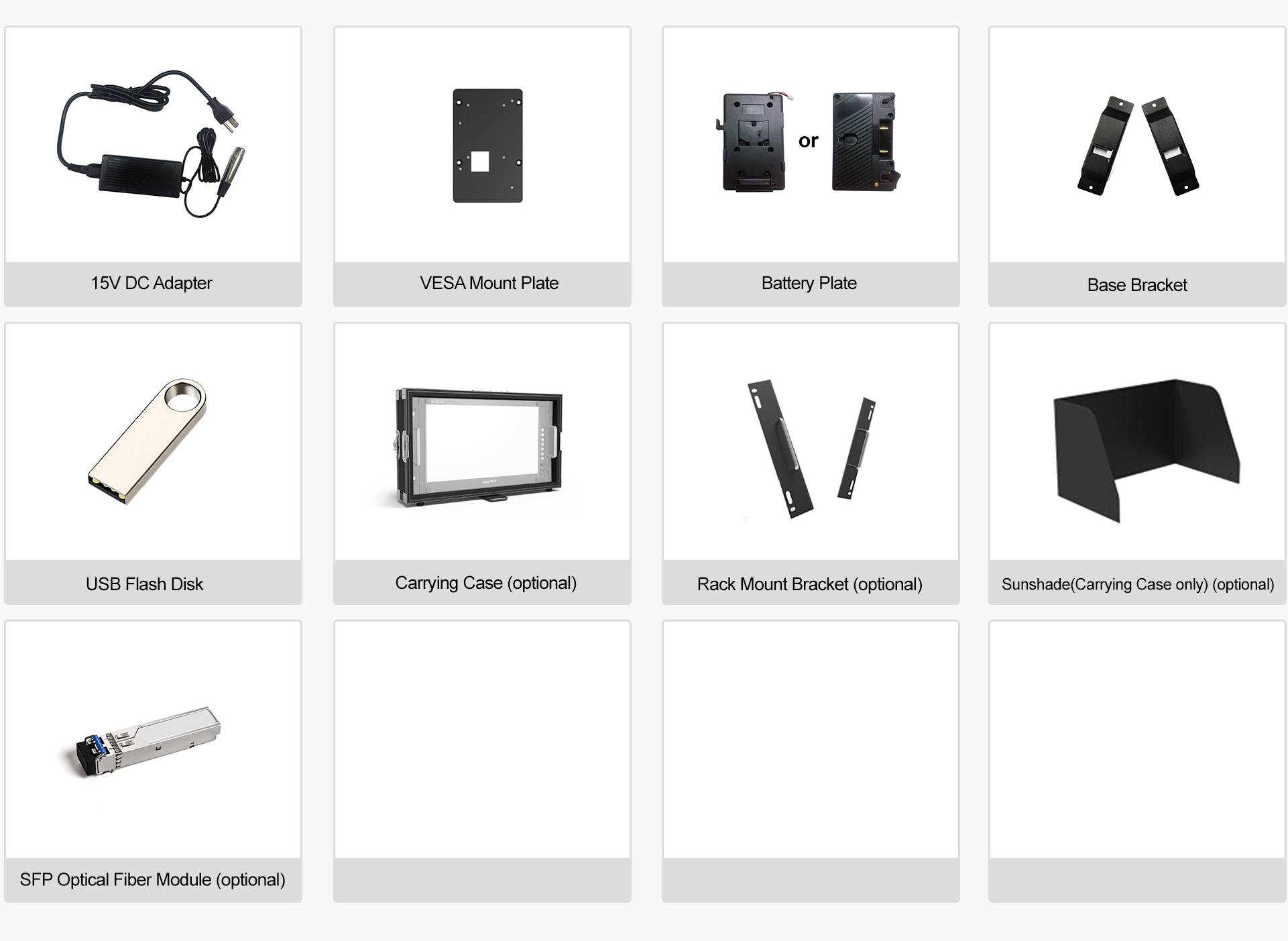

    Accessories

    23.6 inch production monitor
    broadcast production monitor
    broadcast production monitor

    Color Temperature

    According to the different senses of the pictures, filmmaker have their own preferences for different color temperatures. The default is 3200K / 5500K / 6500K / 7500K / 9300K five color temperature conditions, can also be customized according to user needs.

    Gammas

    Gamma redistributes tonal level closer to how our eyes perceive them. Since Gamma value is adjusted from 1.8 to 2.8, more bitswould be left to describe the dark tones where the camera is relatively less sensitive.

    broadcast production monitor
    Quad View monitor
    production studio monitor

    Audio Vector (Lissajous)

    The Lissajous shape is generated by graphing the left signal on one axis against the right signal on the other axis. It used to test the phase of mono audio signal and phase relationships depends on its wavelength.Complex audio frequency content will make the shape look like a complete mess so it is usually used in post production.

    production studio monitor
    production studio monitor

    HDR

    When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearly. Effectively enhancing the overall picture quality. Support ST2084 300 / ST2084 1000 / ST2084 10000 / HLG.

    production studio monitor

    3D-LUT

    3D-LUT is a table for quickly looking up and output specific color data. By loading different 3D-LUT tables, it can quickly recombine color tone to form different color styles. Built-in 3D-LUT, featuring 17 default logs and 6 user logs.

    3D LUT LOAD

    Supports loading the .cube file via USB flash disk.

    broadcast production monitor

  • Previous:
  • Next:

  • DISPLAY Panel 23.6″
    Physical Resolution 3840*2160
    Aspect Ratio 16:9
    Brightness 300 cd/m²
    Contrast 1000:1
    Viewing Angle 178°/178°(H/V)
    HDR ST2084 300/1000/10000/HLG
    Supported Log Formats SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User…
    Look up Table(LUT)support 3D LUT (.cube format)
    Technology Calibration to Rec.709 with optional calibration unit

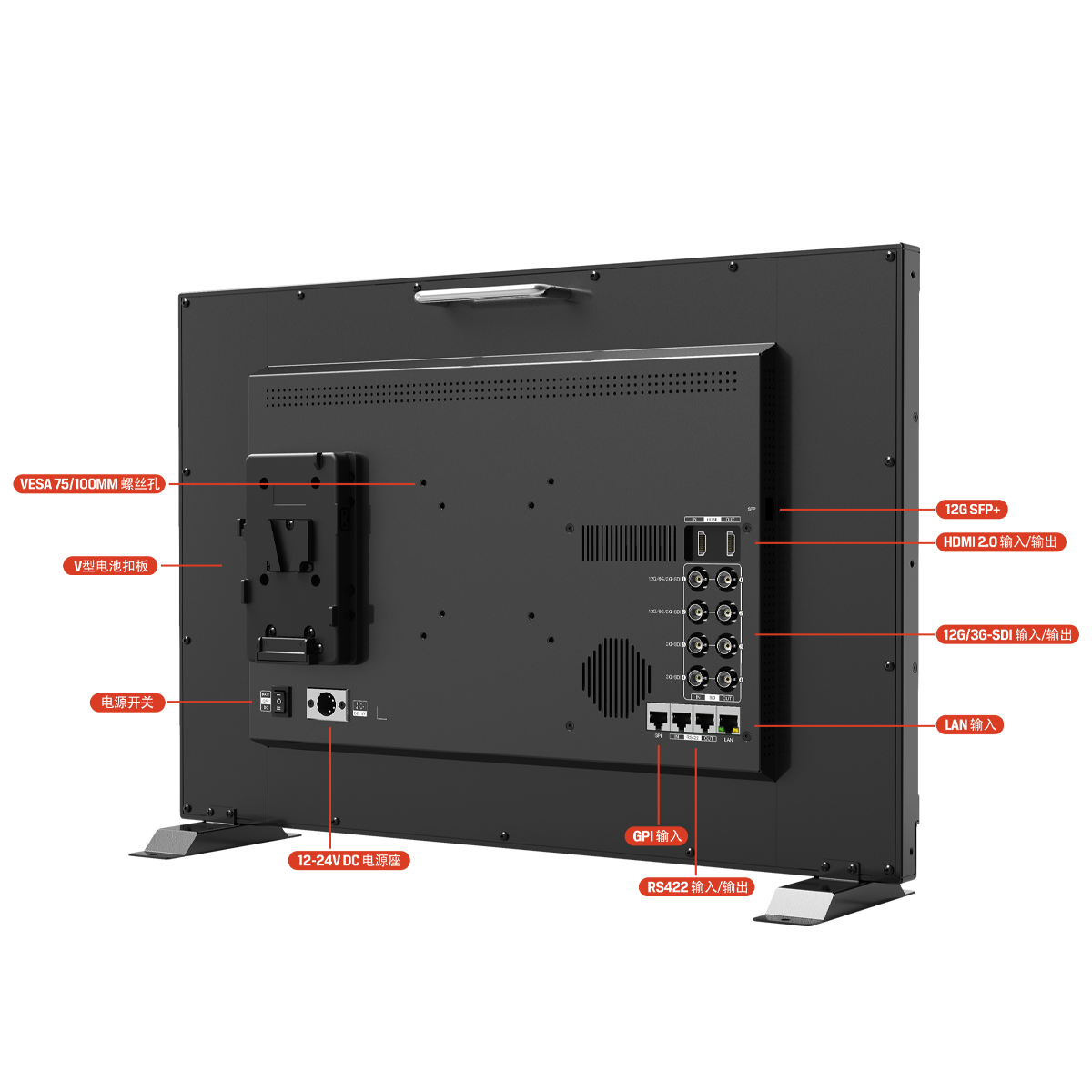

    VIDEO INPUT SDI 2×12G, 2×3G (Supported 4K-SDI Formats Single/Dual/Quad Link)
    SFP 1×12G SFP+(Fiber module for optional)
    HDMI 1×HDMI 2.0
    VIDEO LOOP OUTPUT SDI 2×12G, 2×3G (Supported 4K-SDI Formats Single/Dual/Quad Link)
    HDMI 1×HDMI 2.0
    SUPPORTED FORMATS SDI 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
    SFP 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
    HDMI 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60…
    AUDIO IN/OUT
    (48kHz PCM AUDIO)
    SDI 16ch 48kHz 24-bit
    HDMI 8ch 24-bit
    Ear Jack 3.5mm
    Built-in Speakers 2
    REMOTE CONTROL RS422 In/out
    GPI 1
    LAN 1
    POWER Input Voltage DC 12-24V
    Power Consumption ≤54W (15V)
    Compatible Batteries V-Lock or Anton Bauer Mount
    Input Voltage(battery) 14.8V nominal
    ENVIRONMENT Operating Temperature 0℃~40℃
    Storage Temperature -20℃~60℃
    OTHER Dimension(LWD) 567mm × 376.4mm × 45.7mm
    Weight 7.4kg

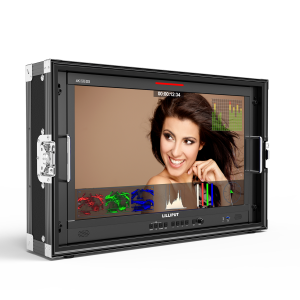

    23.8 inch broadcast monitor
