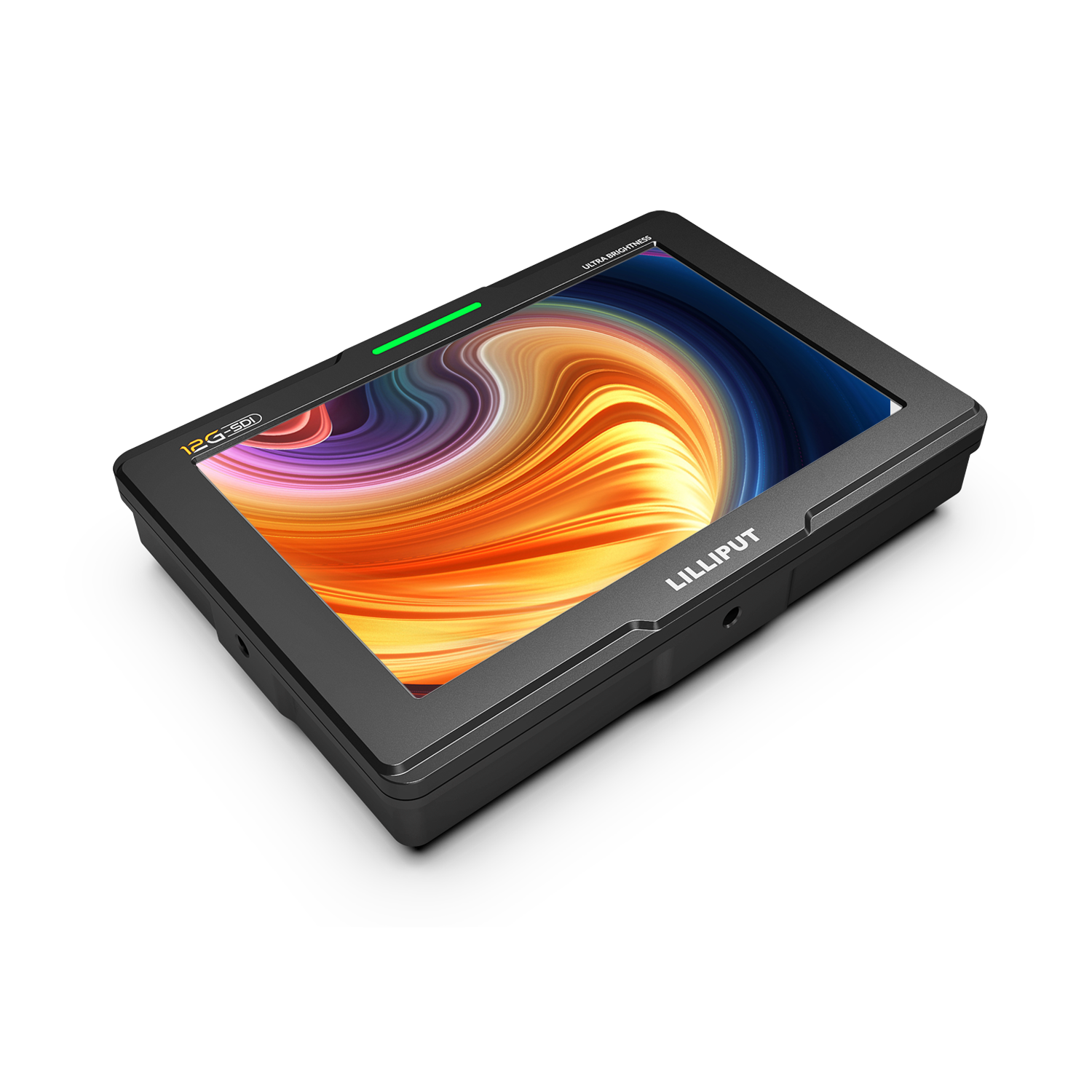

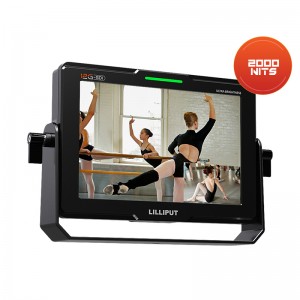

Q7-12G_7inch 2000nits 12G-SDI Ultra Brightness On-Camera Monitor

Short Description:

Q7-12G is a professional camera-top monitor came with an amazing 2000 nits Ultra Bright LCD screen, specifically for photography and film maker, especially for outdoor video and film shooting.This 7 inch LCD monitor has 1920×1200 Full HD native resolution and 1200:1 high contast providing superior picture quality, and support 4K HDMI and 12G-SDI signal inputs and loop outputs. It is possible to receive 2× 12G-SDI signals and diaplay at the same time through the picture-in-picture function, the size and position of which can be adjusted.And HDMI signals up to 4K 60Hz which is compatible with the latest DSLR cameras on the market with an HDMI 2.0 interface.




  • Model:: Q7-12G
  • Display:: 7 inch, 1920×1200, 2000nit
  • Input:: 12G-SDI x 2 ; HDMI 2.0 x 1 ; Tally
  • Output:: 12G-SDI x 2 ; HDMI 2.0 x 1 ;
  • Feature:: 2000nits , HDR 3D-LUT, Delicate Milled
  • Product Detail

    Specifications

    Accessories

    7 inch 12G-SDI ON CAMERA MONITOR12G-SDI ON CAMERA MONITOR7inch 12G-SDI Monitor7inch 12G-SDI Top camera monitor12G-SDI On-Camera monitor

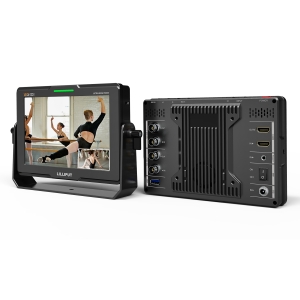

    12G-SDI Picture-In-Picture

    A sub image can be superimposed on main image to monitor two input signals at the same time.

    The size, position and signals of the sub image can be adjusted.

    12G-SDI top camera monitor
    7 inch 12G-SDI LCD MONITOR

  • Previous:
  • Next:

  • DISPLAY      Panel 7”
    Physical Resolution 1920×1200
    Aspect Ratio 16:10
    Brightness 2000 nit
    Contrast 1200:1
    Viewing Angle 170°/ 170°(H/V)
    HDR ST2084 300/1000/10000/HLG
    Supported Log formats SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User…
    Look up table (LUT) support 3D LUT (.cube format)
    SIGNAL INPUT SDI 2×12G-SDI
    HDMI 1×HDMI 2.0
    Tally 1
    SIGNAL LOOP OUTPUT SDI 2×12G-SDI
    HDMI 1×HDMI 2.0
    SUPPORT FORMATS SDI 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080pSF 30/25/24,
    1080i 60/50, 720p 60/50…
    HDMI 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50,
    720p 60/50…
    AUDIO IN/OUT SDI 16ch 48kHz 24-bit
    HDMI 8ch 24-bit
    Ear Jack 3.5mm
    Built-in Speakers 1
    POWER Input Voltage DC 7-24V
    Power Consumption ≤20W (12V)
    ENVIRONMENT Operating Temperature 0°C~50°C
    Storage Temperature -20°C~60°C
    OTHER Dimension(LWD) 186mm × 128mm × 32.5mm
    Weight 785g

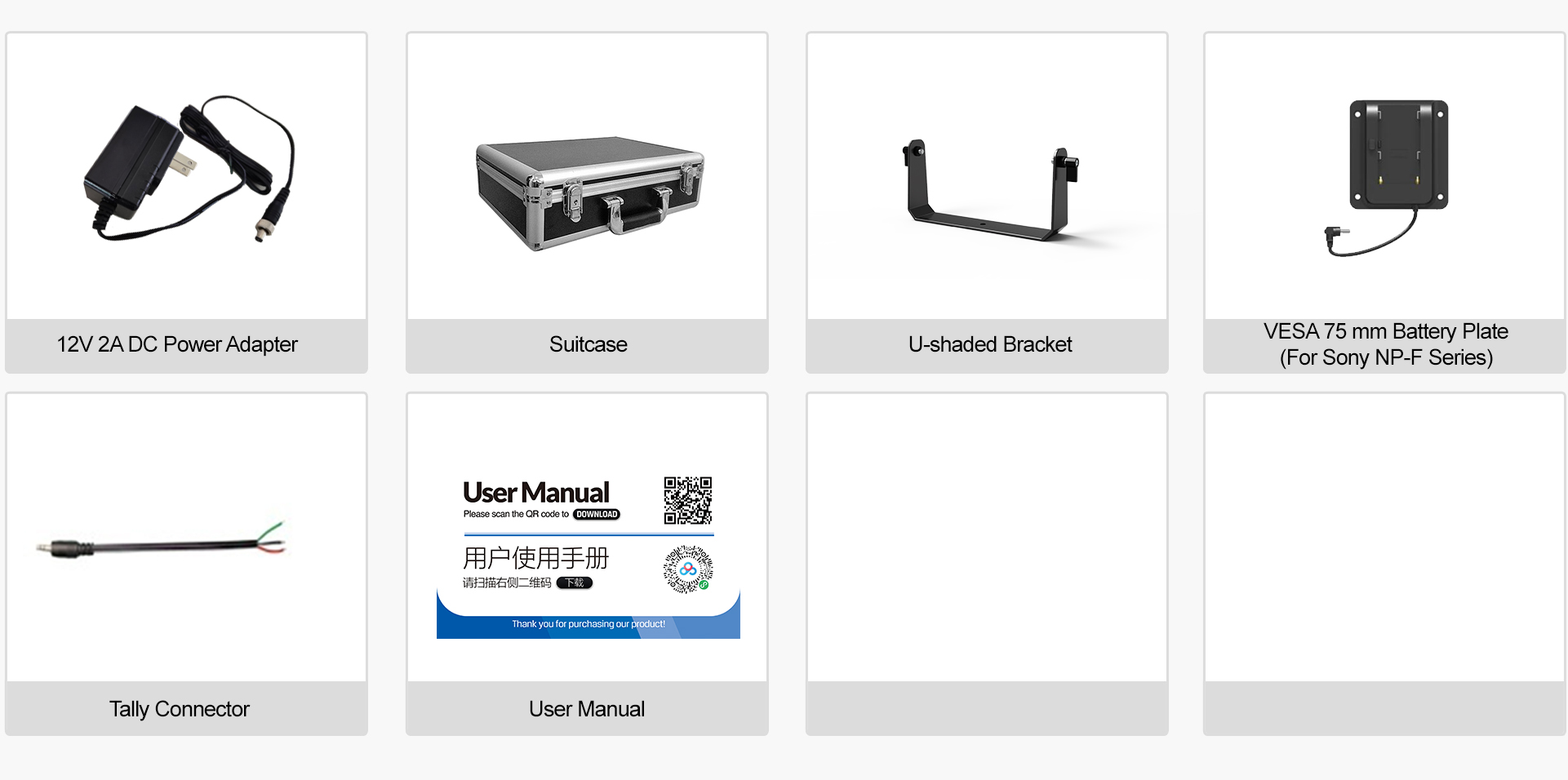

    Q7-12G accessories
