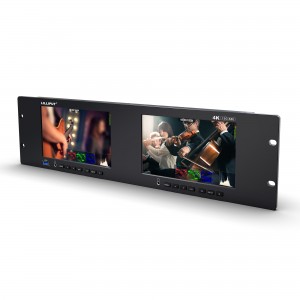

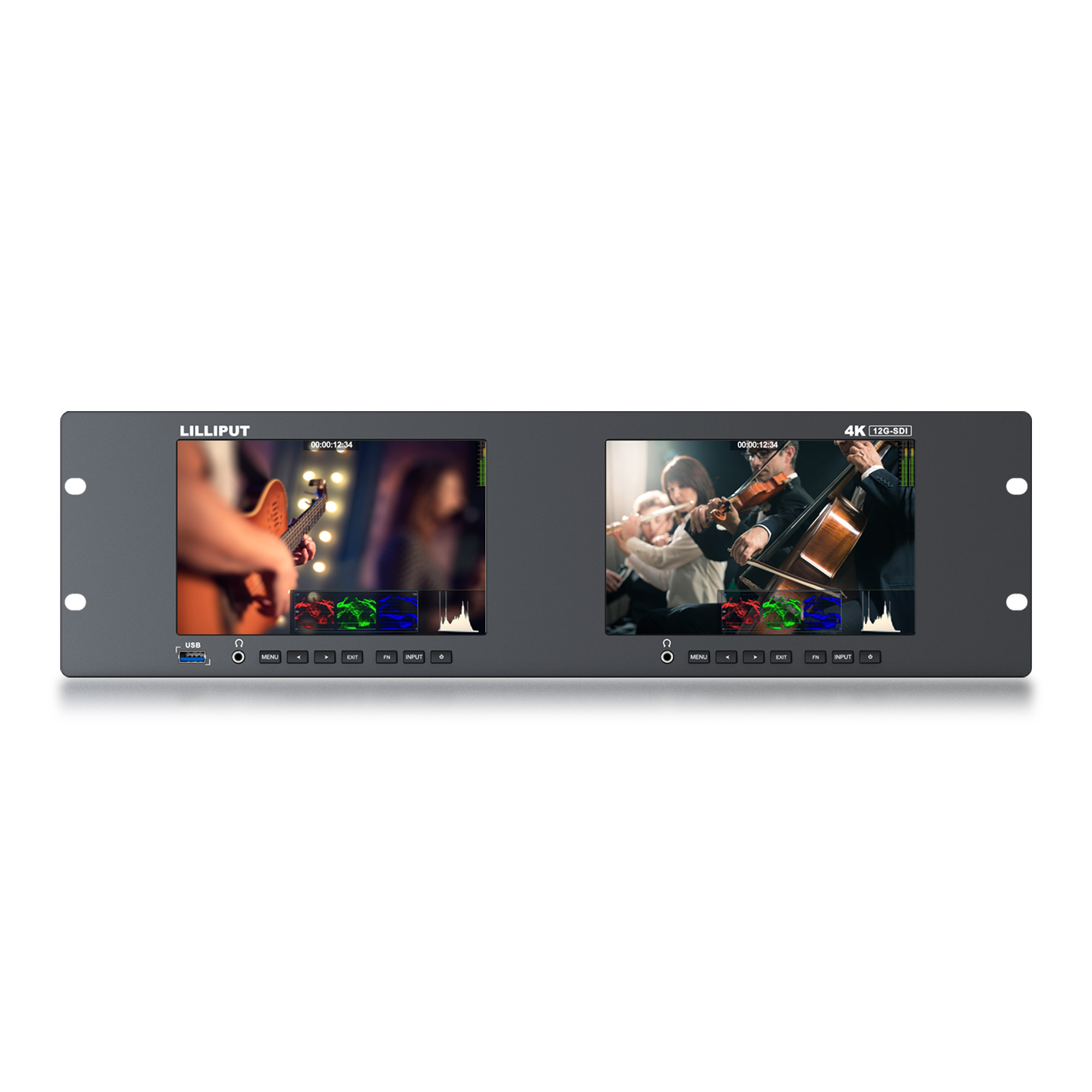

Dual 7 inch 3RU rackmount monitor with 12G-SDI /HDMI 2.0

Short Description:

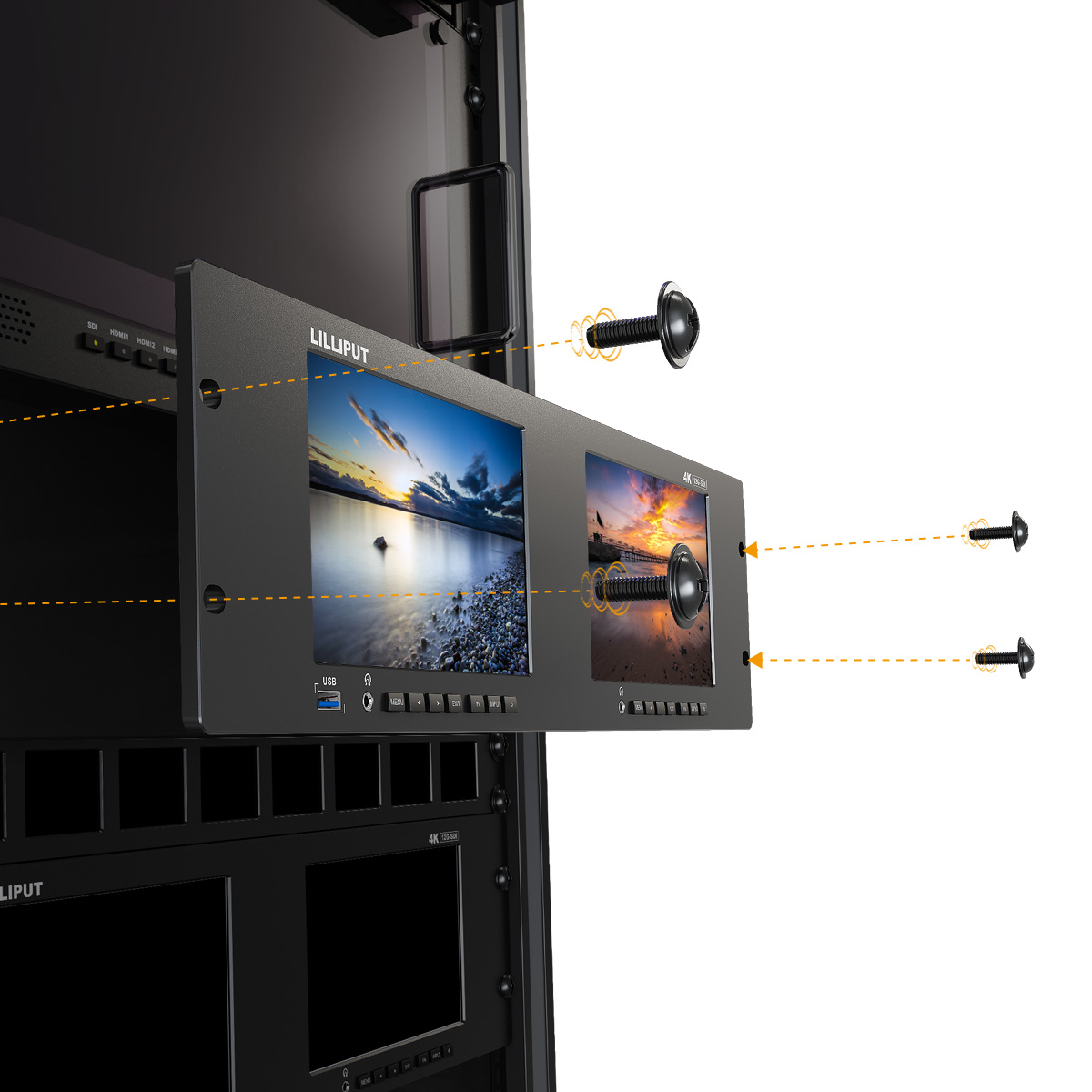

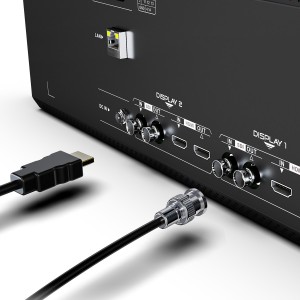

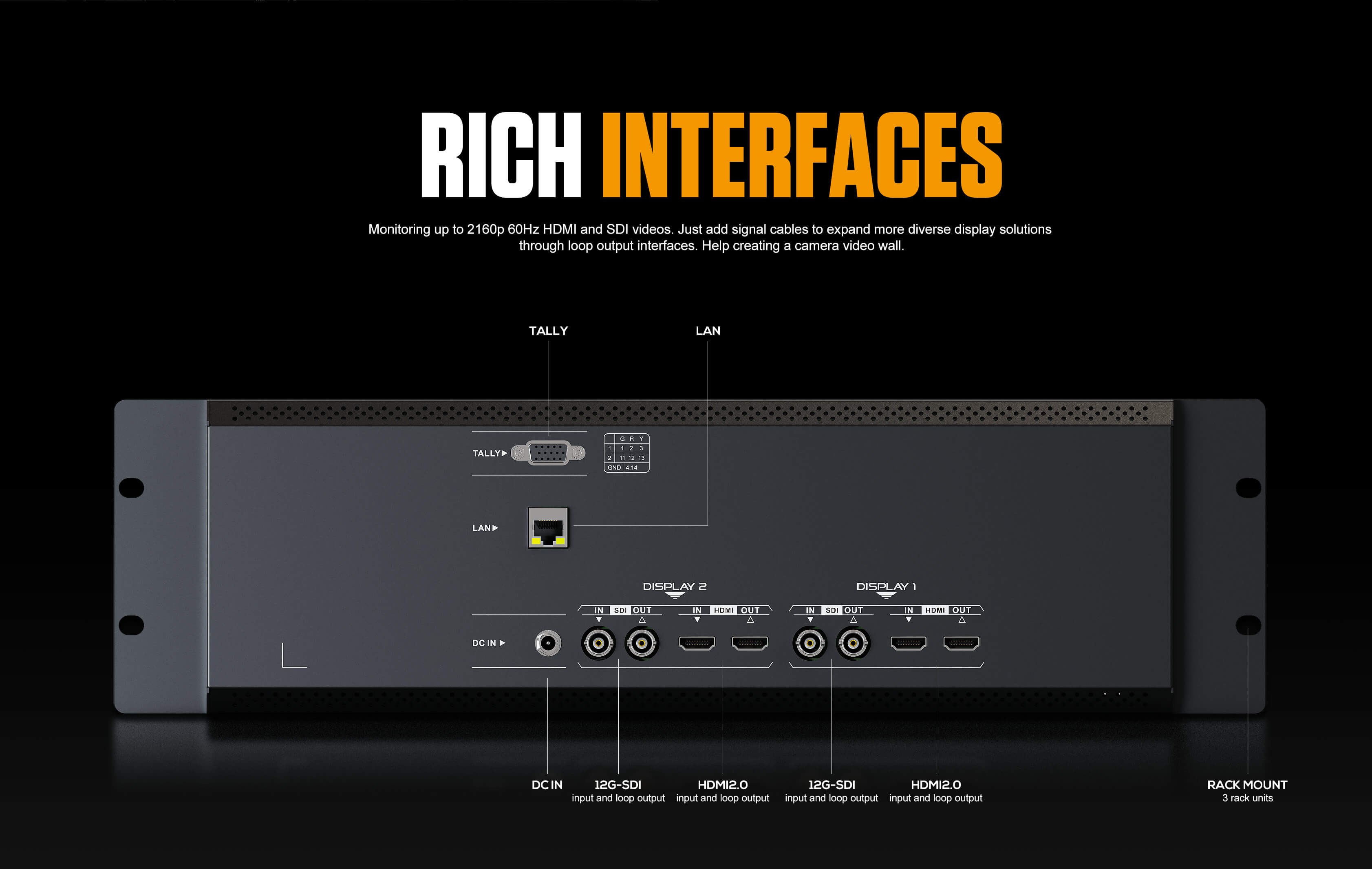

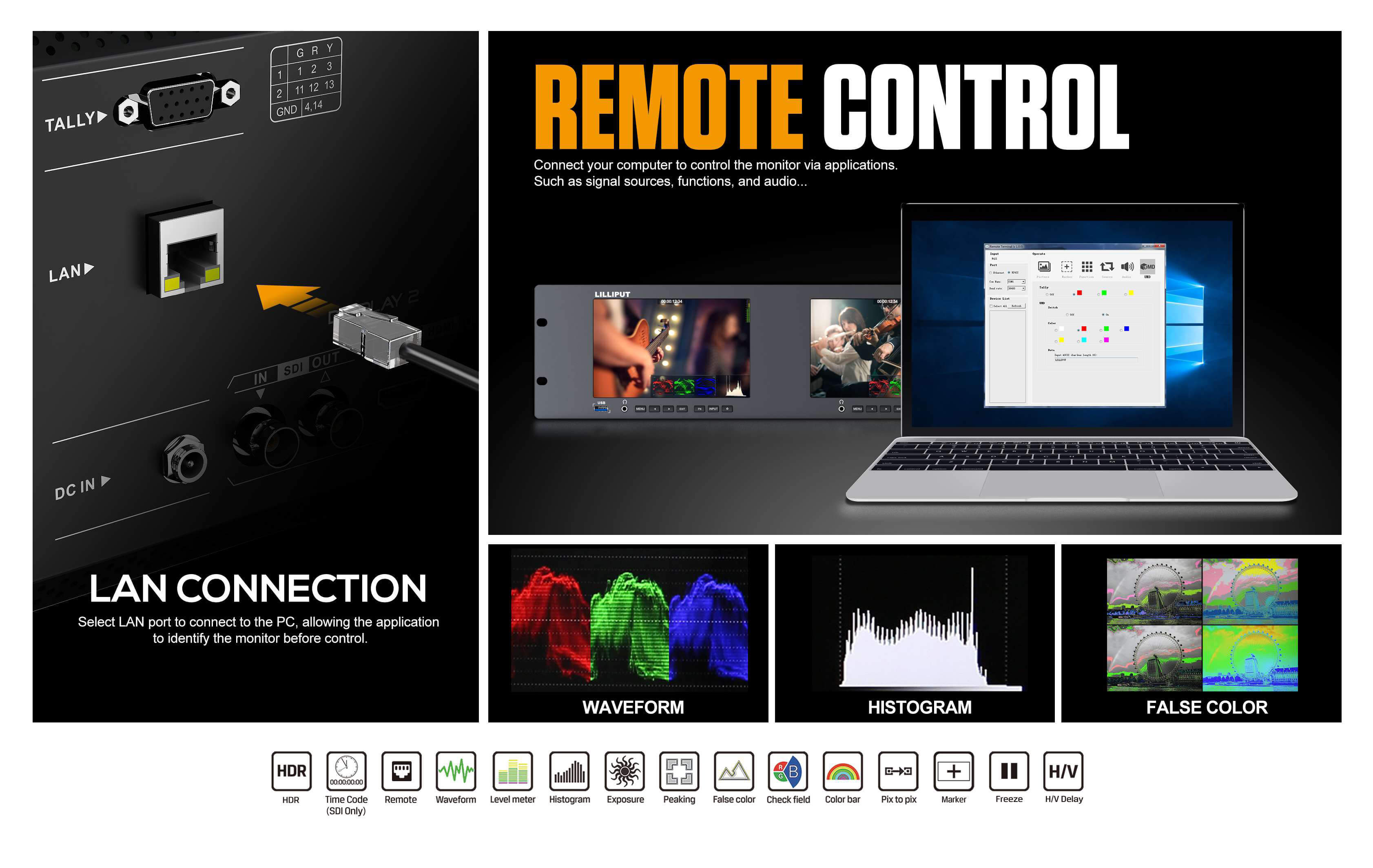

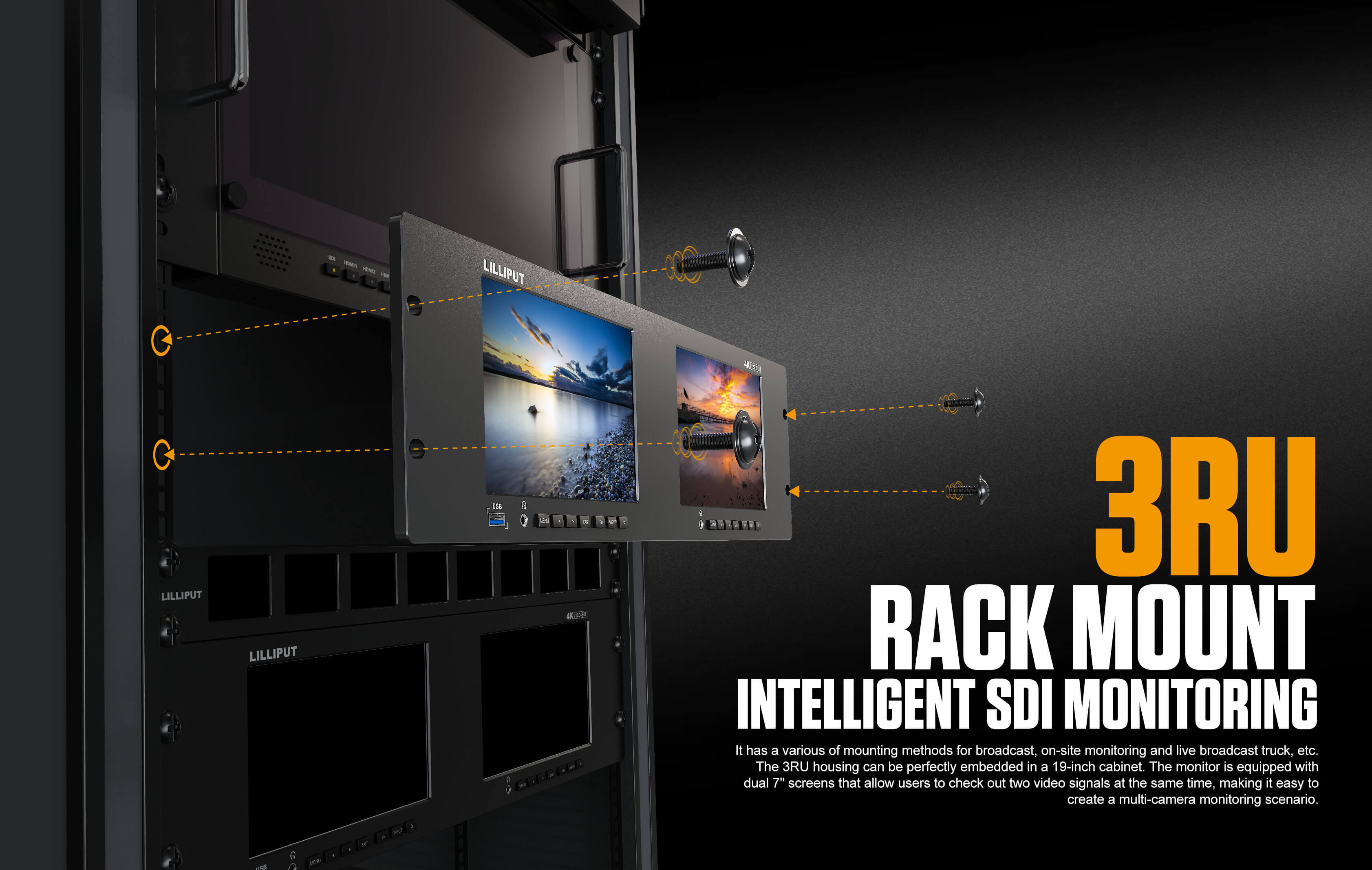

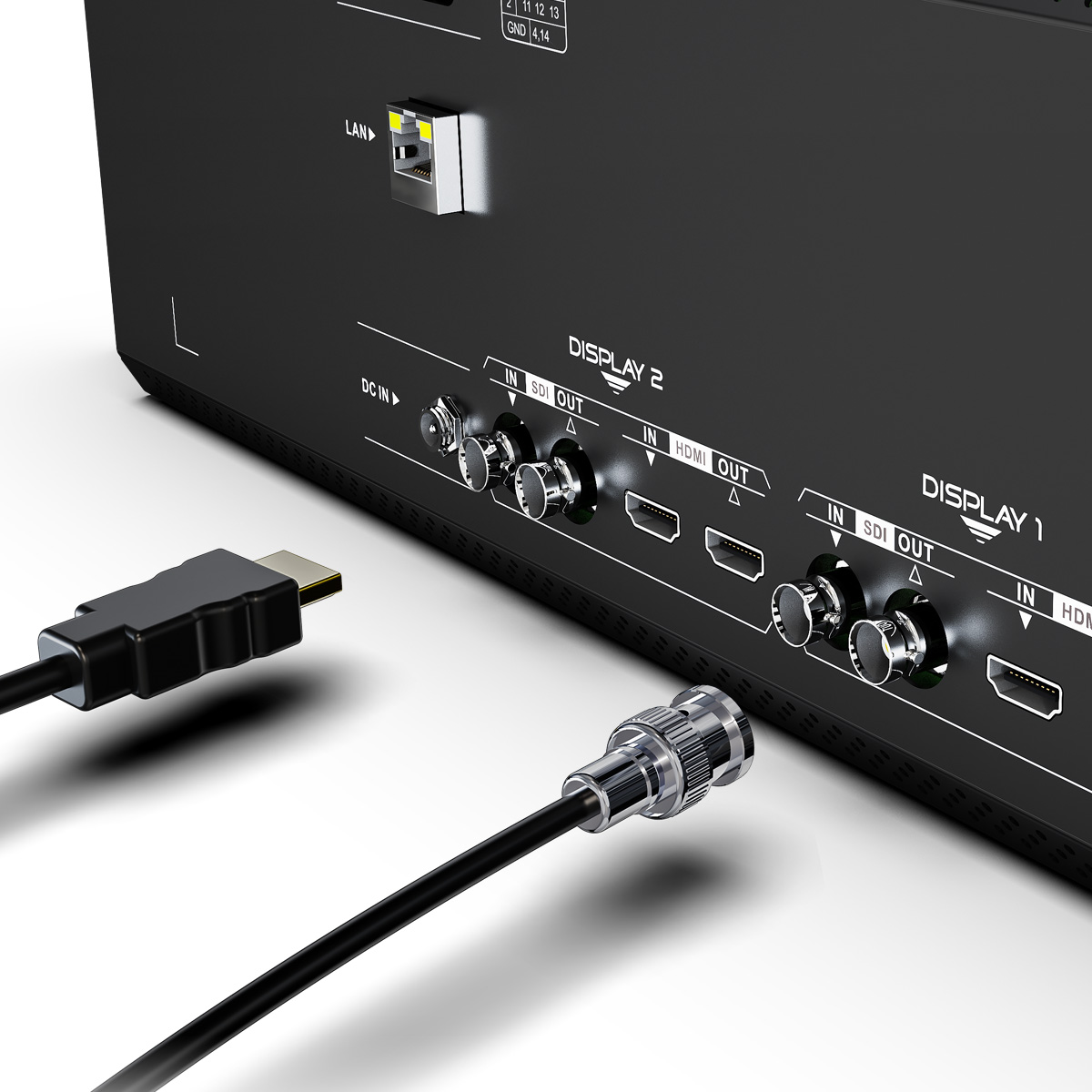

3RU rack mount monitor with dual 7″ 1000 nits high brightness LTPS screens, which is suitable for monitoring from two different cameras simultaneously. It comes with 12G-SDI and HDMI2.0 input and output, which support  up to 2160p 60Hz SDI and 2160p 60Hz HDMI videos. Just add signal cables to expand more diverse display solutions through loop output interfaces. Help creating a camera video wall. Also all monitors can be perfectly adjusted by a connected computer under the control of software. So you can focus on other operation on the workbench at the same time.


  • Model No.: RM7026-12G
  • Display: Dual 7″, 1920x1200

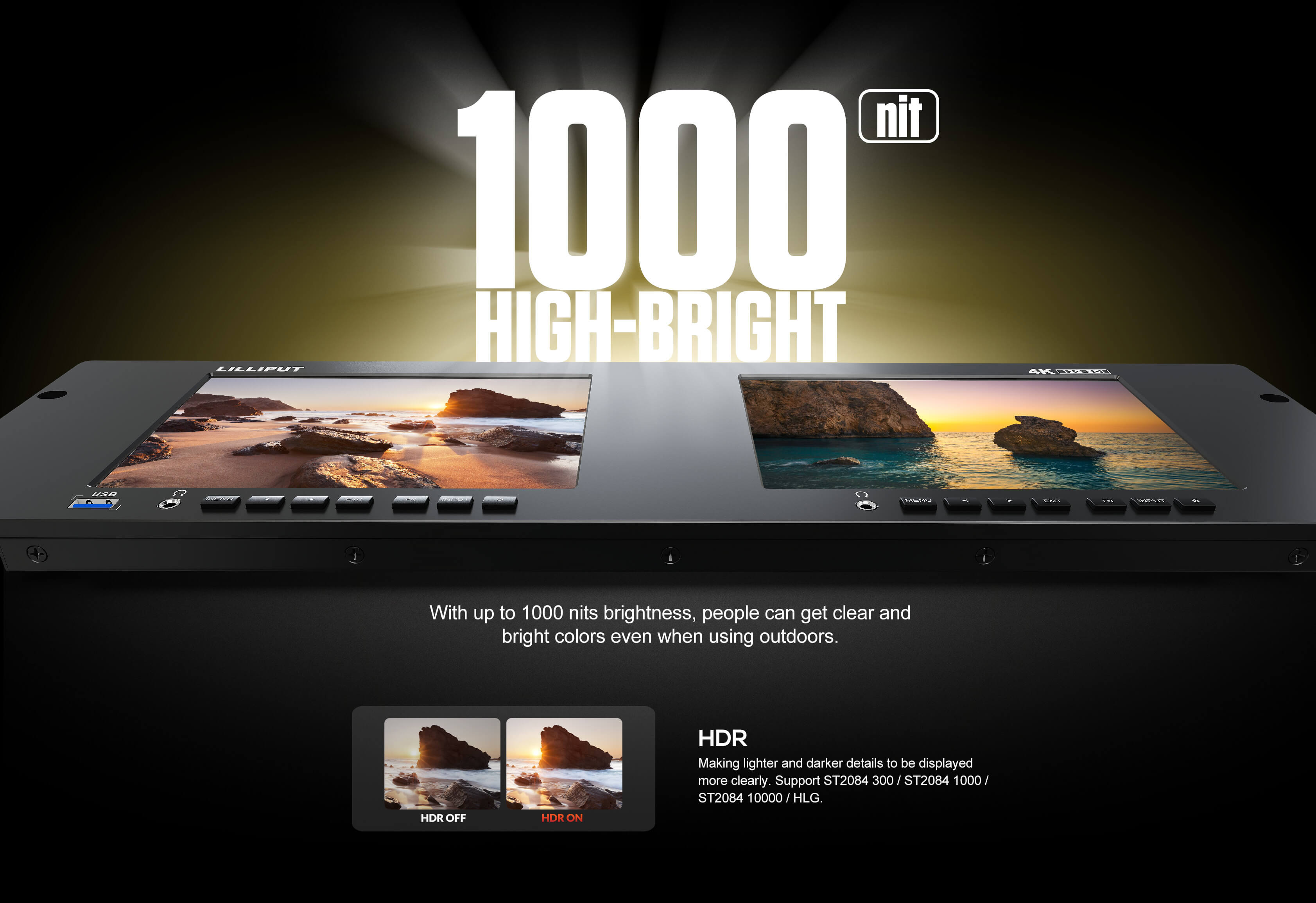

  • Brightness: 1000 nits

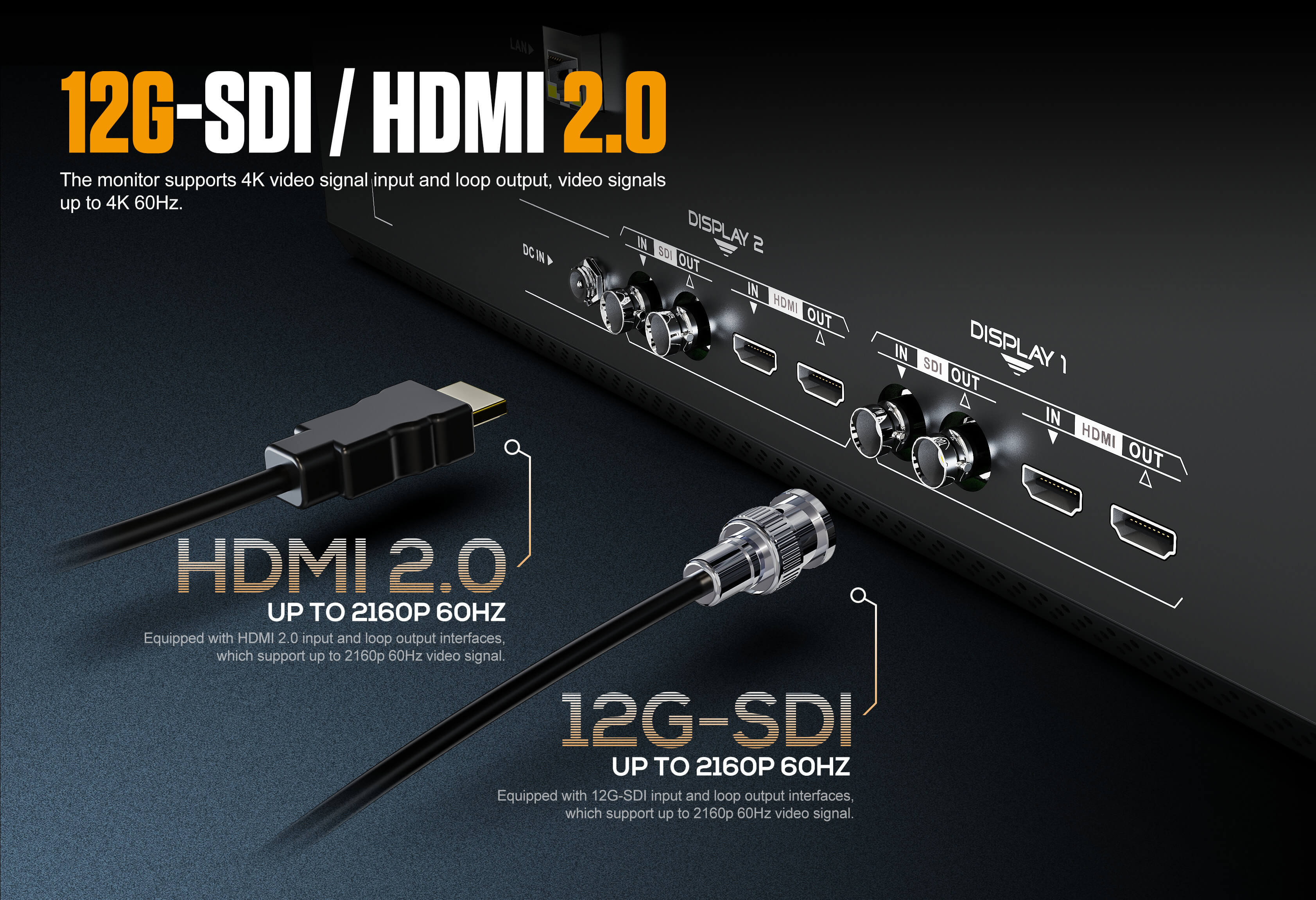

  • Input: 12G-SDI, HDMI 2.0, LAN
  • Output: 12G-SDI, HDMI 2.0
  • Feature: Rack mount, Easy Remote Control
  • Product Detail

    Specifications

    Accessories

    7026-17
    7026-8
    7026-9
    7026-18
    7026-11
    7026-12
    7026-13

  • Previous:
  • Next:

  • Display
    Size Dual 7″
    Resolution 1920×1200
    Brightness 1000cd/m²
    Aspect ratio 16:10
    Contrast 1200:1
    Viewing Angle 160°/160°(H/V)
    HDR Support HLG / ST2084 300 / 1000 / 10000

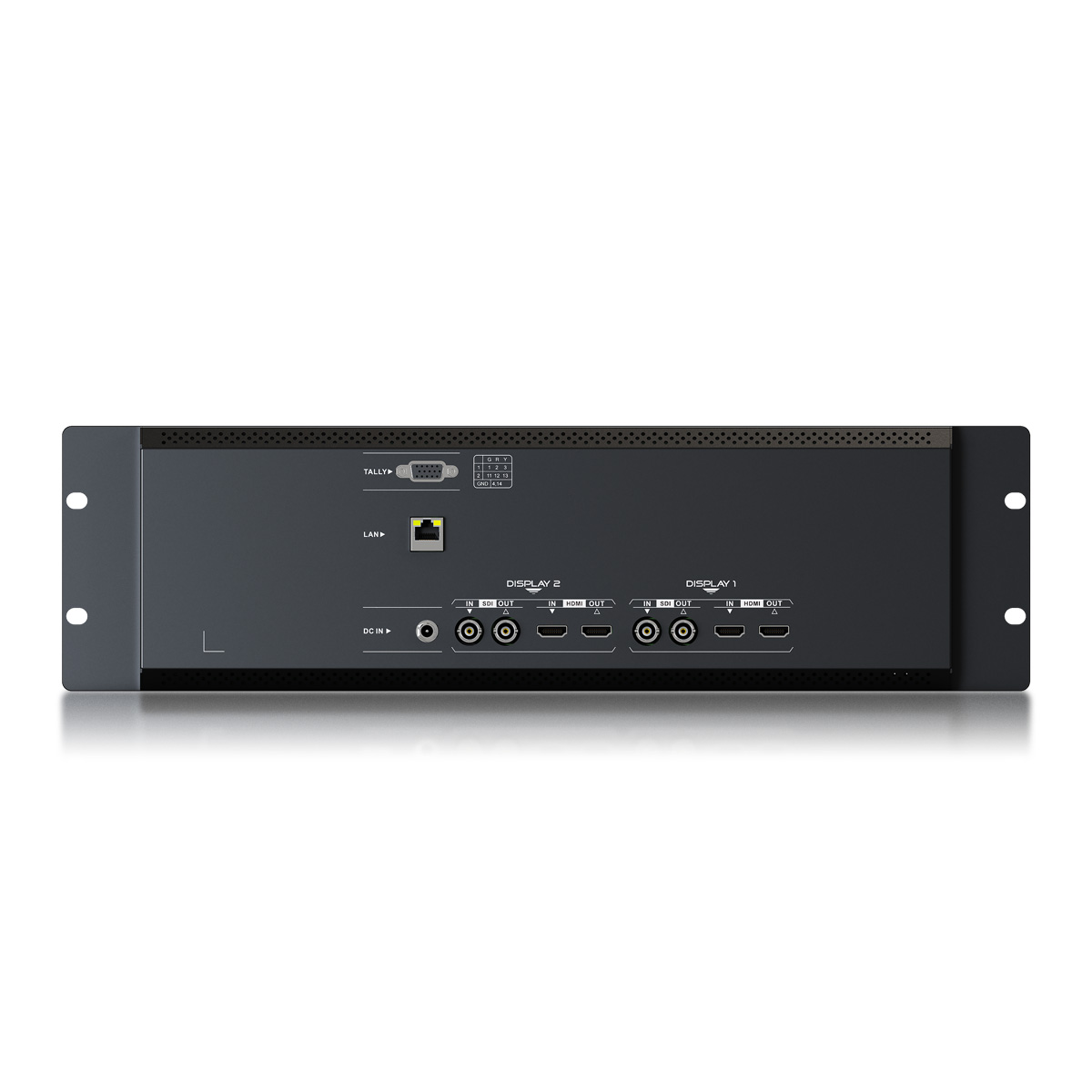

    Video Input
    SDI 2×12G (supports up to 4K 60Hz)
    HDMI 2×HDMI (supports up to 4K 60Hz)
    LAN 1
    Video Loop Output
    SDI 2×12G (supports up to 4K 60Hz)
    HDMI 2×HDMI 2.0 (supports up to 4K 60Hz)
    Supported In / Out Formats
    SDI 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50…
    HDMI 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50…
    Audio In/Out
    Speaker -
    Ear Phone Slot 3.5mm
    Power
    DC In DC 12-24V
    Power Consumption ≤21W
    Environment
    Operating Temperature 0℃~50℃
    Storage Temperature -20℃~60℃
    Other
    Dimension(LWD) 480×131.6×32.5mm
    Weight 1.83kg

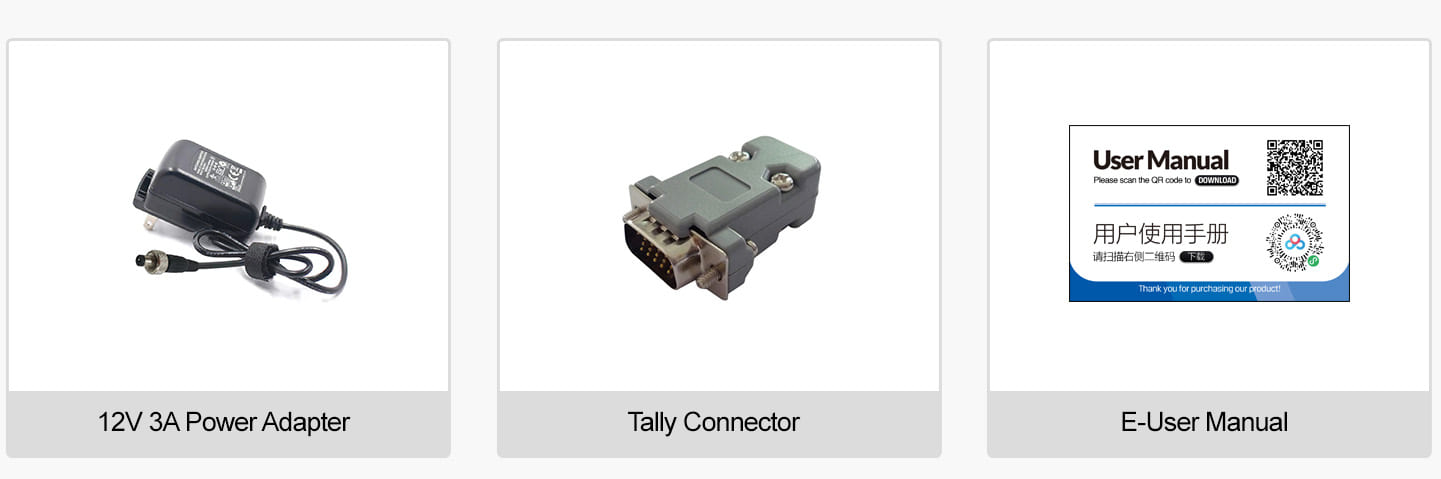

    官网配件
