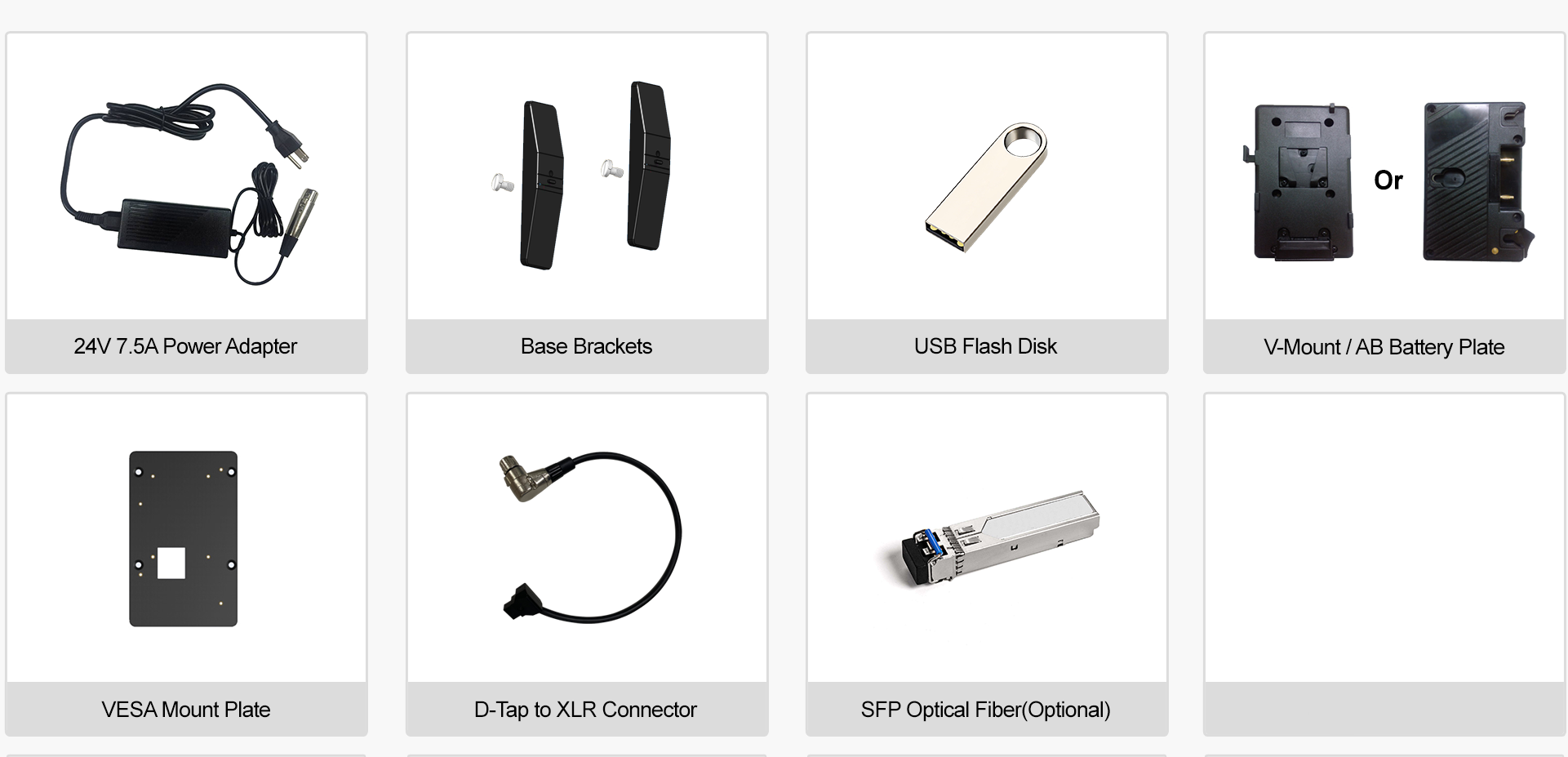

Accessories
Product Tags
| DISPLAY |
Panel |
31.5″ |
| Physical Resolution |
3840*2160 |
| Aspect Ratio |
16:9 |
| Brightness |
1000 cd/m² |
| Contrast |
1000：1 |
| Viewing Angle |
178°/178°（H/V) |
| HDR |
ST2084 300/1000/10000/HLG |
| Supported Log Formats |
SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User… |
| Look up Table(LUT)support |
3D LUT (.cube format) |
| Calibration |
Calibrate color space to Rec.709, DCI-P3, NTSC, BT.2020 |

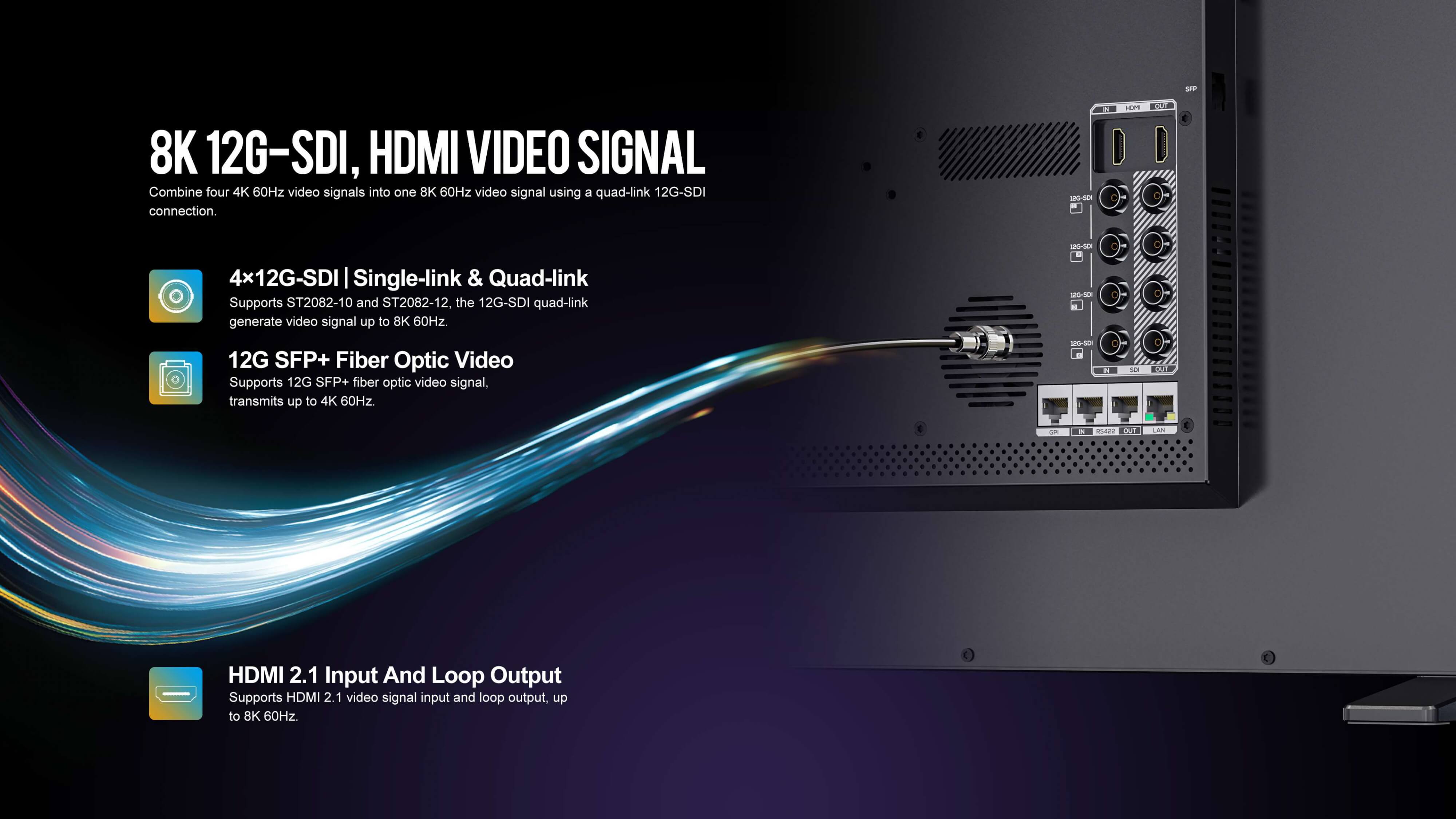

| VIDEO INPUT |
SDI |
4×12G (Supported 8K-SDI Formats Quad Link) |
| SFP |
1×12G SFP+(Fiber module for optional) |
| HDMI |
1×HDMI 2.1 (Supported 8K-HDMI Formats) |
| VIDEO LOOP OUTPUT |
SDI |
4×12G (Supported 8K-SDI Formats Quad Link) |
| HDMI |
1×HDMI 2.1 (Supported 8K-HDMI Formats) |
| SUPPORTED FORMATS |
SDI |
4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60… |
| SFP |
2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60… |
| HDMI |
4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60… |
| AUDIO IN/OUT (48kHz PCM AUDIO) |
SDI |
16ch 48kHz 24-bit |
| HDMI |
8ch 24-bit |
| Ear Jack |
3.5mm |
| Built-in Speakers |
2 |

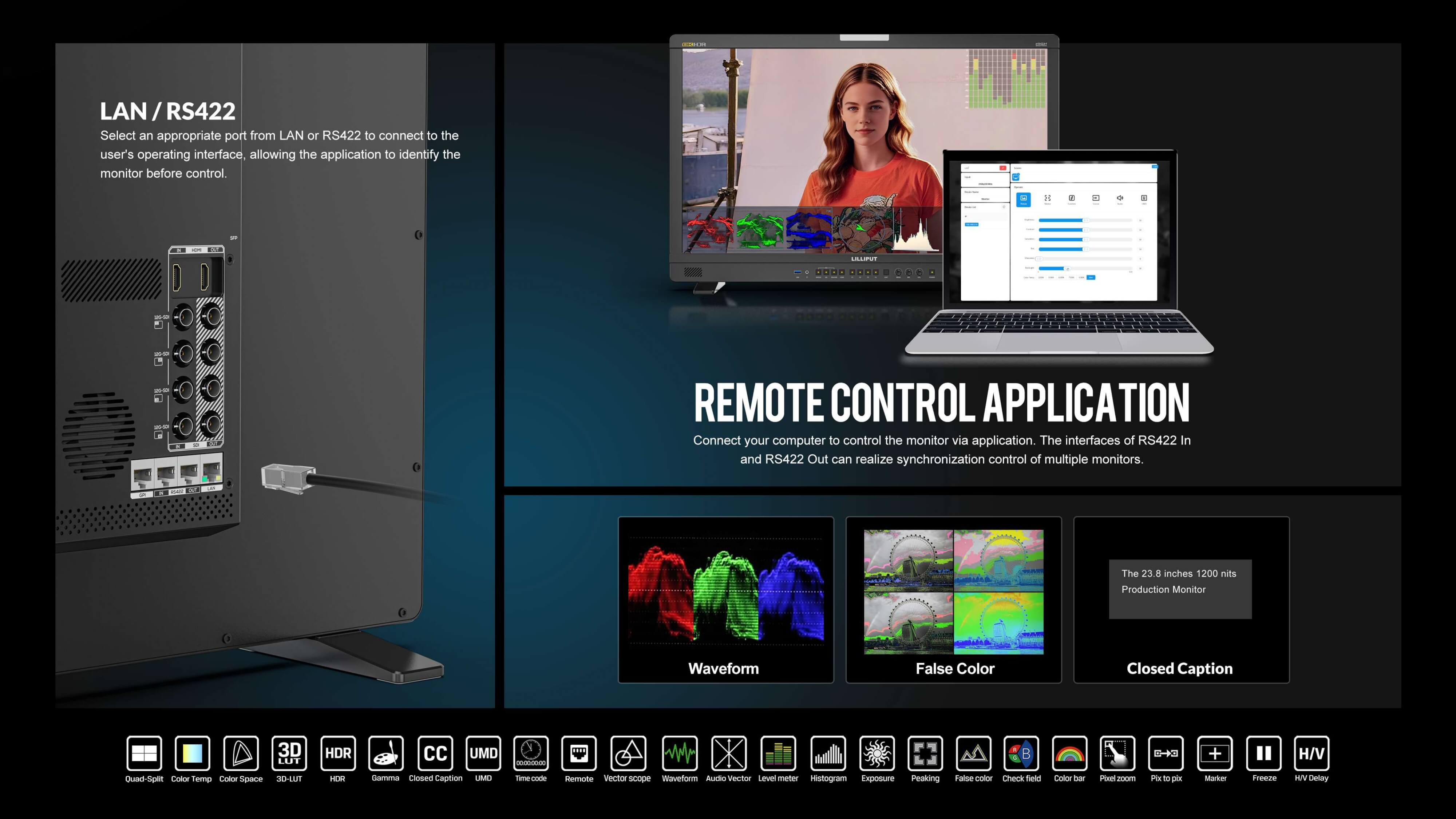

| REMOTE CONTROL |
RS422 |
In/out |
| GPI |
1 |
| LAN |
1 |
| POWER |
Input Voltage |
DC 15-32V |
| Power Consumption |
≤94W (24V) |
| ENVIRONMENT |
Operating Temperature |
0℃~50℃ |
| Storage Temperature |
-20℃~60℃ |
| OTHER |

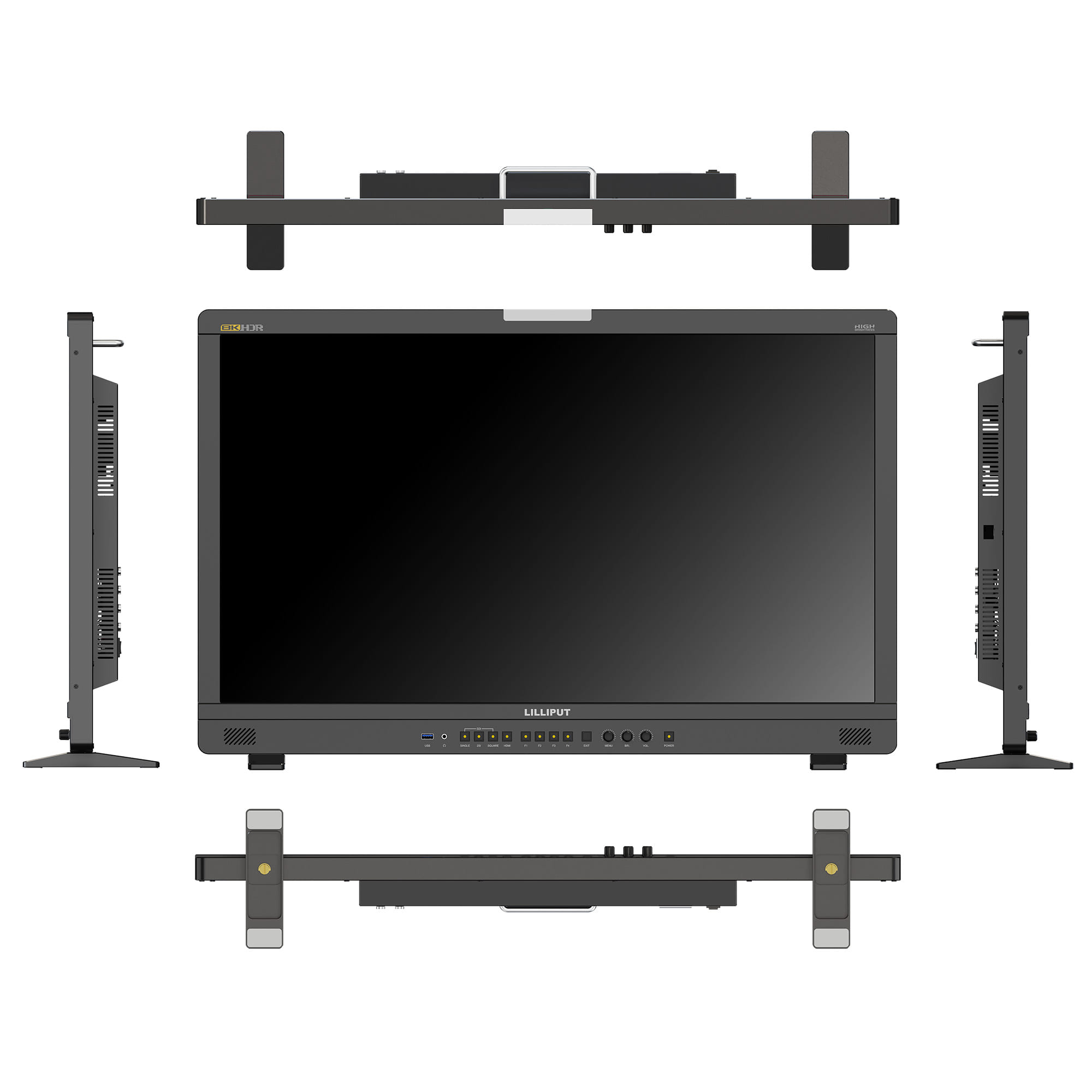

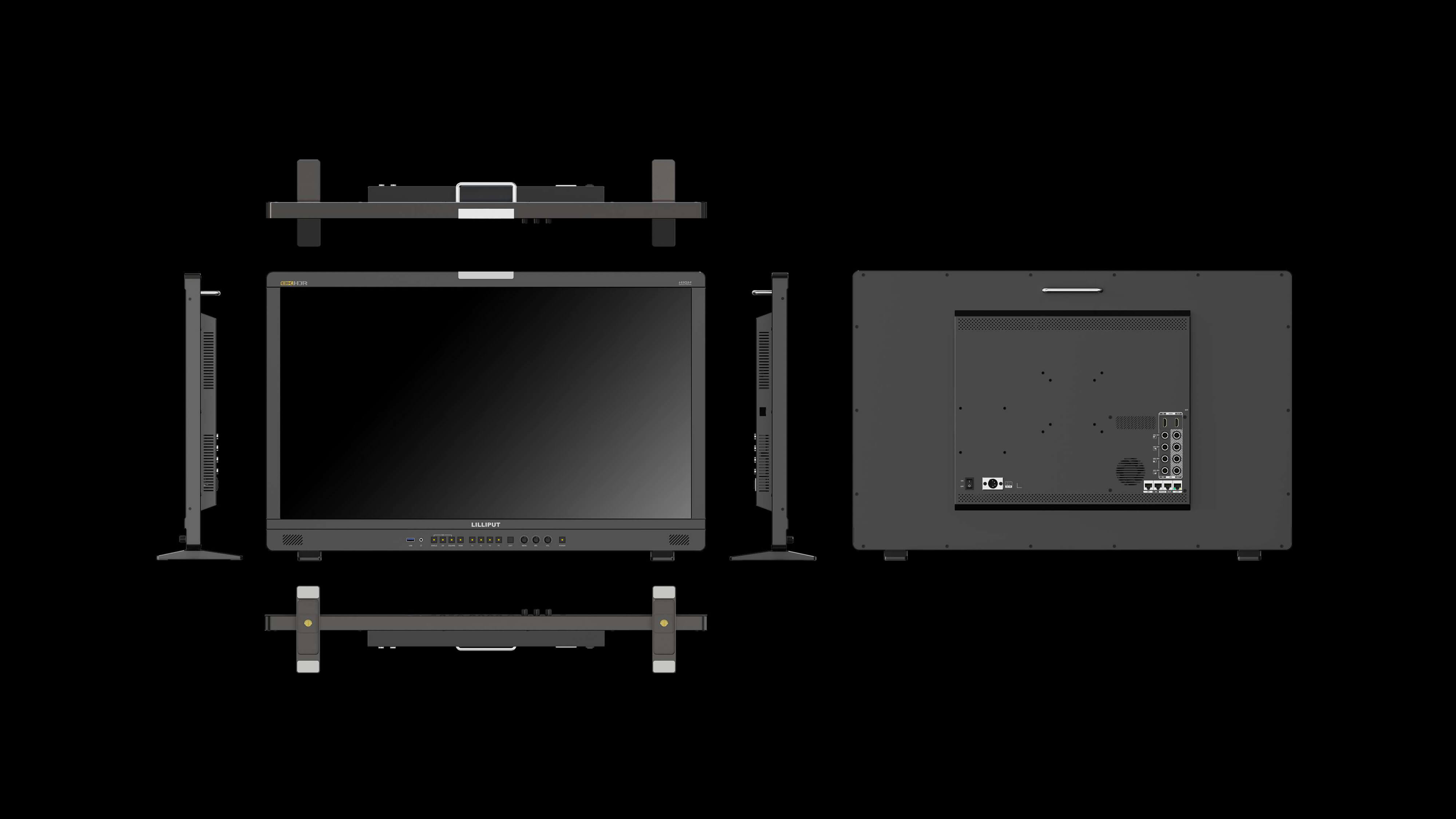

Dimension(LWD) |
747mm × 475.1mm × 55mm |
| Weight |
12.5kg |
