BM150-12G _ 15.6 inch carry on 12G-SDI Broadcast director monitor

Short Description:

BM150-12G is one model of LILLIPUT 4K broadcast monitors BM-12G series. The 15.6 inch director monitor features 3840×2160 4K native resolution and 1000:1 contrast, providing excellent viewing experience for users. It supports 12G-SDI inputs and loop outputs with backward compatibility as well as supports 4K HDMI up to 4K 60Hz singal inputs. Multiple view can be slipped from different signals simultaneously, such as 12G-SDI, 3G-SDI and HDMI. It comes with a carry-on case and a 6U rackmount also provides users more mount types for barodcast, one-stie monitoring and live broadcast van.


  • Model: BM150-12G
  • Physical resolution: 3840x2160
  • 12G-SDI interface: Support single / dual / quad-link 12G SDI signal
  • SFP interface: Support 12G SFP signal
  • HDMI 2.0 interface: Support 4K HDMI signal
  • Product Detail

    Specifications

    Accessories

    BM150-12G_ (1)

    4K Ultra-HD resolution

    Ultra HD 4K screens contain 8.3 million pexel(3840×2160), so the resolution is four times that of Full HD.

    And making the innovative 4K screen the ultimate in cinematic displays.

    BM150-12G_ (2)未标题-1

    SDI equalization & re-clocking

    The purpose of the eye waveform is to measure the quality of the SDI input signal. So the SDI

    equalization & re-clocking function ensures the transmission quality and effect of eye pattern.

    BM150-12G_ (3)

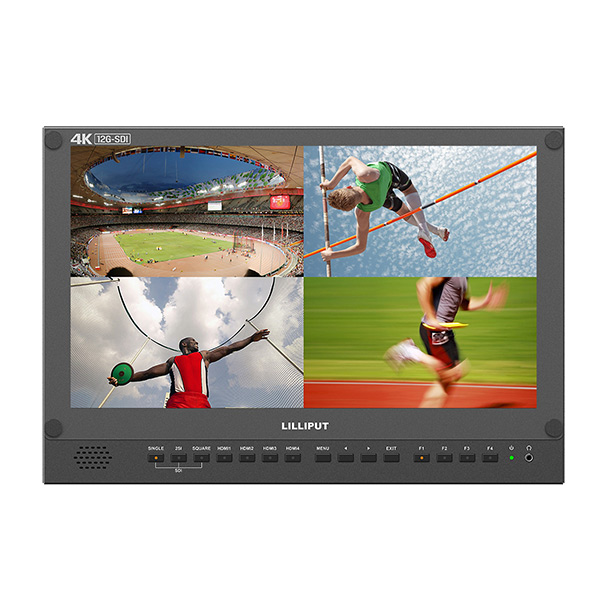

    Multiple Views Display

    It supports quad views splitted from different input signals simultaneously, such

    as 12G-SDI, 3G-SDI and HDMI. Also supports Picture-in-Picture function.

    Camera Auxiliary Functions

    Plenty of auxiliary functions for taking photos and making movies, such as

    peaking, false color and audio level meter.

    BM150-12G_ (4)

    BM150-12G_ (5)

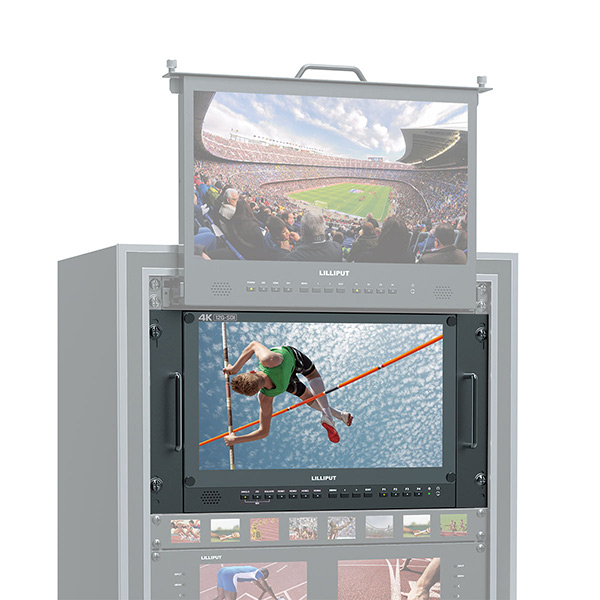

    6RU Rackmout SDI monitoring

    It has a various of mounting methods for broadcast, on-site monitoring and live broadcast van, etc.

    As well as setup a video wall of rack monitors in control room and see all the scenes. A 6U rack for a

    customized monitoring solution also can be supported for viewing from different angles and images displays.



    BM150-12G_ (6)






  • Previous:
  • Next:

  • Display
    Size 15.6”
    Resolution 3840×2160
    Brightness 330cd/m²
    Aspect ratio 16:9
    Contrast 1000:1
    Viewing Angle 176°/176°(H/V)

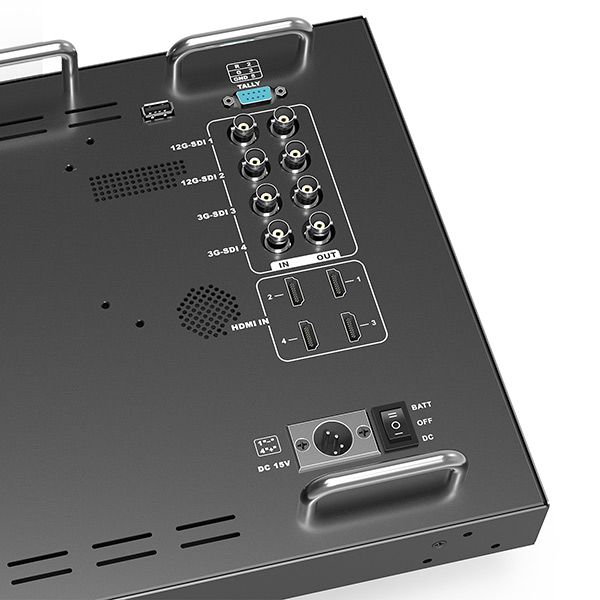

    Video Input
    SDI 2×12G, 2×3G (Supported 4K-SDI Formats Single/Dual/Quad Link)
    HDMI 1×HDMI 2.0, 3xHDMI 1.4
    Video Loop Output (Uncompressed true 10-bit or 8-bit 422)
    SDI 2×12G, 2×3G (Supported 4K-SDI Formats Single/Dual/Quad Link)
    Supported In / Out Formats
    SDI 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60
    HDMI 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60
    Audio In/Out (48kHz PCM Audio)
    SDI 12ch 48kHz 24-bit
    HDMI 2ch 24-bit
    Ear Jack 3.5mm
    Built-in Speakers 1
    Power
    Operating power ≤32W
    DC In DC 12-24V
    Compatible batteries V-Lock or Anton Bauer Mount
    Input voltage (battery) 14.4V nominal
    Environment
    Operating Temperature 0℃~50℃
    Storage Temperature -20℃~60℃
    Other
    Dimension(LWD) 389×267×38mm / 524×305×170mm (with case)
    Weight 3.4kg / 12kg (with case)

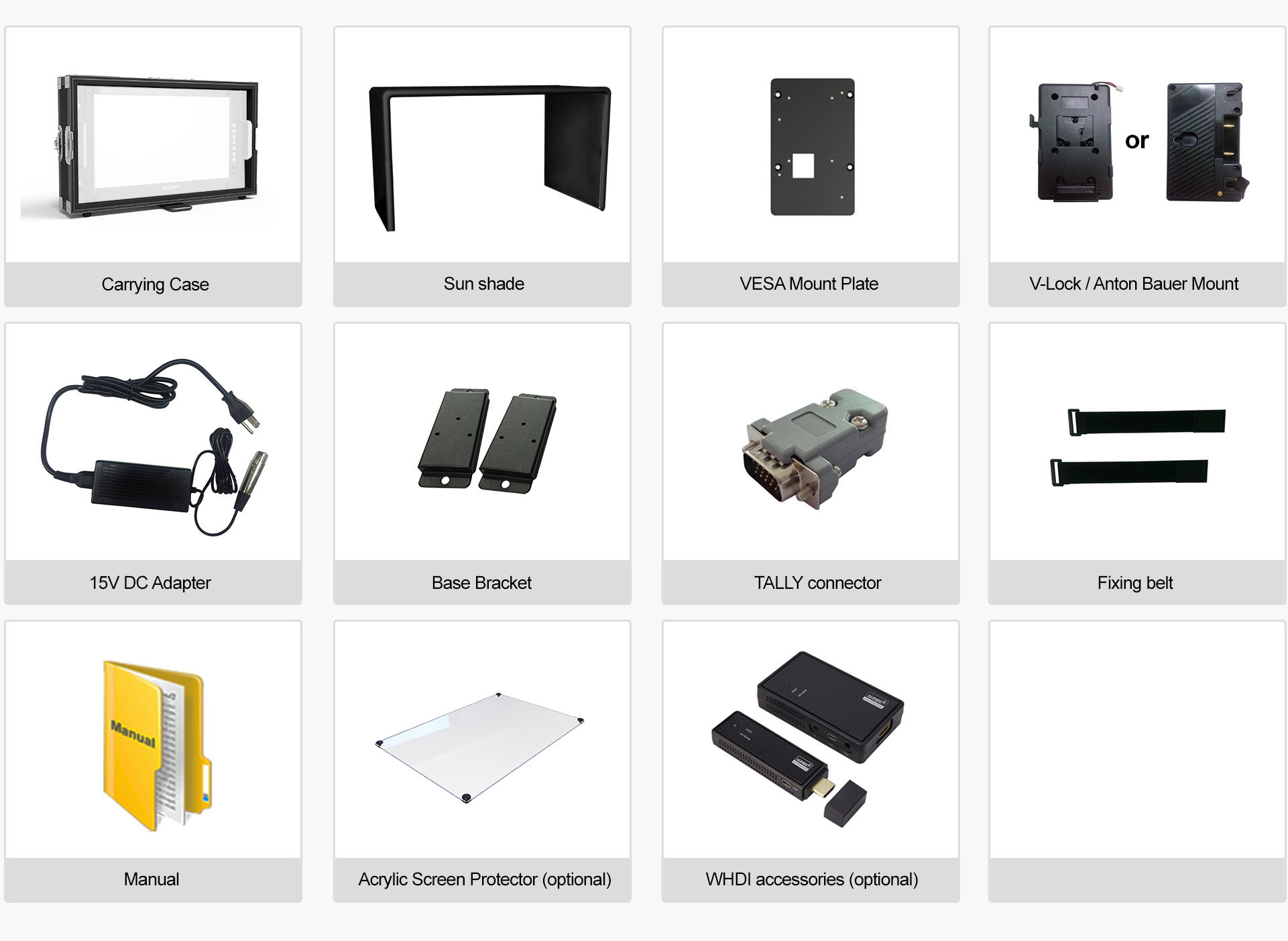

    BM150-12G accessories
