BM230-12G _ 23.8 inch carry on 12G-SDI Broadcast director monitor

Short Description:

BM230-12G is a broadcast director / production monitor, it is the best selection for FHD/4K/8K cameras, switchers and other signal transmission devices. The broadcast monitor features 3840×2160 Ultra-HD native resolution screen. And it comes with 12G-SDI Single-Link and 4×4K HDMI signals input and display. And also supports Quad views splitting from differenet input signals simultaneously, which providing a efficient solution for applications in muliti-camera monitoring. About the install way for 12G SDI production monitor ,there are ,stand-alone and carry-on for your selection , and it widely applied in studio, filming, live events and other various applications.


  • Model: BM230-12G
  • Physical resolution: 3840x2160
  • 12G-SDI interface: Support single / dual / quad-link 12G SDI signal
  • HDMI 2.0 interface: Support 4K HDMI signal
  • Product Detail

    Specifications

    Accessories

    BM230-12G_ (1)

    4K Ultra-HD resolution

    Ultra HD 4K screens contain 8.3 million pexel(3840×2160), so the resolution is four times that of Full HD.

    And making the innovative 4K screen the ultimate in cinematic displays.

    BM230-12G_ (2)未标题-1

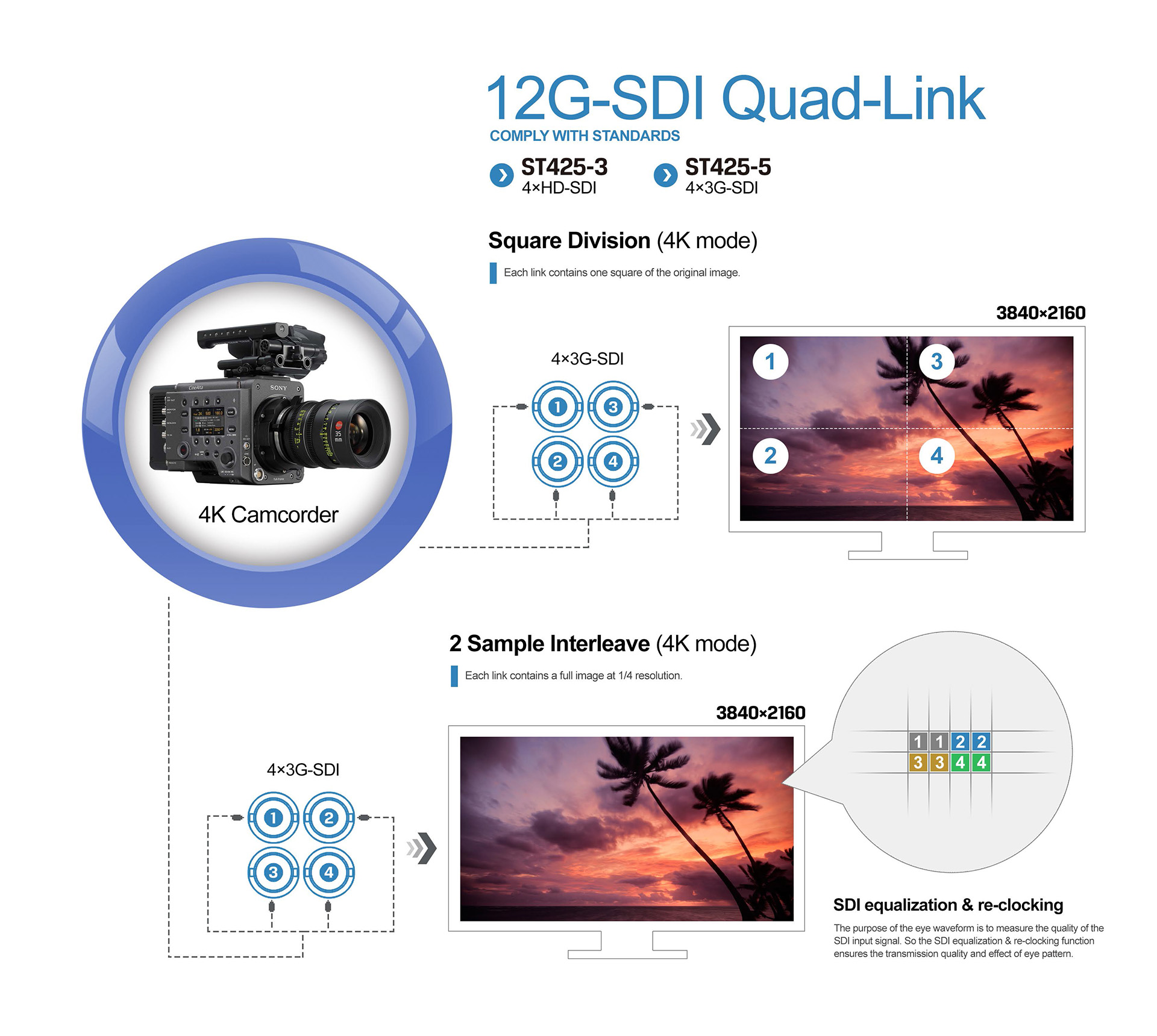

    SDI equalization & re-clocking

    The purpose of the eye waveform is to measure the quality of the SDI input signal. So the SDI

    equalization & re-clocking function ensures the transmission quality and effect of eye pattern.

    BM230-12G_ (6)

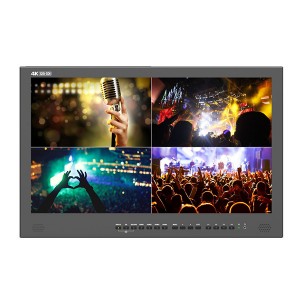

    Multiple Views Display

    It supports quad views splitted from different input signals simultaneously, such

    as 12G-SDI, 3G-SDI and HDMI. Also supports Picture-in-Picture function.

    Camera Auxiliary Functions

    Plenty of auxiliary functions for taking photos and making movies, such as

    peaking, false color and audio level meter.

    BM230-12G_ (4) BM230-12G_ (5)


  • Previous:
  • Next:

  • Display
    Size 23.8”
    Resolution 3840×2160
    Brightness 300cd/m²
    Aspect ratio 16:9
    Contrast 1000:1
    Viewing Angle 178°/178°(H/V)

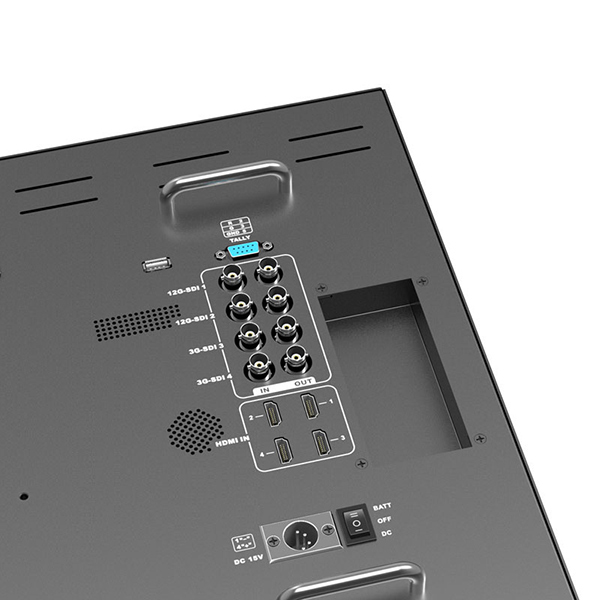

    Video Input
    SDI 2×12G, 2×3G (Supported 4K-SDI Formats Single/Dual/Quad Link)
    HDMI 1×HDMI 2.0, 3xHDMI 1.4
    Video Loop Output (Uncompressed true 10-bit or 8-bit 422)
    SDI 2×12G, 2×3G (Supported 4K-SDI Formats Single/Dual/Quad Link)
    Supported In / Out Formats
    SDI 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60
    HDMI 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60
    Audio In/Out (48kHz PCM Audio)
    SDI 12ch 48kHz 24-bit
    HDMI 2ch 24-bit
    Ear Jack 3.5mm
    Built-in Speakers 2
    Power
    Operating power ≤61.5W
    DC In DC 12-24V
    Compatible batteries V-Lock or Anton Bauer Mount
    Input voltage (battery) 14.4V nominal
    Environment
    Operating Temperature 0℃~50℃
    Storage Temperature -20℃~60℃
    Other
    Dimension(LWD) 579×376.5×45mm / 666×417×173mm (with case)
    Weight 8.6kg / 17kg (with case)

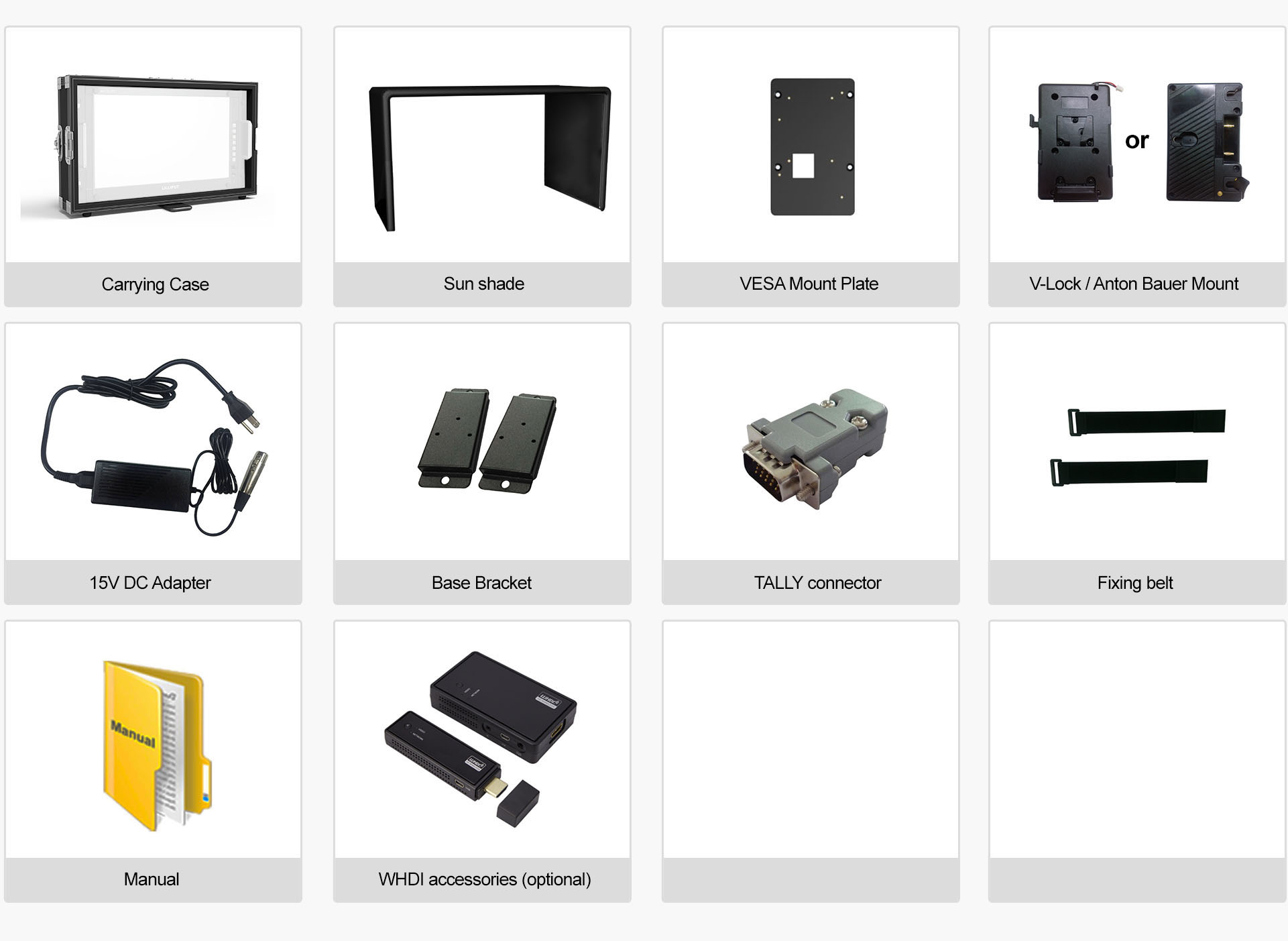

    BM230-12G accessories
