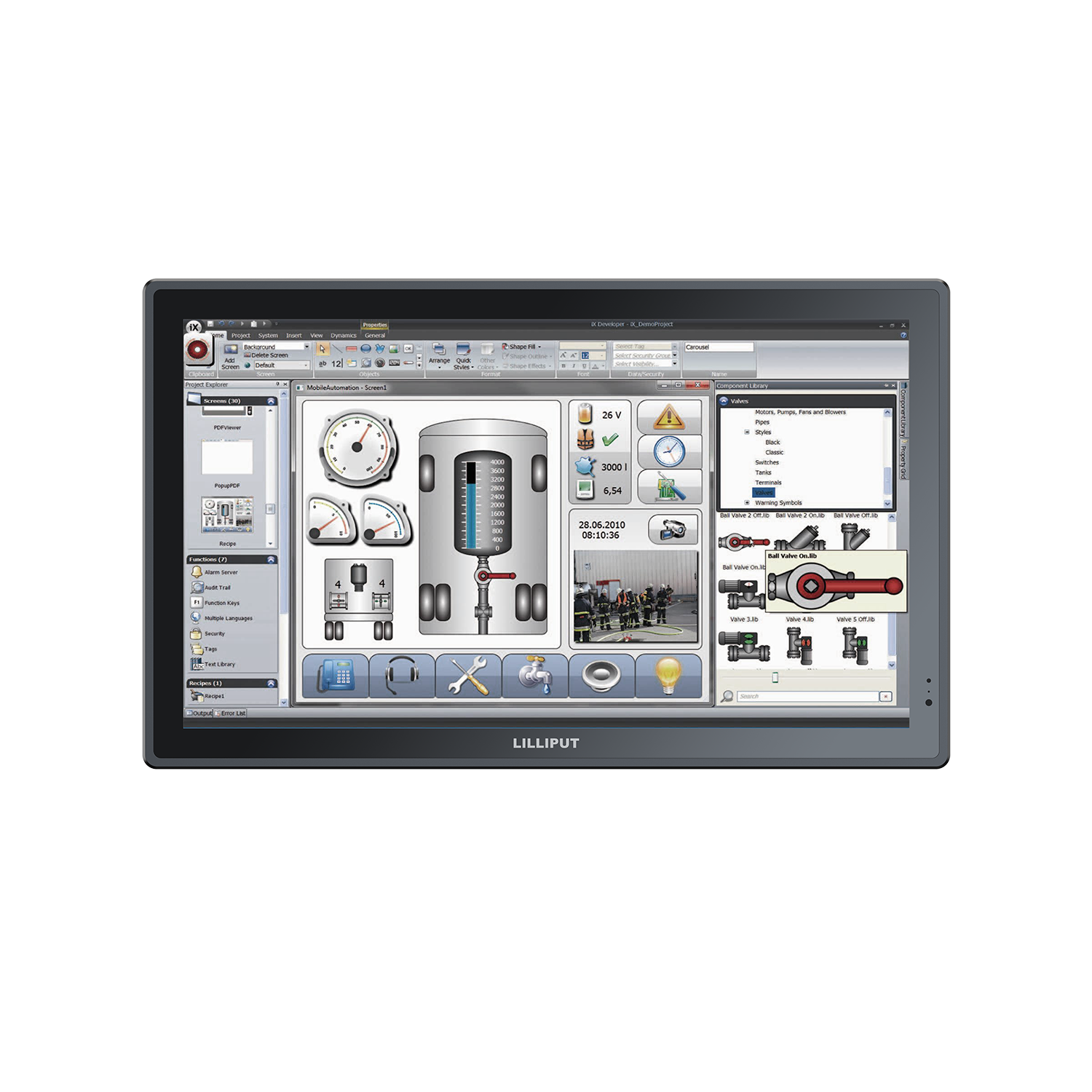

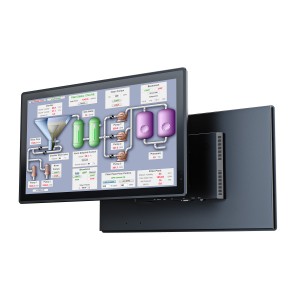

TK2380 23.8 Inch 1000 Nits Touch Screen Industrial Monitor

Short Description:

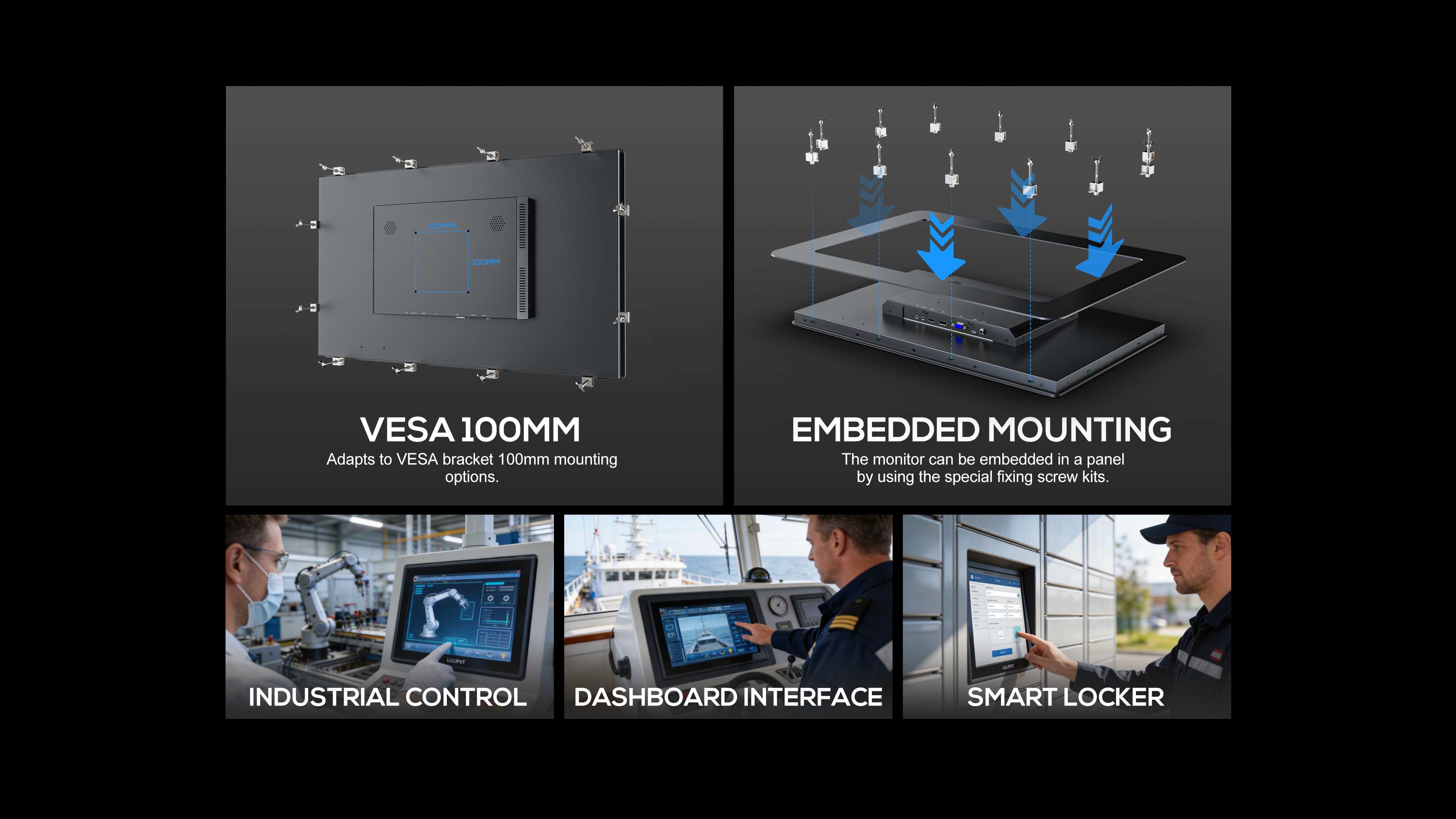

This 23.8-inch metal monitor comes with a 10-point capacitive touch screen and 1000nits high brightness screen panel. The interfaces support a wide range of customisation options in addition to the existing types such as HDMI, VGA, DP, USB-C (Optional). It features anti-glare coating for clear outdoor viewing. It supports glove touch, has an IP65/NEMA 4 front panel, 7H hardness, and IK07 impact resistance. Horizontal and vertical installation are both supported for flexible use.

Model No.: TK2380/C & TK2380/T

Display: 23.8" / 1920×1080 / 1000 nits

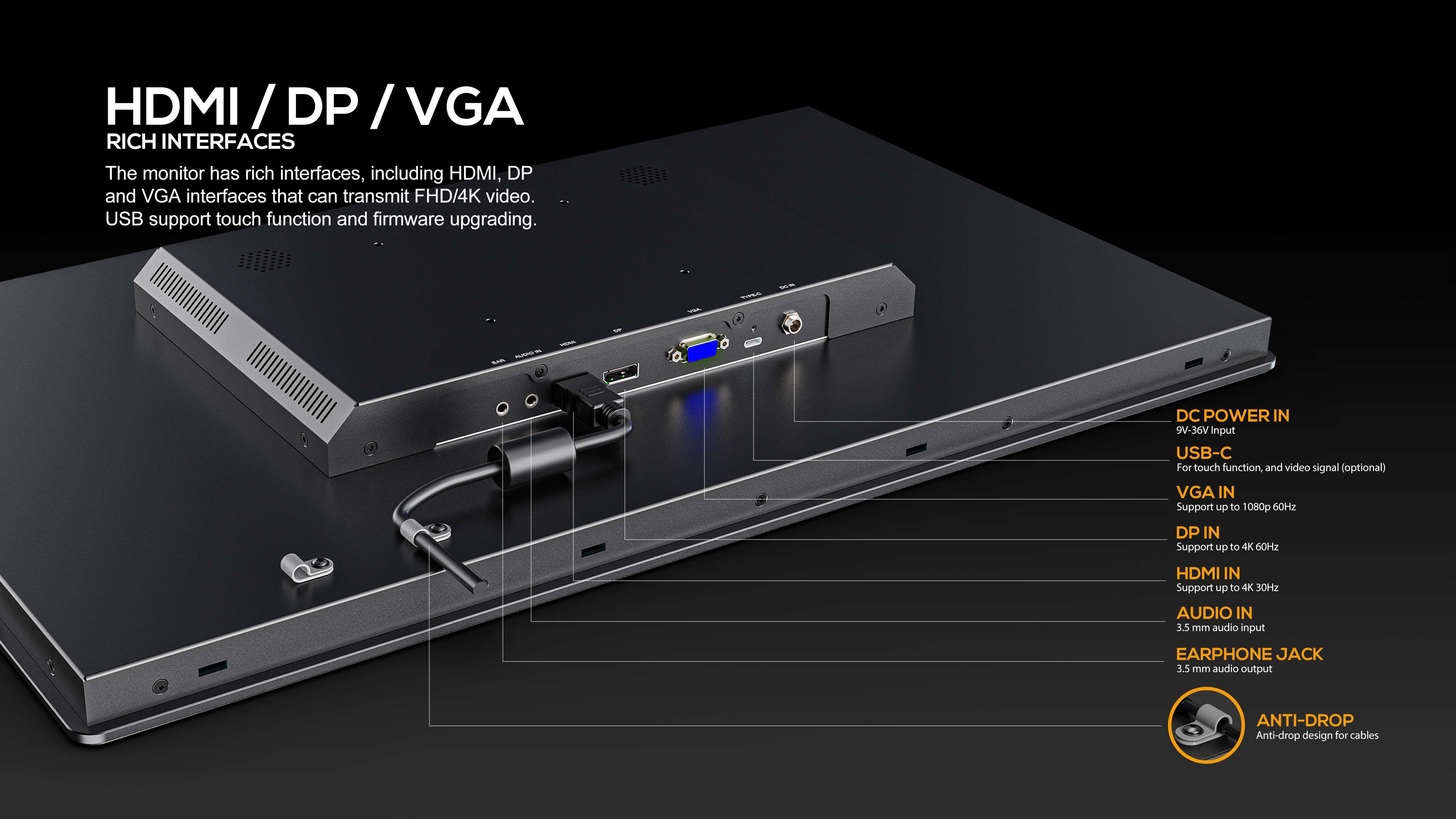

Input: HDMI, VGA, DP, USB-C (Optional)

Audio In/Out: Speaker, HDMI, Ear Jack

Feature: 1000nits Brightness, 10-points PCAP, IP65 Front Panel, Anti-glare, 7H, IK07, Metal Housing

Send email to us Download as PDF User guide

Product Detail

Specifications

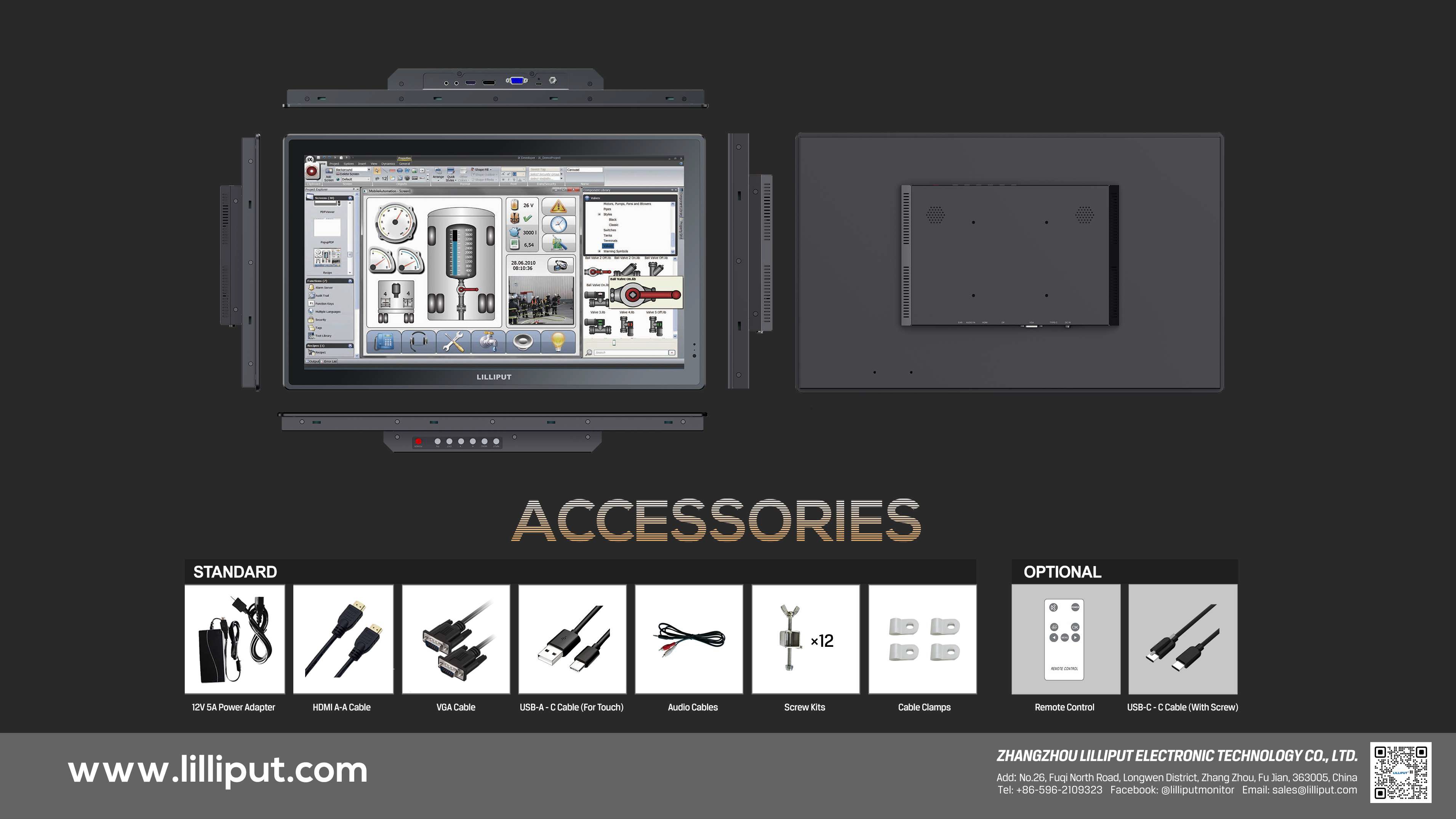

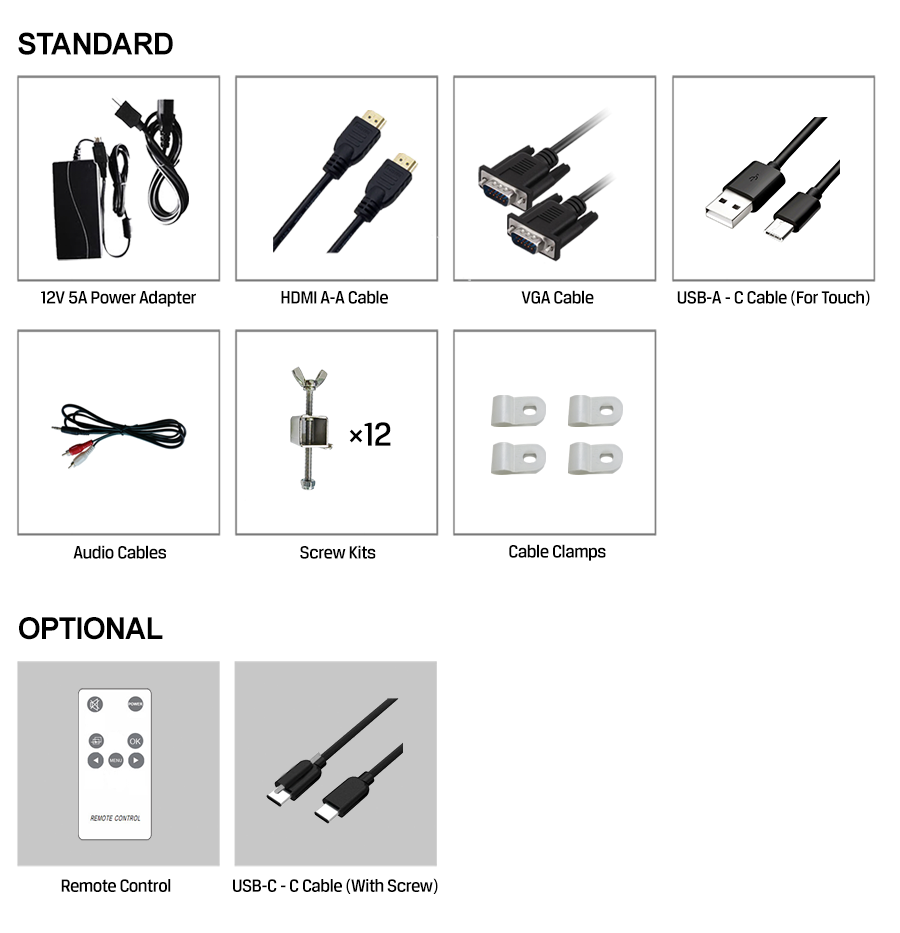

Accessories

Product Tags

Previous: 27 inch 1000 Nits High Brightness Live Stream Multiview Monitor

Next:

MODEL NO.		TK2380
DISPLAY	Touch Screen	10-point PCAP
	Panel	23.8” LCD
	Physical Resolution	1920×1080
	Aspect Ratio	16:9
	Brightness	1000 nits
	Contrast	1000:1
	Viewing Angle	178° / 178° (H/V)

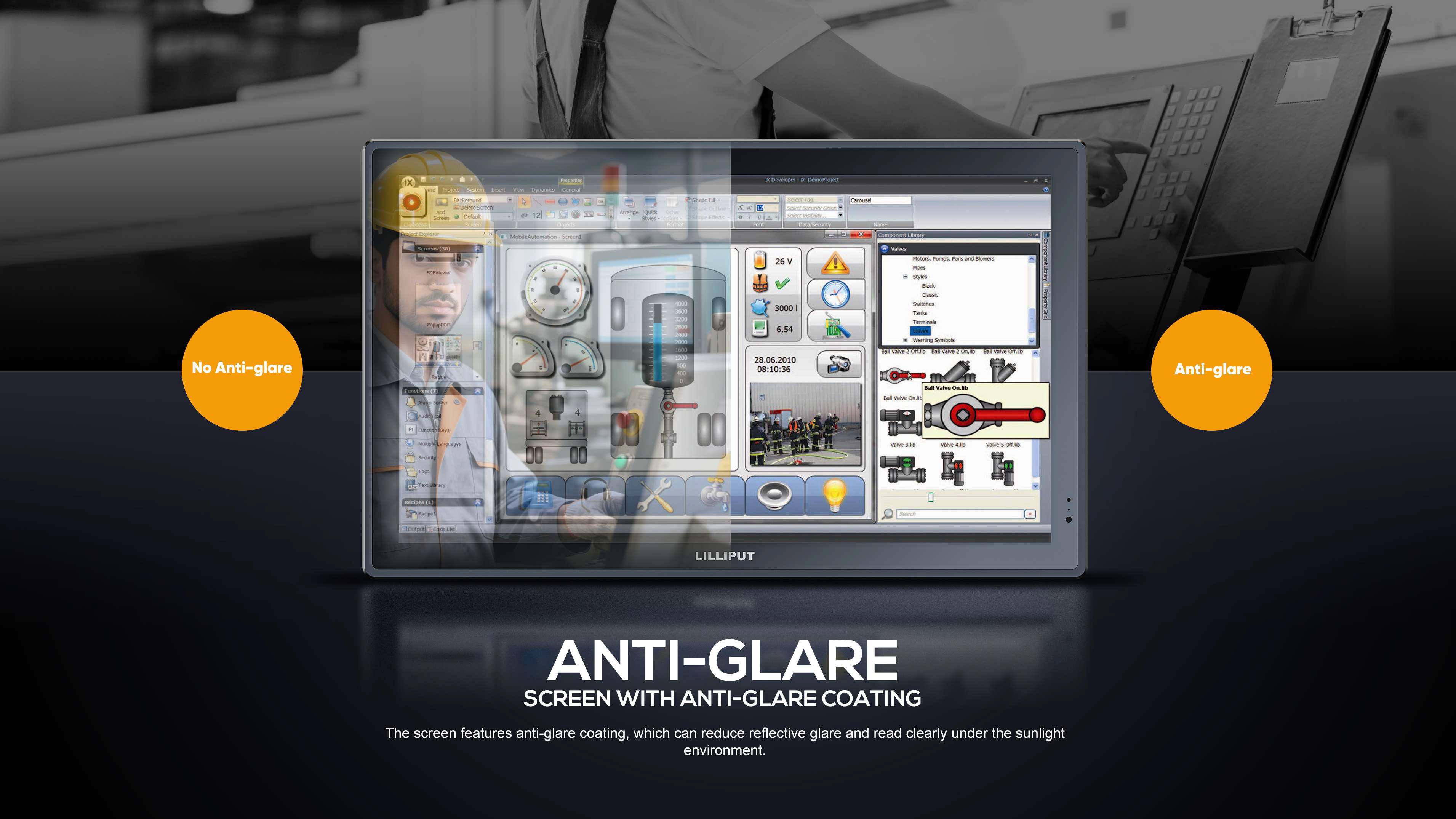

	Coating	Anti-glare
	Hardness/Collision	Hardness≥7H(ASTM D3363), Collision ≥IK07 (IEC62262/EN62262)
INPUT	HDMI	1
	VGA	1
	DP	1
	USB-C	1, For touch and video signal (optional)
SUPPORTED FORMATS	HDMI	2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60…
	VGA	1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
	DP	2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60…
AUDIO IN/OUT	Speaker	2
	HDMI	2ch
	Ear Jack	3.5mm
POWER	Input Voltage	DC 9-36V
	Power Consumption	≤55W (12V)

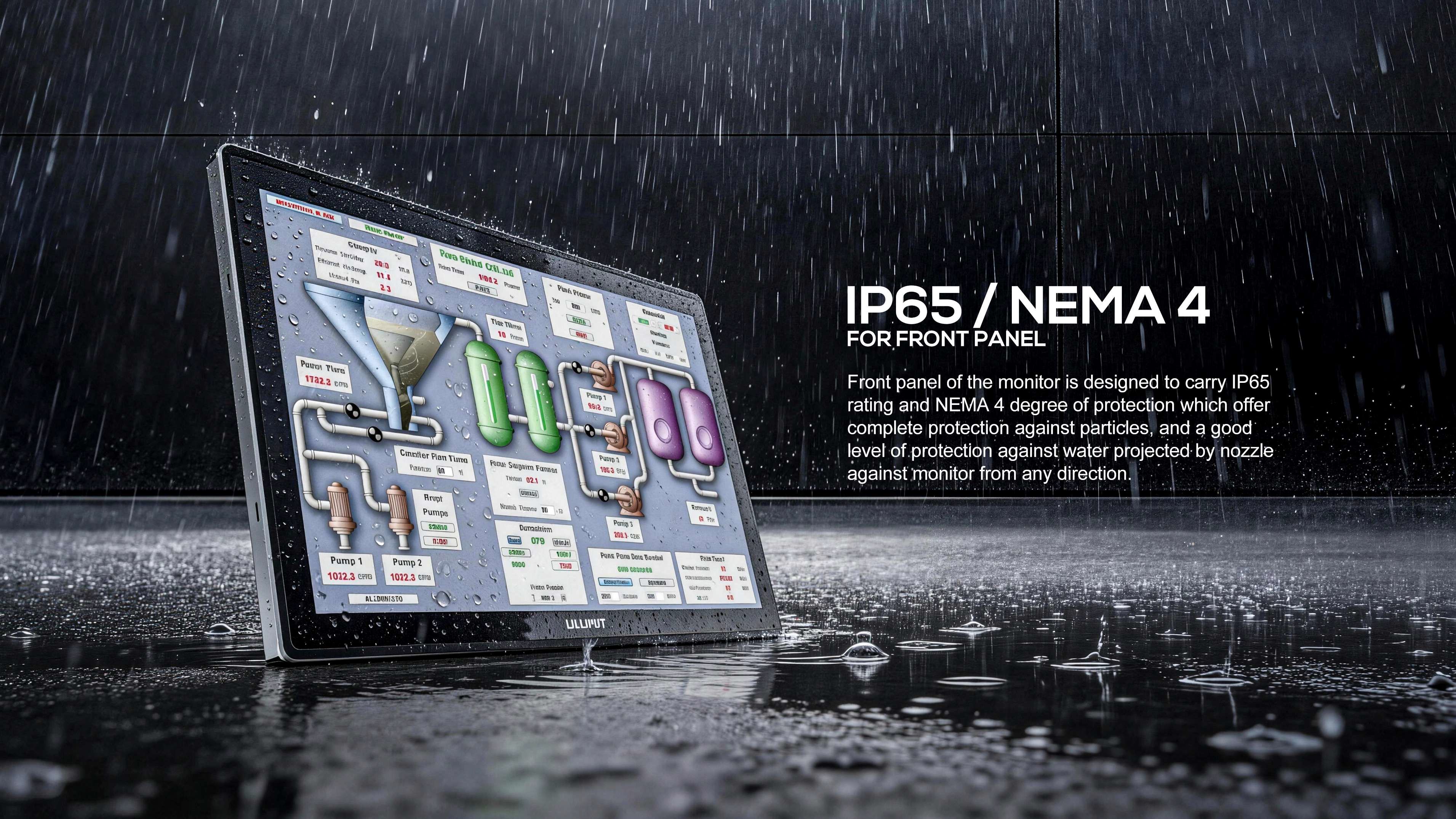

ENVIRONMENT	IP Rating	IP65 Front Panel, Front NEMA 4
	Vibration	1.5Grms, 5~500Hz, 1 hr/axis (IEC6068-2-64)
	Shock	10G, half-sine wave, last 11 ms(IEC6068-2-27)
	Operating Temperature	-20°C~60°C
	Storage Temperature	-30°C~70°C

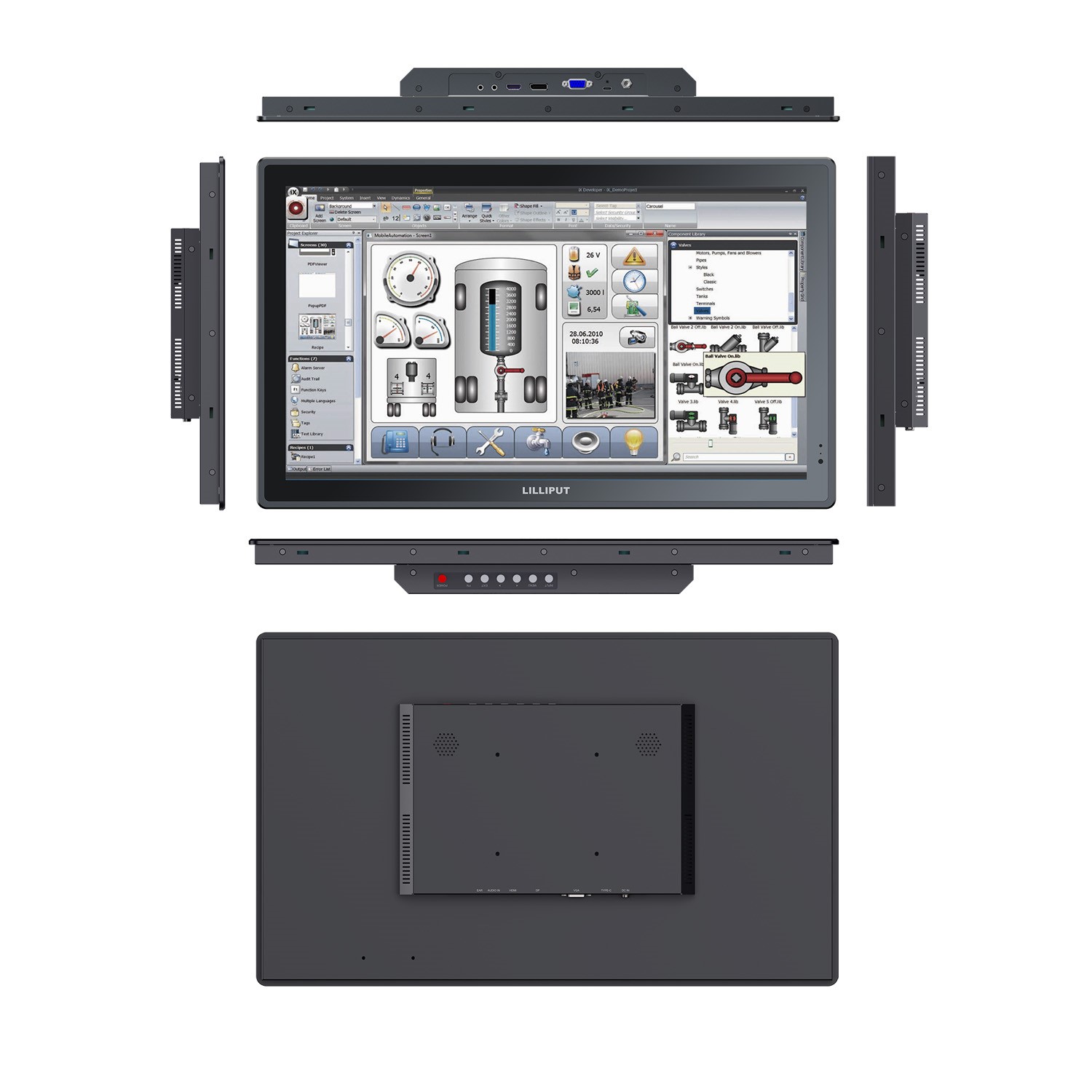

DIMENSION	Dimension(LWD)	587.4mm × 356.8mm × 54.9mm
	Weight	7.6kg
