TK700-NP/C/T _ 7 inch industrial open frame touch monitor

Short Description:

TK700-NP/C/T is a 7inch touch monitor with a high-brightness 1000 NIT (1000cdm²) display . It has a native resolution of WVGA 800 x 480 with support for signals up to 4K at 30 fps. The monitor is equipped with HDMI, VGA, and two RCA composite video inputs, 1/8″ audio input, 1/8″ headphone output, and a built-in speaker.

Whole device with metal housing design, support Open Frame for installation into industrial environments where a computer system is already in use and an extra built in display is required. It supports desktop and roof mount as well, which is a very strong piece of monitoring hardware for industrial and rugged installation.


  • Model: TK700-NP/C/T
  • Touch panel: 4-wire resistive
  • Display: 7 inch, 800×480, 1000nit
  • Interfaces: HDMI, VGA, composite
  • Feature: Metal Housing, support open Frame installation
  • Product Detail

    Specifications

    Accessories

    TK700 (1)

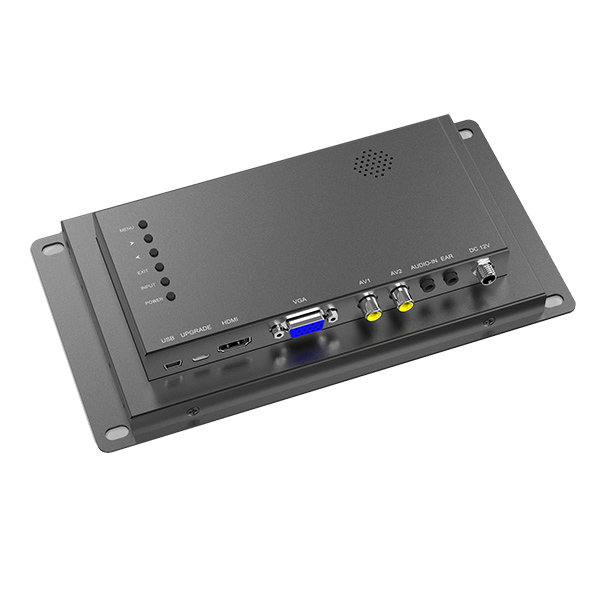

    Excellent Display &  Rich Interfaces

    Attractive 16:9 aspect ratio 7 inch panel, which features with 800×480 resolution, 4-wire resistive touch,

    140° / 120° wide viewing angles,  500:1 contrast and 1000 cd/m2 brightness, providing satisfied viewing

    experience. Coming with HDMI (support up to 4K 30Hz), VGA , AV & audio input signals to meet different

    needs of various professional display applications.

    TK700 (2)

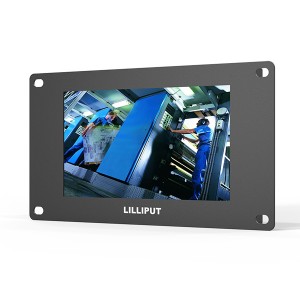

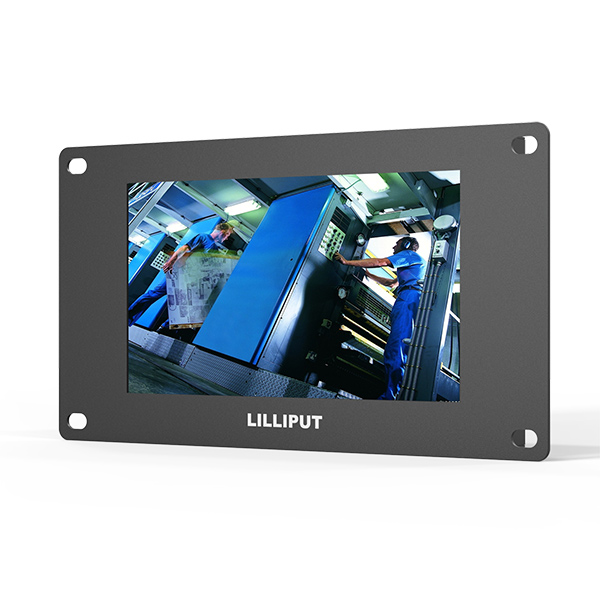

    Metal Housing & Open Frame

    Whole device with metal housing design, which make a good protection from damage, and good-looking appearance, also extend the

    lifetime of monitor.  Having a variety of mounting usage in plenty of fields, such as rear(open frame), wall, desktop and roof mounts.

    TK700-DM(1)_02

    Application Industries

    Metal housing design which can be applied in different professional fields. For instance, Human-machine interface, entertainment, retail,

    supermarket, mall, advertising player, CCTV monitoring, numerical control machine and intelligent industrial control system, etc.

    TK700-DM(1)_04

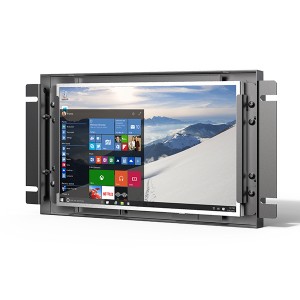

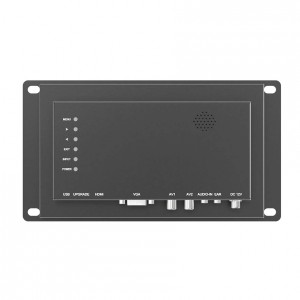

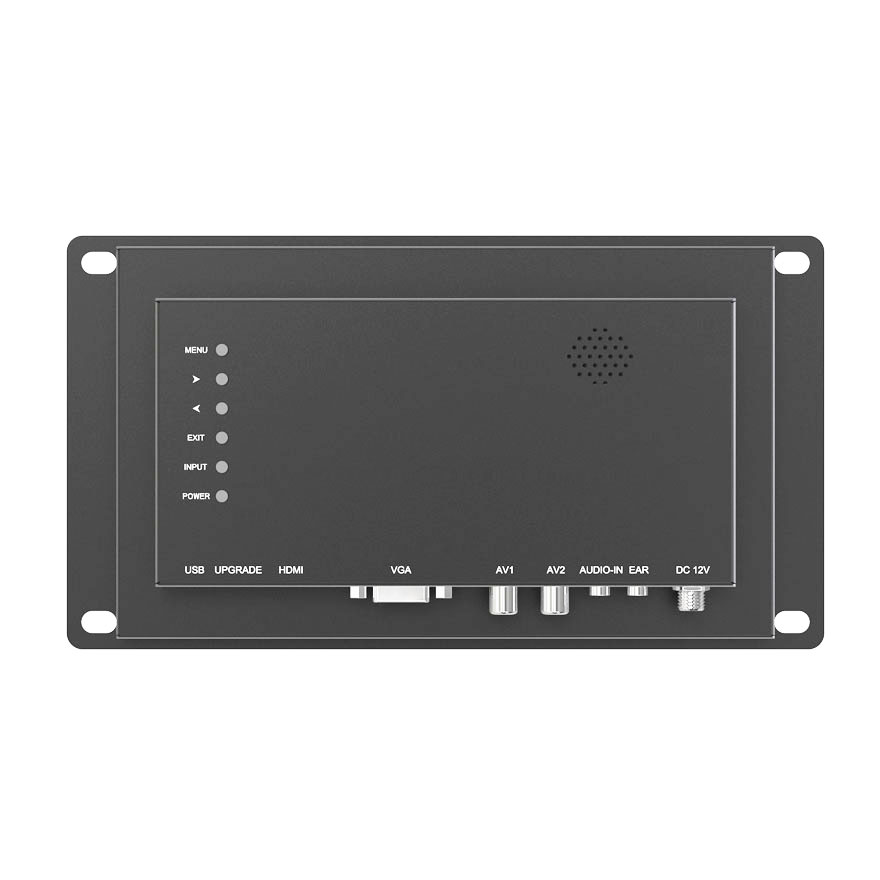

    Structure

    Supports rear mount (open frame) with integrated brackets. A metal housing design with slim and

    firm features making efficient integration into embedded or other professional display applications.

    TK700-DM(1)_05


  • Previous:
  • Next:

  • Display
    Touch panel 4-wire resistive
    Size 7”
    Resolution 800 x 480
    Brightness 1000cd/m²
    Aspect ratio 16:9
    Contrast 1000:1
    Viewing Angle 140°/120°(H/V)
    Video Input
    HDMI 1
    VGA 1
    Composite 2
    Supported In Formats
    HDMI 720p 50/60, 1080i 50/60, 1080p 50/60, , 2160p 24/25/30
    Audio Out
    Ear Jack 3.5mm - 2ch 48kHz 24-bit
    Built-in Speakers 1
    Power
    Operating power ≤4.5W
    DC In DC 12V
    Environment
    Operating Temperature -20℃~60℃
    Storage Temperature -30℃~70℃
    Other
    Dimension(LWD) 226.8×124×34.7 mm,  279.6×195.5×36.1mm(open frame)
    Weight 970g / 950g(open frame)

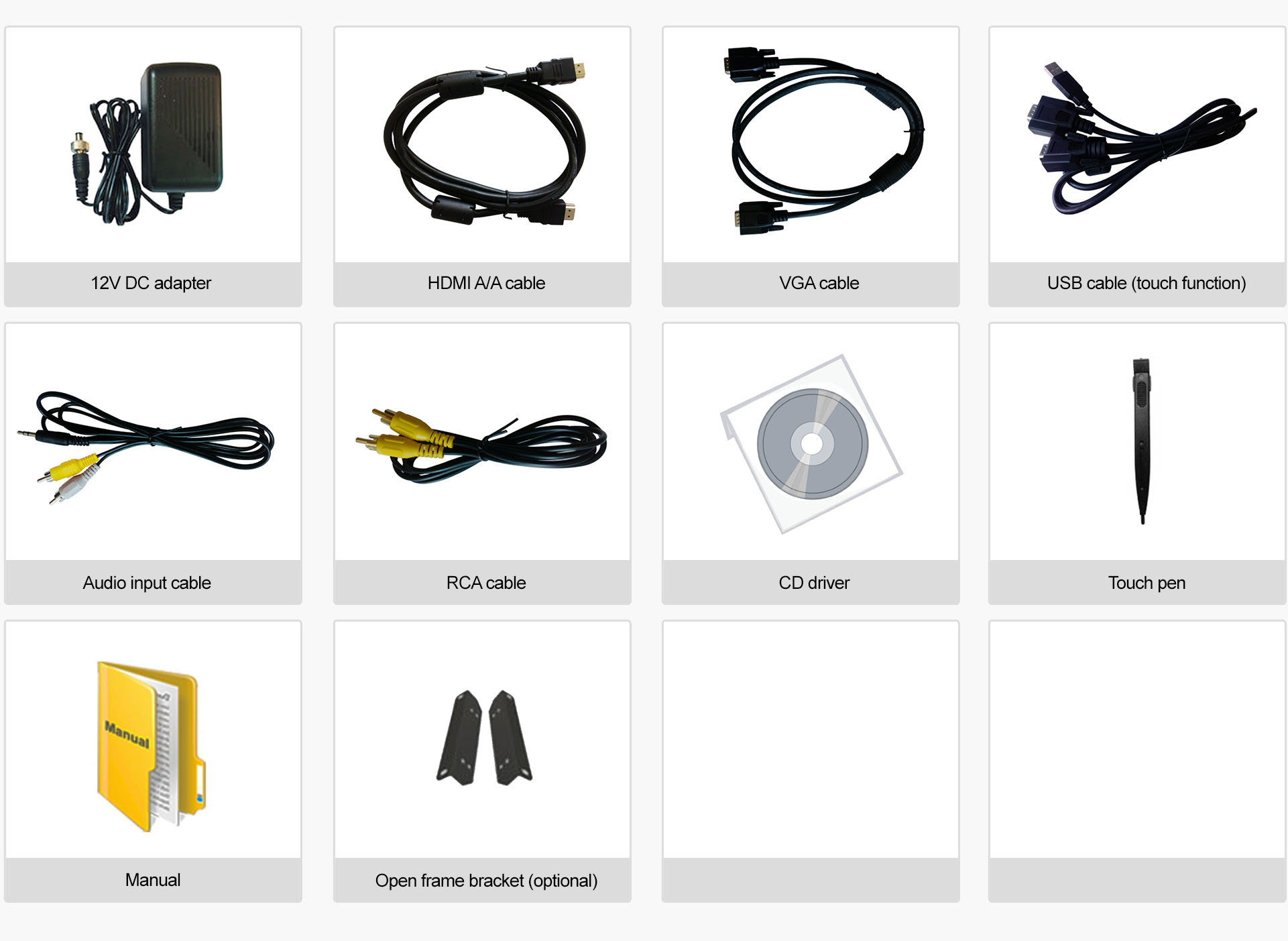

    TK700 accessories
