TK970-NP/C/T _ 9.7 inch industrial open frame touch monitor

Short Description:

Open frame design metal housing monitor with VESA & rear mounting methods, better protection in all kinds of cracking environment.For instance, Human-machine interface, entertainment, retail, supermarket, mall, advertising player, CCTV monitoring, numerical control machine and intelligent industrial control system, etc.


  • Model: TK970-NP/C/T
  • Touch panel: 5-wire resistive
  • Display: 9.7 inch, 1024×768, 350nit
  • Interfaces: HDMI, DVI, VGA, composite
  • Feature: Metal Housing, support open Frame installation
  • Product Detail

    Specifications

    Accessories

    TK970图_01

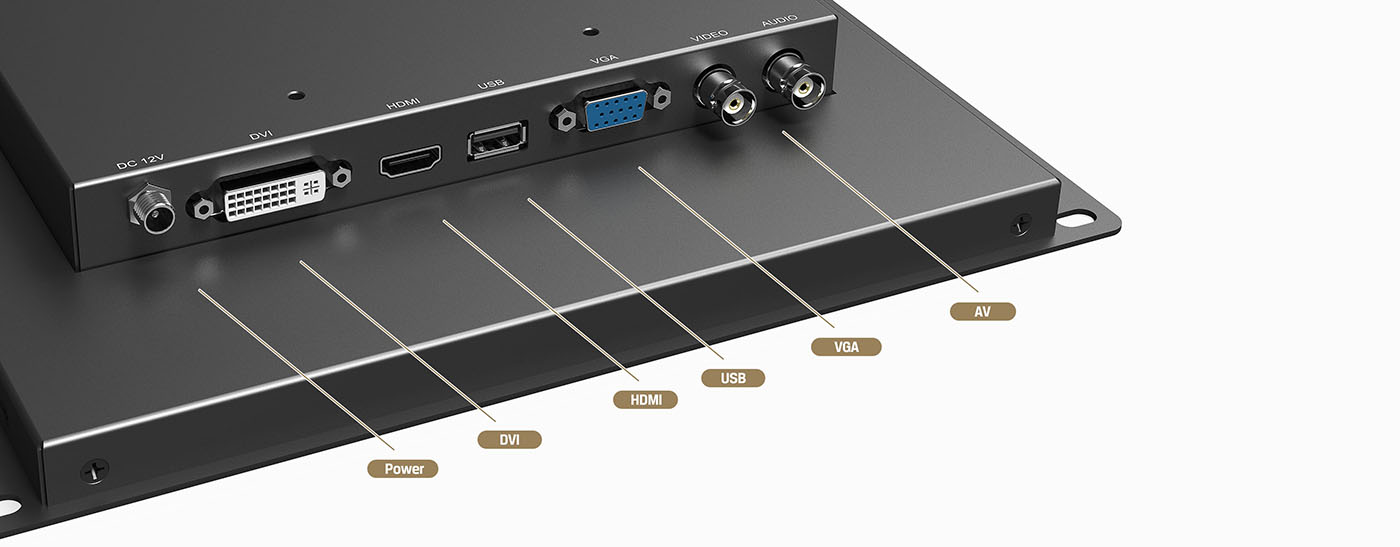

    Excellent Display &  Rich Interfaces

    Attractive 4:3 aspect ratio 9.7 inch IPS panel, which features with 1024×768 resolution, 5-wire resistive touch, 174°

    wide viewing angles, 900:1 contrast and 350cd/m2 brightness, providing satisfied viewing experience. Coming

    with HDMI, DVI, VGA & AV input signals to meet different needs of various professional display applications.

    TK970图_02

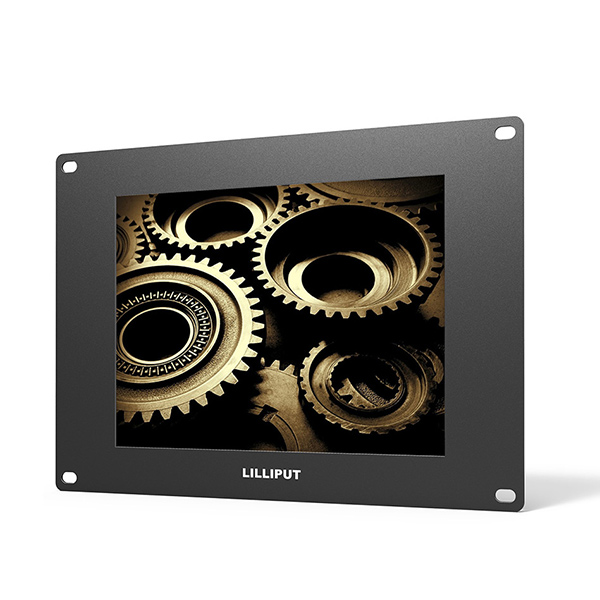

    Metal Housing & Open Frame

    Whole device with metal housing design, which make a good protection from damage, and good-looking appearance, also extend the lifetime

    of monitor.  Having a variety of mounting usage in plenty of fields, such as rear(open frame), wall, 75mm VESA, desktop and roof mounts.

    TK970图_03

    Application Industries

    Metal housing design which can be applied in different professional fields. For instance, Human-machine interface, entertainment, retail,

    supermarket, mall, advertising player, CCTV monitoring, numerical control machine and intelligent industrial control system, etc.

    TK970图_04

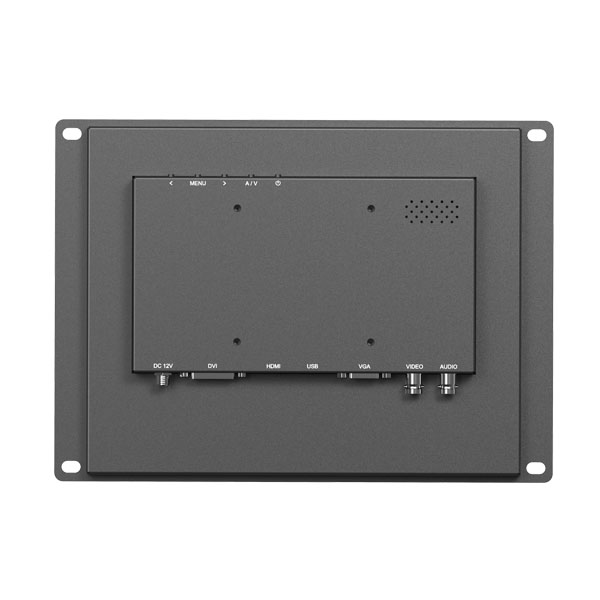

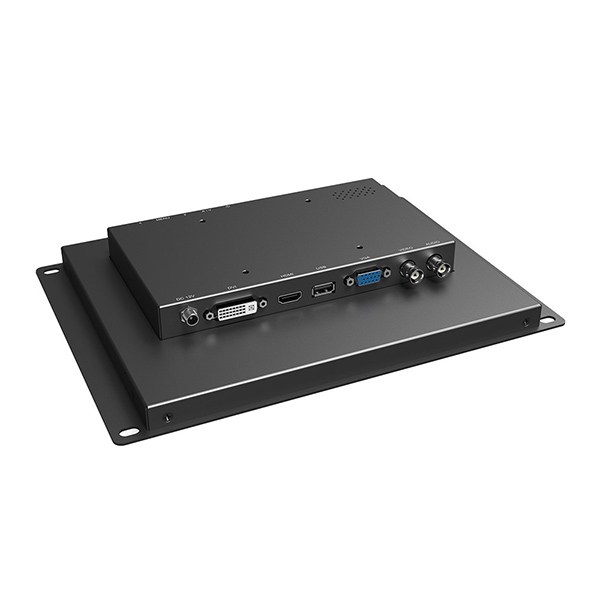

    Structure

    supports rear mount (open frame) with integrated brackets, and VESA 75mm standard, etc.

    A metal housing design with slim and firm features making efficient integration into embedded

    or other professional display applications.

    TK970图_05


  • Previous:
  • Next:

  • Display
    Touch panel 5-wire resistive
    Size 9.7”
    Resolution 1024 x 768
    Brightness 350cd/m²
    Aspect ratio 4:3
    Contrast 900:1
    Viewing Angle 174°/174°(H/V)
    Video Input
    HDMI 1
    DVI 1
    VGA 1
    Composite 1
    Supported In Formats
    HDMI 720p 50/60, 1080i 50/60, 1080p 50/60
    Audio Out
    Ear Jack 3.5mm - 2ch 48kHz 24-bit
    Built-in Speakers 1
    Power
    Operating power ≤10W
    DC In DC 7-24V
    Environment
    Operating Temperature -20℃~60℃
    Storage Temperature -30℃~70℃
    Other
    Dimension(LWD) 279.6×203.5×37.6mm,  279.6×195.5×36.1mm(open frame)
    Weight 1600g / 1300g(open frame)

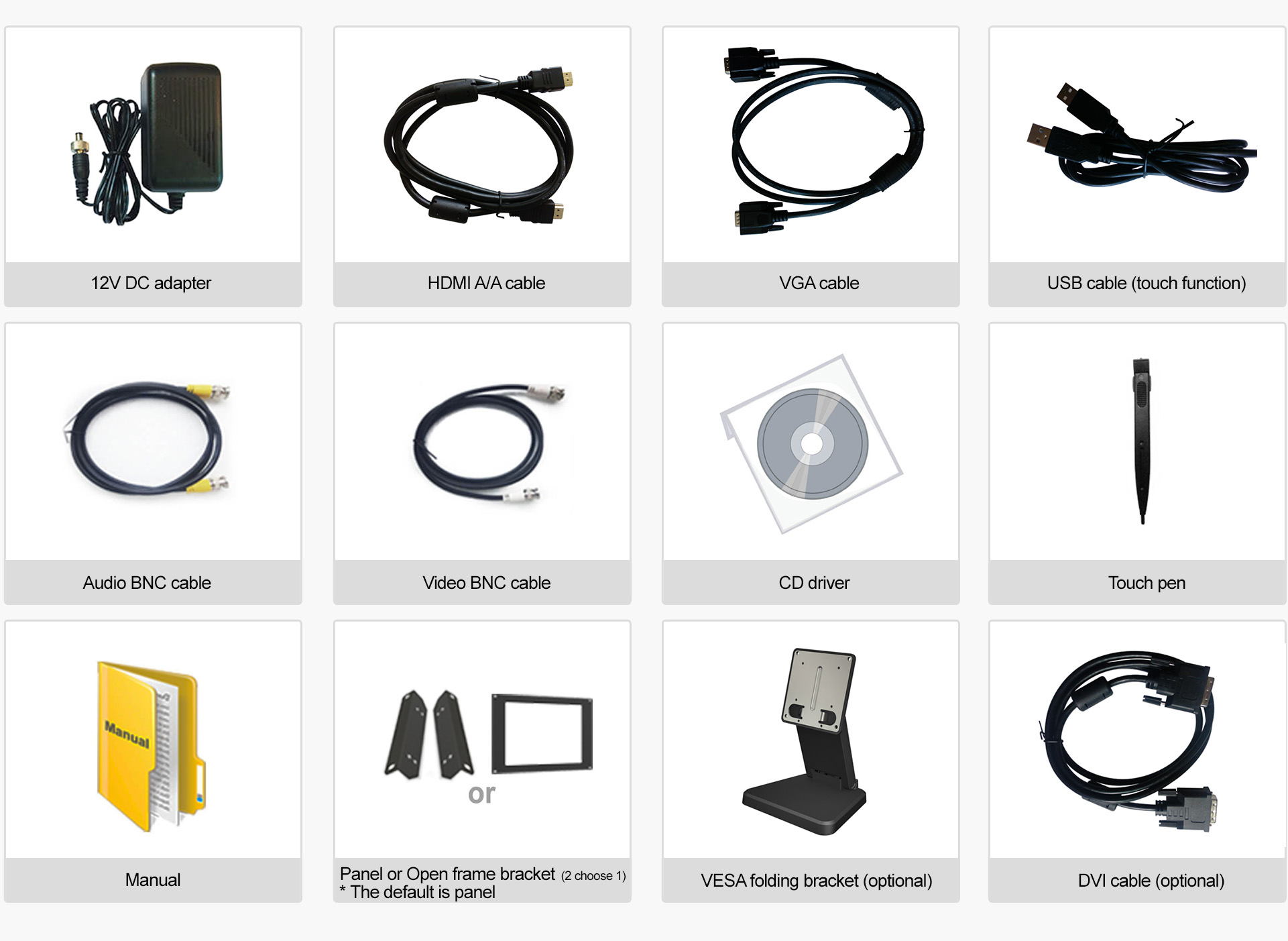

    TK970 accessories
