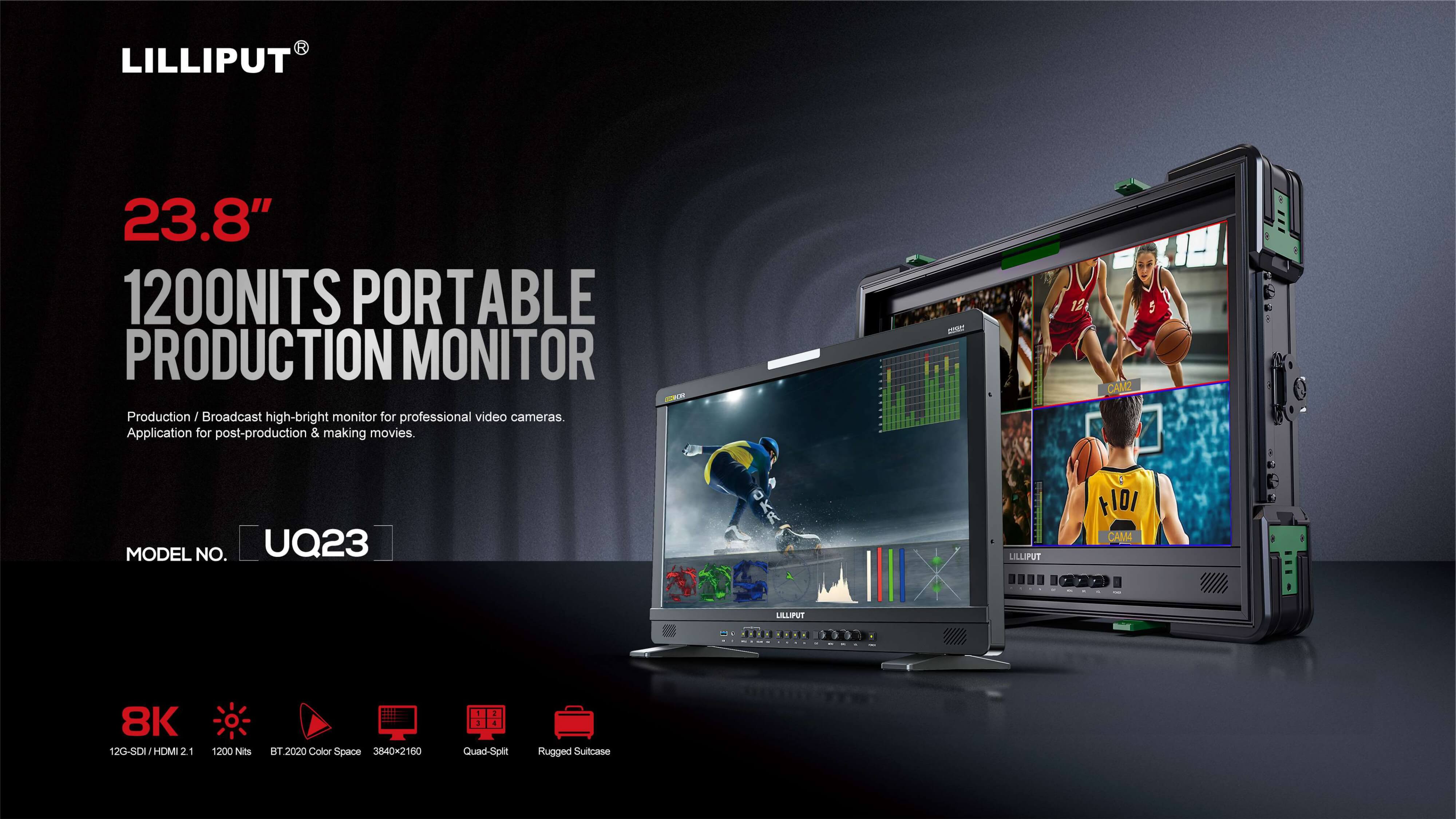

UQ23 23.8 inch 1200 nits high brightness studio production monitor with 8K 12G-SDI HDMI2.1
Production / Broadcast high-bright monitor for professional video cameras.
Application for post-production & making movies.

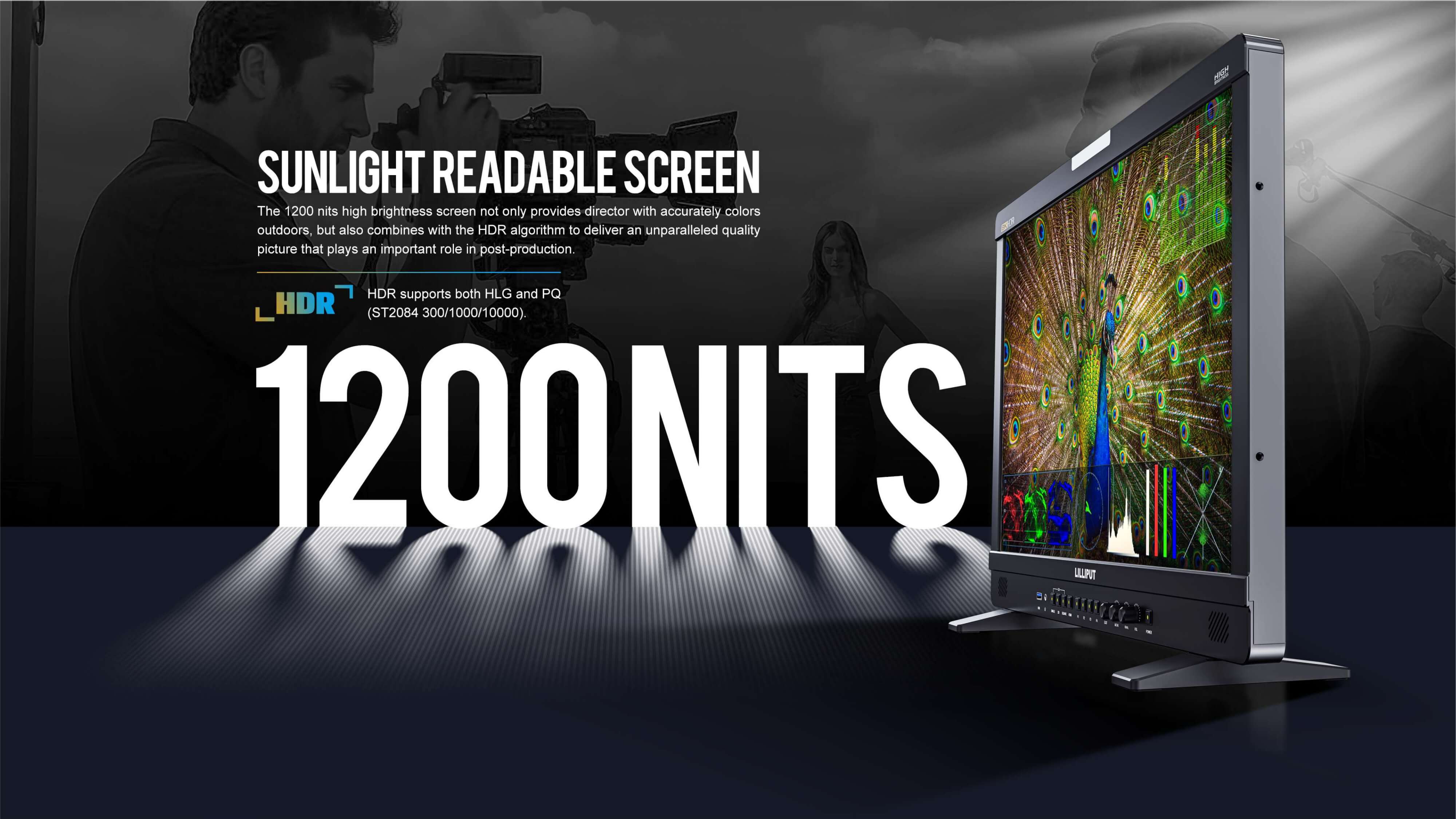

outdoors, but also combines with the HDR algorithm to deliver an unparalleled quality
picture that plays an important role in post-production.

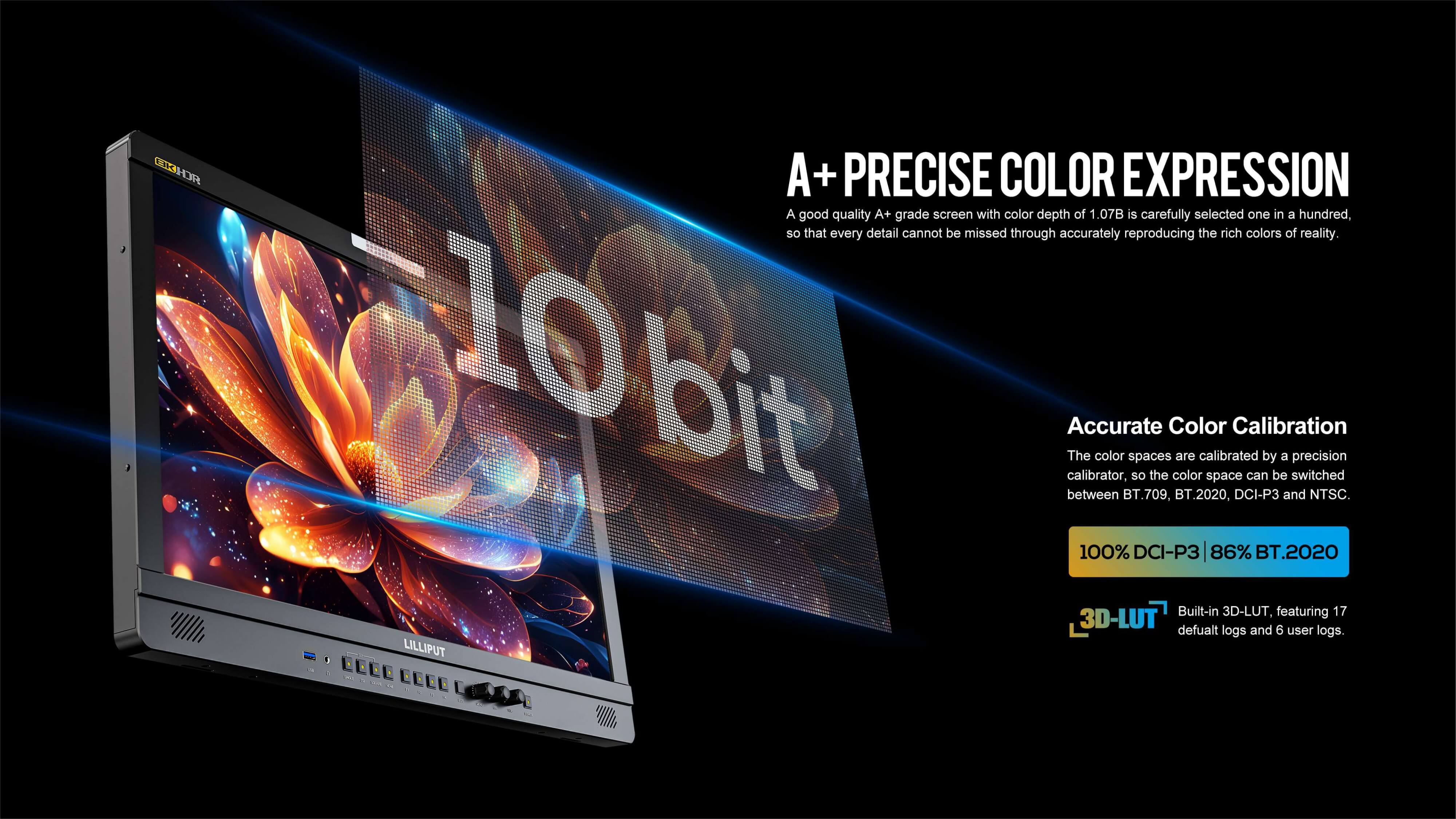

A good quality A+ grade screen with color depth of 1.07B is carefully selected one in a hundred,
so that every detail cannot be missed through accurately reproducing the rich colors of reality.
Accurate Color Calibration
The color spaces are calibrated by a precision
calibrator, so the color space can be switched
between BT.709, BT.2020, DCI-P3 and NTSC.

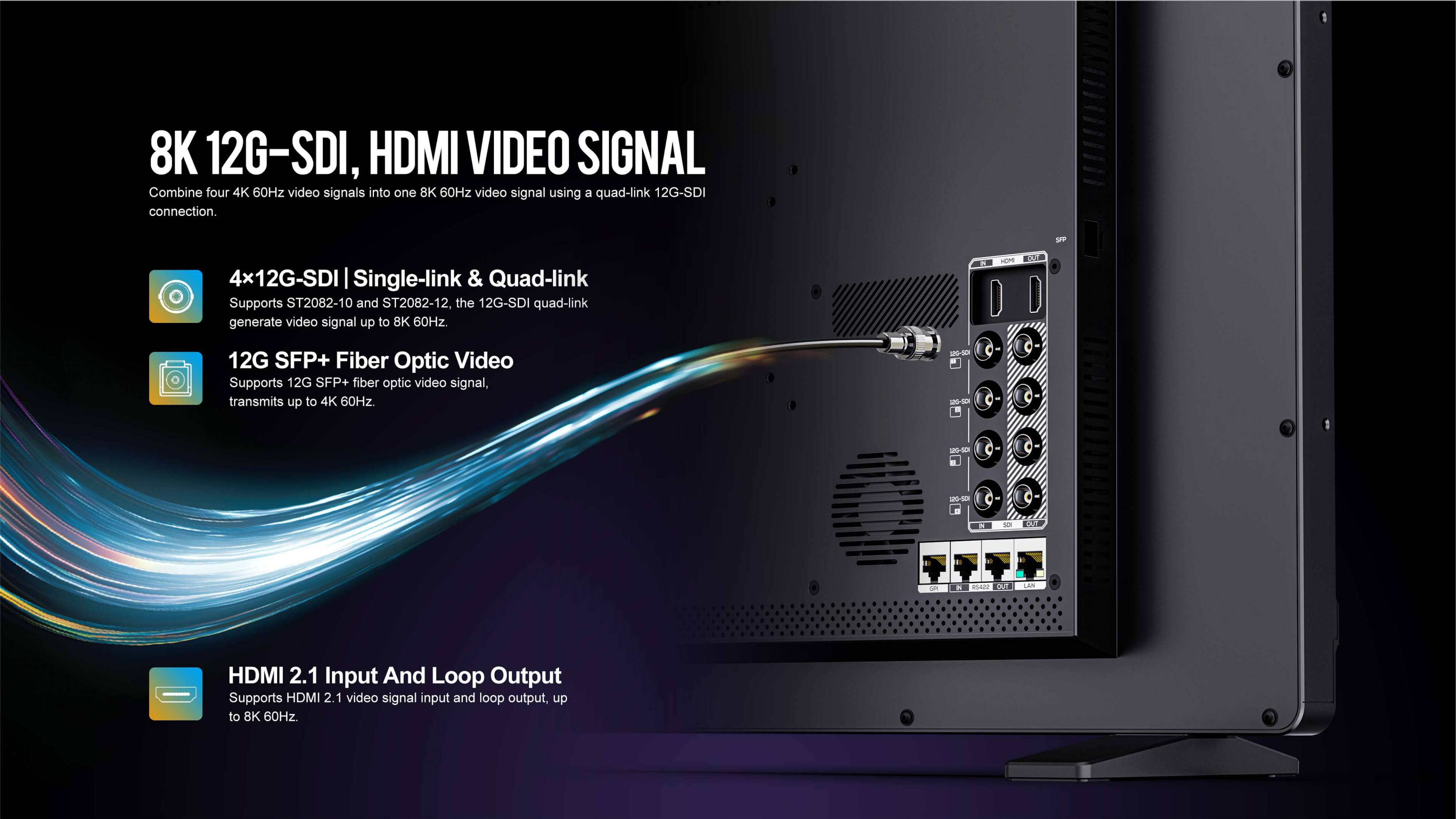

Combine four 4K 60Hz video signals into one 8K 60Hz video signal using a quad-link 12G-SDI
connection.

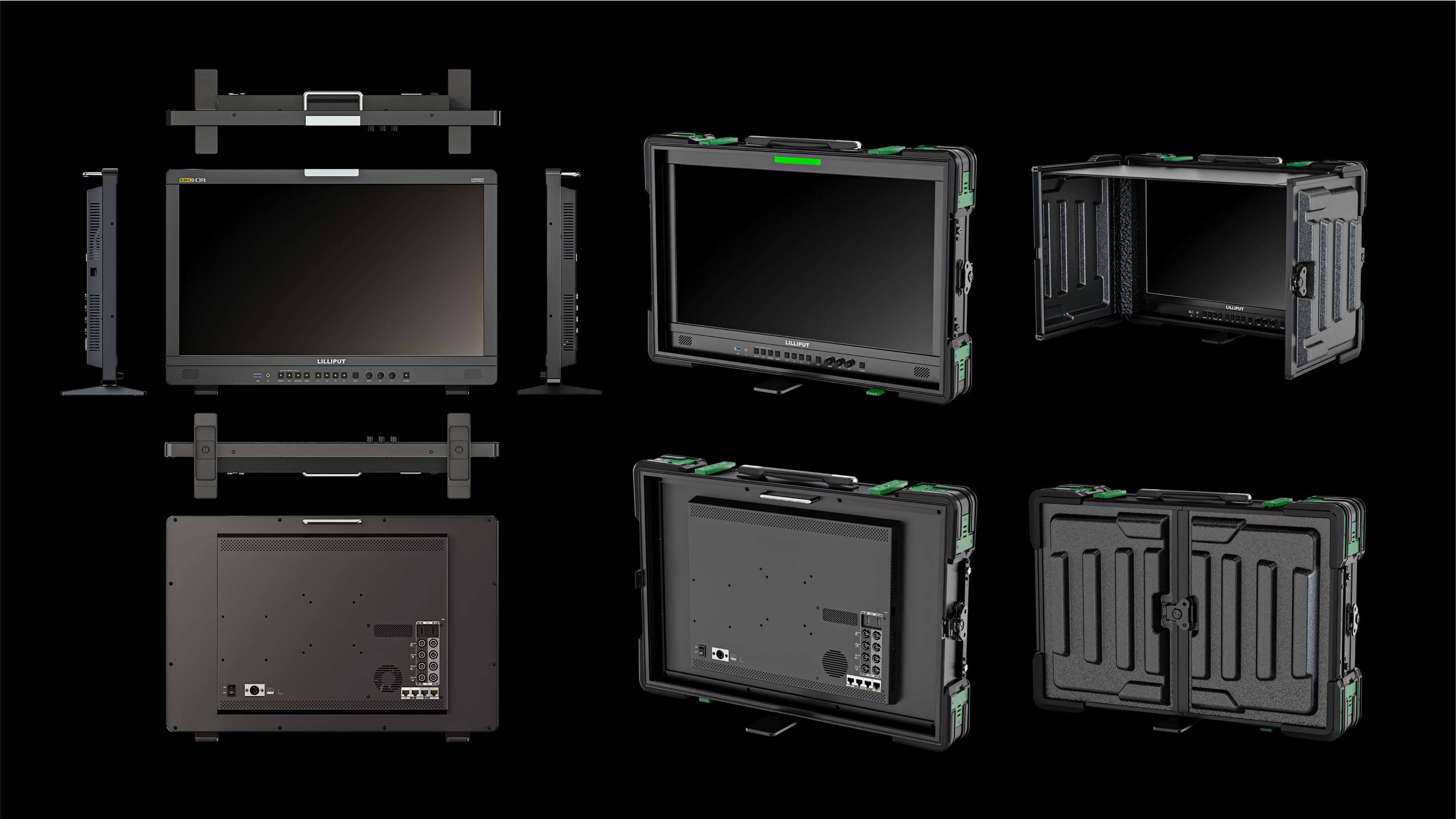

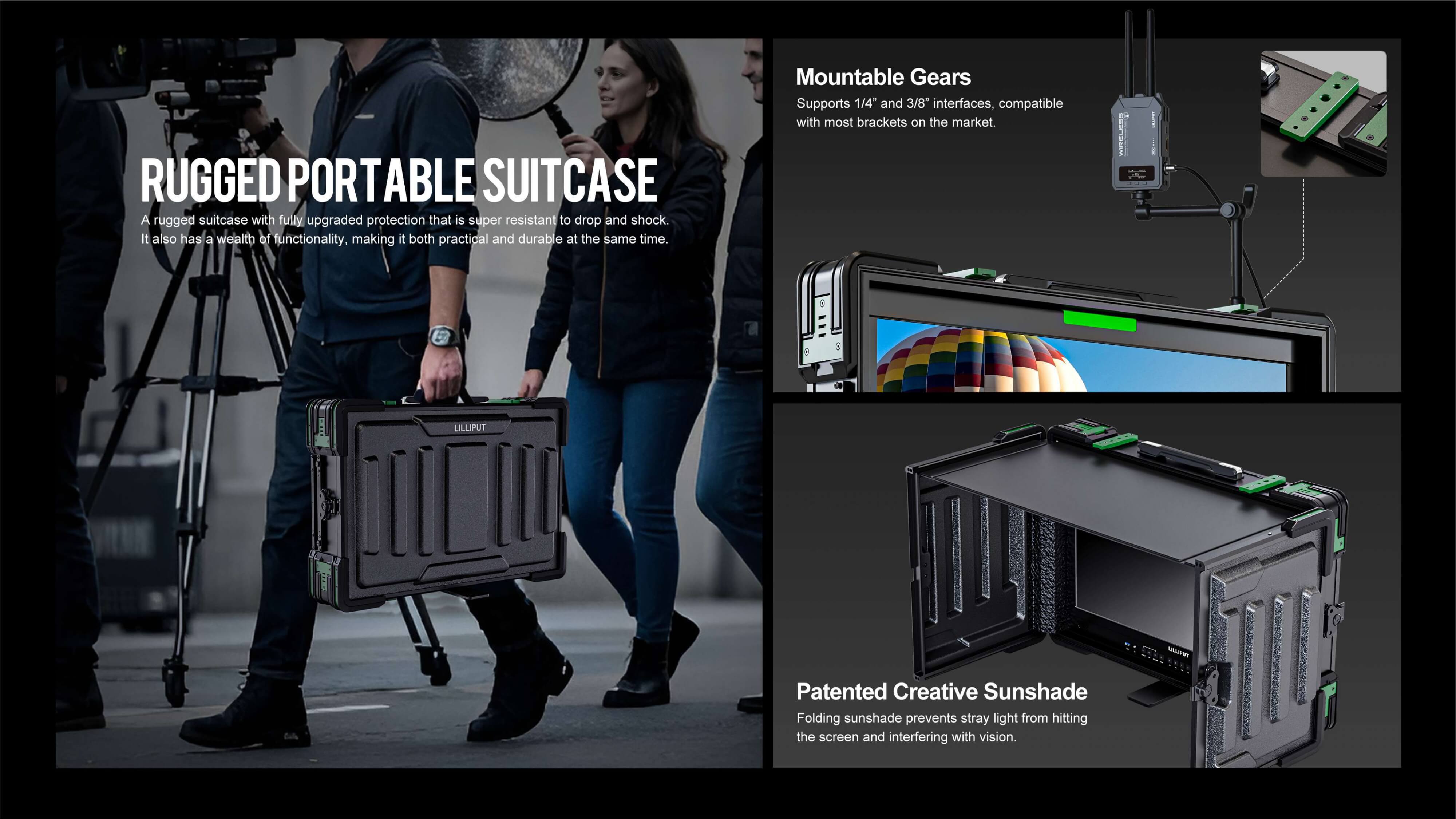

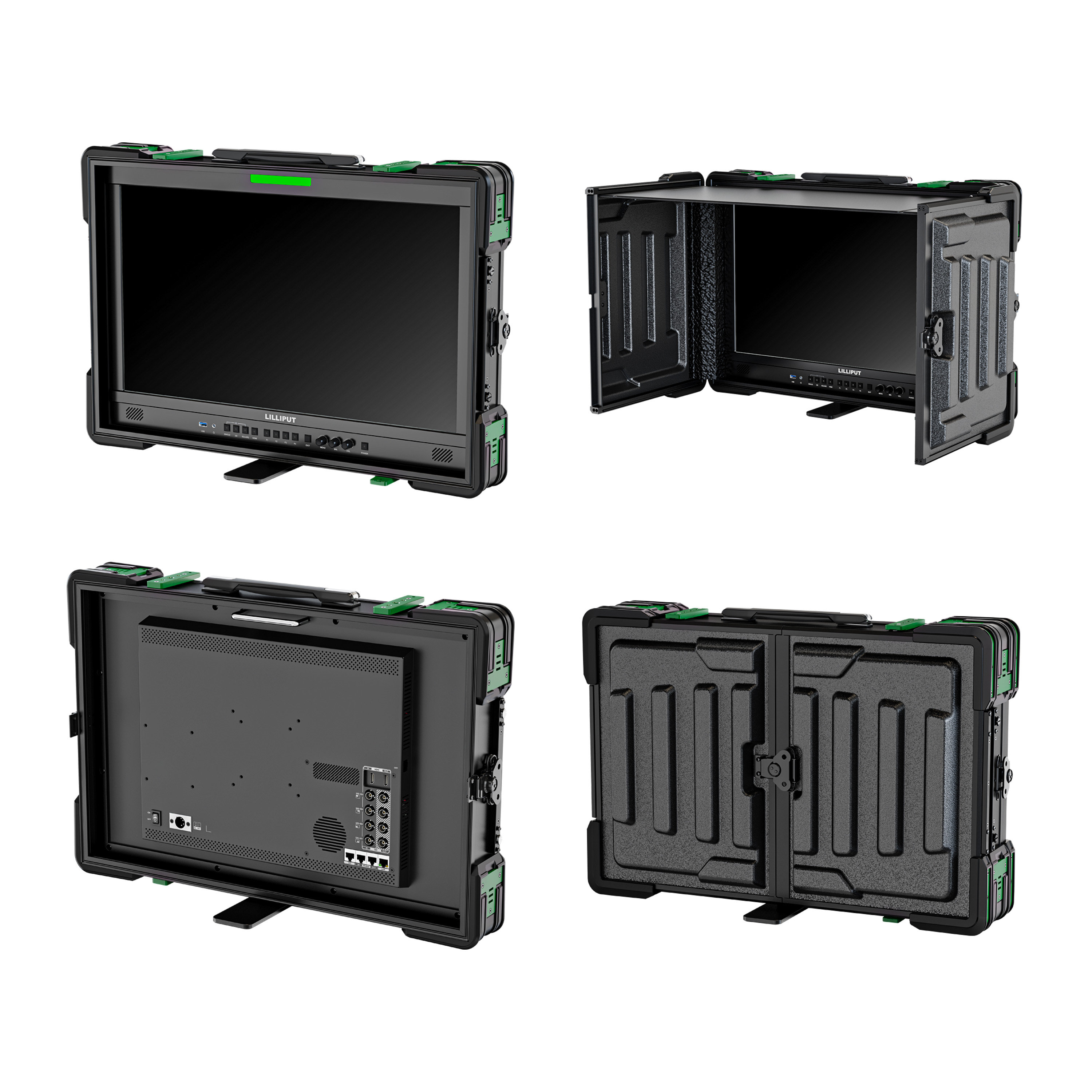

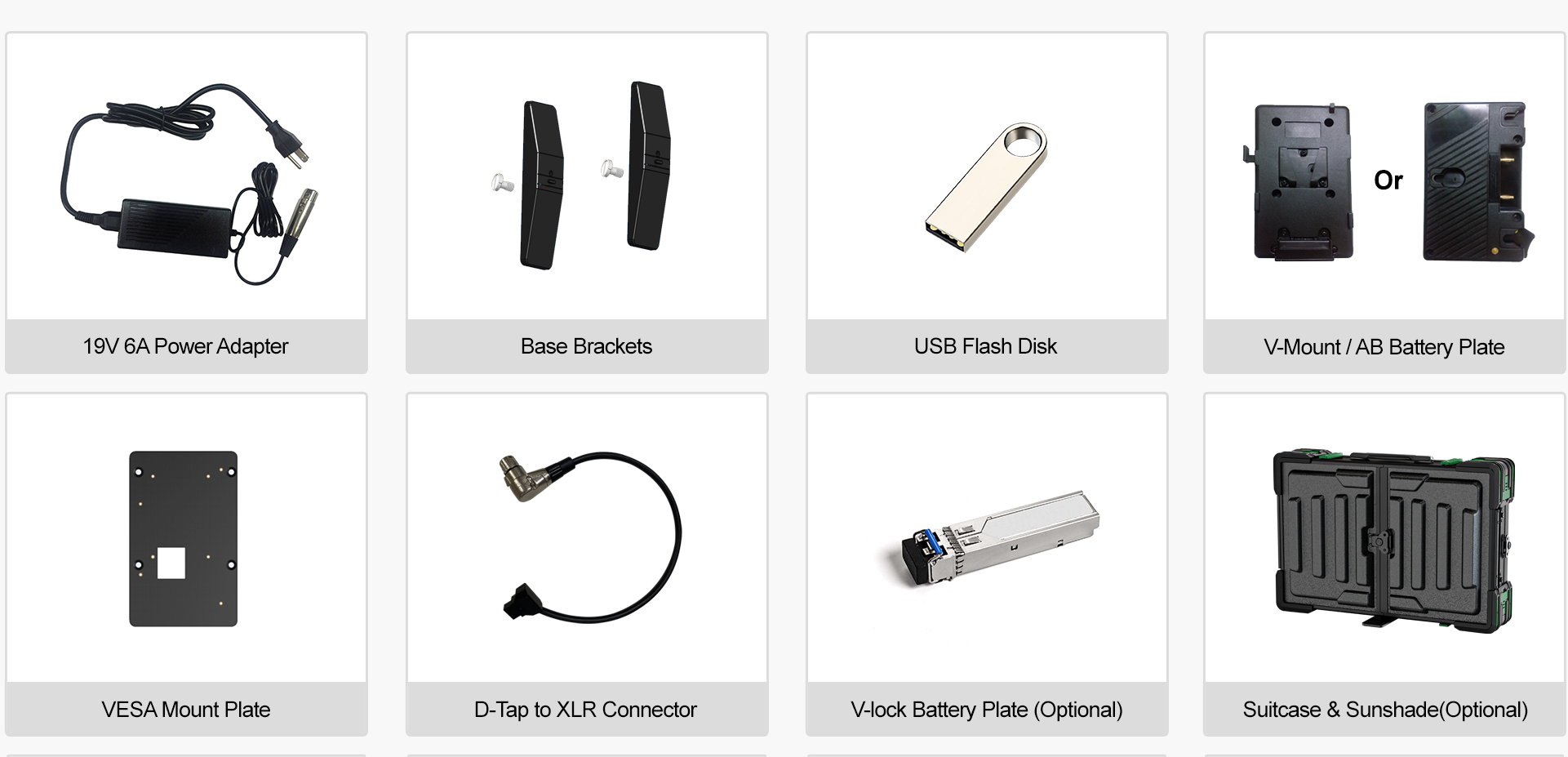

A rugged suitcase with fully upgraded protection that is super resistant to drop and shock.
It also has a wealth of functionality, making it both practical and durable at the same time.
Mountable Gears
Supports 1/4” and 3/8” interfaces, compatible
with most brackets on the market.

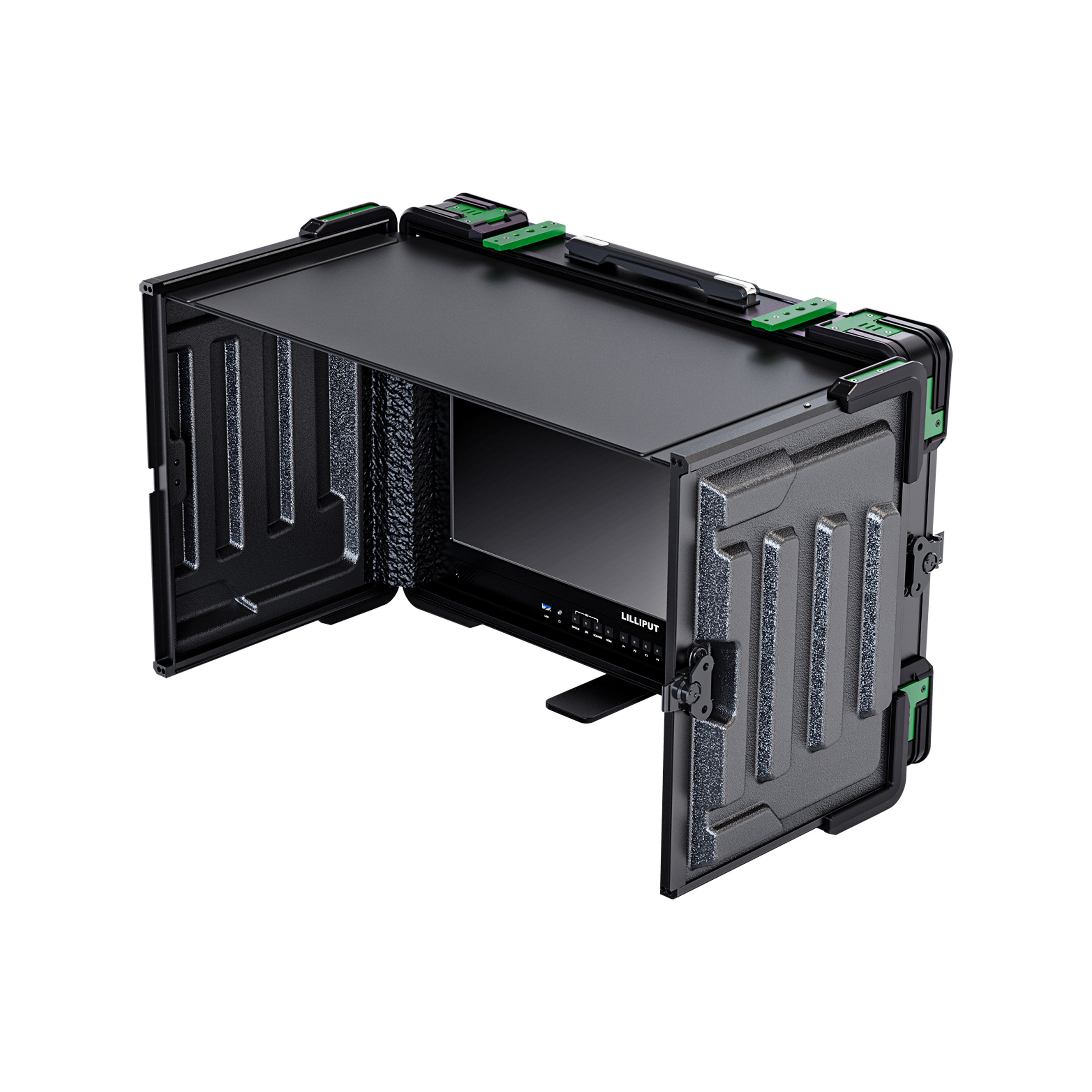

Patented Creative Sunshade
Folding sunshade prevents stray light from hitting
the screen and interfering with vision.

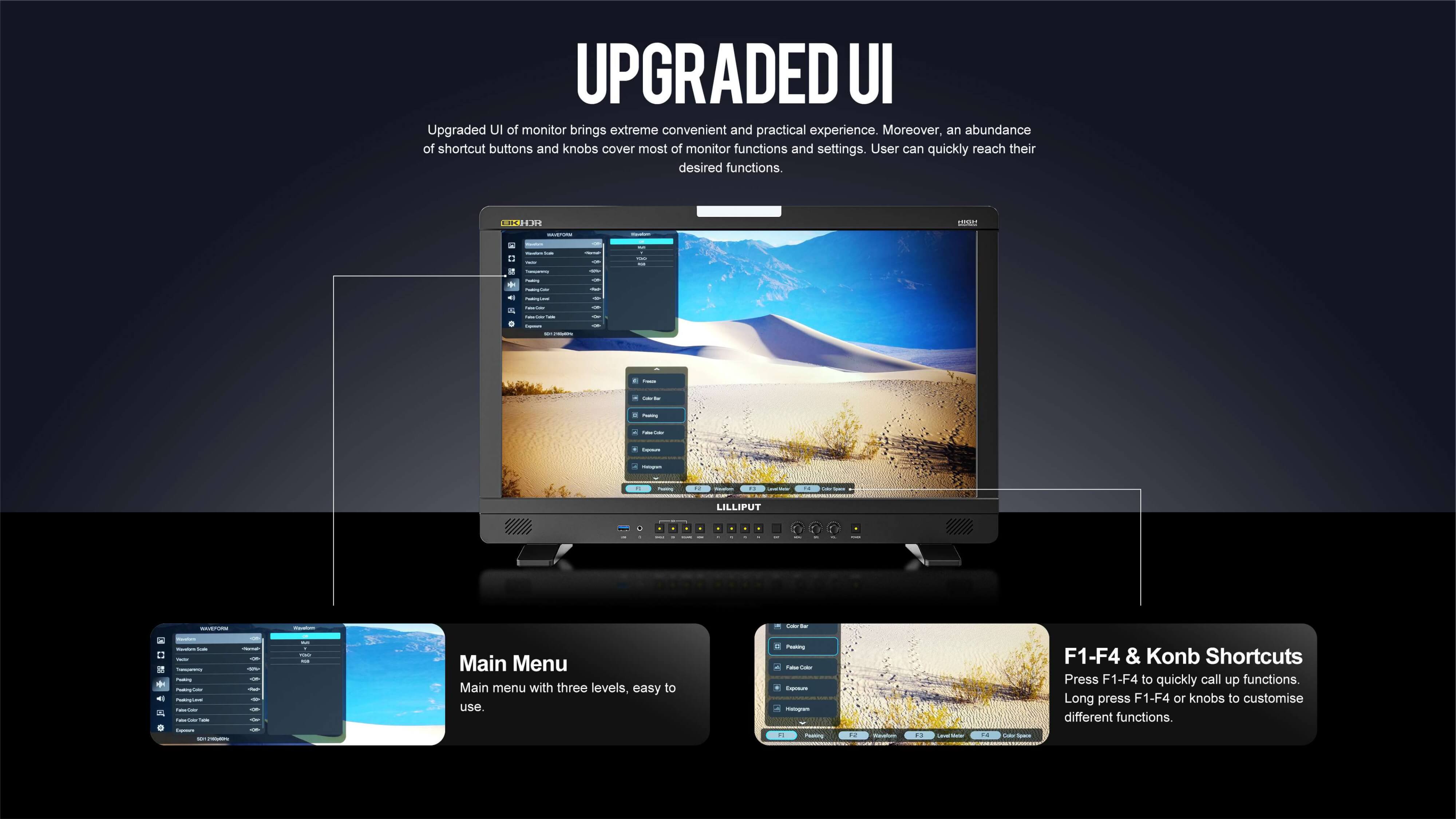

Upgraded UI of monitor brings extreme convenient and practical experience. Moreover, an abundance
of shortcut buttons and knobs cover most of monitor functions and settings. User can quickly reach their desired functions.
Main Menu
Main menu with three levels, easy to use.
F1-F4 & Konb Shortcuts
Press F1-F4 to quickly call up functions.
Long press F1-F4 or knobs to customise
different functions.

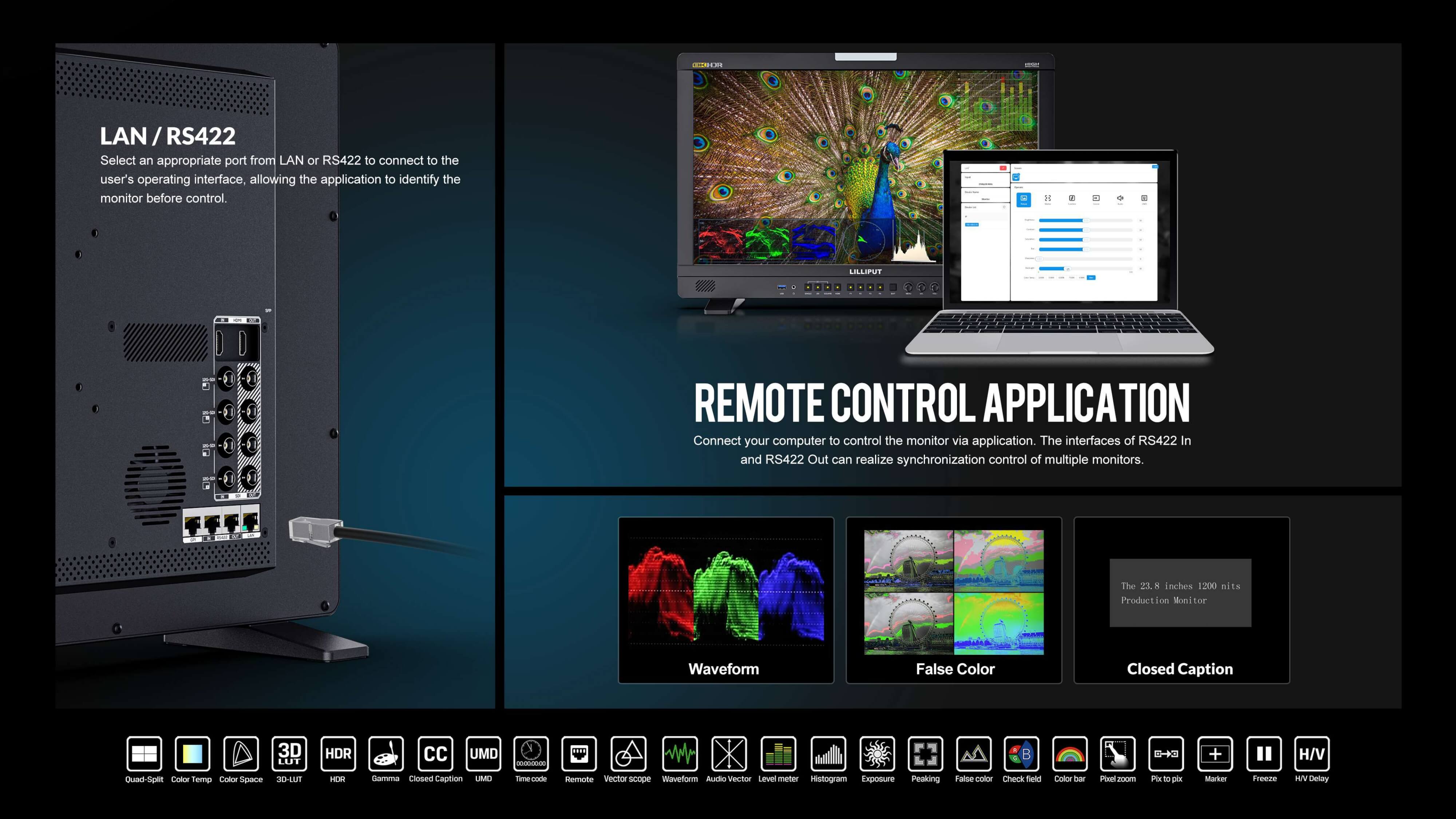

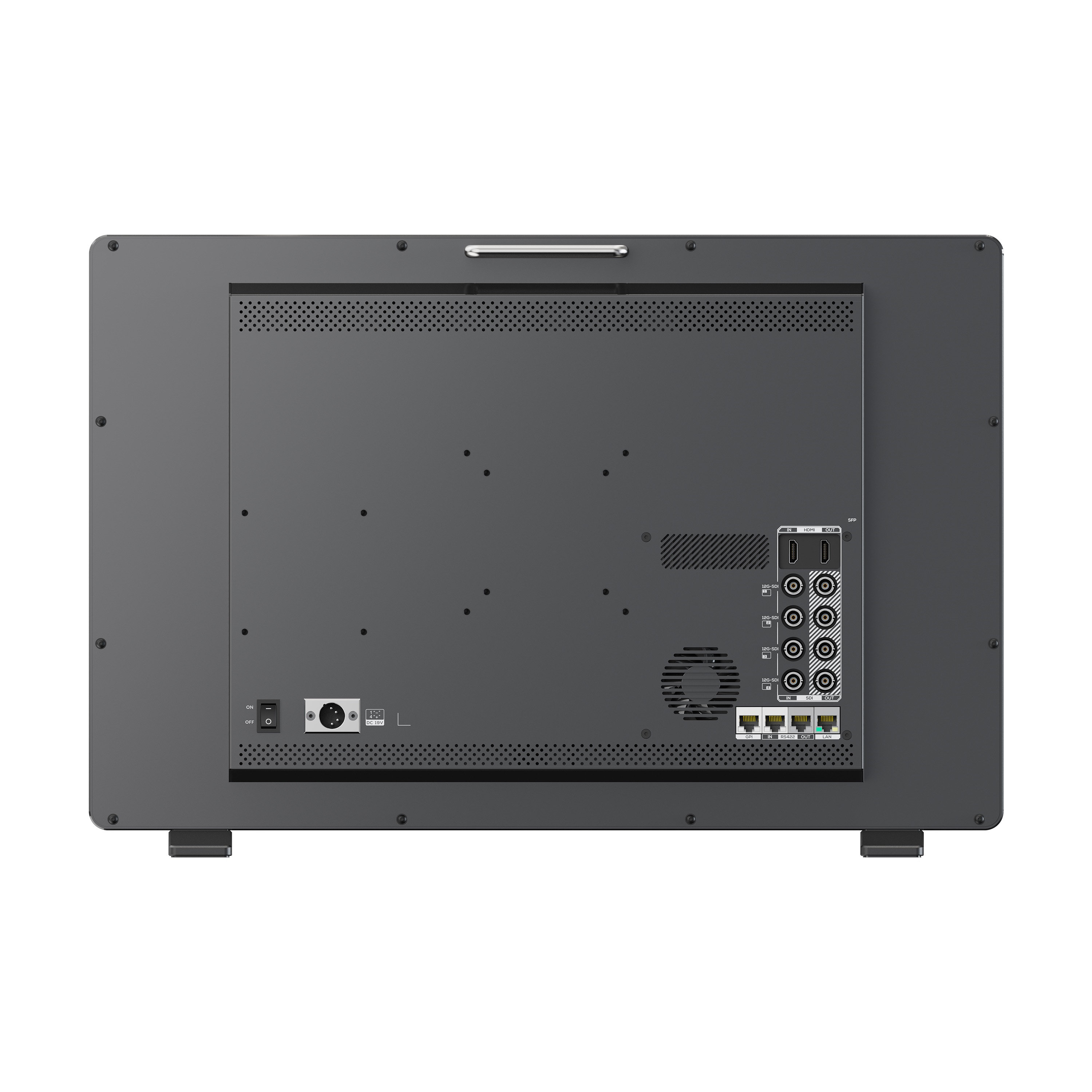

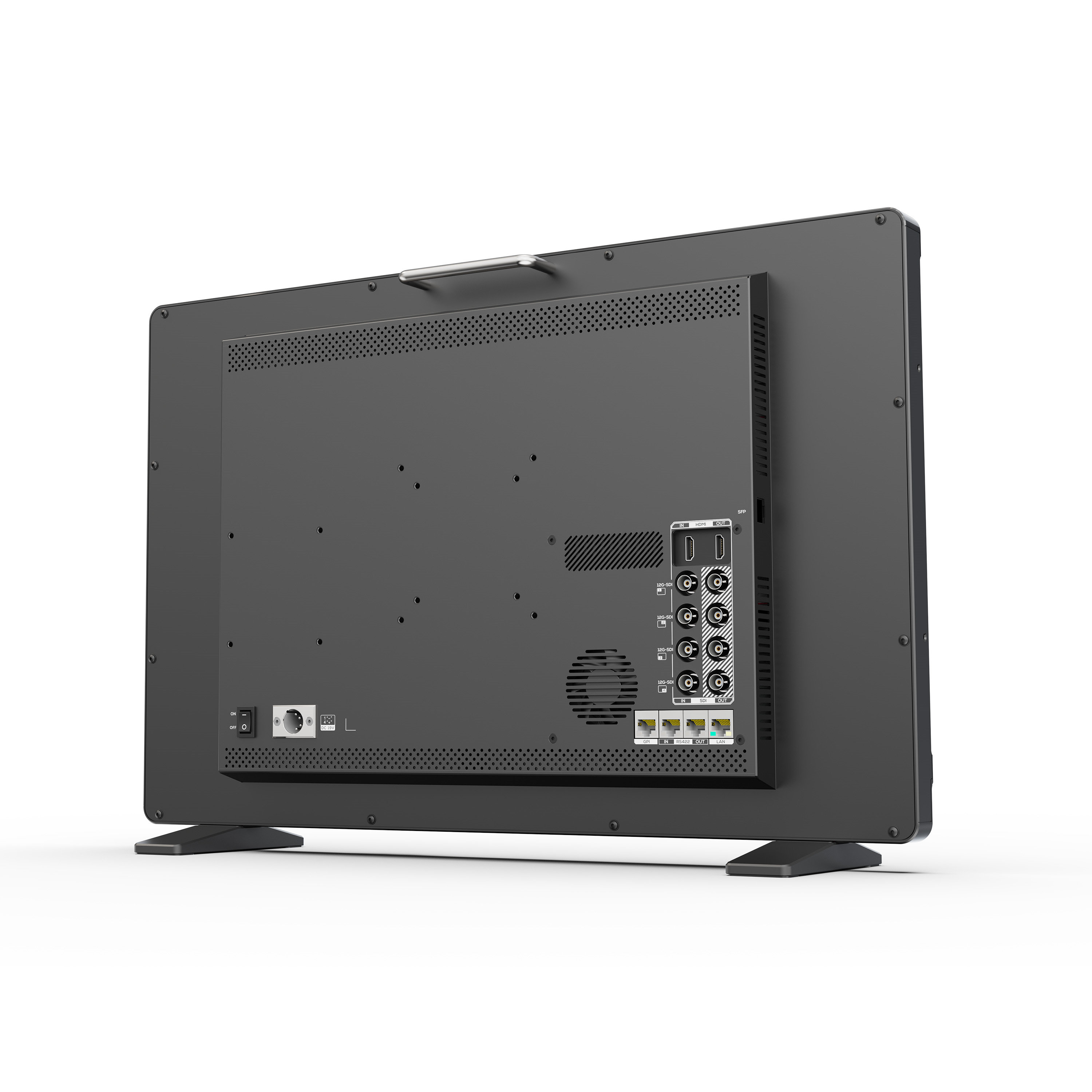

LAN/RS422
Select an appropriate port from LAN or RS422 to connect to the user's operating interface, allowing the application to identify the monitor before control.
Connect your computer to control the monitor via application. The interfaces of RS422 In
and RS422 Out can realize synchronization control of multiple monitors.

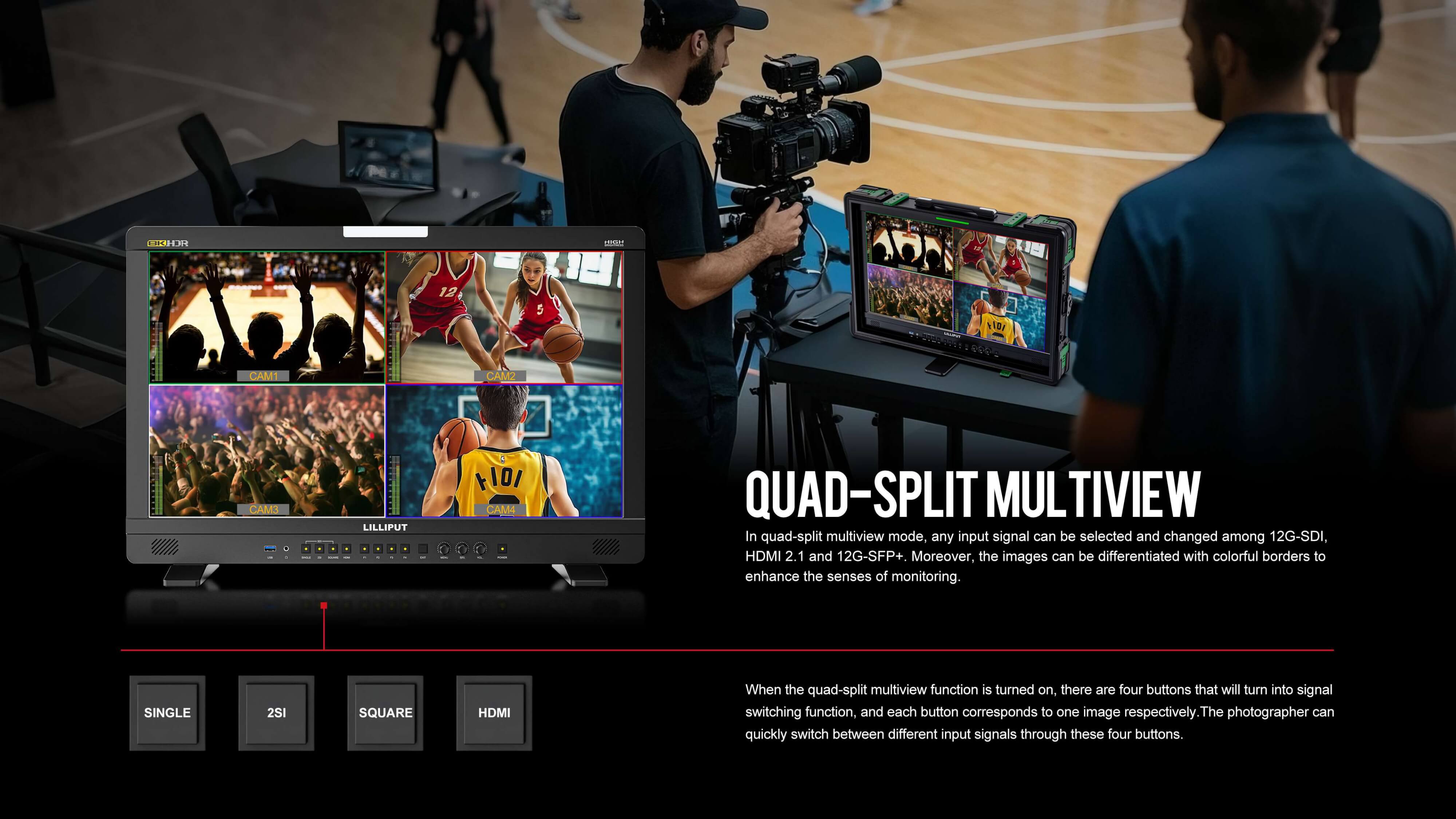

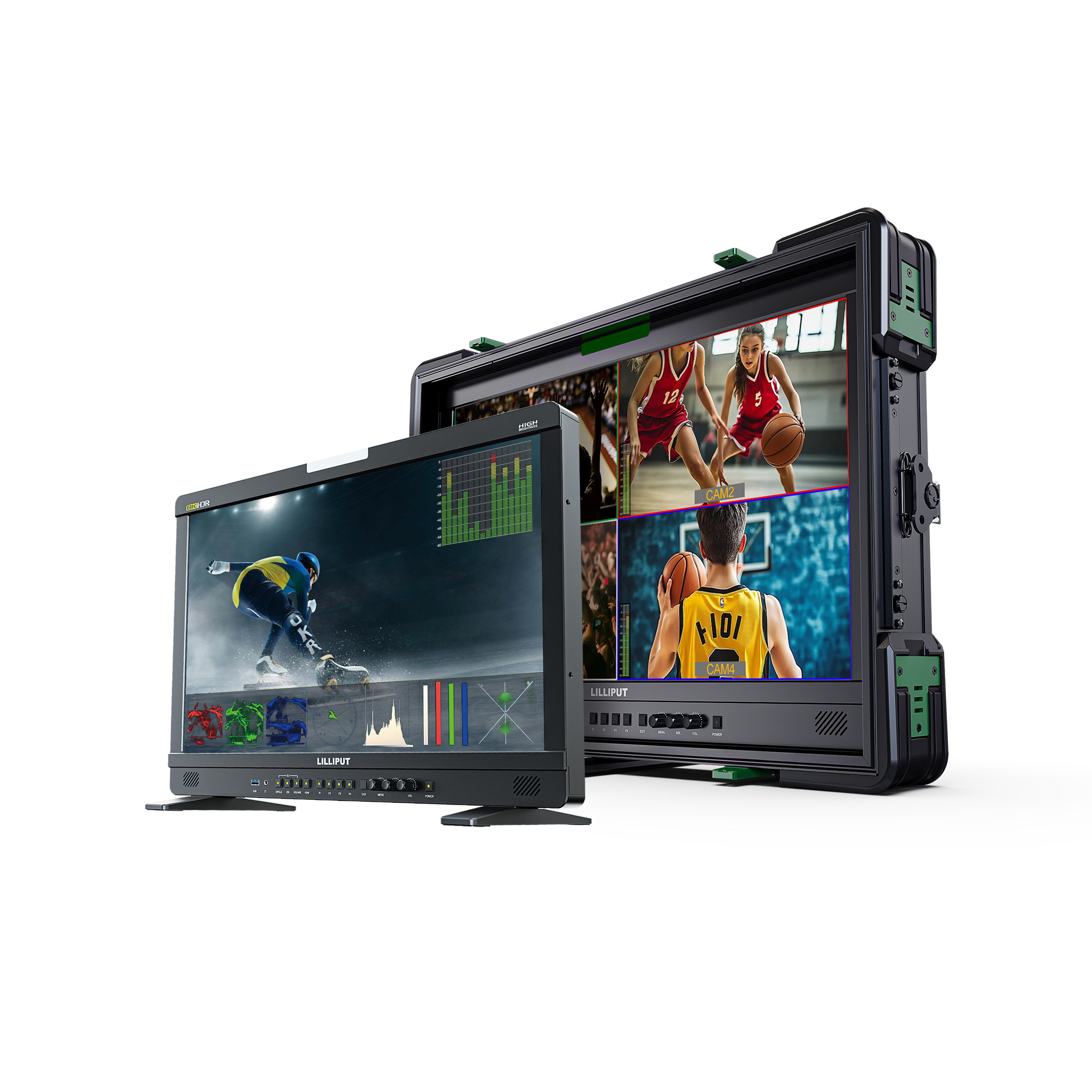

In quad-split multiview mode, any input signal can be selected and changed among 12G-SDI,
HDMI 2.1 and 12G-SFP+. Moreover, the images can be differentiated with colorful borders to
enhance the senses of monitoring.
When the quad-split multiview function is turned on, there are four buttons that will turn into signal switching function, and each button corresponds to one image respectively.The photographer can quickly switch between different input signals through these four buttons.

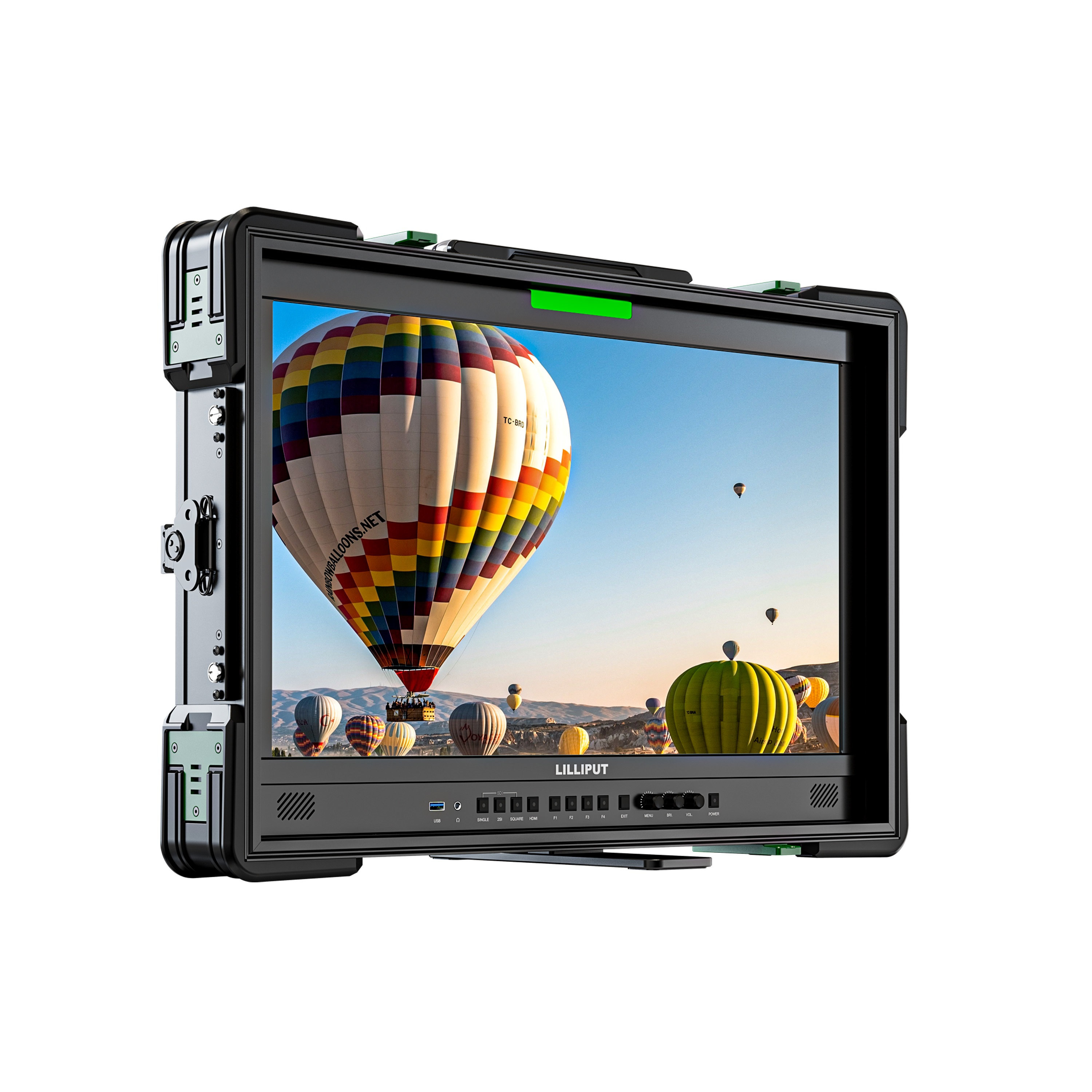

A portable production monitor designed for outdoor filmmaking/broadcast live, the 1200 nits of
high brightness screen effectively combats sunlight and allows for accurate color reproduction.
A high brightness 4K monitor with HDR is critical in film and video post-production to ensure accurate color
grading, detail precision, and consistency across deliverables. Monitors must also feature advanced video
connectivity and support more than 10 bit color depth to prevent banding.
| DISPLAY | Panel | 23.8″ |
| Physical Resolution | 3840*2160 | |
| Aspect Ratio | 16:9 | |
| Brightness | 1200 cd/m² | |
| Contrast | 1000：1 | |
| Viewing Angle | 178°/178°（H/V) | |
| HDR | ST2084 300/1000/10000/HLG | |
| Supported Log Formats | SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User… | |
| Look up Table(LUT)support | 3D LUT (.cube format) | |
| Calibration | Calibrate color space to Rec.709, DCI-P3, NTSC, BT.2020 | |
| VIDEO INPUT | SDI | 4×12G (Supported 8K-SDI Formats Quad Link) |
| SFP | 1×12G SFP+(Fiber module for optional) | |
| HDMI | 1×HDMI 2.1 (Supported 8K-HDMI Formats) | |
| VIDEO LOOP OUTPUT | SDI | 4×12G (Supported 8K-SDI Formats Quad Link) |
| HDMI | 1×HDMI 2.0 (Supported 8K-HDMI Formats) | |
| SUPPORTED FORMATS | SDI | 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60… |
| SFP | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60… | |
| HDMI | 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60… | |
| AUDIO IN/OUT (48kHz PCM AUDIO) | SDI | 16ch 48kHz 24-bit |
| HDMI | 8ch 24-bit | |
| Ear Jack | 3.5mm | |
| Built-in Speakers | 2 | |
| REMOTE CONTROL | RS422 | In/out |
| GPI | 1 | |
| LAN | 1 | |
| POWER | Input Voltage | DC 15-24V |
| Power Consumption | ≤90W (19V) | |
| ENVIRONMENT | Operating Temperature | 0℃~50℃ |
| Storage Temperature | -20℃~60℃ | |
| OTHER | Dimension(LWD) | 576.6mm × 375.5mm × 53.5mm632.4mm × 431.3mm × 171mm |
| Weight | 7.7kg / 17.8kg (with suitcase) |
