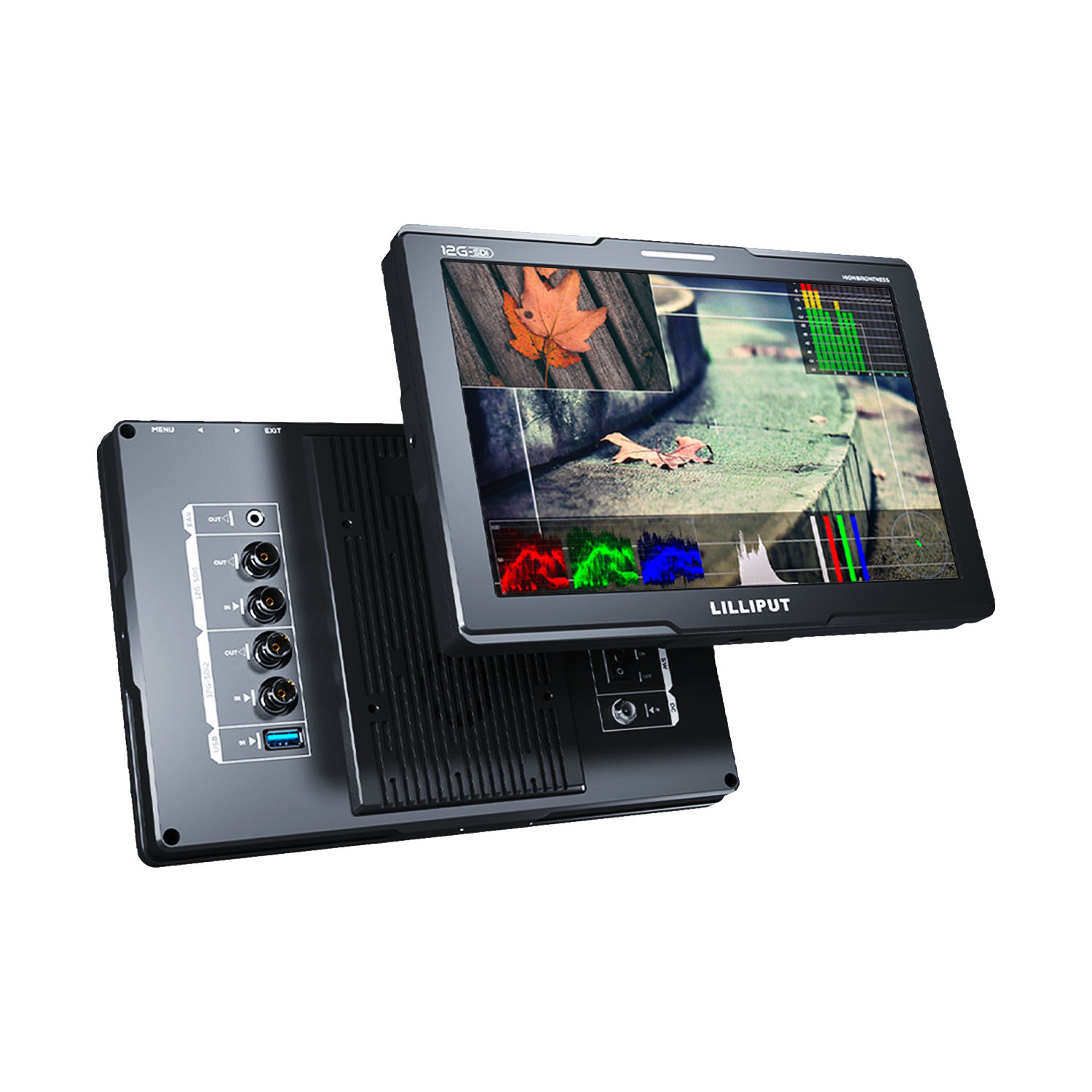

10.1inch 1500nits HDMI2.0 / 12G-SDI Ultra Brightness On-Camera Monitor

Short Description:

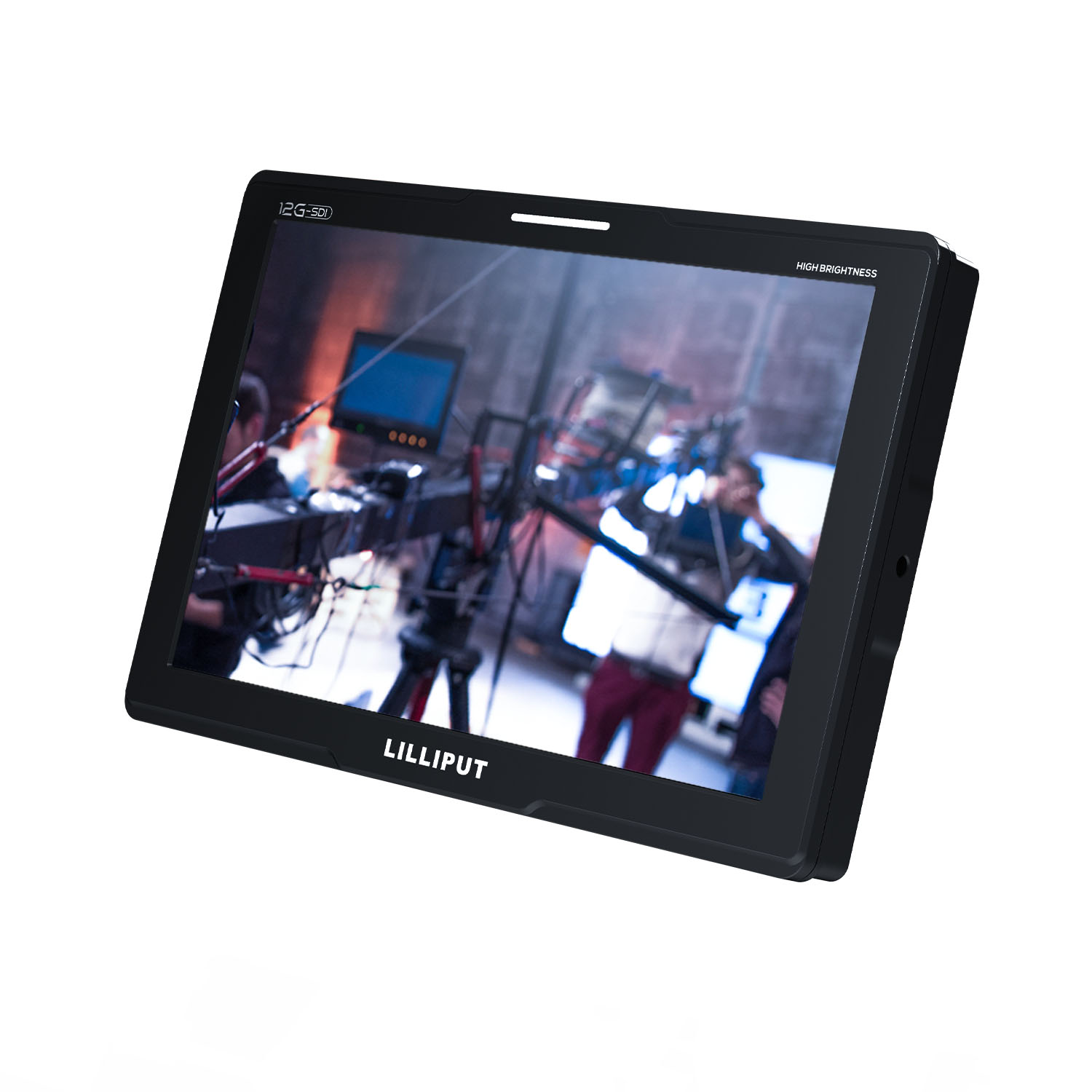

Q10 is a professional camera-top monitor came with an amazing 1500 nits Ultra Bright LCD screen, specifically for photography and film maker, especially for outdoor video and film shooting.This 10.1 inch LCD monitor has 1920×1200 Full HD native resolution and 1200:1 high contast providing superior picture quality, and support 4K HDMI 2.0 and 12G-SDI signal inputs and loop outputs. It is possible to receive 2× 12G-SDI signals and diaplay at the same time through the picture-in-picture function, the size and position of which can be adjusted.And HDMI signals up to 4K 60Hz which is compatible with the latest DSLR cameras on the market with an HDMI 2.0 interface.




  • Model:: Q10

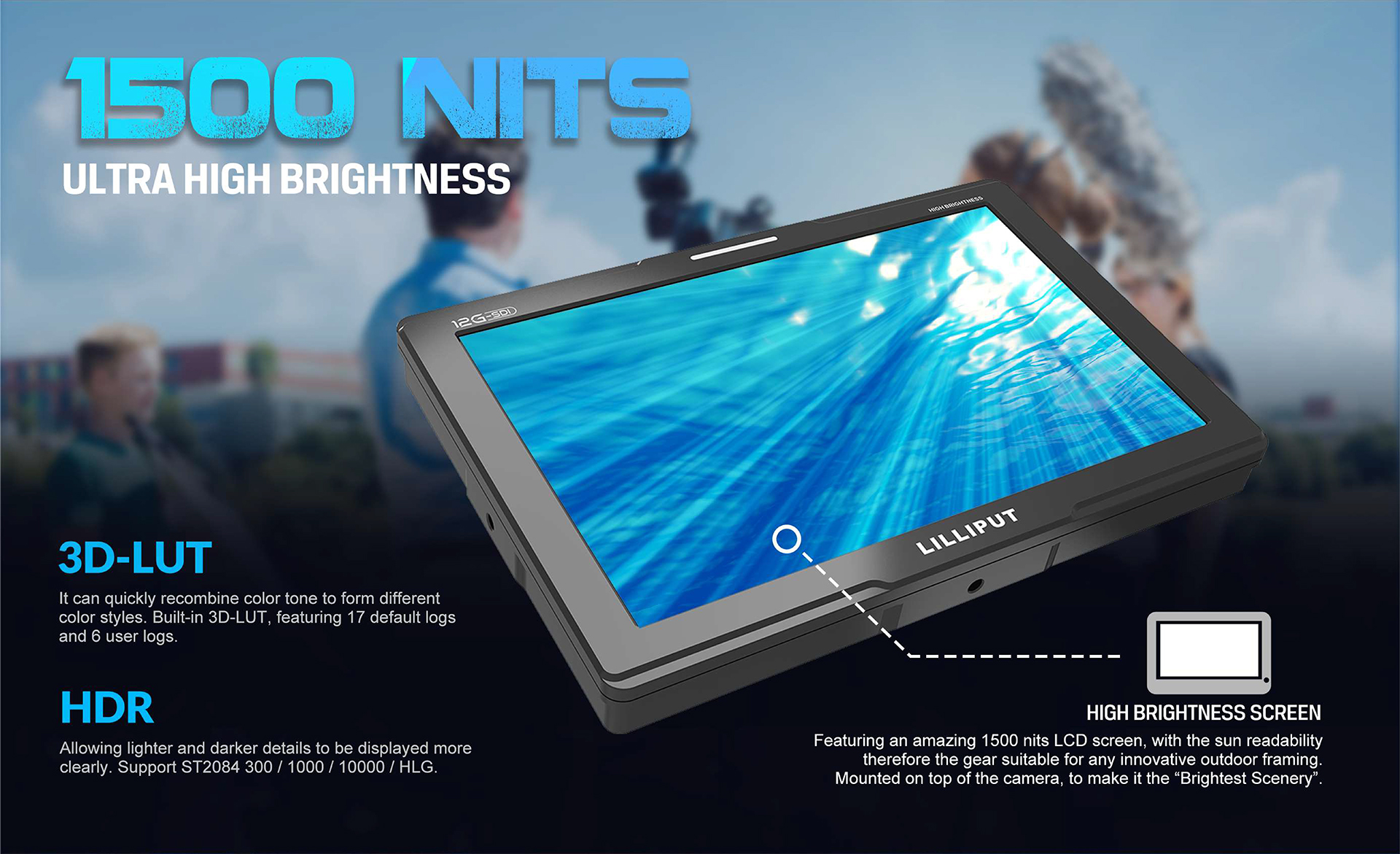

  • Display:: 10.1inch, 1920×1200, 1500nit
  • Input:: 12G-SDI x 2 ; HDMI 2.0 x 1 ; Tally
  • Output:: 12G-SDI x 2 ; HDMI 2.0 x 1 ;

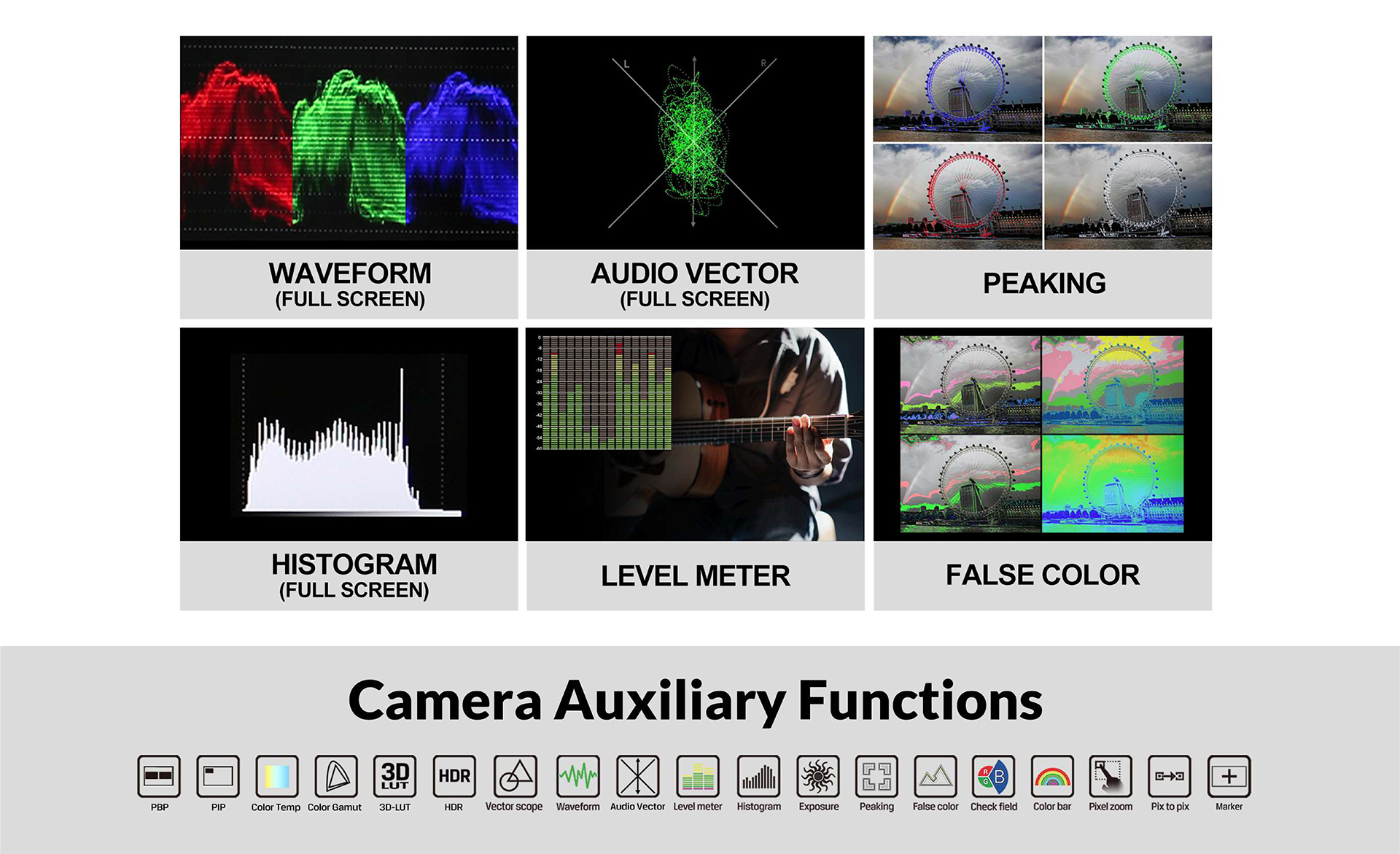

  • Feature:: 1500nits , HDR 3D-LUT, Multiview ,Delicate Milled,Camera Auxiliary Function
  • Product Detail

    Specifications

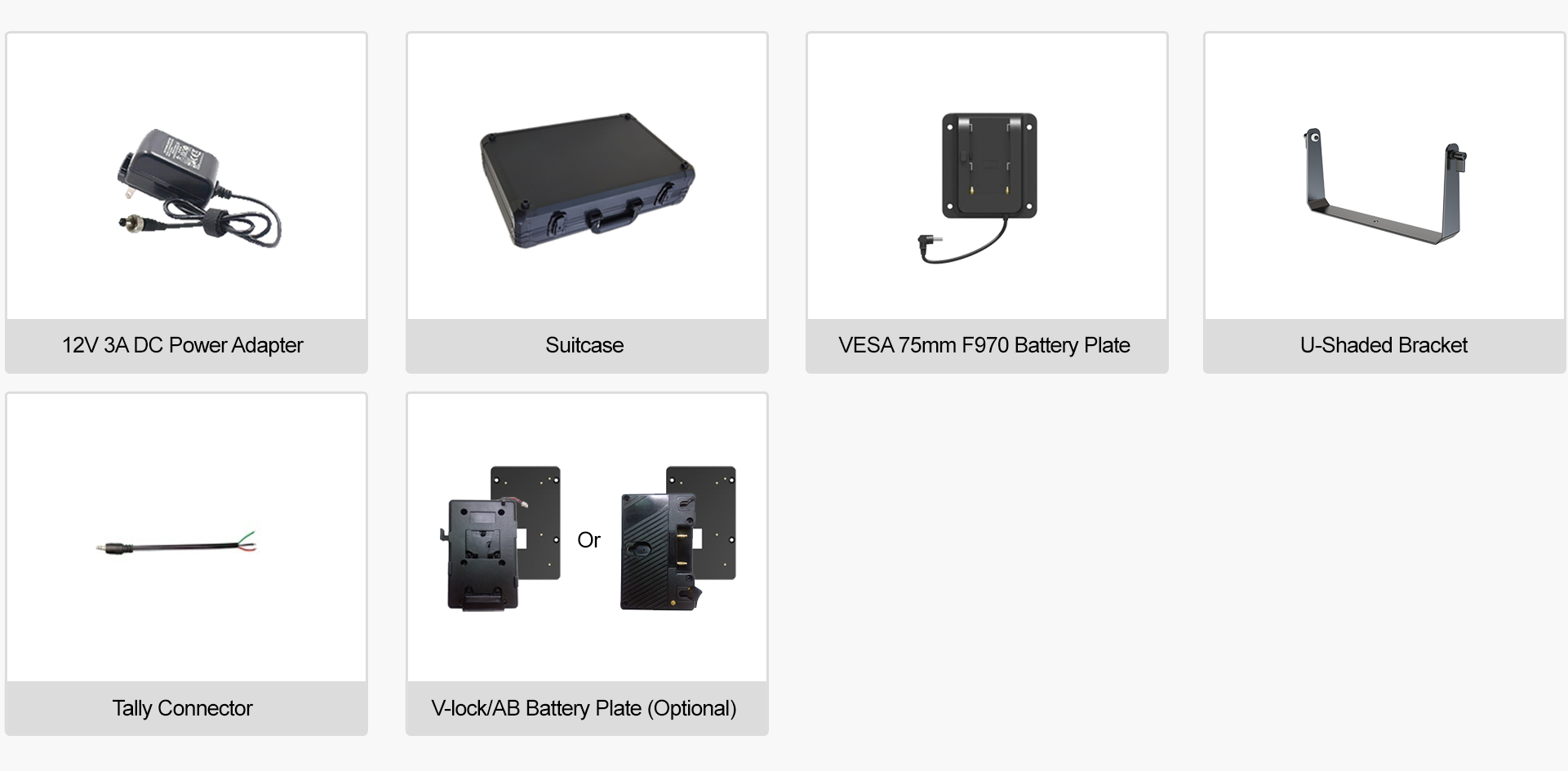

    Accessories

    Q10 DM
    Q10 DM
    Q10 DM
    Q10 DM
    Q10 DM
    Q10 DM
    Q10 DM

  • Previous:
  • Next:

  • DISPLAY      Panel 10.1”
    Physical Resolution 1920×1200
    Aspect Ratio 16:10
    Brightness 1500 nit
    Contrast 1000:1
    Viewing Angle 170°/ 170°(H/V)
    HDR ST2084 300/1000/10000/HLG
    Supported Log formats SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User…
    Look up table (LUT) support 3D LUT (.cube format)

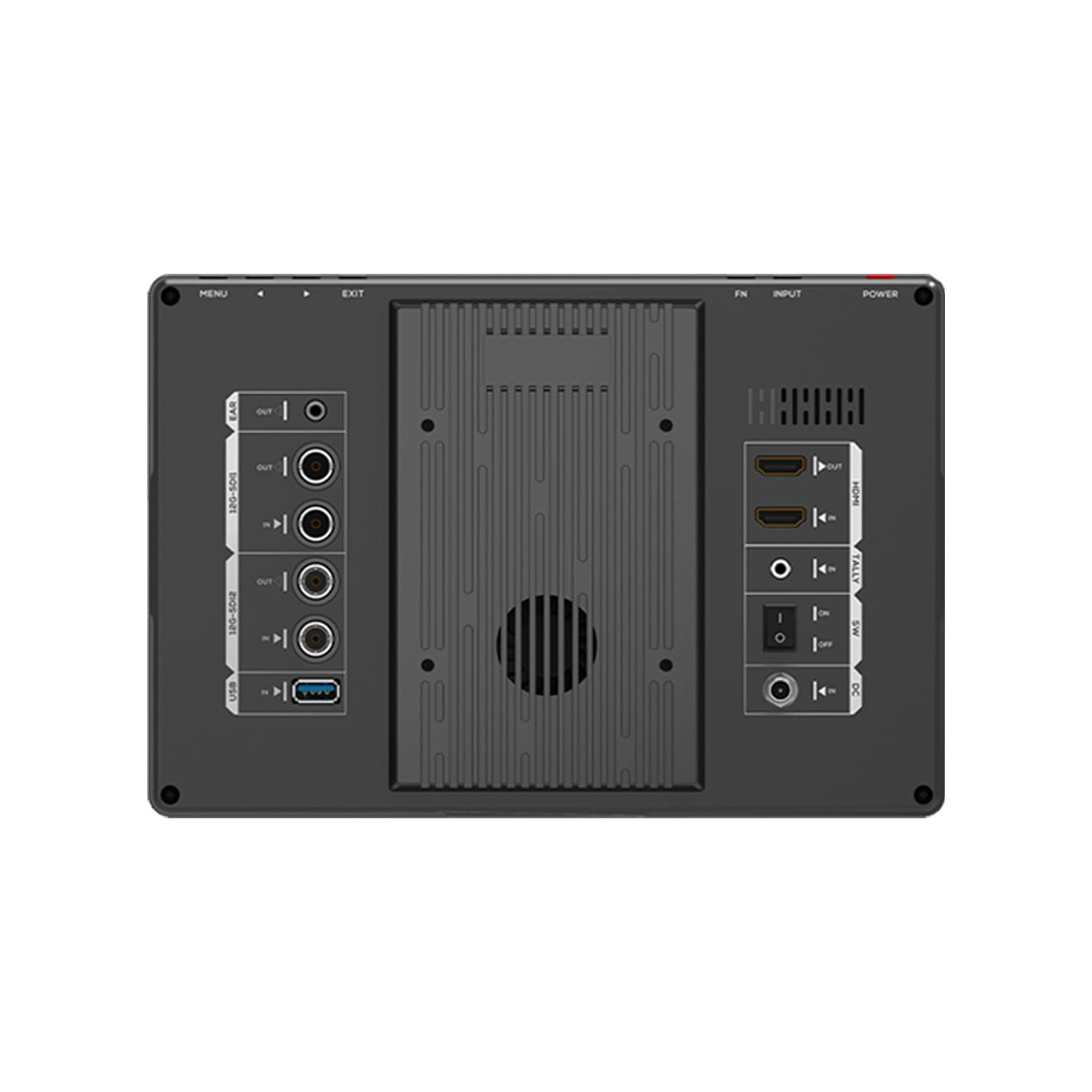

    SIGNAL INPUT SDI 2×12G-SDI
    HDMI 1×HDMI 2.0
    Tally 1
    SIGNAL LOOP OUTPUT SDI 2×12G-SDI
    HDMI 1×HDMI 2.0
    SUPPORT FORMATS SDI 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080pSF 30/25/24,
    1080i 60/50, 720p 60/50…
    HDMI 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50,
    720p 60/50…
    AUDIO IN/OUT SDI 16ch 48kHz 24-bit
    HDMI 8ch 24-bit
    Ear Jack 3.5mm
    Built-in Speakers 1
    POWER Input Voltage DC 7-24V
    Power Consumption ≤37W (12V)
    ENVIRONMENT Operating Temperature 0°C~50°C
    Storage Temperature -20°C~60°C
    OTHER Dimension(LWD) 251mm × 170mm × 30.5mm
    Weight 1.1kg

    配件图
