5.5 inch 2000nits 3G-SDI Touch Camera Control Monitor

Short Description:

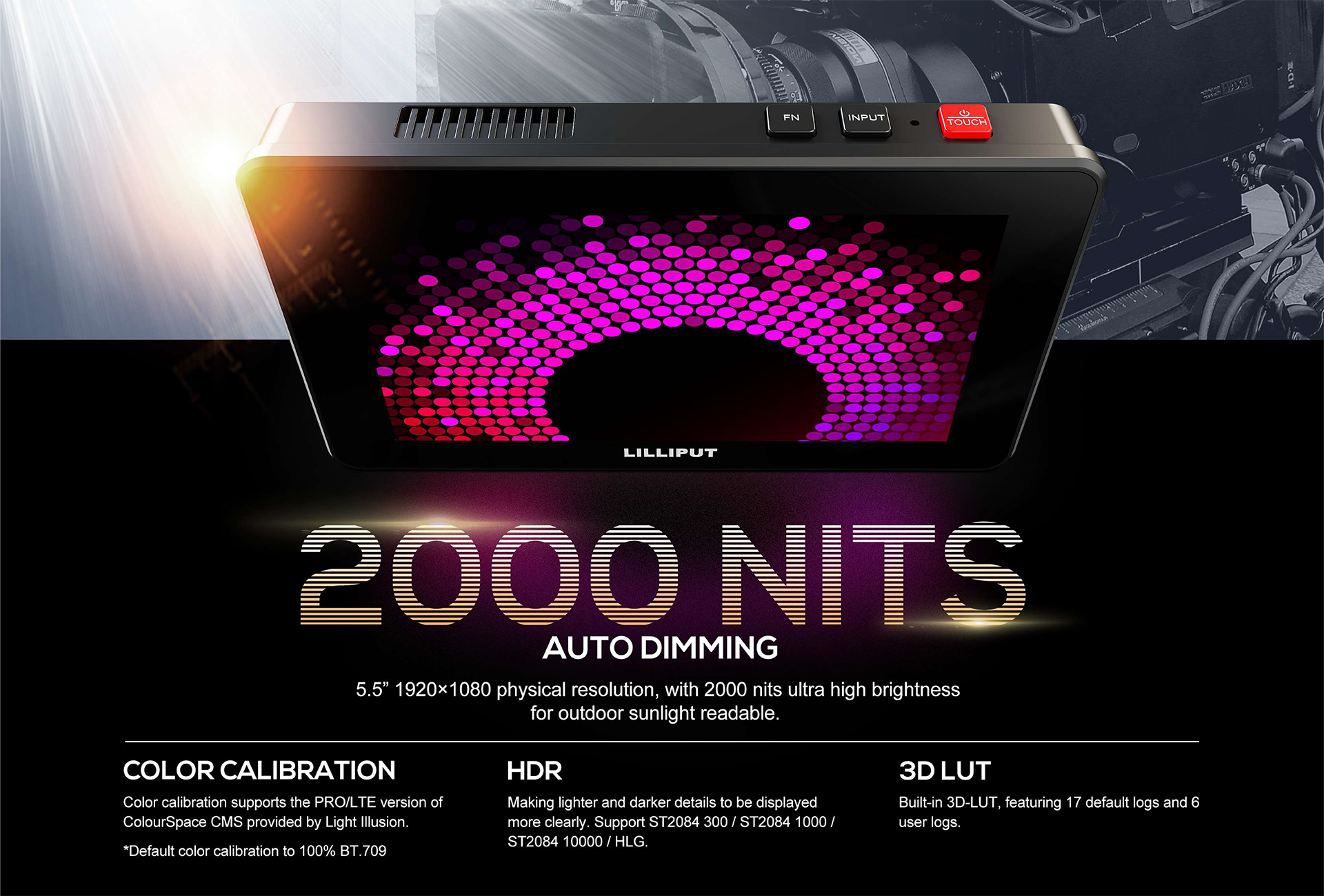

HT5S is a precision on-camera monitor came an amazing 2000 nits Ultra High Brightness and touch LCD screen which capable of controlling video camera menu on set.  Specifically for photography and film maker, especially for outdoor video and film shooting.




  • Model: HT5S
  • Display: 5.5 inch, 1920×1080, 2000nit
  • Input: 3G-SDI x 1 ; HDMI 2.0 x 1
  • Output: 3G-SDI x 1 ; HDMI 2.0 x 1

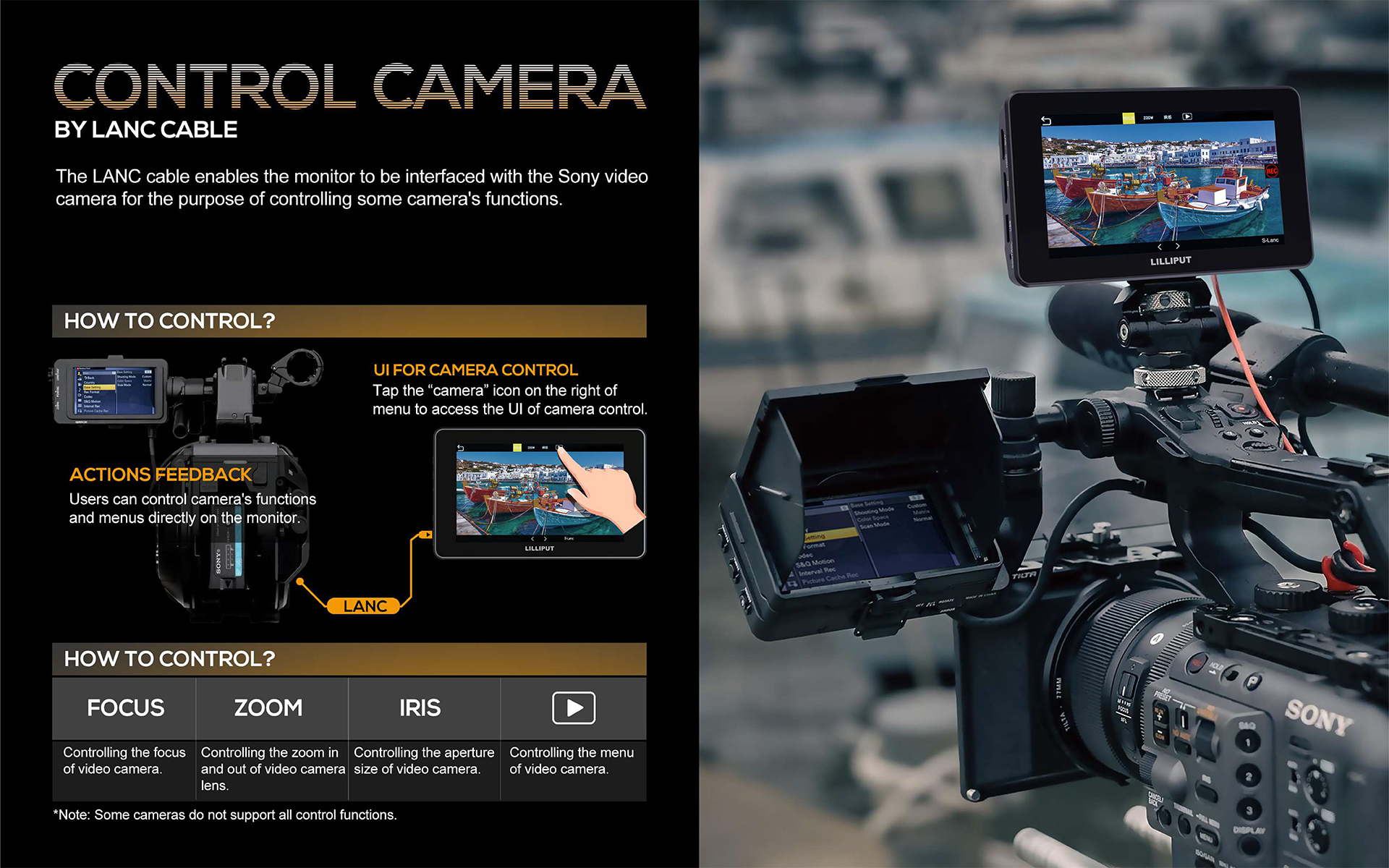

  • Feature: 2000nits , HDR 3D-LUT, Touch Screen,Dual Batteries,Camera Control
  • Product Detail

    Specifications

    Accessories

    high brightness on camera monitor
    high brightness on camera monitor
    5.5 inch high brightness on camera monitor
    HT5S DM
    touch screen high brightness monitor
    high brightness on camera monitor

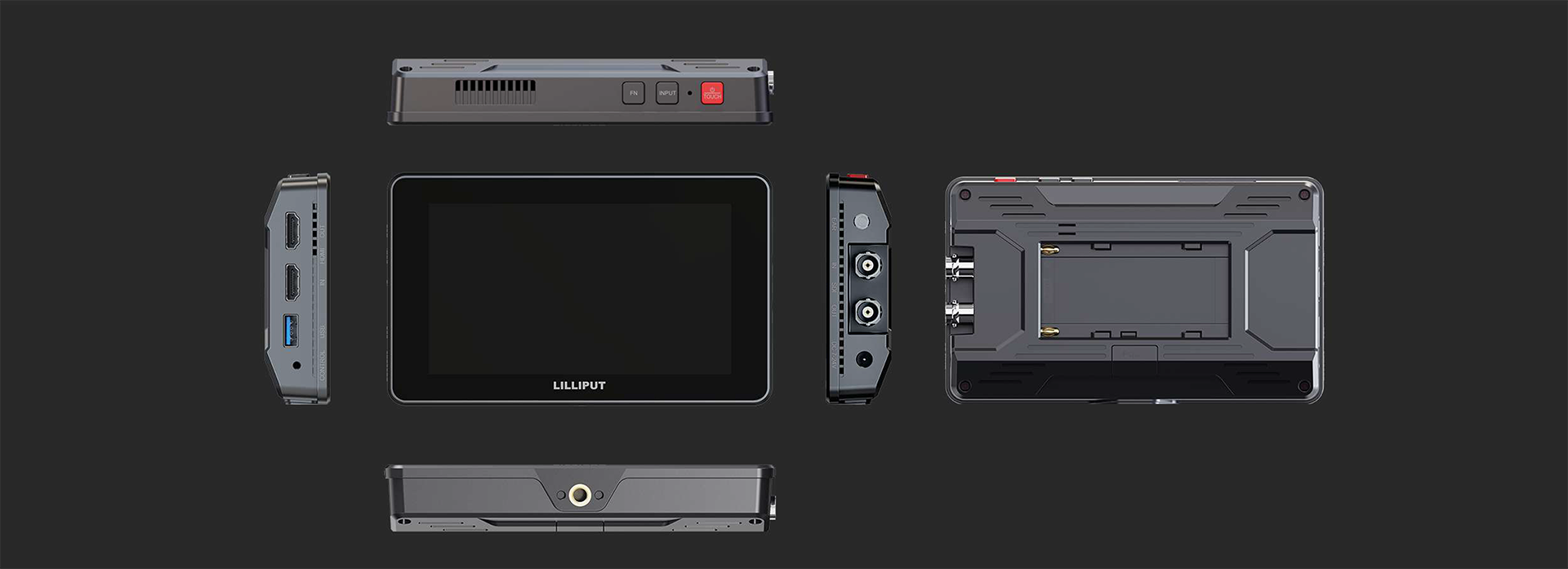

    5.5 inch touch screen sdi camera control monitor

  • Previous:
  • Next:

  • DISPLAY      Panel 5.5” LCD
    Physical Resolution 1920×1080
    Aspect Ratio 16:9
    Brightness 2000 nit
    Contrast 1000:1
    Viewing Angle 160°/ 160°(H/V)
    Color Space 100% BT.709
    HDR Supported HLG; ST2084 300/1000/10000

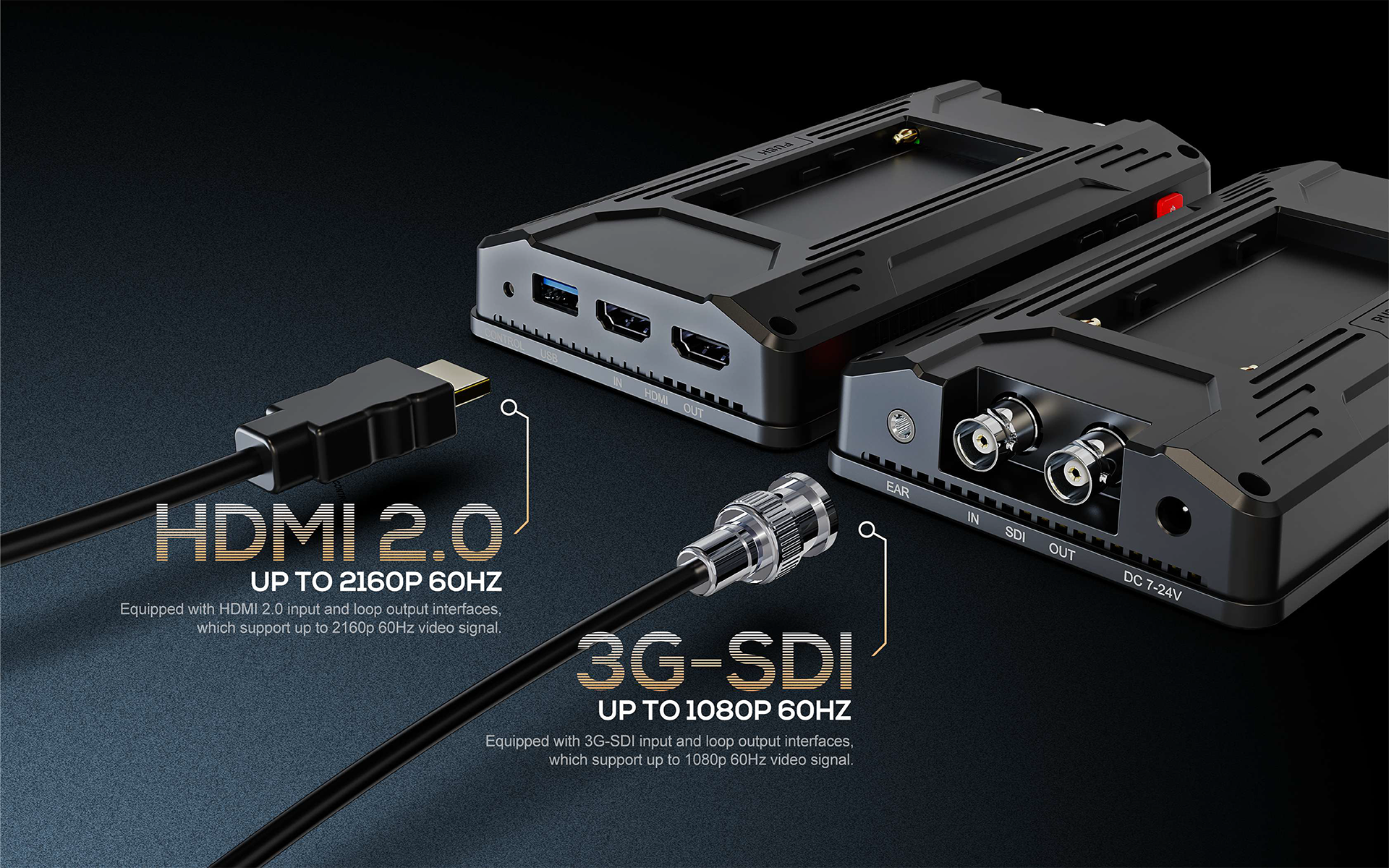

    SIGNAL INPUT SDI 1×3G-SDI
    HDMI 1×HDMI 2.0
    SIGNAL LOOP OUTPUT SDI 1×3G-SDI
    HDMI 1×HDMI 2.0
    SUPPORT FORMATS SDI 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
    HDMI 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60…
    AUDIO IN/OUT HDMI 8ch 24-bit
    Ear Jack 3.5mm – 2ch 48kHz 24-bit
    Built-in Speakers 1
    POWER Input Voltage DC 7-24V
    Power Consumption ≤14W (15V)
    ENVIRONMENT Operating Temperature 0°C~50°C
    Storage Temperature -20°C~60°C
    OTHER Dimension(LWD) 154.8mm × 93.8mm × 26.5mm
    Weight 310g

    HT5S accessories
