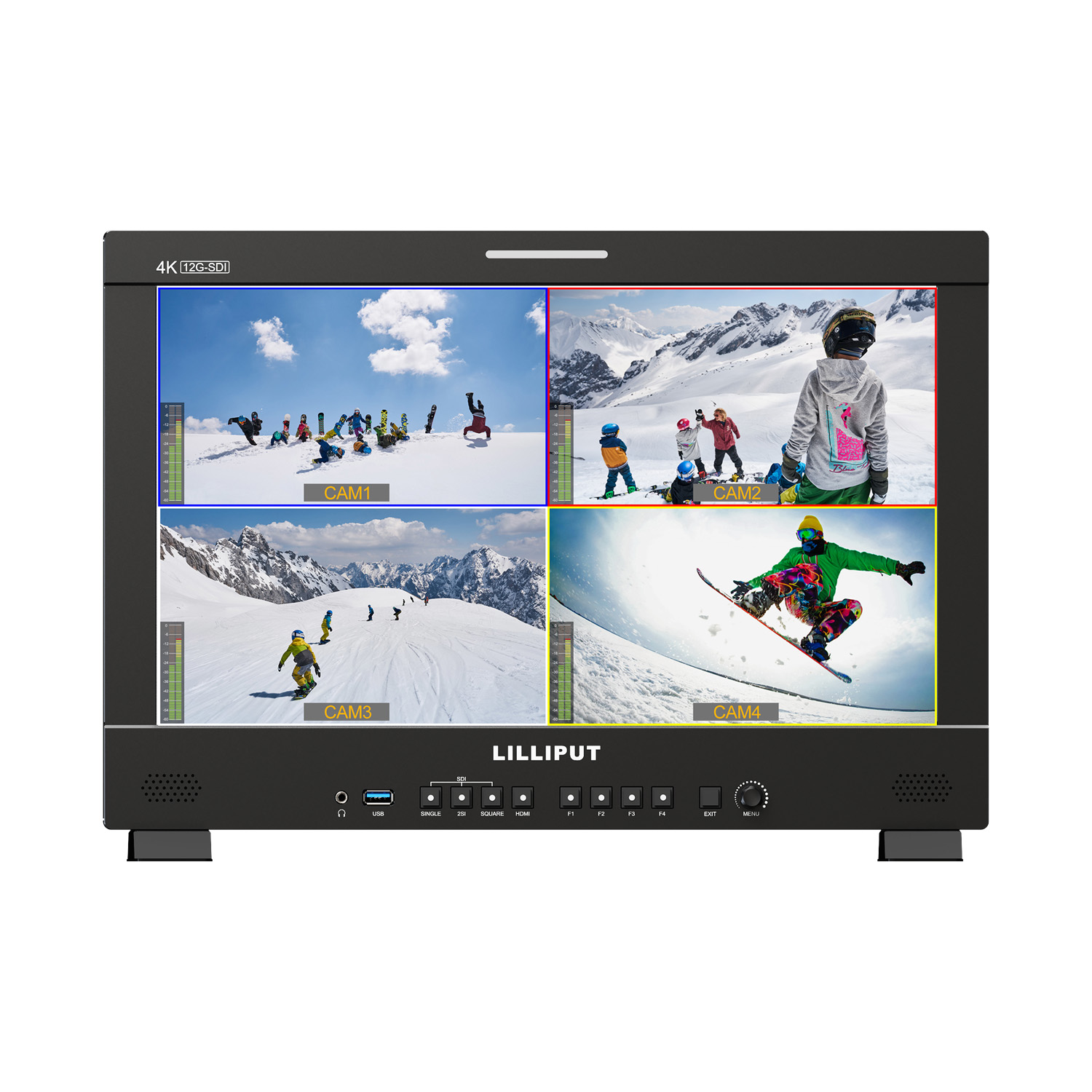

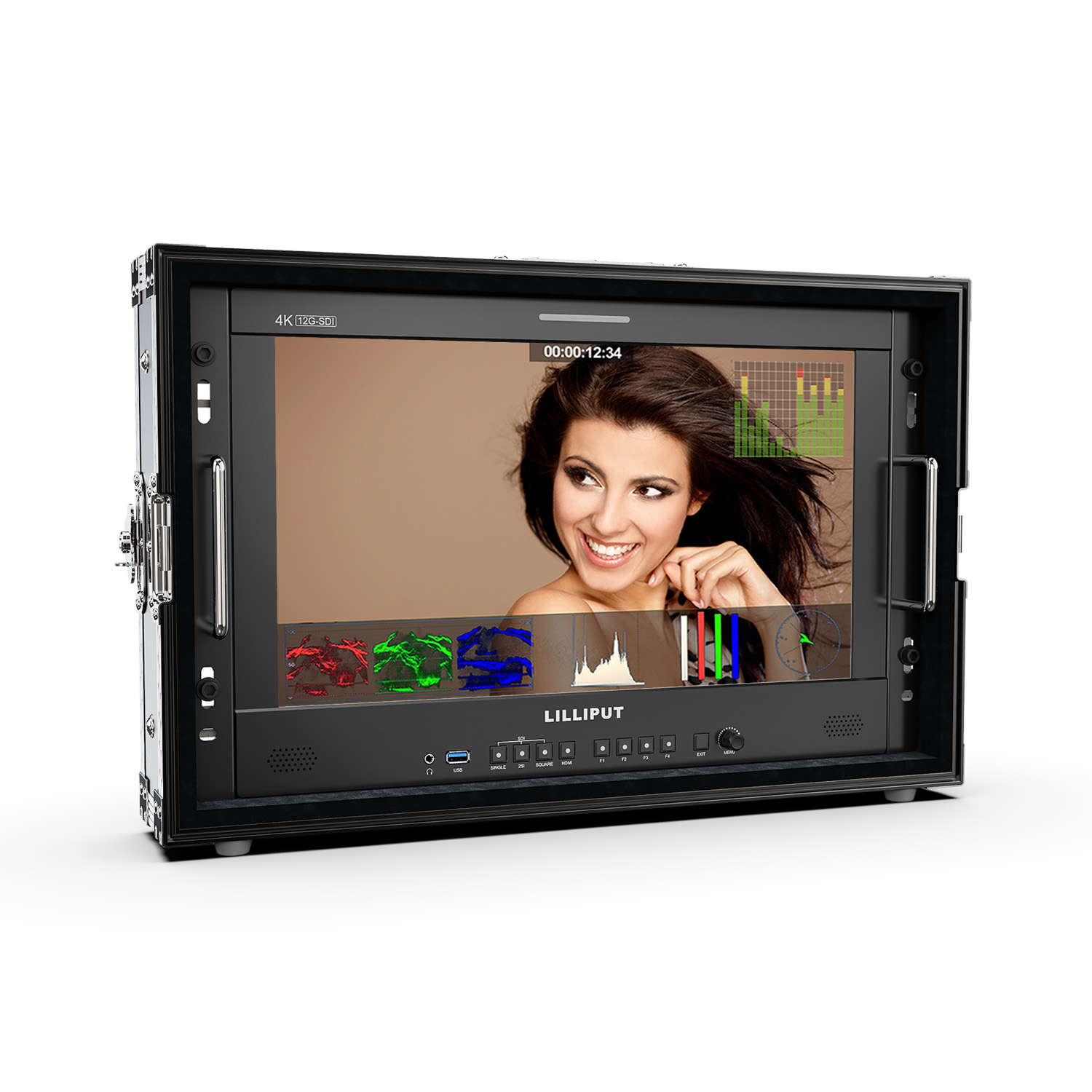

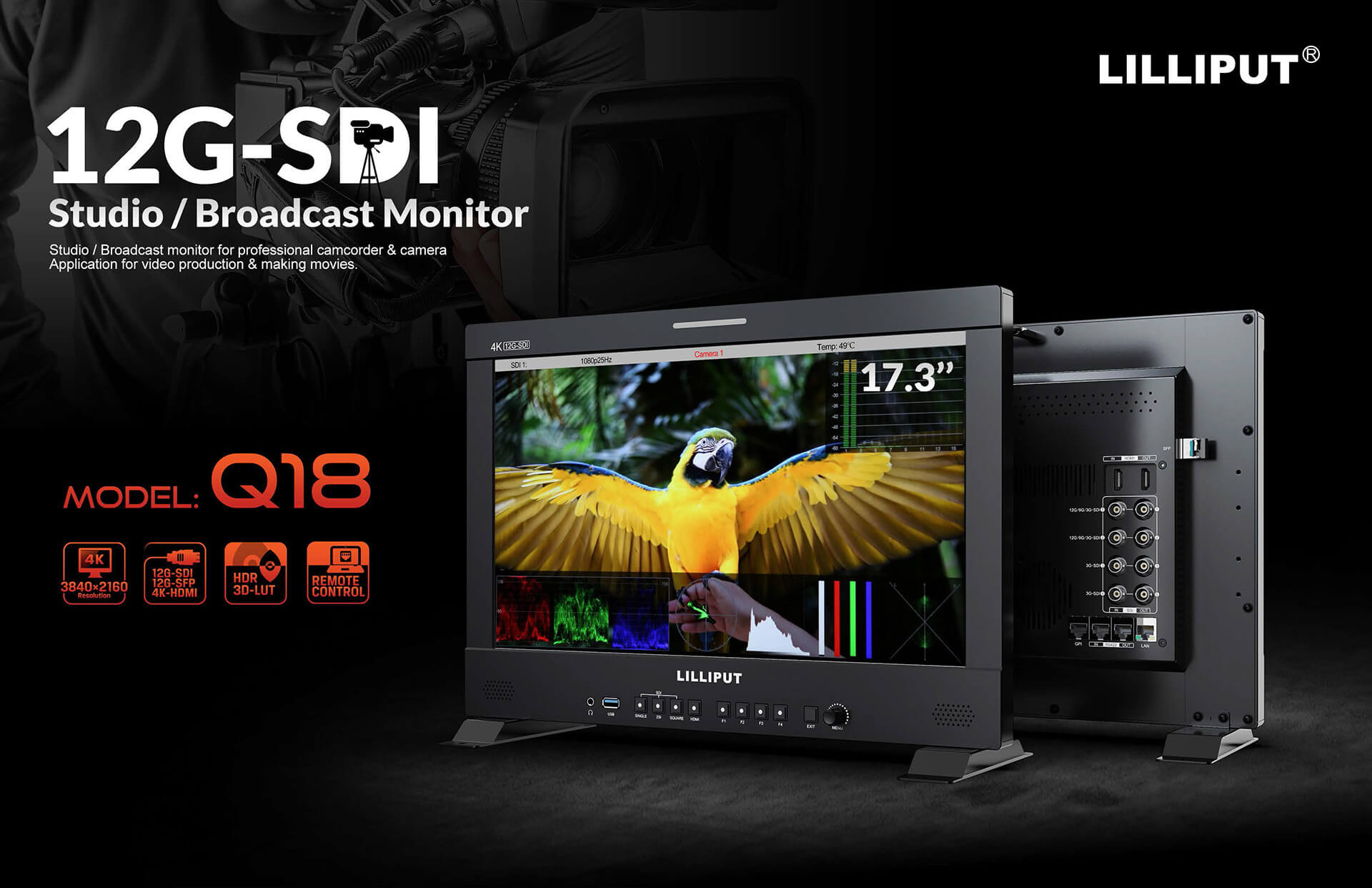

17.3 inch 12G-SDI professional production studio monitor

Short Description:

Lilliput Q18 is a professional production studio monitor, packed with features and facilities for the professional photographer, videographer, or cinematographer. Compatible with a multitude of inputs – and featuring the option of a 12G SDI and 12G-SFP Fiber Optic input connection for broadcast quality monitoring, It also features Audio Vectoring using a Lissajous graph shape allowing you to visualize the depth and balance of a stereo recording.It also support remote control via RS422, GPI, LAN port .

Model No.: Q18

Display: 17.3 inch, 3840 X 2160, 400nits

Input: 12G-SDI, 12-SFP,HDMI 2.0

Output: 12G-SDI,HDMI 2.0

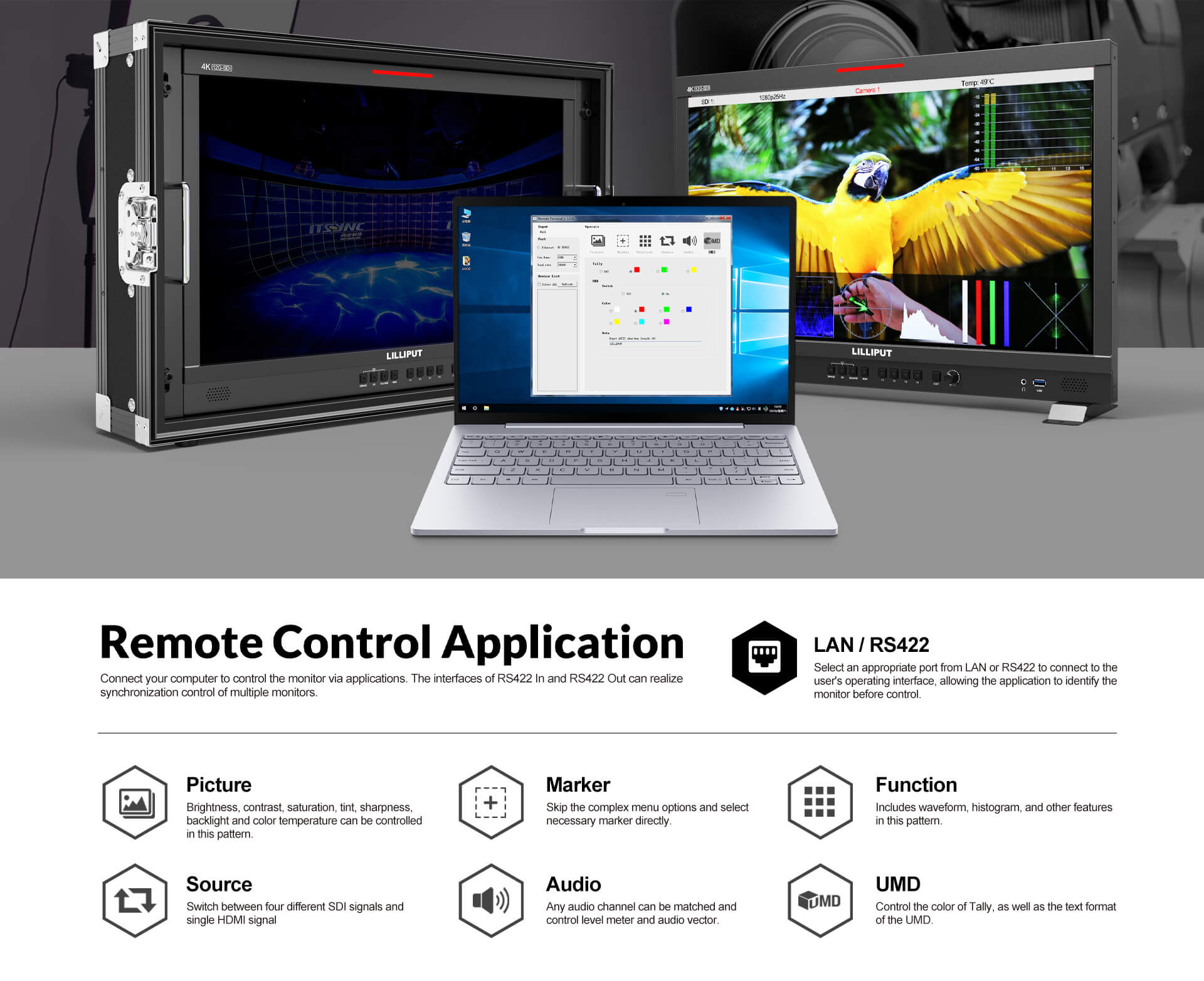

Remote Control: RS422 ,GPI , LAN

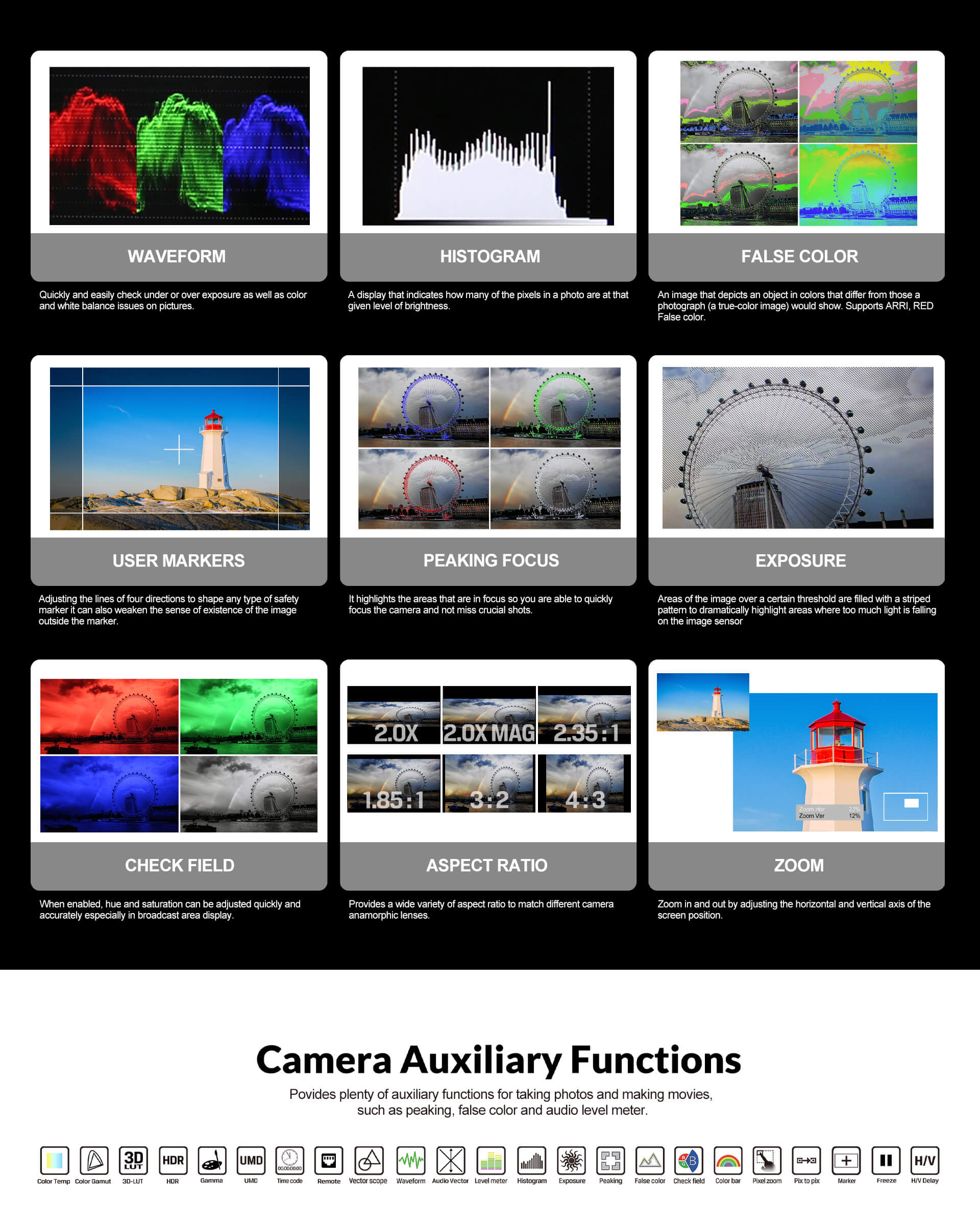

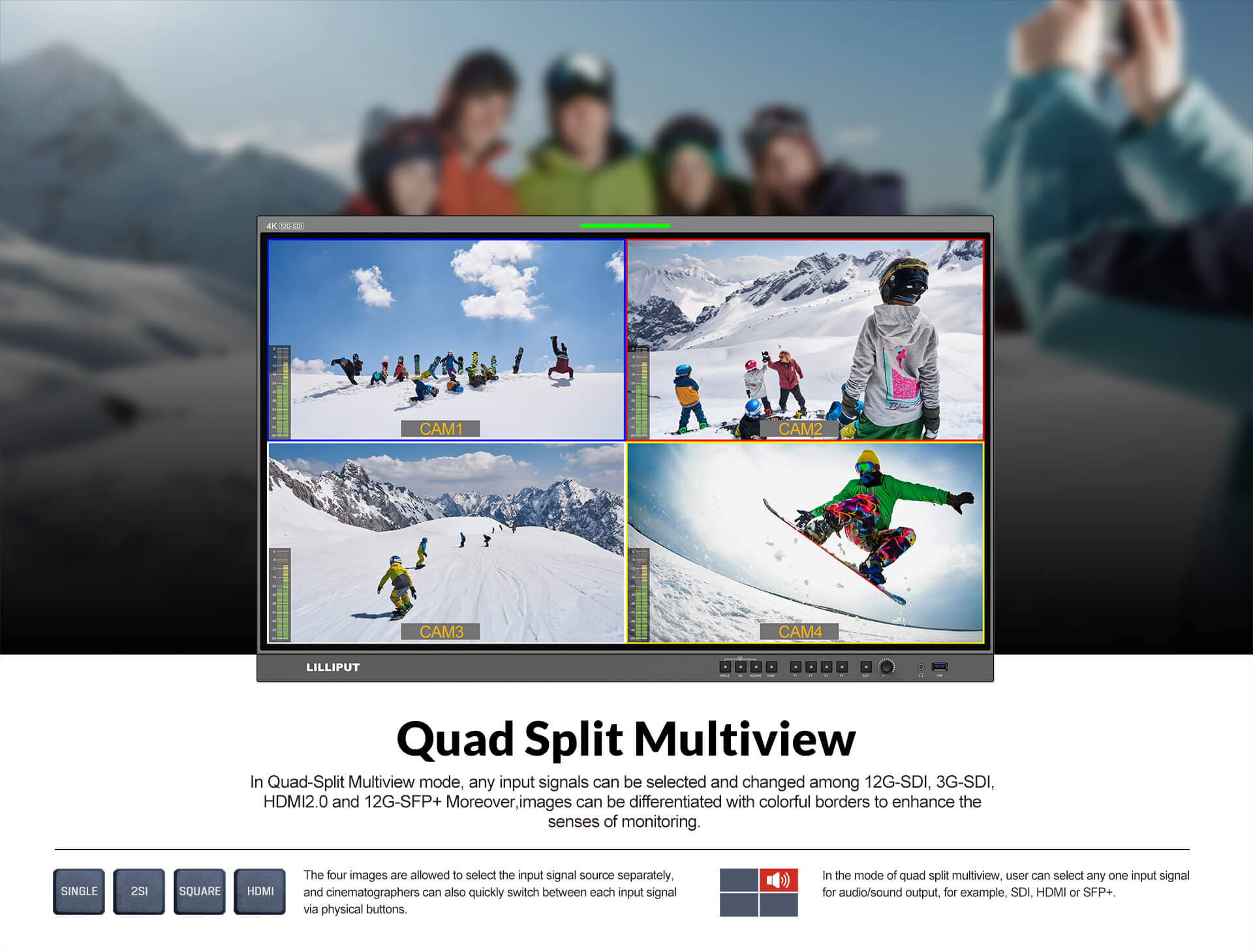

Feature: Quad View, 3D-LUT, HDR,Gammas,Remote Control ,Audio vector ,Camera Auxiliary Functions.

Send email to us Download as PDF User guide

Product Detail

Specifications

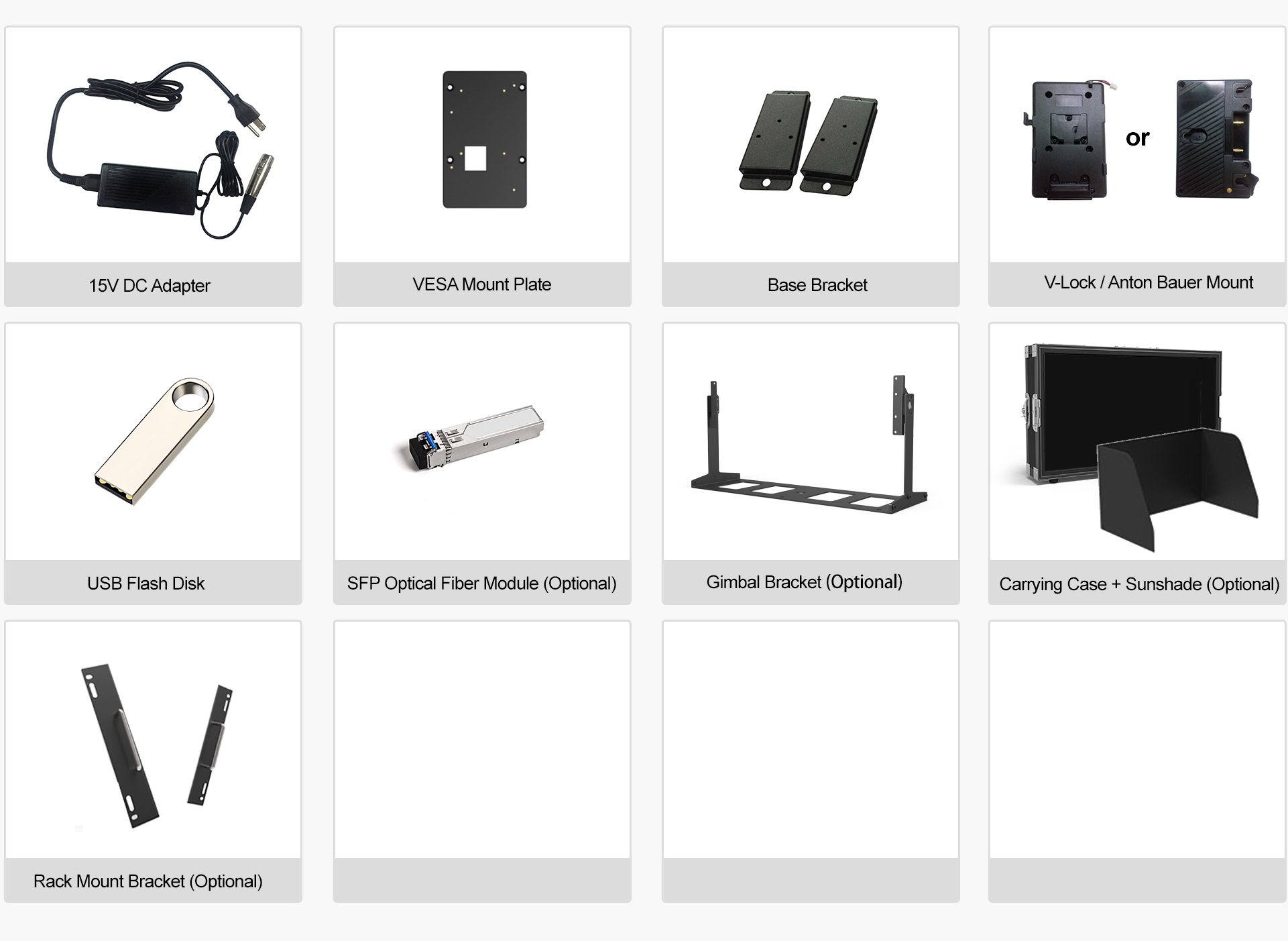

Accessories

Product Tags

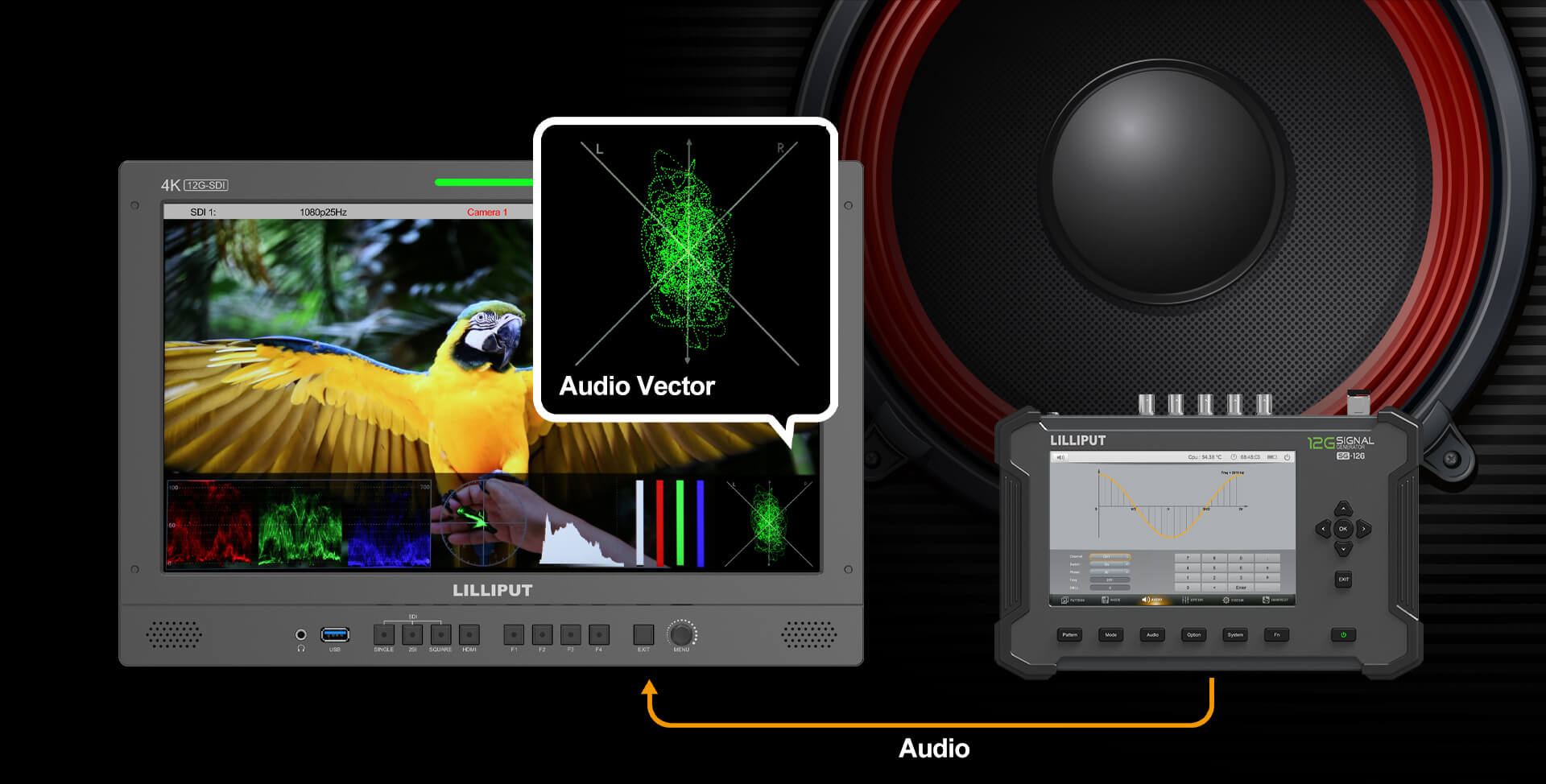

Audio Vector (Lissajous)

The Lissajous shape is generated by graphing the left signal on one axis against the right signal on the other axis. It used to test the phase of mono audio signal and phase relationships depends on its wavelength.Complex audio frequency content will make the shape look like a complete mess so it is usually used in post production.

Lilliput12G-SDI Production studio monitor

Previous: 7 inch touch screen monitor

Next: 7inch 2000nits 3G-SDI Touch Camera Control Monitor

DISPLAY	Panel	17.3″
	Physical Resolution	3840*2160
	Aspect Ratio	16:9
	Brightness	400 cd/m²
	Contrast	1200：1
	Viewing Angle	170°/170°（H/V)

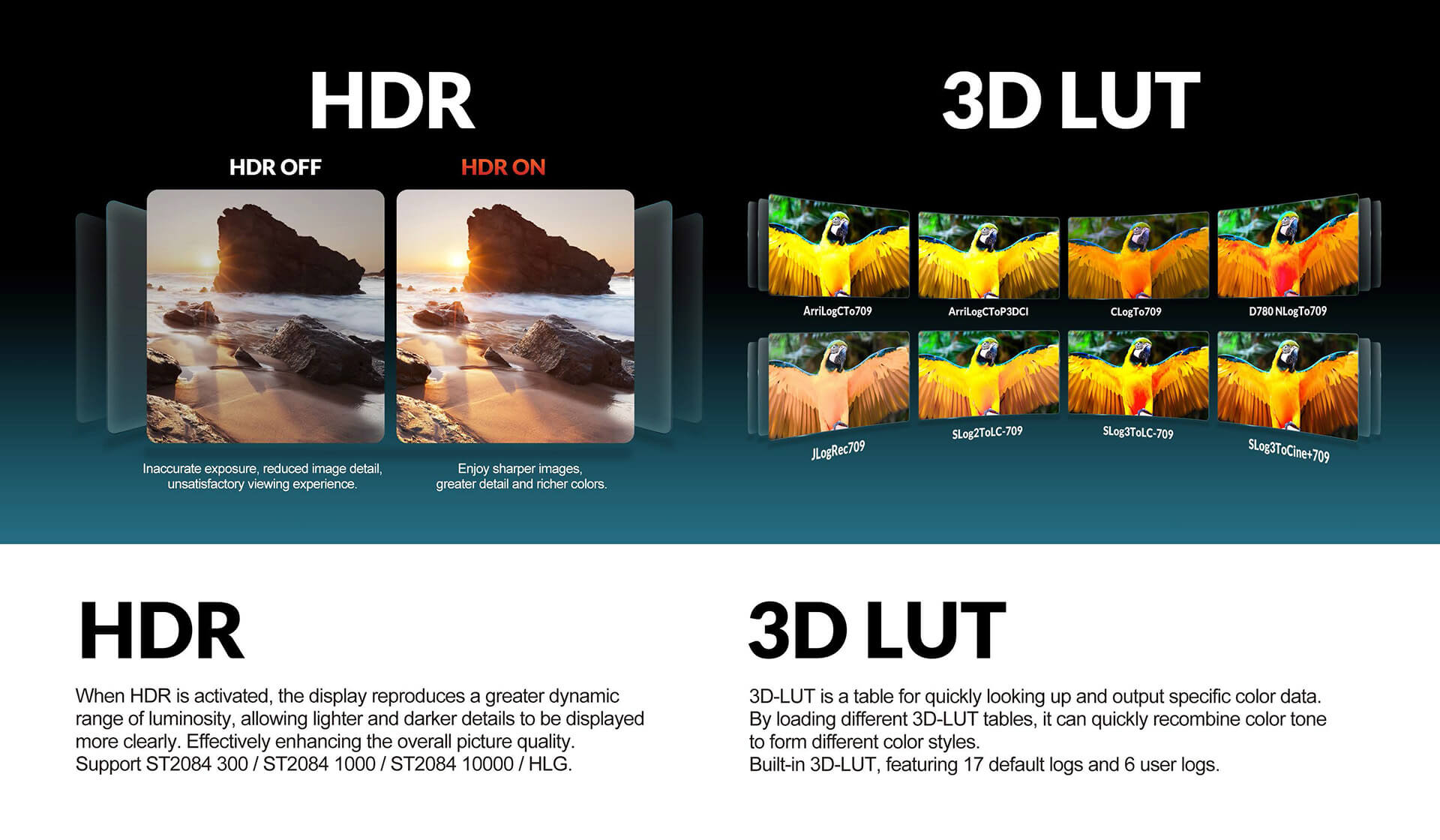

	HDR	ST2084 300/1000/10000/HLG
	Supported Log Formats	SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User…
	Look up Table(LUT)support	3D LUT (.cube format)

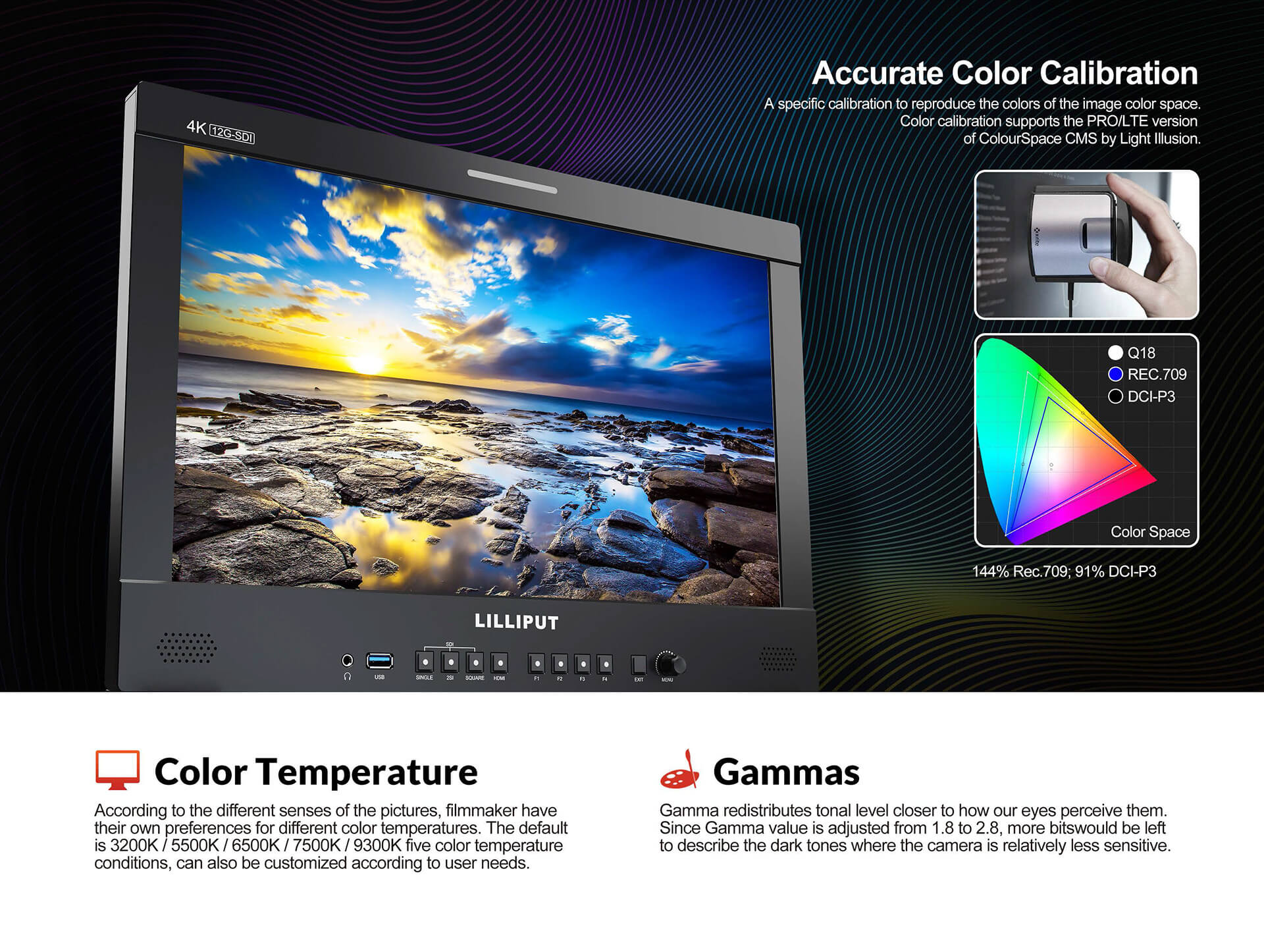

	Technology	Calibration to Rec.709 with optional calibration unit

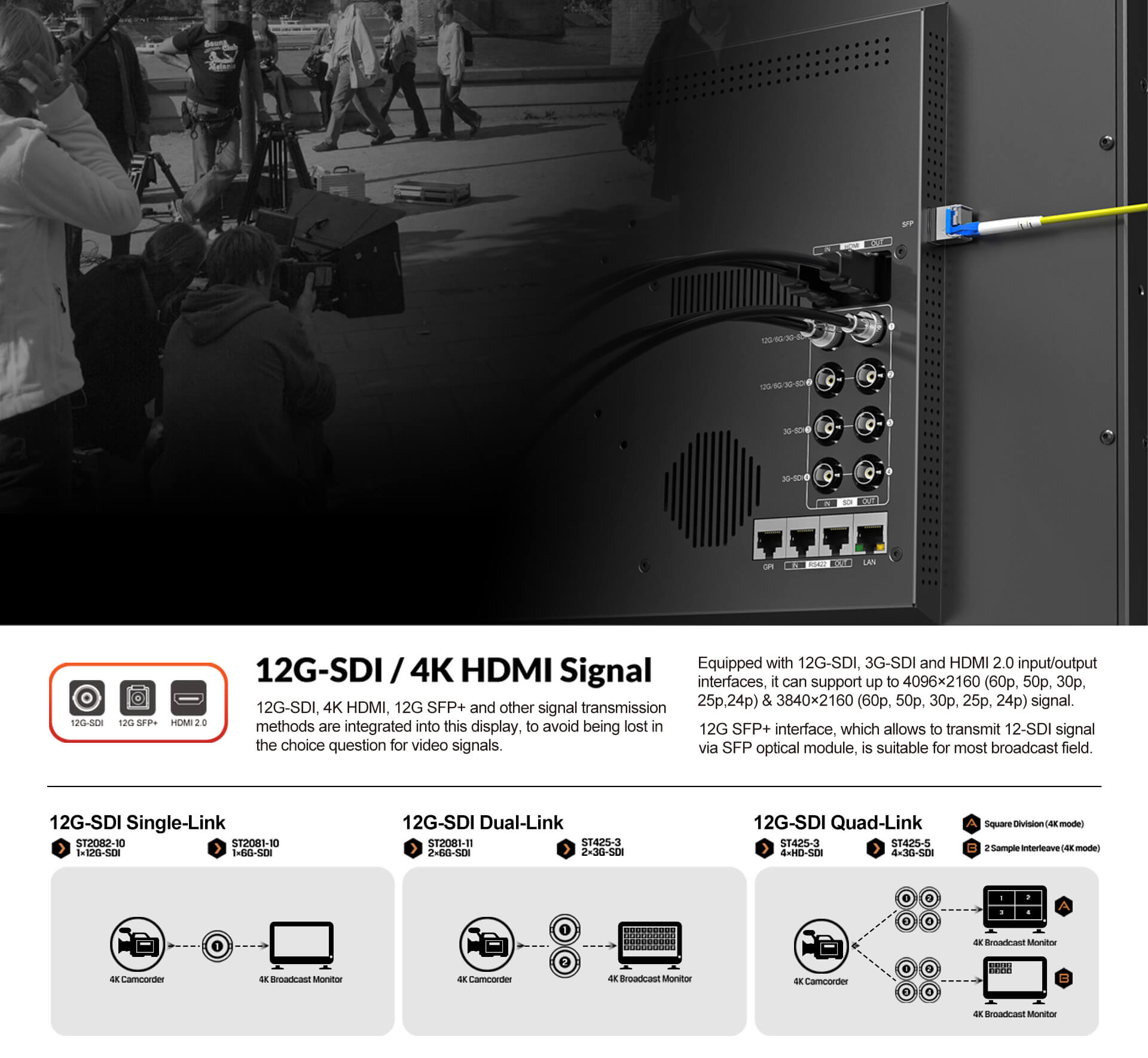

VIDEO INPUT	SDI	2×12G, 2×3G (Supported 4K-SDI Formats Single/Dual/Quad Link)
	SFP	1×12G SFP+(Fiber module for optional)
	HDMI	1×HDMI 2.0
VIDEO LOOP OUTPUT	SDI	2×12G, 2×3G (Supported 4K-SDI Formats Single/Dual/Quad Link)
VIDEO LOOP OUTPUT	HDMI	1×HDMI 2.0
SUPPORTED FORMATS	SDI	2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
	SFP	2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
	HDMI	2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60…
AUDIO IN/OUT (48kHz PCM AUDIO)	SDI	16ch 48kHz 24-bit
	HDMI	8ch 24-bit
	Ear Jack	3.5mm
	Built-in Speakers	2

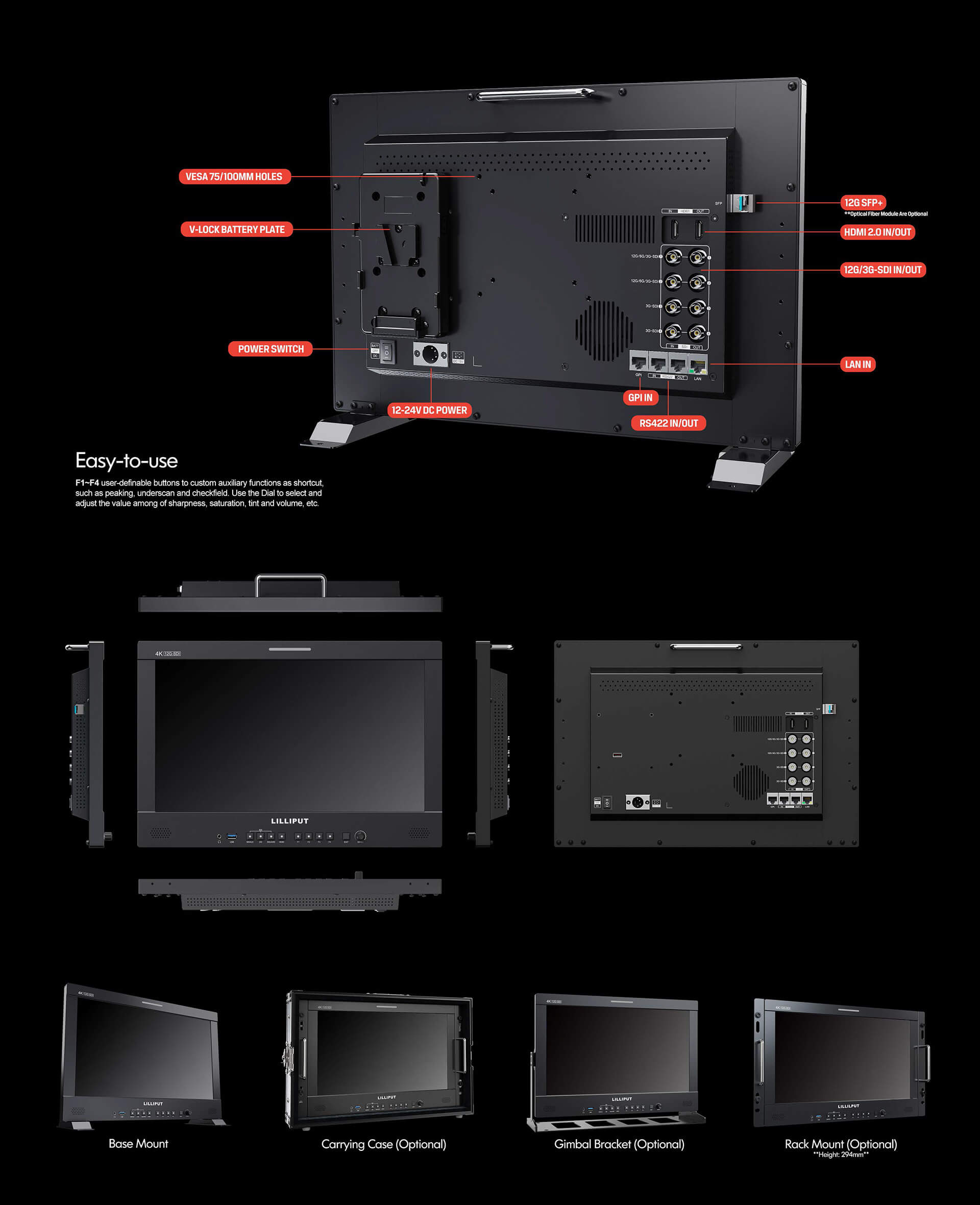

REMOTE CONTROL	RS422	In/out
	GPI	1
	LAN	1
POWER	Input Voltage	DC 12-24V
	Power Consumption	≤34.5W (15V)
	Compatible Batteries	V-Lock or Anton Bauer Mount
	Input Voltage(battery)	14.8V nominal
ENVIRONMENT	Operating Temperature	0℃~50℃
ENVIRONMENT	Storage Temperature	-20℃~60℃
OTHER	Dimension(LWD)	434mm × 294mm × 46mm
OTHER	Weight	3.9kg
