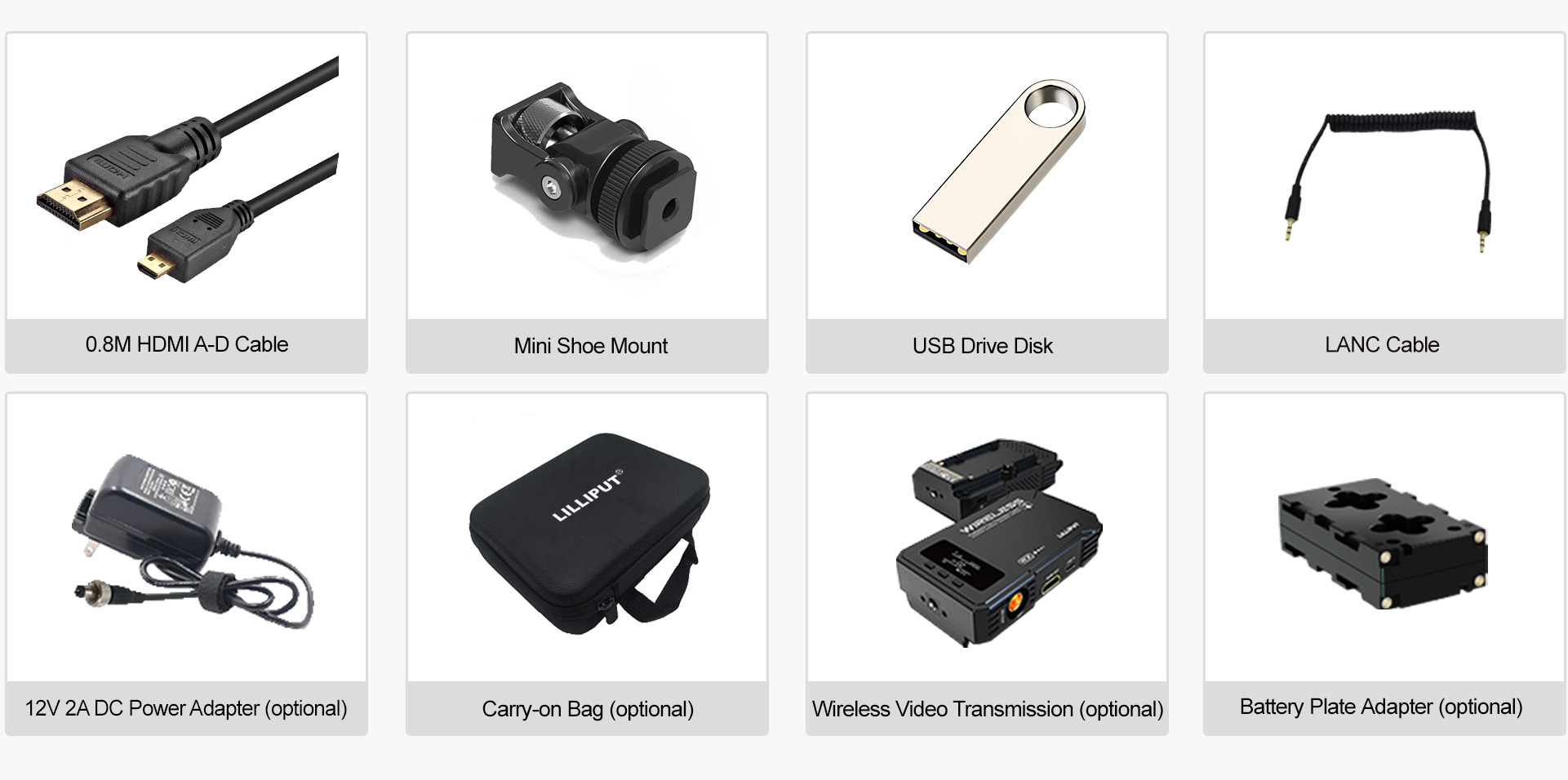

Accessories
Product Tags
DISPLAY |
Panel |
7” LCD |
Physical Resolution |
1920×1200 |
Aspect Ratio |
16:10 |
Brightness |
2000 nit |
Contrast |
1200:1 |
Viewing Angle |
160°/ 160°(H/V) |
Color Space |
100% BT.709 |
HDR Supported |
HLG; ST2084 300/1000/10000 |
SIGNAL INPUT |
SDI |
1×3G-SDI |
HDMI |
1×HDMI 2.0 |
SIGNAL LOOP OUTPUT |
SDI |
1×3G-SDI |
HDMI |
1×HDMI 2.0 |
SUPPORT FORMATS |
SDI |
1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60… |
HDMI |
2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60… |
AUDIO IN/OUT |
HDMI |
8ch 24-bit |
Ear Jack |
3.5mm – 2ch 48kHz 24-bit |
Built-in Speakers |
1 |
POWER |
Input Voltage |
DC 7-24V |
Power Consumption |
≤16W (15V) |
ENVIRONMENT |
Operating Temperature |
0°C~50°C |
Storage Temperature |
-20°C~60°C |
OTHER |
Dimension(LWD) |
186mm × 128mm × 29mm |
Weight |
520g |
