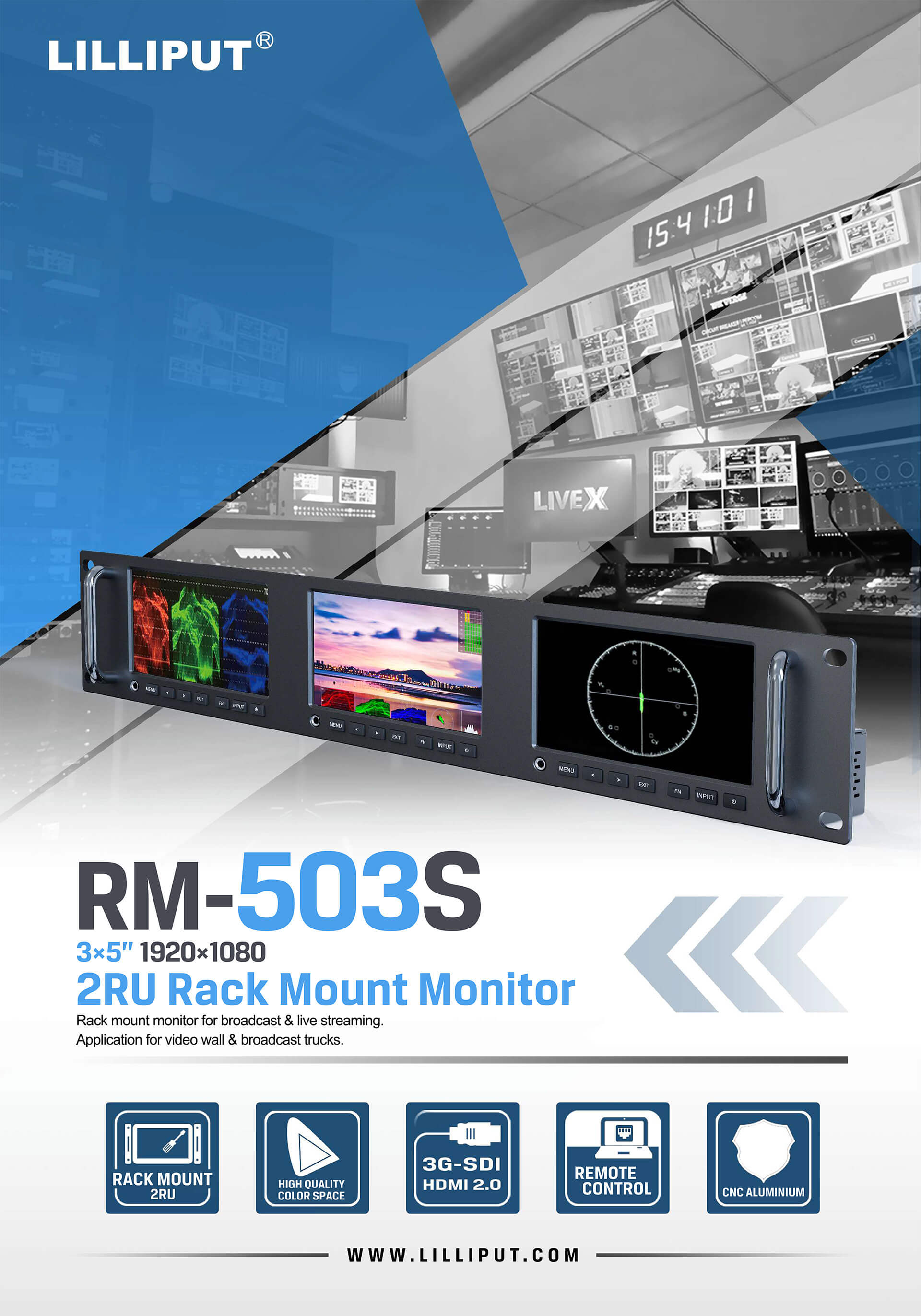

RM-503S _ 5 inch Full HD 2RU Rack Mount Monitor

Short Description:

Rack mount monitor for broadcast & live streaming.Application for video wall & broadcast trucks. It supports:



–HDMI 2.0, 3G-SDI input and output

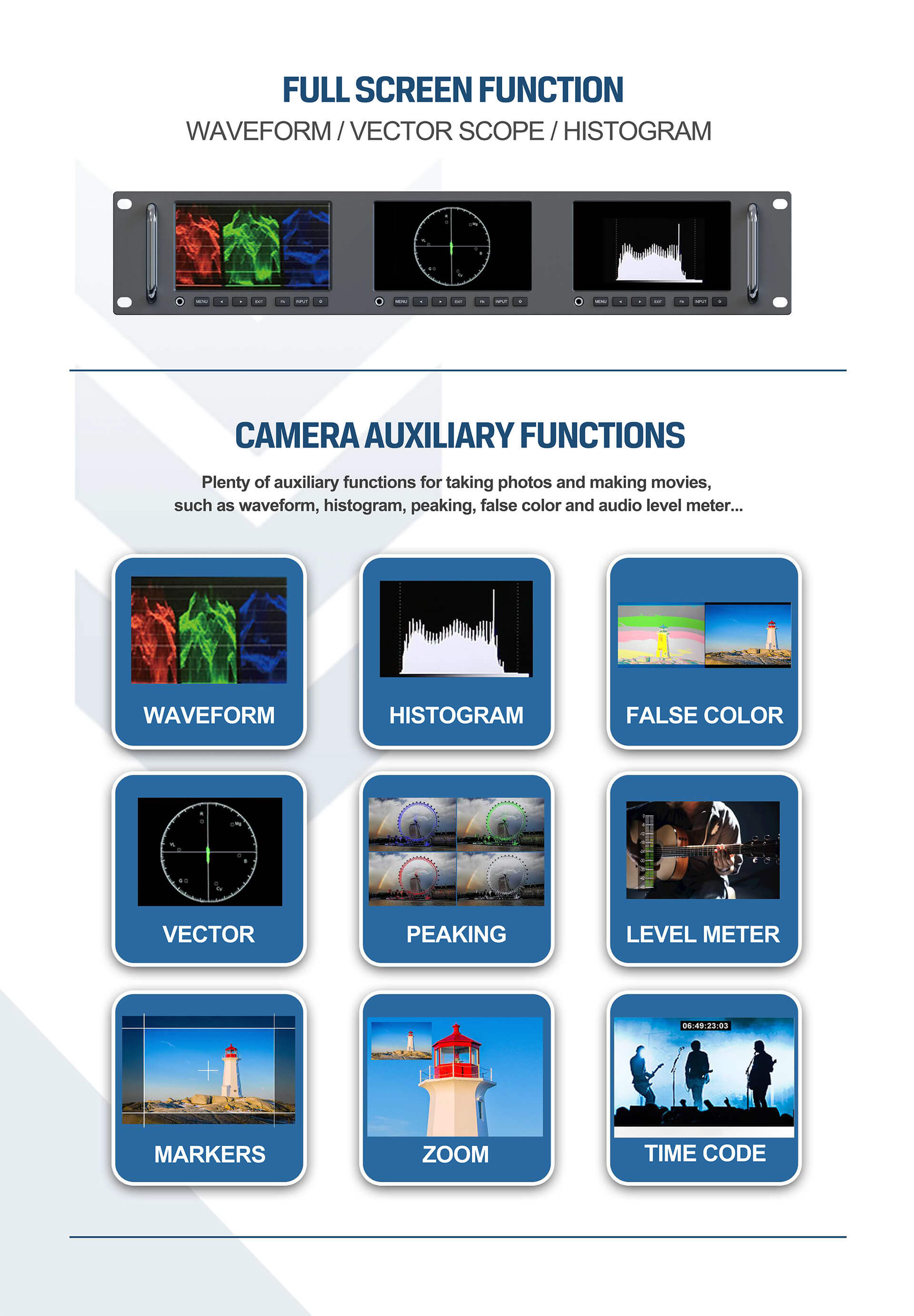

–Custom multiple waveform modes; HDR,3D-LUT

–Wide color gamut Native,SMPTE C, Rec709, EBU, original

–Comparison mode; Multiple color temperature modes

–False color,aspect,time code, color bar,marker, peaking…


  • Model No.: RM-503S
  • Display: 5″ ,1920x1080

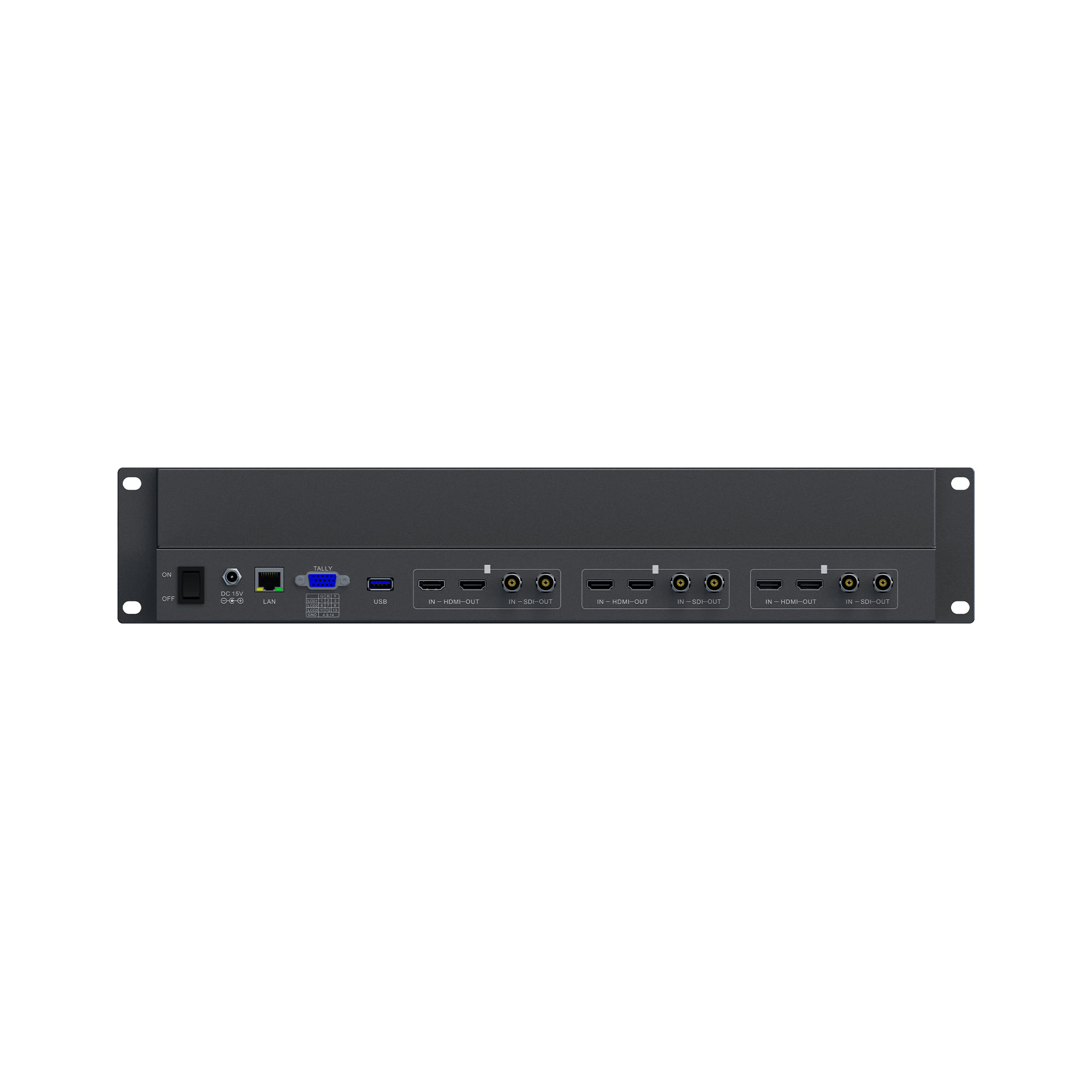

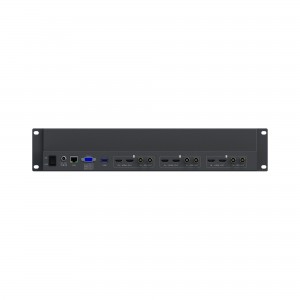

  • Input: 3G-SDI, HDMI 2.0, LAN
  • Output: 3G-SDI, HDMI 2.0

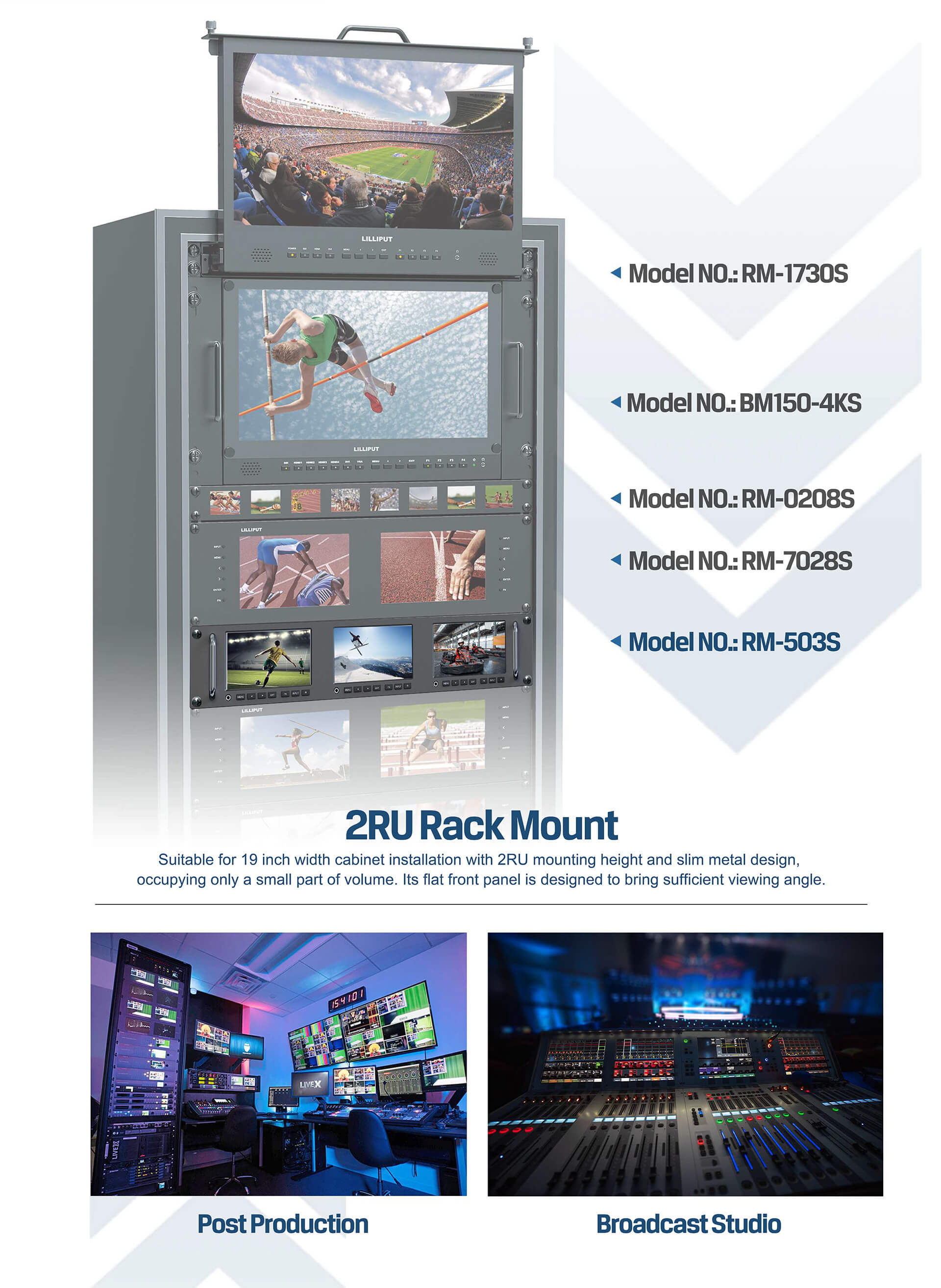

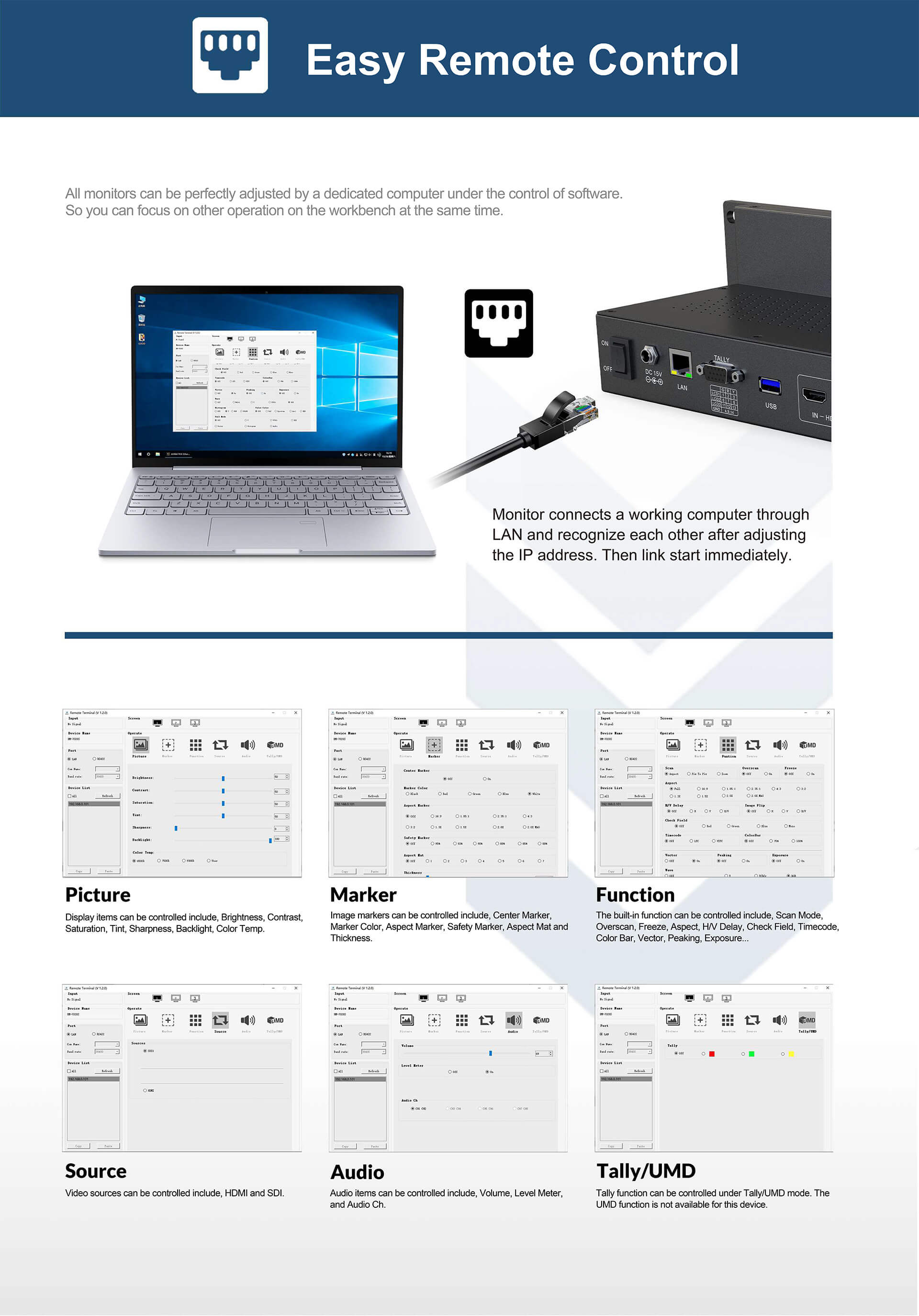

  • Feature: Rack mount, Easy Remote Control,98% DCI-P3-
  • Product Detail

    Specifications

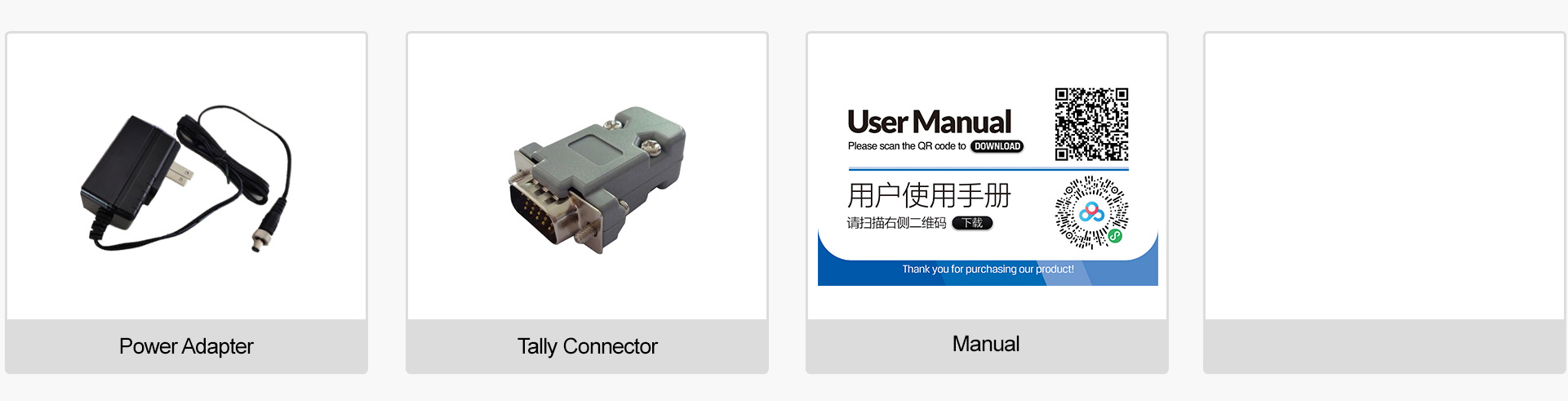

    Accessories

    RM-503S DM
    RM-503S DM
    RM-503S DM
    RM-503S DM
    RM-503S DM
    RM-503S DM

  • Previous:
  • Next:

  • Display
    Size 3×5″
    Resolution 1920×1080
    Brightness 450cd/m²
    Aspect ratio 16:9
    Contrast 1000:1
    Viewing Angle 160°/160°(H/V)

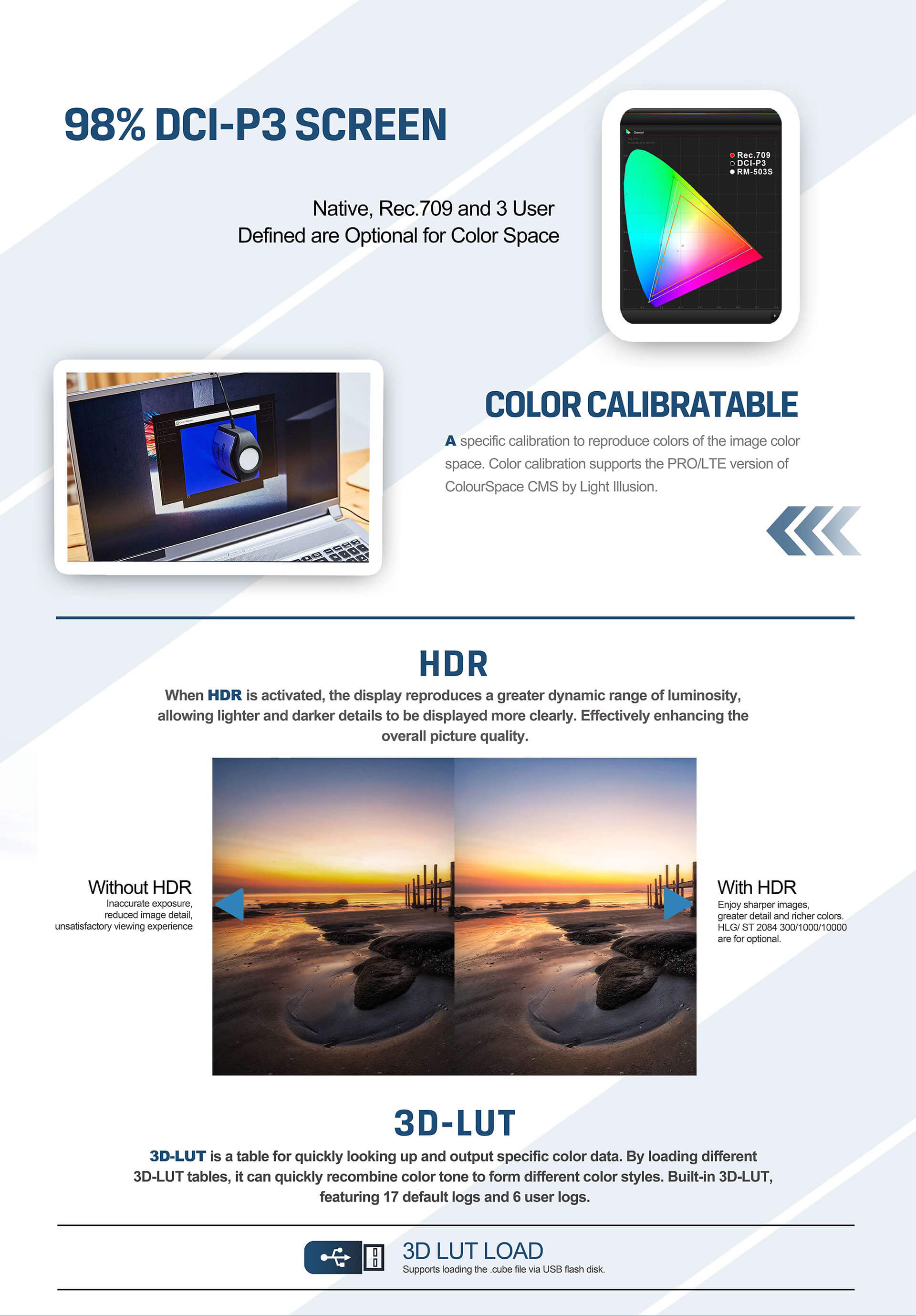

    Color Space 98% DCI-P3
    LUT Support 3D-LUT (.cube format)
    Video Input
    3G SDI 3
    HDMI 3 HDMI2.0(supports up to 4K 60Hz)
    LAN 1
    Video Loop Output
    3G-SDI 3
    HDMI 3 HDMI2.0(supports up to 4K 60Hz)
    Supported In / Out Formats
    SDI 1080p 60/50/30/25/24, 1080pSF 30/25/24, 1080i 60/50, 720p 60/50…
    HDMI 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50…
    Audio In/Out
    Ear Phone Slot 3
    Power
    Current 2.5A(12V)
    DC In DC 12-24V
    Power Consumption ≤27W
    Environment
    Operating Temperature 0℃~50℃
    Storage Temperature -20℃~60℃
    Other
    Dimension(LWD) 480×116×88mm
    Weight 2.1kg

    RM503
