Dual 7 inch 3RU rackmount monitor with 3G-SDI /HDMI 2.0

Short Description:

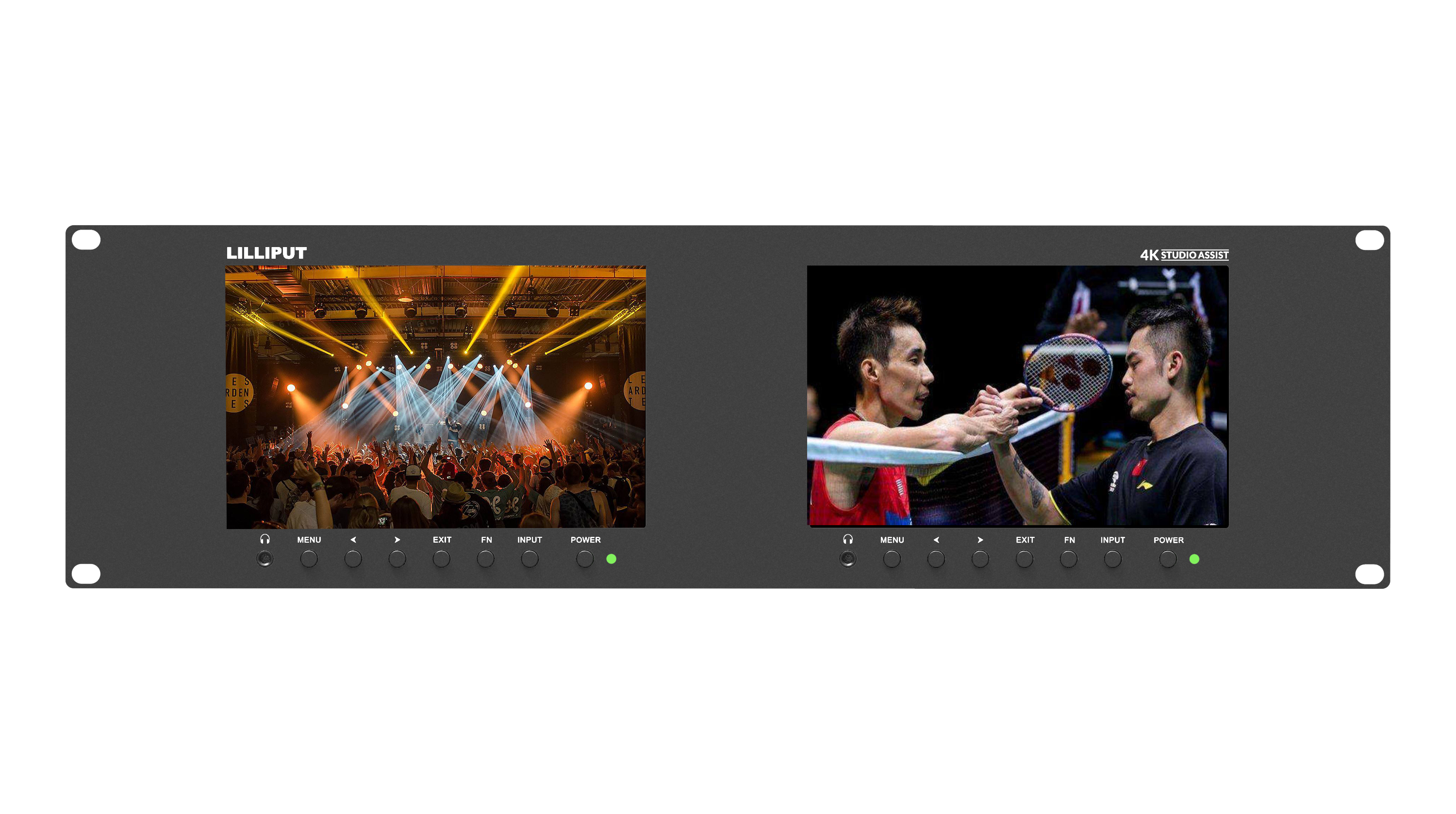

3RU rack mount monitor with dual 7″ IPS screens, which is suitable for monitoring from two different cameras simultaneously.It comes with SDI and HDMI input and output, which support  up to 1080p 60Hz SDI and 2160p 60Hz HDMI videos. Just add signal cables to expand more diverse display solutions through loop output interfaces. Help creating a camera video wall. Also all monitors can be perfectly adjusted by a connected computer under the control of software.So you can focus on other operation on the workbench at the same time.

  • Model No.: RM-7029S
  • Display: Dual 7″ ,1920x1200
  • Input: 3G-SDI, HDMI 2.0, LAN
  • Output: 3G-SDI, HDMI 2.0
  • Feature: Rack mount, Easy Remote Control
  • Product Detail



    RM7029 DM
    7 inch 3 RU rack mount monitors
    Rack Mount Monitor
    3 RU rack mount monitor
    7 inch 3 RU rack mount SDI monitor
    SDI rack mount monitor

  • Previous:
  • Next:

  • Display
    Size Dual 7″ LED backlit
    Resolution 1920×1200
    Brightness 400cd/m²
    Aspect ratio 16:10
    Contrast 2000:1
    Viewing Angle 160°/160°(H/V)
    Supported Log Formats Slog2 / Slog3, Arrilog, Clog, Jlog, Vlog, Nlog or User…
    LUT Support 3D-LUT (.cube format)

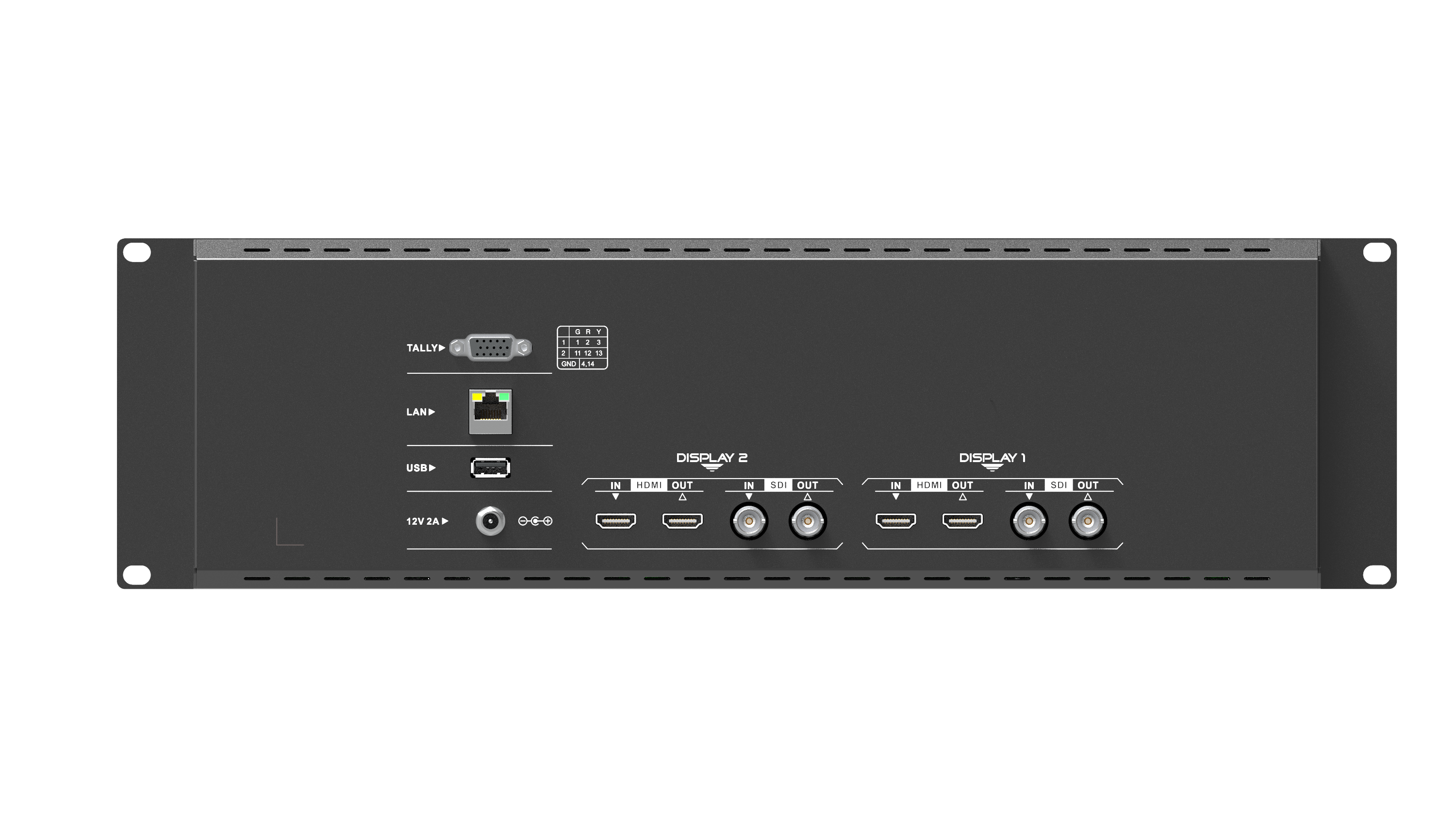

    Video Input
    SDI 2×3G
    HDMI 2×HDMI(supports up to 4K 60Hz)
    LAN 1
    Video Loop Output
    SDI 2×3G-SDI
    HDMI 2×HDMI 2.0 (supports up to 4K 60Hz)
    Supported In / Out Formats
    SDI 1080p 60/50/30/25/24, 1080pSF 30/25/24, 1080i 60/50, 720p 60/50…
    HDMI 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50…
    Audio In/Out
    Speaker -
    Ear Phone Slot 2
    Current 1.5A
    DC In DC 10-24V
    Power Consumption ≤16W
    Operating Temperature 0℃~50℃
    Storage Temperature -20℃~70℃
    Dimension(LWD) 480×131.6×29.3mm
    Weight 2.2kg

    rackmount monitor
