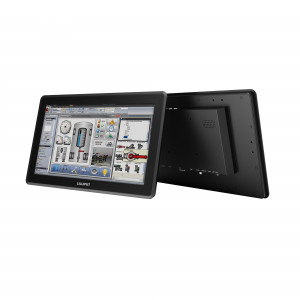

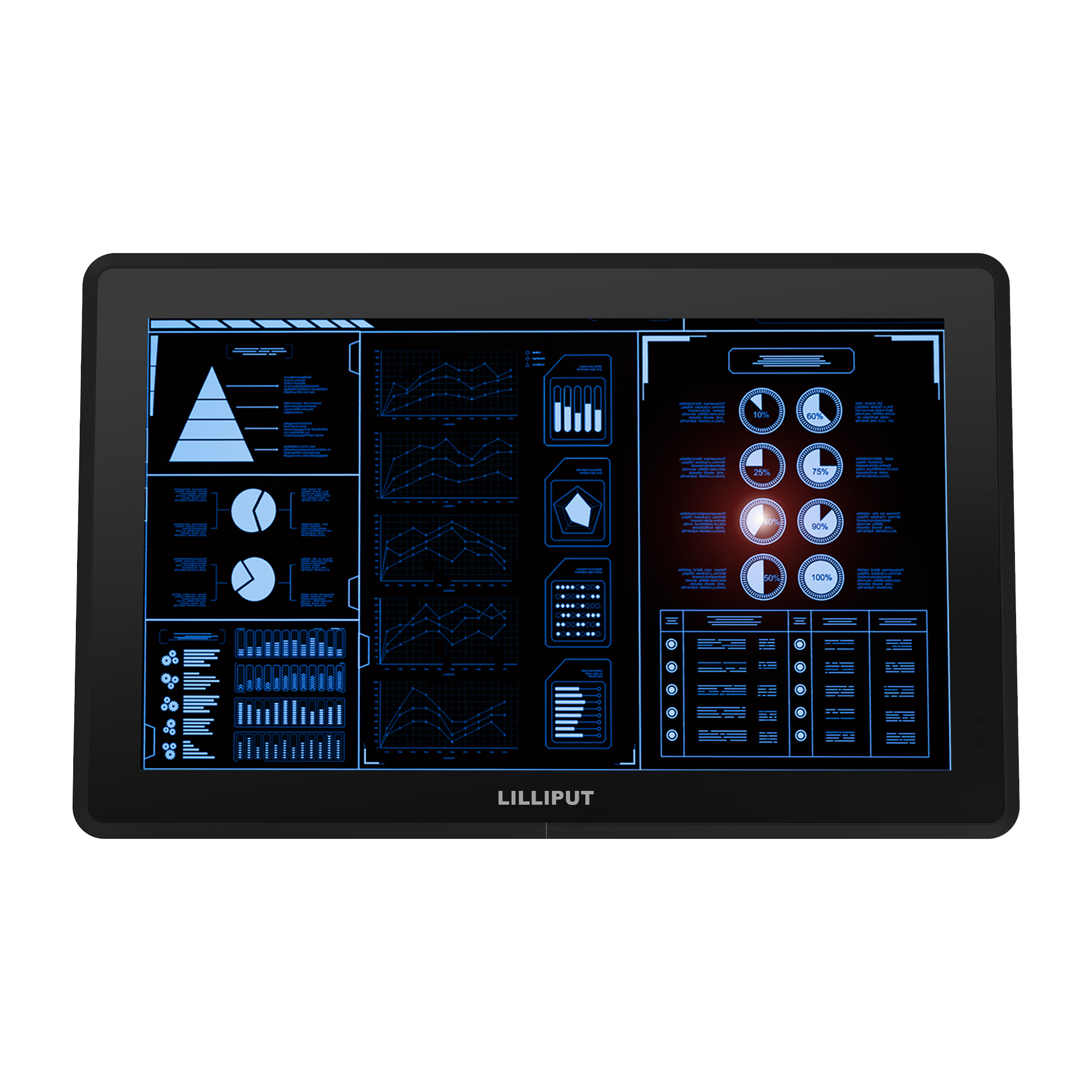

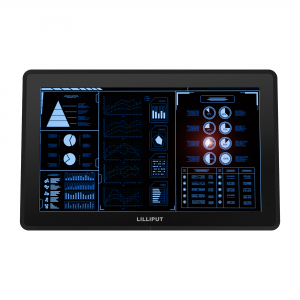

TK1331 13.3 Inch 1000 Nits Touch Screen Industrial Monitor

Short Description:

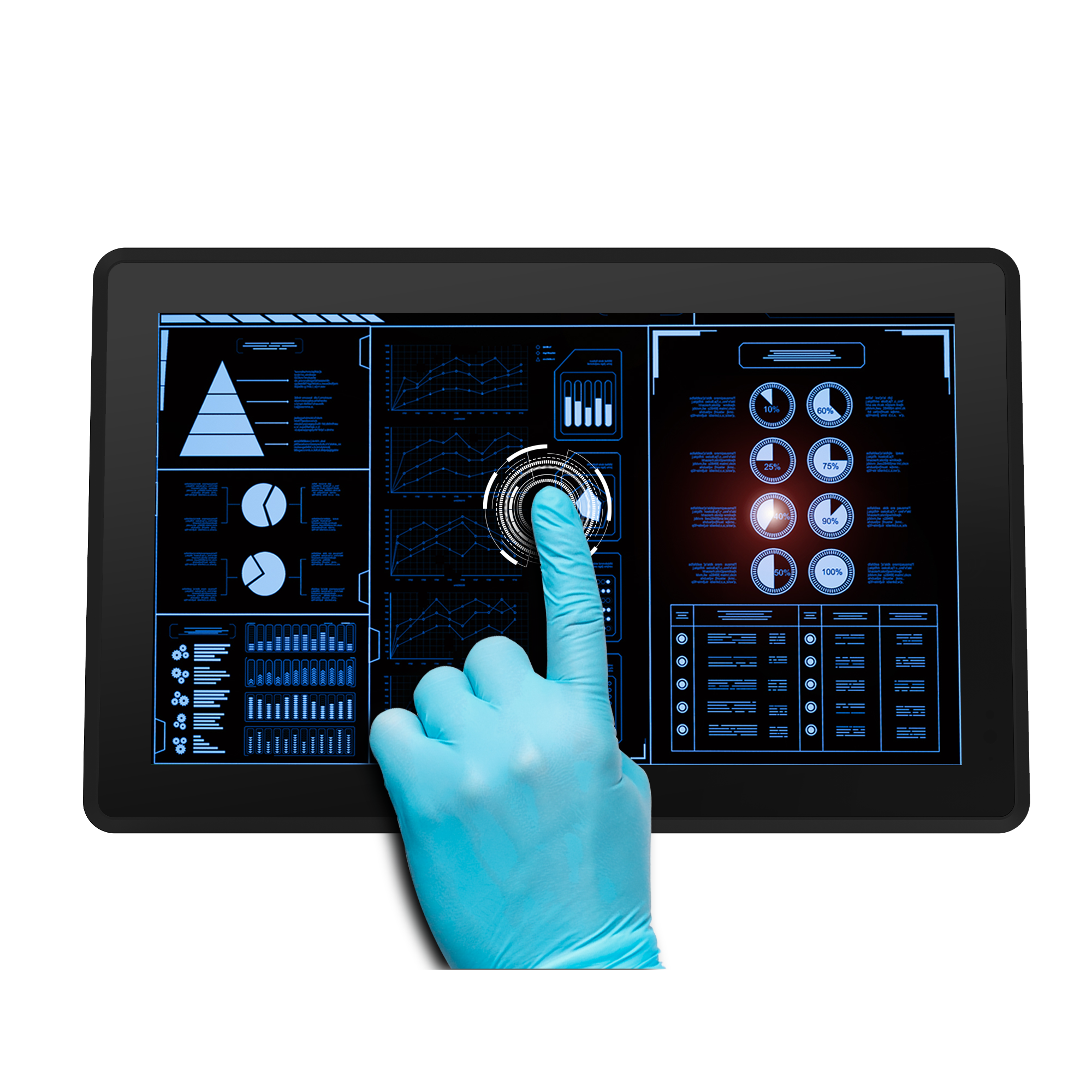

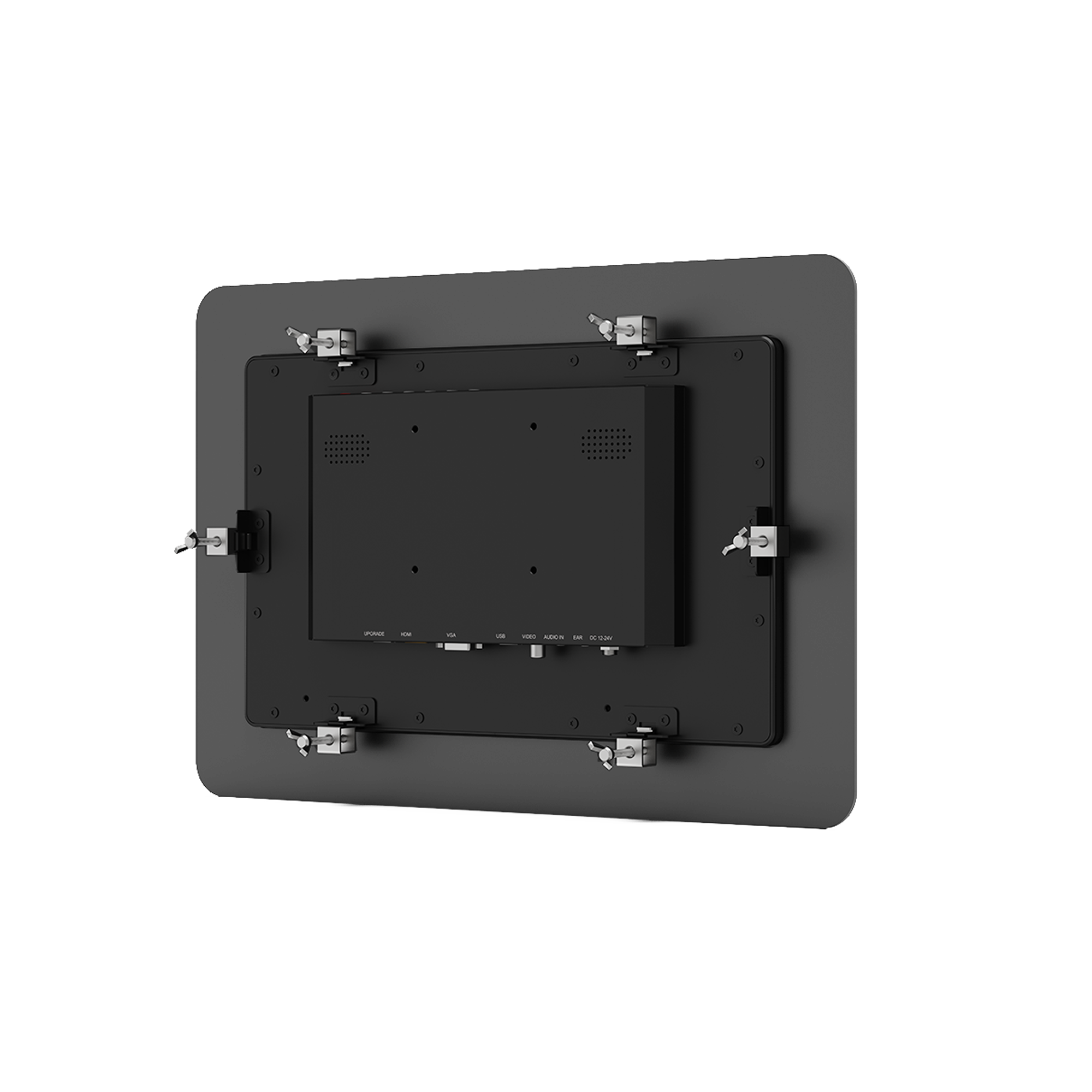

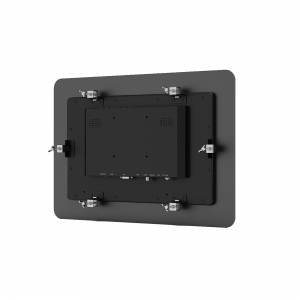

This 13.3-inch metal monitor comes with a 10-point capacitive touch screen and 1000nits high brightness screen panel. The interfaces support a wide range of customisation options in addition to the existing types such as HDMI, VGA, AV. It features anti-glare coating for clear outdoor viewing. It supports glove touch, has an IP65/NEMA 4 front panel, 7H hardness, and IK07 impact resistance. Horizontal and vertical installation are both supported for flexible use.

Model No.: TK1331/C & TK1331/T

Display: 13.3" / 1920×1080 / 1000 nits

Input: HDMI, VGA, AV

Audio In/Out: Speaker, HDMI, Ear Jack

Feature: 1000nits Brightness, 10-points PCAP, IP65 Front Panel, Anti-glare, 7H, IK07, Metal Housing

Send email to us Download as PDF User guide

Product Detail

Specifications

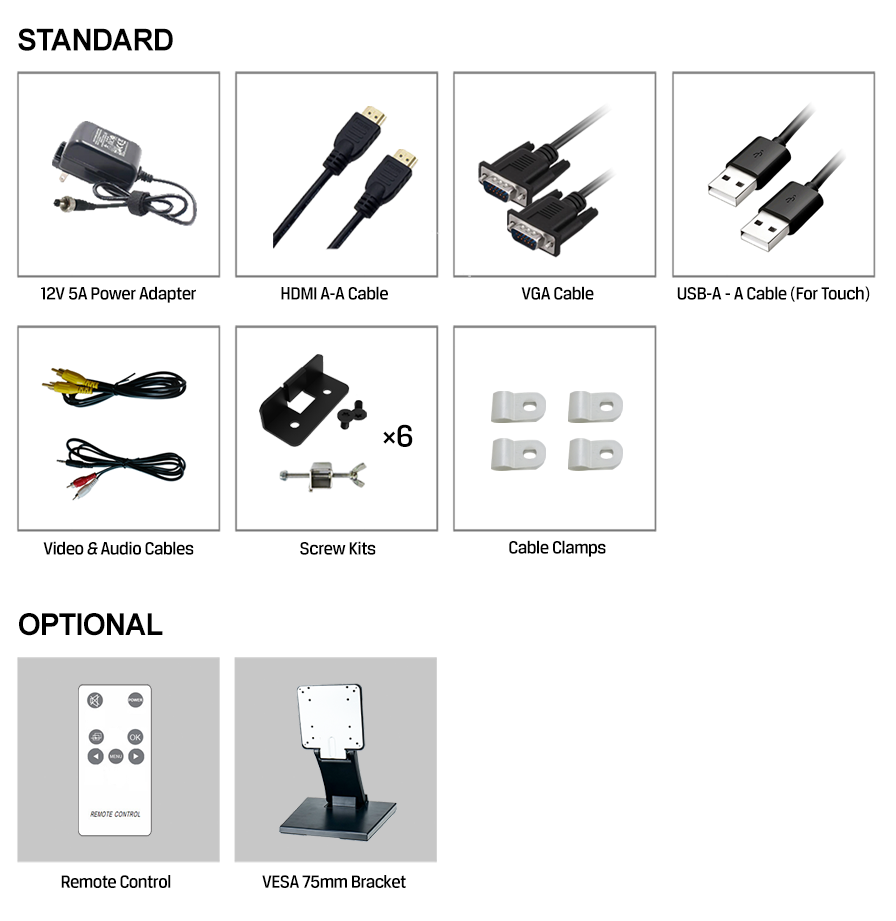

Accessories

Product Tags

Previous: TK2380 23.8 Inch 1000 Nits Touch Screen Industrial Monitor

Next: PVM160S-E 15.6 inch 1200 Nits High Brightness Live Stream & Recording Monitor

MODEL NO.		TK1331
DISPLAY	Touch Screen	10-point PCAP
	Panel	13.3” LCD
	Physical Resolution	1920×1080
	Aspect Ratio	16:9
	Brightness	1000 nits
	Contrast	1000:1
	Viewing Angle	160° / 160° (H/V)

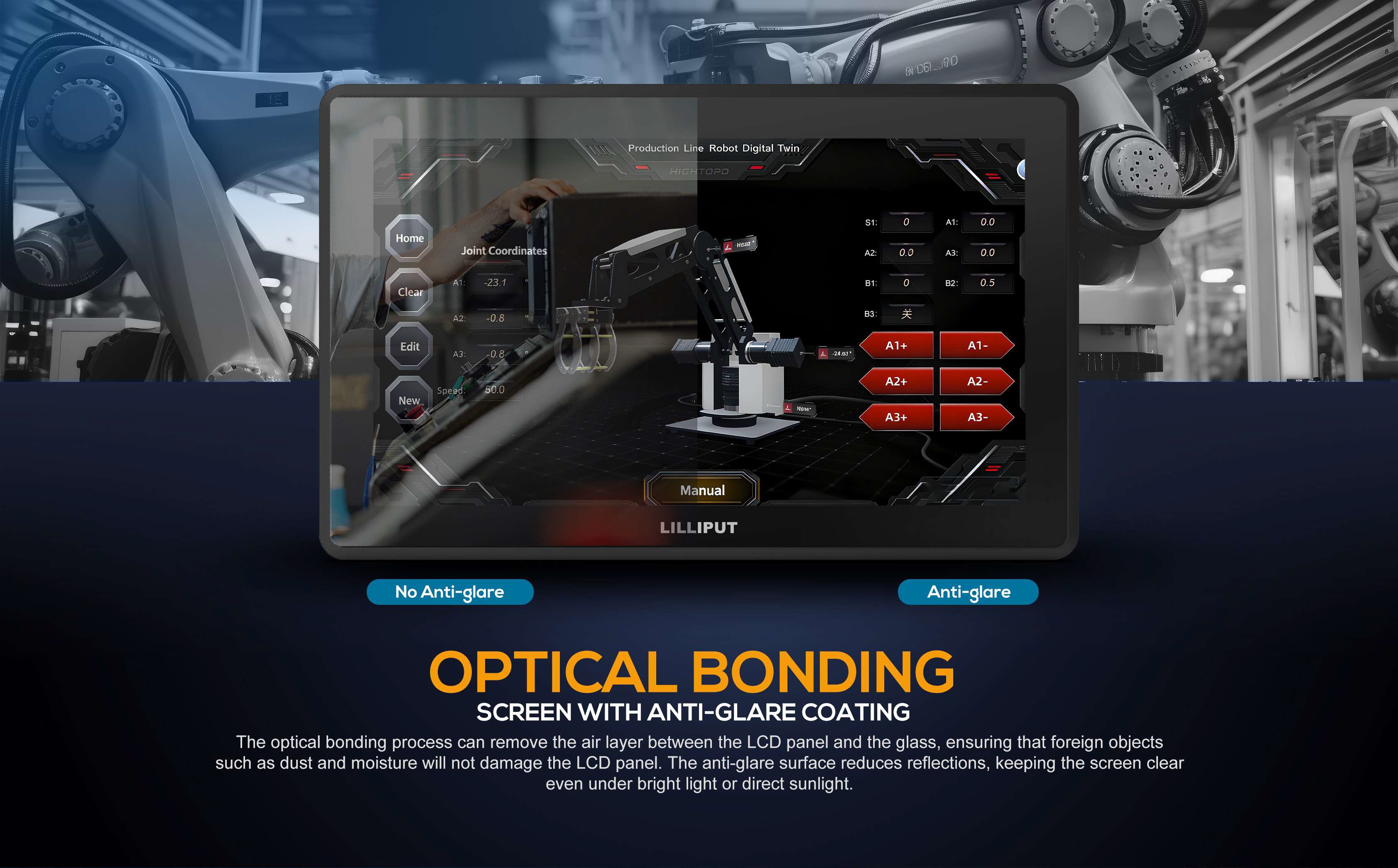

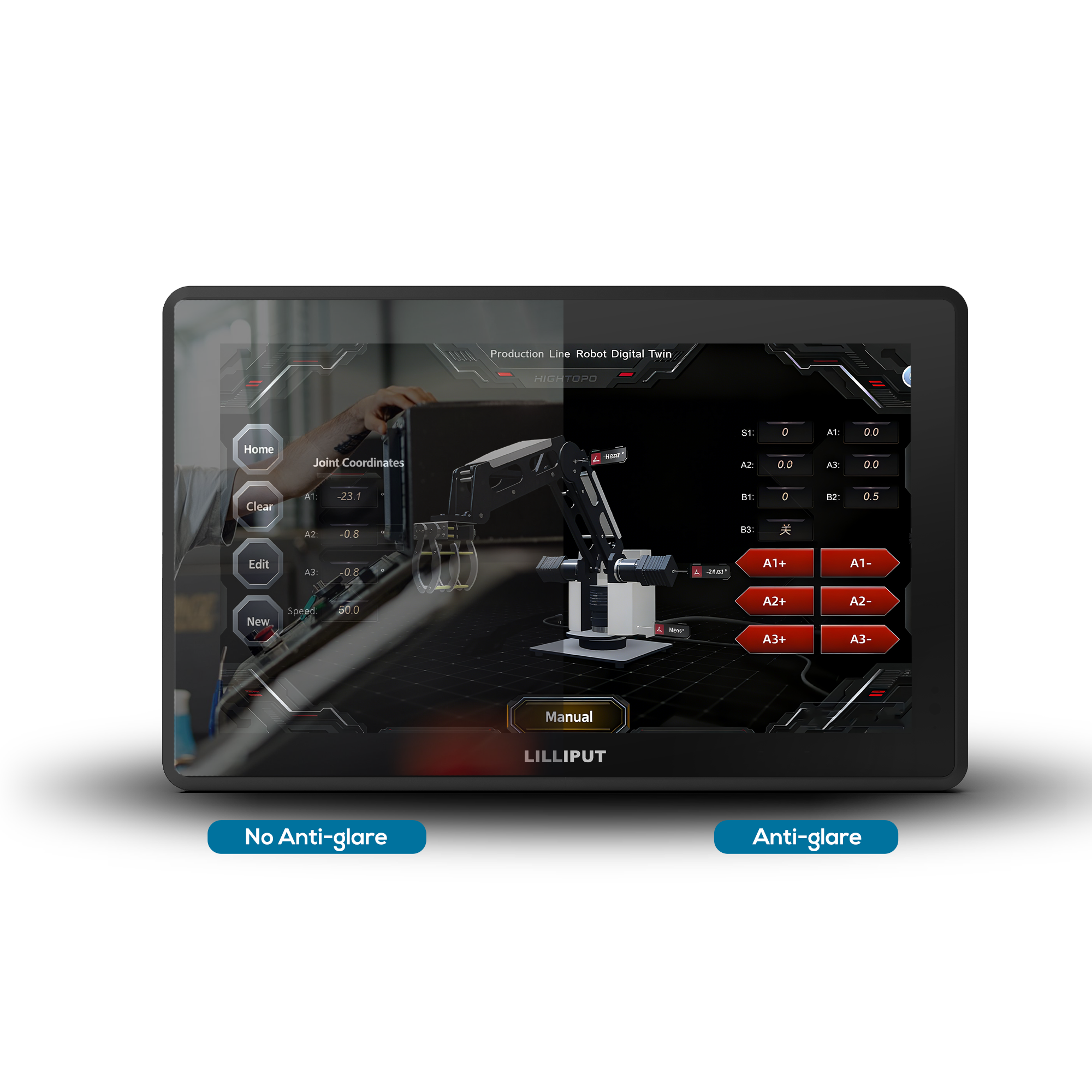

	Coating	Anti-glare
	Hardness/Collision	Hardness≥7H(ASTM D3363), Collision ≥IK07 (IEC62262/EN62262)

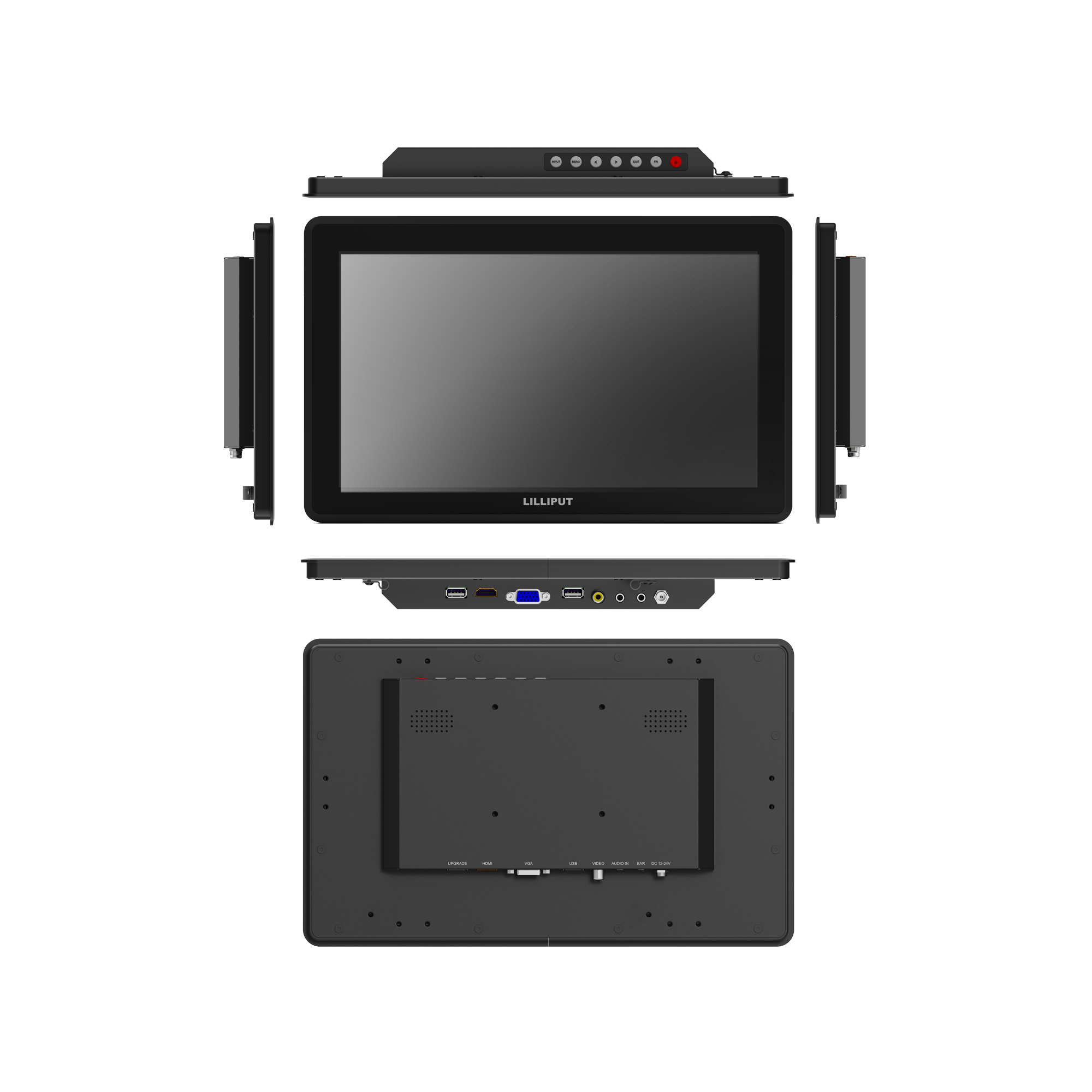

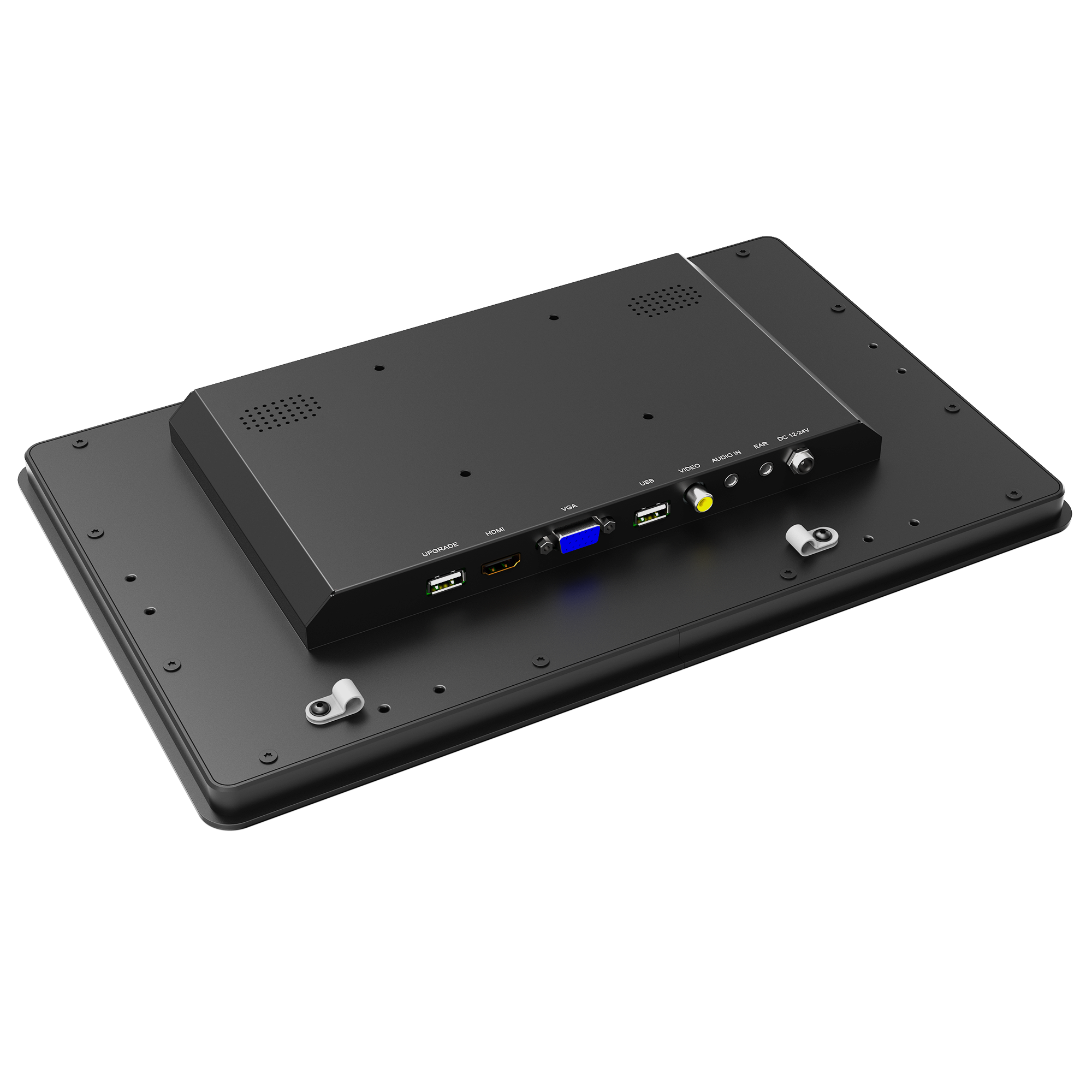

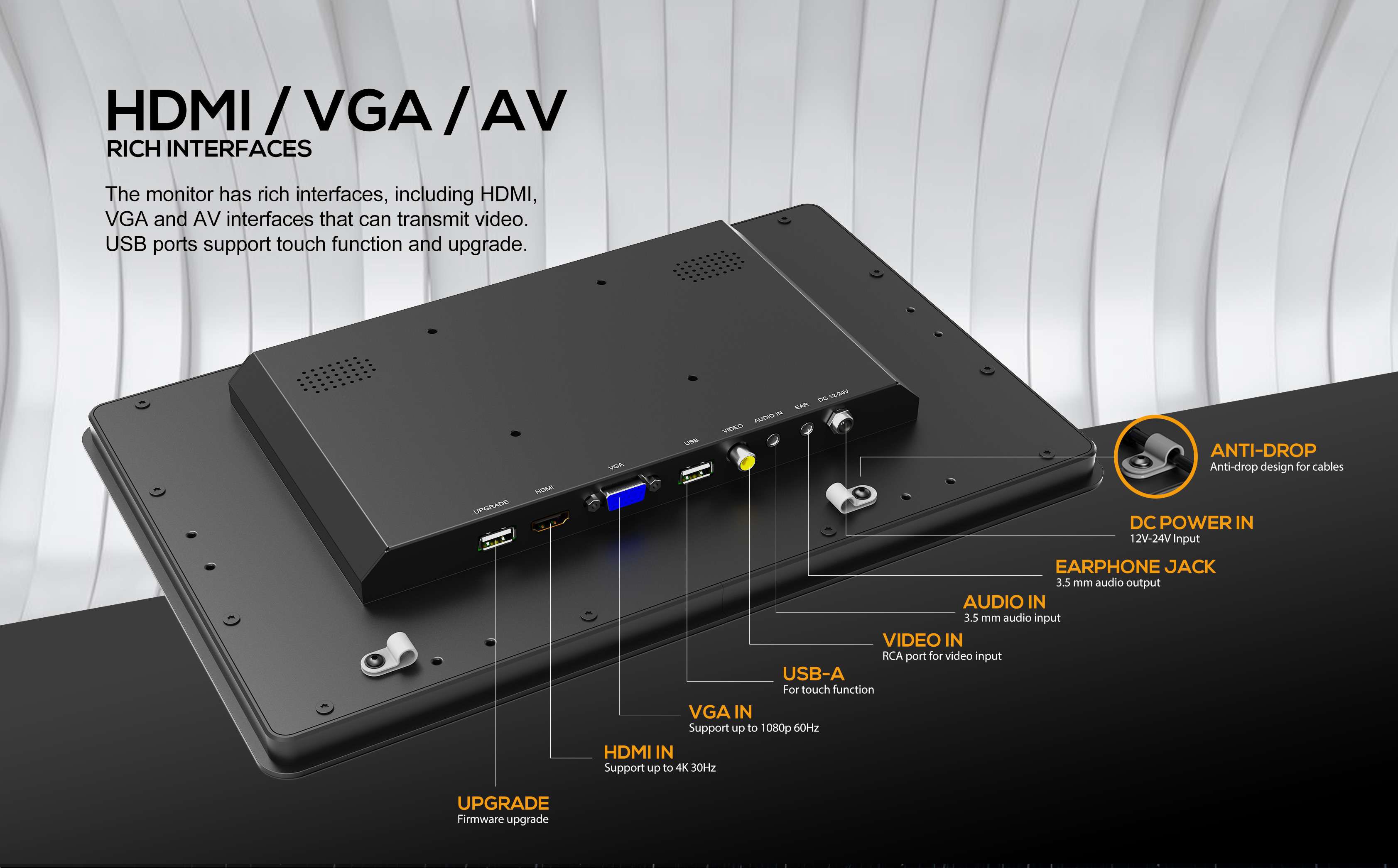

INPUT	HDMI	1
	VGA	1
	AV	1
	USB-A	1, For touch and upgrade
SUPPORTED FORMATS	HDMI	2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60…
	VGA	1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
	AV	480i 60, 576i 50…
AUDIO IN/OUT	Speaker	2
	HDMI	2ch
	Ear Jack	3.5mm
POWER	Input Voltage	DC 12-24V
	Power Consumption	≤13W (12V)

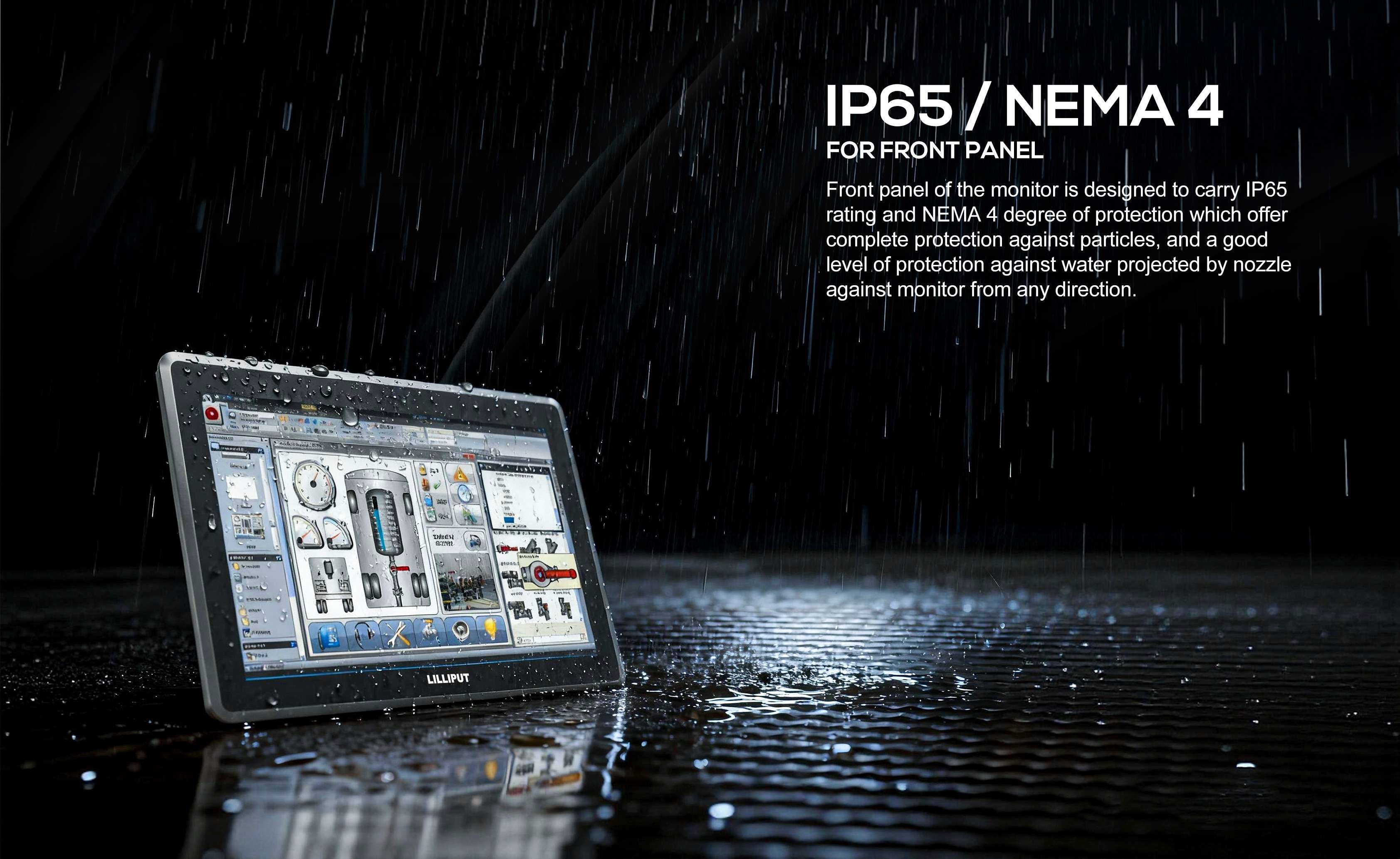

ENVIRONMENT	IP Rating	IP65 Front Panel, Front NEMA 4
	Vibration	1.5Grms, 5~500Hz, 1 hr/axis (IEC6068-2-64)
	Shock	10G, half-sine wave, last 11 ms(IEC6068-2-27)
	Operating Temperature	-20°C~60°C
	Storage Temperature	-30°C~70°C
DIMENSION	Dimension(LWD)	339.5mm × 211mm × 35.5mm
	Weight	1.8kg
