| DISPLAY |
Panel |
15.6″ |
| Physical Resolution |
1920*1080 |
| Aspect Ratio |
16:9 |
| Brightness |
1200 cd/m² |
| Contrast |
1000：1 |
| Viewing Angle |
160°/160°（H/V) |
| HDR |
ST2084 300/1000/10000/HLG |
| Supported Log Formats |
SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User… |
| Look up Table(LUT)support |
3D LUT (.cube format) |
| Technology |
Calibration to Rec.709 with calibration unit |

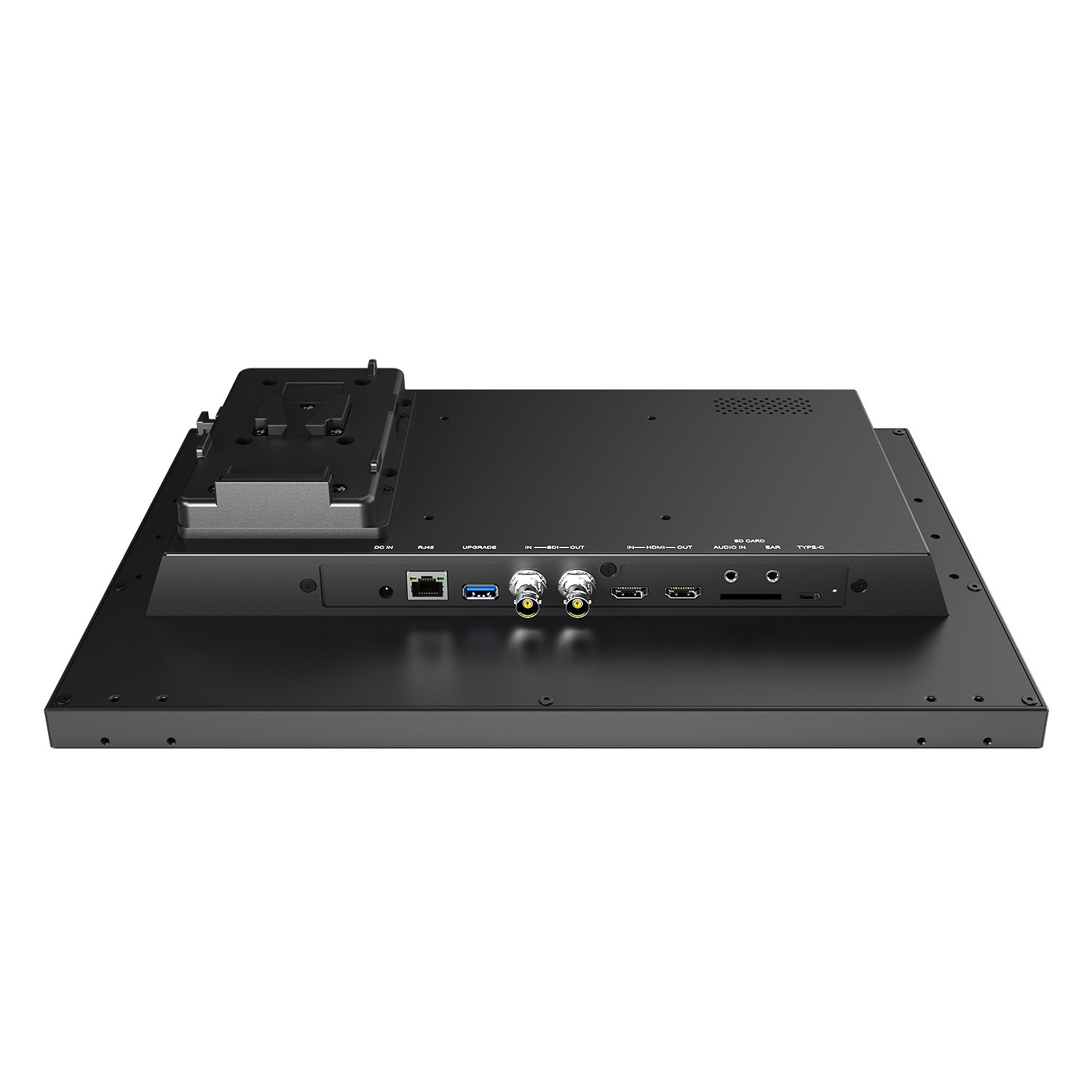

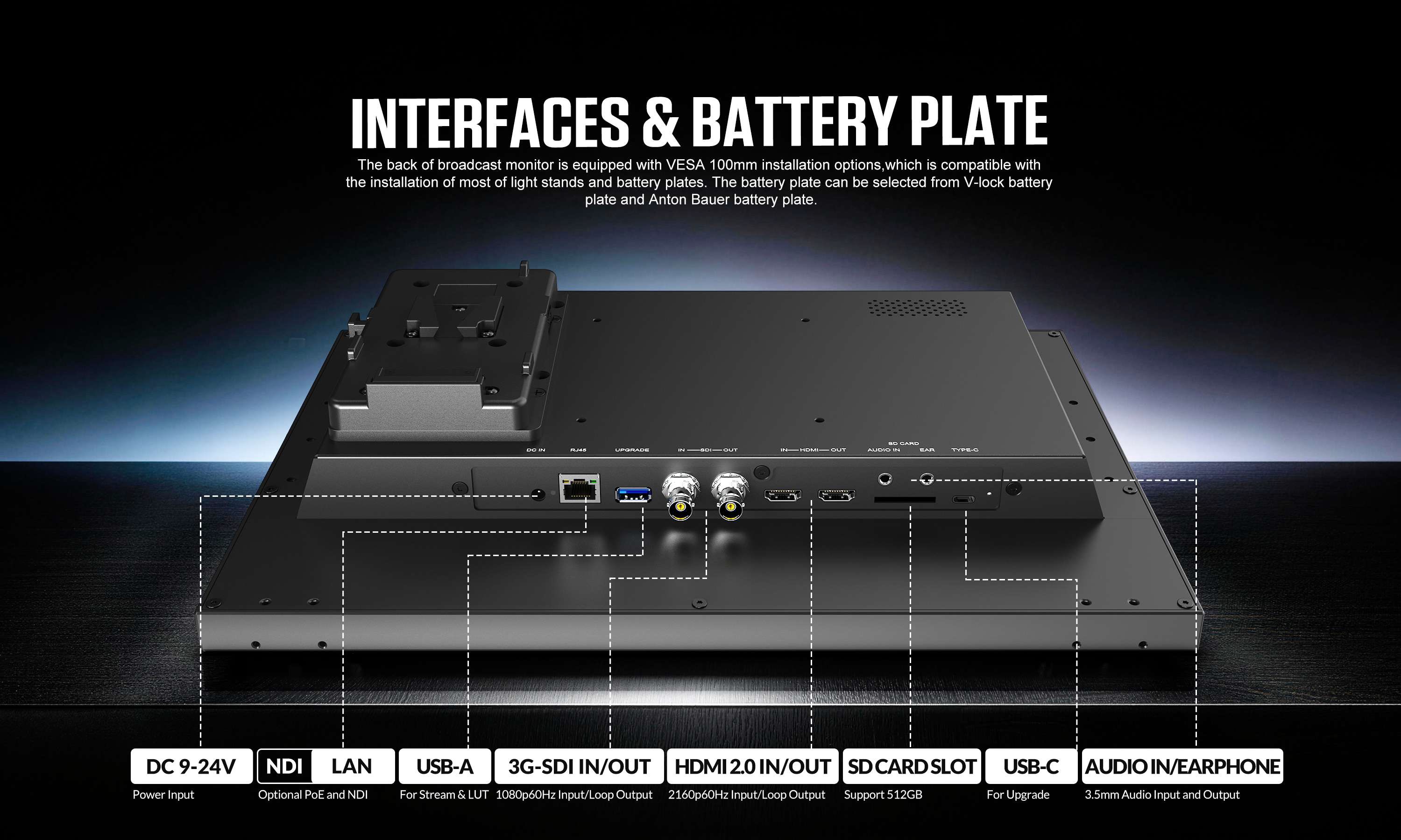

| VIDEO INPUT |

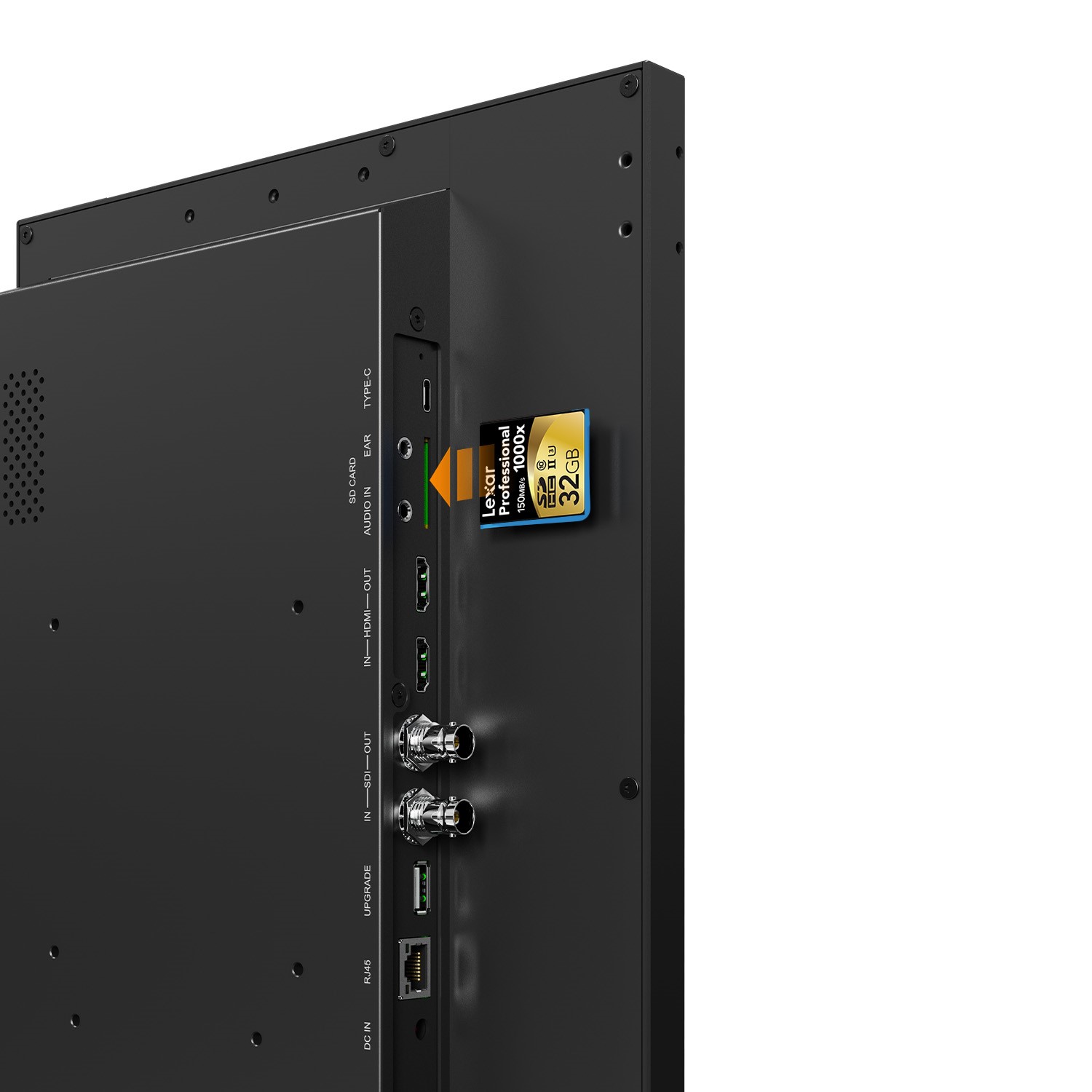

SDI |
1×3G |
| HDMI |
1×HDMI 2.0 |
| VIDEO LOOP OUTPUT |
SDI |
1×3G |
| HDMI |
1×HDMI 2.0 |
| LAN |
1×1000M, PoE is optional |
| SUPPORTED FORMATS |
SDI |
1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60… |
| HDMI |
2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60… |
| IP |
Push/Pull Streaming: YCbCr 4:2:2 video code (support up to 32Mbps@1080p60) |
| Streaming Formats |
Push Streaming: SRT, RTMP.Pull Streaming: RTMP, RTSP, HTTP, HTTPS, NDI|HX(Optional) |
| RECORDING |
Video Resolution |
1920×1080 / 1280×720 / 720×480 |
| Frame Rates |
60 / 50 / 30 / 25 / 24 |
| Audio SR |
44.1kHz / 48kHz |
| Storage |
SD card, support 512GB |
| Split Rec File |
1min / 5 mins / 10 mins / 20 mins / 30 mins / 60mins |
| AUDIO IN/OUT (48kHz PCM AUDIO) |
SDI |
2ch 48kHz 24-bit |
| HDMI |
8ch 24-bit |
| Ear Jack |
3.5mm |
| Built-in Speakers |
1 |
| POWER |
Input Voltage |
DC 9-24V |
| Power Consumption |
≤38W (DC 15V / Optional PoE PD function, supports IEEE802.3 bt protocol) |
| Compatible Batteries |
V-Lock or Anton Bauer Mount (Optional) |
| Input Voltage(battery) |
14.8V nominal |
| ENVIRONMENT |
Operating Temperature |
0℃~50℃ |
| Storage Temperature |
-20℃~60℃ |
| OTHER |
Dimension(LWD) |
376mm × 247.7mm × 49.3mm |
| Weight |
3.15kg |
