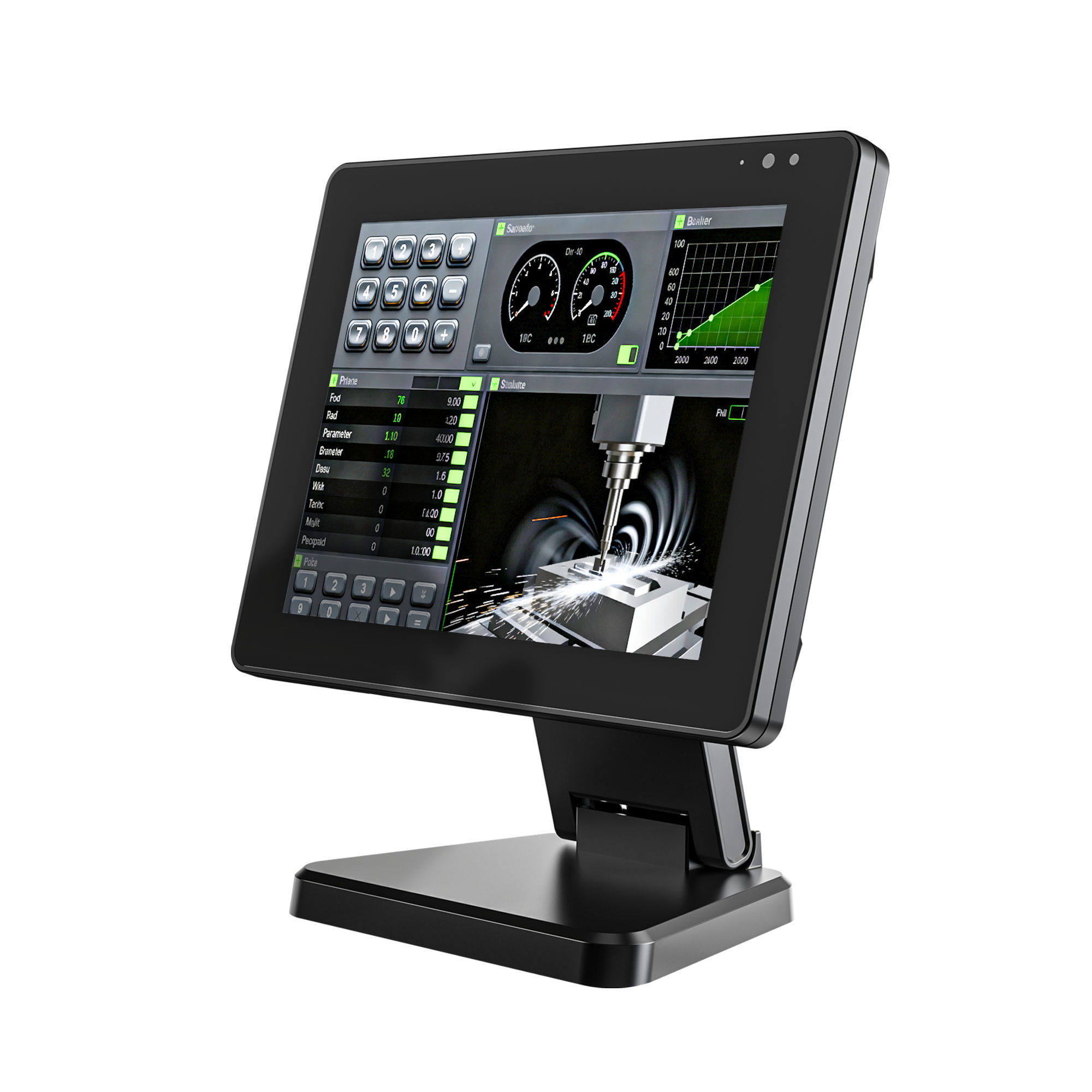

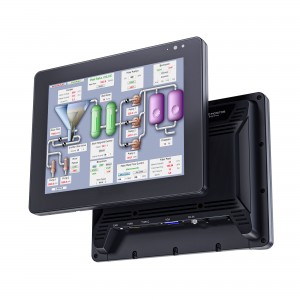

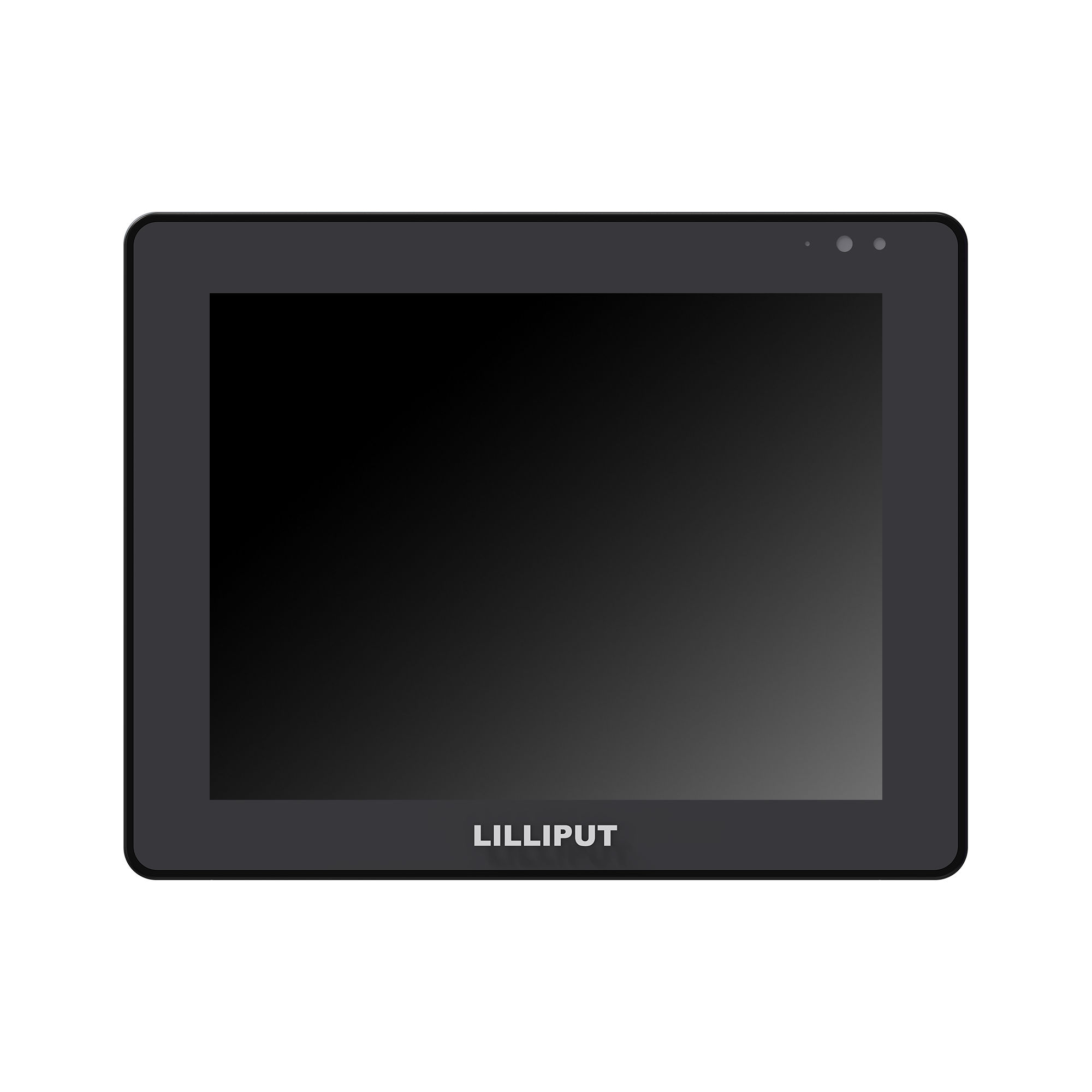

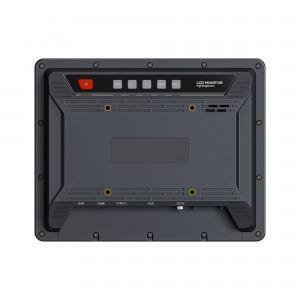

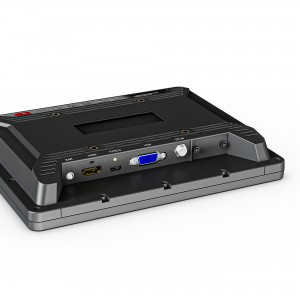

819-8 Inch 1000 Nits IP65 Touch Screen Monitor
| MODEL NO. | 819/C | 819/T | 819/C | 819/T | |

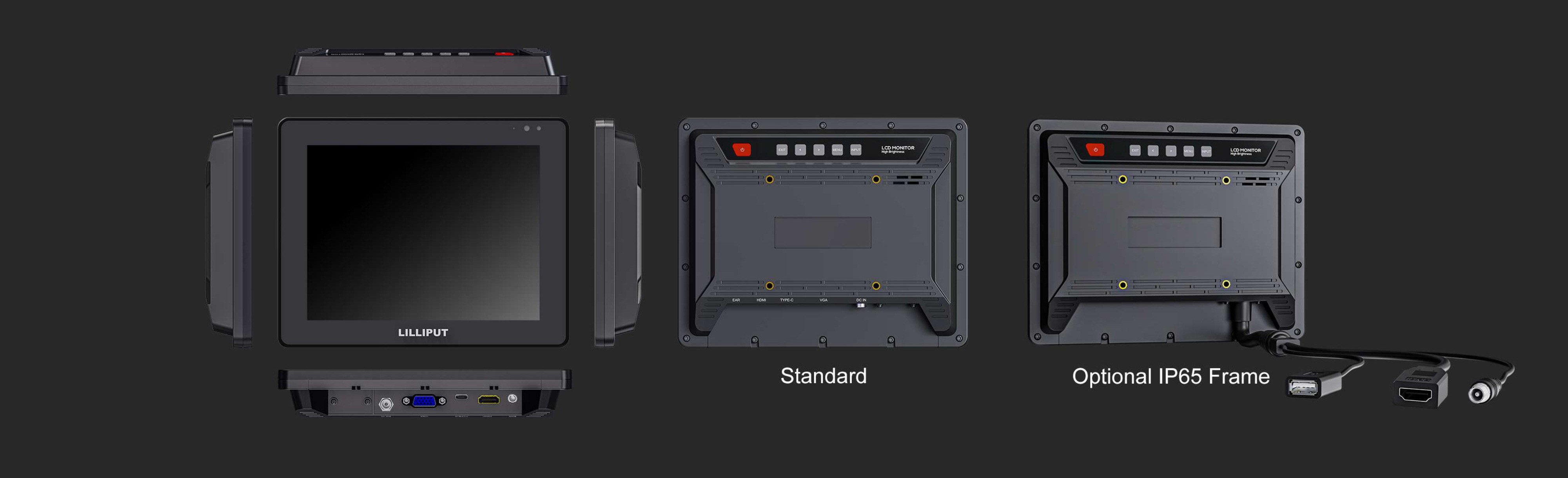

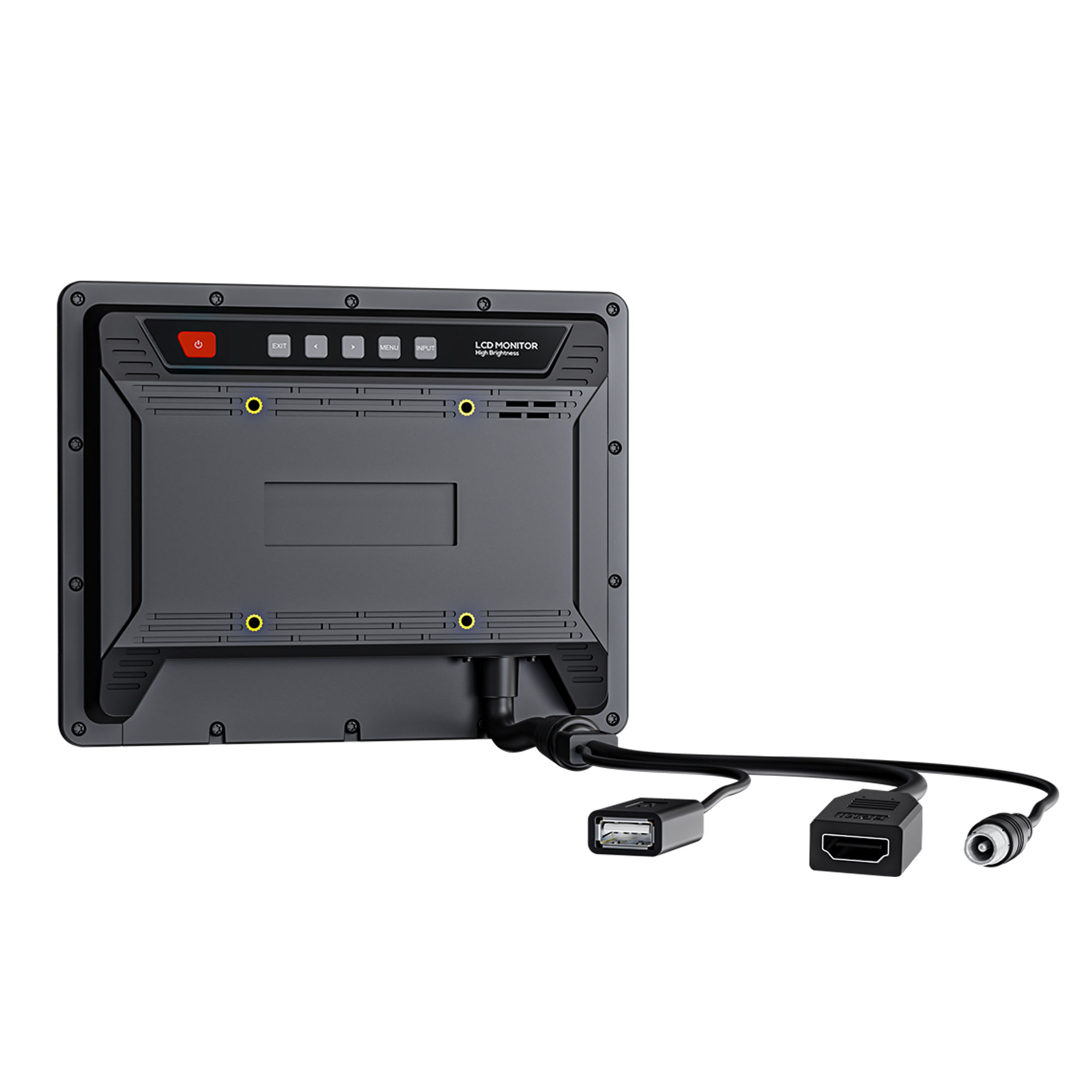

| STRUCTURE | Standard | With Optional IP65 Frame | |||
| DISPLAY | Touch Screen | Non-touch | 10-point PCAP | Non-touch | 10-point PCAP |
| Panel | 8” LCD | ||||
| Physical Resolution | 1280×768 | ||||
| Aspect Ratio | 4:3 | ||||
| Brightness | 1000 nits | ||||
| Contrast | 800:1 | ||||
| Viewing Angle | 170° / 170° (H/V) | ||||
| LED Panel Life Time | 50000h | ||||
| Optional Coating | Anti-glare, anti-finerprint | ||||

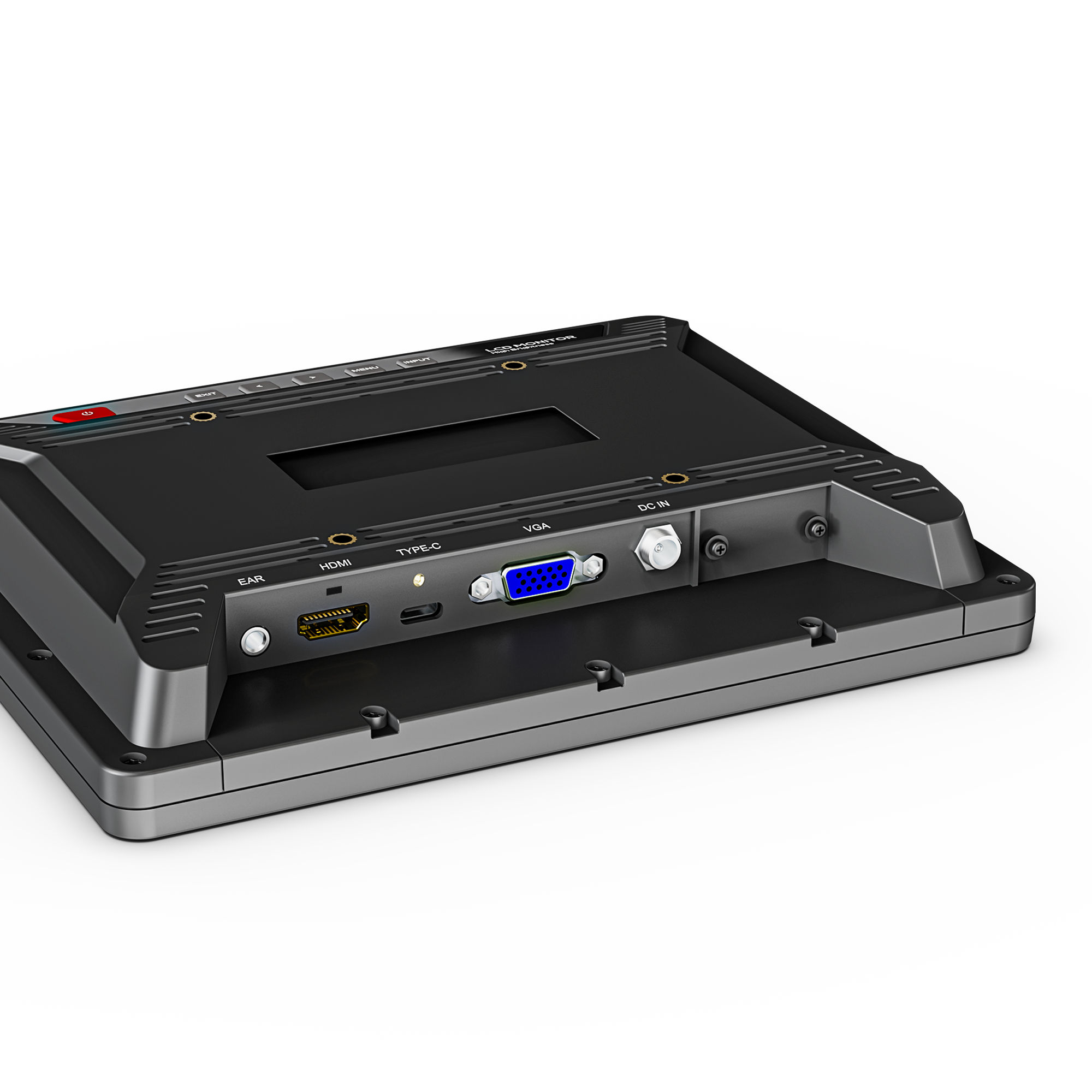

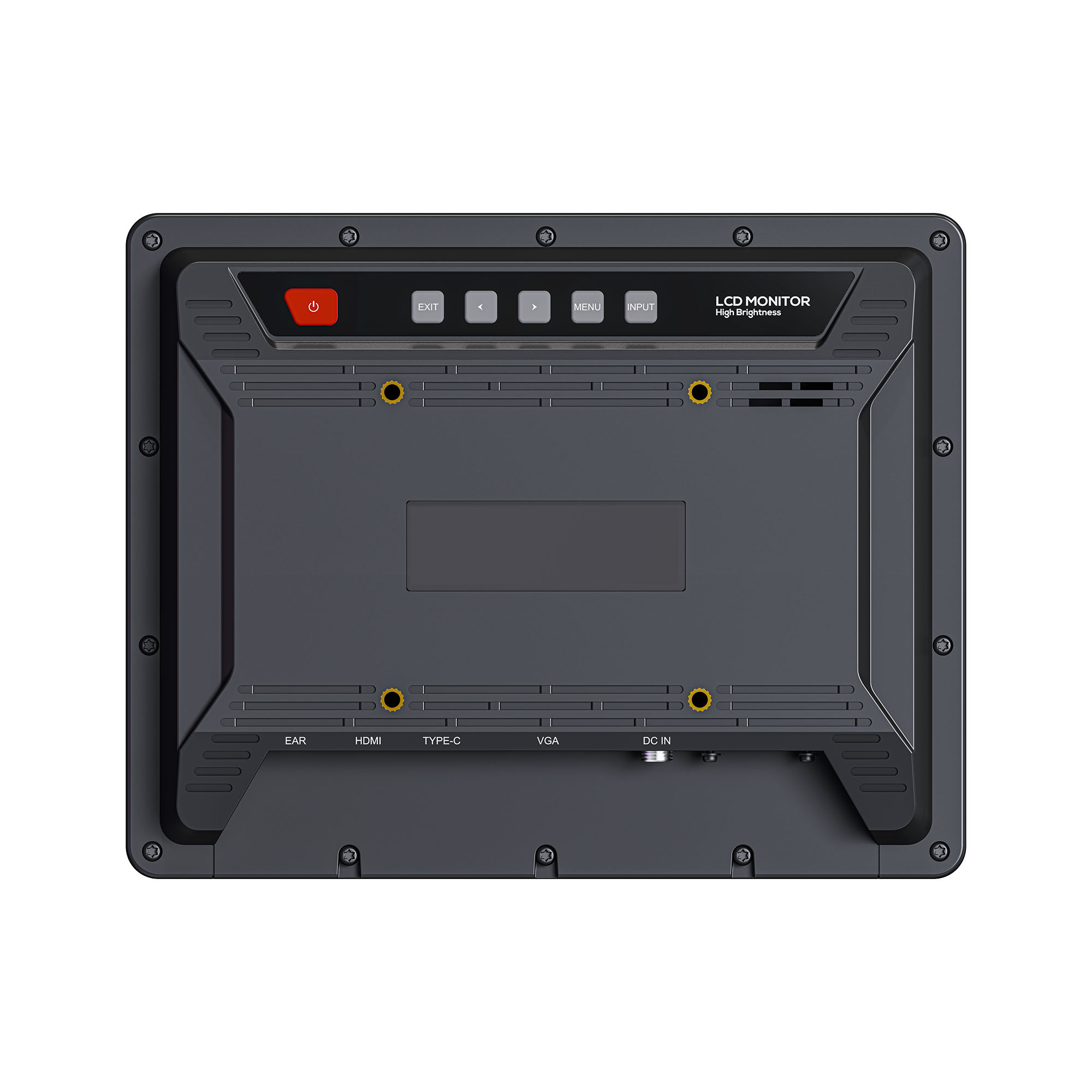

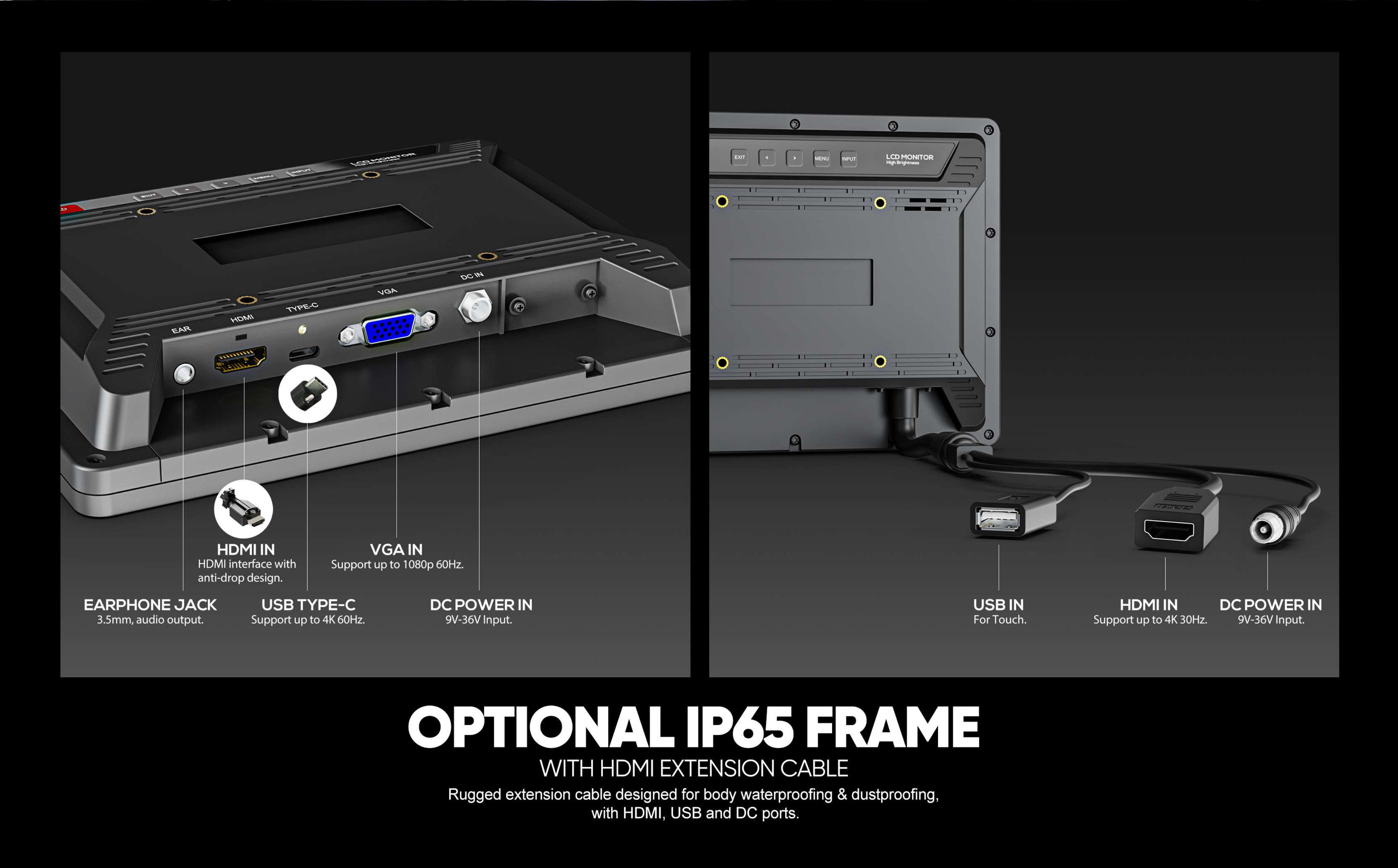

| INPUT | HDMI | 1 | |||
| VGA | 1 | ||||
| USB | USB-C (For touch+video signal) | USB-A (For touch only) | |||
| SUPPORTED FORMATS |
HDMI | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60… | |||
| VGA | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60… | ||||
| USB Type-C | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60… | ||||
| AUDIO IN/OUT | Speaker | 1 | |||
| HDMI | Available | ||||
| Ear Jack | 3.5mm – 2ch 48kHz 24-bit | - | |||
| POWER | Input Voltage | DC 9-36V | |||
| Power Consumption | ≤11W (12V) | ||||
| ENVIRONMENT | IP Rating | - | IP65 | ||
| Operating Temperature | -25°C~75°C | ||||
| Storage Temperature | -35°C~85°C | ||||
| DIMENSION | Dimension(LWD) | 205mm × 164.5mm × 33mm | |||

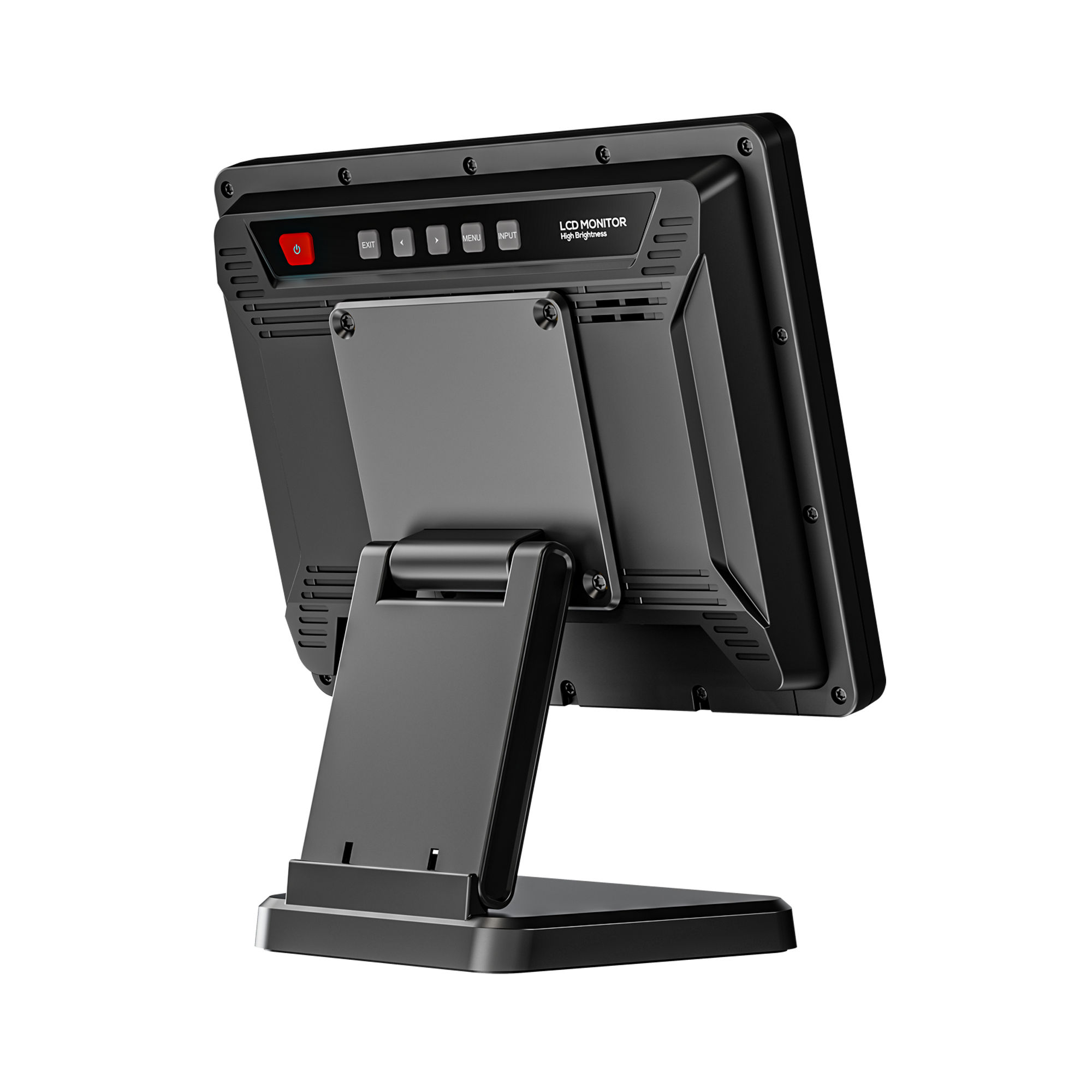

| VESA Mount | 75mm | ||||
| Weight | 750g | 780g | |||
