10.1 inch SDI security monitor
Excellent Display
Creatively integrated the 1280×800 native resolution into a 10.1 inch LCD panel, which is far
beyond from HD resolution. Features with 1000:1, 350 cd/m2 high brightness & 178° WVA.
As well as seeing every detail in massive FHD visual quality.

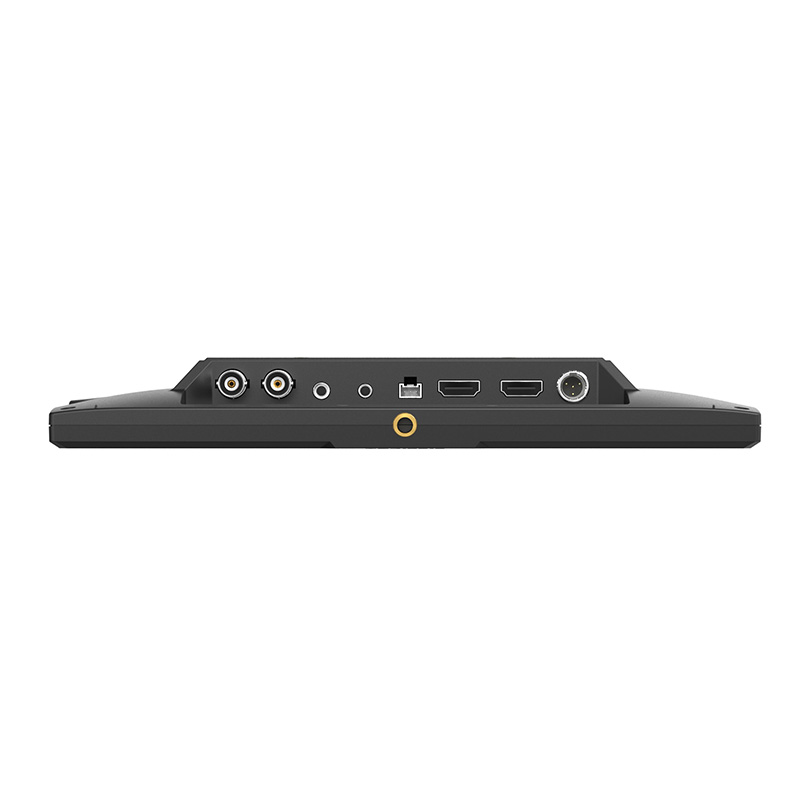

3G-SDI / HDMI / VGA / Composite
HDMI 1.4b supports FHD/HD/SD signal input, SDI supports 3G/HD/SD-SDI signal inputs.
Universal VGA and AV composite ports can also meet different usage environments.
Security Camera Assist
As a monitor in security camera system to help with general store oversight by
allowing managers and employees to keep an eye on multiple areas at once.
| Display | |
| Size | 10.1” |
| Resolution | 1280 x 800 |
| Brightness | 350cd/m² |
| Aspect ratio | 16:10 |
| Contrast | 1000:1 |
| Viewing Angle | 170°/170°(H/V) |
| Video Input | |
| SDI | 1 |
| HDMI | 1 |
| VGA | 1 |
| Composite | 1 |
| Video Output | |
| SDI | 1 |
| HDMI | 1 |
| Supported In Formats | |
| HDMI | 720p 50/60, 1080i 50/60, 1080p 50/60 |
| SDI | 720p 50/60, 1080i 50/60, 1080p 50/60 |
| Audio Out | |
| Ear Jack | 3.5mm - 2ch 48kHz 24-bit |
| Built-in Speakers | 1 |
| Control Interface | |
| IO | 1 |
| Power | |
| Operating power | ≤10W |
| DC In | DC 7-24V |
| Environment | |
| Operating Temperature | 0℃~50℃ |
| Storage Temperature | -20℃~60℃ |
| Other | |
| Dimension(LWD) | 250×170×32.3mm |
| Weight | 560g |
