SG-12G _ 12G-SDI Signal Generator

Short Description:

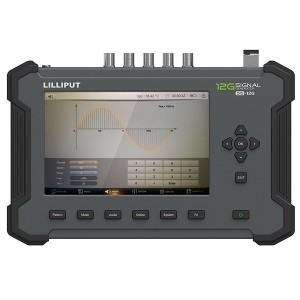

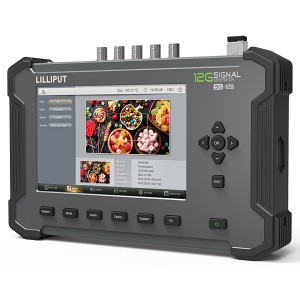

Multi-format advanced SDI pattern generator with Metal housing , Silicon Rubber and built-in battery. It support 12G-SDI and 12G-SFP output.Also have pattren measurement, signal compatibility, audio monitoring, overlay, timecode, ref in functions.


  • Model: SG-12G
  • Display: 7inch, 1280×800, 400nit
  • 12G-SDI output: 12G/6G/3G/HD...
  • 12G-SFP output: 12G/6G/3G/HD...
  • Feature: Builting-in battery, Portable
  • Product Detail

    Specifications

    Accessories

    SG-12G_ (1) SG-12G_ (2)

    Pattern Measurement

    To test color temperature and gray scale of monitor with various types of

    patterns, such as color bar, monochrome display and customized pictures.

    SG-12G_ (3)

    Signal Compatibility

    Supports SD, HD, 3G, 6G and 12G-SDI signals; SDI and Fiber signals up to

    4K 60Hz. SDI conversion among of different link structures, SQ and 2SI.

    SG-12G_ (4)

    Audio Monitoring

    A comprehensive audio monitoring tool supprots up to 16 channels embedded

    AES / EBU audio, with -60dB to 0dB range. And a 20 to 20000 frequency.

    SG-12G_ (5) SG-12G_ (8)

    Overlay

    Ring type for optional under Overlay function. Frame counter type for optional

    under Overlay function. Character type for optional under Overlay function.

    Text input will be displayed based on the specific X and Y axis that can be

    preset.Ref In used for frame synchronization to ensure input & output frames

    simultaneously.

    SG-12G_ (6)

    Time Code

    Supports Linear time code(LTC) and Vertical interval time code(VITC).

    SG-12G_ (7)

    Ring Type

    Ring type for optional under Overlay function

    SG-12G_ (11)

    FN (Shortcut)

    User-definable functions as shortcuts with great convenience.

    Function Shortcut supports more than one hundred shortcut functions.

    For time-saving andhigh efficient when testing, users can manage

    shortcut functions through Add, Del, Replace and Output operations.

    SG-12G_ (12)

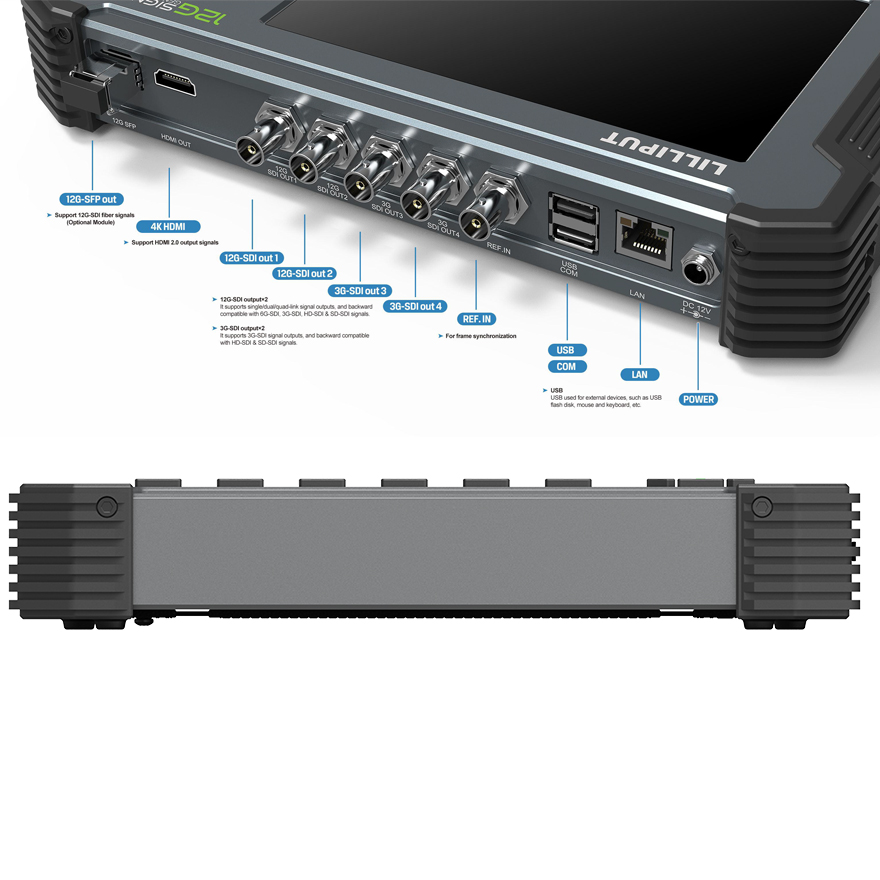

    Interfaces

    12G-SFP support 12G-SDI fiber signals (Optional Module).12G-SDI supports single/dual/quad-link signal outputs, and

    backward compatible with 6G / 3G / HD / SD-SDI signals. USB used for external devices, such as USB flash disk,

    mouse and keyboard, etc.

    SG-12G_ (13)


  • Previous:
  • Next:

  • Display
    Size 7”
    Resolution 1280 x 800
    Brightness 400cd/m²
    Aspect ratio 16:10
    Contrast 800:1
    Viewing Angle 178°/178°(H/V)
    Video Output (Uncompressed true 10-bit or 8-bit 422)
    SDI 2×12G, 2×3G (Supported 4K-SDI Formats Single/Dual/Quad Link)
    FIBER 1(optional module)
    Video Input
    REF 1
    USB 2
    Supported Out Formats
    SDI 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60
    SFP 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60
    Audio Out (48kHz PCM Audio)
    SDI 12ch 48kHz 24-bit
    Remote Control
    Com 1
    LAN 1
    Power
    Operating power ≤27W
    DC In DC 10-15V
    Built-in Battery 5000mAh
    Environment
    Operating Temperature -10℃~60℃
    Storage Temperature -30℃~70℃
    Other
    Dimension(LWD) 264×169×42mm
    Weight 3kg
