China 10.4 Inch 1000 Nits Touch Screen Monitor Manufacturer and Supplier

10.4 Inch 1000 Nits Touch Screen Monitor Featured Image

Short Description:

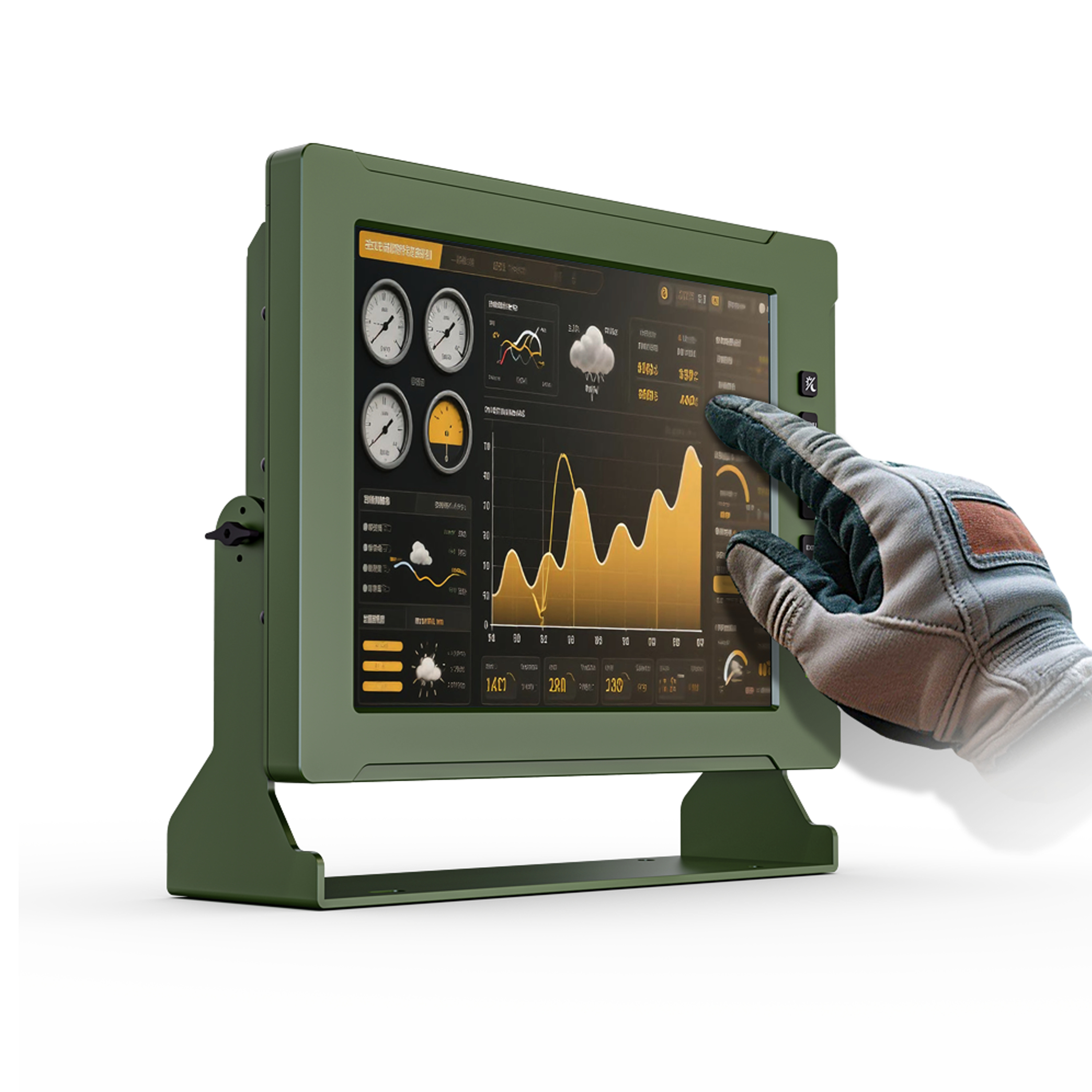

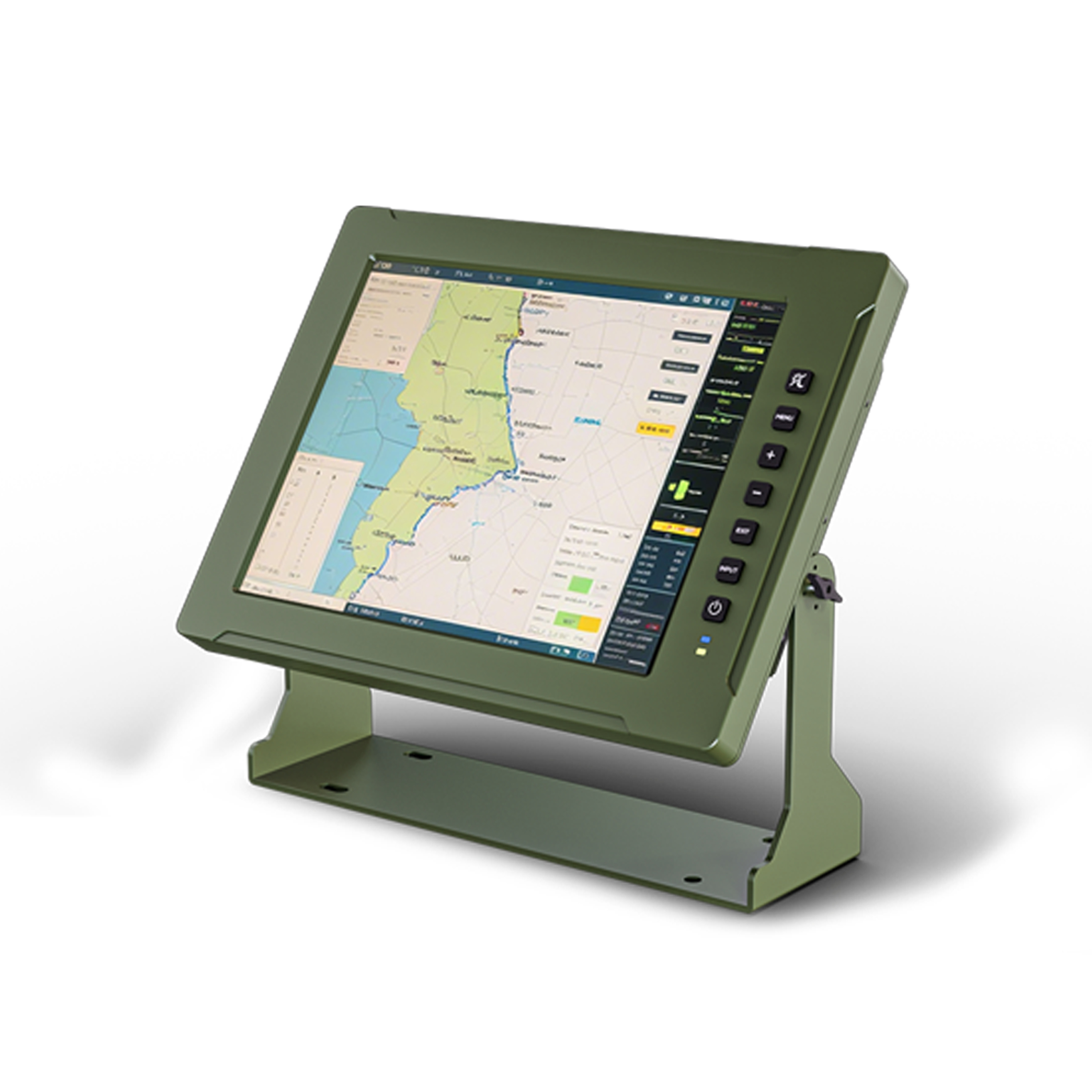

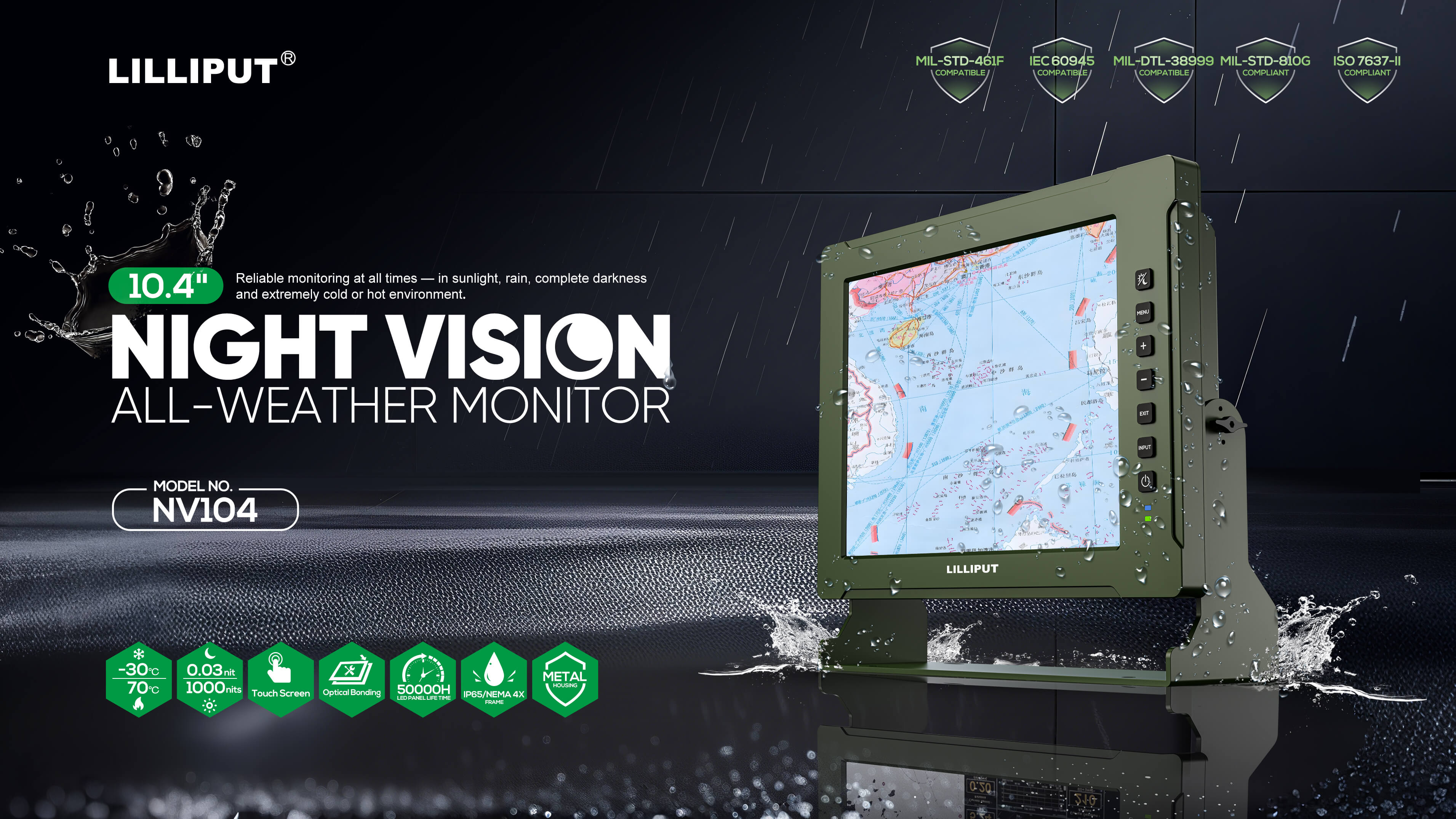

This 10.4” LCD monitor is built for extreme environments, featuring a wide -30℃ to 70℃ operating range. It supports dual-mode imaging for both night vision (0.03 nits) and daylight use (up to 1000 nits), ensuring excellent visibility around the clock. With IP65-rated protection, a sturdy metal casing, 50,000-hour panel life, and support for HDMI/VGA inputs, it’s ideal for industrial, or outdoor applications.

Model No. : NV104

Display: 10.4" / 1024×768

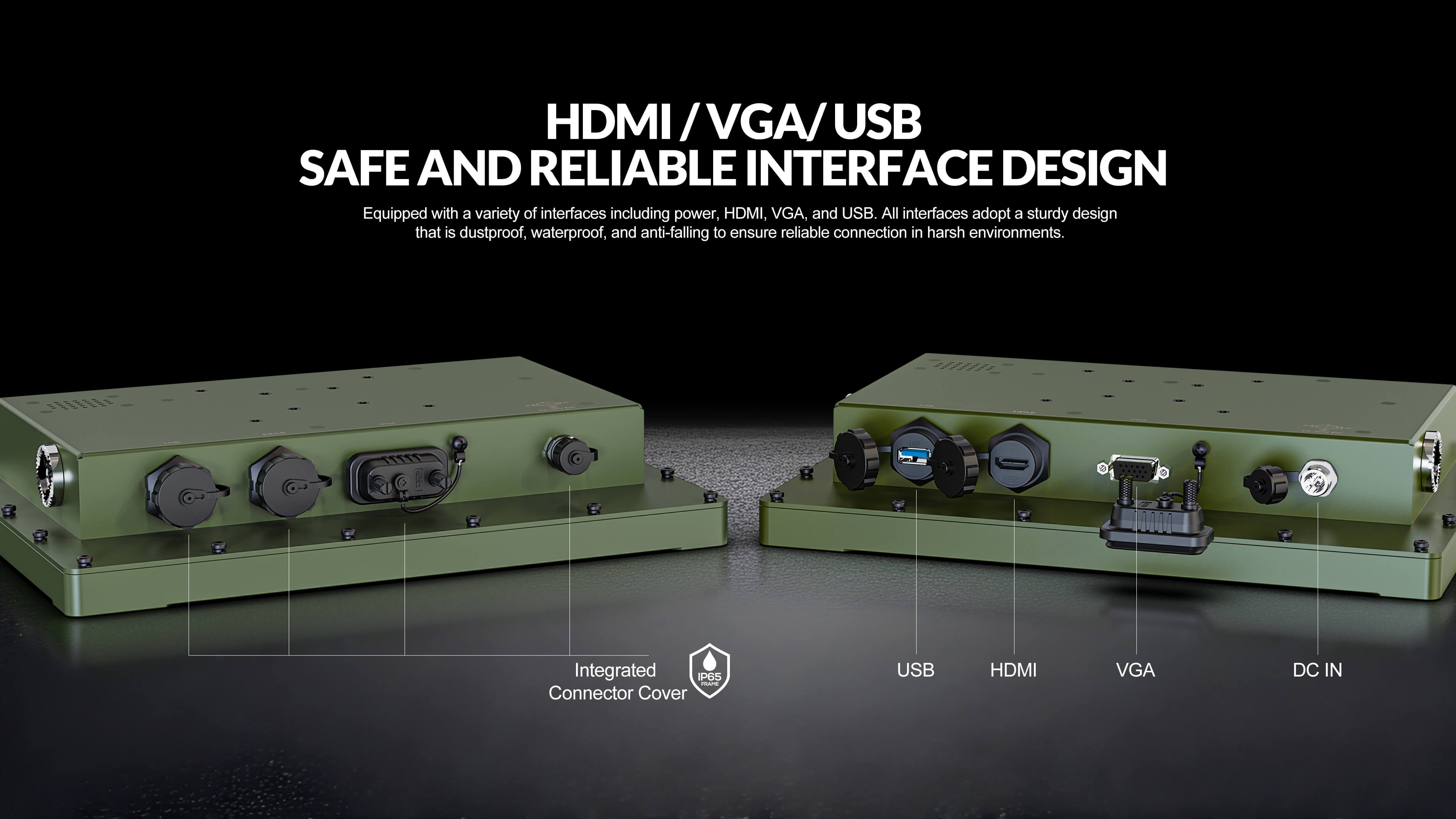

Interfaces: HDMI, VGA

Brightness: 0.03 nit~1000 nits

Audio In/Out: Speaker, HDMI, VGA

Feature: Supports 0.03nits low brightness; 1000nits high brightness; -30°C-70°C; Touch Screen; IP65/NAME 4X; Metal Housing

Send email to us Download as PDF User guide

Product Detail

Specifications

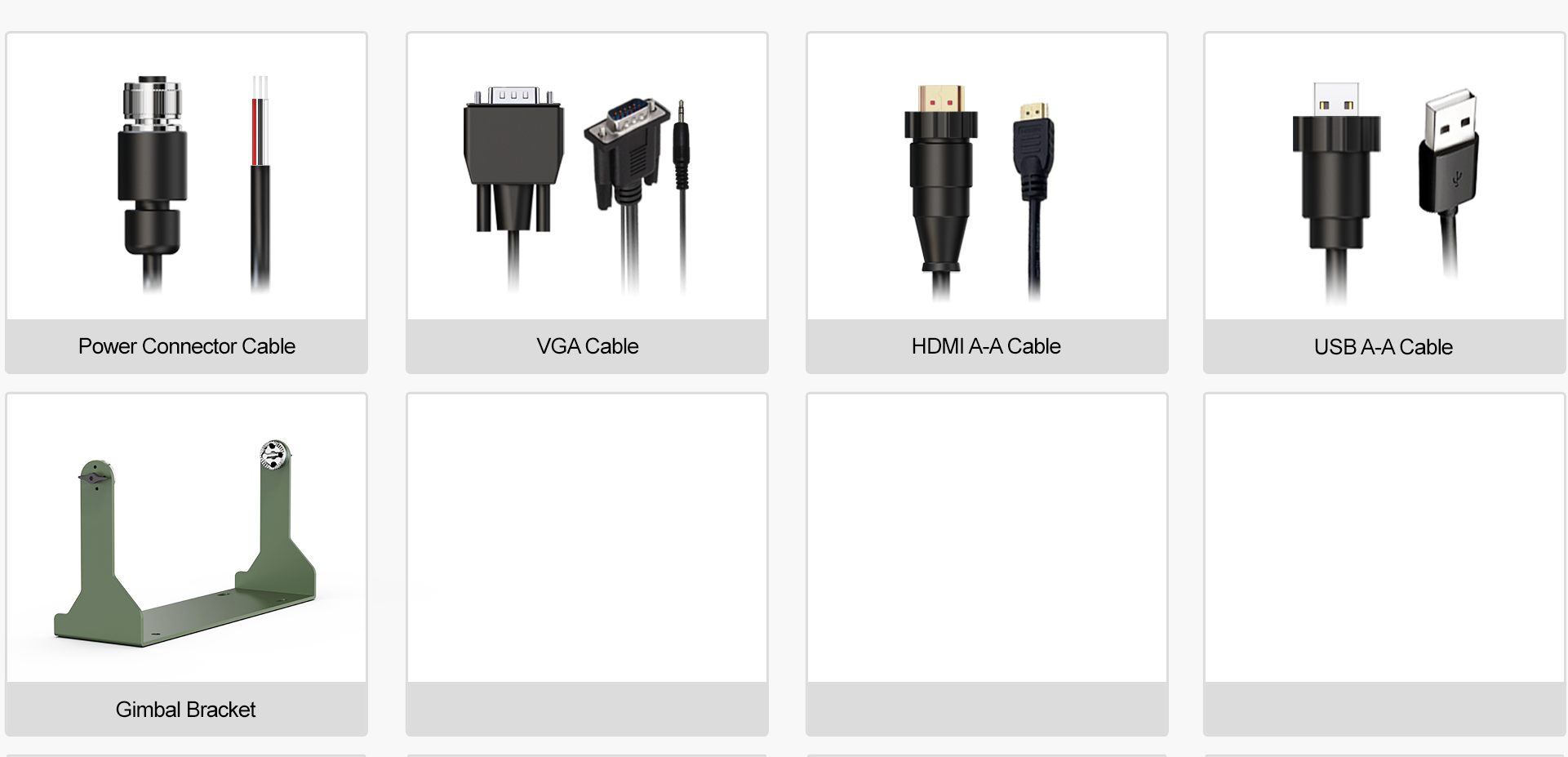

Accessories

Previous: 27 Inch 1000 Nits Touch Screen Monitor

Next:

MODEL NO.		NV104
DISPLAY
	Panel	10.4” LCD
	Touch Screen	5-wire resistive touch+AG Capacitive touch+AG+AF(Optional) EMI Glass (Customizable)
	Physical Resolution	1024×768

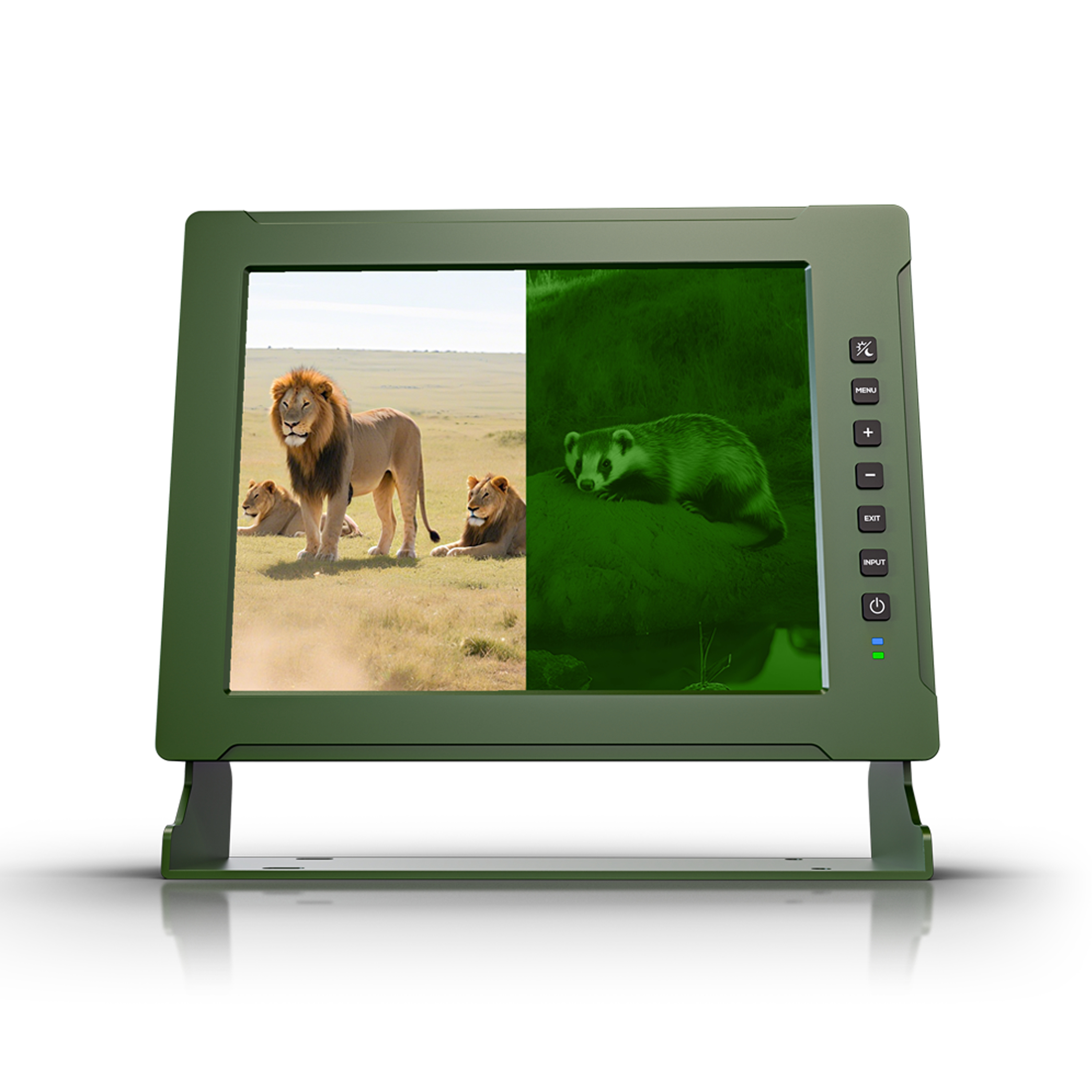

	Brightness	Day Mode:1000nit NVIS Mode:Dimmable under 0.03nit
	Aspect Ratio	4:3
	Contrast	1000:1
	Viewing Angle	170°/ 170°(H/V)

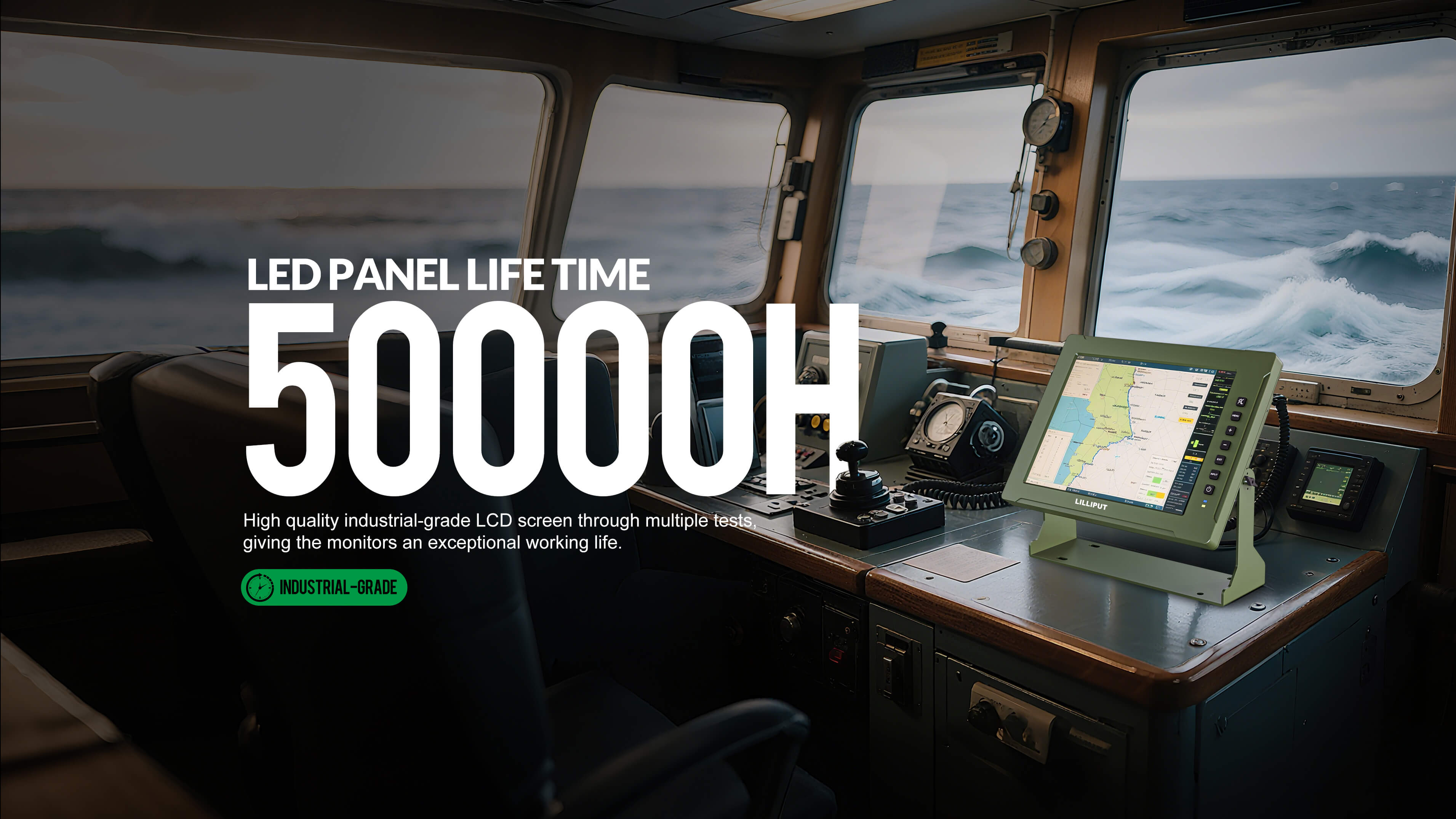

	LED Panel Life Time	50000 Hours

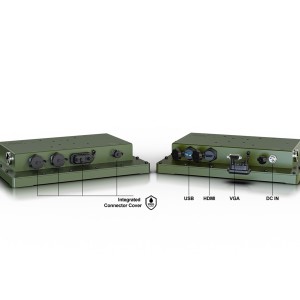

INPUT	HDMI	1
	VGA	1
	USB	1×USB-C (For touch and upgrade))
SUPPORTED FORMATS	HDMI	2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60…
	VGA	1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
AUDIO IN/OUT	Speaker	1
	HDMI	2ch 24-bit
POWER	Input Voltage	DC 12-36V
	Power Consumption	≤13W (15V, Normal mode) ≤ 69W (15V, Heating mode)
ENVIRONMENT	Protection Rating	IP65, NEMA 4X

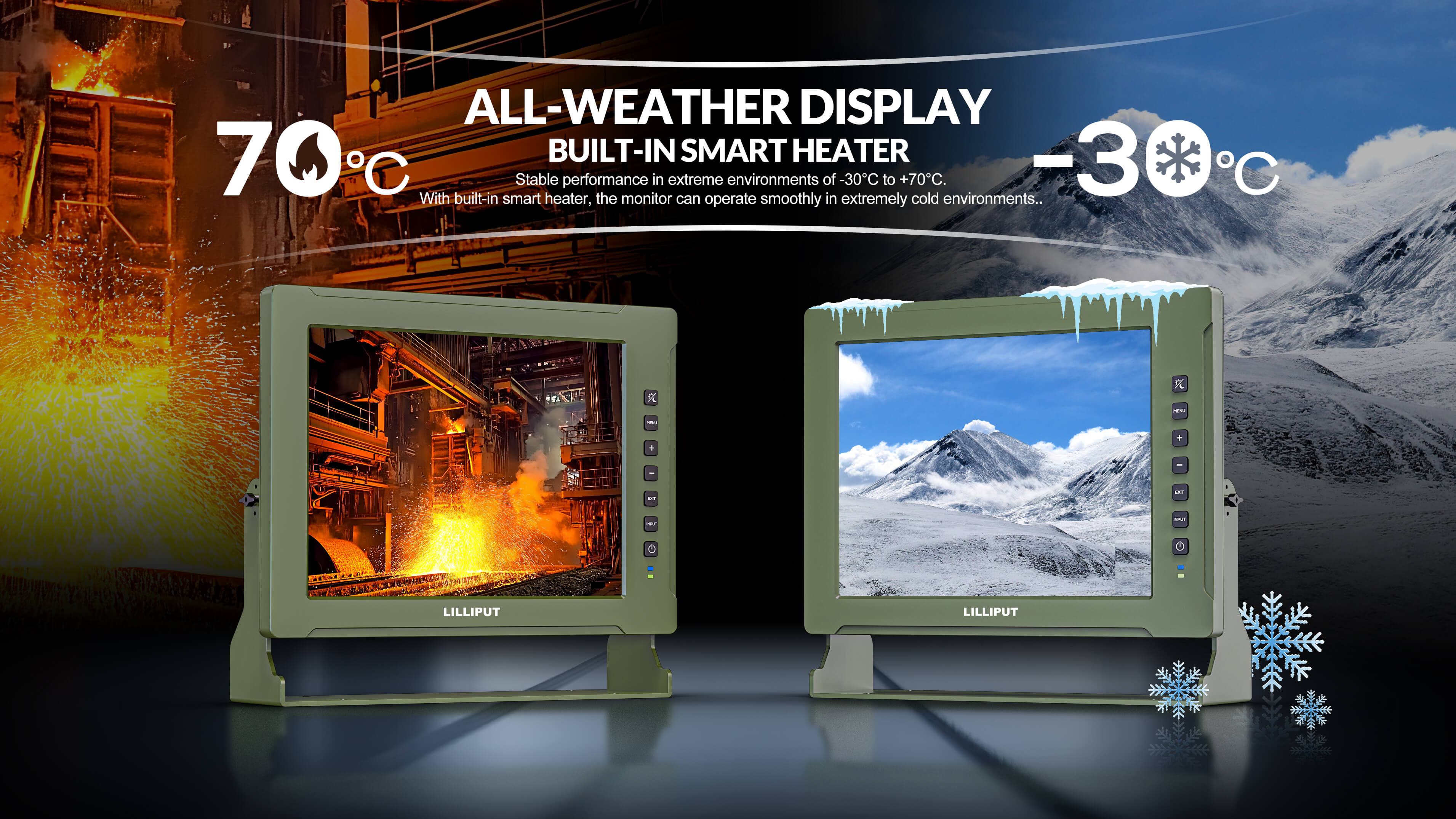

	Operating Temperature	-30°C~70°C
	Storage Temperature	-30°C~80°C

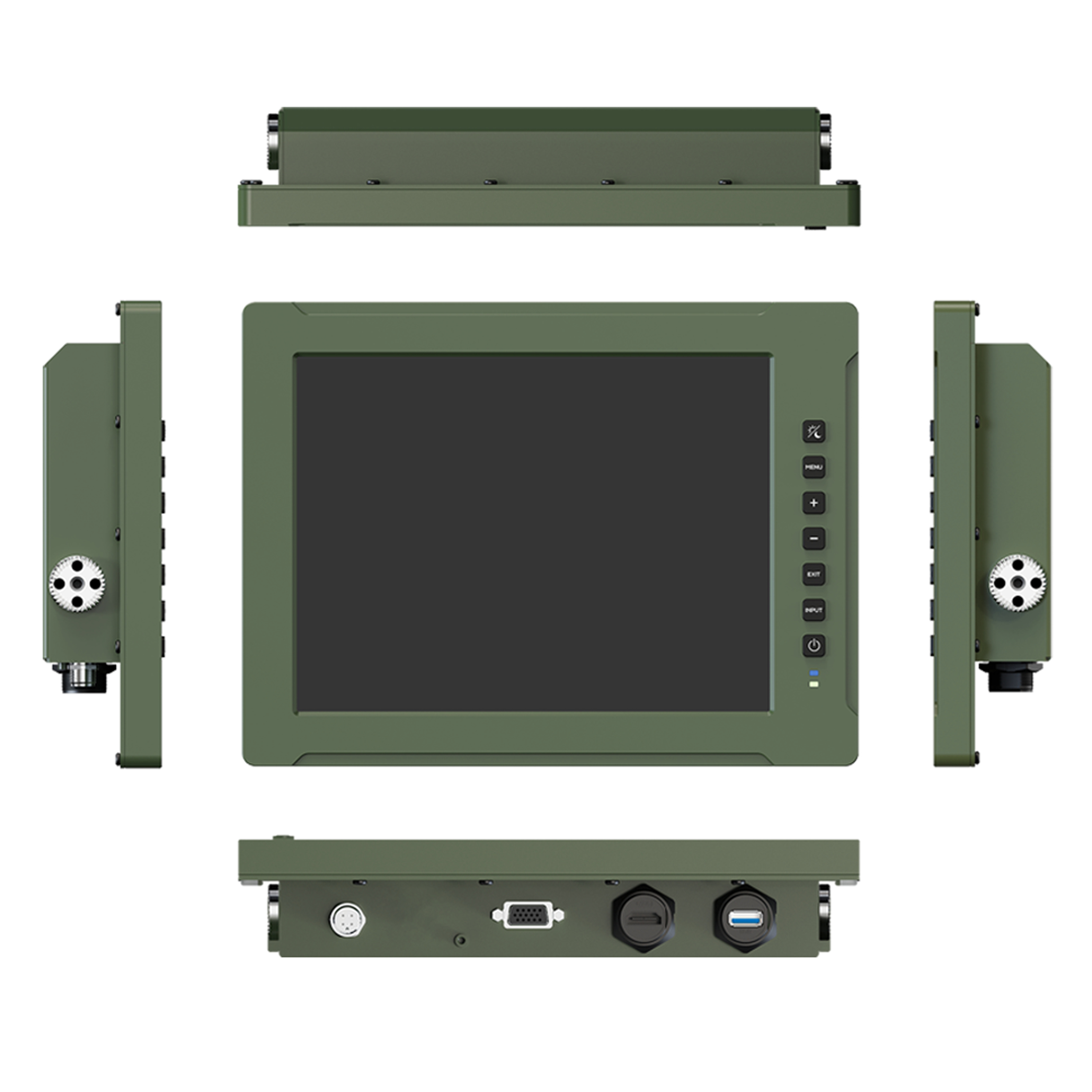

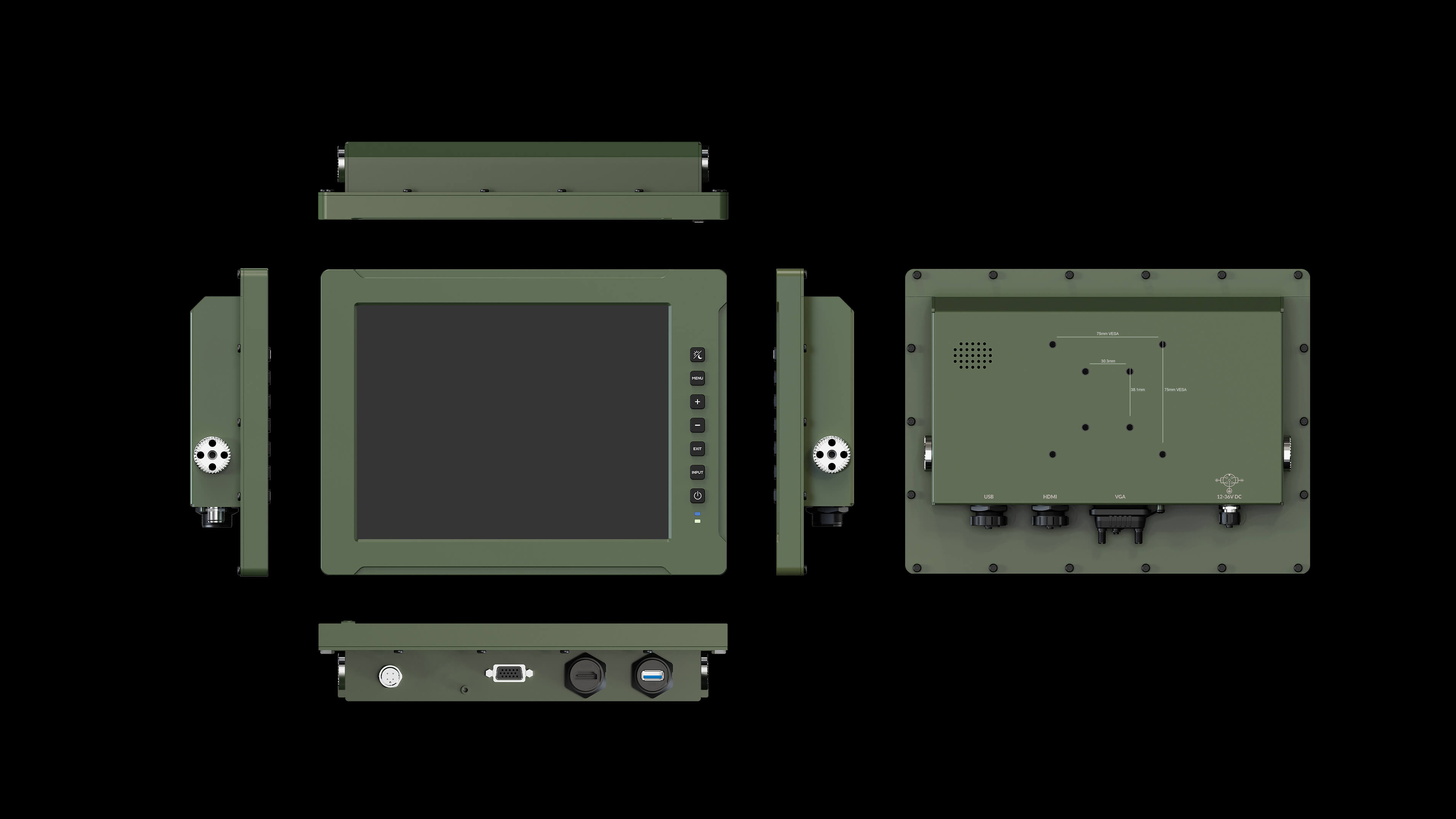

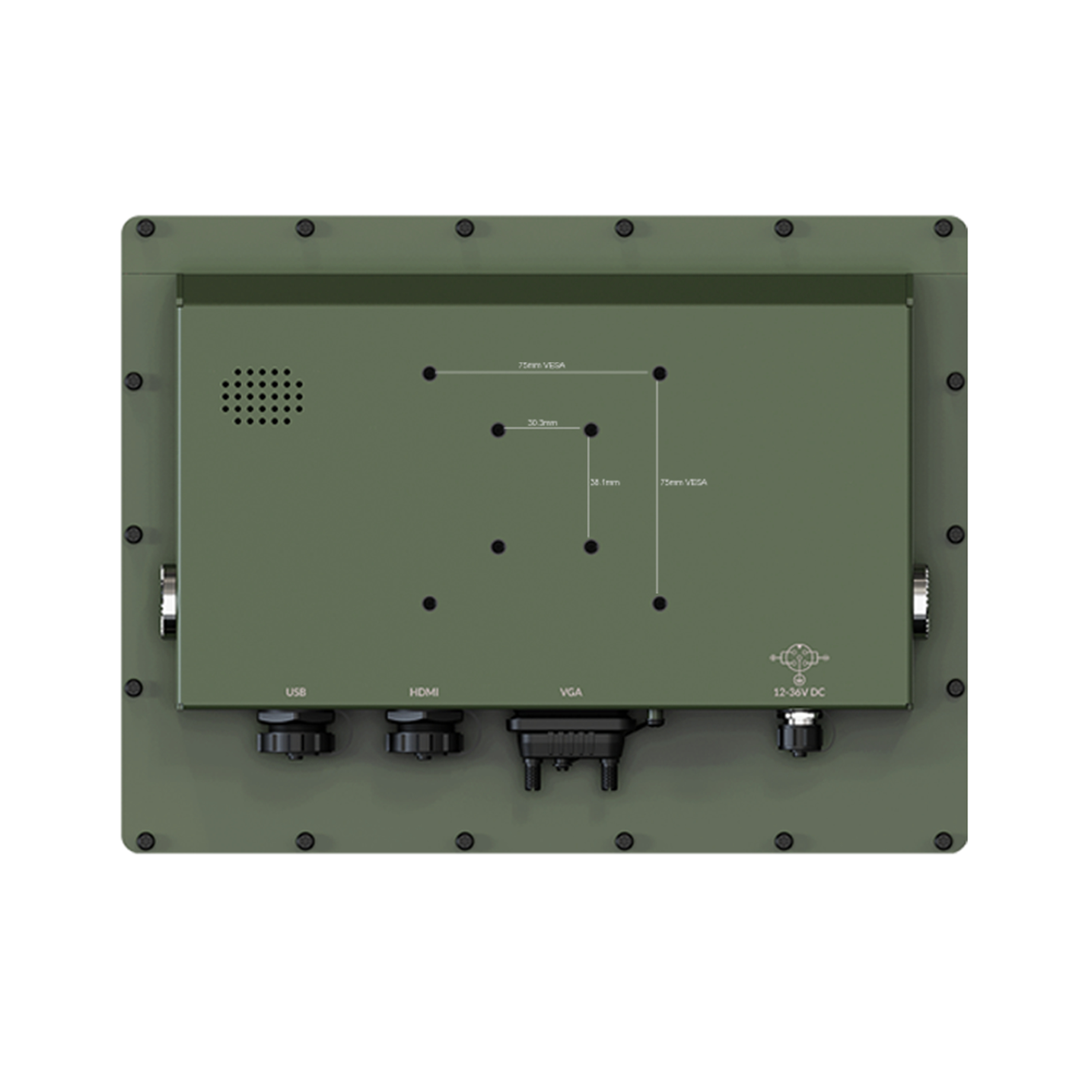

DIMENSION	Dimension(LWD)	276mm×208mm×52.5mm

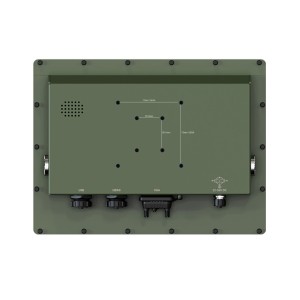

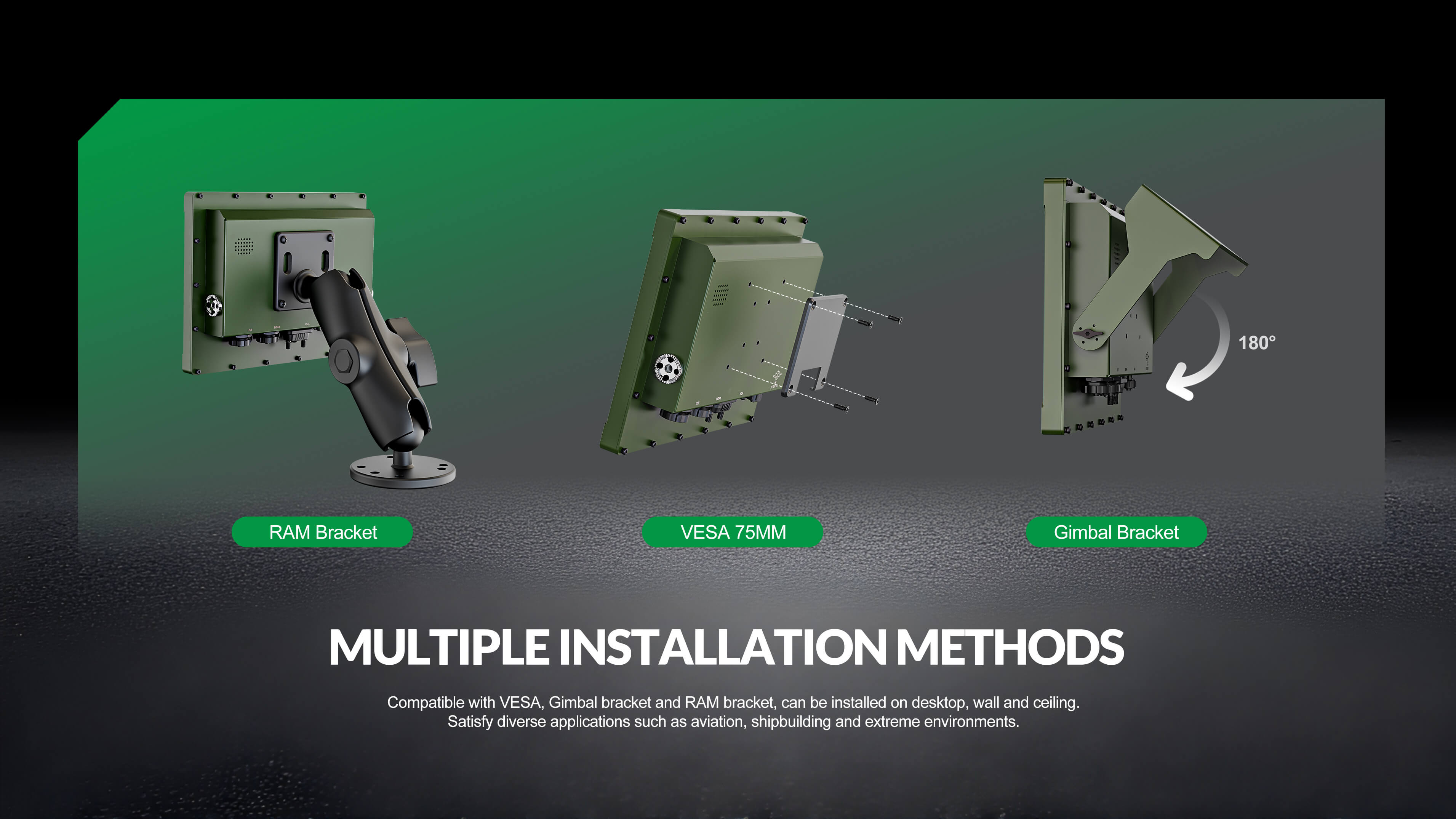

	VESA Mount	75mm
	RAM mounting holes	30.3mm×38.1mm
	Weight	2kg (With Gimbal Bracket)
