Short Description:

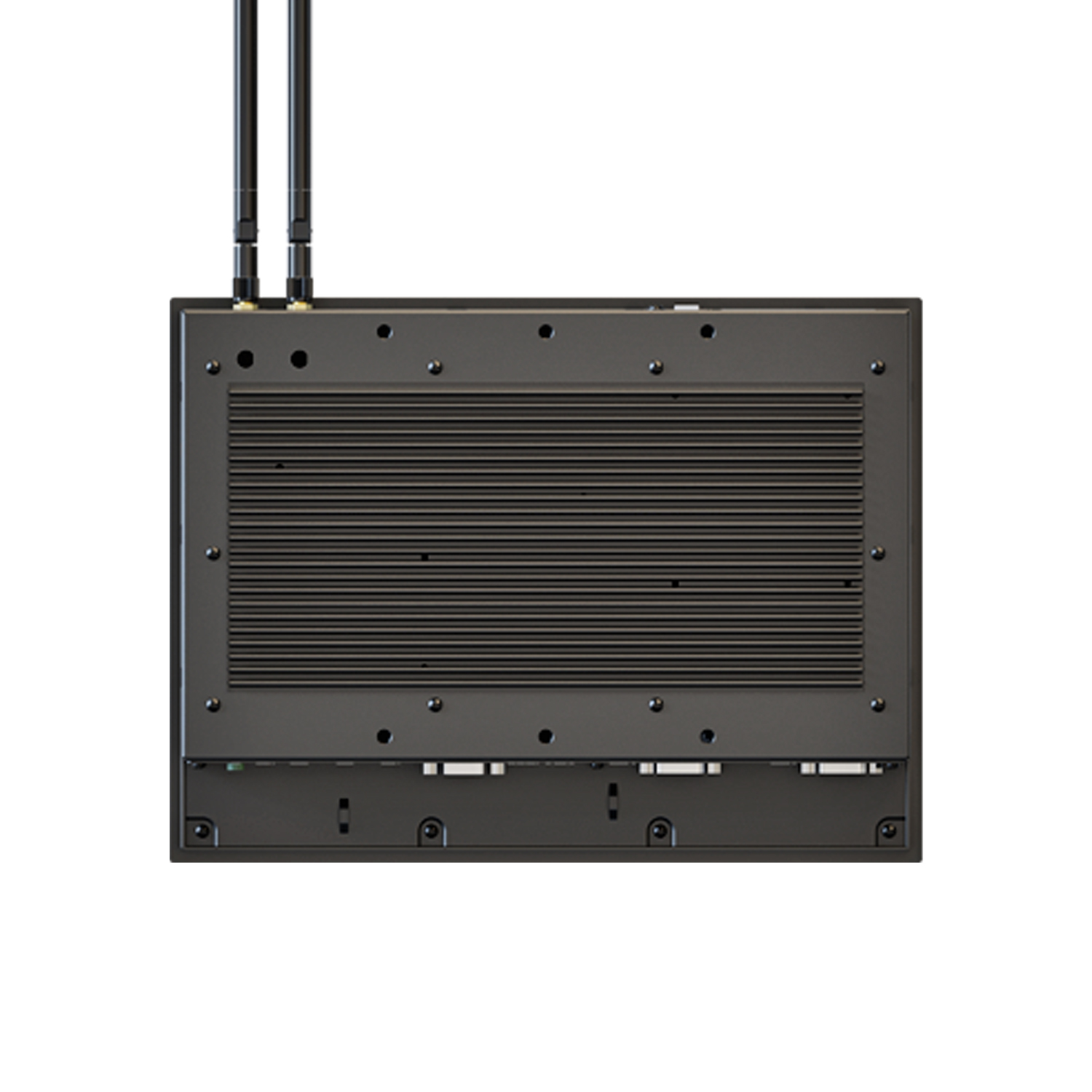

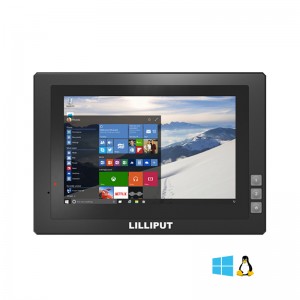

This is an embedded human-machine interface of high capability with INTEL core. 10.4 inch 800×600 resolution TFT LCD with 4-wire resistive touch screen. It is compact and firm, good anti-vibration and electromagnetism shielded capability, and is optimal choice with using telecom, electric power, multimedia, security & defense, industry robotize control equipment and manufacturing field. It uses for human-machine interface, client terminal, PLC and POS communication and control terminal. Moreover, it used advanced structure design, convenient system installation. Multiple mount methods such as panel type, hanging, embedded mount and VESA standard, etc.

  • Model: PC-1041
  • Resolution: 800 x 600
  • OS (optional): Linux/Winows 10
  • RAM: 4GB DDR3 , optional 8G
  • Storage: PCle mSATA SSD 120G,support up to 1TB
  • Interface: USB, LAN, VGA, SIM slot, HDMI, DC, RS232/RS485
  • Product Detail



  • Previous:
  • Next:

  • Display
    Model No.  PC-1041
    Touch Panel 4-wire resistive
    Display 10.4″
    Resolution 800*600
    Aspect Ratio  4:3
    Brightness 250cd/m2
    Contrast 500:1
    Viewing Angle 140/110(H/V)
    Power Supply DC12V
    Dimension 280X210X58.8MM
    Weight 2190G
    CPU Intel J1900 (Quad-core 2.0GHz)
    RAM 4GB DDR3 , optional 8G
    Storage PCle mSATA SSD 120G,support up to 1TB
    2.5inch SATA HDD (Optional)
    Chiipset Intel Bay TRail Chipset
    L2 Cache 1024KB x2
    Sound Card 6 channels
    Expansion Built-in Mini PCle x 1, optional for 4G/WiFi
    OS (optional) Linux/Winows 10
    HDMI HDMI output
    VGA VGA output
    USB USB 2.0X3
    USB USB 3.0X2
    Ear Jack Eerphone Jack
    DC Power DC power input
    RS232 x4 (COM 2/3, support RS232/RS485)
    LAN x2
    Antenna slot x2
