Short Description:

LILLIPUT's Mobile Data Terminal (MDT) which can be applied in Automobile Multimedia System (AMS). AMS offers functions of multimedia, advertisement display, GPS navigation, wireless internet, car reverse display and car assist control. It includes seven modules – multimedia play, geographic information system (GIS), wireless communication, radio, car signal acquisition and alarm, data acquisition and display control.
There are interfaces and functions for this mobile data terminal , it can meet different application field needed .


  • Model: PC-7146
  • Resolution : 1280×800
  • OS/CPU : Android / Qualcomm Quad core
  • RAM/ROM: ROM: 8GB Flash, RAM: LPDDR3 1GB (optional: ROM 16GB, RAM 2GB)
  • Interface: Micro SD card slot, SIM card slot, USB OTG ×1, Earphone jack, DC power input, RS232×2, CAN BUS
  • Product Detail

    Specification

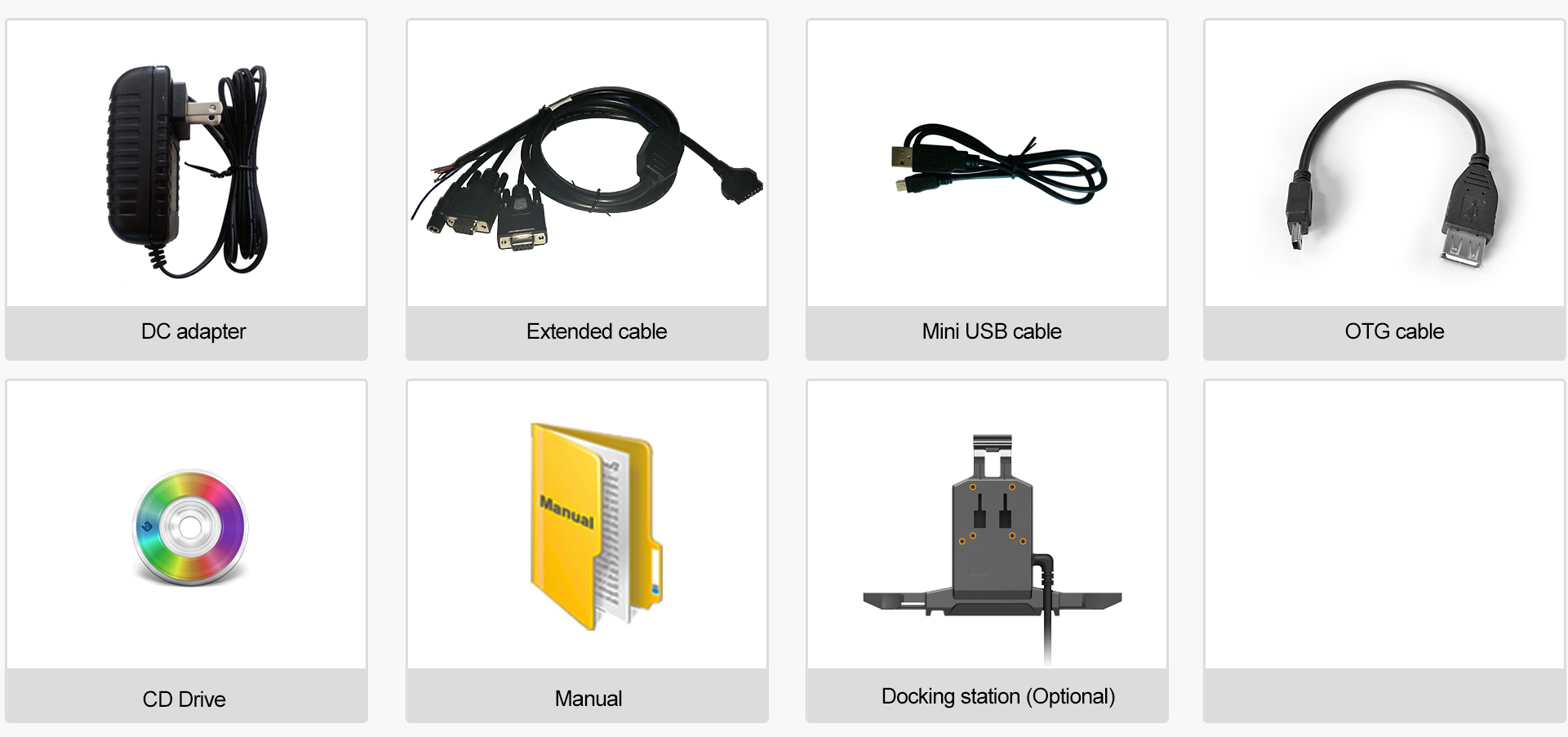

    Accessories

    1

    In-Vehicle Tablet PC

    Electronic Logging Device (ELD) system mandated for Federal Motor Carrier Safety Administration (FMCSA) new rule.

    Smart in-vehicle and handheld Android tablet for fleet management system and transportation solutions.

    2

    Smart Connection And Communication

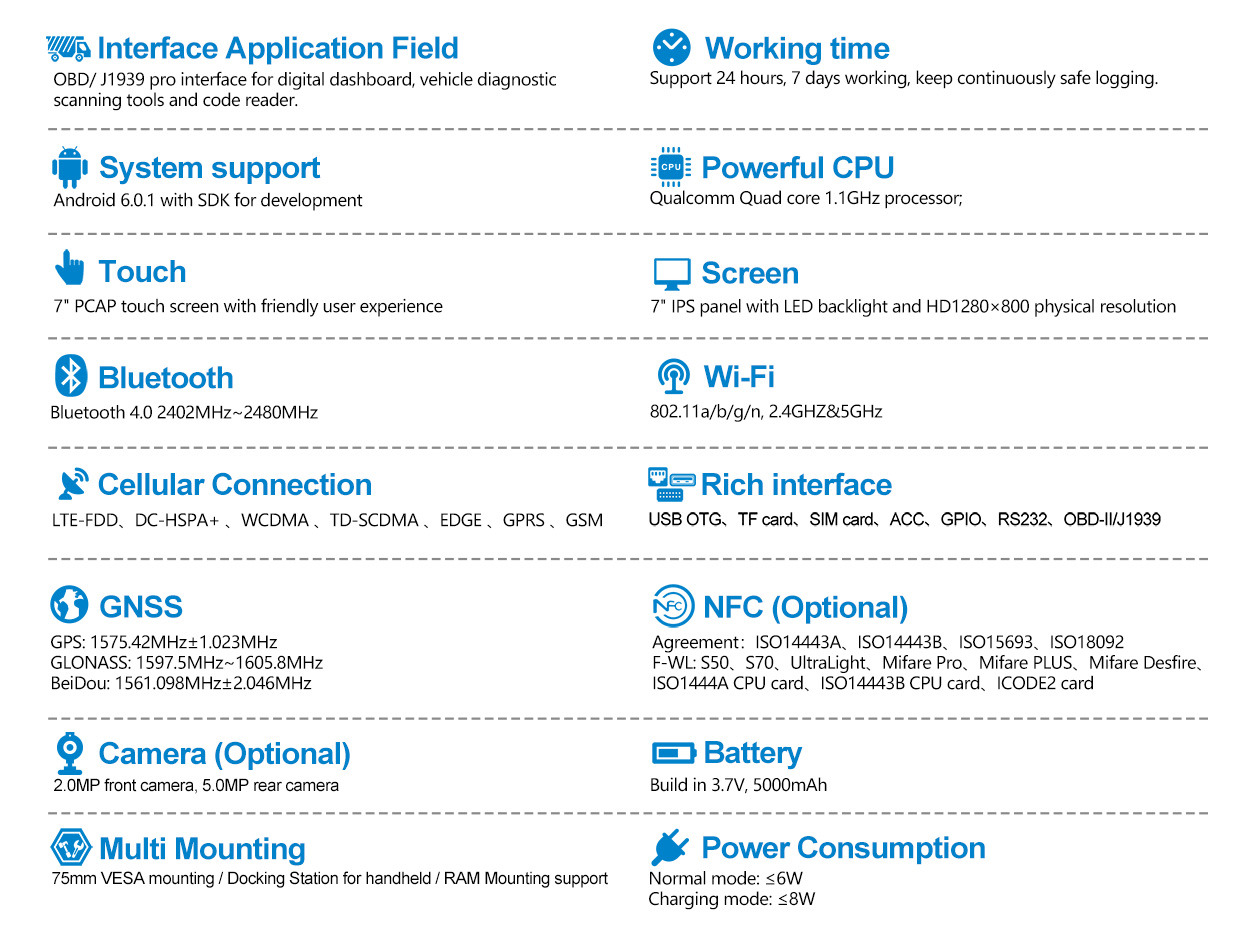

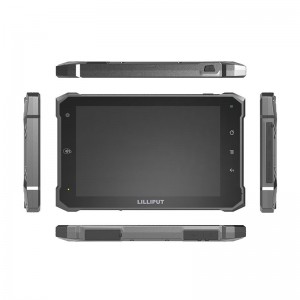

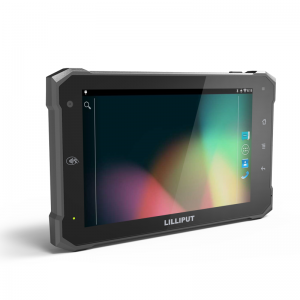

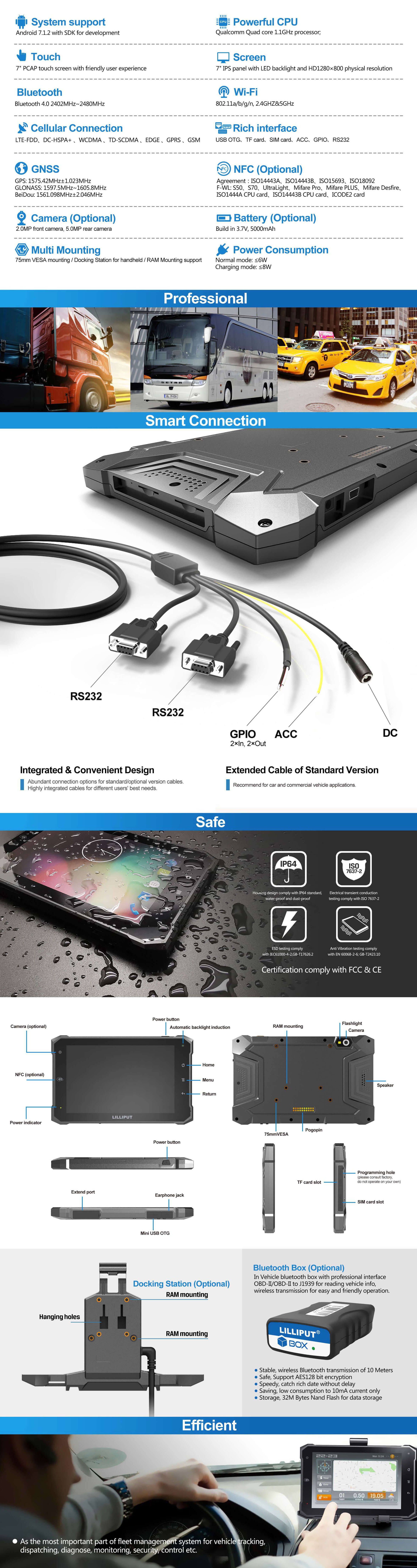

    PC-7146 pro is a 7” slim and lightweight tablet with Qualcomm powerful quad core processor, integrates rich function like WIFI, 4G LTE, Bluetooth for wireless communication; optional 3 modules GNSS for location and navigation; NFC for identification; front and back camera for monitoring and capturing. Besides,                                                                it configured with standard professional interface: OBD-II/J1939 for different kinds of vehicles.

    3
    4
    5
    6
    7
    8

  • Previous:
  • Next:

  • Display
    Model No. PC-7146
    Touch Panel Capacitive
    Display 7″IPS
    Resolution 1280*800
    Aspect Ratio 16:10
    Brightness 300cd/m2
    Contrast 800:1
    Viewing Angle 178/178 (H/V)
    Power / Other
    Power Supply DC 10-36V
    Battery Bulit-in 5000mAh

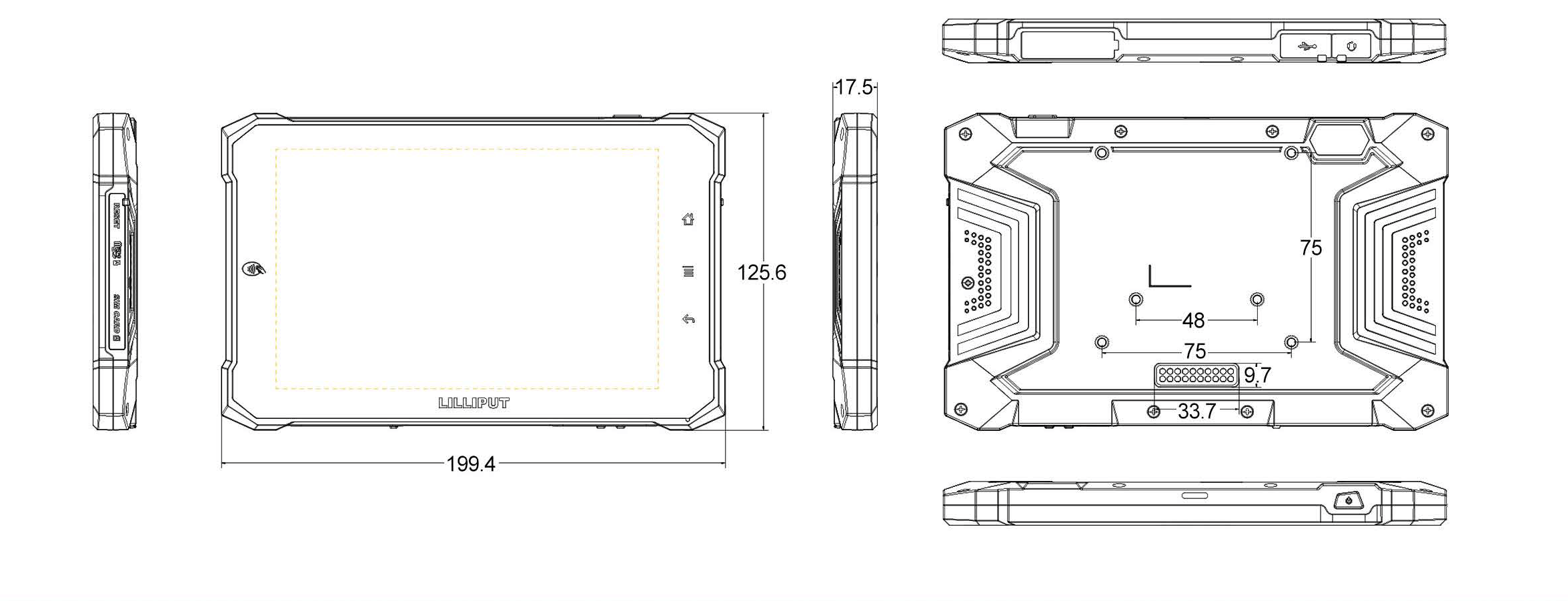

    Dimension 199.4×125.6×17.5mm
    Weight 465g
    System
    CPU Qualcomm Quad core 1.1GHz
    RAM 1G DDR3
    ROM 8G Flash
    GPU Qualcomm Adreno
    OS Android
    Interface
    SIM SIM Slot
    TF Micro SD Card Slot
    USB USB OTG
    Ear Jack Earphone Jack
    DC Power DC Power Input
    RS232 x2
    GPIO Input x 2 ,output x 2
    Function
    3G/4G Standard
    CAN Standard
    WIFI Standard
    Bluetooth Standard
    GPS Standard
    ACC Standard
    Camera  Optional (5.0MP Rear / 2.0MP Front)
    NFC  Optional

    PC-7146
