Short Description:

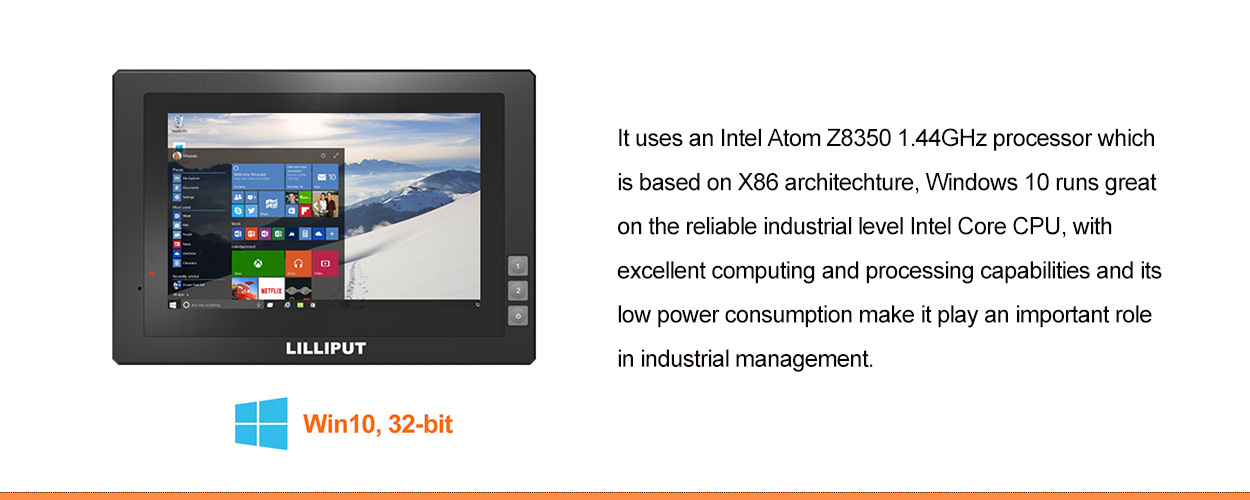

The 7 inch industrial embedded industiral uses an Intel Atom Z8350 1.44GHz processor which is based on X86 architechture, Windows 10 runs great on the reliable industrial level Intel Core CPU, with excellent computing and processing capabilities and its low power consumption make it play an important role in industrial management.Embedded Computer solutions offer a secure and energy-efficient processing foundation for electronic devices. That are highly specified by customers' needs.Based on the windows 10 OS, to make the device to run multiple interface and programs simultaneously. The industrial embedded pc is convenient for the operator to monitor and control the manufacturing process in various industrial fields.

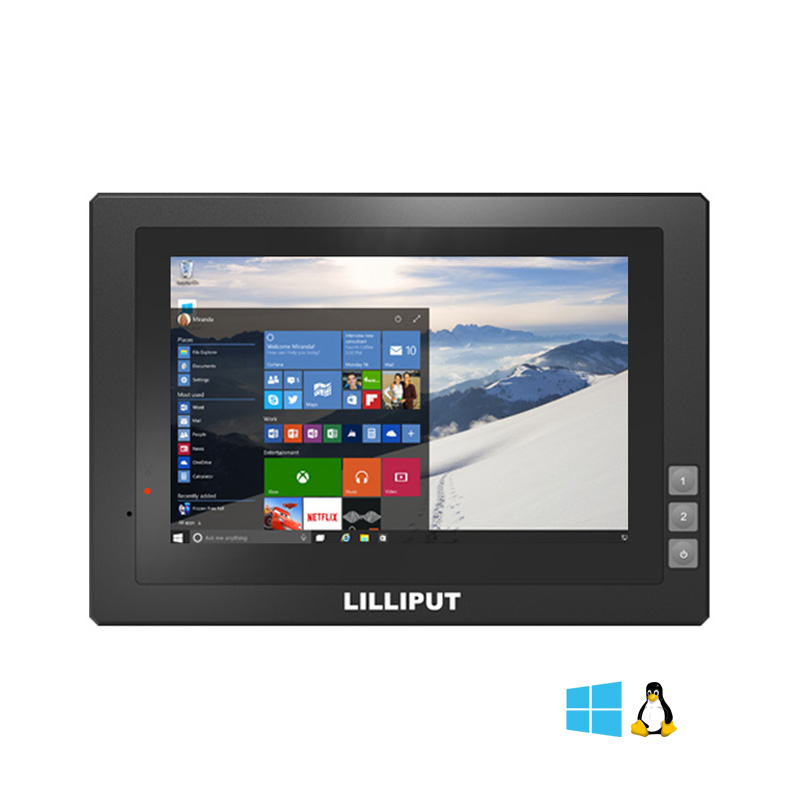

  • Model: PC-702
  • Resolution : 1280×800
  • OS/CPU: Win10, 32-bit (unactivated); Intel Atom Z8350 1.44GHz
  • RAM/ROM: 2GB LPDDR3 / 32GB Emmc
  • Interface: USB, TF card , SIM card ,HDMI,GPIO,CAN,RS232/485/422,LAN
  • Product Detail

    Specification

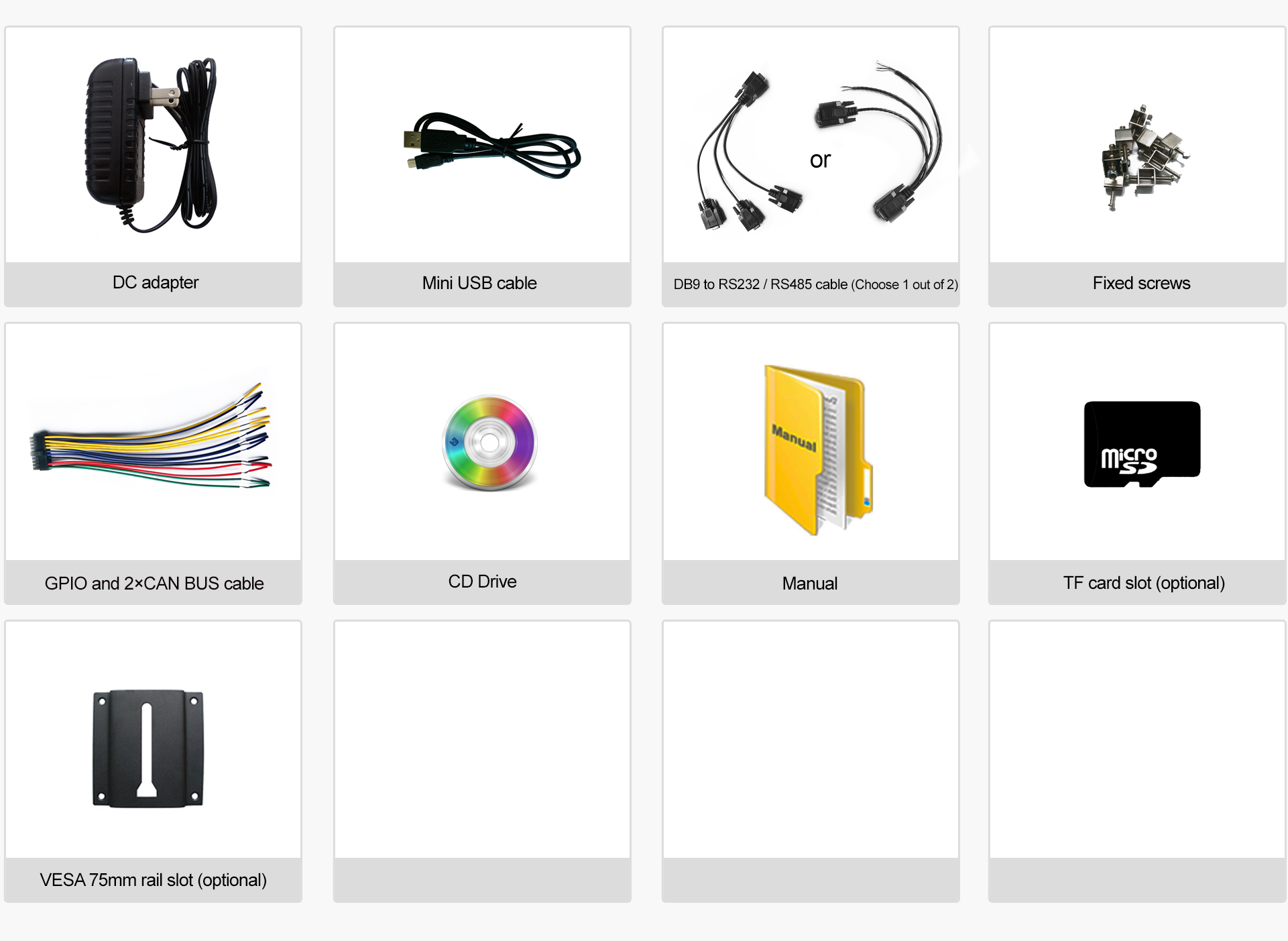

    Accessories

    1

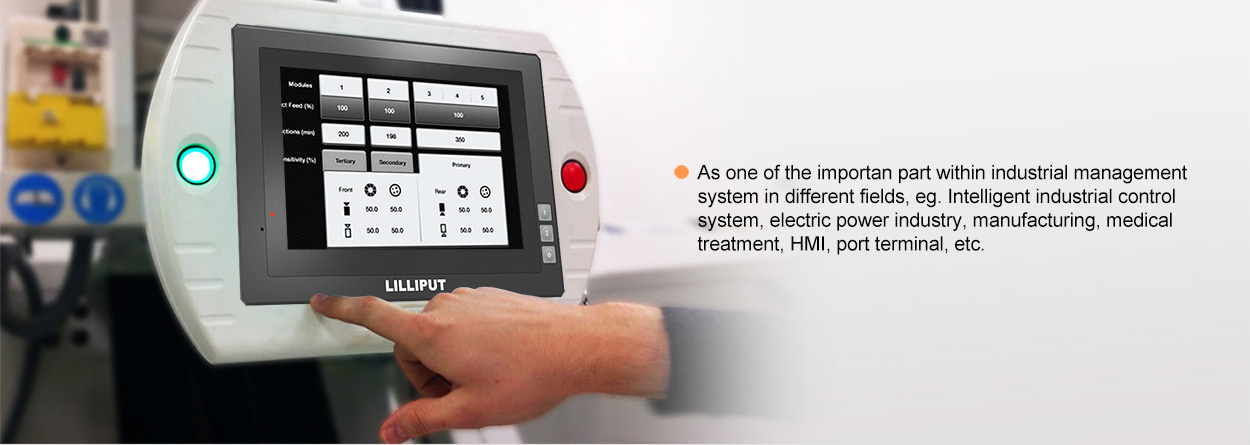

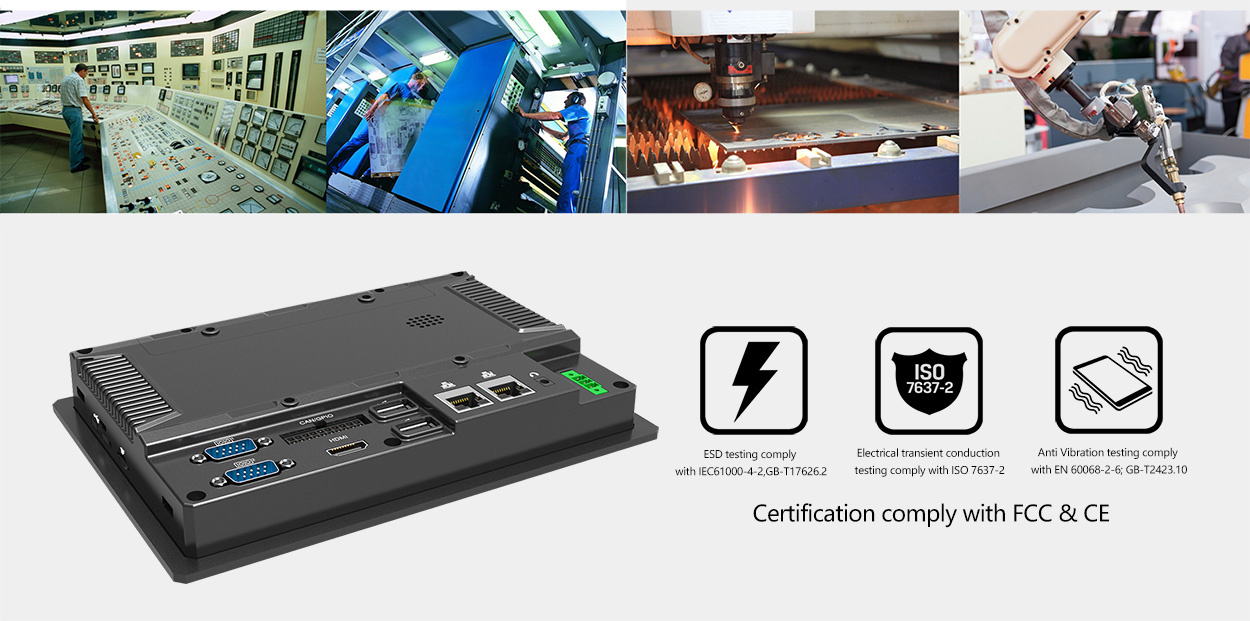

                                                       As a part of industrial control system, achieve better management for engineers and managers

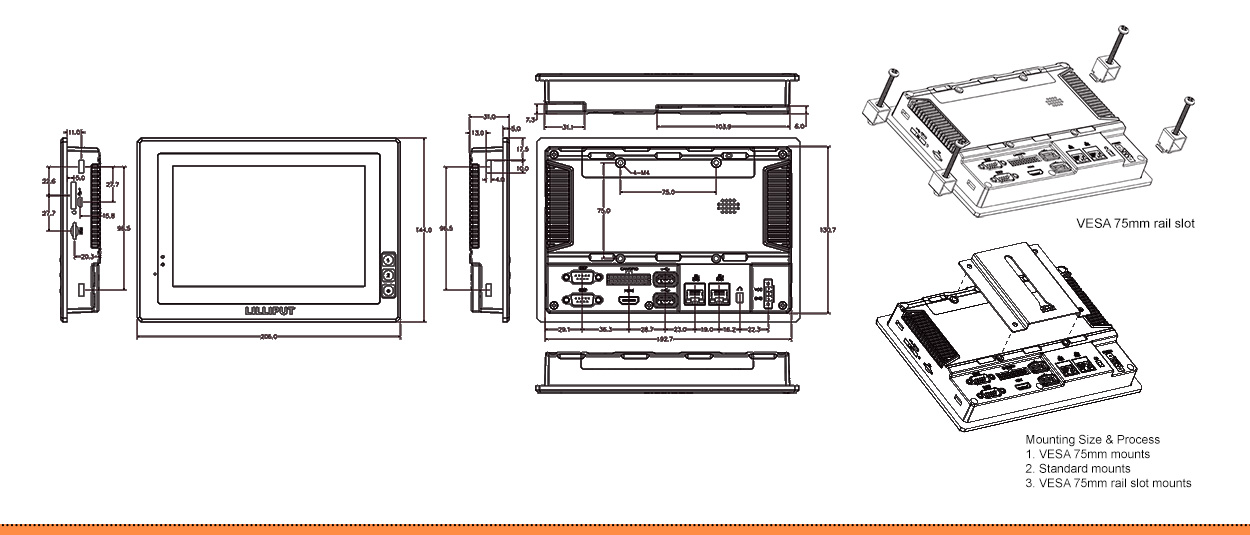

                                                                                             勾 Convenient embedded mounts

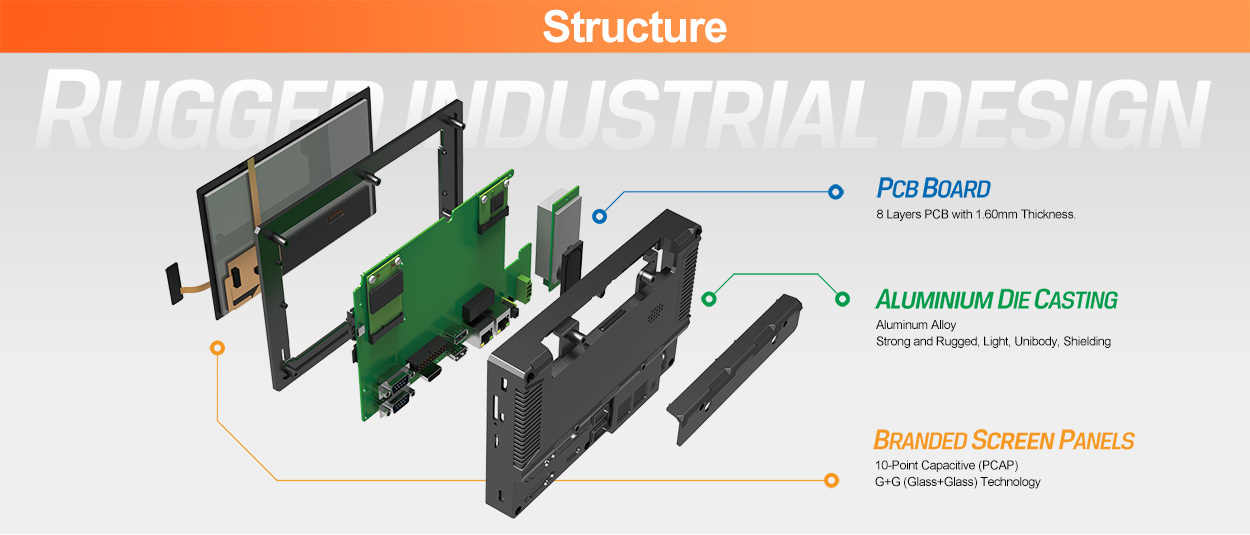

                                                                                             勾 Capacitive touch screen with G+G tech

                                                                                             勾 Rich & high-performance interface

    3
    4

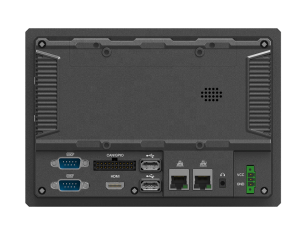

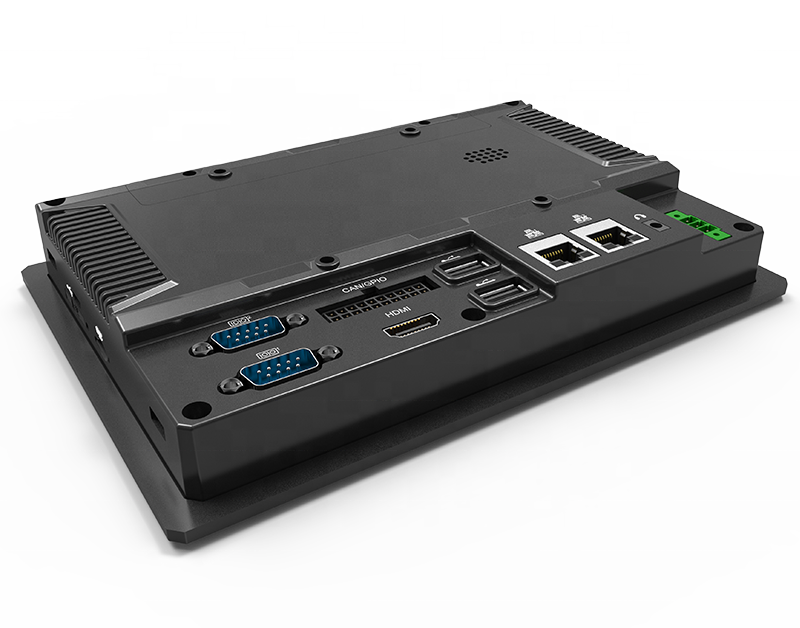

    PC-702 is a 7” smart and rugged industrial touch PC , integrates rich function like WIFI, 4G LTE, Bluetooth for wireless communication; HDMI Output, USB Host and LAN ports for various real-time transmission; Besides, it configured with standard professional interface: 2 RS232 & CAN/ GPIO ports for different industrial applications.

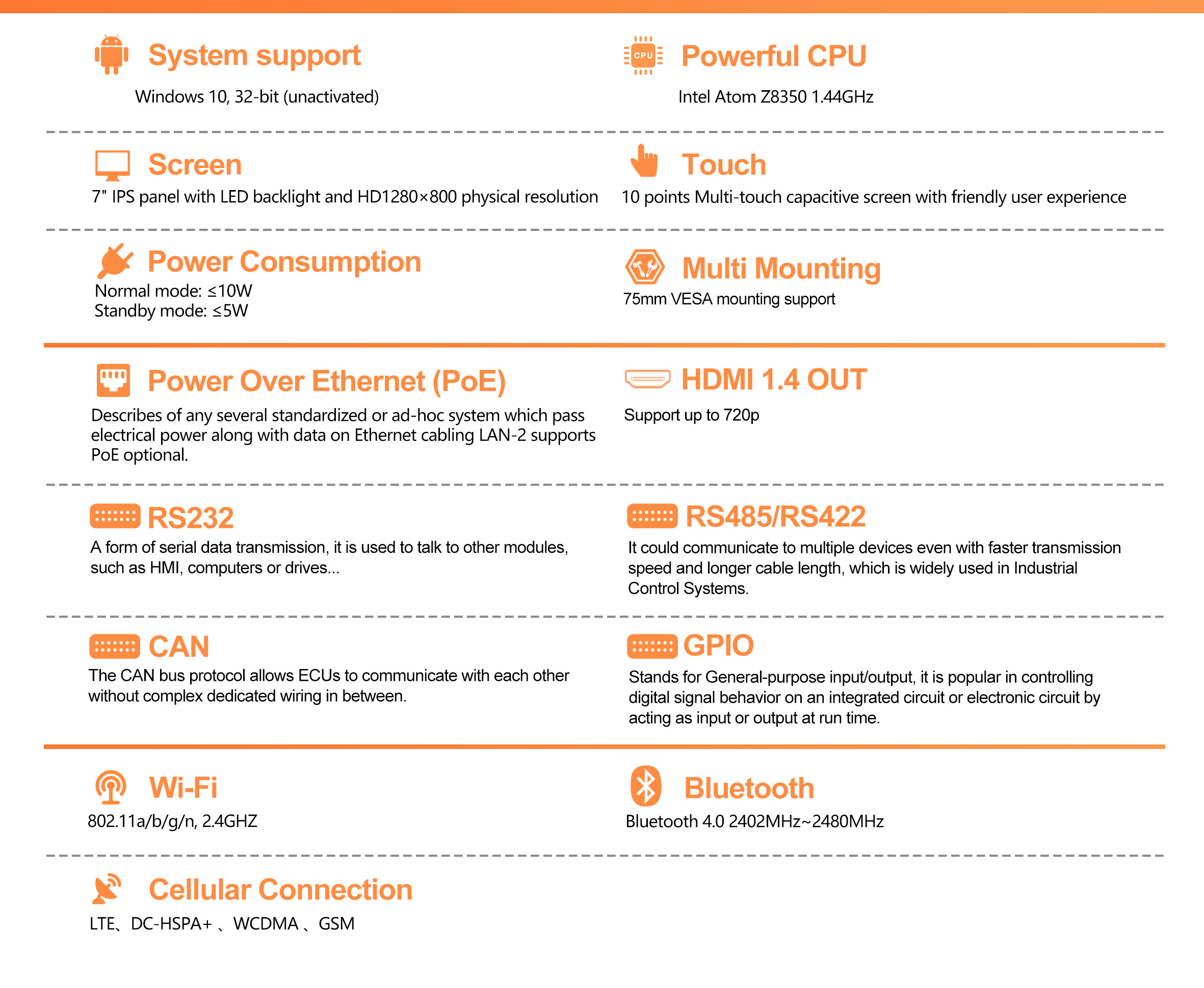

    PC-702-5
    6
    702-7

    High Efficiency

    Embedded Computer Solutions offer a secure and energy-efficient Processing foundation for electronic devices.That are highly specified by customers’ needs.

    Multiple tasks

    Based on the Windows 10 OS, to make the device to run multiple interface and programs simultaneously. It is convenient for the operator to monitor and control the manufacturing process in various industrial fields.

    8
    9
    10
    11
    12

  • Previous:
  • Next:

  • Display
    Model PC-702
    Touch Panel Capacitive
    Display 7″IPS
    Resolution 1280*800
    Aspect Ratio 16:10
    Brightness 400cd/m2
    Contrast 800:1
    Viewing Angle 160°/160° (H/V)
    Power / Others
    Power Supply DC 9-36V
    Dimension 206x144x30.9mm
    Weight 770g
    System
    CPU Intel Atom Z8350 1.44GHz
    RAM 2G LPDDR3
    ROM 32G Emmc
    GPU Intel HD Graphic 400
    OS Win10,32-bit (unactivated)

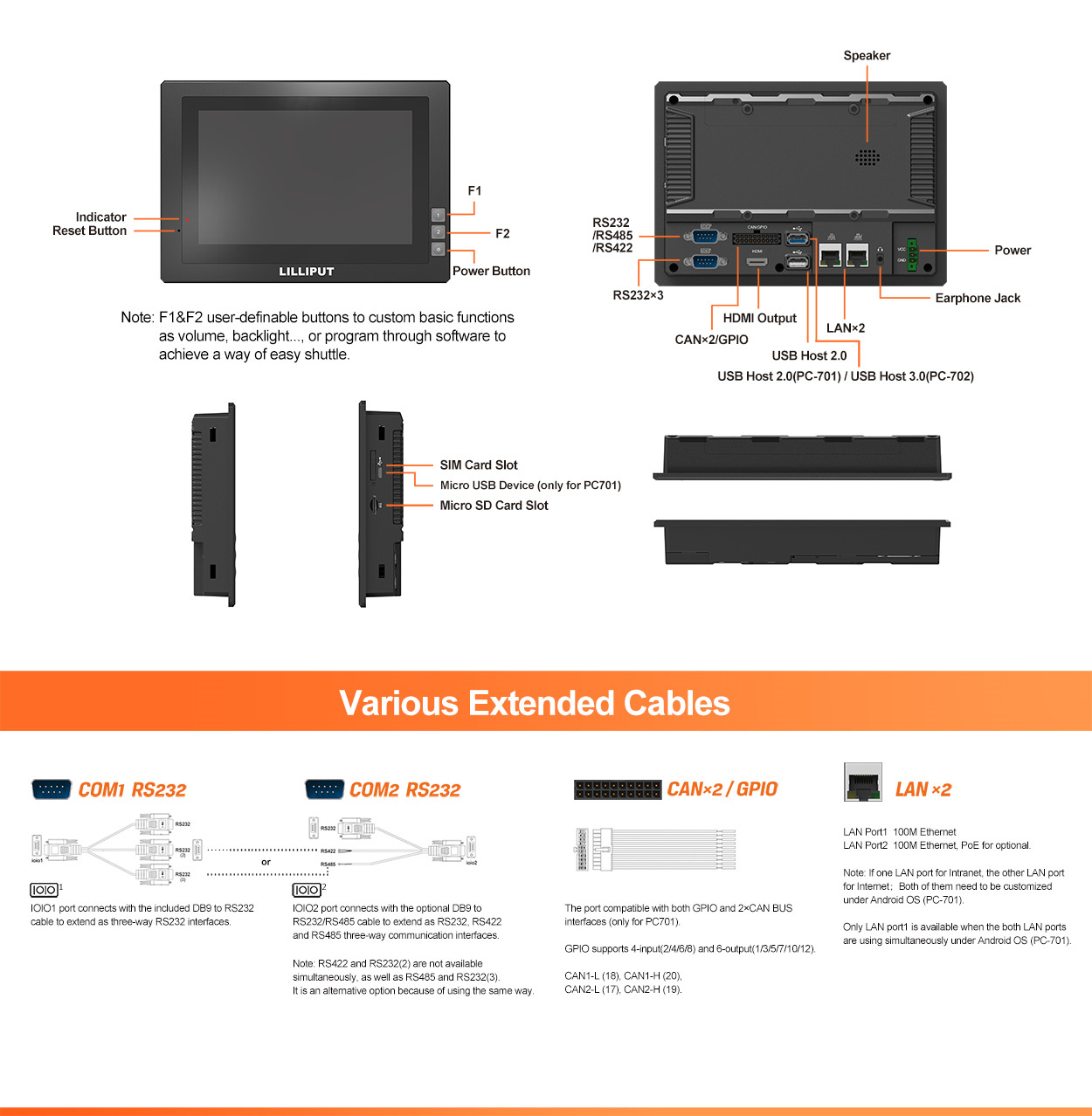

    Interface
    SIM Card 1.8v / 2.95v ,mini SIM
    HDMI HDMI output
    TF 1.8v / 2.95v ,up to 128G
    USB USB Device 2.0 x1 / 3.0×1
    RS232 x4
    RS422 Optional
    RS485 Optional
    LAN 100M x2
    GPIO Input x 4 ,output x 6
    Functions
    CAN Optional
    3G/4G Optional
    WIFI Optional
    Bluetooth Optional
    GPS Optional
    ACC Optional
    POE Optional

    11
