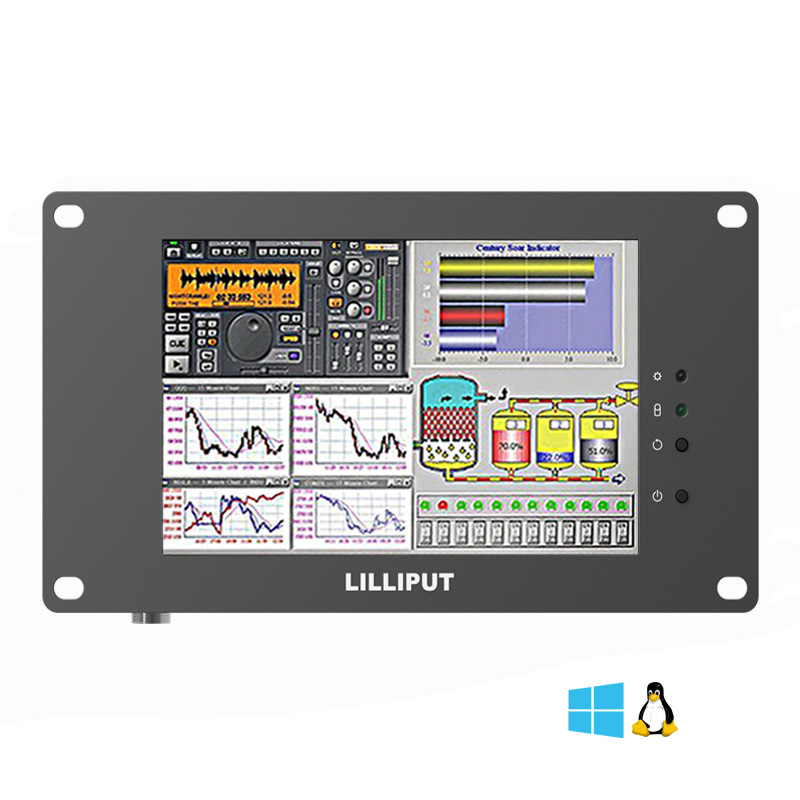

Powerful 1.86GHz dual-core CPU, 2G DDR3 RAM Metal housing design
7 inch 450cd/m2 brightness display with resistive touch HDMI&VGA Output

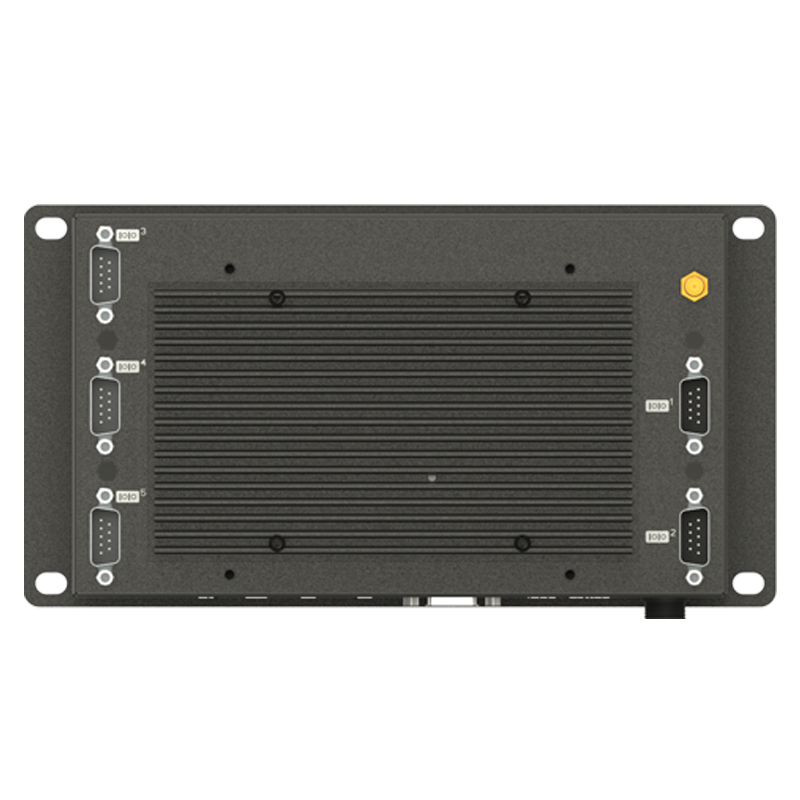

RS232 × 5, COM 2 supports RS485/232/422 Dual Ethernet Port
Open frame mount method for optional 3G/WIFI/Bluetooth/GPS
Wide voltage 6-32V for optional
MULTIPLE MOUNT METHODS
Option A :The device can be mounted and screwed in the front of wall. Option B: Mount from the back of wall, covered with customized front panel.
It’s much more easily to install. It’s more convenient for customers to control & maintain the device
behind the wall.
| Display | |
| Model No. | PC-700 |
| Touch Panel | 4-wire resistive |
| Display | 7″ |
| Resolution | 800*480 |
| Aspect Ratio | 16:10 |
| Brightness | 450cd/m2 |
| Contrast | 500:1 |
| Viewing Angle | 140/120(H/V) |
| Power / Other | |
| Power Supply | DC12V |
| Dimension | 200X117X46MM |
| Weight | 1225G |
| System | |
| CPU | Intel N2800,Dual-core 1.86GHz |
| RAM | 2GB DDR3 |
| ROM | 32GB SSD |
| GPU | Integrated 640.00MHz |
| OS | Linux/Winows |

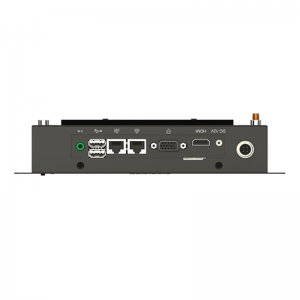

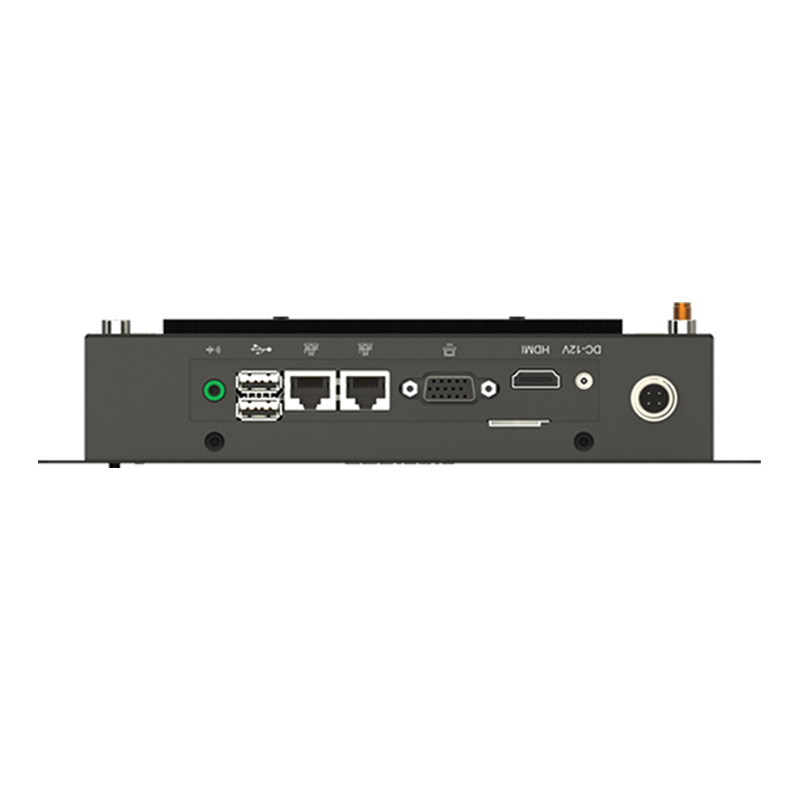

| Interface | |
| HDMI | HDMI output |
| USB | USB 2.0X2 |
| Ear Jack | Eerphone Jack |
| DC Power | DC power input |
| RS232 | x5 |
| RS422 | Optional |
| RS485 | Optional |
| LAN | 1000M & 100M Ethernet x 2 |
| WIFI | Optional |
