Short Description:

The 7 inch industrial embedded industiral uses an Intel Atom Z8350 1.44GHz processor which is based on X86 architechture, Windows 10 runs great on the reliable industrial level Intel Core CPU, with excellent computing and processing capabilities and its low power consumption make it play an important role in industrial management.Embedded Computer solutions offer a secure and energy-efficient processing foundation for electronic devices. That are highly specified by customers' needs.Based on the windows 10 OS, to make the device to run multiple interface and programs simultaneously. The industrial embedded pc is convenient for the operator to monitor and control the manufacturing process in various industrial fields.

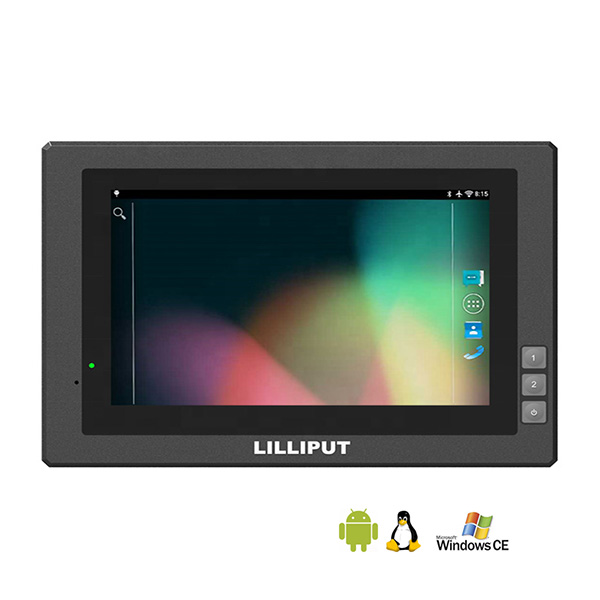

  • Model: PC-701
  • Resolution : 1280×800

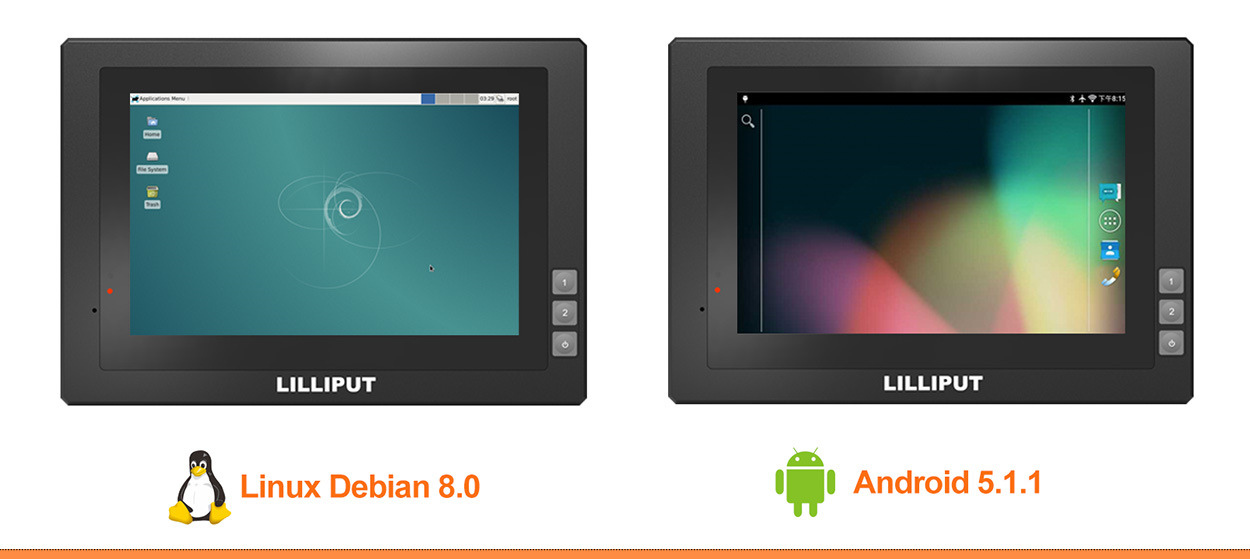

  • OS/CPU: Android 5.1.1 / Linux Debian 8.0 ; NXP i.MX 6 DualLite 800MHz
  • RAM/ROM: 1GB DDR3 / 8GB
  • Interface: USB, TF card , SIM card ,HDMI,GPIO,CAN,RS232/485/422,LAN
  • Product Detail

    Specification

    Accessories

    1

                                                       As a part of industrial control system, achieve better management for engineers and managers

                                                                                             勾 Convenient embedded mounts

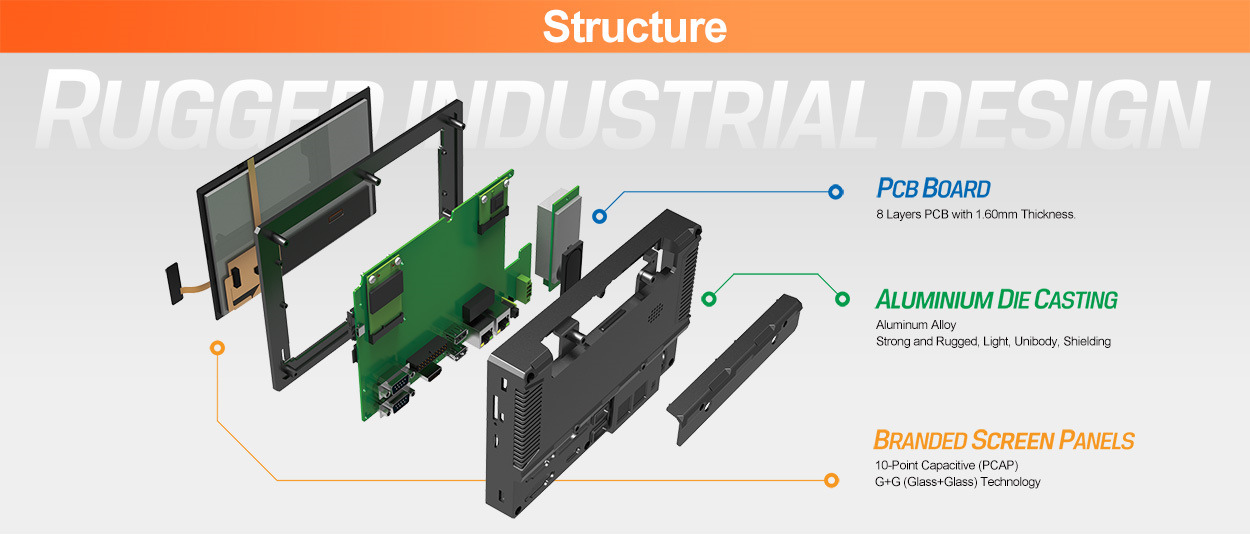

                                                                                             勾 Capacitive touch screen with G+G tech

                                                                                             勾 Rich & high-performance interface

    3
    4

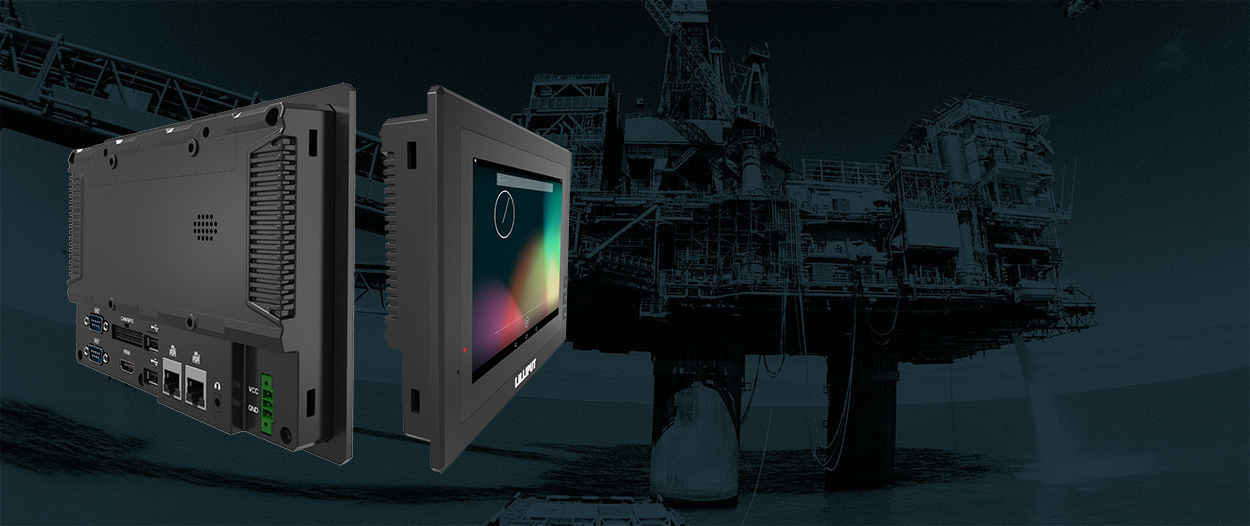

    PC-701 & PC-702 is a 7” smart and rugged industrial touch PC , integrates rich function like WIFI, 4G LTE, Bluetooth for wireless communication; HDMI Output, USB Host and LAN ports for various real-time transmission; Besides, it configured with standard professional interface: 2 RS232 & CAN/ GPIO ports for different industrial applications.

    PC-701-5
    6
    7

    It uses a NXP i.MX 6DualLite 800MHz processor,an architecture based on ARM Cortex A9 800MHz speed with a high-performance Dual core CPU, it's stable and reliable. The processor makes the multimedia performance more powerful, to meet various field applications.

    Open Platform

    SmartEmbedded system provides full-line R&D technical services including system structure design, PCB design, hardware design & software design, as well as system integration.

    Lower Consumption

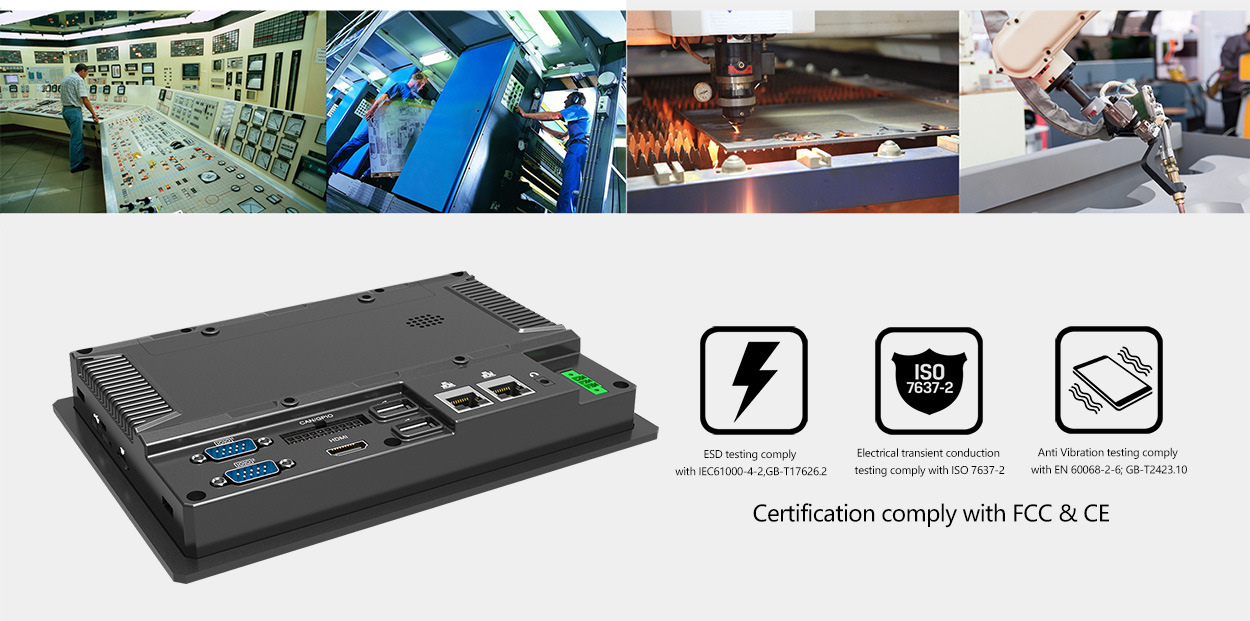

    Consumption even no more than 10W, is able to enhance productivity and cost effectiveness. With the lower temperature on its metal housing, it create a great distribution to industrial safe.

    8
    9
    10

  • Previous:
  • Next:

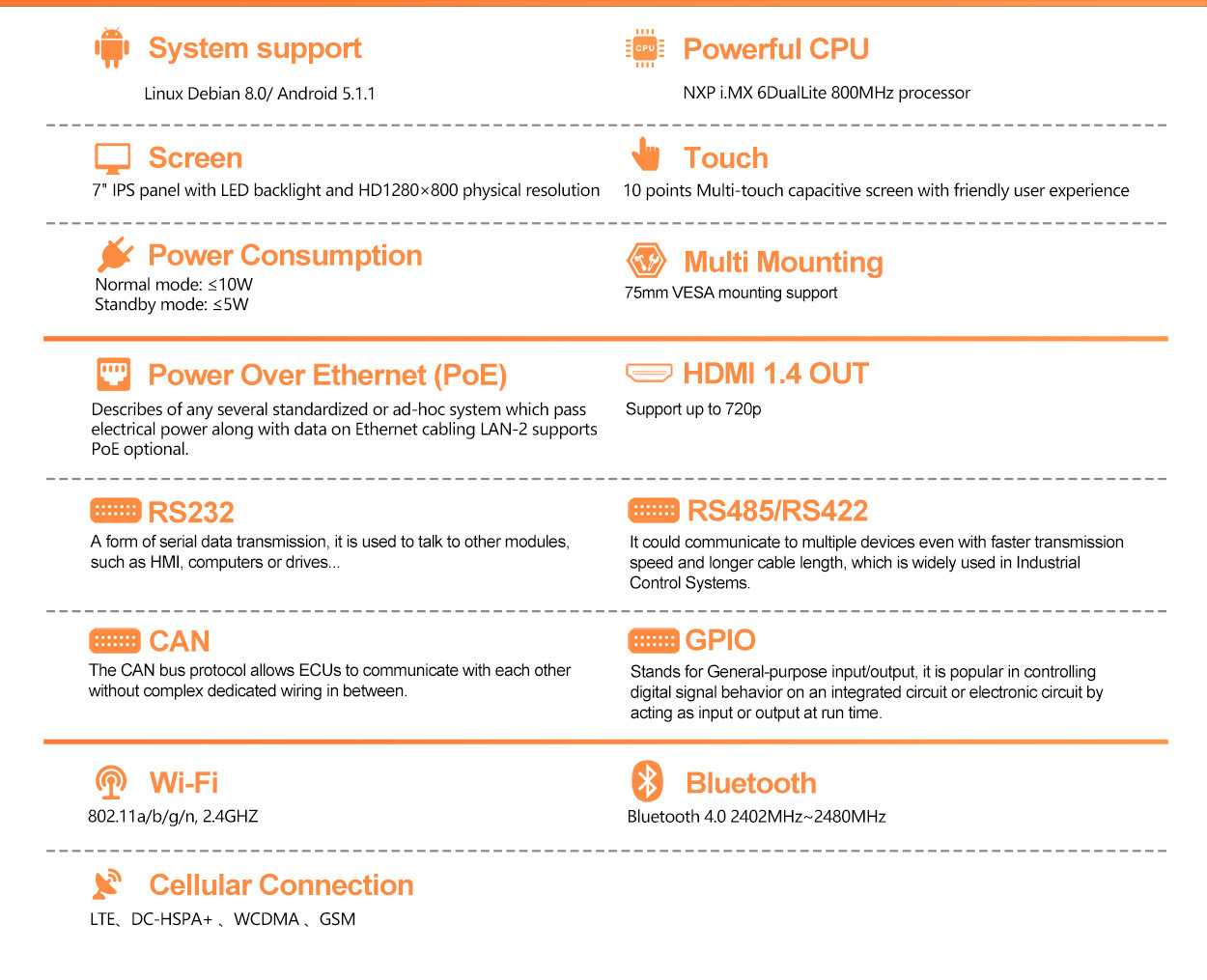

  • Display
    Model PC-701
    Touch Panel Capacitive
    Display 7″IPS
    Resolution 1280*800
    Aspect Ratio 16:10
    Brightness 400cd/m2
    Contrast 800:1
    Viewing Angle 178/178 (H/V)
    Power / Others
    Power Supply DC 10-36V
    Dimension 206x144x30.9mm
    Weight 745g
    System
    CPU Freescale I.MX 6DualLite 800MHz
    RAM 1G DDR3
    ROM 8G Flash
    GPU 3D Vivante GC880 35Mtri/s 266Mpxl/s Open GL ES2.0
    OS Android/Linux Debian/WinCE

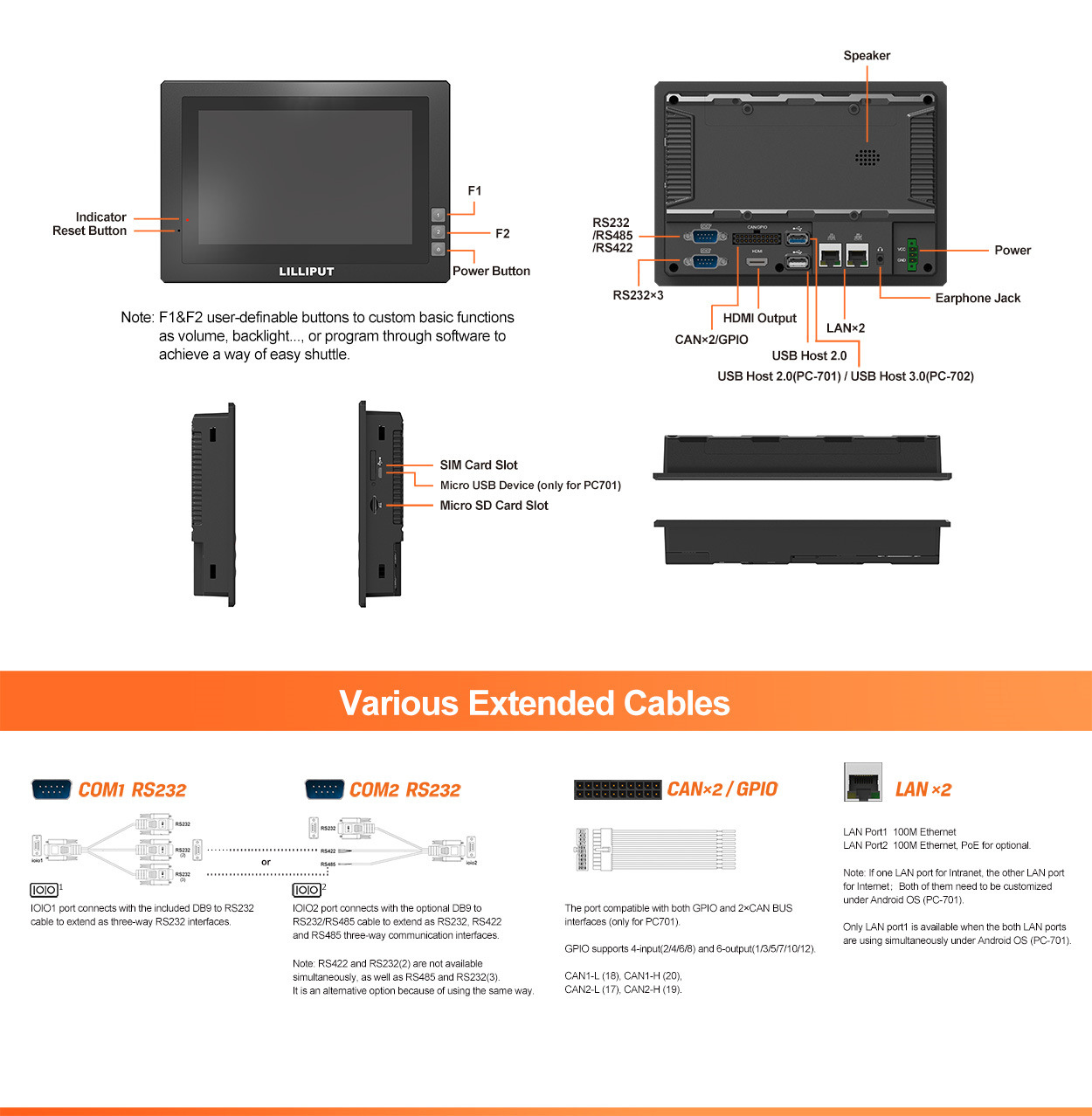

    Interface
    SIM SIM Slot
    HDMI HDMI output
    TF Micro SD Card Slot
    USB USB Device 2.0,USB host 2.0×2
    Ear Jack Earphone Jack
    DC Power DC Power Input
    RS232 x4
    RS422 Optional
    RS485 Optional
    LAN 1000M & 100M Ethernet
    GPIO Input x 4 ,output x 6
    Functions
    CAN Standard
    3G/4G Optional
    WIFI Optional
    Bluetooth Optional
    GPS Optional
    ACC Optional
    POE Optional

    12
